Verilog coding
1.
VERILOG CODING Mealy
and Moore Machines -PREM RANJAN 14ESP003 1
2.
MEALY MACHINE 2
3.
module state(x, clk,
state, z); // Mealy FSM input x, clk; output z; output [1:0] state; reg z; reg [1:0] state; parameter S0=2’b00, S1=2’b01; initial begin state=S0; z=0; end 3
4.
always @(negedge clk)
// Next-State case(state) S0: if (x==0) state=S1; else if (x==1) state=S0; S1: if (x==0) state=S1; else if (x==1) state=S0; endcase always@(state or x) // Output case(state) S0: if (x==0) z=0; else if (x==1) z=0; S1: if (x==0) z=0; else if (x==1) z=1; endcase endmodule 4
5.
MOORE MACHINE 5
6.
module state(x, clk,
state, z); // Moore FSM input x, clk; output z; output [1:0] state; reg z; reg [1:0] state; parameter S0=2’b00, S1=2’b01, S2=2’b10; initial begin state=S0; z=0; end 6
7.

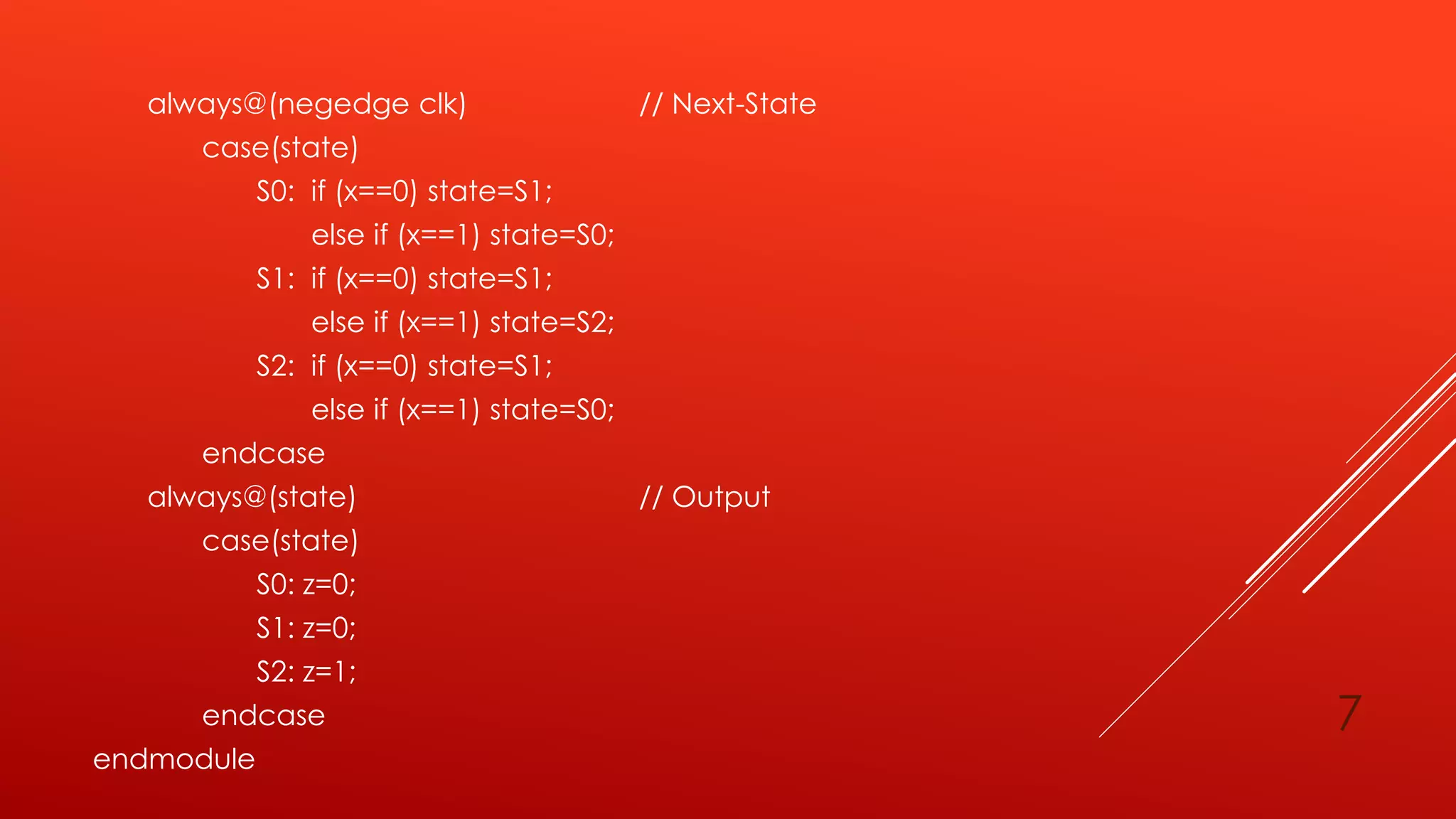

always@(negedge clk) //
Next-State case(state) S0: if (x==0) state=S1; else if (x==1) state=S0; S1: if (x==0) state=S1; else if (x==1) state=S2; S2: if (x==0) state=S1; else if (x==1) state=S0; endcase always@(state) // Output case(state) S0: z=0; S1: z=0; S2: z=1; endcase endmodule 7
8.
8
9.
9
