1. UV-C Sanitizers
Max Tseng
May 18, 2020
PUVB02, PUVPB01, PUVL38W01, U66,
U80

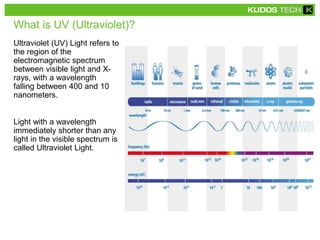

2. What is UV (Ultraviolet)?
Ultraviolet (UV) Light refers to
the region of the
electromagnetic spectrum
between visible light and X-
rays, with a wavelength
falling between 400 and 10
nanometers.
Light with a wavelength
immediately shorter than any
light in the visible spectrum is
called Ultraviolet Light.

3. Types of UV Light?
UV light into several different subtypes:
• UV-A light (320-400nm) is UV light with the longest wavelength, more commonly known as
"black light“. Many use its ability to cause objects to emit fluorescence.
• UV-B light (290-320nm) causes sunburns with prolonged exposure along with increasing
the risk of skin cancer and other cellular damage. About 95% of all UV-B light is absorbed
by the ozone in Earth's atmosphere.
• UV-C light (100-290nm) is extremely harmful and is almost completely absorbed by
Earth's atmosphere. It is commonly used as a disinfectant in food, air and water to kill
microorganisms by destroying their cells' nucleic acids.
UV
C
UV
B
UV
A
• Has largest effect on the top
layer of skin
• Causes redness/ burning/ skin
cancer
• The longest wavelength
• Reaches deep into the layers of skin, causing
aging/ wrinkling

4. How does UV-C can kill Viruses and Germs?
UV-C radiation used for disinfection is most effective at
a wavelength of 254 nm

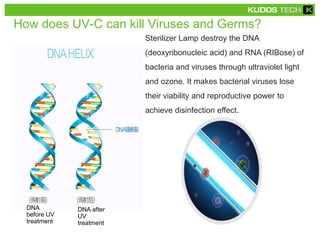

5. How does UV-C can kill Viruses and Germs?
Sterilizer Lamp destroy the DNA
(deoxyribonucleic acid) and RNA (RIBose) of
bacteria and viruses through ultraviolet light
and ozone. It makes bacterial viruses lose
their viability and reproductive power to
achieve disinfection effect.
DNA
before UV
treatment
DNA after
UV
treatment

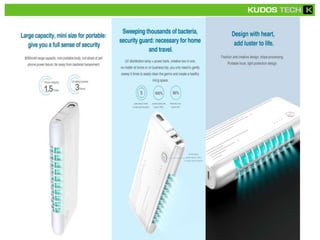

6. UV disinfection Power Bank
– PUVPB01

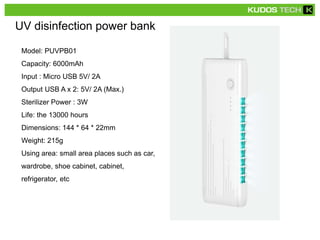

7. UV disinfection power bank
Model: PUVPB01
Capacity: 6000mAh
Input : Micro USB 5V/ 2A
Output USB A x 2: 5V/ 2A (Max.)
Sterilizer Power : 3W
Life: the 13000 hours
Dimensions: 144 * 64 * 22mm
Weight: 215g
Using area: small area places such as car,
wardrobe, shoe cabinet, cabinet,
refrigerator, etc

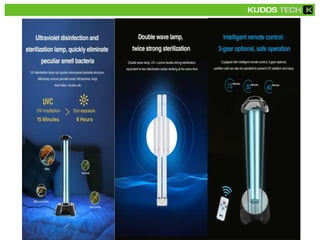

11. – PUVL38W01

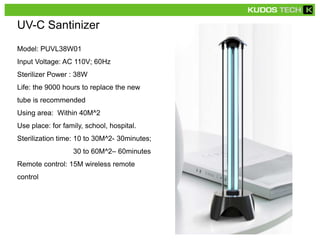

12. UV-C Santinizer
Model: PUVL38W01
Input Voltage: AC 110V; 60Hz
Sterilizer Power : 38W
Life: the 9000 hours to replace the new
tube is recommended
Using area: Within 40M^2
Use place: for family, school, hospital.
Sterilization time: 10 to 30M^2- 30minutes;
30 to 60M^2– 60minutes
Remote control: 15M wireless remote
control

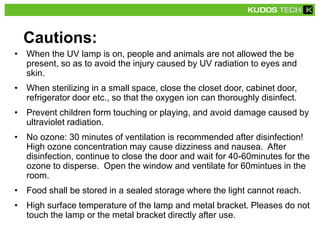

15. Cautions:
• When the UV lamp is on, people and animals are not allowed the be
present, so as to avoid the injury caused by UV radiation to eyes and
skin.
• When sterilizing in a small space, close the closet door, cabinet door,
refrigerator door etc., so that the oxygen ion can thoroughly disinfect.
• Prevent children form touching or playing, and avoid damage caused by
ultraviolet radiation.
• No ozone: 30 minutes of ventilation is recommended after disinfection!
High ozone concentration may cause dizziness and nausea. After
disinfection, continue to close the door and wait for 40-60minutes for the
ozone to disperse. Open the window and ventilate for 60mintues in the
room.
• Food shall be stored in a sealed storage where the light cannot reach.
• High surface temperature of the lamp and metal bracket. Pleases do not
touch the lamp or the metal bracket directly after use.

16. – PUVB02

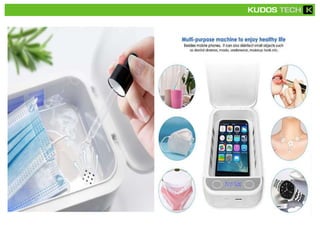

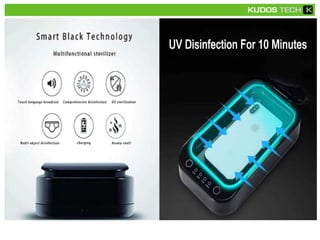

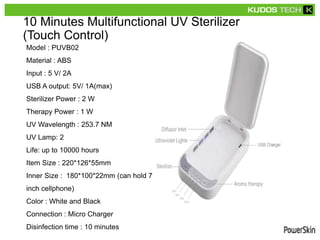

19. 10 Minutes Multifunctional UV Sterilizer
(Touch Control)
Model : PUVB02
Material : ABS
Input : 5 V/ 2A
USB A output: 5V/ 1A(max)
Sterilizer Power : 2 W
Therapy Power : 1 W
UV Wavelength : 253.7 NM
UV Lamp: 2
Life: up to 10000 hours
Item Size : 220*126*55mm
Inner Size : 180*100*22mm (can hold 7
inch cellphone)
Color : White and Black
Connection : Micro Charger
Disinfection time : 10 minutes

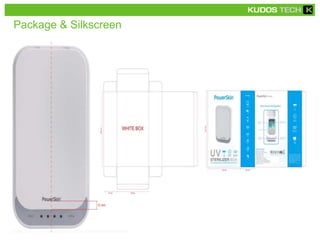

21. Package & Silkscreen

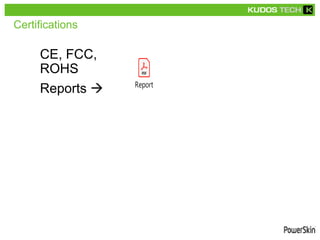

22. Certifications
CE, FCC,
ROHS
Reports  Report

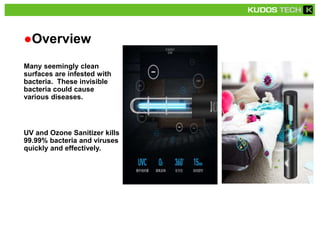

23. ●Overview
Many seemingly clean
surfaces are infested with
bacteria. These invisible
bacteria could cause
various diseases.
UV and Ozone Sanitizer kills
99.99% bacteria and viruses
quickly and effectively.

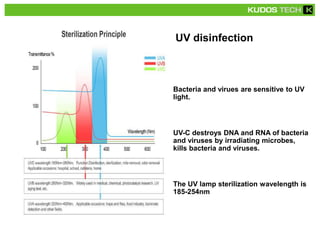

24. Bacteria and virues are sensitive to UV
light.
UV-C destroys DNA and RNA of bacteria
and viruses by irradiating microbes,
kills bacteria and viruses.
The UV lamp sterilization wavelength is
185-254nm
UV disinfection

25. ●Kill almost all bacteria, viruses, mold, parasite and sacs
●Efficient, spread evenly without no blind spot
●Clean, no harmful residue
●Convenience
●Economic
●Environmental
Ozone disinfection

26. ● How it works
Emit uv light by the activation of
lower pressure mercury vapor (<
10-2Pa)
Ozone is formed by the
decomposition of specific
ultraviolet wavelengths
UV and ozone destroy and break
down the cell wall of bacteria,
sterilize quickly, safely and
effectively.

27. ●Applications
Ultraviolet ozone
sterilization is
widely used in
• hospitals
• schools and
• food processing.

28. ●Applications
Suitable for
car,
refrigerator,
shoe
cabinet,
rest room,
kitchen,
bedroom

29. ●Model U60

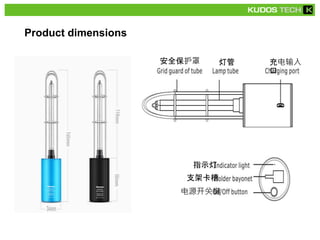

30. Product dimensions
安全保护罩 灯管 充电输入
口
指示灯
支架卡槽
电源开关键

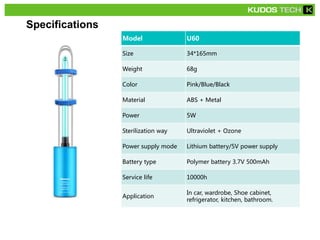

31. Specifications
Model U60
Size 34*165mm
Weight 68g
Color Pink/Blue/Black
Material ABS + Metal
Power 5W
Sterilization way Ultraviolet + Ozone
Power supply mode Lithium battery/5V power supply
Battery type Polymer battery 3.7V 500mAh
Service life 10000h
Application
In car, wardrobe, Shoe cabinet,
refrigerator, kitchen, bathroom.

32. Selling points
• UV and ozone dual
sterilization
• no disinfection
blind spot.

33. Selling points
● Fast sterilization
•Disinfection in 15 minutes
effectively for 5㎡ space,
•sterilization and
•odor removal all done. This
portable UV germicidal lamp
brings fresh and natural air.

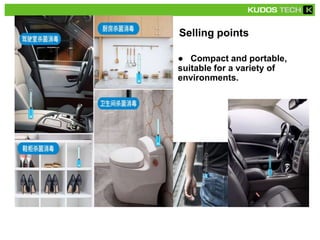

34. Selling points
● Compact and portable,
suitable for a variety of
environments.

35. Selling points
● Eliminate cabinet odors,
rest room odors, musty
smells, increase negative
oxygen ions, ozone
disinfection room air as fresh
as in a forest morning.

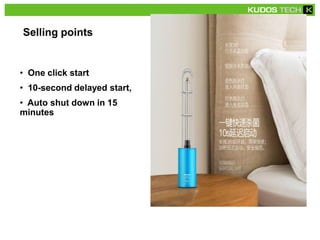

36. Selling points
• One click start
• 10-second delayed start,
• Auto shut down in 15
minutes

37. Selling points
● Dual Power Source
•5V USB DC in.
•Built-in 500mAh
rechargeable polymer lithium
battery.

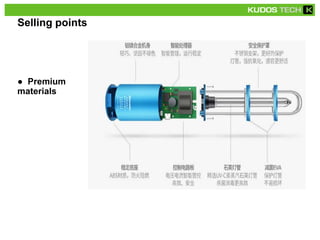

38. ● Premium
materials
Selling points

39. Selling points
● Lab proved
kill various of
bacteria and
viruses effectively.

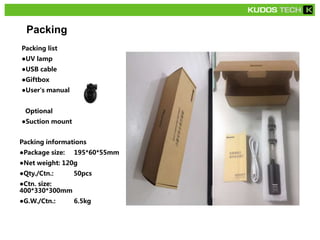

40. Packing
Packing list
●UV lamp
●USB cable
●Giftbox
●User's manual
Optional
●Suction mount
Packing informations
●Package size: 195*60*55mm
●Net weight: 120g
●Qty./Ctn.: 50pcs
●Ctn. size:
400*330*300mm
●G.W./Ctn.: 6.5kg

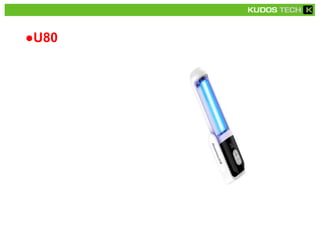

41. ●U80

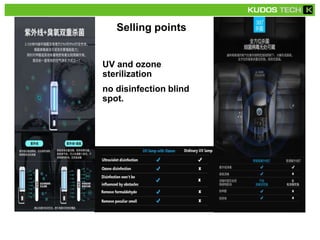

42. Selling points
UV and ozone
sterilization
no disinfection blind
spot.

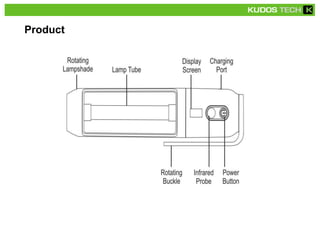

43. Product

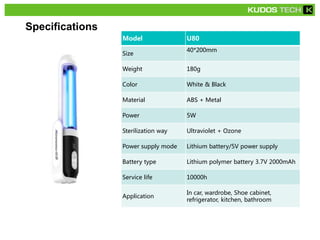

44. Specifications
Model U80
Size
40*200mm
Weight 180g
Color White & Black
Material ABS + Metal
Power 5W
Sterilization way Ultraviolet + Ozone
Power supply mode Lithium battery/5V power supply
Battery type Lithium polymer battery 3.7V 2000mAh
Service life 10000h
Application
In car, wardrobe, Shoe cabinet,
refrigerator, kitchen, bathroom

45. Thanks
