Utilizing SVN Jenkins to Manage Multi-line Development to Deployments
- 1. Andrew Brandt, JeromeRuss & Teresa Garcia-Bovenmyer Consultant, IT App Development | Specialist, IT App Development | Sr. Developer, IT Applications branda3@nationwide.com | russj3@nationwide.com | garcit1@nationwide.com @BrandtTech | @RussJdr | @Tgarciab Utilizing SVN & Jenkins to Manage Multi-line Development to Deployments

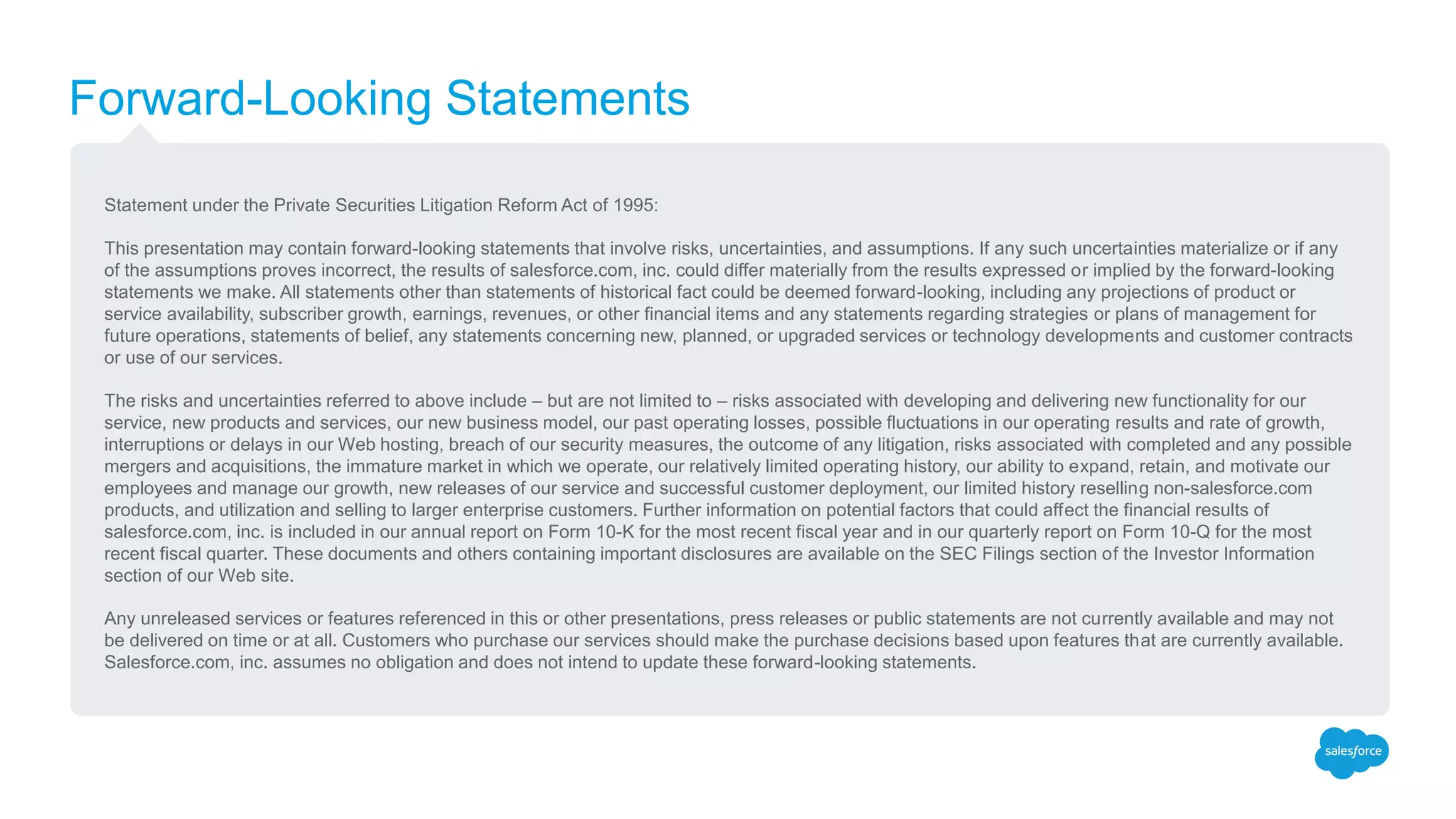

- 2. Forward-Looking Statements Statement underthe Private Securities Litigation Reform Act of 1995: This presentation may contain forward-looking statements that involve risks, uncertainties, and assumptions. If any such uncertainties materialize or if any of the assumptions proves incorrect, the results of salesforce.com, inc. could differ materially from the results expressed or implied by the forward-looking statements we make. All statements other than statements of historical fact could be deemed forward-looking, including any projections of product or service availability, subscriber growth, earnings, revenues, or other financial items and any statements regarding strategies or plans of management for future operations, statements of belief, any statements concerning new, planned, or upgraded services or technology developments and customer contracts or use of our services. The risks and uncertainties referred to above include – but are not limited to – risks associated with developing and delivering new functionality for our service, new products and services, our new business model, our past operating losses, possible fluctuations in our operating results and rate of growth, interruptions or delays in our Web hosting, breach of our security measures, the outcome of any litigation, risks associated with completed and any possible mergers and acquisitions, the immature market in which we operate, our relatively limited operating history, our ability to expand, retain, and motivate our employees and manage our growth, new releases of our service and successful customer deployment, our limited history reselling non-salesforce.com products, and utilization and selling to larger enterprise customers. Further information on potential factors that could affect the financial results of salesforce.com, inc. is included in our annual report on Form 10-K for the most recent fiscal year and in our quarterly report on Form 10-Q for the most recent fiscal quarter. These documents and others containing important disclosures are available on the SEC Filings section of the Investor Information section of our Web site. Any unreleased services or features referenced in this or other presentations, press releases or public statements are not currently available and may not be delivered on time or at all. Customers who purchase our services should make the purchase decisions based upon features that are currently available. Salesforce.com, inc. assumes no obligation and does not intend to update these forward-looking statements.
- 3. Nationwide P&C Agile Team/ProjectStructures Andrew Brandt

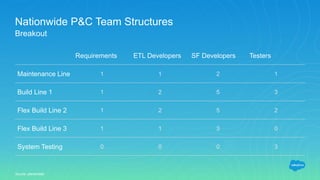

- 4. Nationwide P&C TeamStructures Requirements ETL Developers SF Developers Testers Maintenance Line 1 1 2 1 Build Line 1 1 2 5 3 Flex Build Line 2 1 2 5 2 Flex Build Line 3 1 1 3 0 System Testing 0 0 0 3 Breakout Source: placeholder
- 5. 2013 Exclusive Agents Goal Planning ProductionTracking Separated Data Dedicated Sales Read-Only Org Security Underwriting Focus Policy/Quote Tracking Cross-brand capabilities Policyholder centric Cross-org Security Independent Insurance Stackable with Allied Account separation Separated Sources Open Org Security 2014 Fall 2015 Winter 2015 Independent Insurance Automated Contracting Goal Planning Production Tracking Dedicated Sales Open Org Security Salesforce Evolution – Nationwide Property & Casualty

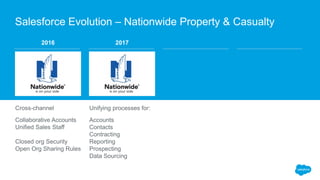

- 6. 2016 Unifying processes for: Accounts Contacts Contracting Reporting Prospecting DataSourcing 2017 Cross-channel Collaborative Accounts Unified Sales Staff Closed org Security Open Org Sharing Rules Salesforce Evolution – Nationwide Property & Casualty
- 7. Nationwide P&C SVN BranchingStrategy Andrew Brandt

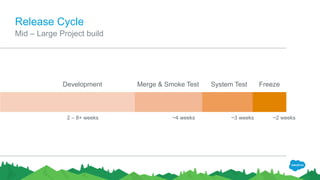

- 8. Release Cycle Mid –Large Project build Development Merge & Smoke Test System Test Freeze 2 – 8+ weeks ~4 weeks ~3 weeks ~2 weeks

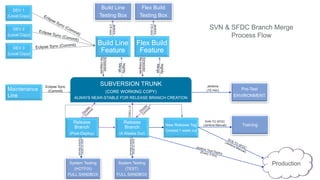

- 9. DEV 1 (Local Copy) DEV2 (Local Copy) DEV 3 (Local Copy) Build Line Testing Box Flex Build Testing Box Btest Box Build Line Feature Flex Build Feature SUBVERSION TRUNK (CORE WORKING COPY) ALWAYS NEAR-STABLE FOR RELEASE BRANCH CREATION Release Branch (Post-Deploy) Release Branch (4 Weeks Out) New Release Tag Created 1 week out Maintenance Line Pre-Test ENVIRONMENT Training System Testing (HOTFIX) FULL SANDBOX System Testing (TEST) FULL SANDBOX Production Jenkins (15 min) Eclipse Sync (Commit) Jenkins (15min) Jenkins (15min) Nightly Merge Nightly Merge Scheduled Re-Integrate Scheduled Re-Integrate SVN TO SFDC (Jenkins Manual) STFIXES SVNTOSFDC (JenkinsManual) SVNTOSFDC (JenkinsManual) SVN & SFDC Branch Merge Process Flow
- 10.

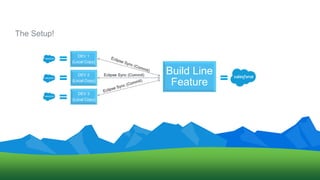

- 11. The Setup! DEV 1 (LocalCopy) DEV 2 (Local Copy) DEV 3 (Local Copy) Build Line Feature Eclipse Sync (Commit)

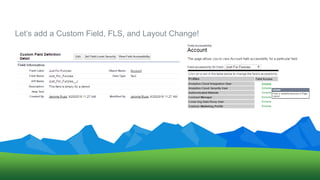

- 12. Let’s add aCustom Field, FLS, and Layout Change!

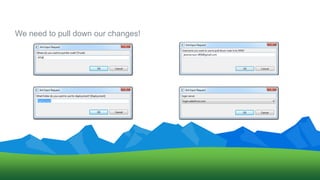

- 13. We need topull down our changes!

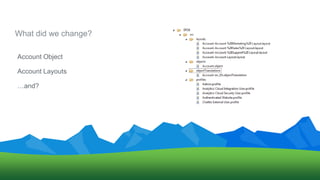

- 14. What did wechange? Account Object Account Layouts …and?
- 15. Remember our goal! DEV1 (Local Copy) DEV 2 (Local Copy) DEV 3 (Local Copy) Build Line Feature Eclipse Sync (Commit)

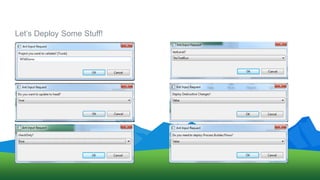

- 16. Let’s Deploy SomeStuff!
- 17.

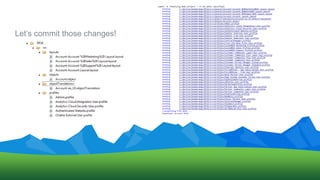

- 18. Let’s commit thosechanges!
- 19.

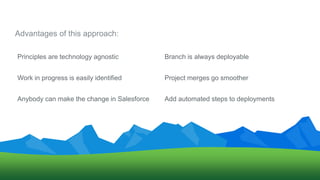

- 20. Advantages of thisapproach: Anybody can make the change in Salesforce Work in progress is easily identified Project merges go smoother Branch is always deployablePrinciples are technology agnostic Add automated steps to deployments
- 21. Code Merge Processes TeresaGarcia-Bovenmyer

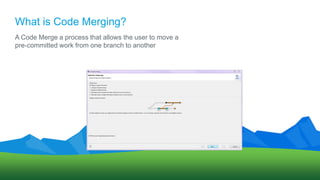

- 22. What is CodeMerging? A Code Merge a process that allows the user to move a pre-committed work from one branch to another

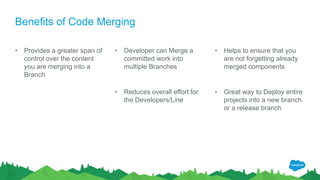

- 23. Benefits of CodeMerging • Provides a greater span of control over the content you are merging into a Branch • Developer can Merge a committed work into multiple Branches • Reduces overall effort for the Developers/Line • Helps to ensure that you are not forgetting already merged components • Great way to Deploy entire projects into a new branch or a release branch

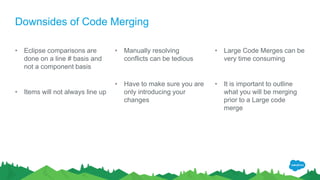

- 24. Downsides of CodeMerging • Eclipse comparisons are done on a line # basis and not a component basis • Items will not always line up • Manually resolving conflicts can be tedious • Have to make sure you are only introducing your changes • Large Code Merges can be very time consuming • It is important to outline what you will be merging prior to a Large code merge
- 25.
- 26.

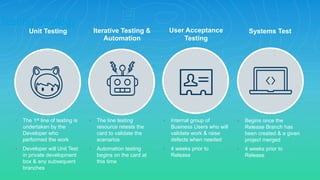

- 27. Unit Testing • Theline testing resource retests the card to validate the scenarios • Automation testing begins on the card at this time • Internal group of Business Users who will validate work & raise defects when needed • 4 weeks prior to Release • Begins once the Release Branch has been created & a given project merged • 4 weeks prior to Release Iterative Testing & Automation User Acceptance Testing Systems Test • The 1st line of testing is undertaken by the Developer who performed the work • Developer will Unit Test in private development box & any subsequent branches Testing Strategy

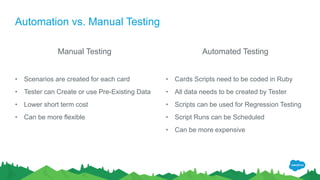

- 28. Automation vs. ManualTesting Manual Testing • Scenarios are created for each card • Tester can Create or use Pre-Existing Data • Lower short term cost • Can be more flexible Automated Testing • Cards Scripts need to be coded in Ruby • All data needs to be created by Tester • Scripts can be used for Regression Testing • Script Runs can be Scheduled • Can be more expensive

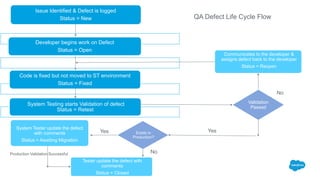

- 29. Issue Identified &Defect is logged Status = New Developer begins work on Defect Status = Open Code is fixed but not moved to ST environment Status = Fixed System Testing starts Validation of defect Status = Retest Validation Passed Exists in Production? System Tester update the defect with comments Status = Awaiting Migration Communicates to the developer & assigns defect back to the developer Status = Reopen Tester update the defect with comments Status = Closed No Yes No Yes Production Validation Successful QA Defect Life Cycle Flow
- 30.

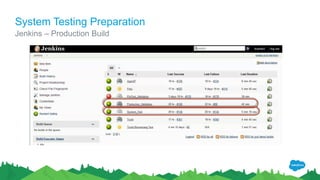

- 31. System Testing Preparation Jenkins– Production Build

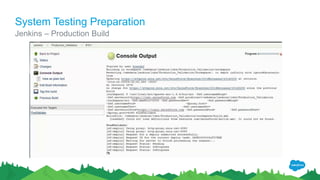

- 32. System Testing Preparation Jenkins– Production Build

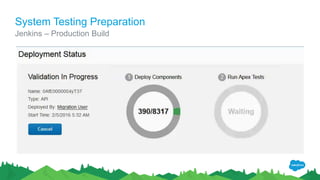

- 33. System Testing Preparation Jenkins– Production Build
- 34.

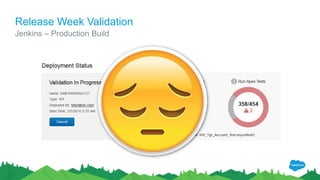

- 35. Release Week Validation Jenkins– Production Build
- 36. Release Week Validation Jenkins– Production Build
- 37.

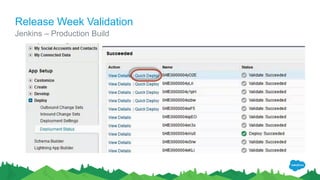

- 38. Release Week Validation Jenkins– Production Build
- 39.

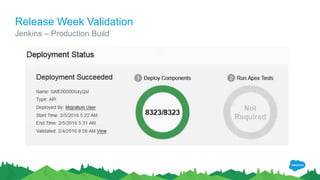

- 40. Release Week Validation Jenkins– Production Build
- 41.
