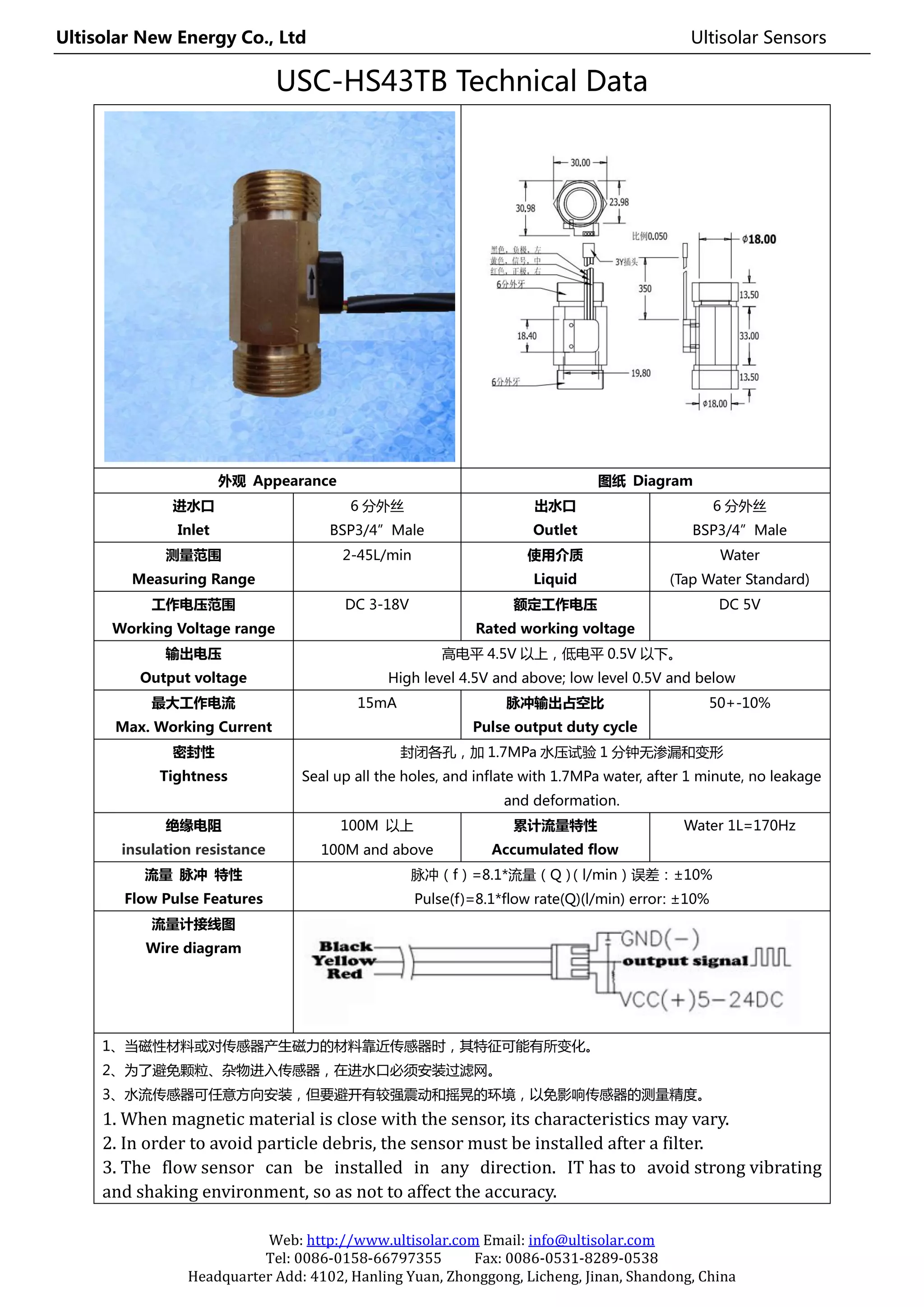

This document provides technical specifications for the Ultisolar USC-HS43TB water flow sensor. The sensor measures water flow rates between 2-45L/min, outputs a pulse signal proportional to flow rate, and is powered by a DC voltage between 3-18V. It has BSP3/4" male inlet and outlet ports, an insulation resistance over 100M, and can be installed in any direction as long as it avoids strong vibrations.
