Entity Relation Ship model
UNIT 1_CHAPTER 7
5TH Sem Professional Core Elective-I
Course Code: 21EC55B4

2. Entity Relational Model: Relational Model
Concepts, Relational Model Constraints and
Relational Database Schemas. Entity types,
sets, Relationship, attributes. Case Study
discussions for ER Diagrams. Introduction to
Mongo DB.
PNJ_ECE 2

3. Example COMPANY Database
• Requirements of the Company (oversimplified for
illustrative purposes)
– The company is organized into DEPARTMENTs. Each
department has a name, number and an employee who
manages the department. We keep track of the start
date of the department manager.
– Each department controls a number of PROJECTs. Each
project has a name, number and is located at a single
location.
PNJ_ECE Chapter 3-3

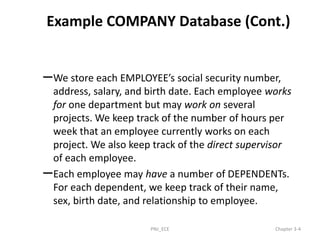

4. Example COMPANY Database (Cont.)
–We store each EMPLOYEE’s social security number,
address, salary, and birth date. Each employee works
for one department but may work on several
projects. We keep track of the number of hours per
week that an employee currently works on each
project. We also keep track of the direct supervisor
of each employee.
–Each employee may have a number of DEPENDENTs.
For each dependent, we keep track of their name,
sex, birth date, and relationship to employee.
PNJ_ECE Chapter 3-4

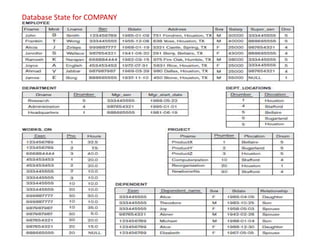

5. Database State for COMPANY

6. Entity Relationship Model
Concepts
PNJ_ECE 6

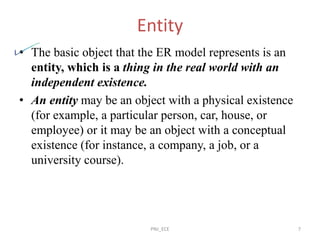

7. Entity
• The basic object that the ER model represents is an
entity, which is a thing in the real world with an
independent existence.
• An entity may be an object with a physical existence
(for example, a particular person, car, house, or
employee) or it may be an object with a conceptual
existence (for instance, a company, a job, or a
university course).
PNJ_ECE 7

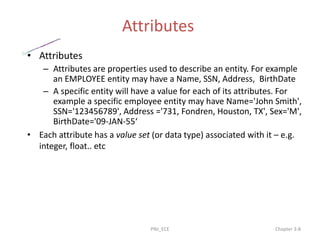

8. Attributes
• Attributes
– Attributes are properties used to describe an entity. For example
an EMPLOYEE entity may have a Name, SSN, Address, BirthDate
– A specific entity will have a value for each of its attributes. For
example a specific employee entity may have Name='John Smith',
SSN='123456789', Address ='731, Fondren, Houston, TX', Sex='M',
BirthDate='09-JAN-55‘
• Each attribute has a value set (or data type) associated with it – e.g.
integer, float.. etc
PNJ_ECE Chapter 3-8

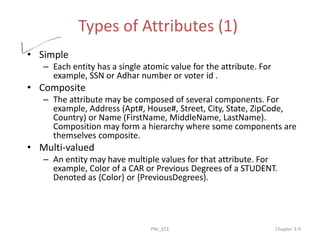

9. Types of Attributes (1)
• Simple
– Each entity has a single atomic value for the attribute. For
example, SSN or Adhar number or voter id .
• Composite
– The attribute may be composed of several components. For
example, Address (Apt#, House#, Street, City, State, ZipCode,
Country) or Name (FirstName, MiddleName, LastName).
Composition may form a hierarchy where some components are
themselves composite.
• Multi-valued
– An entity may have multiple values for that attribute. For
example, Color of a CAR or Previous Degrees of a STUDENT.
Denoted as {Color} or {PreviousDegrees}.
PNJ_ECE Chapter 3-9

10. Types of Attributes (2)
• Complex Attributes
– In general, composite and multi-valued attributes may be nested
arbitrarily to any number of levels although this is rare. For example,
Previous Degrees of a STUDENT is a composite multi-valued attribute
denoted by {Previous Degrees (College, Year, Degree, Field)}.
• Null Values
– A particular entity may not have an applicable value for an attribute.
• Eg: Apartment number, college degree
– Null can also be used if we do not know
• Home phone number
– Two types of null 1) not known--- DOB
2) missing --- height of a person
PNJ_ECE Chapter 3-10

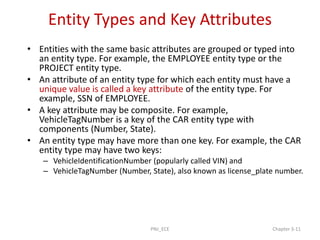

11. Entity Types and Key Attributes
• Entities with the same basic attributes are grouped or typed into
an entity type. For example, the EMPLOYEE entity type or the
PROJECT entity type.
• An attribute of an entity type for which each entity must have a
unique value is called a key attribute of the entity type. For
example, SSN of EMPLOYEE.
• A key attribute may be composite. For example,
VehicleTagNumber is a key of the CAR entity type with
components (Number, State).
• An entity type may have more than one key. For example, the CAR
entity type may have two keys:
– VehicleIdentificationNumber (popularly called VIN) and
– VehicleTagNumber (Number, State), also known as license_plate number.
PNJ_ECE Chapter 3-11

12. weak entity
• Entity types that do not have key attributes of their own are called
weak entity types.
• Entities belonging to a weak entity type are identified by being
related to specific entities from another entity type in combination
with one of their attribute values.
• We call this other entity type the identifying or owner entity type
and we call the relationship type that relates a weak entity type to
its owner the identifying relationship of the weak entity type.
• Suppose that a DEPENDENT entity is identified by the dependent’s
first name and birth date, and the specific EMPLOYEE that the
dependent is related to.
• DEPENDENT is a weak entity type with EMPLOYEE as its identifying
entity type via the identifying relationship type DEPENDENT_OF
PNJ_ECE 12

13. Relationship Types ,Sets, Roles
• Whenever an attribute of one entity refers to
another entity type, some relationship exists.
Eg. The attribute Manager of DEPARTMENT
refers to an EMPLOYEE who manages the
department.
• As the design is refined , the attributes get
converted into relationships between entity
types.
• A relationship type among many entity types,
defines a set of relationship set.
PNJ_ECE Chapter 3-13

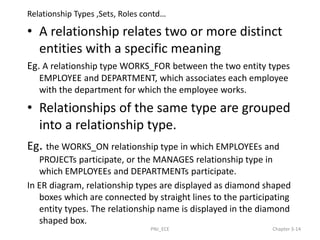

14. Relationship Types ,Sets, Roles contd…
• A relationship relates two or more distinct
entities with a specific meaning
Eg. A relationship type WORKS_FOR between the two entity types
EMPLOYEE and DEPARTMENT, which associates each employee
with the department for which the employee works.
• Relationships of the same type are grouped
into a relationship type.
Eg. the WORKS_ON relationship type in which EMPLOYEEs and
PROJECTs participate, or the MANAGES relationship type in
which EMPLOYEEs and DEPARTMENTs participate.
In ER diagram, relationship types are displayed as diamond shaped
boxes which are connected by straight lines to the participating
entity types. The relationship name is displayed in the diamond
shaped box.
PNJ_ECE Chapter 3-14

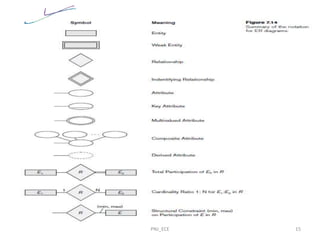

15. PNJ_ECE 15

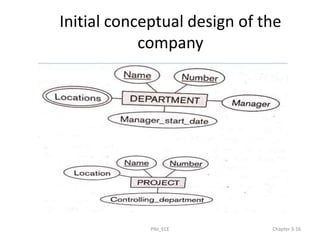

16. Initial conceptual design of the
company
PNJ_ECE Chapter 3-16

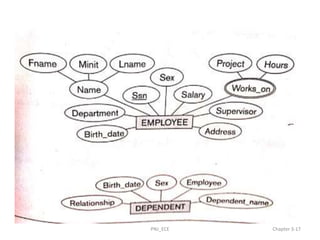

17. PNJ_ECE Chapter 3-17

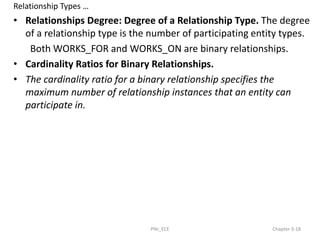

18. Relationship Types …
• Relationships Degree: Degree of a Relationship Type. The degree
of a relationship type is the number of participating entity types.
Both WORKS_FOR and WORKS_ON are binary relationships.
• Cardinality Ratios for Binary Relationships.
• The cardinality ratio for a binary relationship specifies the
maximum number of relationship instances that an entity can
participate in.
PNJ_ECE Chapter 3-18

19. Example relationship instances of the WORKS_FOR
relationship between EMPLOYEE and DEPARTMENT
PNJ_ECE 19

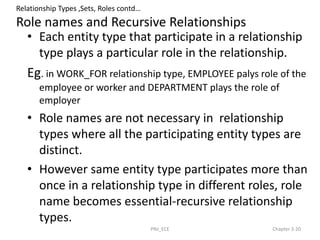

20. Relationship Types ,Sets, Roles contd…
Role names and Recursive Relationships
• Each entity type that participate in a relationship
type plays a particular role in the relationship.
Eg. in WORK_FOR relationship type, EMPLOYEE palys role of the
employee or worker and DEPARTMENT plays the role of
employer
• Role names are not necessary in relationship
types where all the participating entity types are
distinct.
• However same entity type participates more than
once in a relationship type in different roles, role
name becomes essential-recursive relationship
types.
PNJ_ECE Chapter 3-20

21. Relationships and Relationship Types (2)
• More than one relationship type can exist with the same
participating entity types. For example, MANAGES and
WORKS_FOR are distinct relationships between EMPLOYEE
and DEPARTMENT, but with different meanings and different
relationship instances.
PNJ_ECE Chapter 3-21

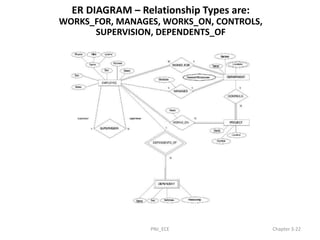

22. ER DIAGRAM – Relationship Types are:
WORKS_FOR, MANAGES, WORKS_ON, CONTROLS,
SUPERVISION, DEPENDENTS_OF
PNJ_ECE Chapter 3-22

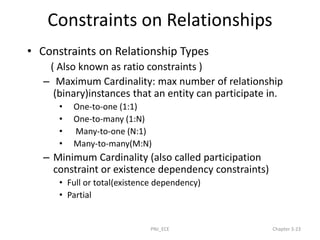

23. Constraints on Relationships
• Constraints on Relationship Types
( Also known as ratio constraints )
– Maximum Cardinality: max number of relationship
(binary)instances that an entity can participate in.
• One-to-one (1:1)
• One-to-many (1:N)
• Many-to-one (N:1)
• Many-to-many(M:N)
– Minimum Cardinality (also called participation
constraint or existence dependency constraints)
• Full or total(existence dependency)
• Partial
PNJ_ECE Chapter 3-23

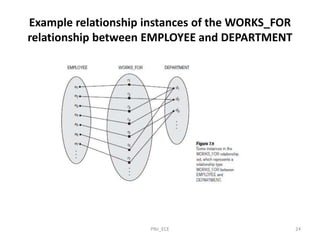

24. Example relationship instances of the WORKS_FOR
relationship between EMPLOYEE and DEPARTMENT
PNJ_ECE 24

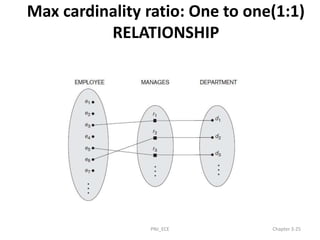

25. Max cardinality ratio: One to one(1:1)
RELATIONSHIP
PNJ_ECE Chapter 3-25

26. Many-to-many (M:N) RELATIONSHIP
PNJ_ECE Chapter 3-26
e1 
e2 
e3 
e4 
e5 
e6 
e7 
r1
r2
r3
r4
r5
r6
r7
 p1
 p2
 p3
r9

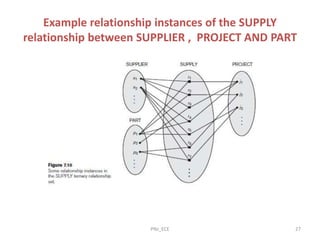

27. Example relationship instances of the SUPPLY
relationship between SUPPLIER , PROJECT AND PART
PNJ_ECE 27

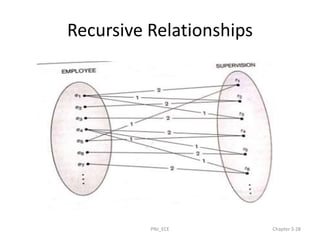

28. Recursive Relationships
PNJ_ECE Chapter 3-28

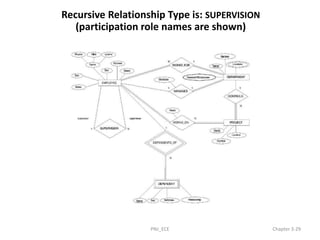

29. Recursive Relationship Type is: SUPERVISION
(participation role names are shown)
PNJ_ECE Chapter 3-29

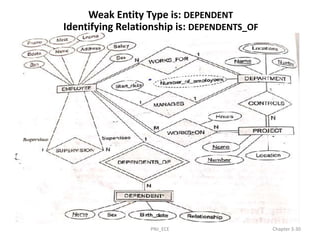

30. Weak Entity Type is: DEPENDENT
Identifying Relationship is: DEPENDENTS_OF
PNJ_ECE Chapter 3-30

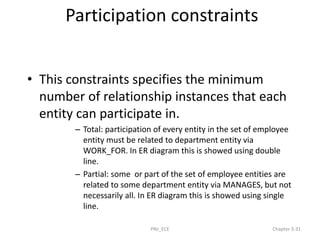

31. Participation constraints
• This constraints specifies the minimum
number of relationship instances that each
entity can participate in.
– Total: participation of every entity in the set of employee
entity must be related to department entity via
WORK_FOR. In ER diagram this is showed using double
line.
– Partial: some or part of the set of employee entities are
related to some department entity via MANAGES, but not
necessarily all. In ER diagram this is showed using single
line.
PNJ_ECE Chapter 3-31

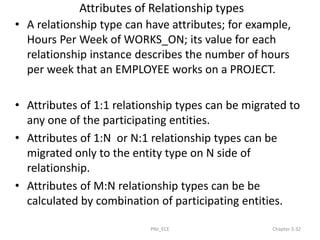

32. Attributes of Relationship types
• A relationship type can have attributes; for example,
Hours Per Week of WORKS_ON; its value for each
relationship instance describes the number of hours
per week that an EMPLOYEE works on a PROJECT.
• Attributes of 1:1 relationship types can be migrated to
any one of the participating entities.
• Attributes of 1:N or N:1 relationship types can be
migrated only to the entity type on N side of
relationship.
• Attributes of M:N relationship types can be be
calculated by combination of participating entities.
PNJ_ECE Chapter 3-32

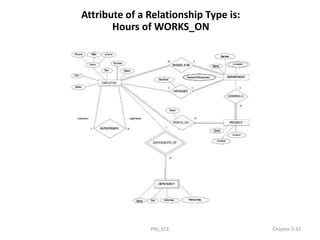

33. Attribute of a Relationship Type is:
Hours of WORKS_ON
PNJ_ECE Chapter 3-33

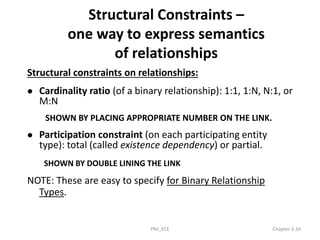

34. Structural Constraints –
one way to express semantics
of relationships
Structural constraints on relationships:
 Cardinality ratio (of a binary relationship): 1:1, 1:N, N:1, or
M:N
SHOWN BY PLACING APPROPRIATE NUMBER ON THE LINK.
 Participation constraint (on each participating entity
type): total (called existence dependency) or partial.
SHOWN BY DOUBLE LINING THE LINK
NOTE: These are easy to specify for Binary Relationship
Types.
PNJ_ECE Chapter 3-34

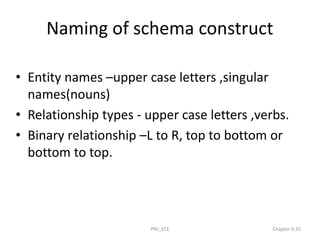

35. Naming of schema construct
• Entity names –upper case letters ,singular
names(nouns)
• Relationship types - upper case letters ,verbs.
• Binary relationship –L to R, top to bottom or
bottom to top.
PNJ_ECE Chapter 3-35

36. Alternative (min, max) notation for relationship structural
constraints:
 Involves associating a pair of integer numbers(min,max) with each
participating entity type E in a relationship type R
 specifies min=0 implies partial participation and min>0 implies total
participation
 Must have 0  minmax, min0 and max 1
 Specifies that each entity e in E participates in at least min and at most max
relationship instances in R at any point of time.
 Derived from the knowledge of mini-world constraints
PNJ_ECE Chapter 3-36

37. Examples:
 A department has exactly one manager and an employee can
manage at most one department.
– Specify (0,1) for participation of EMPLOYEE in MANAGES
– Specify (1,1) for participation of DEPARTMENT in MANAGES
 An employee can work for exactly one department but a
department can have any number of employees.
– Specify (1,1) for participation of EMPLOYEE in WORKS_FOR
– Specify (1,N) for participation of DEPARTMENT in WORKS_FOR
PNJ_ECE Chapter 3-37

38. PNJ_ECE Chapter 3-38
The (min,max) notation
relationship constraints
(1,1)
(0,1)
(1,N)
(1,1)

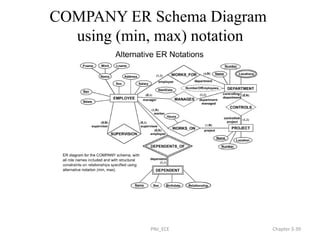

39. COMPANY ER Schema Diagram
using (min, max) notation
PNJ_ECE Chapter 3-39

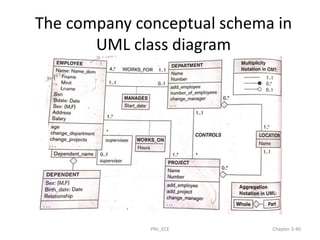

40. The company conceptual schema in
UML class diagram
PNJ_ECE Chapter 3-40

41. • Entity-class
• Relationship types-associations
• Relationship instances-links.
• Relationship attributes-link attributes
• Relationship constraints-multiplicities
PNJ_ECE Chapter 3-41

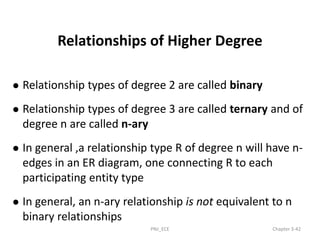

42. Relationships of Higher Degree
 Relationship types of degree 2 are called binary
 Relationship types of degree 3 are called ternary and of
degree n are called n-ary
 In general ,a relationship type R of degree n will have n-
edges in an ER diagram, one connecting R to each
participating entity type
 In general, an n-ary relationship is not equivalent to n
binary relationships
PNJ_ECE Chapter 3-42

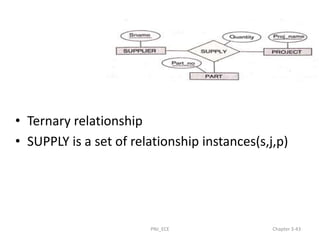

43. • Ternary relationship
• SUPPLY is a set of relationship instances(s,j,p)
PNJ_ECE Chapter 3-43

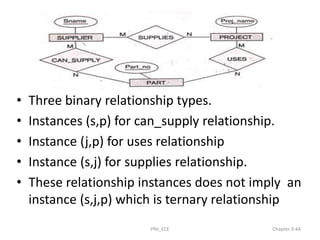

44. • Three binary relationship types.
• Instances (s,p) for can_supply relationship.
• Instance (j,p) for uses relationship
• Instance (s,j) for supplies relationship.
• These relationship instances does not imply an
instance (s,j,p) which is ternary relationship
PNJ_ECE Chapter 3-44

45. • Ternary relationship.
• Relationship instance(i,s,c).
• (i ,s,c) should not exist in OFFERS unless each binary
instances exist in its respective relationship type
• In general, three binary relationship cannot replace a
ternary relationship.
• Depending on cardinality ratio, The schema designer
must analyze.
PNJ_ECE Chapter 3-45

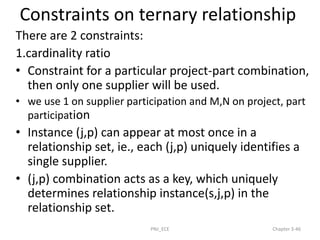

46. Constraints on ternary relationship
There are 2 constraints:
1.cardinality ratio
• Constraint for a particular project-part combination,
then only one supplier will be used.
• we use 1 on supplier participation and M,N on project, part
participation
• Instance (j,p) can appear at most once in a
relationship set, ie., each (j,p) uniquely identifies a
single supplier.
• (j,p) combination acts as a key, which uniquely
determines relationship instance(s,j,p) in the
relationship set.
PNJ_ECE Chapter 3-46

47. PNJ_ECE Chapter 3-47

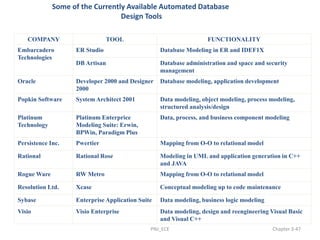

Some of the Currently Available Automated Database
Design Tools
COMPANY TOOL FUNCTIONALITY
Embarcadero
Technologies
ER Studio Database Modeling in ER and IDEF1X
DB Artisan Database administration and space and security
management
Oracle Developer 2000 and Designer
2000
Database modeling, application development
Popkin Software System Architect 2001 Data modeling, object modeling, process modeling,
structured analysis/design
Platinum
Technology
Platinum Enterprice
Modeling Suite: Erwin,
BPWin, Paradigm Plus
Data, process, and business component modeling
Persistence Inc. Pwertier Mapping from O-O to relational model
Rational Rational Rose Modeling in UML and application generation in C++
and JAVA
Rogue Ware RW Metro Mapping from O-O to relational model
Resolution Ltd. Xcase Conceptual modeling up to code maintenance
Sybase Enterprise Application Suite Data modeling, business logic modeling
Visio Visio Enterprise Data modeling, design and reengineering Visual Basic
and Visual C++
