This document provides specifications for isolator standoffs manufactured by The Young Engineers, Inc. It includes tables defining available materials, sizes, finishes, and other codes. Notes provide additional information on dimensioning practices, surface texture requirements, and recommendations for optional plating or lubricant coatings. The document also lists applicable material and process standards and patents covering the isolator standoff design.

1. 56958
CAGE CODE SERIES NUMBER
UNLESS OTHERWISE SPECIFIED
DIMENSIONS ARE IN INCHES
TOLERANCE ON
DECIMAL: ANGLE:
XX: .02 2°
XXX: .010
The YOUNG ENGINEERS, Inc.
engineering • manufacturing • aerospace fasteners
25841 COMMERCENTRE DRIVE
LAKE FOREST, CALIFORNIA 92630
The YOUNG ENGINEERS, Inc.
TYE70001 SERIES
ISOLATOR STANDOFF
APPROVALDATE09-08-08A09-27-13
US PATENT 8,393,601 B2
EUROPEAN PATENT 2 366 910 B1

2. 56958
CAGE CODE SERIES NUMBER
UNLESS OTHERWISE SPECIFIED
DIMENSIONS ARE IN INCHES
TOLERANCE ON
DECIMAL: ANGLE:
XX: .02 2°
XXX: .010
The YOUNG ENGINEERS, Inc.
engineering • manufacturing • aerospace fasteners
25841 COMMERCENTRE DRIVE
LAKE FOREST, CALIFORNIA 92630
The YOUNG ENGINEERS, Inc.
TYE70001 SERIES
ISOLATOR STANDOFF
APPROVALDATE09-08-08A09-27-13
TABLE I
C
_
AL ALLOY, GRADE 2024, TEMPER T4 OR T351
PER AMS-QQ-A-225/6
PASSIVATE PER AMS2700,
METHOD 1, CLASS 4
CAD PLATE PER AMS-QQ-P-416,
TYPE II, CLASS 2
MATERIALMATL
CODE
FINISH
ANODIZE PER MIL-A-8625,
TYPE II, CLASS 2 OR COAT PER
MIL-DTL-5541, CLASS 1A
CORROSION RESISTANT STEEL, TYPE 303
CRES PER ASTM A 582/A 582M
CARBON STEEL PER ASTM A 108, ASTM A 576,
OR MATERIAL COMPOSITION PER AIR4127
A
TABLE III
FLANGE
CODE
A
1.500
B
C
øA
1.250
1.000
.500
.750
D
E
04
06
08
3
4
SIZE
CODE
TABLE II
øF
CLEARANCE HOLE
.113-.119
.168-.174
.139-.145
.195-.201
.256-.263
SHEET 2 OF 2

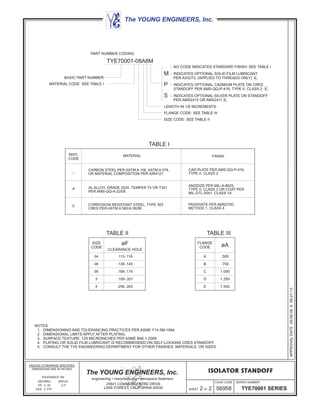

PART NUMBER CODING:
MATERIAL CODE: SEE TABLE I
TYE70001-08A8M
BASIC PART NUMBER
SIZE CODE: SEE TABLE II
LENGTH IN 1/8 INCREMENTS
- INDICATES OPTIONAL CADMIUM PLATE ON CRES
STANDOFF PER AMS-QQ-P-416, TYPE II, CLASS 2
- NO CODE INDICATES STANDARD FINISH: SEE TABLE I
M - INDICATES OPTIONAL SOLID FILM LUBRICANT
PER AS5272, (APPLIED TO THREADS ONLY)
P
S - INDICATES OPTIONAL SILVER PLATE ON STANDOFF
PER AMS2410 OR AMS2411
FLANGE CODE: SEE TABLE III
4.
4.
4.
NOTES:
1. DIMENSIONING AND TOLERANCING PRACTICES PER ASME Y14.5M-1994.
2. DIMENSIONAL LIMITS APPLY AFTER PLATING.
3. SURFACE TEXTURE: 125 MICROINCHES PER ASME B46.1-2009.
4. PLATING OR SOLID FILM LUBRICANT IS RECOMMENDED ON SELF-LOCKING CRES STANDOFF.
5. CONSULT THE TYE ENGINEERING DEPARTMENT FOR OTHER FINISHES, MATERIALS, OR SIZES.
