1. APLIKASI LATIHAN SOAL ONLINE
Nanda Patria Adikara 613102059
Dewa Nyoman Adi Santosa 613104061
Mita Pitria Heni 613104072
Muhammad Karimata 613110078
Muhammad Agung Laksono 613111044

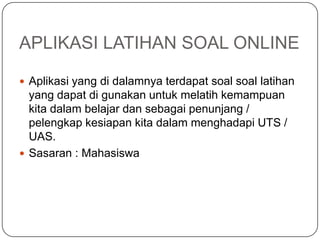

2. APLIKASI LATIHAN SOAL ONLINE
 Aplikasi yang di dalamnya terdapat soal soal latihan
yang dapat di gunakan untuk melatih kemampuan
kita dalam belajar dan sebagai penunjang /
pelengkap kesiapan kita dalam menghadapi UTS /
UAS.
 Sasaran : Mahasiswa

3. ER Model

4. Tabel

5. NORMALISASI

6. DATA

7. UNNORMAL

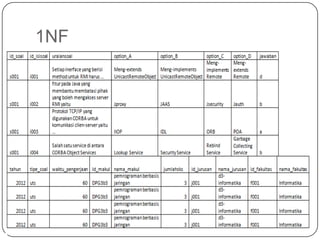

8. 1NF

9. DIAGRAM KETERGANTUNGAN

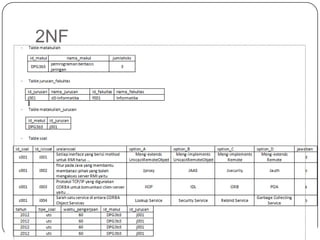

10. 2NF

11. 3NF

12. DDL
DROP TABLE fakultas CASCADE CONSTRAINT;
CREATE TABLE fakultas (
id_fakultas char(5)constraint pk_fakultas primary key,
nama_fakultas varchar(20) NOT NULL
);
DROP TABLE jurusan CASCADE CONSTRAINT;
CREATE TABLE jurusan (
id_jurusan char(5) constraint pk_jurusan primary key,
nama_jurusan varchar(20) NOT NULL,
id_fakultas char(5) NOT NULL,
constraint fk_fakultas foreign key(id_fakultas) references fakultas on delete cascade
);
DROP TABLE matakuliah CASCADE CONSTRAINT;
CREATE TABLE matakuliah (
id_makul char(5) constraint pk_matakuliah primary key,
nama_makul varchar(20) NOT NULL,
jumlahsks char(1) NOT NULL
);

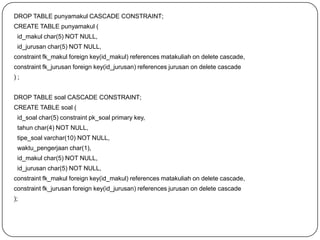

13. DROP TABLE punyamakul CASCADE CONSTRAINT;
CREATE TABLE punyamakul (
id_makul char(5) NOT NULL,
id_jurusan char(5) NOT NULL,
constraint fk_makul foreign key(id_makul) references matakuliah on delete cascade,
constraint fk_jurusan foreign key(id_jurusan) references jurusan on delete cascade
);
DROP TABLE soal CASCADE CONSTRAINT;
CREATE TABLE soal (
id_soal char(5) constraint pk_soal primary key,
tahun char(4) NOT NULL,
tipe_soal varchar(10) NOT NULL,
waktu_pengerjaan char(1),
id_makul char(5) NOT NULL,
id_jurusan char(5) NOT NULL,
constraint fk_makul foreign key(id_makul) references matakuliah on delete cascade,
constraint fk_jurusan foreign key(id_jurusan) references jurusan on delete cascade
);

14. DROP TABLE isisoal CASCADE CONSTRAINT;
CREATE TABLE isisoal (
id_isisoal char(5) constraint pk_isisoal primary key,
uraiansoal long NOT NULL,
option_A varchar(20) NOT NULL,
option_B varchar(20) NOT NULL,
option_C varchar(20) NOT NULL,
option_D varchar(20) NOT NULL,
jawaban char(1) NOT NULL,
id_soal char(5) NOT NULL,
constraint fk_soal foreign key(id_soal) references soal on delete cascade
);

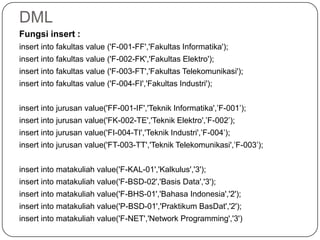

15. DML
Fungsi insert :
insert into fakultas value ('F-001-FF','Fakultas Informatika');
insert into fakultas value ('F-002-FK','Fakultas Elektro');
insert into fakultas value ('F-003-FT','Fakultas Telekomunikasi');
insert into fakultas value ('F-004-FI','Fakultas Industri');
insert into jurusan value('FF-001-IF','Teknik Informatika',’F-001’);
insert into jurusan value('FK-002-TE','Teknik Elektro',’F-002’);
insert into jurusan value('FI-004-TI','Teknik Industri',’F-004’);
insert into jurusan value('FT-003-TT','Teknik Telekomunikasi',’F-003’);
insert into matakuliah value('F-KAL-01','Kalkulus','3');
insert into matakuliah value('F-BSD-02','Basis Data','3');
insert into matakuliah value('F-BHS-01','Bahasa Indonesia','2');
insert into matakuliah value('P-BSD-01','Praktikum BasDat','2');
insert into matakuliah value('F-NET','Network Programming','3')

16. DML
insert into punyamakul value('F-KAL-01','FK-002-TE');
insert into punyamakul value('F-BSD-02','FF-001-IF');
insert into punyamakul value('F-BHS-01','FT-003-TT');
insert into punyamakul value('F-NET','FF-001-IF');
insert into soal value('s001','2004','UTS','60','F-NET',’FF-001-IF’);
insert into isisoal(‘i001’,’ Setiap inerface yang berisi method untuk RMI harus …’,’ Meng-extends
UnicastRemoteObject’,’ Meng-implements UnicastRemoteObject’,’ Meng-implements Remote,’
Meng-implements Remote’,’ Meng-extends Remote’,’ d’,’ s001’);
insert into isisoal(‘i002’,’ fitur pada Java yang membantu membatasi pihak yang boleh mengakses
server RMI yaitu’,’ Jproxy’,’ JAAS’,’ Jsecurity’,’ Jauth’,’ b’,’ s001’);
insert into isisoal(‘i003’,’ Protokol TCP/IP yang digunakan CORBA untuk komunikasi clien-server
yaitu …’,’ IIOP’,’ IDL’,’ ORB’,’ POA’,’ a’,’s001’);
insert into isisoal(‘i004’,’ Salah satu service di antara CORBA Object Services
’,’ Lookup Service’,’ Security Service’,’ Rebind Service’,’ Garbage Collecting Service
’,’ b’,’s001’);

17. DML
Fungsi Update
Update matakuliah
Set jumlahsks=’3’
Where id_makul=’F-BHS-01’;
Fungsi Select
SELECT * FROM soal s WHERE s.id_makul = ( SELECT id_makul
FROM matakuliah m WHERE m.nama_makul LIKE "Matdis" ) and
s. id_jurusan =( SELECT id_jurusan FROM jurusan WHERE
jurusan.nama_jurusan LIKE 'Informatika' );
SELECT * FROM `isisoal` where id_soal = 'S001';

18. THE END.
