Water level probes are critical components in commercial ice makers, ensuring proper water flow and consistent ice production. When these probes malfunction, it can lead to overflows, incomplete ice formation, or machine shutdowns, affecting kitchen efficiency. Troubleshooting begins with inspecting the probe for mineral buildup, corrosion, or physical damage, followed by verifying electrical connections and continuity. Cleaning or replacing faulty probes often resolves most issues. Additionally, checking water supply lines and ensuring correct installation helps prevent recurring problems. Understanding how to identify and fix water level probe issues not only restores reliable ice production but also extends the lifespan of commercial ice-making equipment, saving time and costs. Visit the website: https://partsfe.ca/blog/post/troubleshoot-water-level-probe-issues-commercial-ice-makers

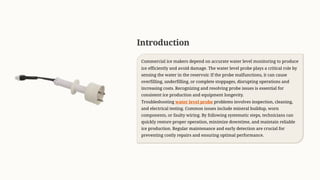

2. Introduction
Commercial ice makers depend on accurate water level monitoring to produce
ice efficiently and avoid damage. The water level probe plays a critical role by
sensing the water in the reservoir. If the probe malfunctions, it can cause
overfilling, underfilling, or complete stoppages, disrupting operations and
increasing costs. Recognizing and resolving probe issues is essential for
consistent ice production and equipment longevity.
Troubleshooting water level probe problems involves inspection, cleaning,
and electrical testing. Common issues include mineral buildup, worn
components, or faulty wiring. By following systematic steps, technicians can
quickly restore proper operation, minimize downtime, and maintain reliable
ice production. Regular maintenance and early detection are crucial for
preventing costly repairs and ensuring optimal performance.

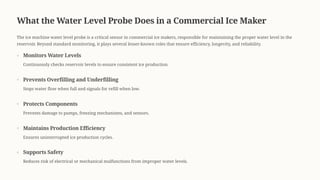

3. What the Water Level Probe Does in a Commercial Ice Maker
The ice machine water level probe is a critical sensor in commercial ice makers, responsible for maintaining the proper water level in the
reservoir. Beyond standard monitoring, it plays several lesser-known roles that ensure efficiency, longevity, and reliability.
Monitors Water Levels
Continuously checks reservoir levels to ensure consistent ice production.
Prevents Overfilling and Underfilling
Stops water flow when full and signals for refill when low.
Protects Components
Prevents damage to pumps, freezing mechanisms, and sensors.
Maintains Production Efficiency
Ensures uninterrupted ice production cycles.
Supports Safety
Reduces risk of electrical or mechanical malfunctions from improper water levels.

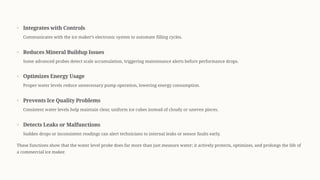

4. Integrates with Controls
Communicates with the ice maker9s electronic system to automate filling cycles.
Reduces Mineral Buildup Issues
Some advanced probes detect scale accumulation, triggering maintenance alerts before performance drops.
Optimizes Energy Usage
Proper water levels reduce unnecessary pump operation, lowering energy consumption.
Prevents Ice Quality Problems
Consistent water levels help maintain clear, uniform ice cubes instead of cloudy or uneven pieces.
Detects Leaks or Malfunctions
Sudden drops or inconsistent readings can alert technicians to internal leaks or sensor faults early.
These functions show that the water level probe does far more than just measure water; it actively protects, optimizes, and prolongs the life of
a commercial ice maker.

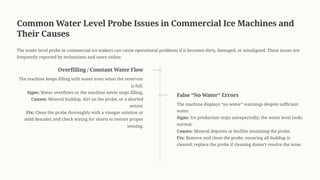

5. Common Water Level Probe Issues in Commercial Ice Machines and
Their Causes
The water level probe in commercial ice makers can cause operational problems if it becomes dirty, damaged, or misaligned. These issues are
frequently reported by technicians and users online.
Overfilling / Constant Water Flow
The machine keeps filling with water even when the reservoir
is full.
Signs: Water overflows or the machine never stops filling.
Causes: Mineral buildup, dirt on the probe, or a shorted
sensor.
Fix: Clean the probe thoroughly with a vinegar solution or
mild descaler, and check wiring for shorts to restore proper
sensing.
False <No Water= Errors
The machine displays <no water= warnings despite sufficient
water.
Signs: Ice production stops unexpectedly; the water level looks
normal.
Causes: Mineral deposits or biofilm insulating the probe.
Fix: Remove and clean the probe, ensuring all buildup is
cleared; replace the probe if cleaning doesn9t resolve the issue.

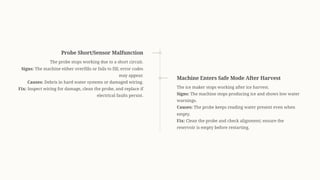

6. Probe Short/Sensor Malfunction
The probe stops working due to a short circuit.
Signs: The machine either overfills or fails to fill; error codes
may appear.
Causes: Debris in hard water systems or damaged wiring.
Fix: Inspect wiring for damage, clean the probe, and replace if
electrical faults persist.
Machine Enters Safe Mode After Harvest
The ice maker stops working after ice harvest.
Signs: The machine stops producing ice and shows low water
warnings.
Causes: The probe keeps reading water present even when
empty.
Fix: Clean the probe and check alignment; ensure the
reservoir is empty before restarting.

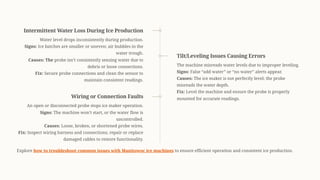

7. Intermittent Water Loss During Ice Production
Water level drops inconsistently during production.
Signs: Ice batches are smaller or uneven; air bubbles in the
water trough.
Causes: The probe isn9t consistently sensing water due to
debris or loose connections.
Fix: Secure probe connections and clean the sensor to
maintain consistent readings.
Tilt/Leveling Issues Causing Errors
The machine misreads water levels due to improper leveling.
Signs: False <add water= or <no water= alerts appear.
Causes: The ice maker is not perfectly level; the probe
misreads the water depth.
Fix: Level the machine and ensure the probe is properly
mounted for accurate readings.
Wiring or Connection Faults
An open or disconnected probe stops ice maker operation.
Signs: The machine won9t start, or the water flow is
uncontrolled.
Causes: Loose, broken, or shortened probe wires.
Fix: Inspect wiring harness and connections; repair or replace
damaged cables to restore functionality.
Explore how to troubleshoot common issues with Manitowoc ice machines to ensure efficient operation and consistent ice production.

8. How to Troubleshoot Water Level Probe Problems in Commercial Ice
Machines
Water level probe troubleshooting is essential because subtle environmental, mechanical, and chemical factors can cause failures that
standard checks often miss. Recognizing these hidden signs helps prevent recurring issues.
Step 1: Inspect for Biofilm and Microbial Growth
Even visually clean probes can develop a thin biofilm that
insulates the sensor. Use a soft brush and mild sanitizer to
remove microbial layers that affect conductivity.
Step 2: Check for Air Pocket Formation
Small air pockets around the probe can mimic low water
levels. Tilt the machine slightly and watch if water adheres to
the probe correctly during a test fill.
Step 3: Examine Water Flow Speed Near Probe
Fast or turbulent water can trigger false high readings. Adjust
inlet valves to reduce turbulence and allow the probe to sense
water more accurately. Step 4: Test for Mineral Coating Below the
Surface
Some scales form beneath the visible waterline and evade
surface cleaning. Use a soft scraper or chemical descaler for
deeper probe cleaning.
Step 5: Observe Temperature-Dependent
Response
Extremely cold water slows probe conductivity. Test with
slightly warmer water to see if delayed readings are due to
temperature rather than mechanical failure.

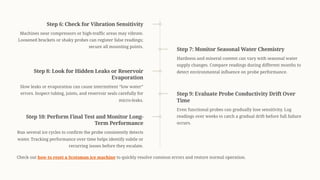

9. Step 6: Check for Vibration Sensitivity
Machines near compressors or high-traffic areas may vibrate.
Loosened brackets or shaky probes can register false readings;
secure all mounting points.
Step 7: Monitor Seasonal Water Chemistry
Hardness and mineral content can vary with seasonal water
supply changes. Compare readings during different months to
detect environmental influence on probe performance.
Step 8: Look for Hidden Leaks or Reservoir
Evaporation
Slow leaks or evaporation can cause intermittent <low water=
errors. Inspect tubing, joints, and reservoir seals carefully for
micro-leaks.
Step 9: Evaluate Probe Conductivity Drift Over
Time
Even functional probes can gradually lose sensitivity. Log
readings over weeks to catch a gradual drift before full failure
occurs.
Step 10: Perform Final Test and Monitor Long-
Term Performance
Run several ice cycles to confirm the probe consistently detects
water. Tracking performance over time helps identify subtle or
recurring issues before they escalate.
Check out how to reset a Scotsman ice machine to quickly resolve common errors and restore normal operation.

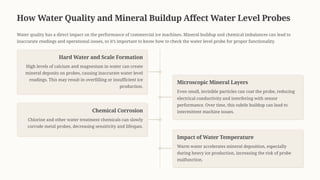

10. How Water Quality and Mineral Buildup Affect Water Level Probes
Water quality has a direct impact on the performance of commercial ice machines. Mineral buildup and chemical imbalances can lead to
inaccurate readings and operational issues, so it9s important to know how to check the water level probe for proper functionality.
Hard Water and Scale Formation
High levels of calcium and magnesium in water can create
mineral deposits on probes, causing inaccurate water level
readings. This may result in overfilling or insufficient ice
production.
Microscopic Mineral Layers
Even small, invisible particles can coat the probe, reducing
electrical conductivity and interfering with sensor
performance. Over time, this subtle buildup can lead to
intermittent machine issues.
Chemical Corrosion
Chlorine and other water treatment chemicals can slowly
corrode metal probes, decreasing sensitivity and lifespan.
Impact of Water Temperature
Warm water accelerates mineral deposition, especially
during heavy ice production, increasing the risk of probe
malfunction.

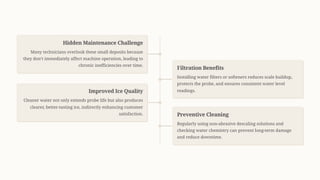

11. Hidden Maintenance Challenge
Many technicians overlook these small deposits because
they don9t immediately affect machine operation, leading to
chronic inefficiencies over time.
Filtration Benefits
Installing water filters or softeners reduces scale buildup,
protects the probe, and ensures consistent water level
readings.
Improved Ice Quality
Cleaner water not only extends probe life but also produces
clearer, better-tasting ice, indirectly enhancing customer
satisfaction. Preventive Cleaning
Regularly using non-abrasive descaling solutions and
checking water chemistry can prevent long-term damage
and reduce downtime.

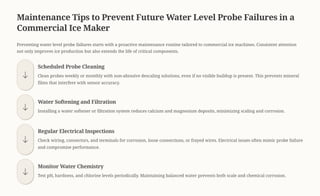

12. Maintenance Tips to Prevent Future Water Level Probe Failures in a
Commercial Ice Maker
Preventing water level probe failures starts with a proactive maintenance routine tailored to commercial ice machines. Consistent attention
not only improves ice production but also extends the life of critical components.
Scheduled Probe Cleaning
Clean probes weekly or monthly with non-abrasive descaling solutions, even if no visible buildup is present. This prevents mineral
films that interfere with sensor accuracy.
Water Softening and Filtration
Installing a water softener or filtration system reduces calcium and magnesium deposits, minimizing scaling and corrosion.
Regular Electrical Inspections
Check wiring, connectors, and terminals for corrosion, loose connections, or frayed wires. Electrical issues often mimic probe failure
and compromise performance.
Monitor Water Chemistry
Test pH, hardness, and chlorine levels periodically. Maintaining balanced water prevents both scale and chemical corrosion.

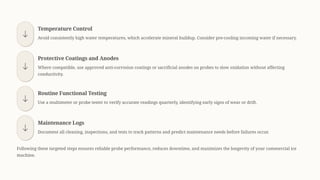

13. Temperature Control
Avoid consistently high water temperatures, which accelerate mineral buildup. Consider pre-cooling incoming water if necessary.
Protective Coatings and Anodes
Where compatible, use approved anti-corrosion coatings or sacrificial anodes on probes to slow oxidation without affecting
conductivity.
Routine Functional Testing
Use a multimeter or probe tester to verify accurate readings quarterly, identifying early signs of wear or drift.
Maintenance Logs
Document all cleaning, inspections, and tests to track patterns and predict maintenance needs before failures occur.
Following these targeted steps ensures reliable probe performance, reduces downtime, and maximizes the longevity of your commercial ice
machine.

14. Safeguard Your Ice Machine: Ensure Consistent Ice Production and
Avoid Unexpected Repairs
Maintaining optimal performance of your commercial ice machine goes beyond simple cleaning. By understanding water level probe
functionality, monitoring water quality, and performing regular water probe testing, operators can prevent costly downtime and keep ice
production consistent. Proactive attention ensures both equipment longevity and high-quality ice output.
Key Takeaways:
Regular Probe Inspections
Check for mineral buildup, corrosion, or debris to ensure accurate water level detection.
Test Probe Conductivity
Periodically measure the probe9s electrical response to catch early sensitivity loss.
Watch for False Readings
Overfilling or <no water= errors often indicate probe misalignment, dirt, or electrical issues.
Consider Water Quality
Hard water, chlorine, and temperature fluctuations can damage probes and affect accuracy.

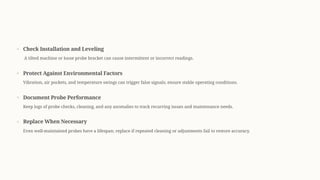

15. Check Installation and Leveling
A tilted machine or loose probe bracket can cause intermittent or incorrect readings.
Protect Against Environmental Factors
Vibration, air pockets, and temperature swings can trigger false signals; ensure stable operating conditions.
Document Probe Performance
Keep logs of probe checks, cleaning, and any anomalies to track recurring issues and maintenance needs.
Replace When Necessary
Even well-maintained probes have a lifespan; replace if repeated cleaning or adjustments fail to restore accuracy.

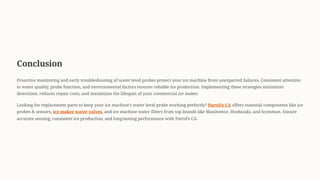

16. Conclusion
Proactive monitoring and early troubleshooting of water level probes protect your ice machine from unexpected failures. Consistent attention
to water quality, probe function, and environmental factors ensures reliable ice production. Implementing these strategies minimizes
downtime, reduces repair costs, and maximizes the lifespan of your commercial ice maker.
Looking for replacement parts to keep your ice machine9s water level probe working perfectly? PartsFe CA offers essential components like ice
probes & sensors, ice maker water valves, and ice machine water filters from top brands like Manitowoc, Hoshizaki, and Scotsman. Ensure
accurate sensing, consistent ice production, and long-lasting performance with PartsFe CA.

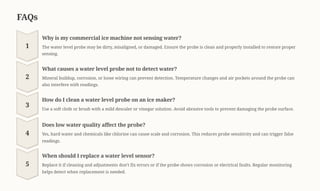

17. FAQs
1
Why is my commercial ice machine not sensing water?
The water level probe may be dirty, misaligned, or damaged. Ensure the probe is clean and properly installed to restore proper
sensing.
2
What causes a water level probe not to detect water?
Mineral buildup, corrosion, or loose wiring can prevent detection. Temperature changes and air pockets around the probe can
also interfere with readings.
3
How do I clean a water level probe on an ice maker?
Use a soft cloth or brush with a mild descaler or vinegar solution. Avoid abrasive tools to prevent damaging the probe surface.
4
Does low water quality affect the probe?
Yes, hard water and chemicals like chlorine can cause scale and corrosion. This reduces probe sensitivity and can trigger false
readings.
5
When should I replace a water level sensor?
Replace it if cleaning and adjustments don9t fix errors or if the probe shows corrosion or electrical faults. Regular monitoring
helps detect when replacement is needed.
