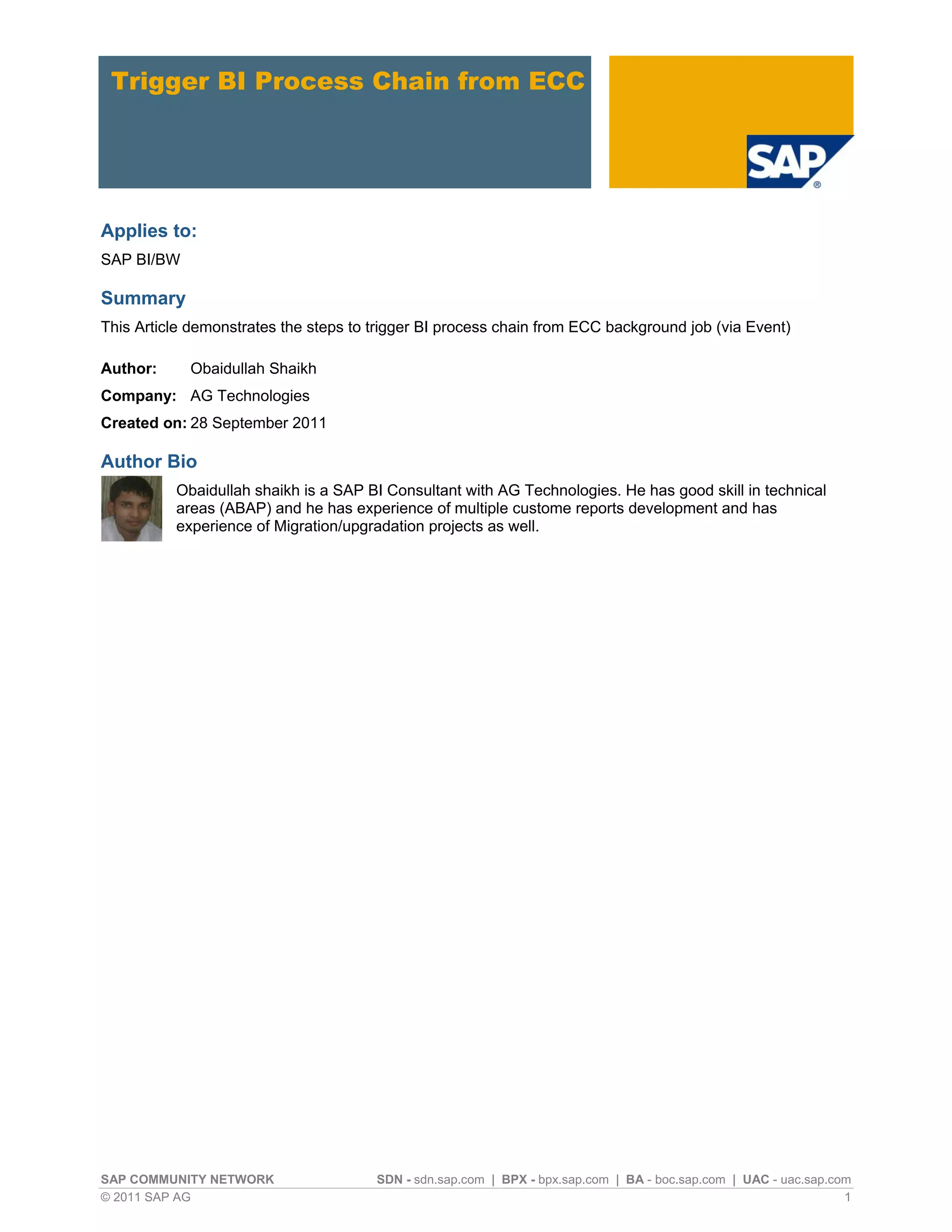

Trigger BI Process Chain from ECC
Applies to:
SAP BI/BW
Summary
This Article demonstrates the steps to trigger BI process chain from ECC background job (via Event)
Author: Obaidullah Shaikh
Company: AG Technologies
Created on: 28 September 2011
Author Bio
Obaidullah shaikh is a SAP BI Consultant with AG Technologies. He has good skill in technical
areas (ABAP) and he has experience of multiple custome reports development and has
experience of Migration/upgradation projects as well.

© 2011 SAP AG 2

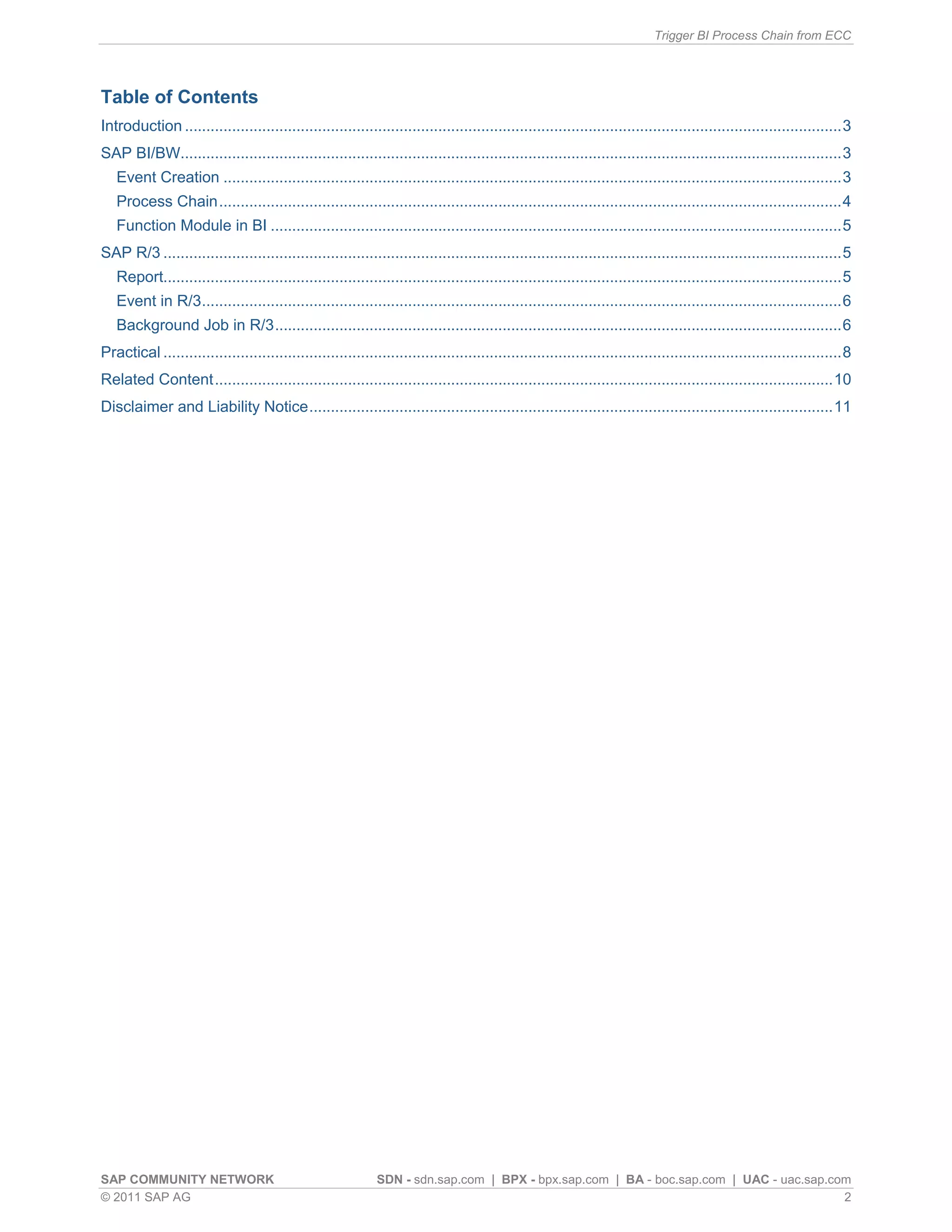

Table of Contents
Introduction .........................................................................................................................................................3
SAP BI/BW..........................................................................................................................................................3
Event Creation ................................................................................................................................................3
Process Chain.................................................................................................................................................4
Function Module in BI .....................................................................................................................................5
SAP R/3 ..............................................................................................................................................................5
Report..............................................................................................................................................................5
Event in R/3.....................................................................................................................................................6
Background Job in R/3....................................................................................................................................6
Practical ..............................................................................................................................................................8
Related Content................................................................................................................................................10
Disclaimer and Liability Notice..........................................................................................................................11

© 2011 SAP AG 3

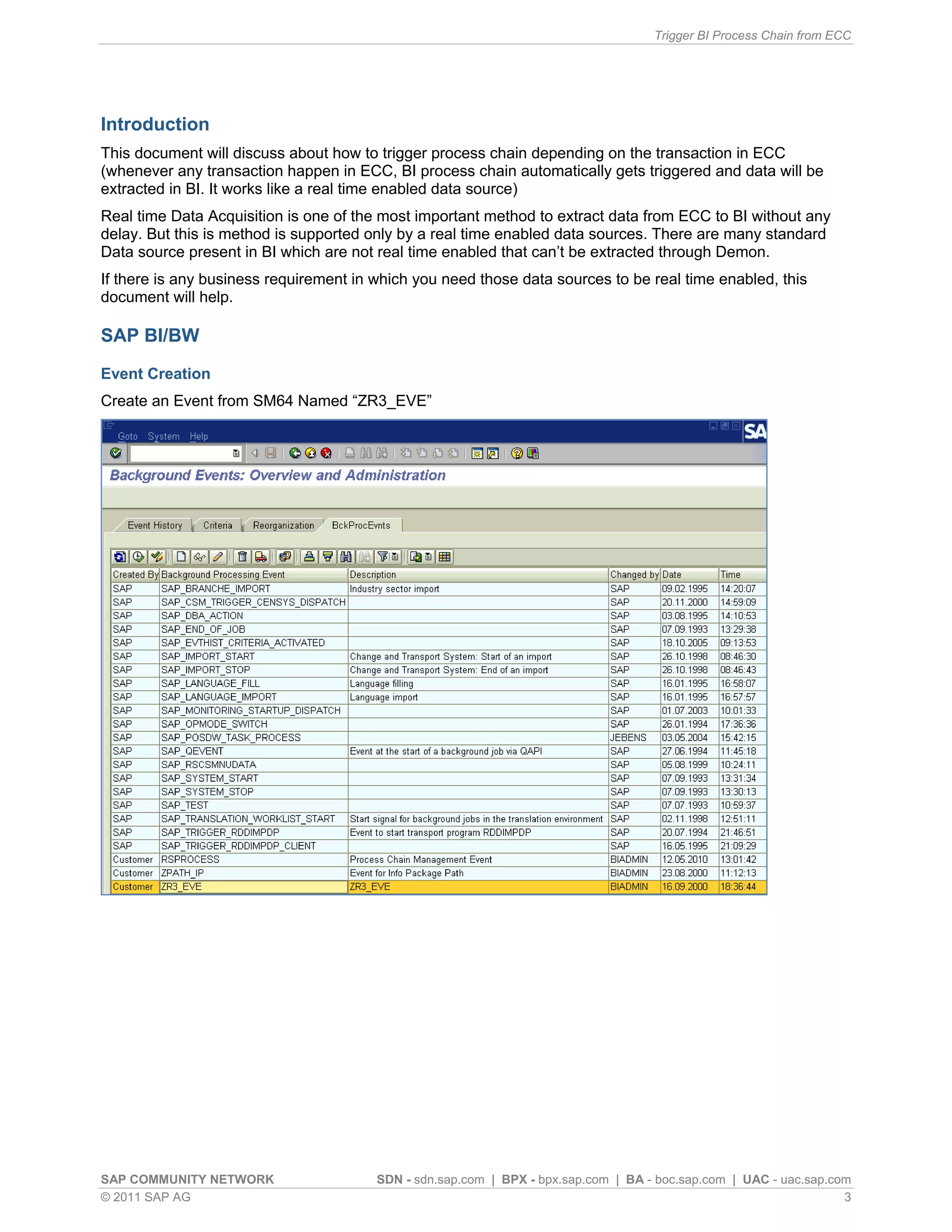

Introduction
This document will discuss about how to trigger process chain depending on the transaction in ECC
(whenever any transaction happen in ECC, BI process chain automatically gets triggered and data will be
extracted in BI. It works like a real time enabled data source)
Real time Data Acquisition is one of the most important method to extract data from ECC to BI without any
delay. But this is method is supported only by a real time enabled data sources. There are many standard
Data source present in BI which are not real time enabled that can’t be extracted through Demon.
If there is any business requirement in which you need those data sources to be real time enabled, this
document will help.
SAP BI/BW
Event Creation
Create an Event from SM64 Named “ZR3_EVE”

© 2011 SAP AG 4

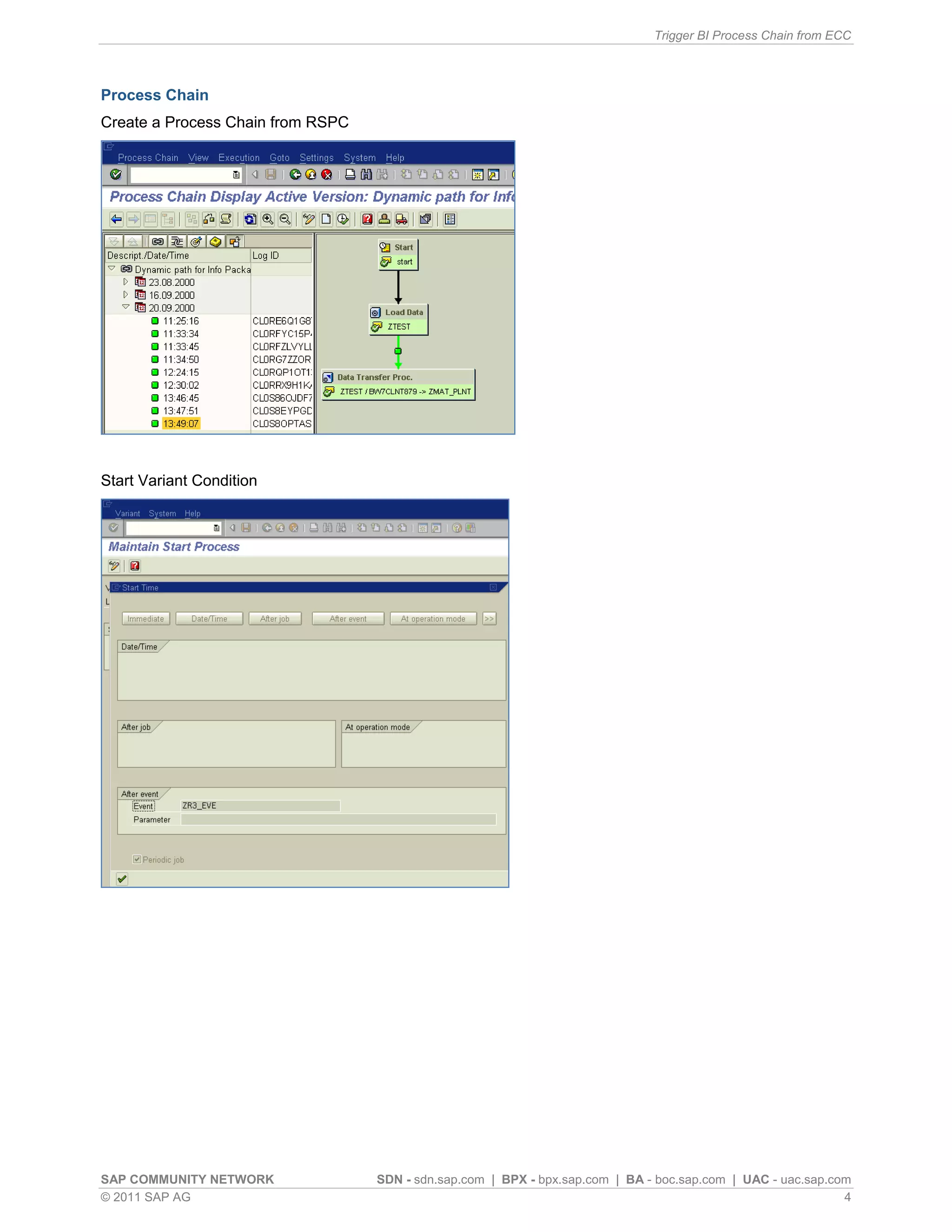

Process Chain
Create a Process Chain from RSPC
Start Variant Condition

© 2011 SAP AG 5

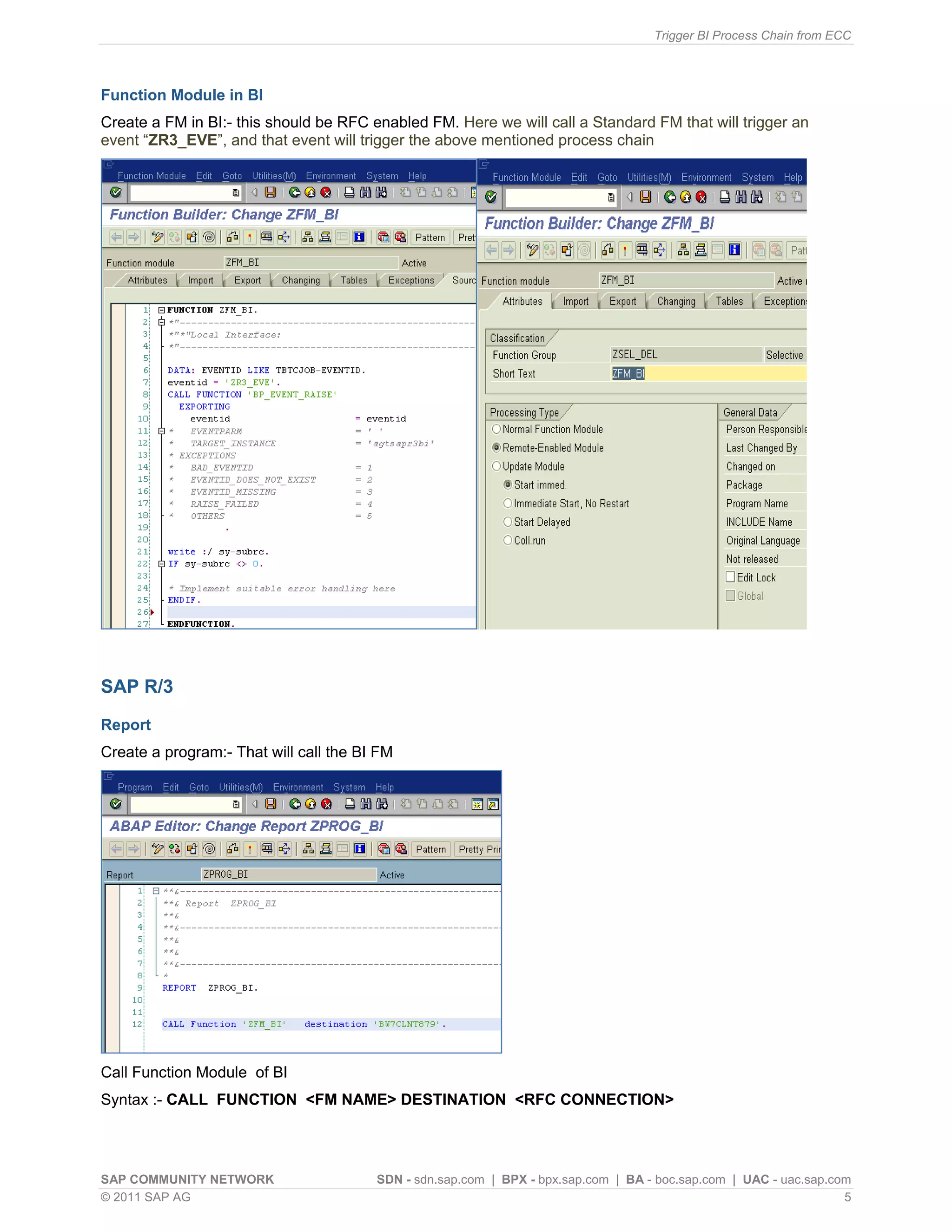

Function Module in BI
Create a FM in BI:- this should be RFC enabled FM. Here we will call a Standard FM that will trigger an
event “ZR3_EVE”, and that event will trigger the above mentioned process chain
SAP R/3
Report
Create a program:- That will call the BI FM
Call Function Module of BI
Syntax :- CALL FUNCTION <FM NAME> DESTINATION <RFC CONNECTION>

© 2011 SAP AG 6

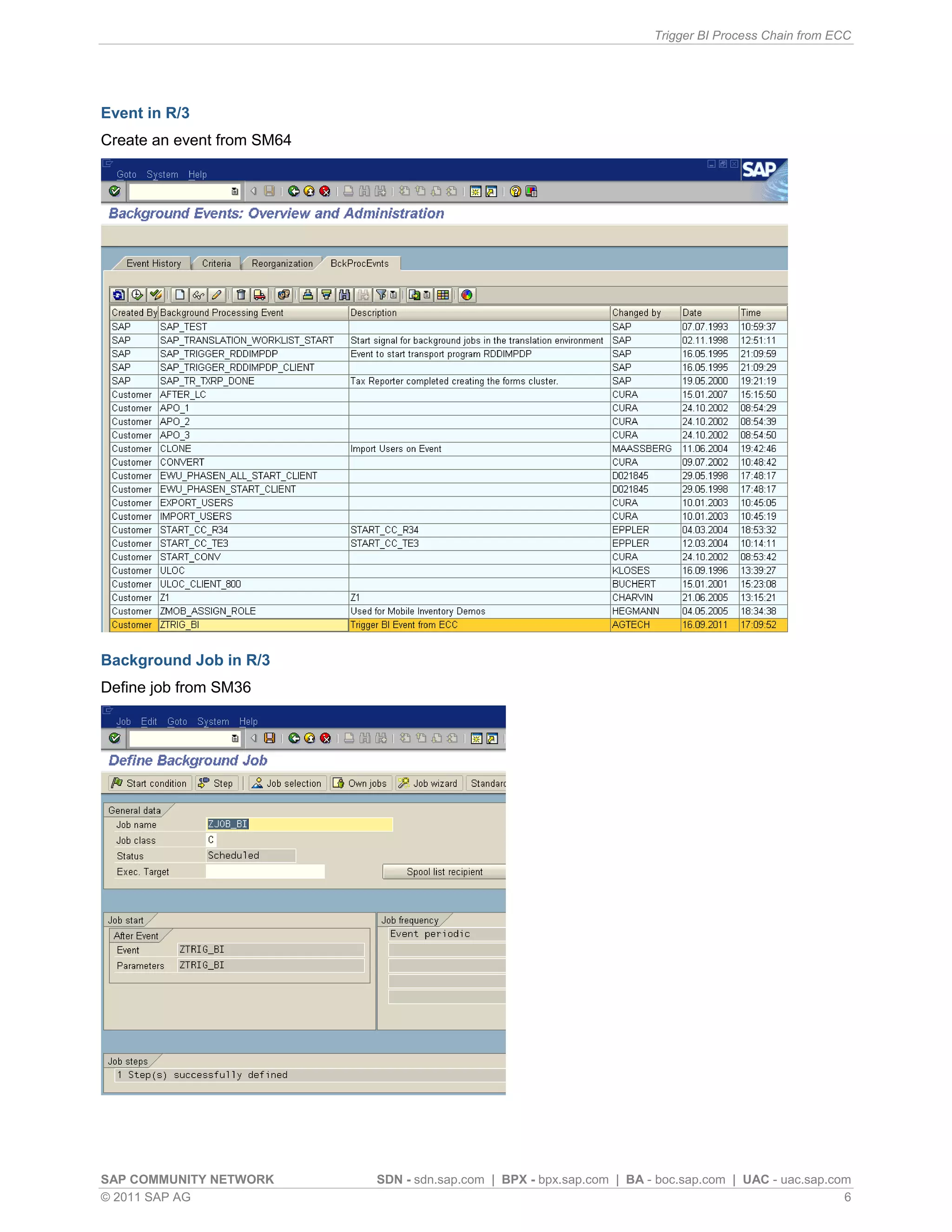

Event in R/3
Create an event from SM64
Background Job in R/3
Define job from SM36

© 2011 SAP AG 7

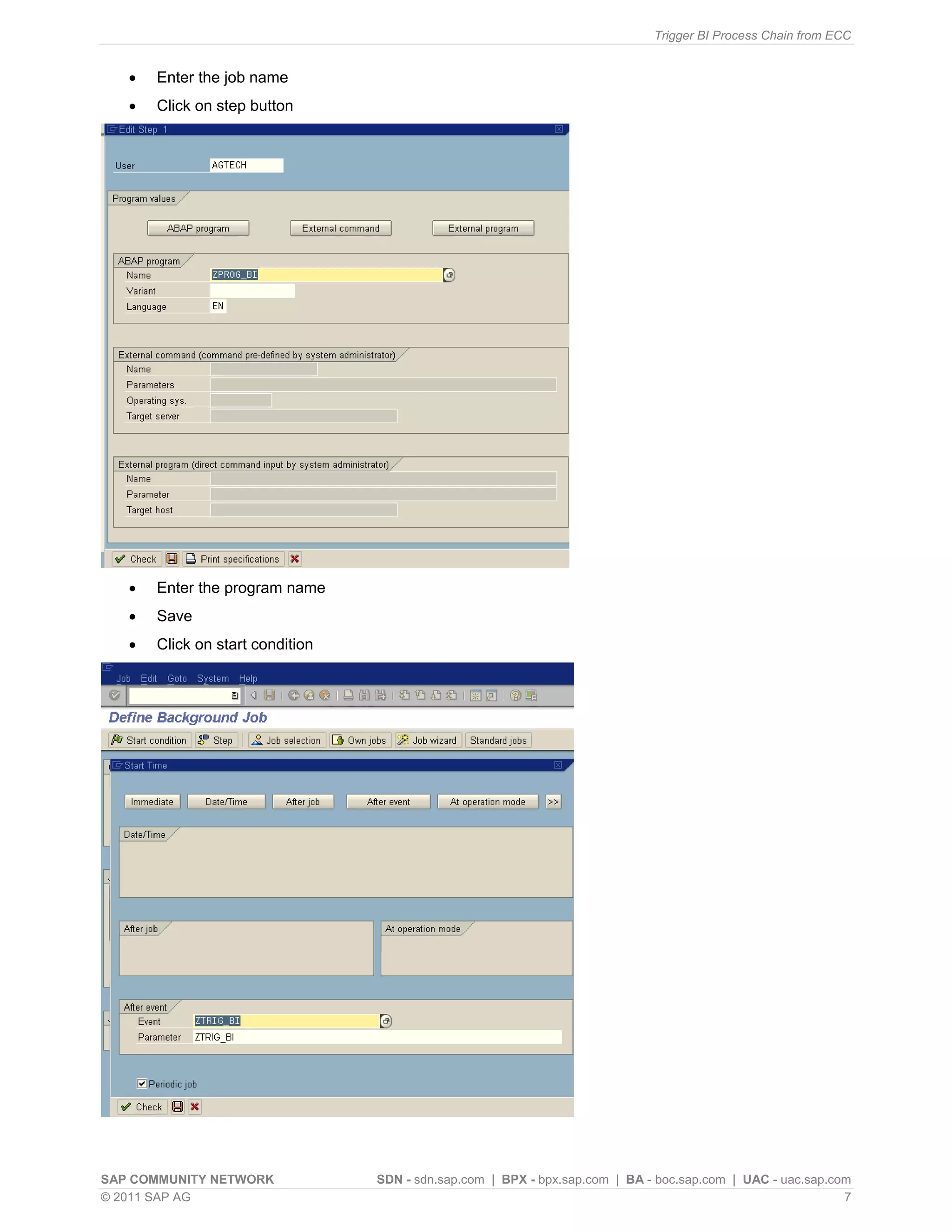

 Enter the job name
 Click on step button
 Enter the program name
 Save
 Click on start condition

© 2011 SAP AG 8

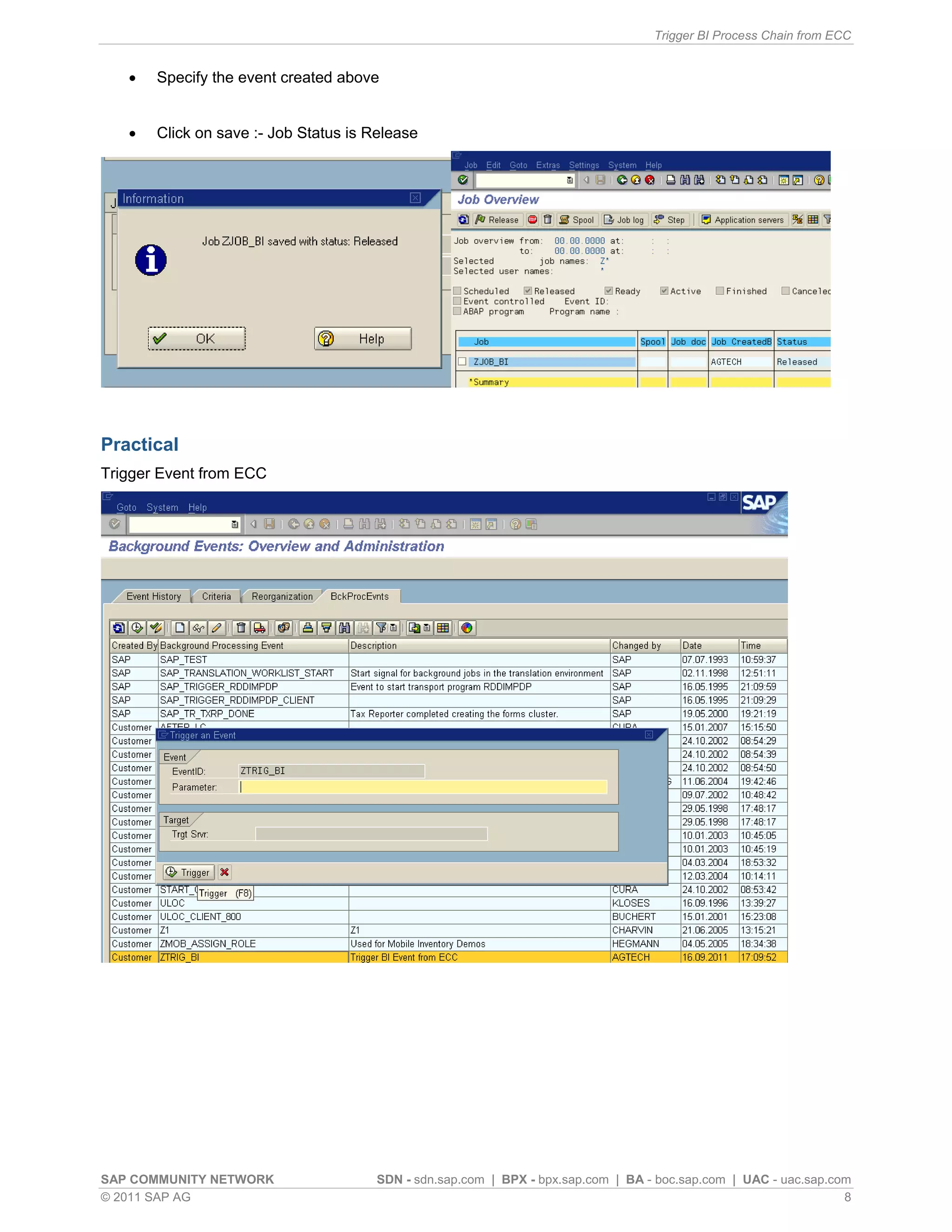

 Specify the event created above
 Click on save :- Job Status is Release
Practical
Trigger Event from ECC

© 2011 SAP AG 10

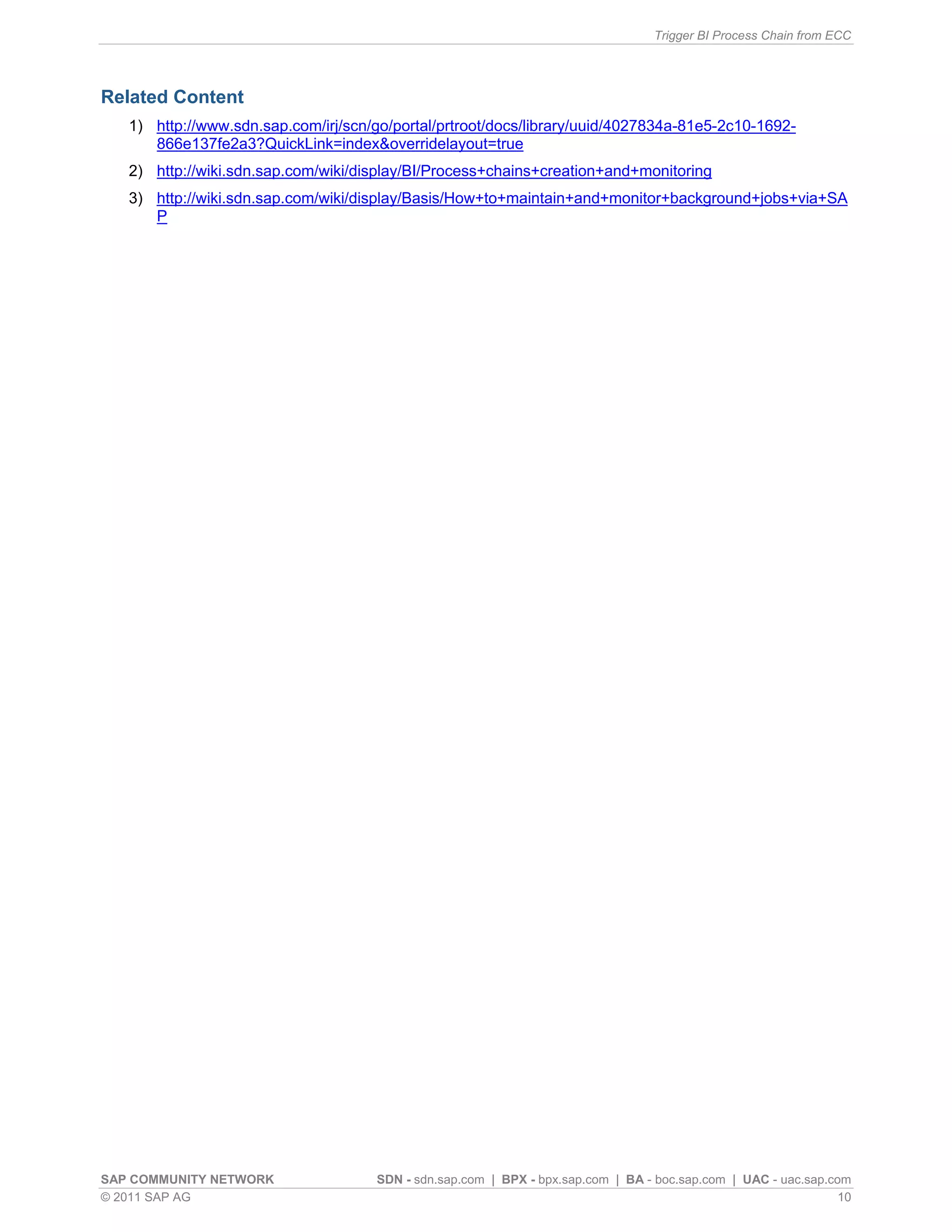

Related Content
1) http://www.sdn.sap.com/irj/scn/go/portal/prtroot/docs/library/uuid/4027834a-81e5-2c10-1692-
866e137fe2a3?QuickLink=index&overridelayout=true
2) http://wiki.sdn.sap.com/wiki/display/BI/Process+chains+creation+and+monitoring
3) http://wiki.sdn.sap.com/wiki/display/Basis/How+to+maintain+and+monitor+background+jobs+via+SA
P

© 2011 SAP AG 11

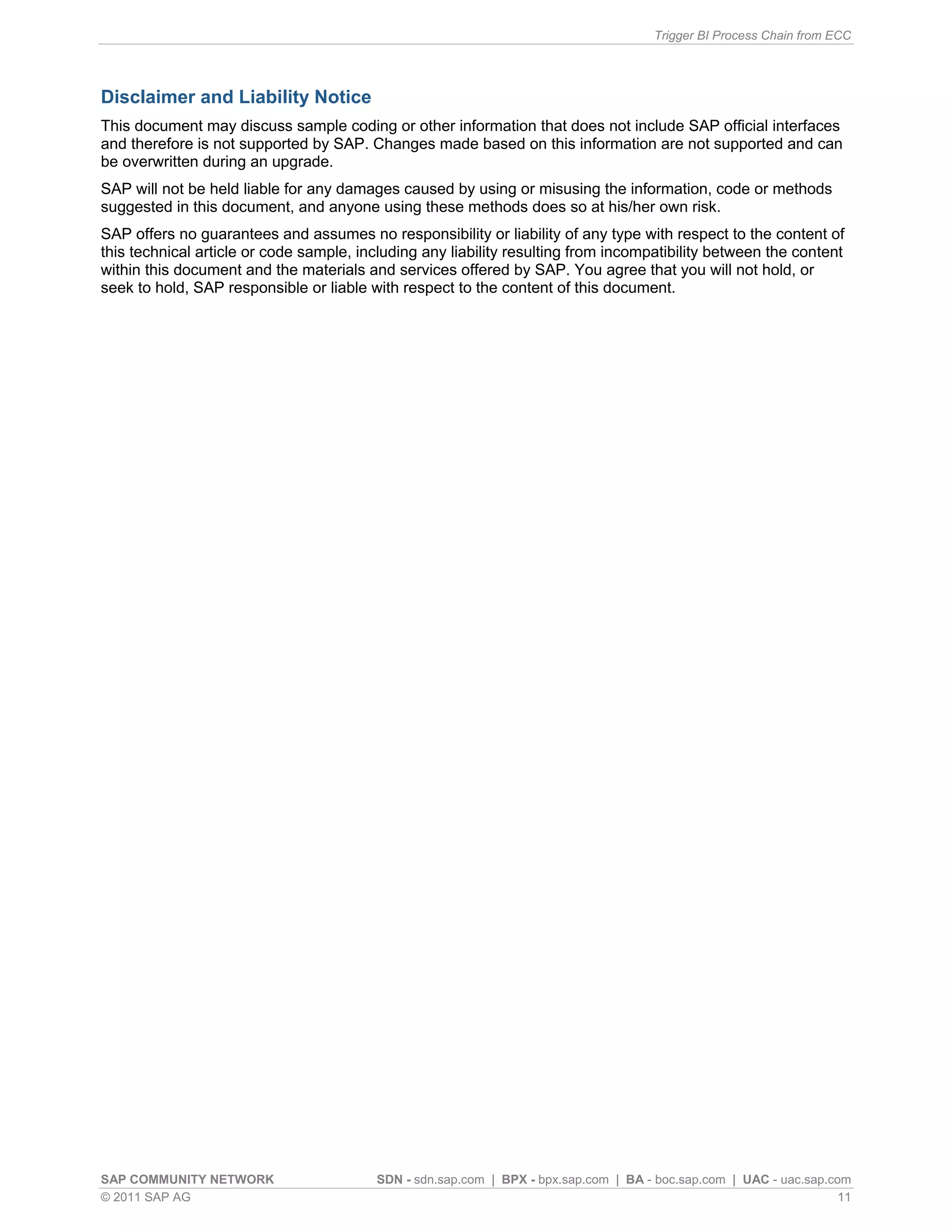

Disclaimer and Liability Notice
