TRANSFORMATOR dan TEGANGAN AC
The document contains calculations related to voltage in alternating current (AC) systems, specifically rms (root mean square), peak voltage (vmax), and frequency. It explains how to derive various parameters from given values, such as converting rms voltage to peak voltage and calculating frequency from period. The calculations involve basic formulas in electrical engineering for AC voltage and wave characteristics.
TRANSFORMATOR dan TEGANGAN AC
- 1.
- 2.

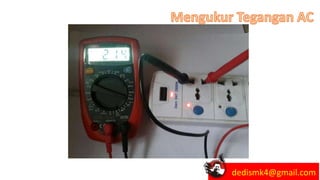

- 3.

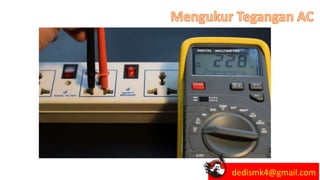

- 4.
- 5.
- 6. dedismk4@gmail.com 220 Volt Vrms =Veff = 220 Volt Vpp = 2.Vmax
- 7.
- 8. 𝑓 = 1 𝑇 Jika f= 50 Hz , maka besarnya perioda (T) adalah... 𝑇 = 1 𝑓 = 1/50 =0,02 detik = 20 mS dedismk4@gmail.com
- 9.

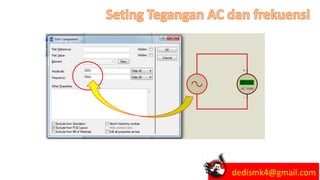

- 10.

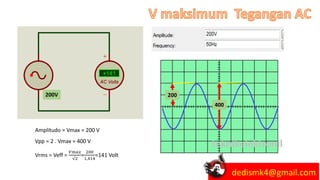

- 11. 200 400 200V Amplitudo = Vmax= 200 V Vpp = 2 . Vmax = 400 V Vrms = Veff = 𝑉𝑚𝑎𝑥 √2 = 200 1,414 =141 Volt dedismk4@gmail.com

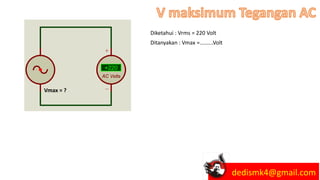

- 12. Vmax = ? Diketahui: Vrms = 220 Volt Ditanyakan : Vmax =.........Volt dedismk4@gmail.com
- 13. Vmax = ? Diketahui: Vrms = 220 Volt Ditanyakan : Vmax =.........Volt JAWAB : Vmax = Vrms .√2 = 220 x 1,414 =311 Volt Vrms = 𝑉𝑚𝑎𝑥 √2 Karena : Maka : dedismk4@gmail.com

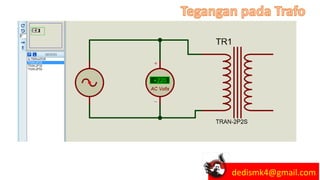

- 14.

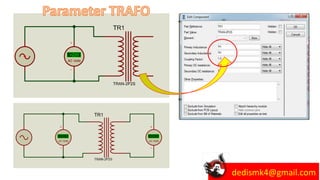

- 15.

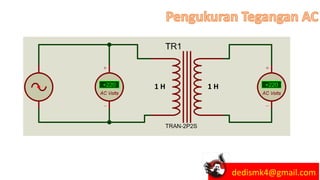

- 16. 1 H 1H dedismk4@gmail.com

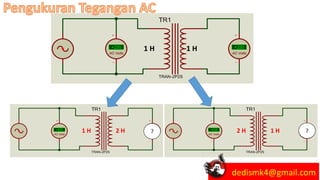

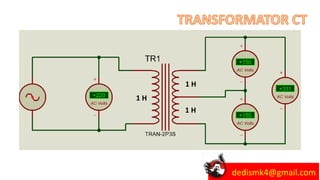

- 17. 1 H 1H 1 H 2 H 2 H 1 H? ? dedismk4@gmail.com

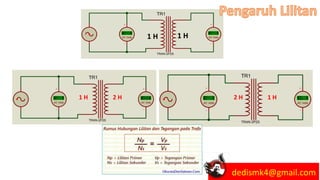

- 18. 1 H 1H 1 H 2 H 2 H 1 H dedismk4@gmail.com

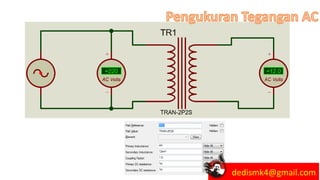

- 19.

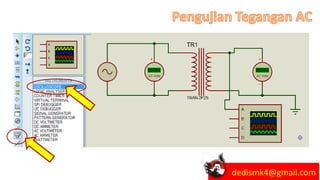

- 20.

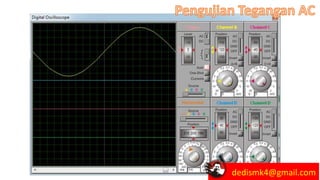

- 21.

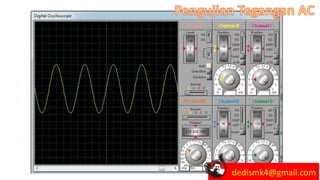

- 22.
- 23. Tinggi gelombang =6,8 Kotak lebar gelombang = 4 Kotak BESARNYA TEGANGAN Vpp= Tinggi Kotak x Vdiv Vpp= 6,8 Kotak x 5 V = 34 Vpp Vmax= ½ x Vpp= ½ .34= 17 V Maka : Vrms= Vmax/√2 Vmax = Vrms .√2 = 17/1,414 = 12 Volt dedismk4@gmail.com

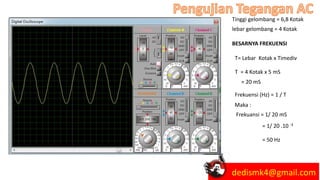

- 24. Tinggi gelombang =6,8 Kotak lebar gelombang = 4 Kotak BESARNYA FREKUENSI T= Lebar Kotak x Timediv T = 4 Kotak x 5 mS = 20 mS Frekuensi (Hz) = 1 / T Maka : Frekuansi = 1/ 20 mS = 50 Hz = 1/ 20 .10 -3 dedismk4@gmail.com

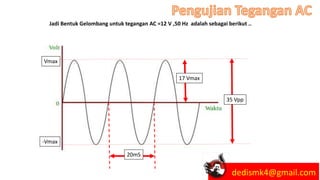

- 25. Jadi Bentuk Gelombanguntuk tegangan AC =12 V ,50 Hz adalah sebagai berikut .. Vmax -Vmax 17 Vmax 35 Vpp 20mS dedismk4@gmail.com

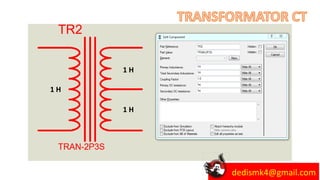

- 26.
- 27.
- 28.

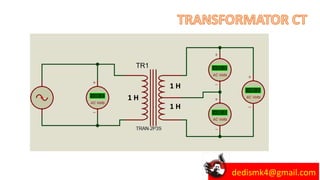

- 29.
- 30.

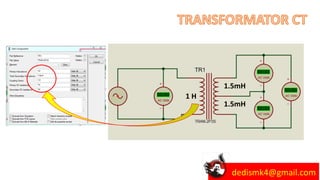

- 31.

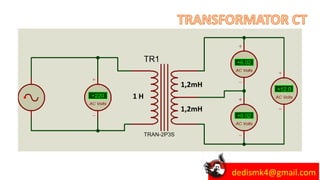

- 32.

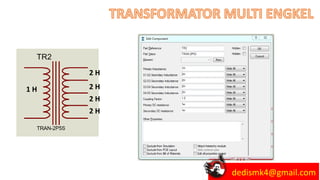

- 33. 1 H 2 H dedismk4@gmail.com 2H 2 H 2 H

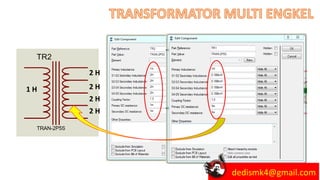

- 34. 1 H 2 H dedismk4@gmail.com 2H 2 H 2 H
- 35.
- 36.

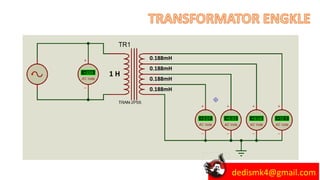

- 37.

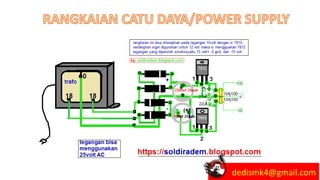

- 38.

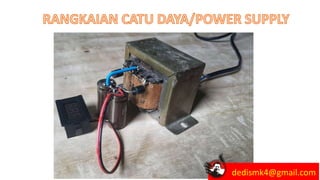

- 39.

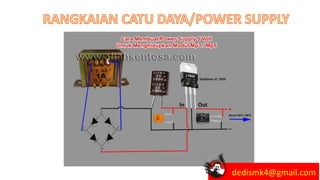

- 40.

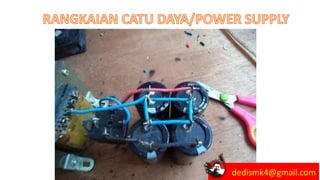

- 41.

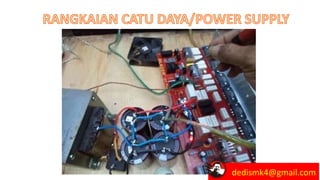

- 42.
- 43.
