1. Modeling Tilted OWC
by Rotating Simulation Grid
HASSAN MASHHADI KAZEM
RESERVOIR ENGINEER
HKAZEM@PETROMEHRAS.COM

2. West East
It is not possible to define a tilted OWC in a simulation model. The only way is to close the model in the
plane of the aquifer, or to move the grid to the position needed.

3. West East

4. West East

5. West East

6. West East

7. West East

8. West East

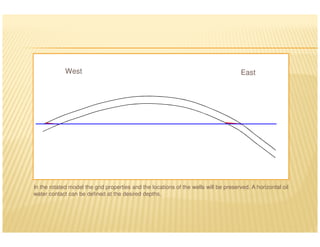

In the rotated model the grid properties and the locations of the wells will be preserved. A horizontal oil
water contact can be defined at the desired depths.

9. West East
Tilted OWC can be seen by populating simulation results from rotated grid into un-
rotated grid.
