The document presents a specification for smart devices in remote labs to allow various clients to interact with lab equipment in a standardized way. An example interaction is given where a client discovers the sensors and actuators of a smart device, receives sensor data, and sends actuator commands. The specification aims to make smart devices more interoperable and reusable by different client applications through a common interface and metadata description.

1. THE SMART DEVICE
SPECIFICATION
FOR REMOTE LABS
Christophe Salzmann, Sten Govaerts,
Wissam Halimi, & Denis Gillet
Anjo Anjewierden, Lars Bollen,Augustín Caminero, Manuel Castro, German Carro, Gabriel Díaz, Danilo Garbi Zutin,
Miguel Latorre, Irene Lequerica Zorrozua, Pablo Orduna,Antonio Robles, Elio San Crístobal, and Simon Schwantzer

2. AGENDA
• What are Smart Devices?
• What do we want to achieve?
• The specification
• An example
• Implementation
• Conclusion

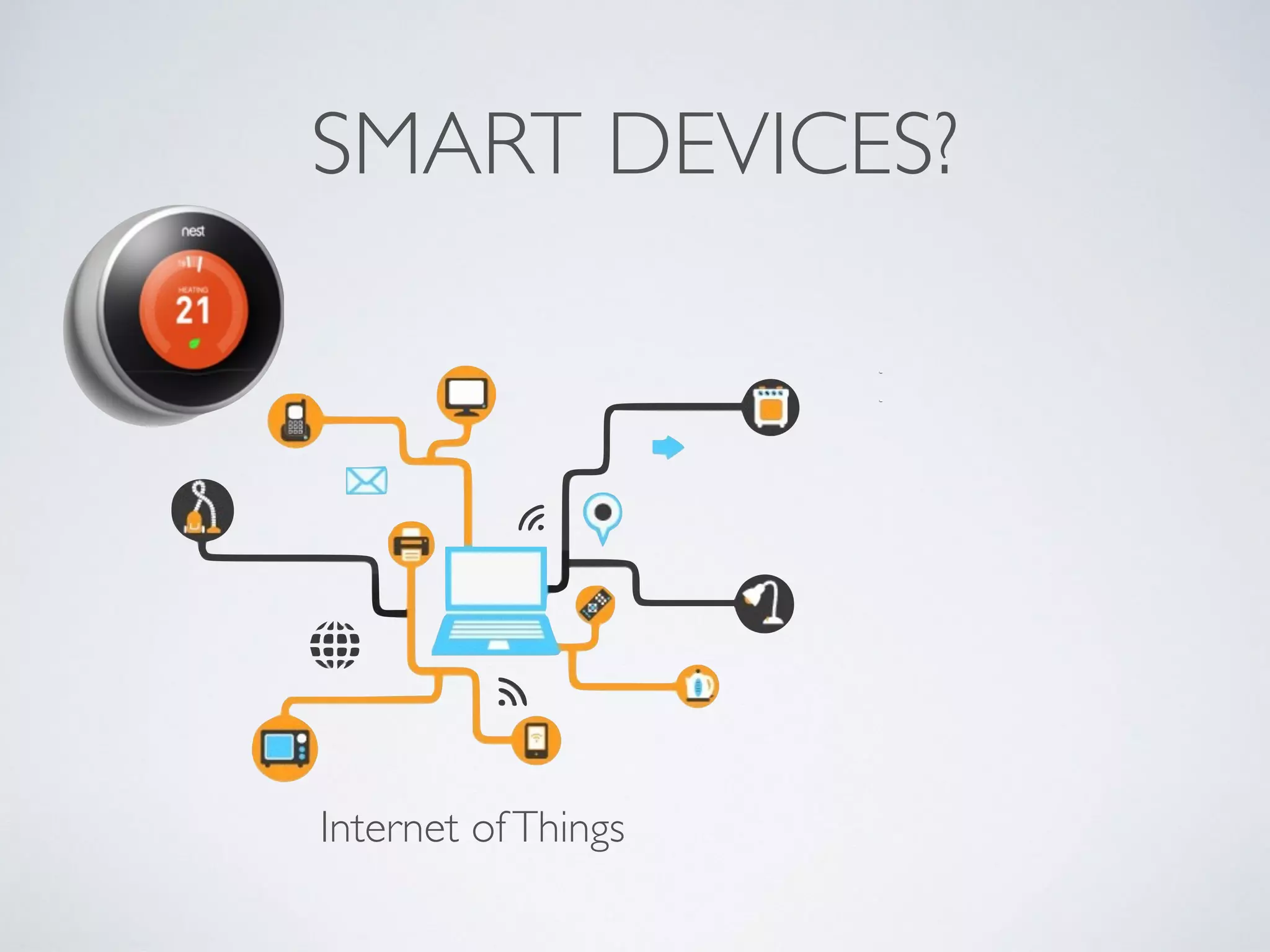

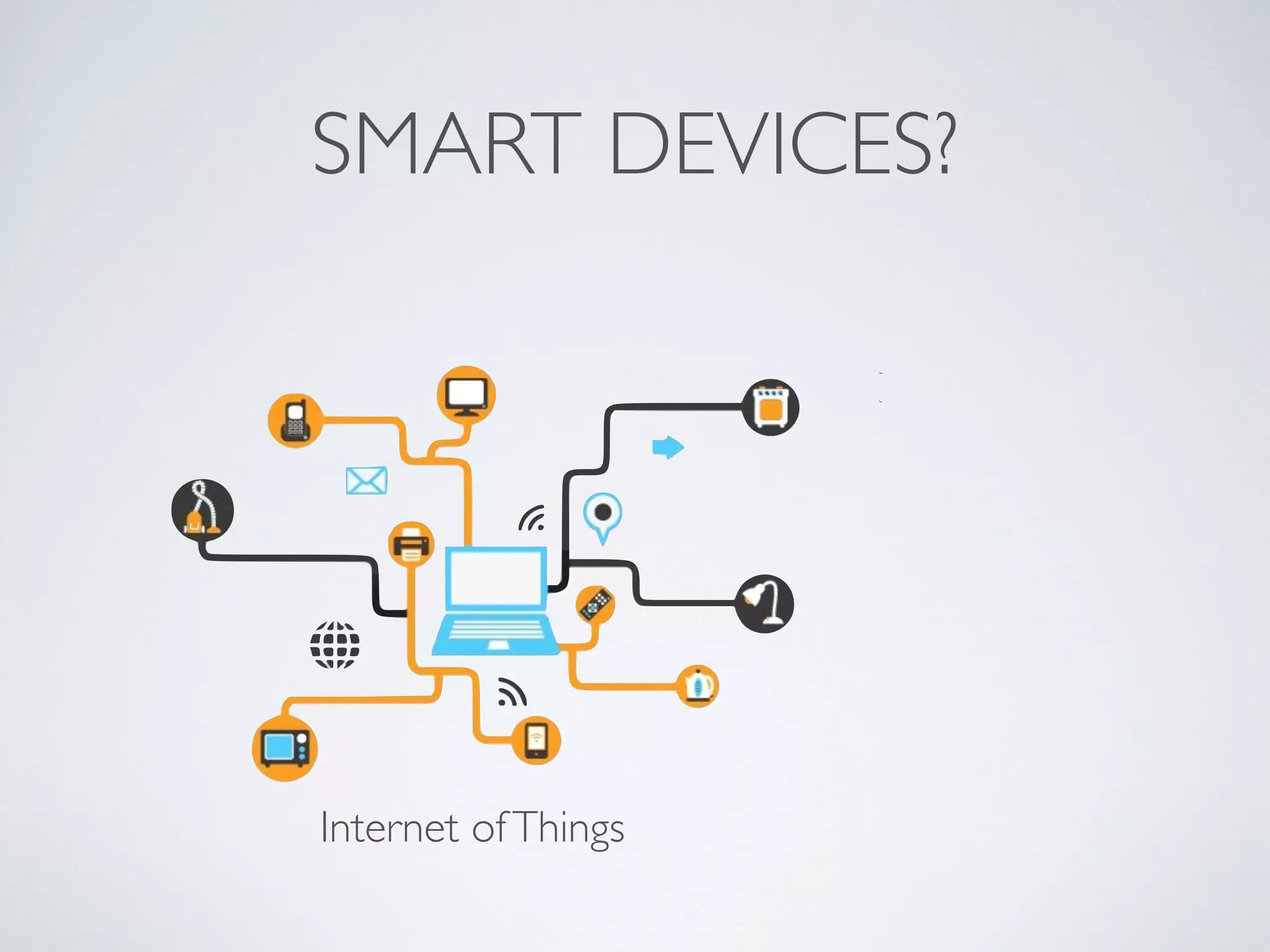

3. SMART DEVICES?
Internet ofThings

4. SMART DEVICES?
Internet ofThings

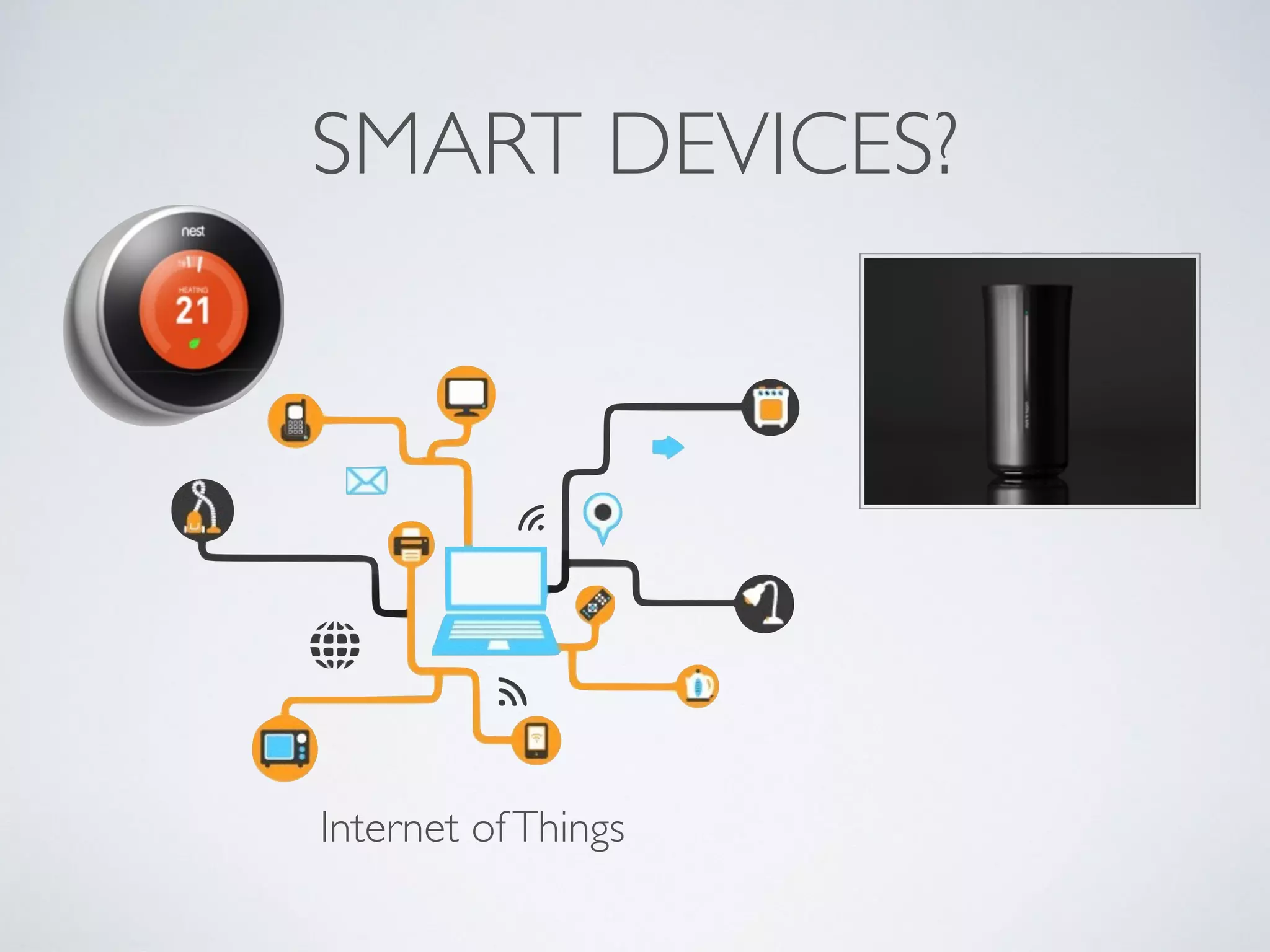

5. SMART DEVICES?
Internet ofThings

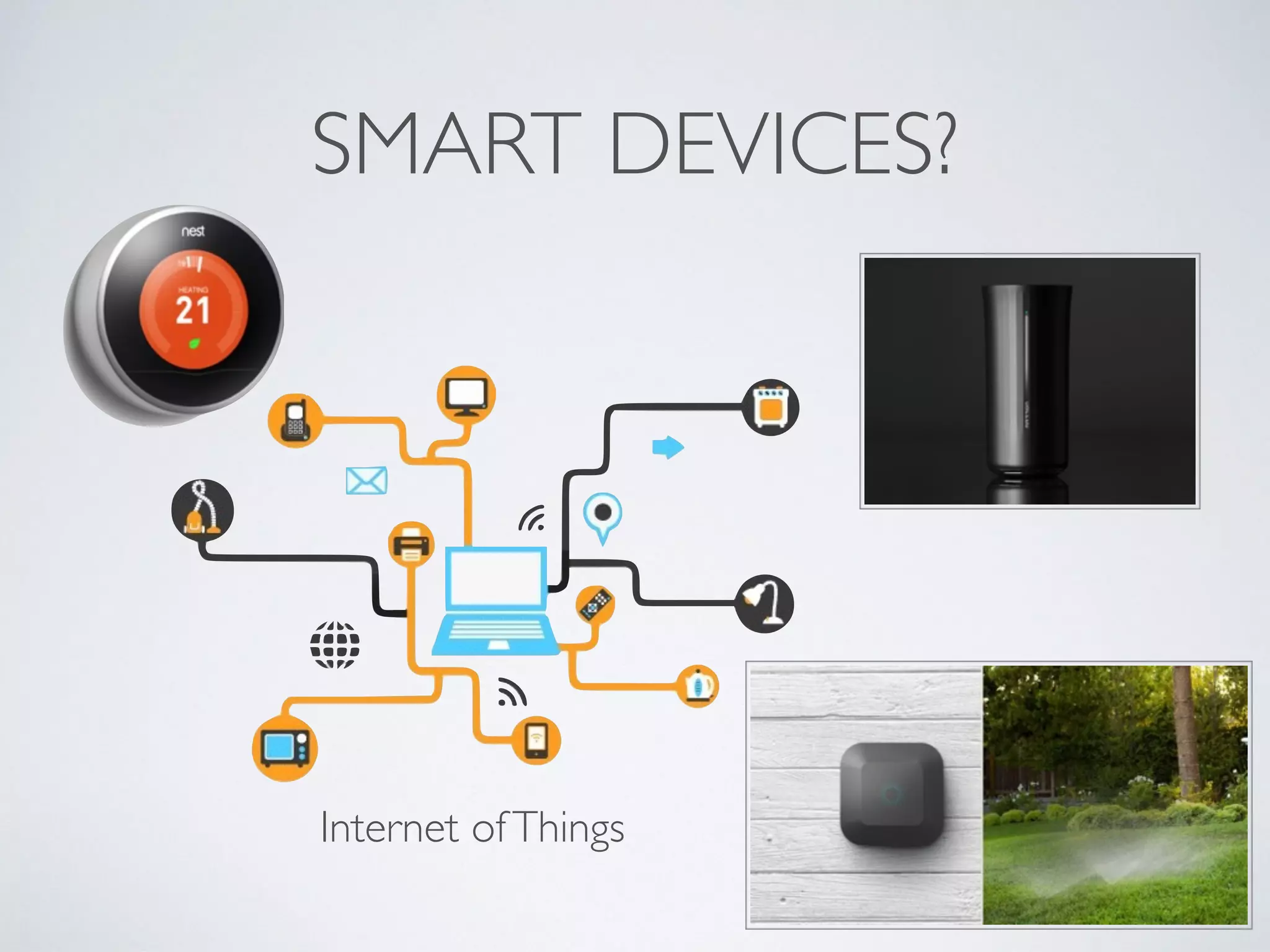

6. SMART DEVICES?
Internet ofThings

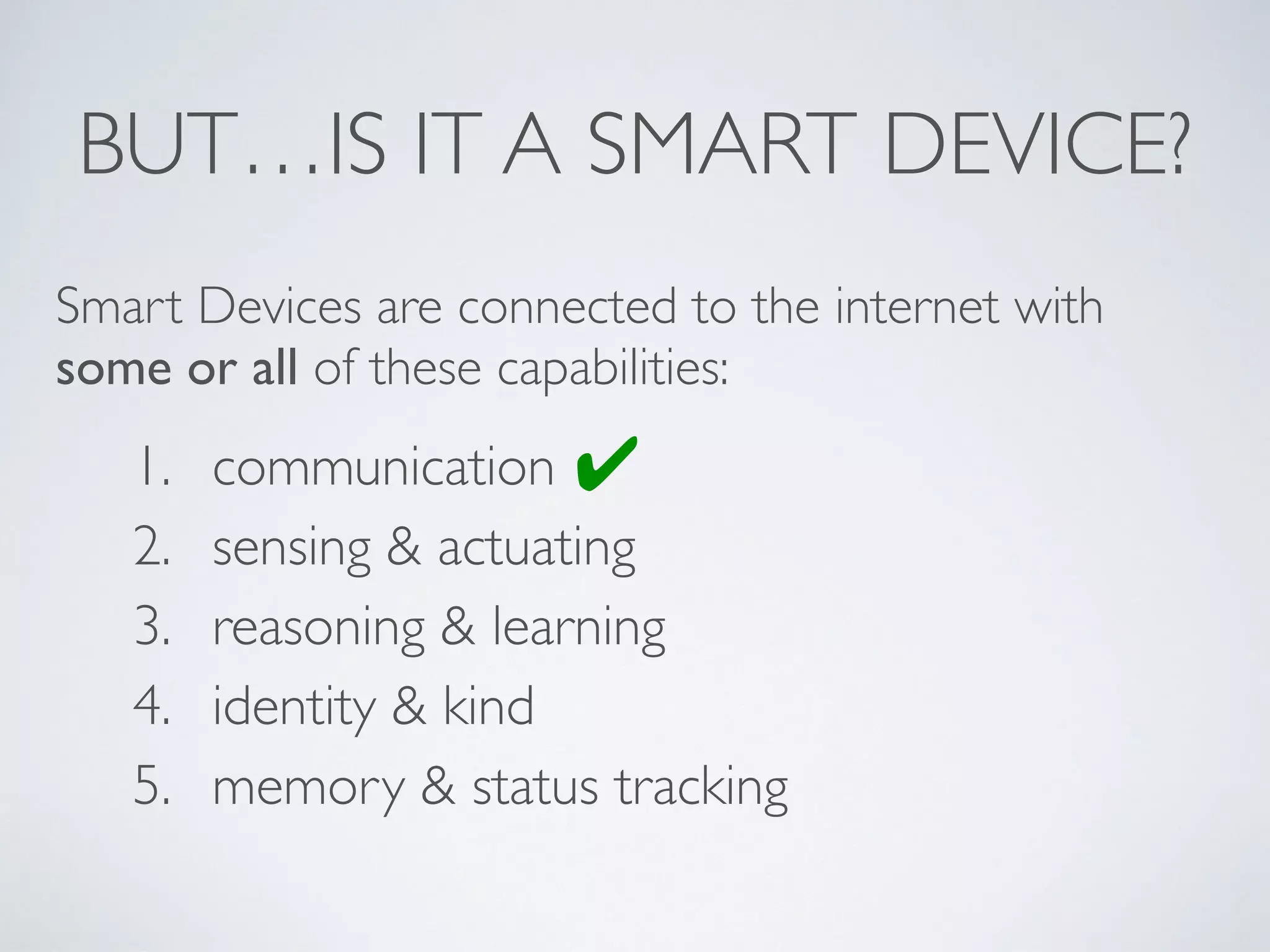

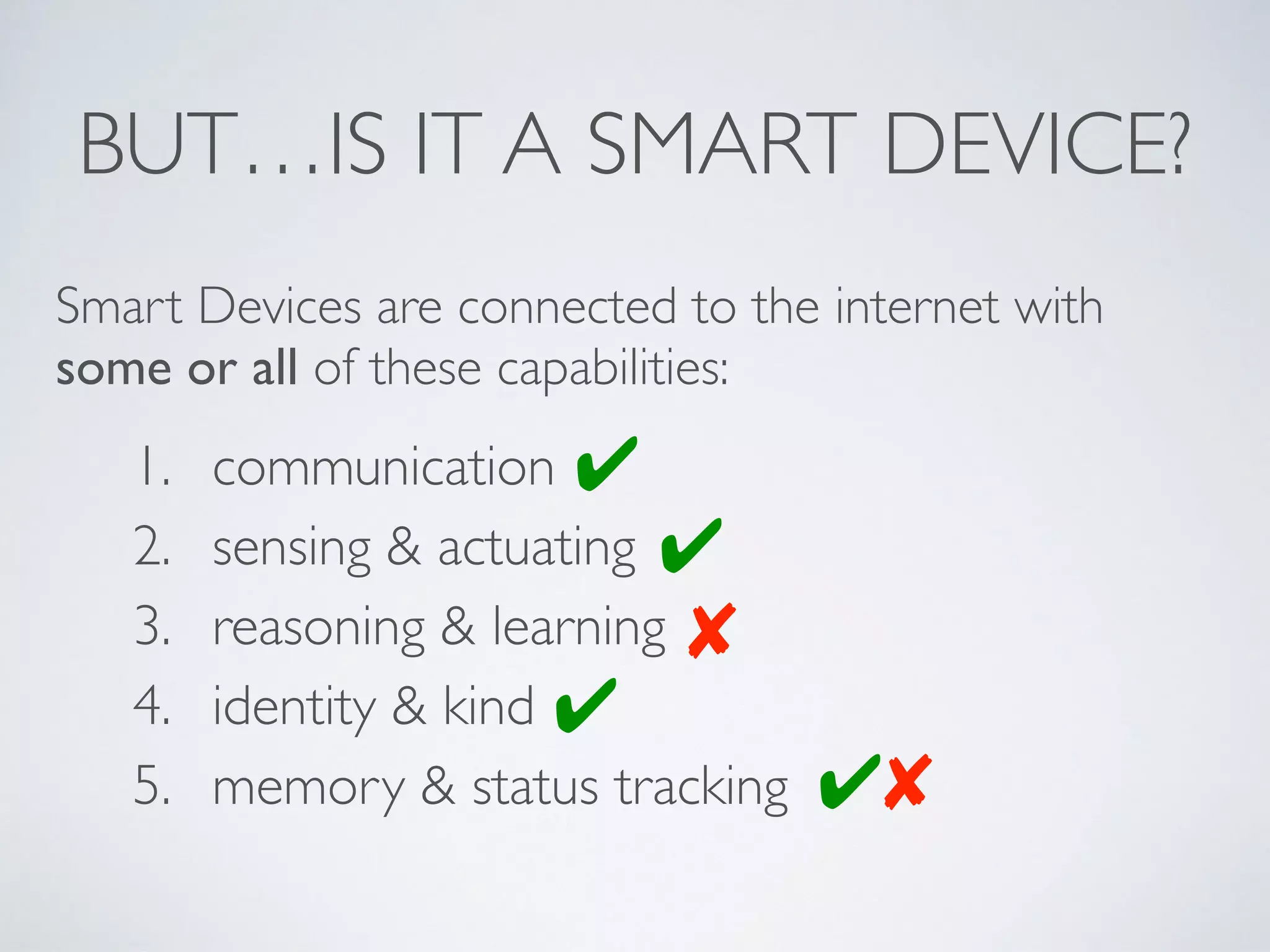

7. SMART DEVICES?
1. communication
2. sensing & actuating
3. reasoning & learning
4. identity & kind
5. memory & status tracking
Smart Devices are connected to the internet with
some or all of these capabilities:
Thompson, C.W., "Smart devices and soft controllers,"
Internet Computing, IEEE , 2005.

8. …we extended this idea for remote labs.

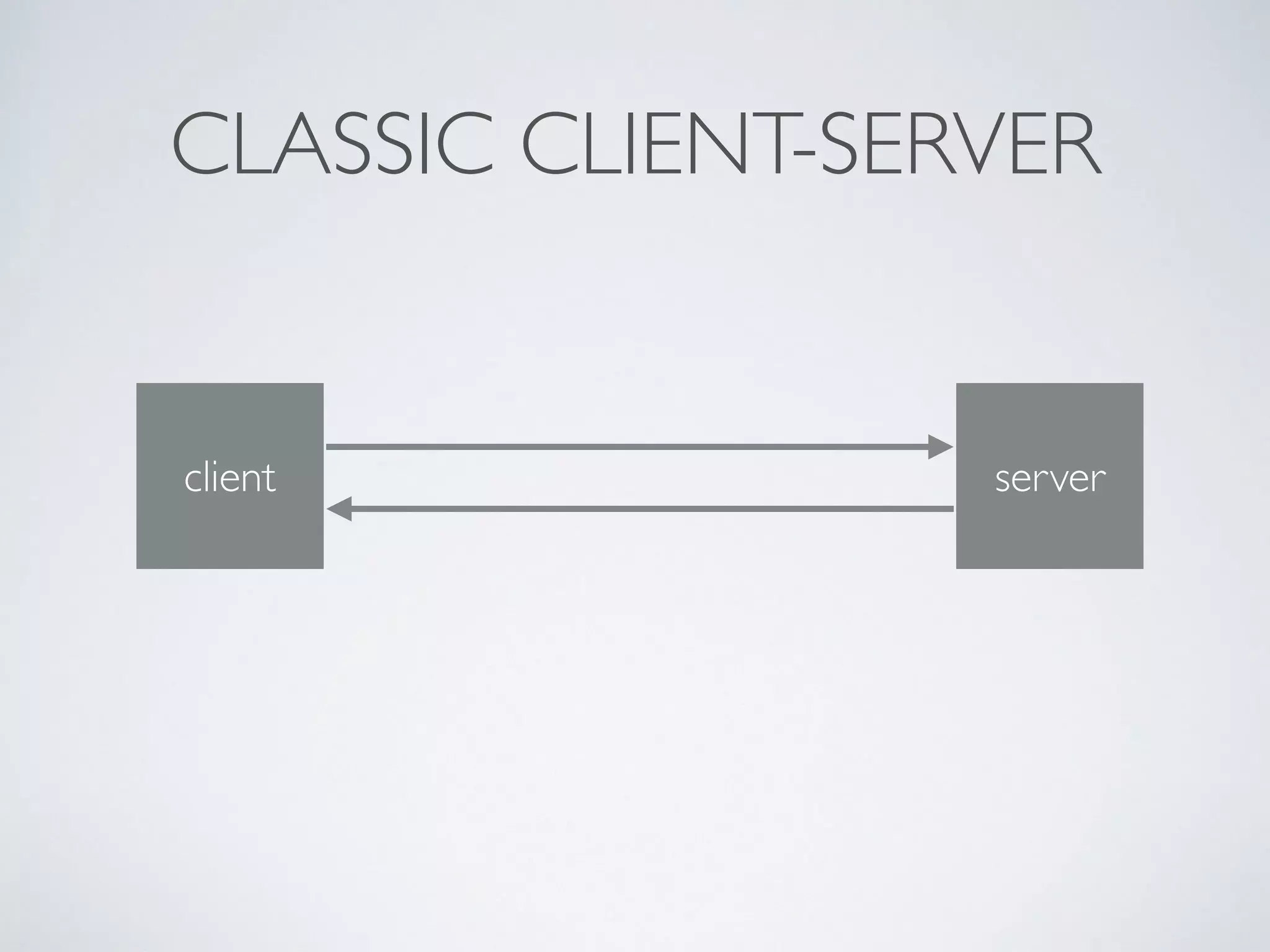

9. client server
CLASSIC CLIENT-SERVER

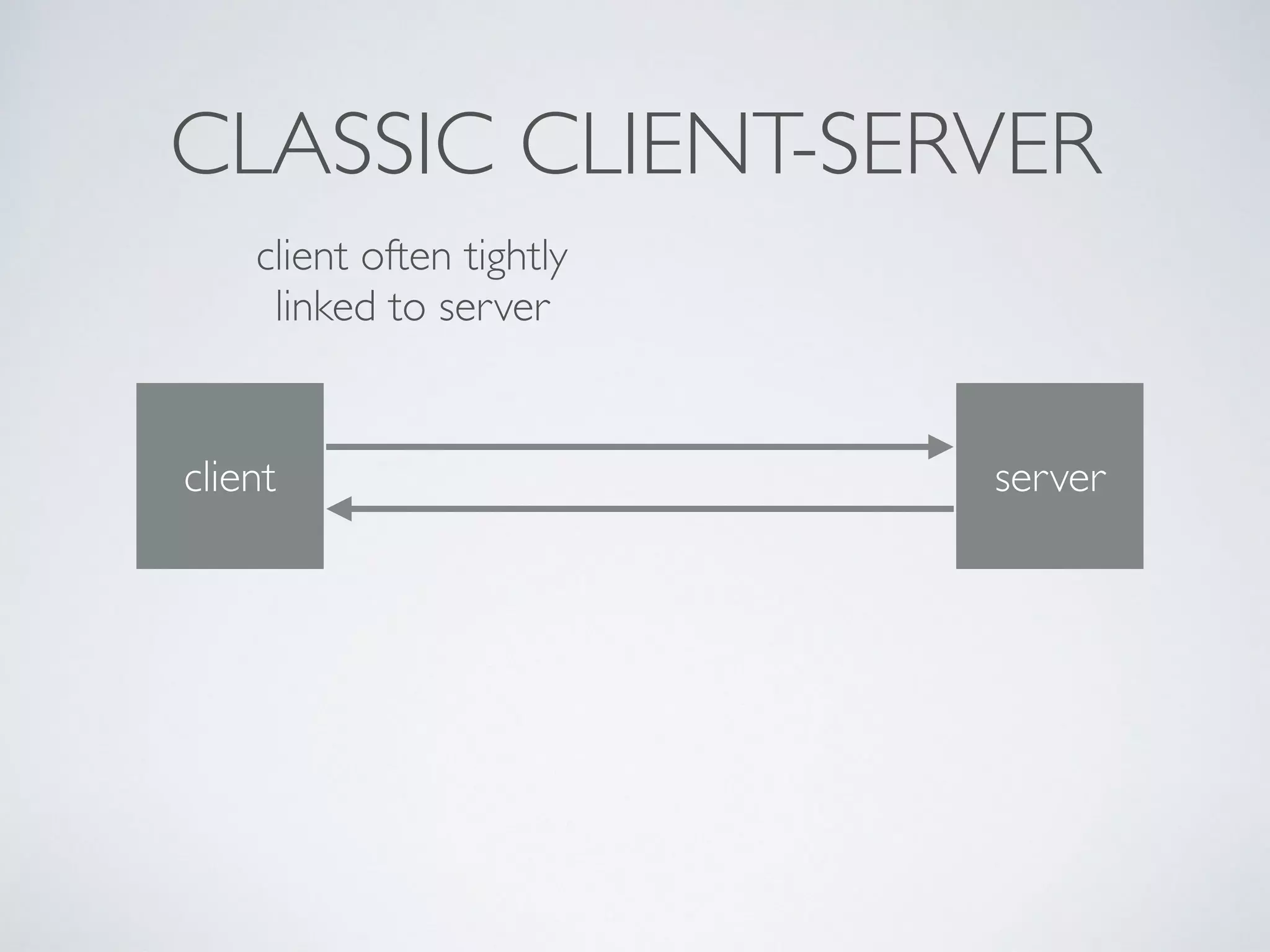

10. client server
CLASSIC CLIENT-SERVER
client often tightly
linked to server

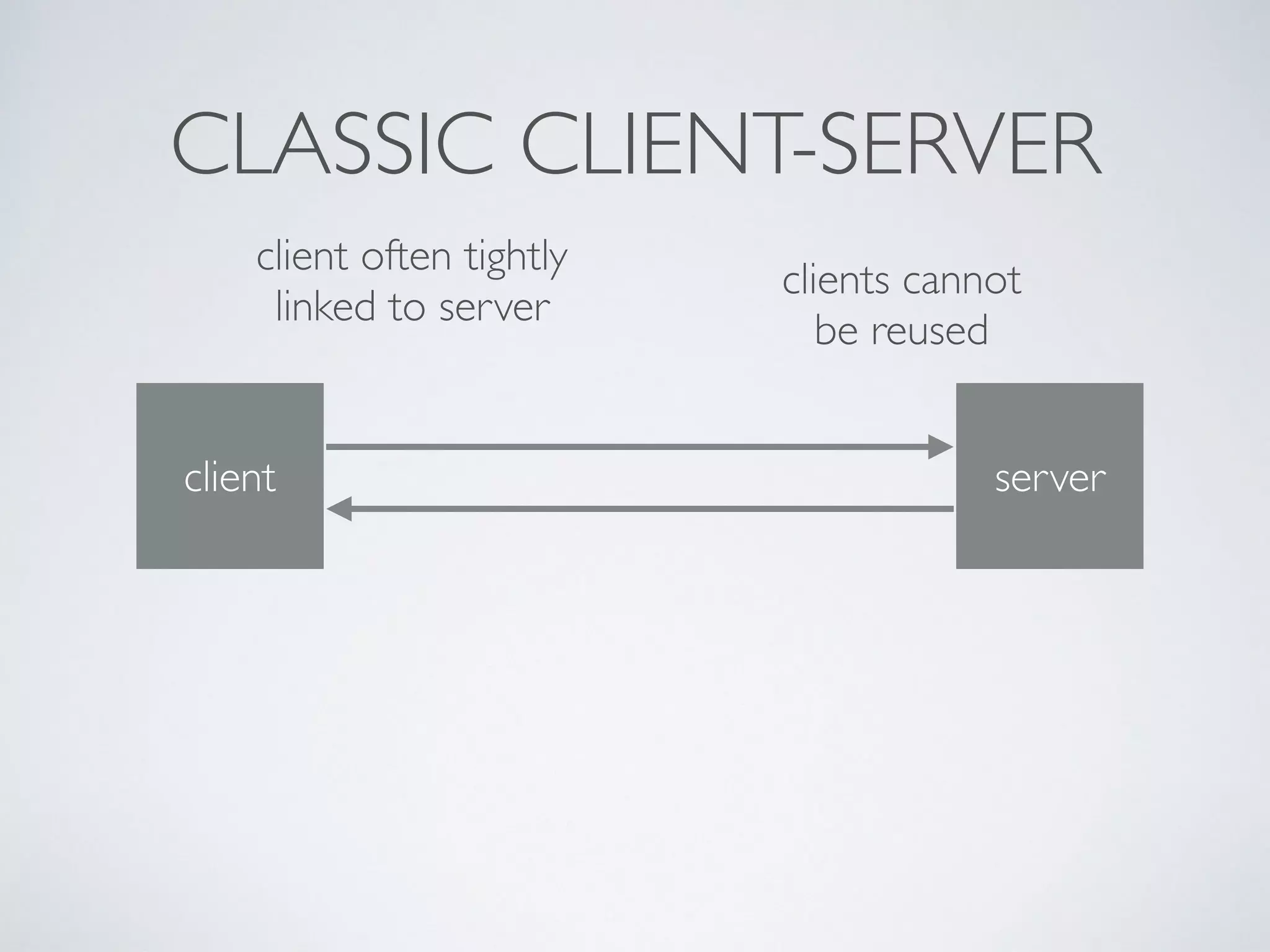

11. client server
CLASSIC CLIENT-SERVER
client often tightly
linked to server
clients cannot
be reused

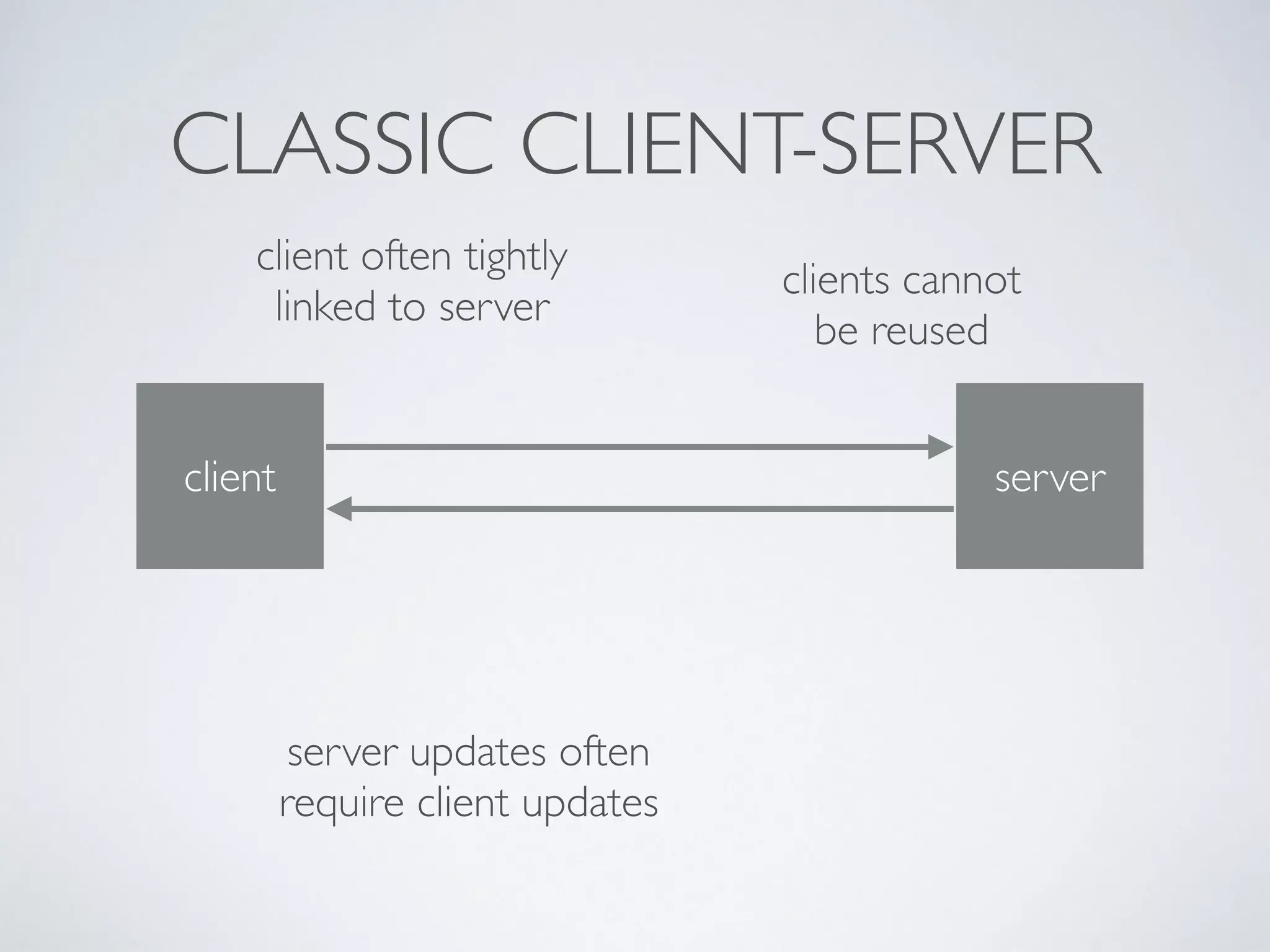

12. client server
CLASSIC CLIENT-SERVER
client often tightly
linked to server
server updates often
require client updates
clients cannot
be reused

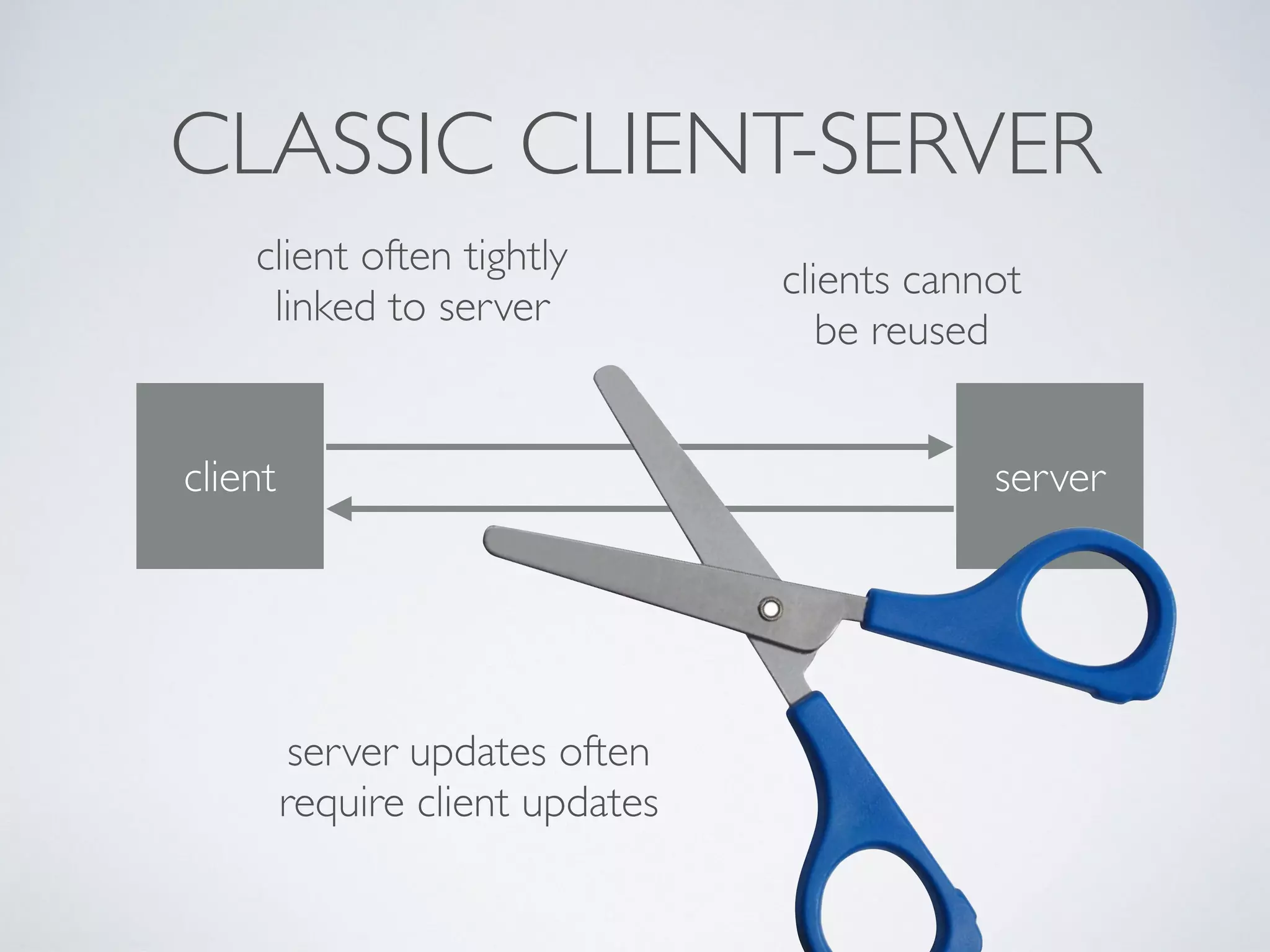

13. client server
CLASSIC CLIENT-SERVER
client often tightly
linked to server
server updates often
require client updates
clients cannot
be reused

14. client server
CLASSIC CLIENT-SERVER
client often tightly
linked to server
server updates often
require client updates
clients cannot
be reused

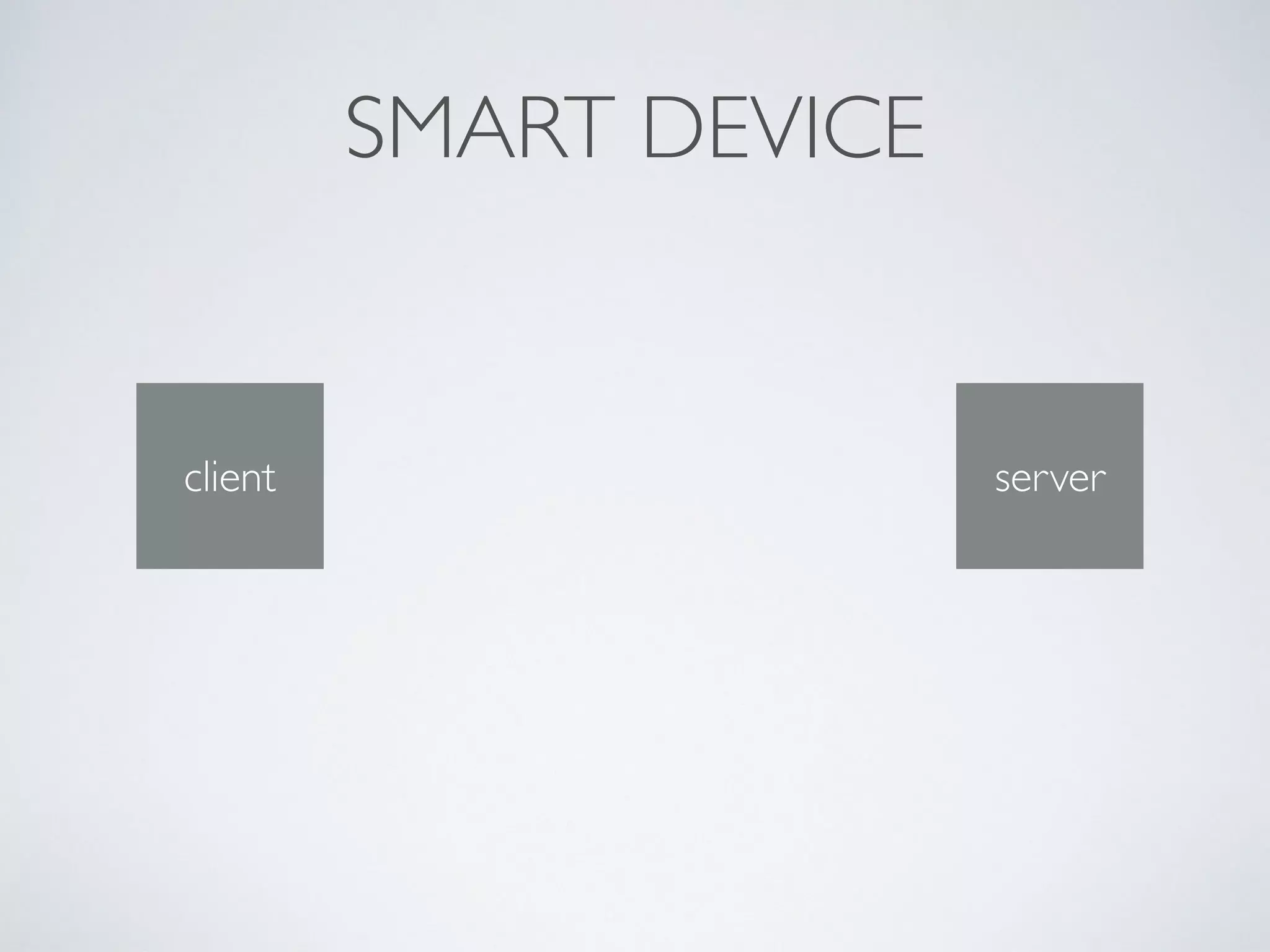

15. client server
SMART DEVICE

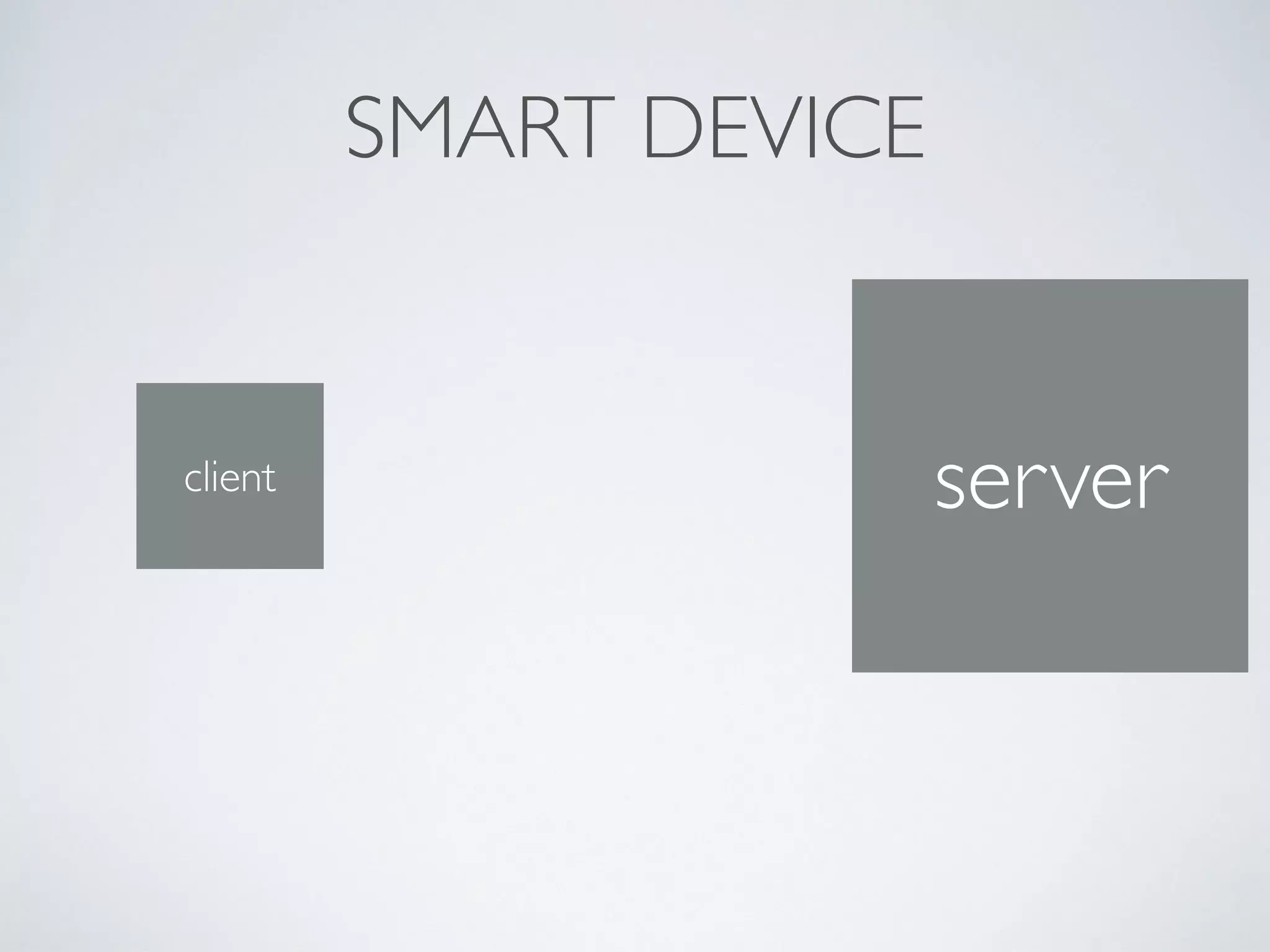

16. client server
SMART DEVICE

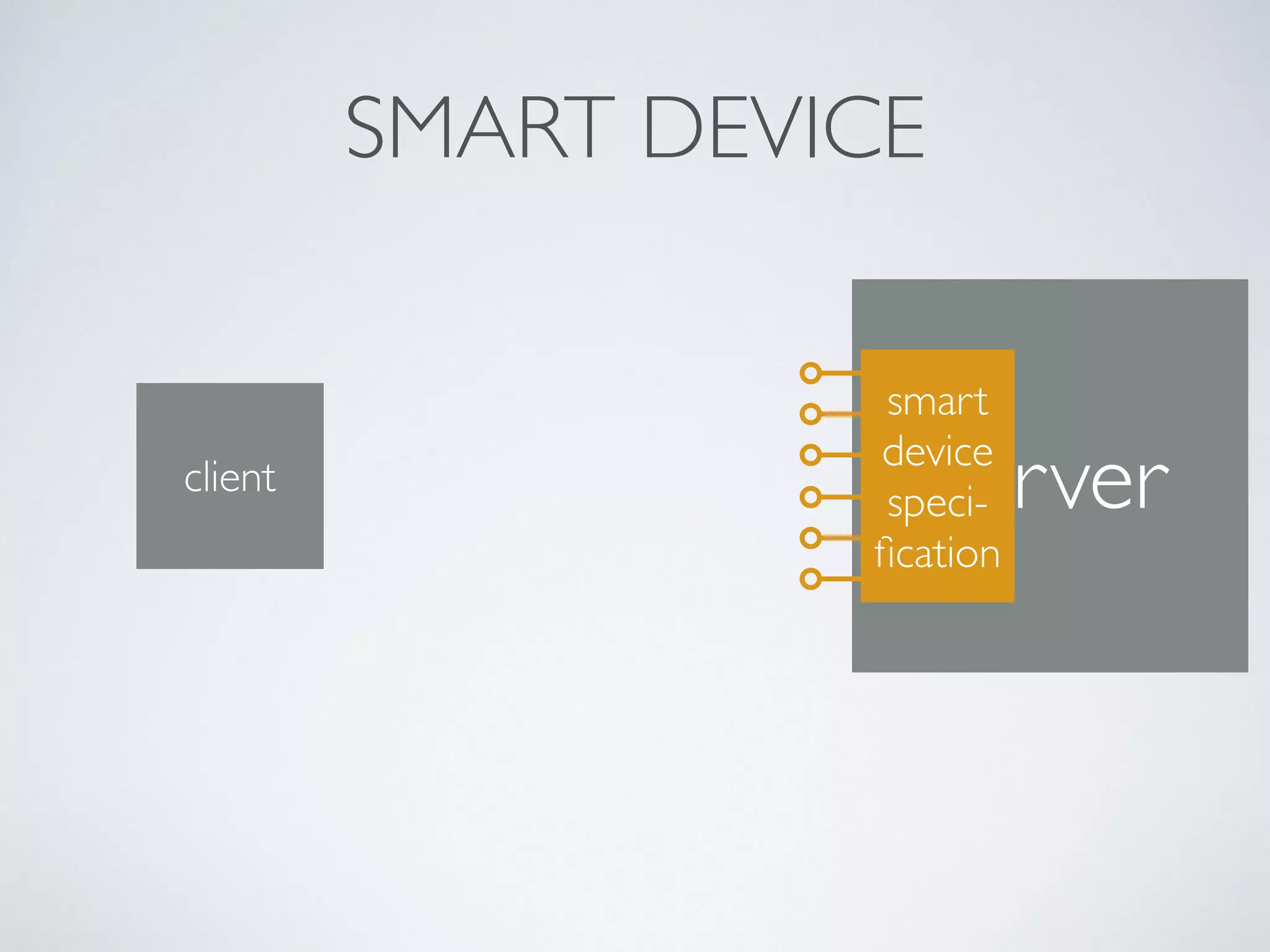

17. client server
smart
device
speci-
fication
SMART DEVICE

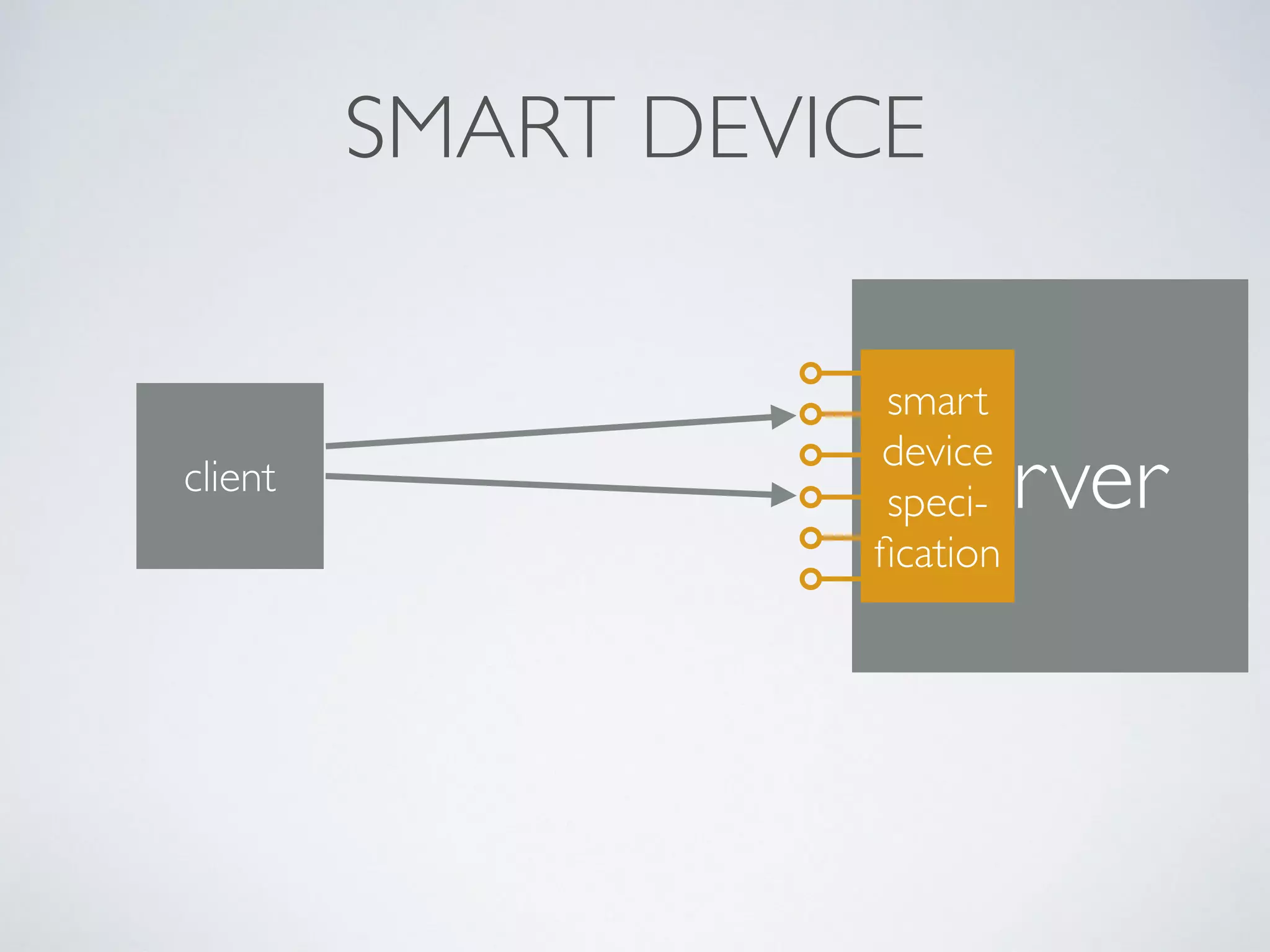

18. client server
smart
device
speci-
fication
SMART DEVICE

19. client server
smart
device
speci-
fication
data
viewer
app
SMART DEVICE

20. client server
smart
device
speci-
fication
data
viewer
app
learning
analytics
client
SMART DEVICE

21. client server
smart
device
speci-
fication
data
viewer
app
learning
analytics
client
metadata
repository
SMART DEVICE

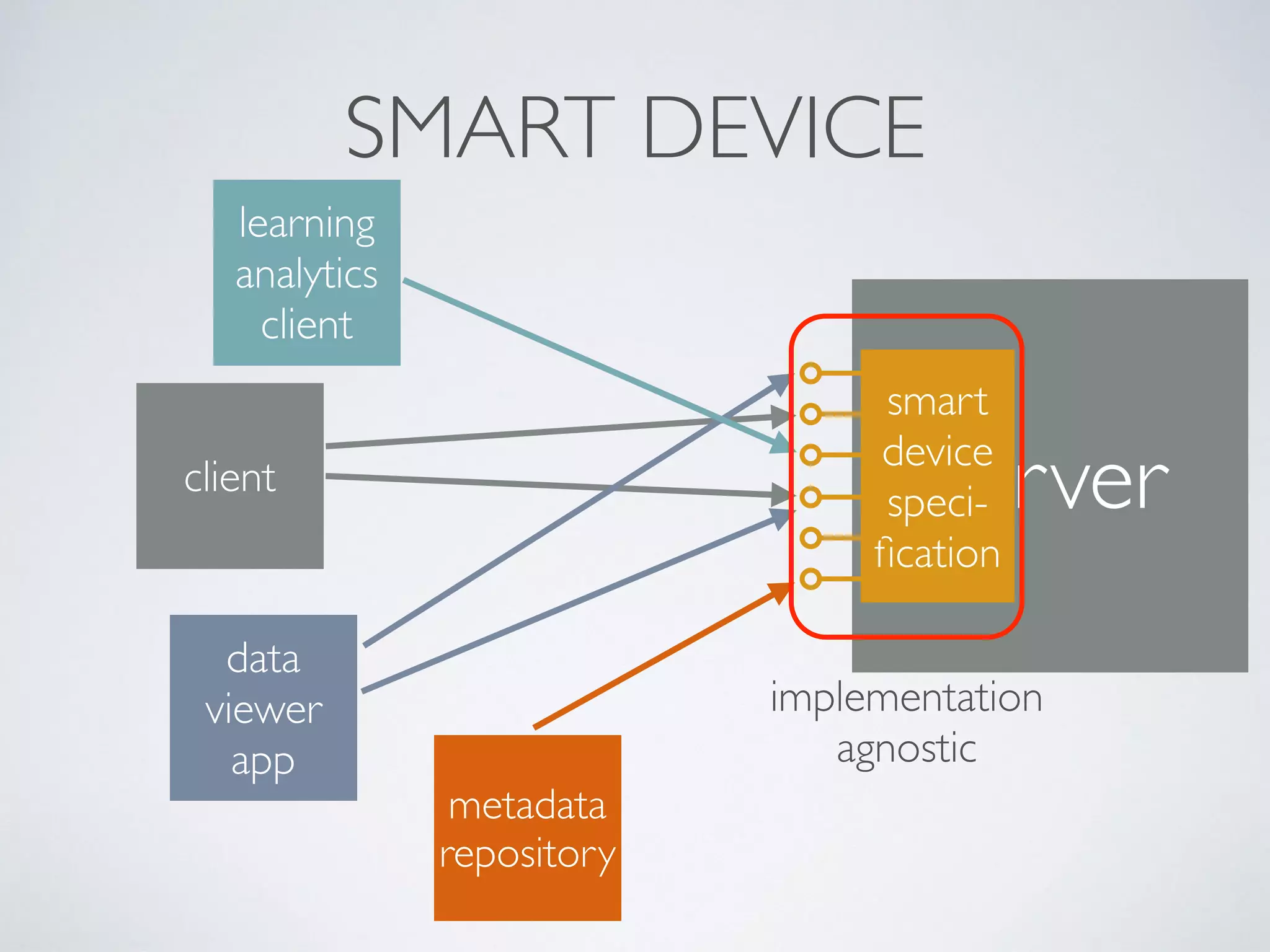

22. client server
smart
device
speci-
fication
data
viewer
app
learning
analytics
client
metadata
repository
SMART DEVICE
implementation
agnostic

23. SMART DEVICES IN

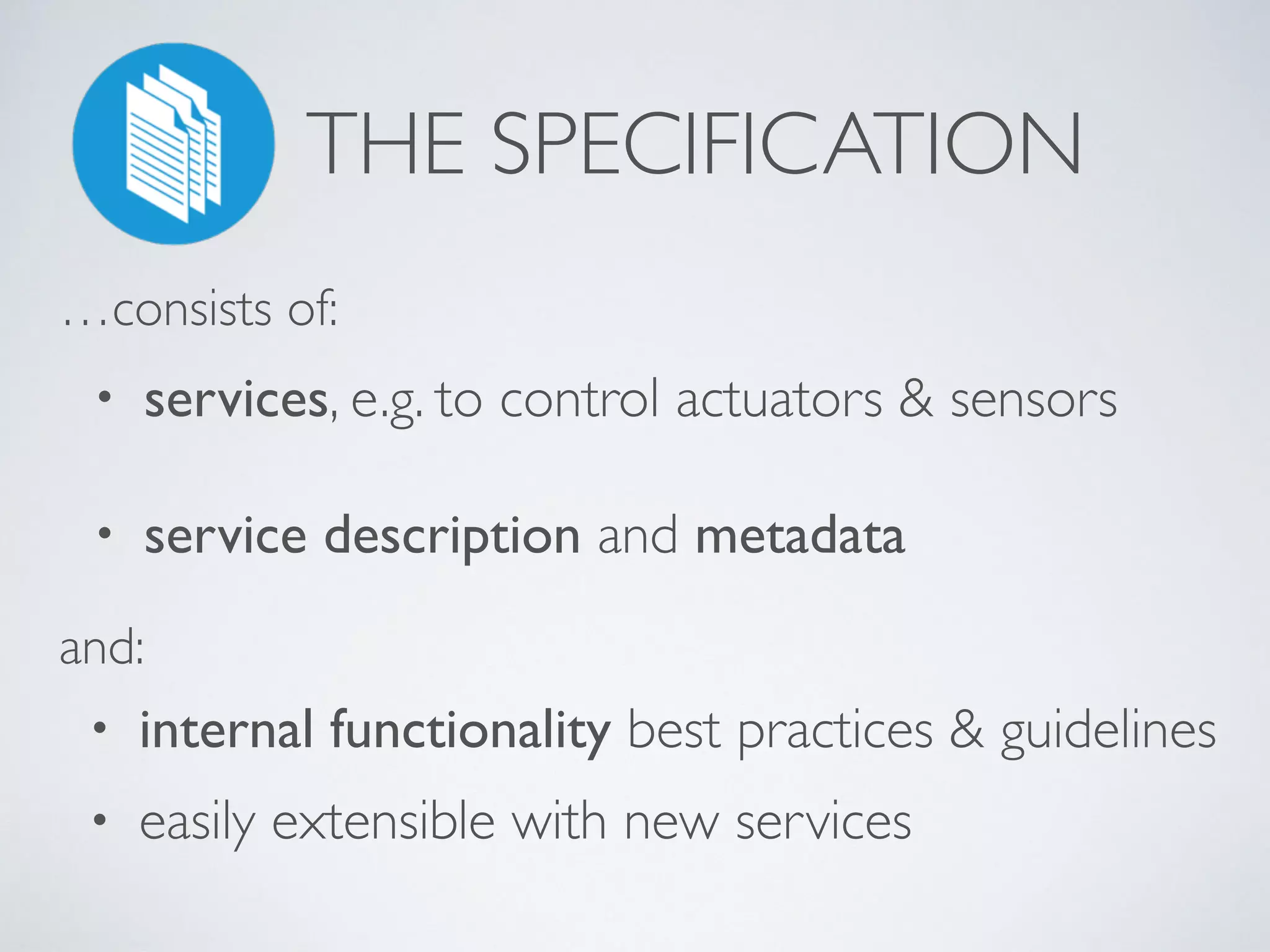

24. THE SPECIFICATION
• services, e.g. to control actuators & sensors
• service description and metadata
…consists of:
and:
• internal functionality best practices & guidelines
• easily extensible with new services

25. TECHNOLOGY
WebSocket Swagger
http://swagger.io/
https://github.com/go-lab/smart-device-metadata

26. TECHNOLOGY
WebSocket Swagger
http://swagger.io/
https://github.com/go-lab/smart-device-metadata
🔧

27. TECHNOLOGY
WebSocket Swagger
the specification is programming language agnostic
http://swagger.io/
https://github.com/go-lab/smart-device-metadata
🔧

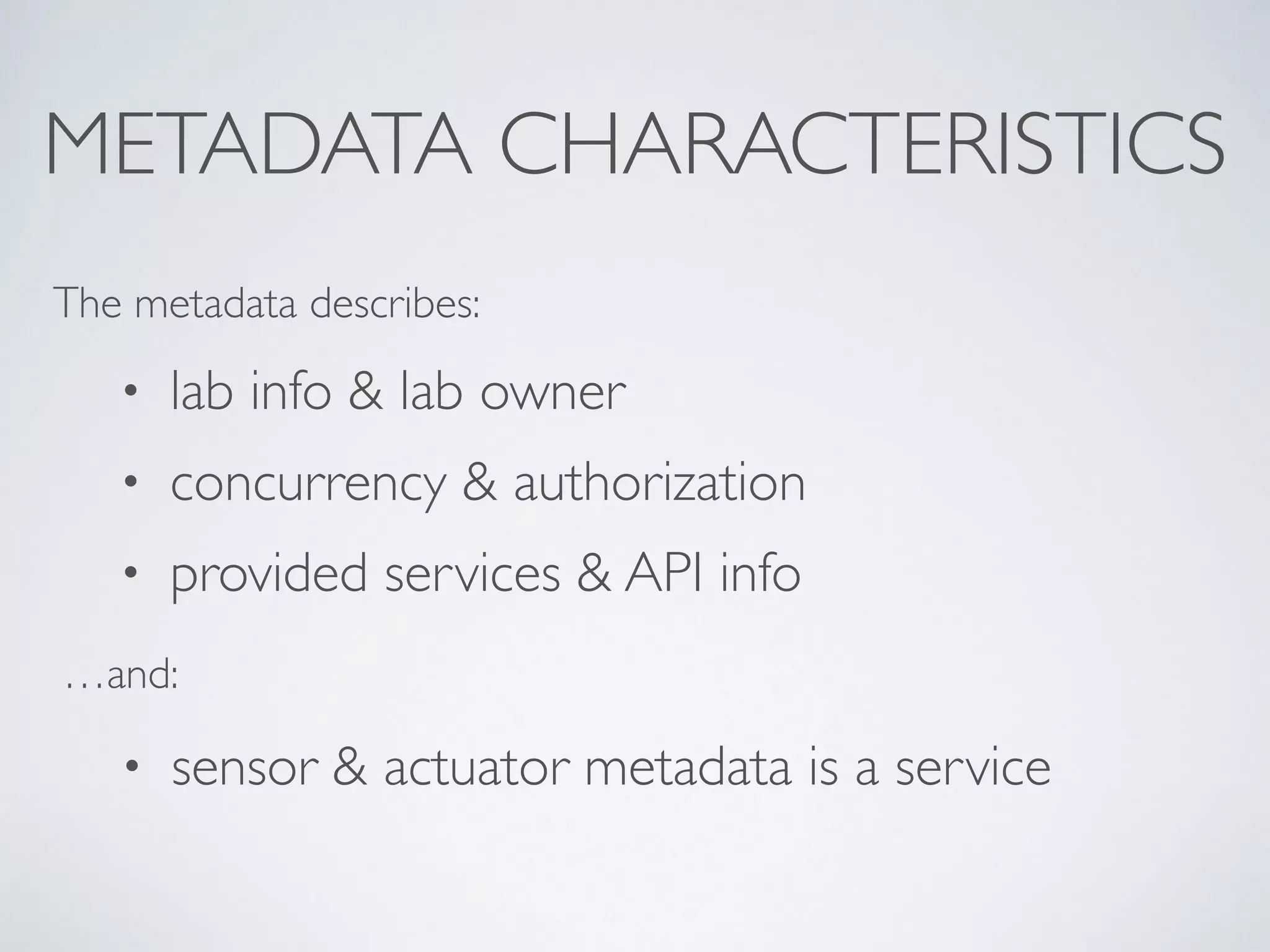

28. METADATA CHARACTERISTICS
• lab info & lab owner
• concurrency & authorization
• provided services & API info
• sensor & actuator metadata is a service
The metadata describes:
…and:

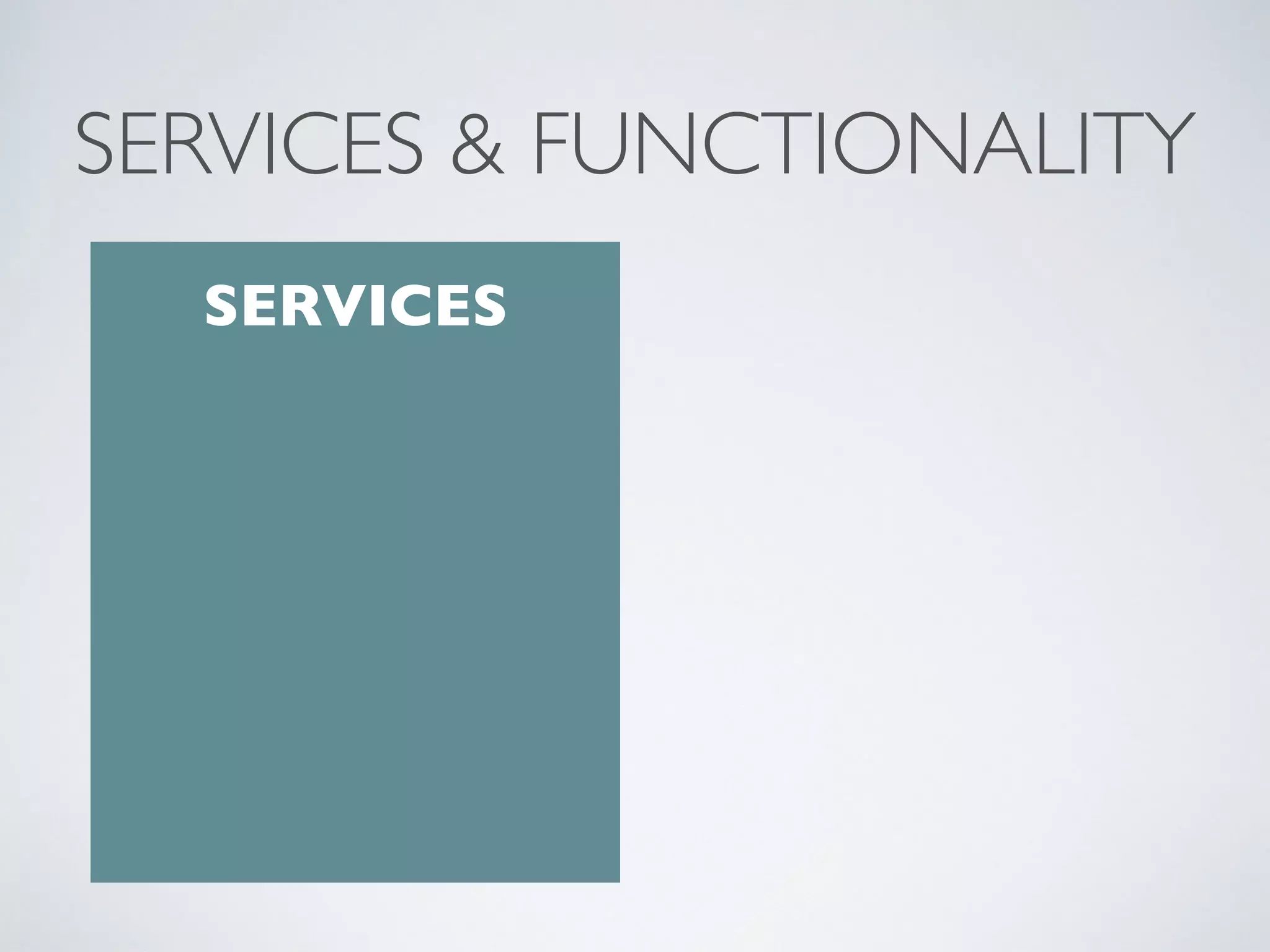

29. SERVICES & FUNCTIONALITY
SERVICES

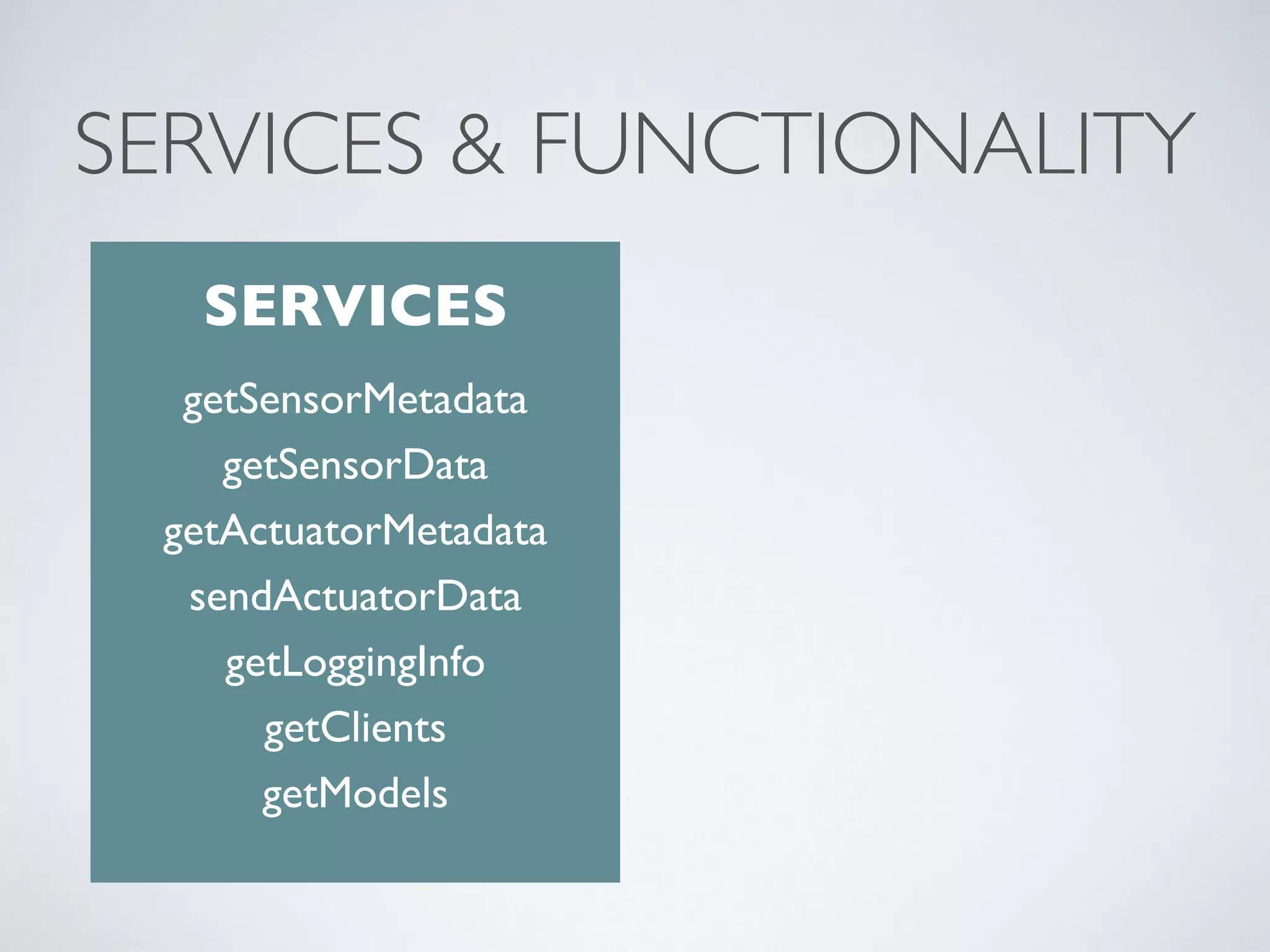

30. SERVICES & FUNCTIONALITY
getSensorMetadata
getSensorData
getActuatorMetadata
sendActuatorData
getLoggingInfo
getClients
getModels
SERVICES

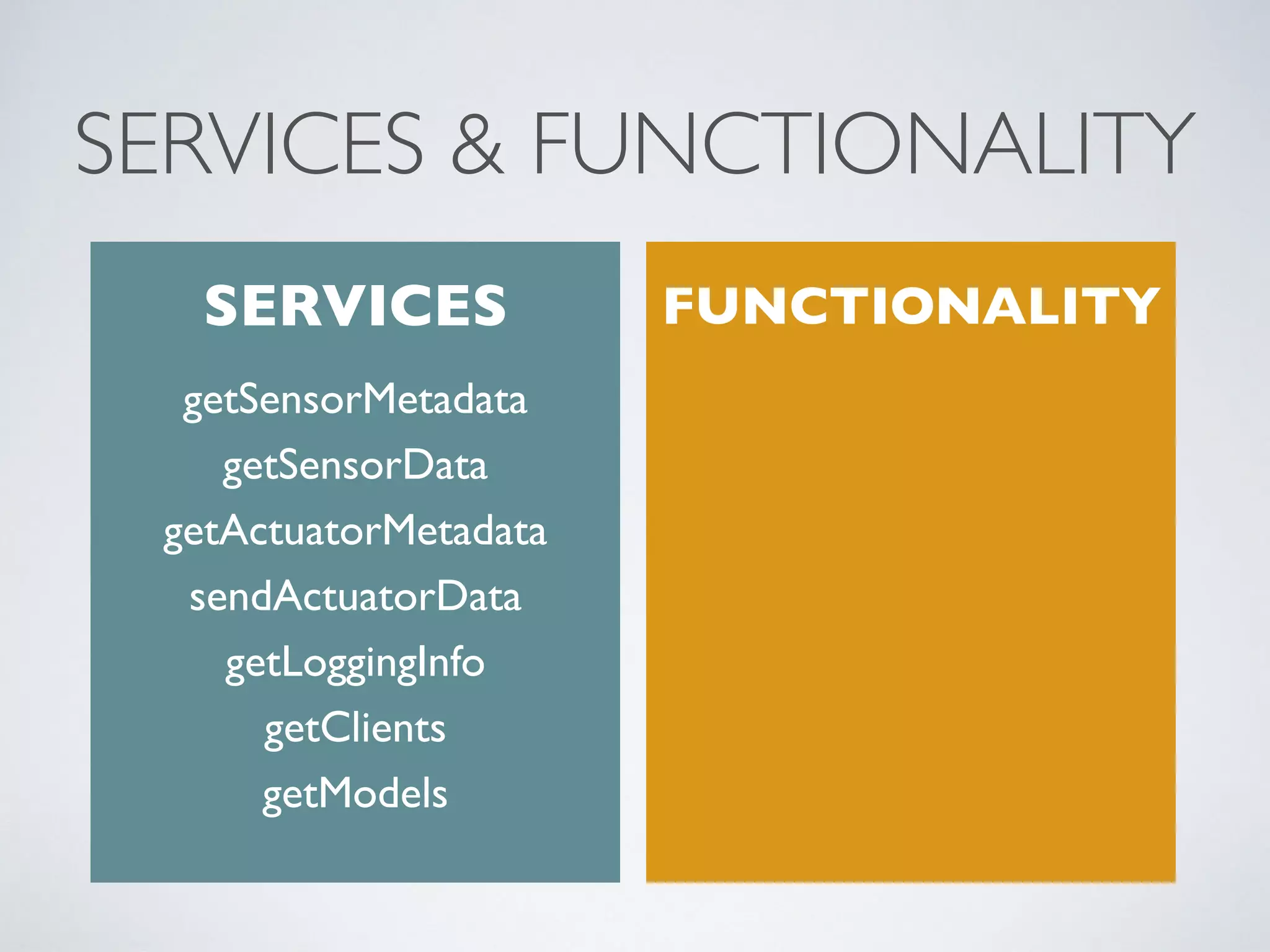

31. SERVICES & FUNCTIONALITY
getSensorMetadata
getSensorData
getActuatorMetadata
sendActuatorData
getLoggingInfo
getClients
getModels
SERVICES FUNCTIONALITY

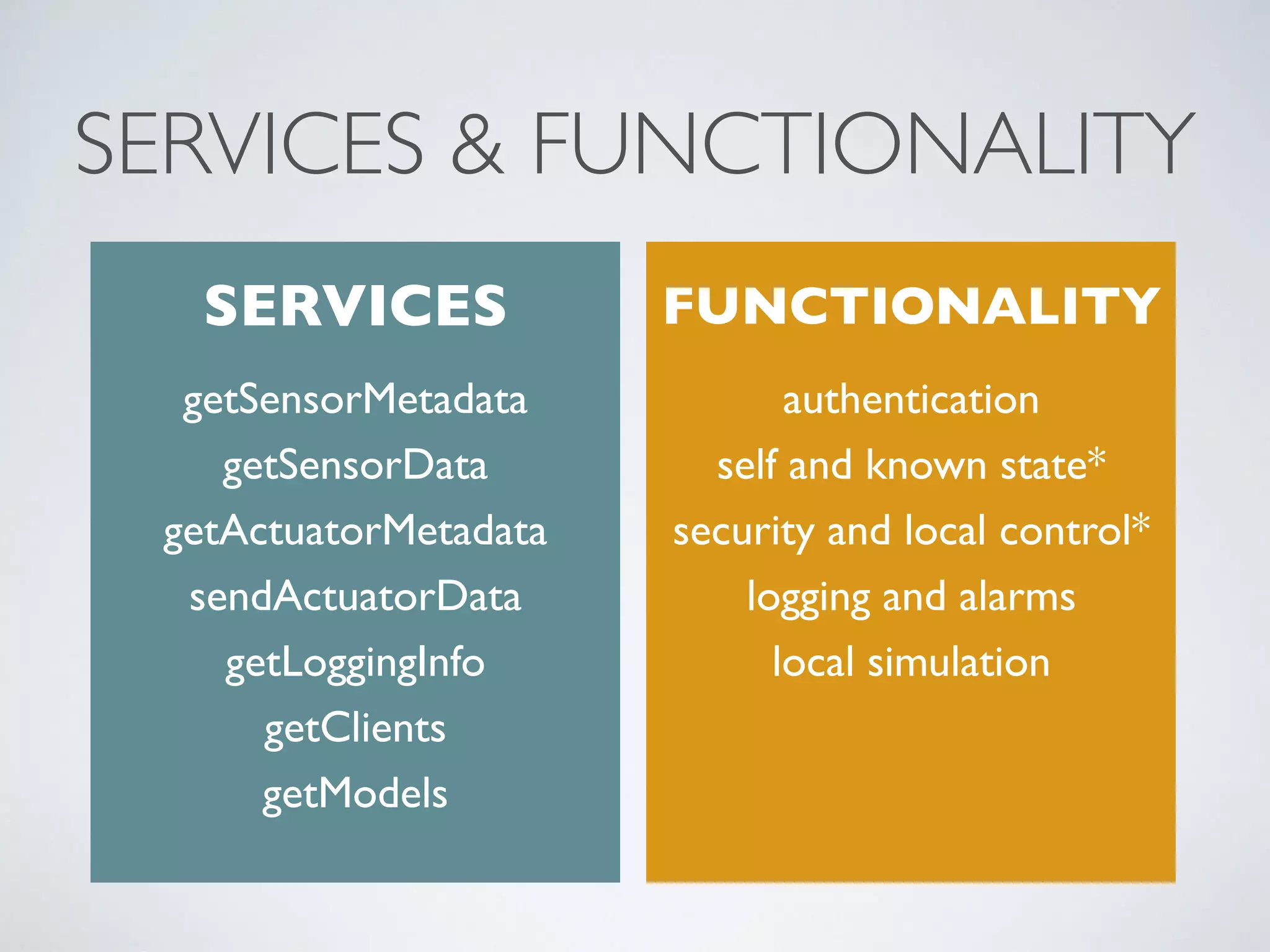

32. SERVICES & FUNCTIONALITY
getSensorMetadata
getSensorData
getActuatorMetadata
sendActuatorData
getLoggingInfo
getClients
getModels
SERVICES FUNCTIONALITY
authentication
self and known state*
security and local control*
logging and alarms
local simulation

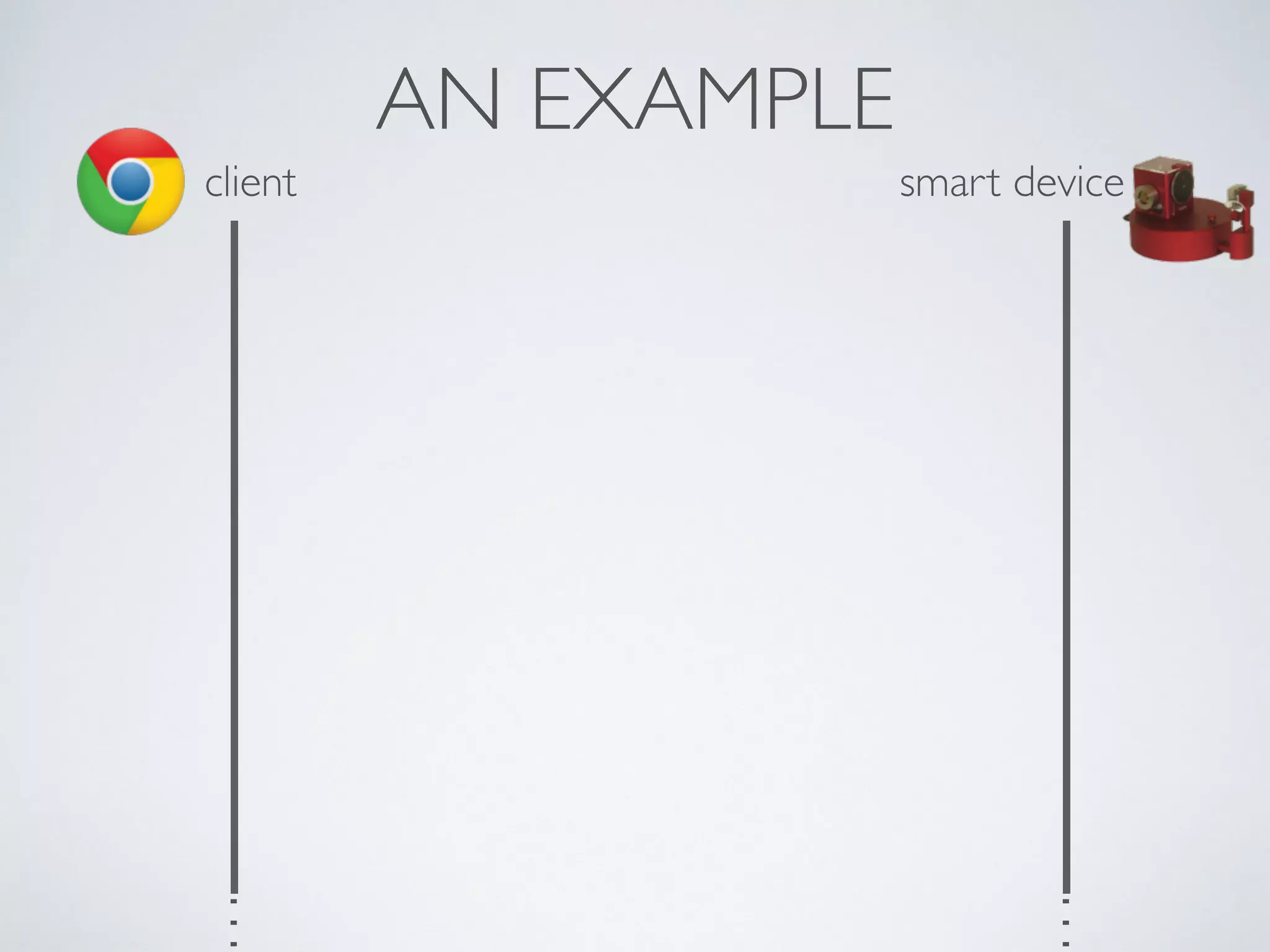

33. AN EXAMPLE
client smart device
…
…

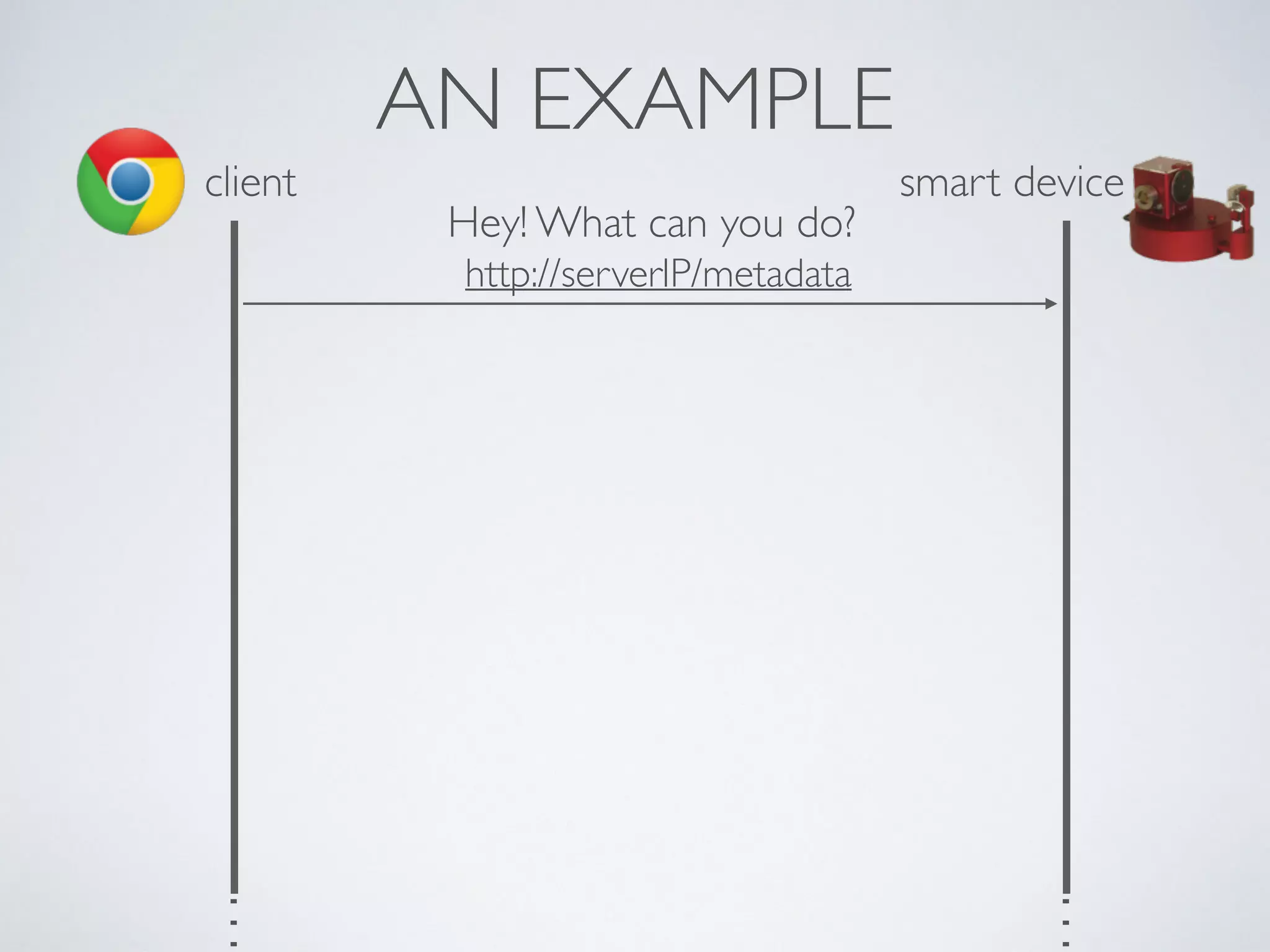

34. AN EXAMPLE
client smart device
Hey! What can you do?
http://serverIP/metadata
…
…

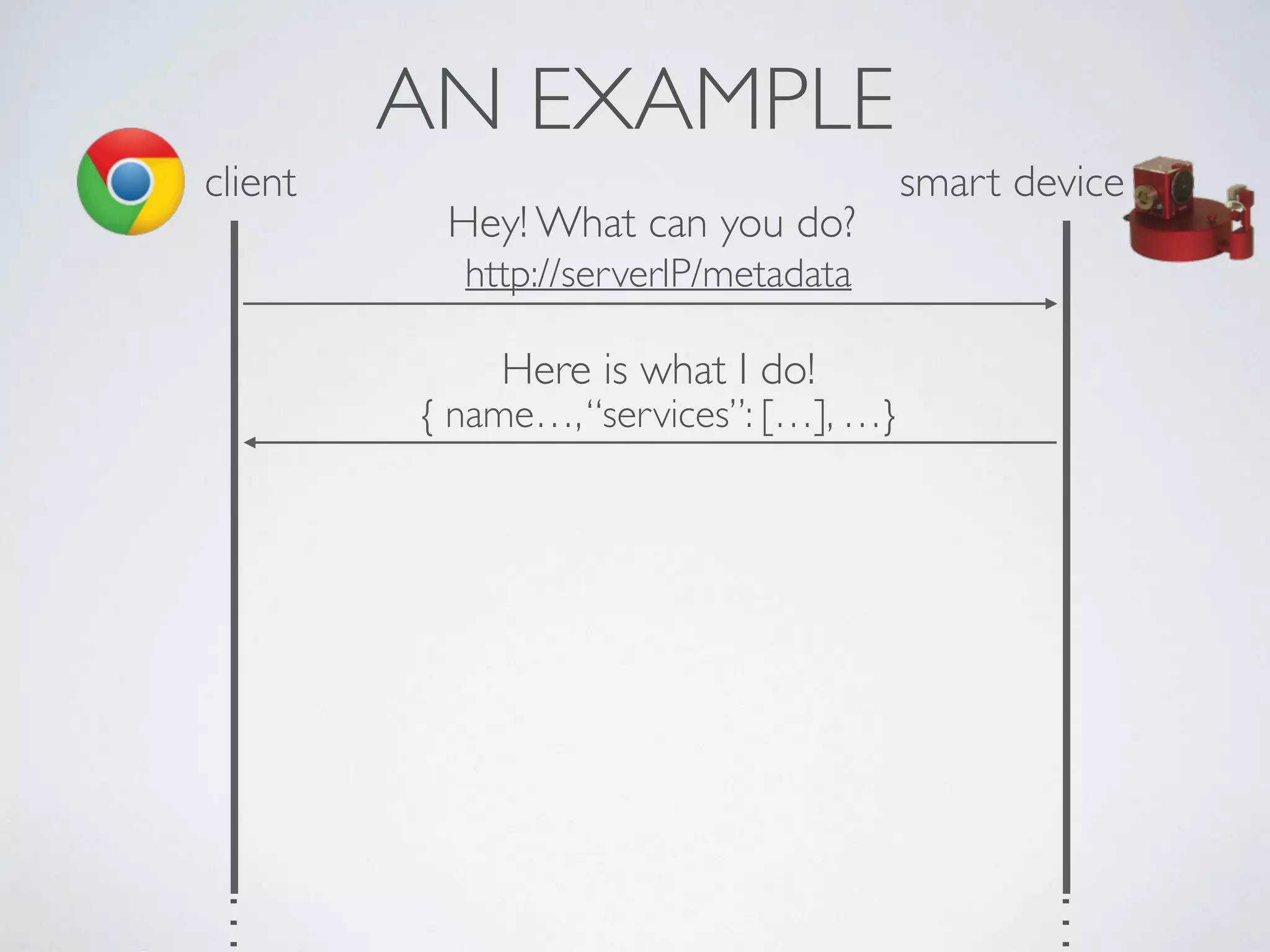

35. AN EXAMPLE
client smart device
Hey! What can you do?
http://serverIP/metadata
{ name…,“services”: […], …}
Here is what I do!
…
…

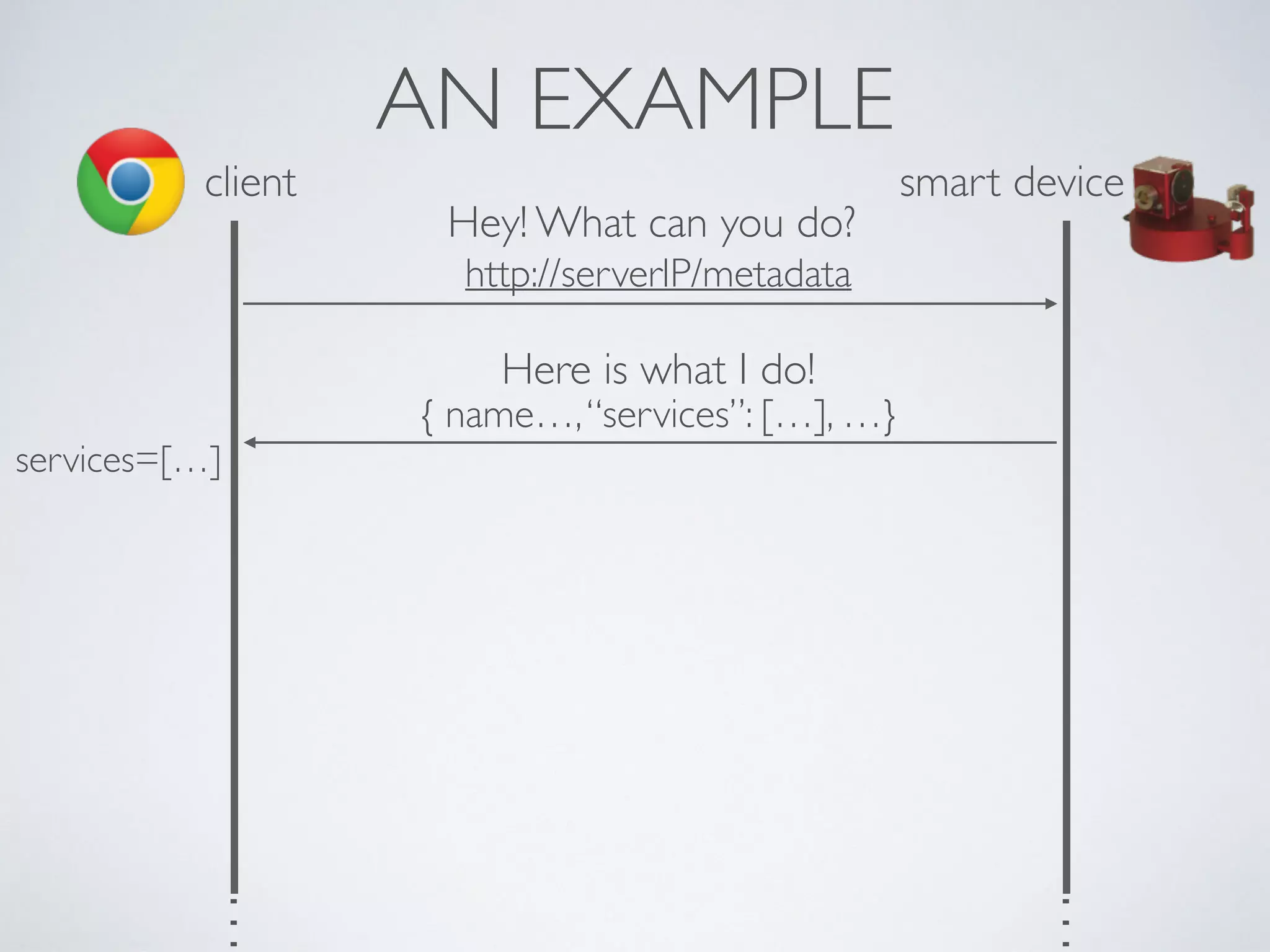

36. AN EXAMPLE
client smart device
Hey! What can you do?
http://serverIP/metadata
{ name…,“services”: […], …}
Here is what I do!
services=[…]
…
…

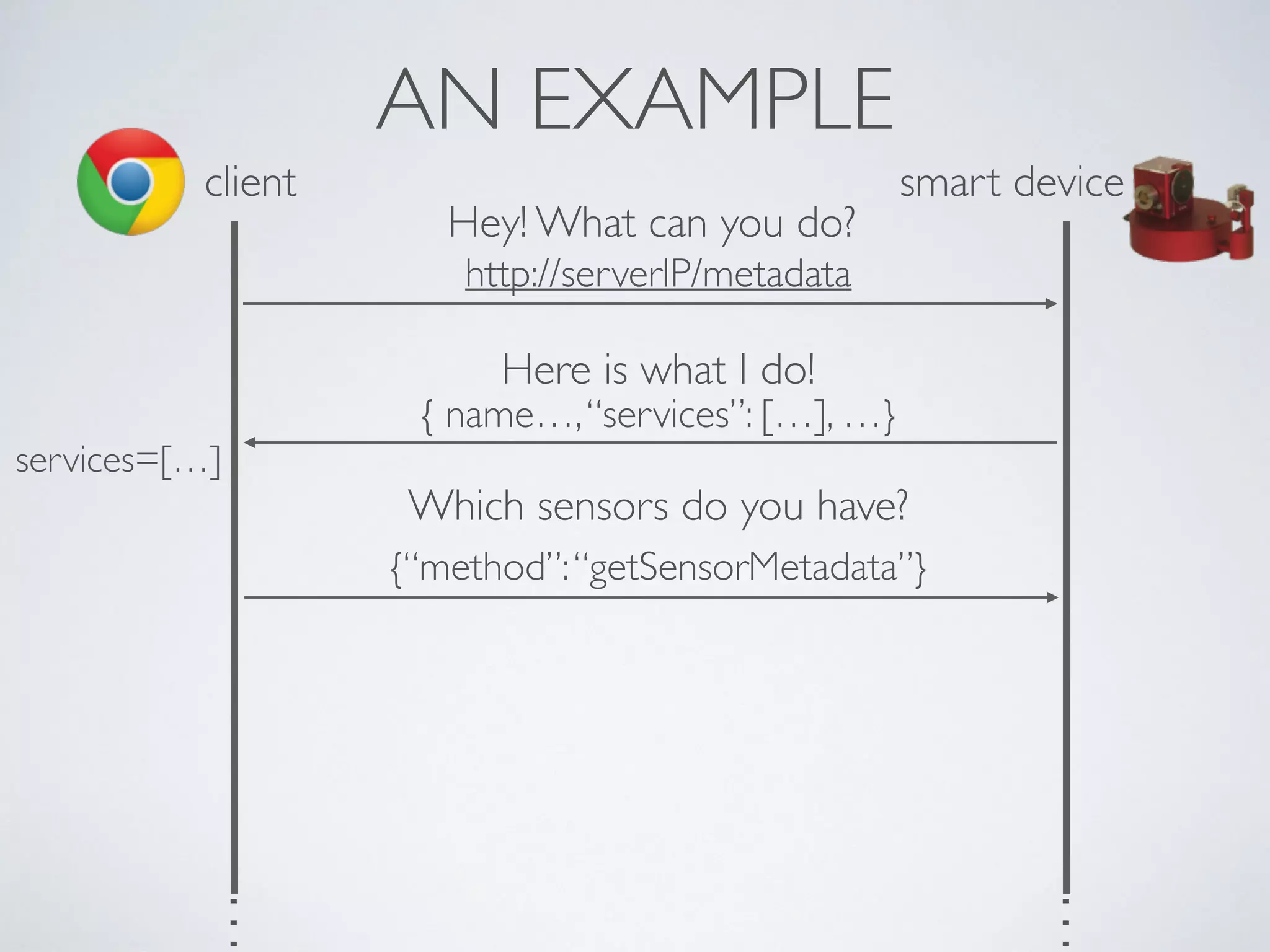

37. AN EXAMPLE
client smart device
Hey! What can you do?
http://serverIP/metadata
{ name…,“services”: […], …}
Here is what I do!
Which sensors do you have?
{“method”:“getSensorMetadata”}
services=[…]
…
…

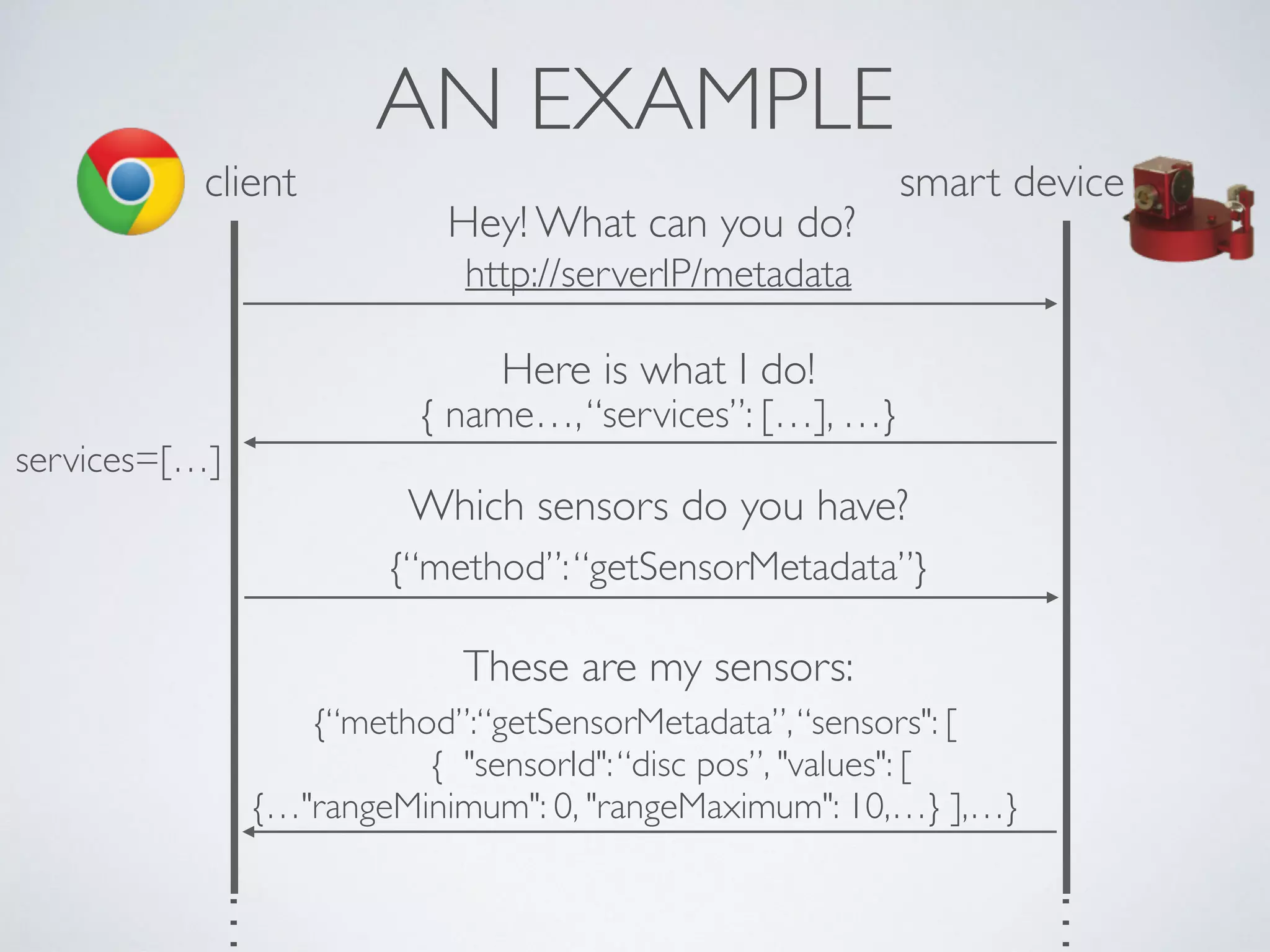

38. AN EXAMPLE
client smart device
Hey! What can you do?
http://serverIP/metadata
{ name…,“services”: […], …}
Here is what I do!
Which sensors do you have?
{“method”:“getSensorMetadata”}
services=[…]
{“method”:“getSensorMetadata”,“sensors": [
{ "sensorId":“disc pos”, "values": [
{…"rangeMinimum": 0, "rangeMaximum": 10,…} ],…}
These are my sensors:
…
…

39. AN EXAMPLE
client smart device
Hey! What can you do?
http://serverIP/metadata
{ name…,“services”: […], …}
Here is what I do!
Which sensors do you have?
{“method”:“getSensorMetadata”}
services=[…]
{“method”:“getSensorMetadata”,“sensors": [
{ "sensorId":“disc pos”, "values": [
{…"rangeMinimum": 0, "rangeMaximum": 10,…} ],…}
These are my sensors:
sensors=[{
id:“disc pos”,
min:0,
max:10}];
…
…

40. AN EXAMPLE CONTINUED
client
…
…
smart device

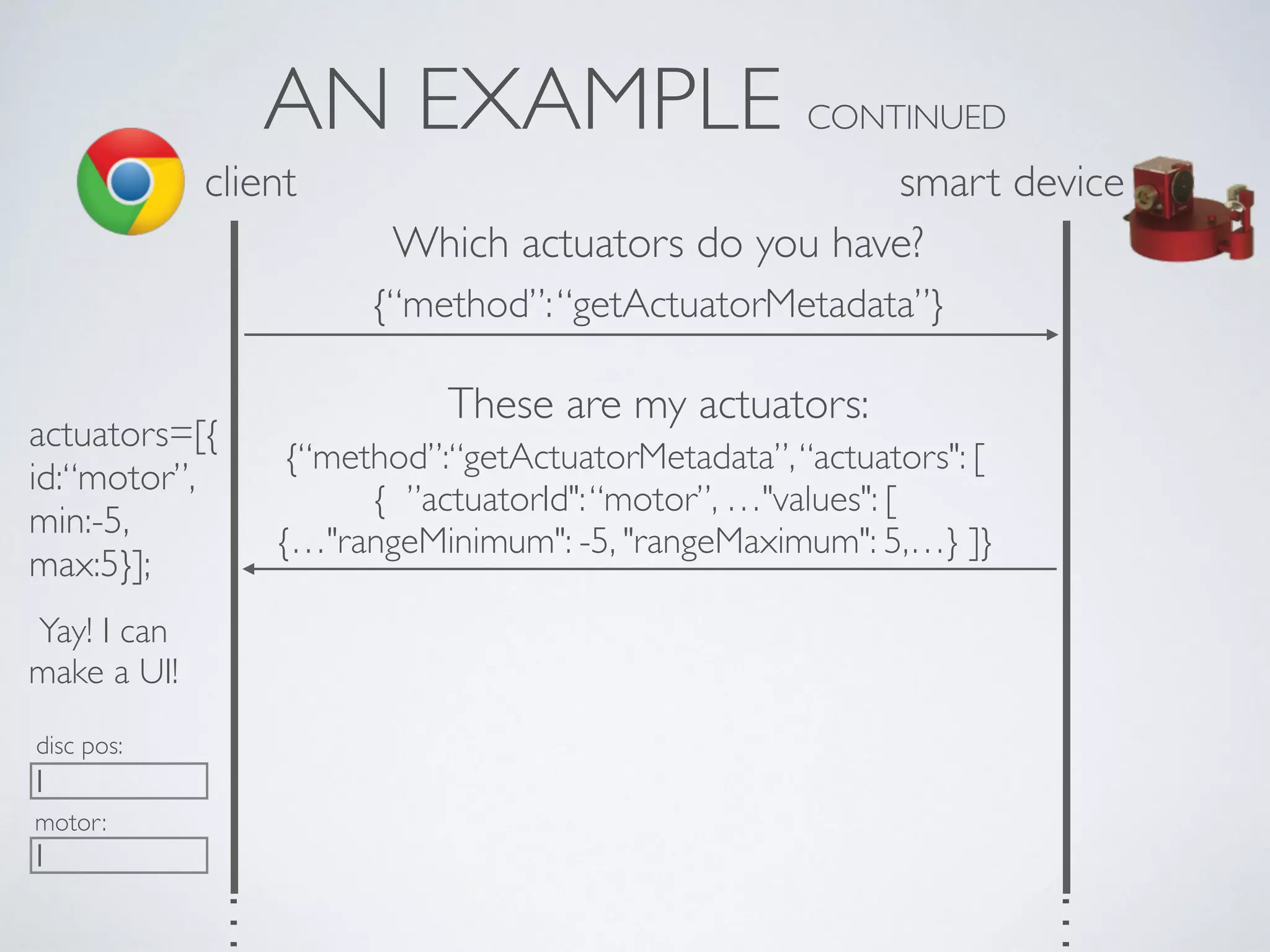

41. AN EXAMPLE CONTINUED
client
Which actuators do you have?
{“method”:“getActuatorMetadata”}
…
…
smart device

42. AN EXAMPLE CONTINUED
client
Which actuators do you have?
{“method”:“getActuatorMetadata”}
{“method”:“getActuatorMetadata”,“actuators": [
{ ”actuatorId":“motor”, …"values": [
{…"rangeMinimum": -5, "rangeMaximum": 5,…} ]}
These are my actuators:
…
…
smart device

43. AN EXAMPLE CONTINUED
client
Which actuators do you have?
{“method”:“getActuatorMetadata”}
{“method”:“getActuatorMetadata”,“actuators": [
{ ”actuatorId":“motor”, …"values": [
{…"rangeMinimum": -5, "rangeMaximum": 5,…} ]}
These are my actuators:
actuators=[{
id:“motor”,
min:-5,
max:5}];
…
…
smart device

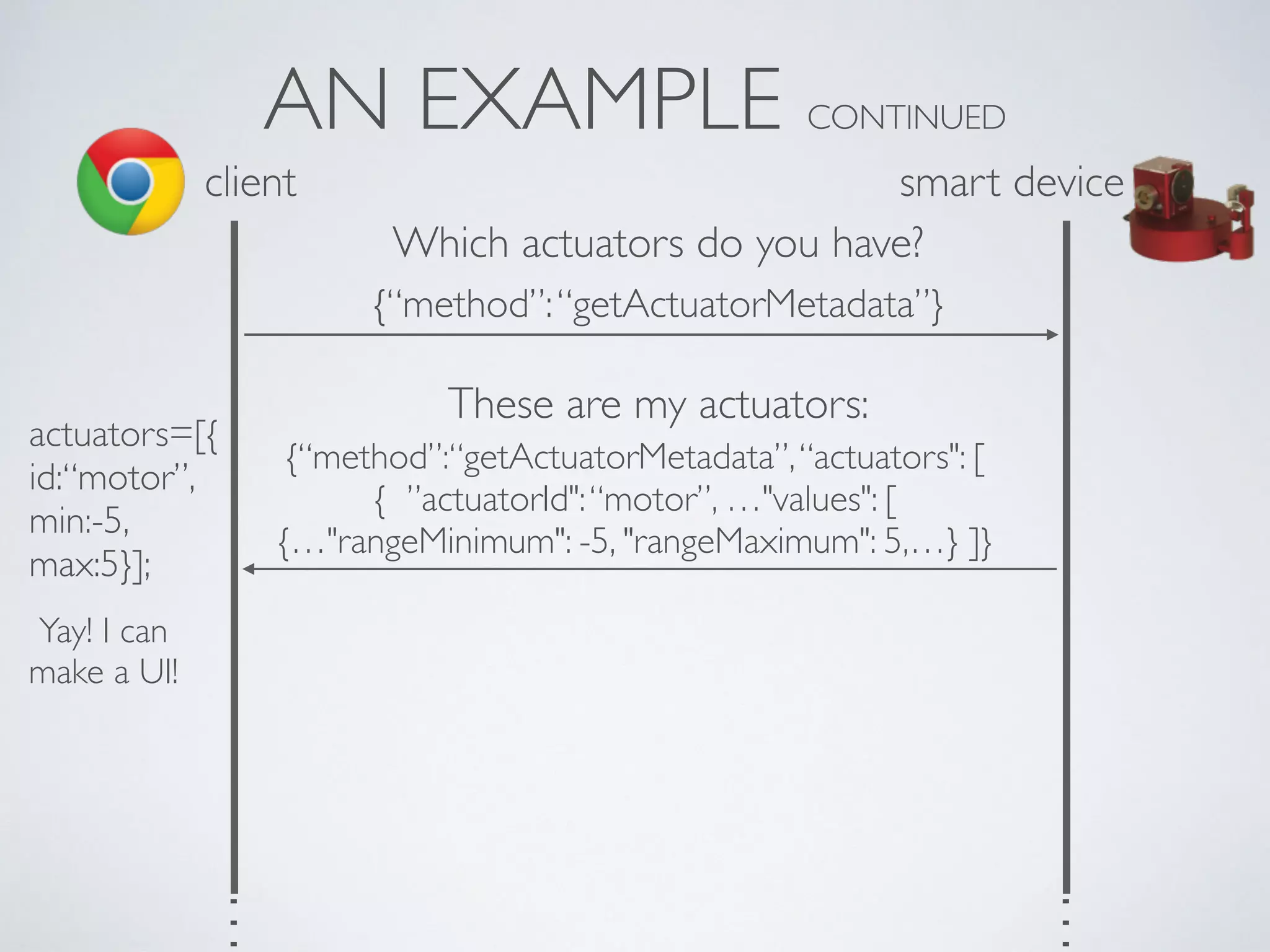

44. AN EXAMPLE CONTINUED
client
Which actuators do you have?
{“method”:“getActuatorMetadata”}
{“method”:“getActuatorMetadata”,“actuators": [
{ ”actuatorId":“motor”, …"values": [
{…"rangeMinimum": -5, "rangeMaximum": 5,…} ]}
These are my actuators:
actuators=[{
id:“motor”,
min:-5,
max:5}];
Yay! I can
make a UI!
…
…
smart device

45. AN EXAMPLE CONTINUED
client
Which actuators do you have?
{“method”:“getActuatorMetadata”}
{“method”:“getActuatorMetadata”,“actuators": [
{ ”actuatorId":“motor”, …"values": [
{…"rangeMinimum": -5, "rangeMaximum": 5,…} ]}
These are my actuators:
actuators=[{
id:“motor”,
min:-5,
max:5}];
Yay! I can
make a UI!
motor:
disc pos:
…
…
smart device

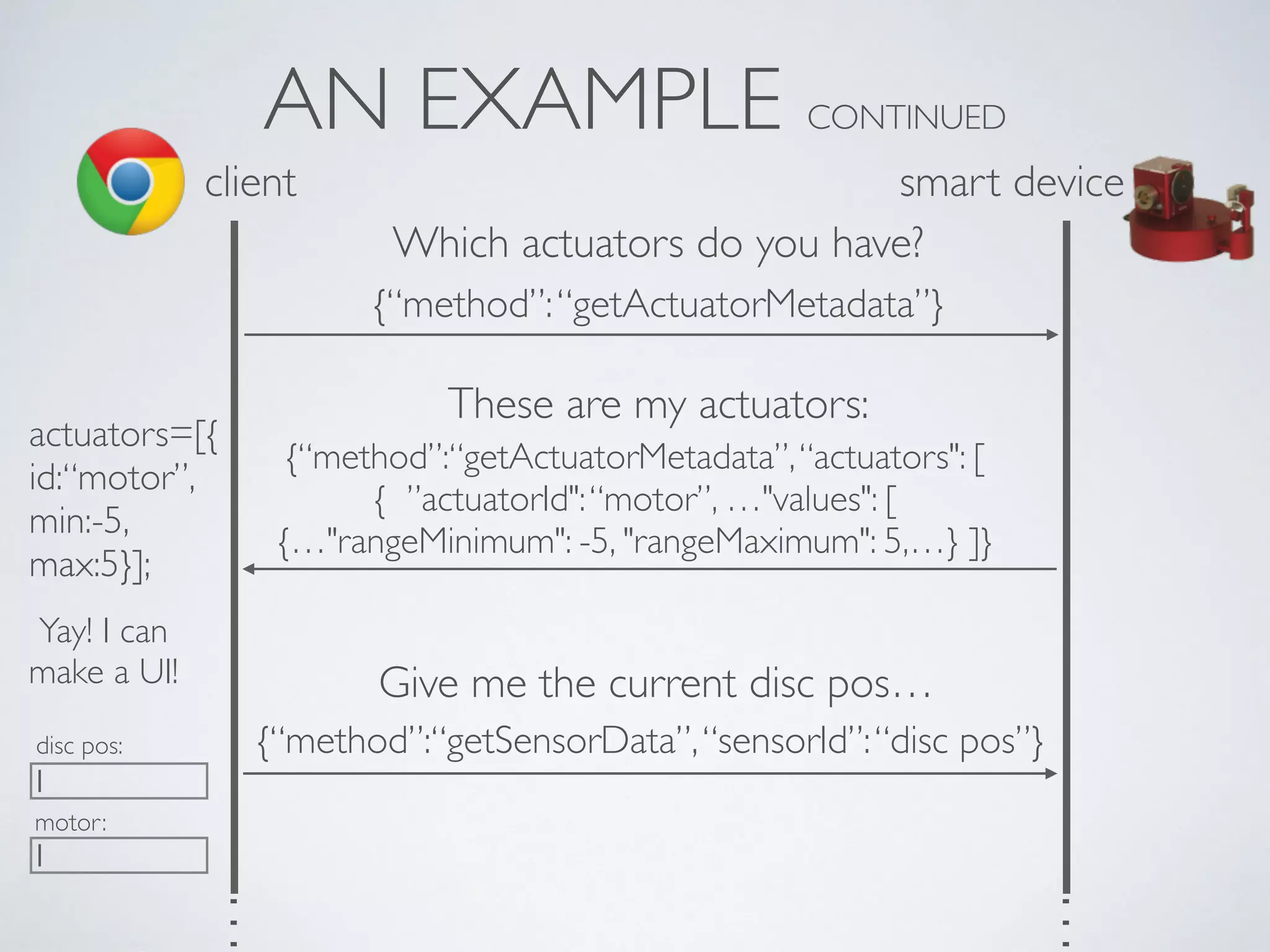

46. AN EXAMPLE CONTINUED
client
Which actuators do you have?
{“method”:“getActuatorMetadata”}
{“method”:“getActuatorMetadata”,“actuators": [
{ ”actuatorId":“motor”, …"values": [
{…"rangeMinimum": -5, "rangeMaximum": 5,…} ]}
These are my actuators:
actuators=[{
id:“motor”,
min:-5,
max:5}];
Yay! I can
make a UI!
motor:
disc pos:
…
…
Give me the current disc pos…
{“method”:“getSensorData”,“sensorId”:“disc pos”}
smart device

47. AN EXAMPLE CONTINUED
client
…
…
smart device

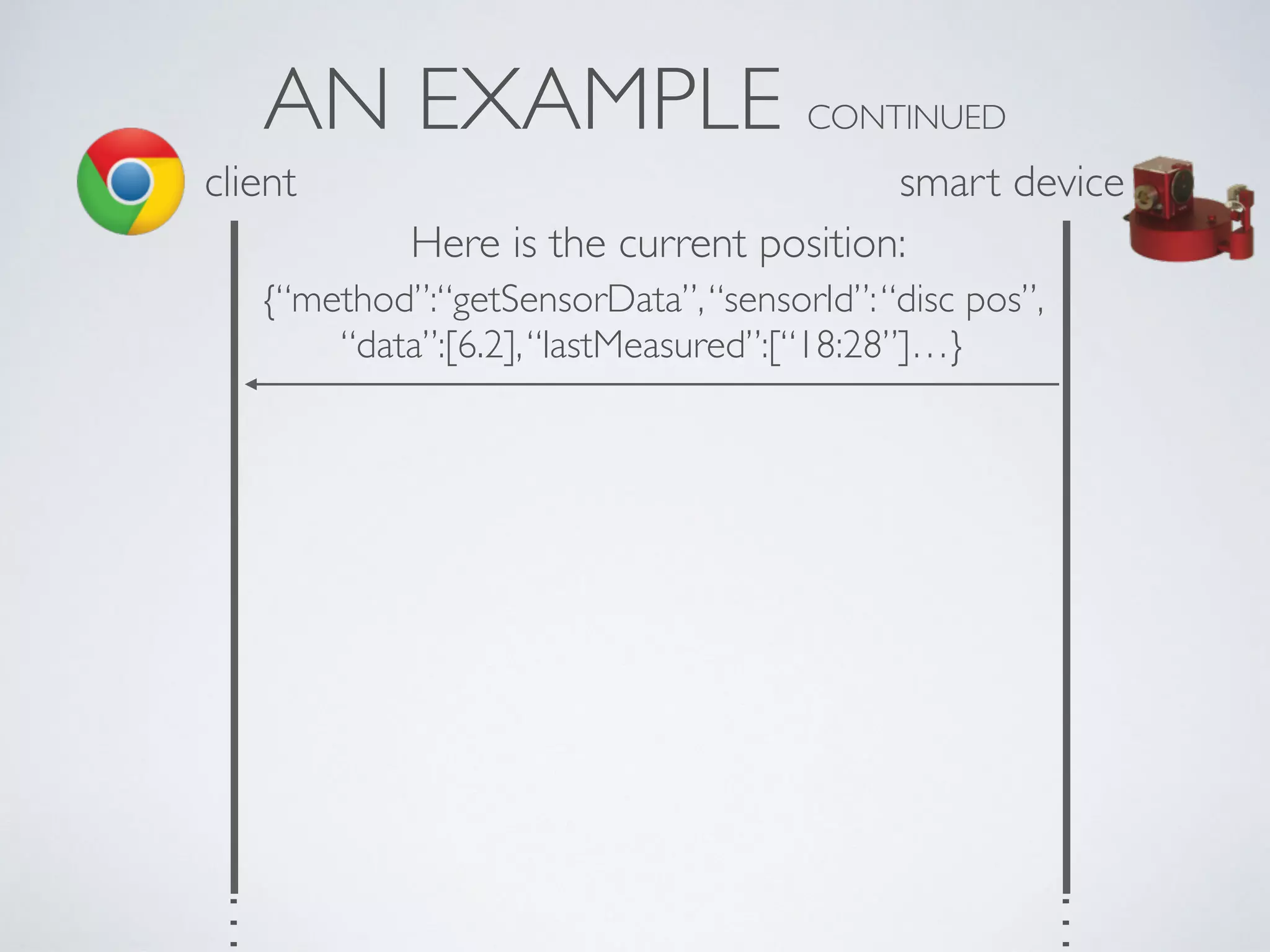

48. AN EXAMPLE CONTINUED
client
…
…
Here is the current position:
{“method”:“getSensorData”,“sensorId”:“disc pos”,
“data”:[6.2],“lastMeasured”:[“18:28”]…}
smart device

49. AN EXAMPLE CONTINUED
client
…
…
Here is the current position:
{“method”:“getSensorData”,“sensorId”:“disc pos”,
“data”:[6.2],“lastMeasured”:[“18:28”]…}
motor:
disc pos:
6.2
smart device

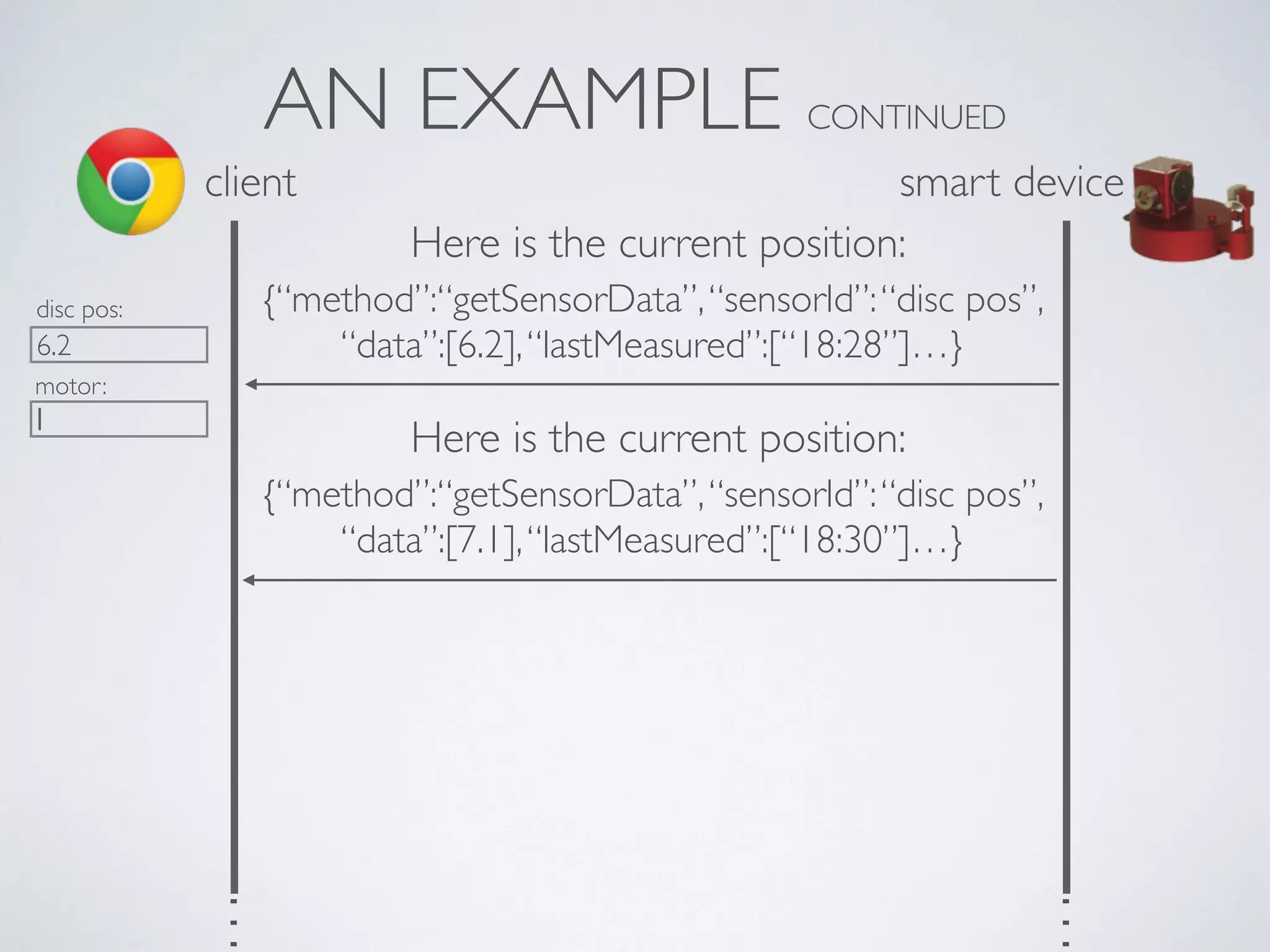

50. AN EXAMPLE CONTINUED
client
…
…
Here is the current position:
{“method”:“getSensorData”,“sensorId”:“disc pos”,
“data”:[6.2],“lastMeasured”:[“18:28”]…}
Here is the current position:
{“method”:“getSensorData”,“sensorId”:“disc pos”,
“data”:[7.1],“lastMeasured”:[“18:30”]…}
motor:
disc pos:
6.2
smart device

51. AN EXAMPLE CONTINUED
client
…
…
Here is the current position:
{“method”:“getSensorData”,“sensorId”:“disc pos”,
“data”:[6.2],“lastMeasured”:[“18:28”]…}
Here is the current position:
{“method”:“getSensorData”,“sensorId”:“disc pos”,
“data”:[7.1],“lastMeasured”:[“18:30”]…}
motor:
disc pos:
6.2
motor:
disc pos:
7.1
smart device

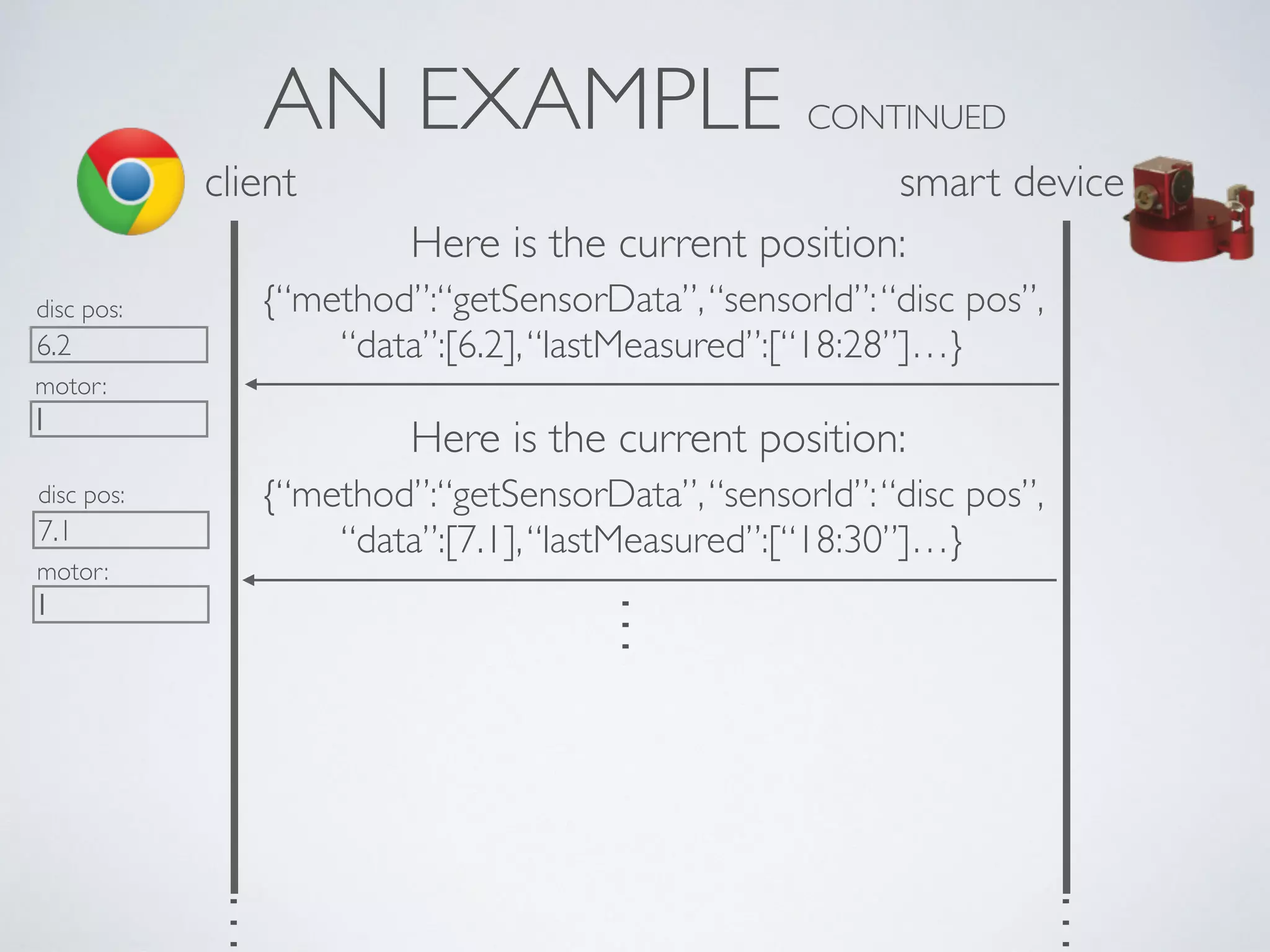

52. AN EXAMPLE CONTINUED
client
…
…
Here is the current position:
{“method”:“getSensorData”,“sensorId”:“disc pos”,
“data”:[6.2],“lastMeasured”:[“18:28”]…}
Here is the current position:
{“method”:“getSensorData”,“sensorId”:“disc pos”,
“data”:[7.1],“lastMeasured”:[“18:30”]…}
motor:
disc pos:
6.2
motor:
disc pos:
7.1
…
smart device

53. AN EXAMPLE CONTINUED
client
…
…
Set the motor to 3
{“authToken”:”42FE36”, method”:“sendActuatorData”,
“actuatorId”:“motor”,…“data”:[3], …}
Here is the current position:
{“method”:“getSensorData”,“sensorId”:“disc pos”,
“data”:[6.2],“lastMeasured”:[“18:28”]…}
Here is the current position:
{“method”:“getSensorData”,“sensorId”:“disc pos”,
“data”:[7.1],“lastMeasured”:[“18:30”]…}
motor:
disc pos:
6.2
motor:
disc pos:
7.1
…
smart device

54. AN EXAMPLE CONTINUED
client
…
…
Set the motor to 3
{“authToken”:”42FE36”, method”:“sendActuatorData”,
“actuatorId”:“motor”,…“data”:[3], …}
Here is the current position:
{“method”:“getSensorData”,“sensorId”:“disc pos”,
“data”:[6.2],“lastMeasured”:[“18:28”]…}
Here is the current position:
{“method”:“getSensorData”,“sensorId”:“disc pos”,
“data”:[7.1],“lastMeasured”:[“18:30”]…}
motor:
disc pos:
6.2
motor:
disc pos:
7.1
…
smart device

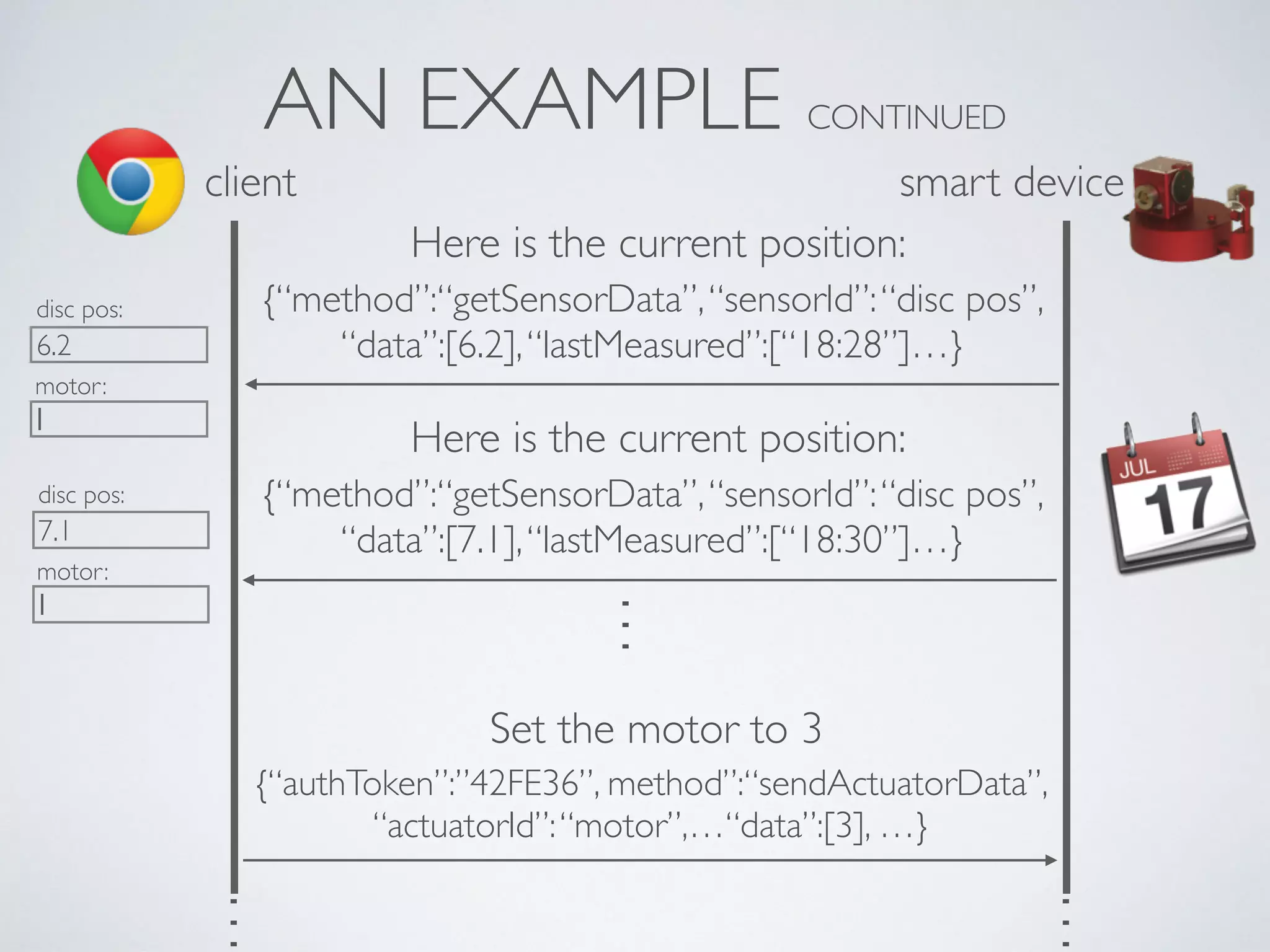

55. AN EXAMPLE CONTINUED
client
…
…
Set the motor to 3
{“authToken”:”42FE36”, method”:“sendActuatorData”,
“actuatorId”:“motor”,…“data”:[3], …}
Here is the current position:
{“method”:“getSensorData”,“sensorId”:“disc pos”,
“data”:[6.2],“lastMeasured”:[“18:28”]…}
Here is the current position:
{“method”:“getSensorData”,“sensorId”:“disc pos”,
“data”:[7.1],“lastMeasured”:[“18:30”]…}
motor:
disc pos:
6.2
motor:
disc pos:
7.1
…
authenticate(42FE36)
smart device

56. AN EXAMPLE CONTINUED
client
…
…
Set the motor to 3
{“authToken”:”42FE36”, method”:“sendActuatorData”,
“actuatorId”:“motor”,…“data”:[3], …}
Here is the current position:
{“method”:“getSensorData”,“sensorId”:“disc pos”,
“data”:[6.2],“lastMeasured”:[“18:28”]…}
Here is the current position:
{“method”:“getSensorData”,“sensorId”:“disc pos”,
“data”:[7.1],“lastMeasured”:[“18:30”]…}
motor:
disc pos:
6.2
motor:
disc pos:
7.1
…
authenticate(42FE36)
YES!
smart device

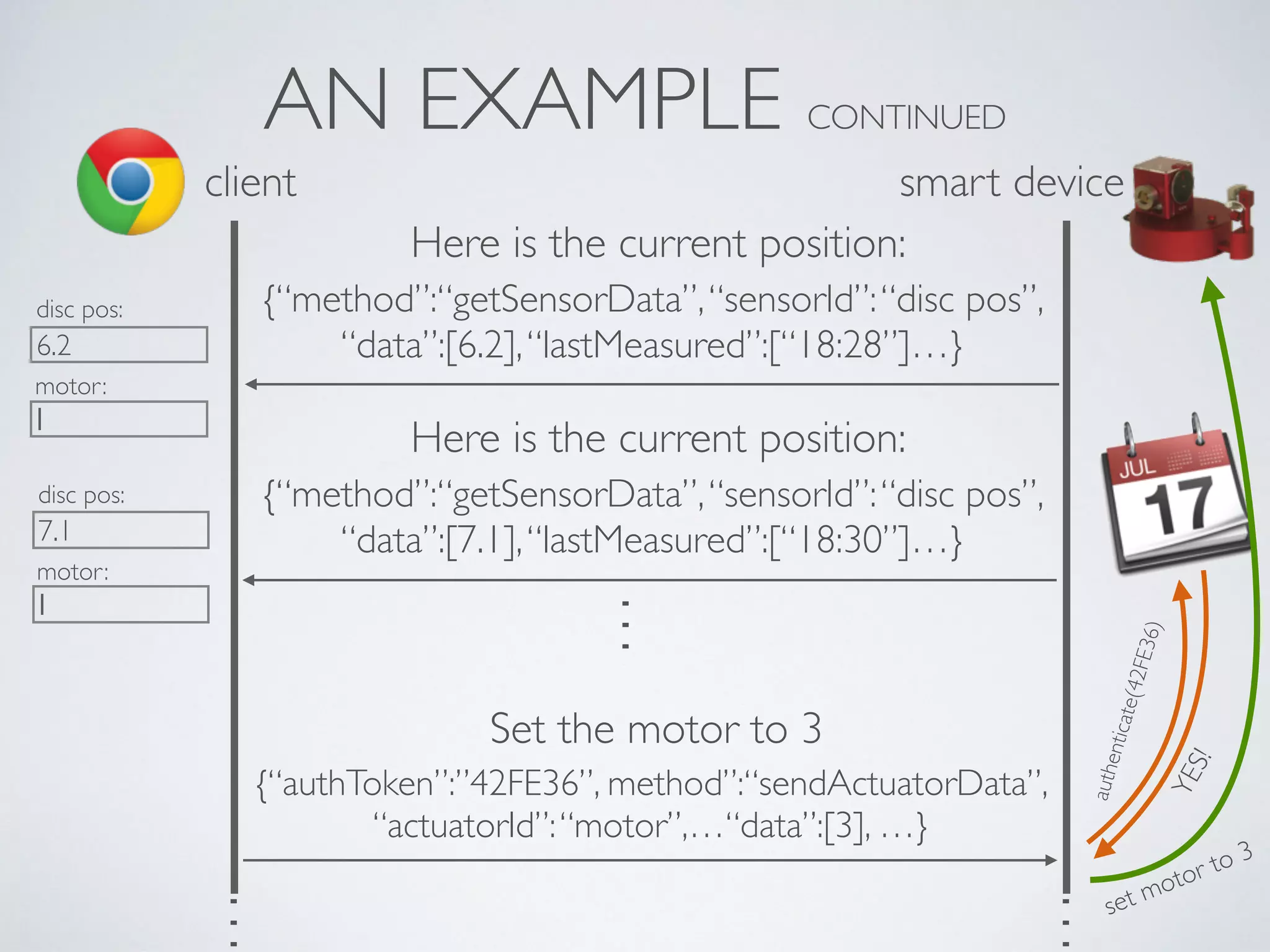

57. AN EXAMPLE CONTINUED
client
…
…
Set the motor to 3
{“authToken”:”42FE36”, method”:“sendActuatorData”,
“actuatorId”:“motor”,…“data”:[3], …}
Here is the current position:
{“method”:“getSensorData”,“sensorId”:“disc pos”,
“data”:[6.2],“lastMeasured”:[“18:28”]…}
Here is the current position:
{“method”:“getSensorData”,“sensorId”:“disc pos”,
“data”:[7.1],“lastMeasured”:[“18:30”]…}
motor:
disc pos:
6.2
motor:
disc pos:
7.1
…
authenticate(42FE36)
set motor to 3
YES!
smart device

58. BUT…IS IT A SMART DEVICE?
1. communication
2. sensing & actuating
3. reasoning & learning
4. identity & kind
5. memory & status tracking
Smart Devices are connected to the internet with
some or all of these capabilities:

59. BUT…IS IT A SMART DEVICE?
1. communication
2. sensing & actuating
3. reasoning & learning
4. identity & kind
5. memory & status tracking
Smart Devices are connected to the internet with
some or all of these capabilities:
✔

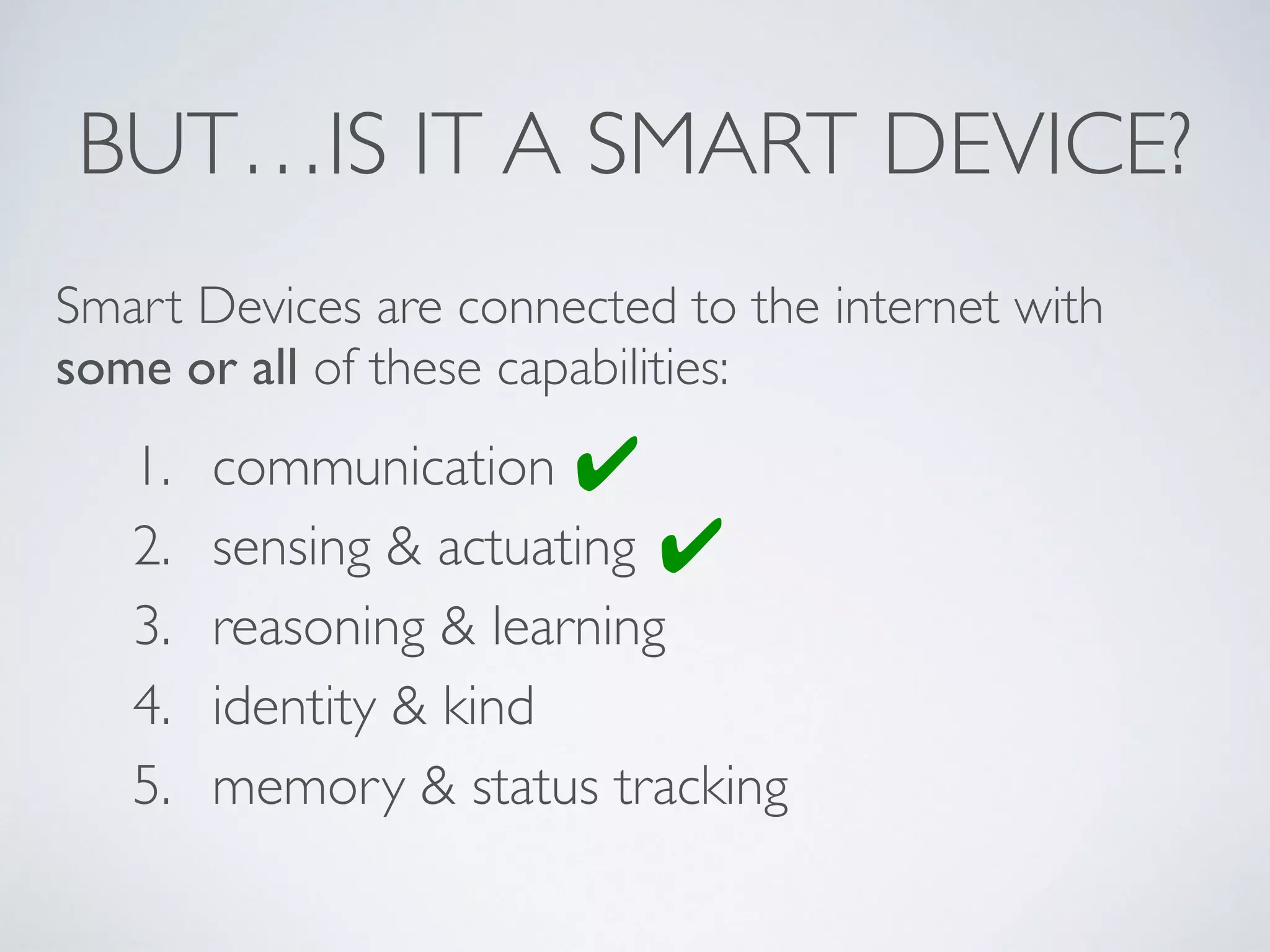

60. BUT…IS IT A SMART DEVICE?
1. communication
2. sensing & actuating
3. reasoning & learning
4. identity & kind
5. memory & status tracking
Smart Devices are connected to the internet with
some or all of these capabilities:
✔
✔

61. BUT…IS IT A SMART DEVICE?
1. communication
2. sensing & actuating
3. reasoning & learning
4. identity & kind
5. memory & status tracking
Smart Devices are connected to the internet with
some or all of these capabilities:
✔
✘
✔

62. BUT…IS IT A SMART DEVICE?
1. communication
2. sensing & actuating
3. reasoning & learning
4. identity & kind
5. memory & status tracking
Smart Devices are connected to the internet with
some or all of these capabilities:
✔
✘
✔
✔

63. BUT…IS IT A SMART DEVICE?
1. communication
2. sensing & actuating
3. reasoning & learning
4. identity & kind
5. memory & status tracking
Smart Devices are connected to the internet with
some or all of these capabilities:
✔
✘
✔
✔
✔✘

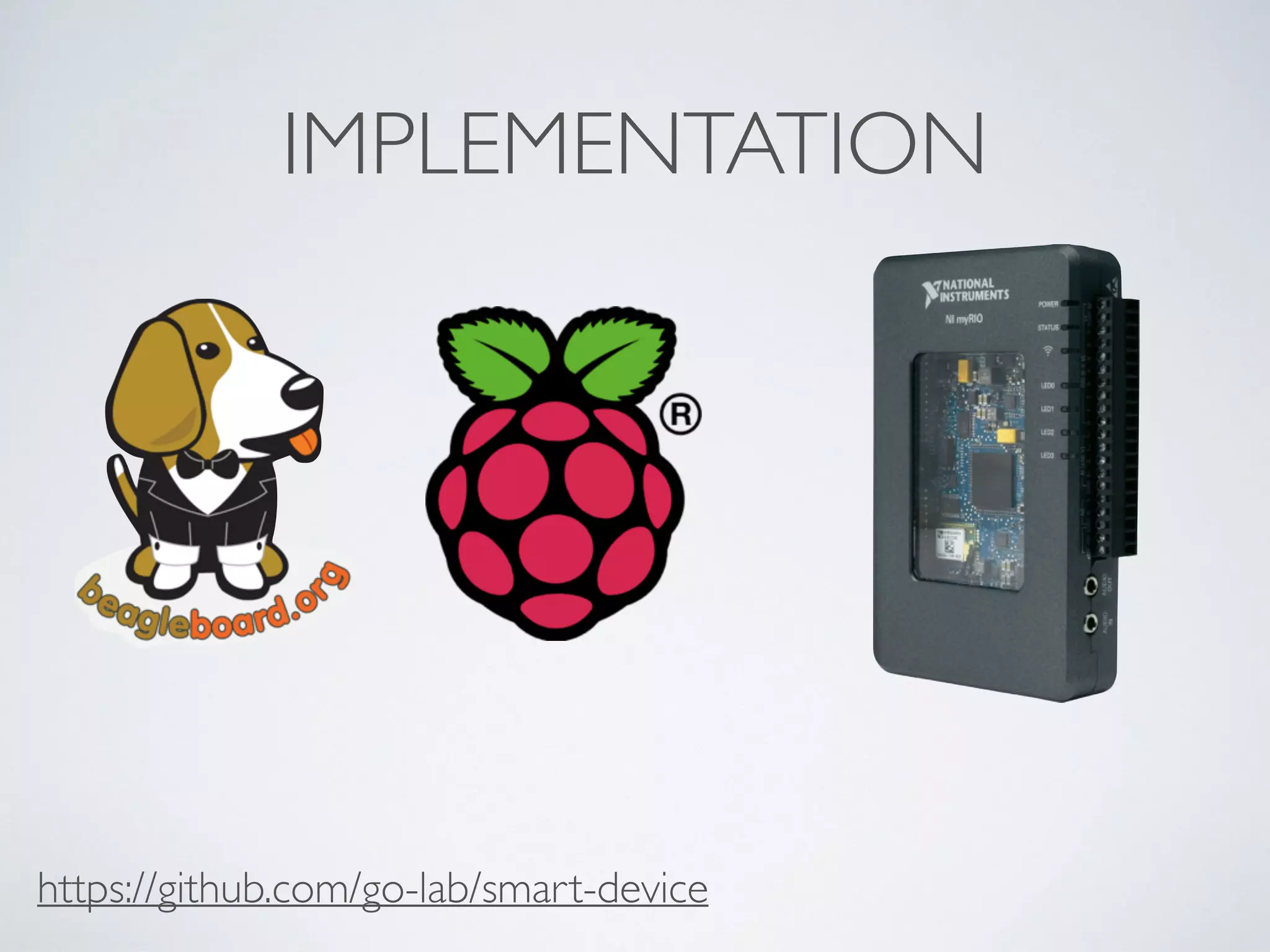

64. IMPLEMENTATION
https://github.com/go-lab/smart-device

65. IMPLEMENTATION
https://github.com/go-lab/smart-device

66. IMPLEMENTATION
https://github.com/go-lab/smart-device

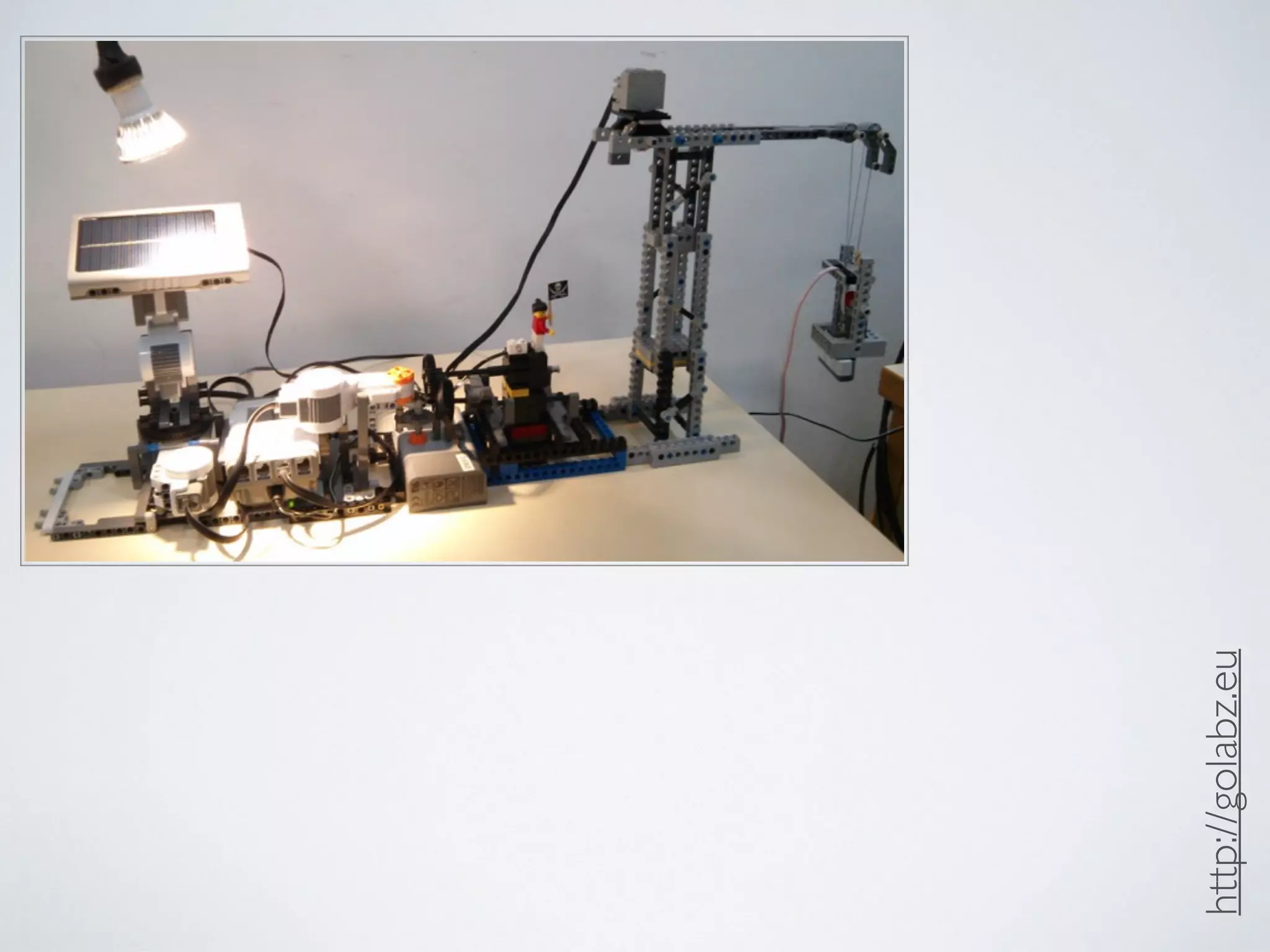

67. http://golabz.eu

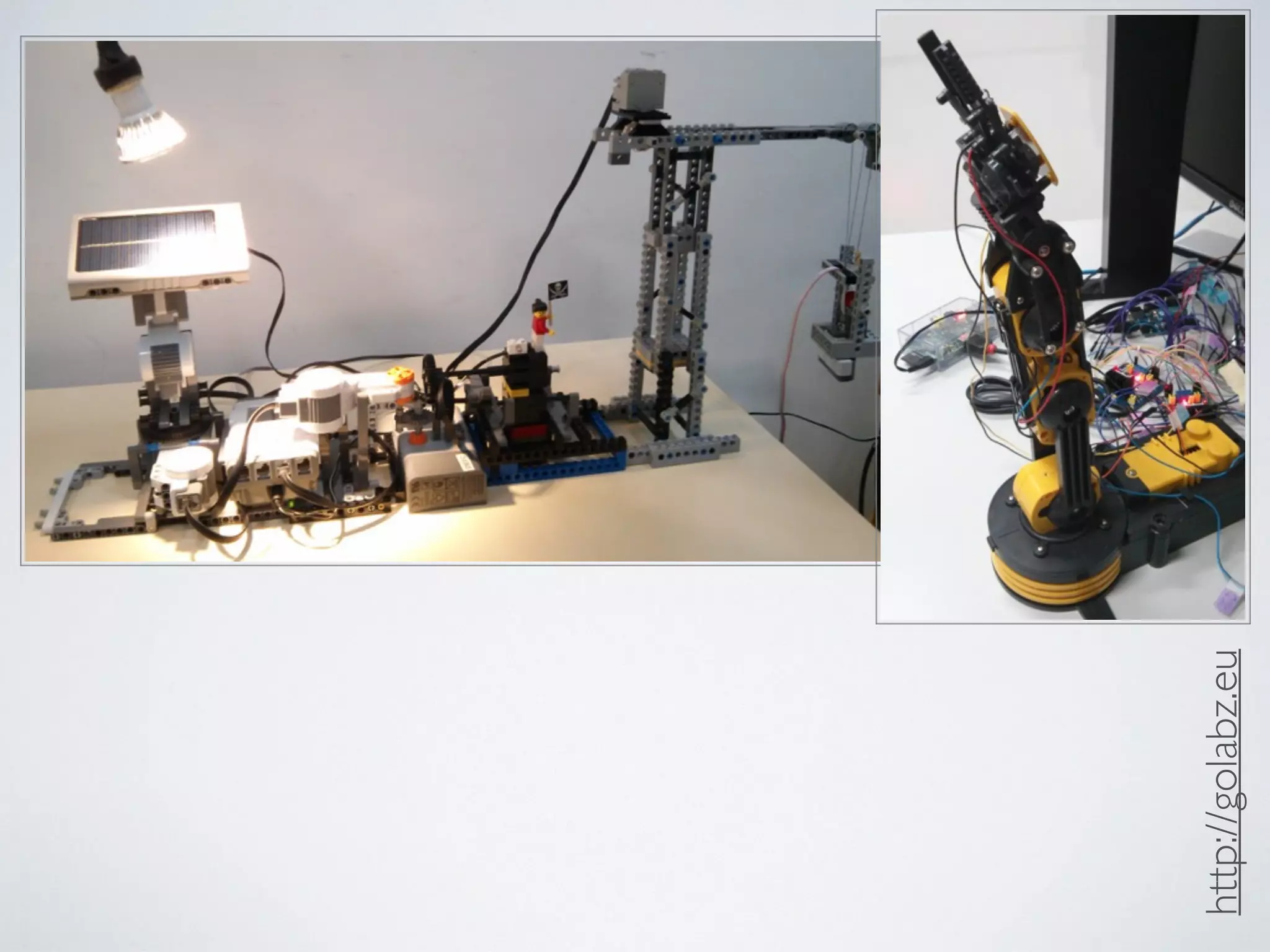

68. http://golabz.eu

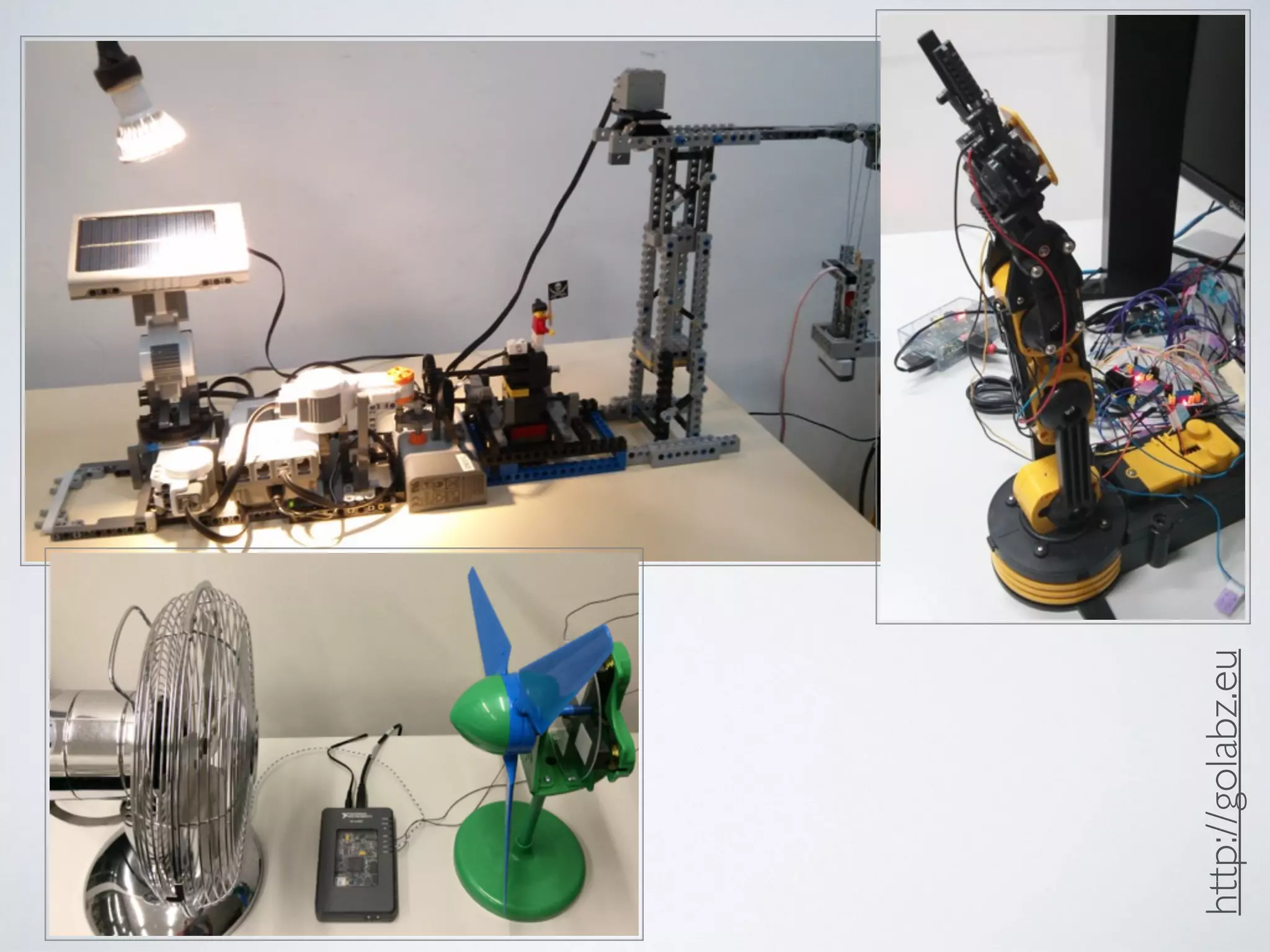

69. http://golabz.eu

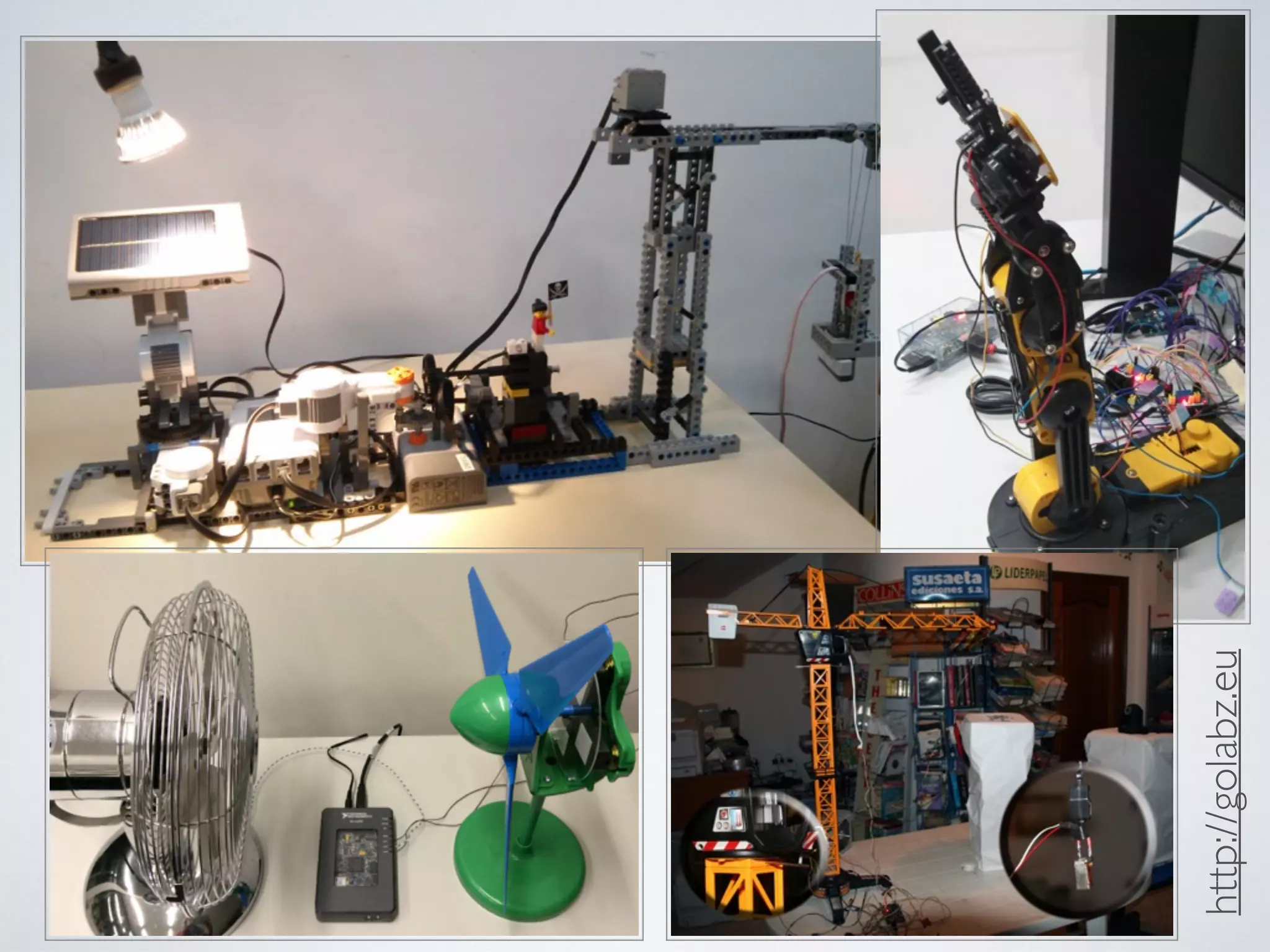

70. http://golabz.eu

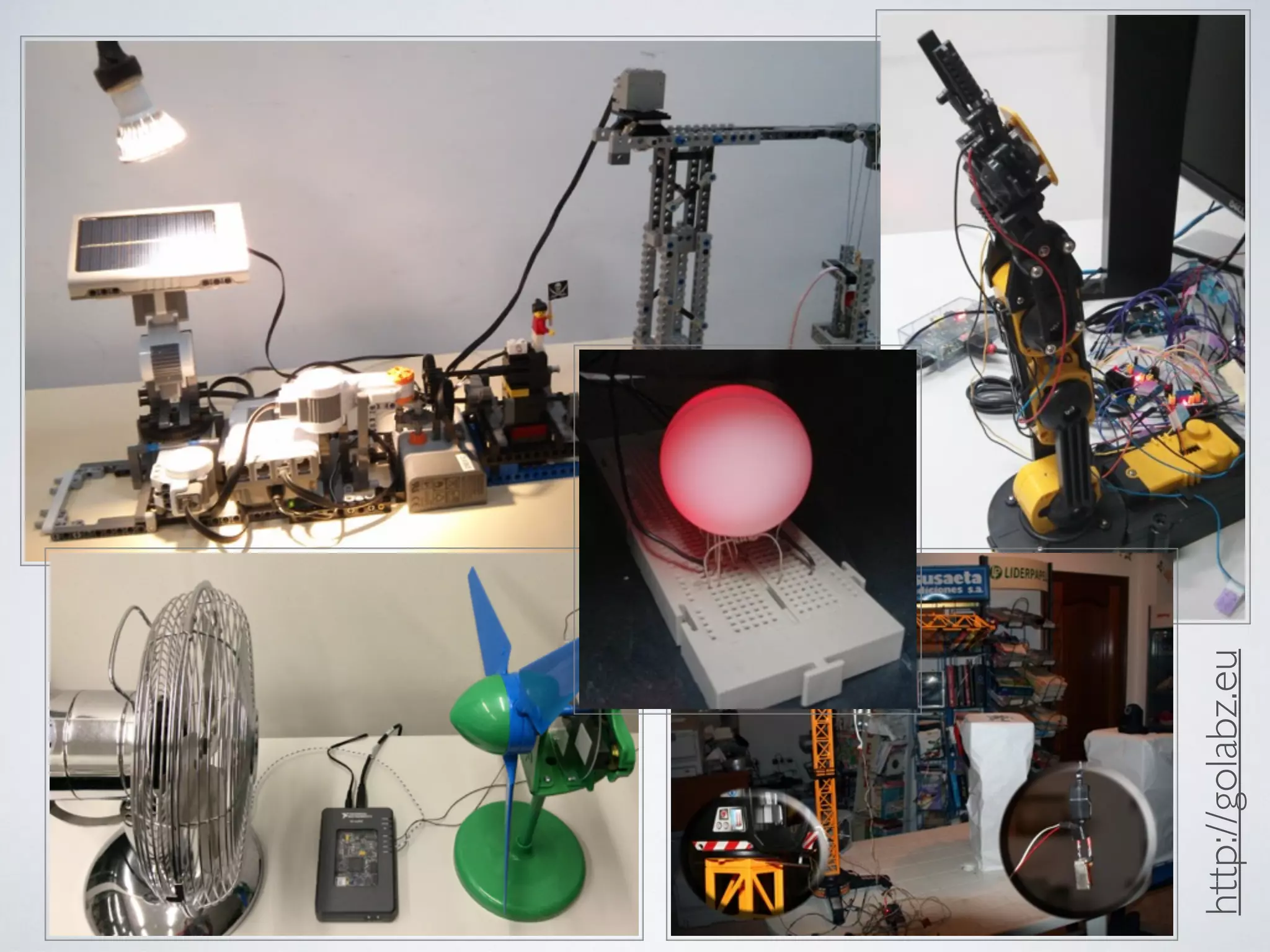

71. http://golabz.eu

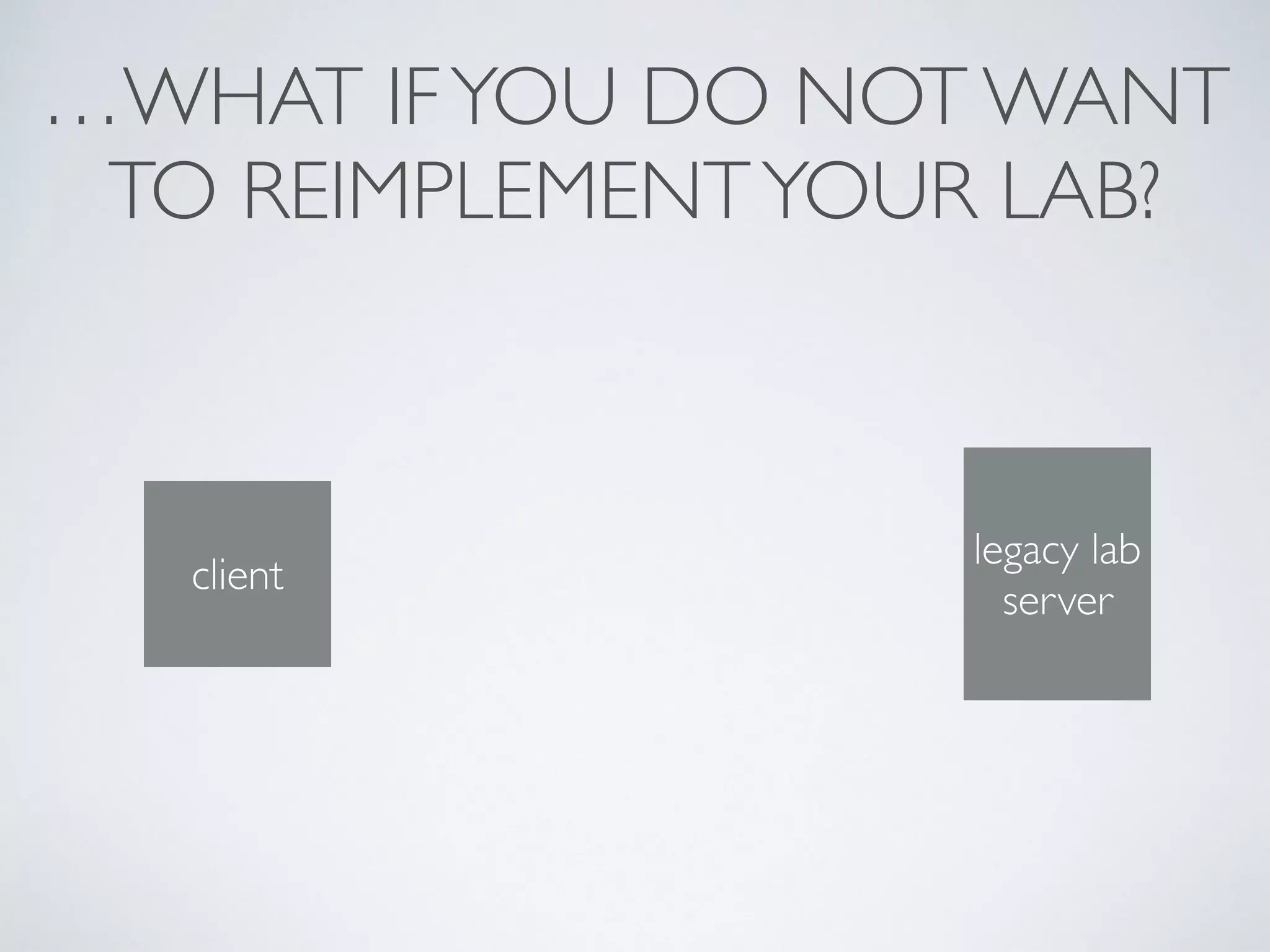

72. …WHAT IFYOU DO NOT WANT
TO REIMPLEMENTYOUR LAB?
client
legacy lab
server

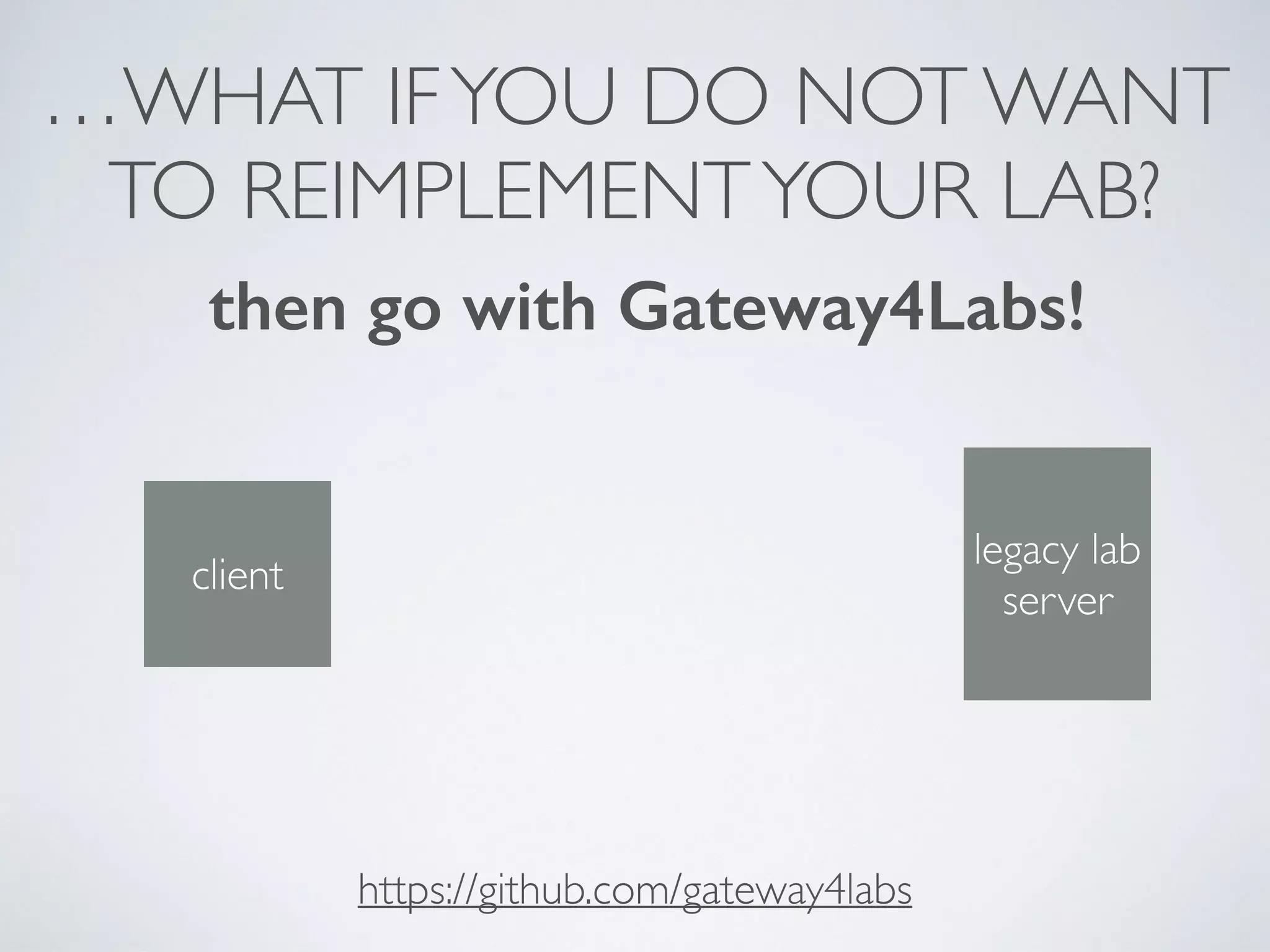

73. …WHAT IFYOU DO NOT WANT
TO REIMPLEMENTYOUR LAB?
then go with Gateway4Labs!
https://github.com/gateway4labs
client
legacy lab
server

74. …WHAT IFYOU DO NOT WANT
TO REIMPLEMENTYOUR LAB?
then go with Gateway4Labs!
https://github.com/gateway4labs
client
legacy lab
server
smart
gateway

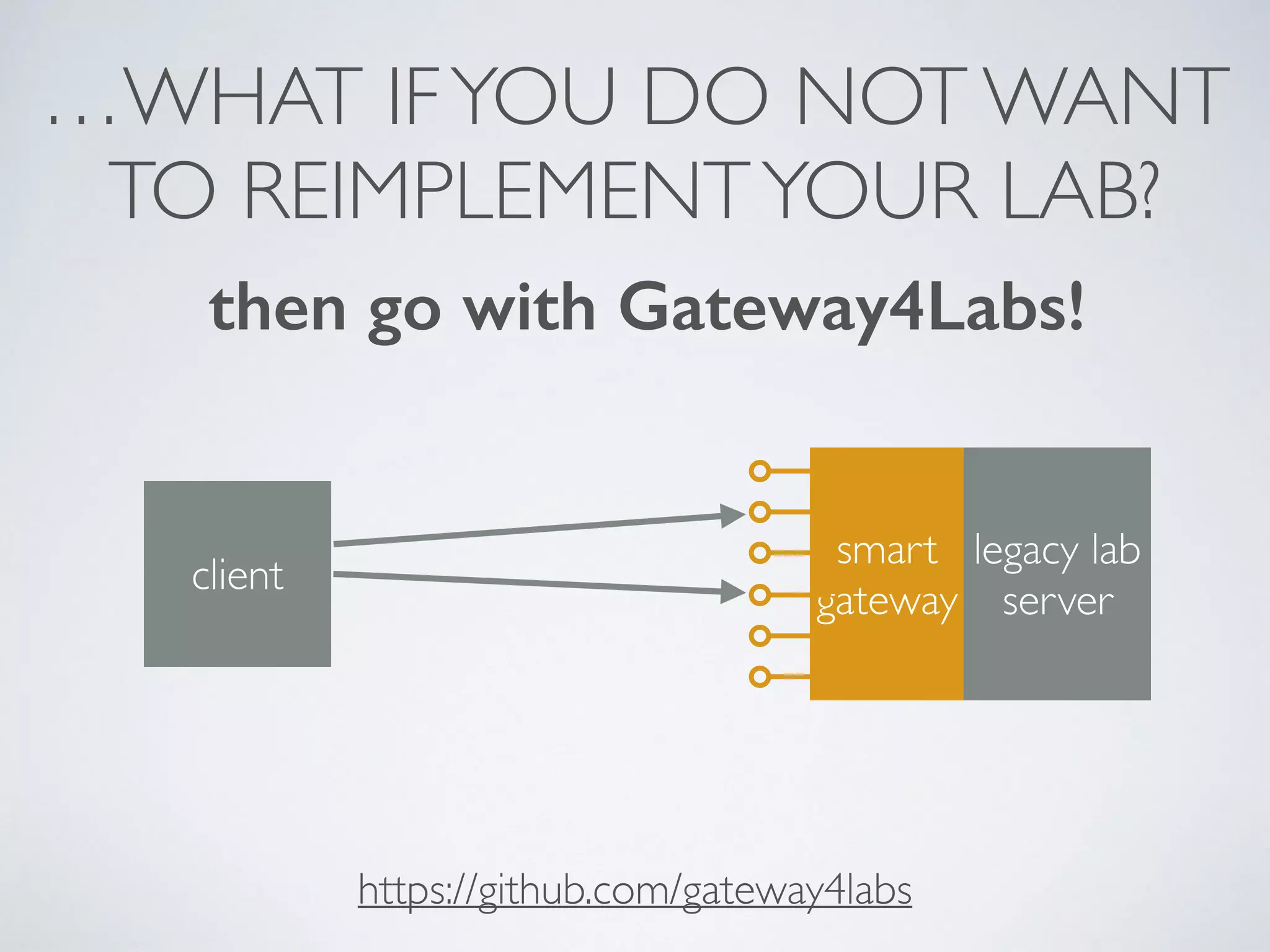

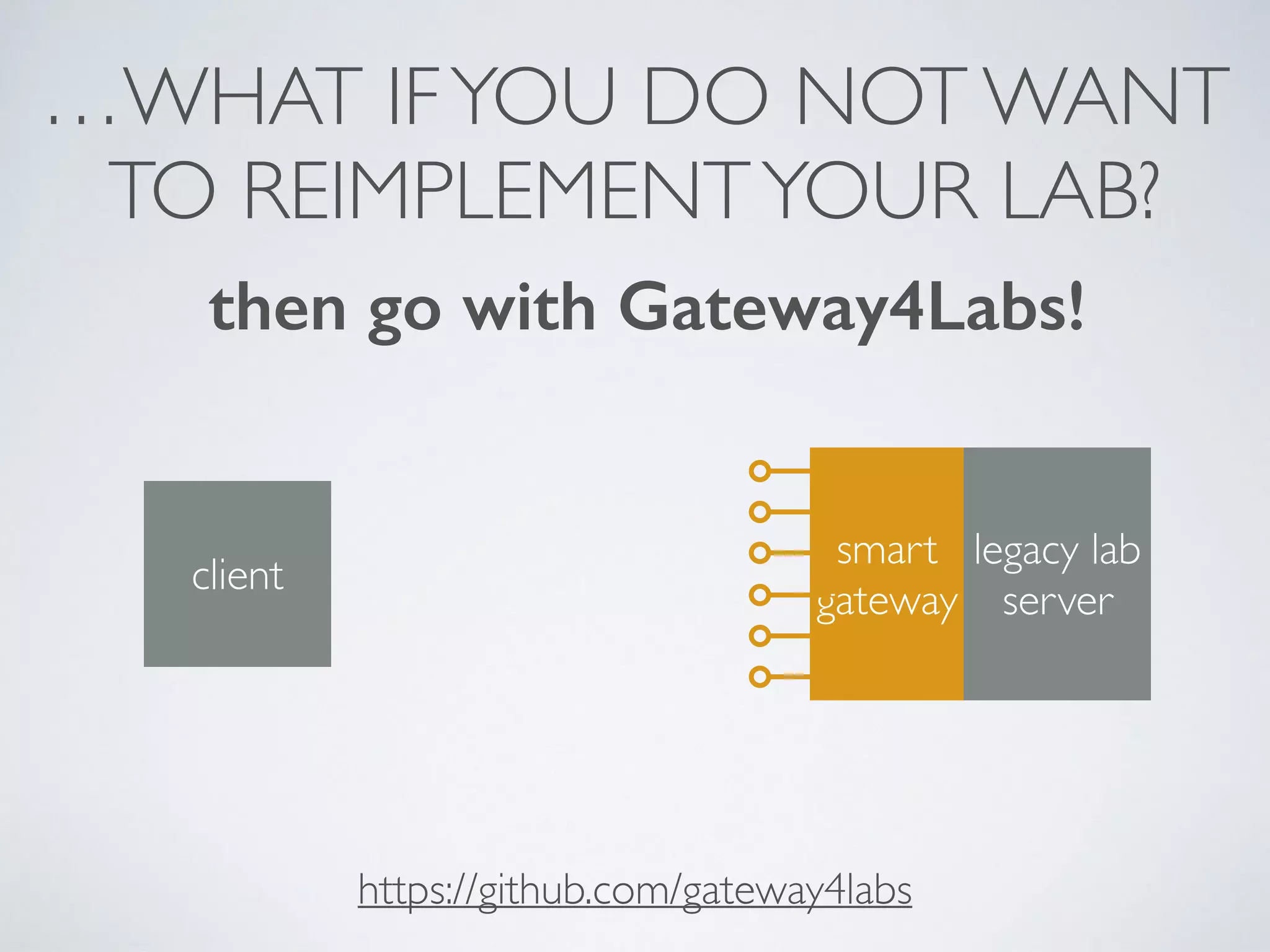

75. …WHAT IFYOU DO NOT WANT
TO REIMPLEMENTYOUR LAB?
then go with Gateway4Labs!
https://github.com/gateway4labs
client
legacy lab
server
smart
gateway

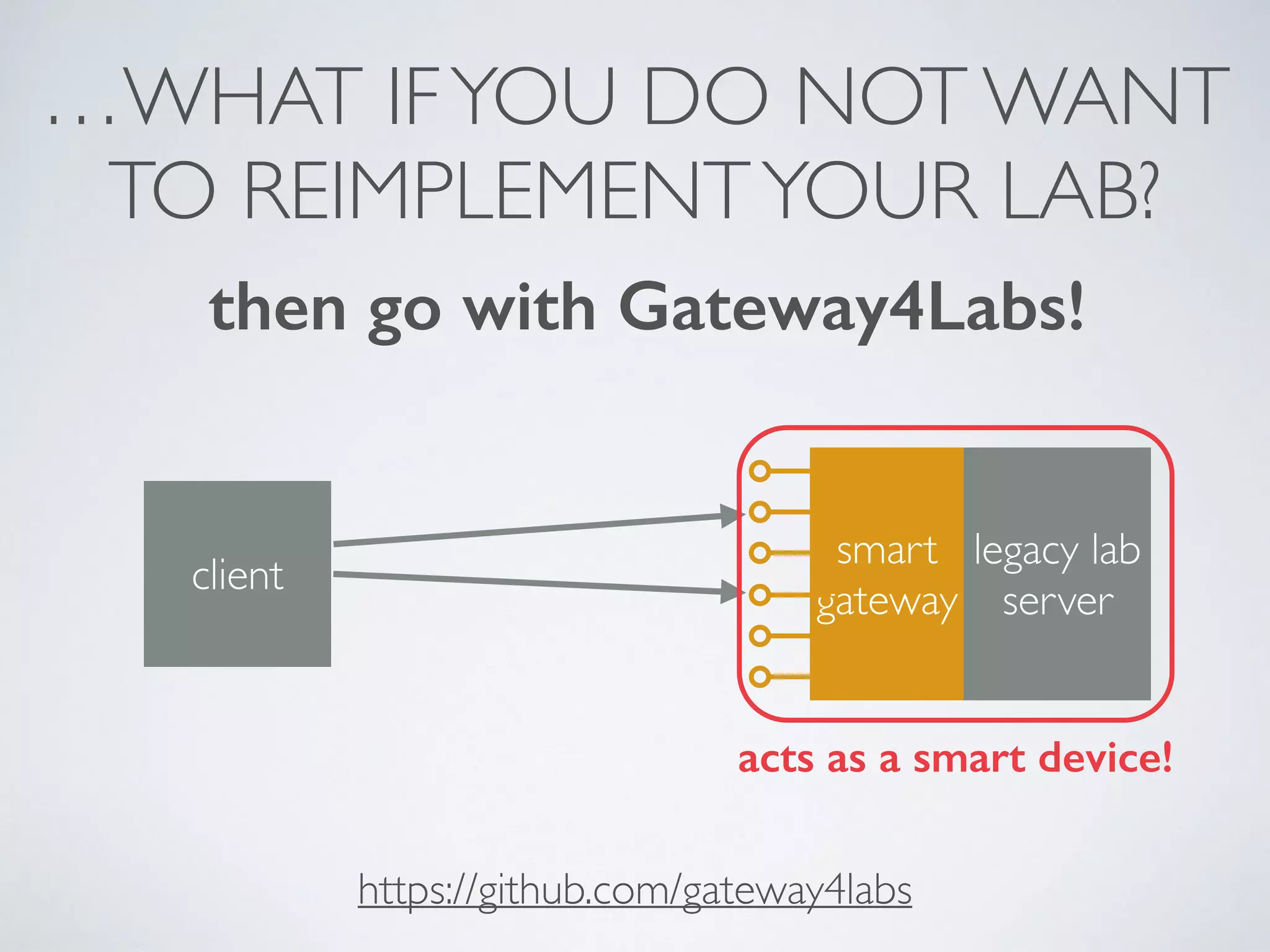

76. …WHAT IFYOU DO NOT WANT
TO REIMPLEMENTYOUR LAB?
then go with Gateway4Labs!
https://github.com/gateway4labs
client
legacy lab
server
smart
gateway
acts as a smart device!

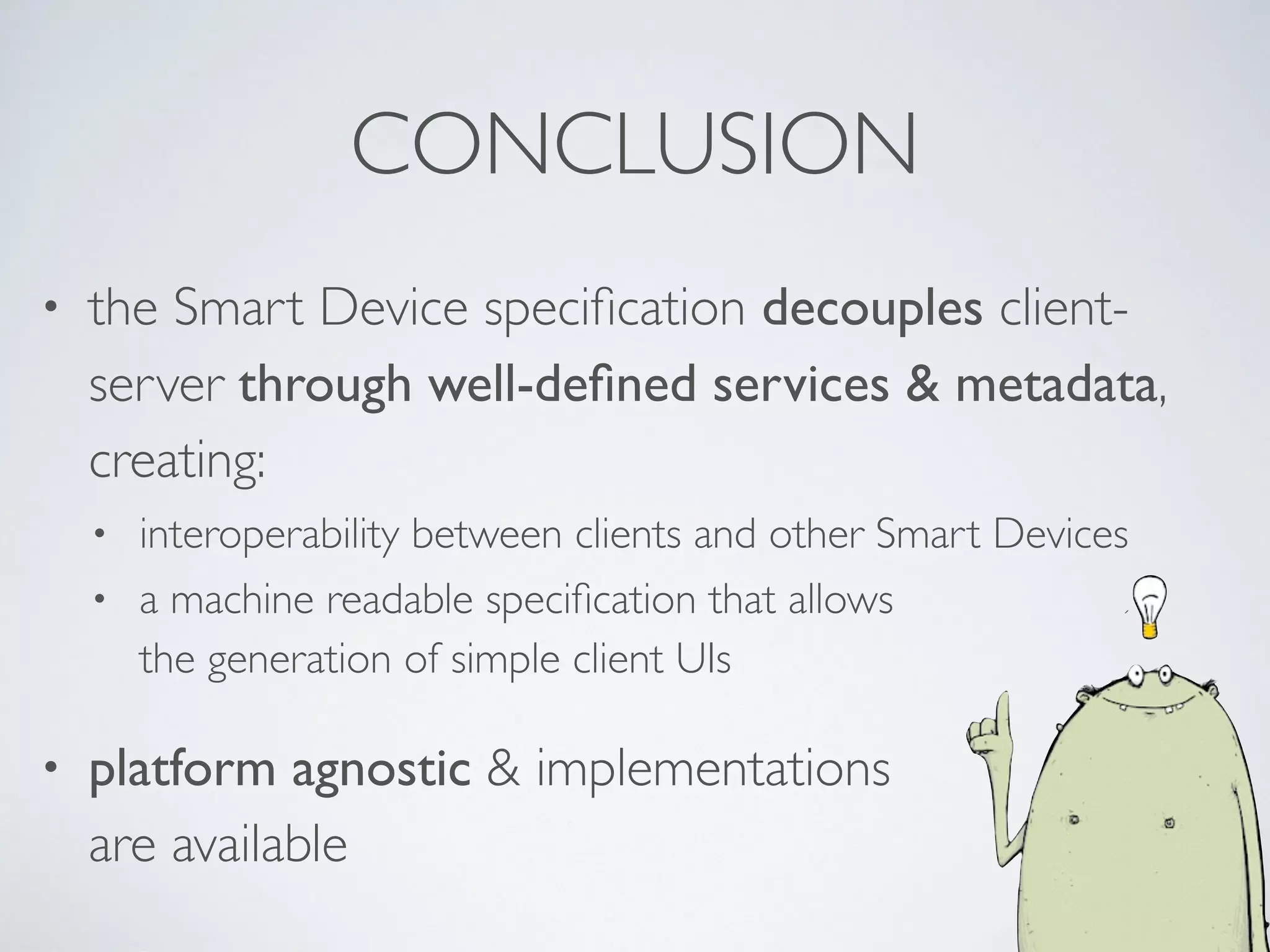

77. CONCLUSION
• the Smart Device specification decouples client-
server through well-defined services & metadata,
creating:
• interoperability between clients and other Smart Devices
• a machine readable specification that allows
the generation of simple client UIs
• platform agnostic & implementations
are available

78. STANDARDISATION
• the specification is taken up by the IEEE working
group P1876 as a candidate for the final spec.
http://ieee-sa.centraldesktop.com/1876public/

79. 2
slides will appear on http://www.slideshare.net/stengovaerts
slides will appear on http://www.slideshare.net/stengovaerts 22
contact: sten.govaerts@gmail.com
