The Ring programming language version 1.5.2 book - Part 54 of 181

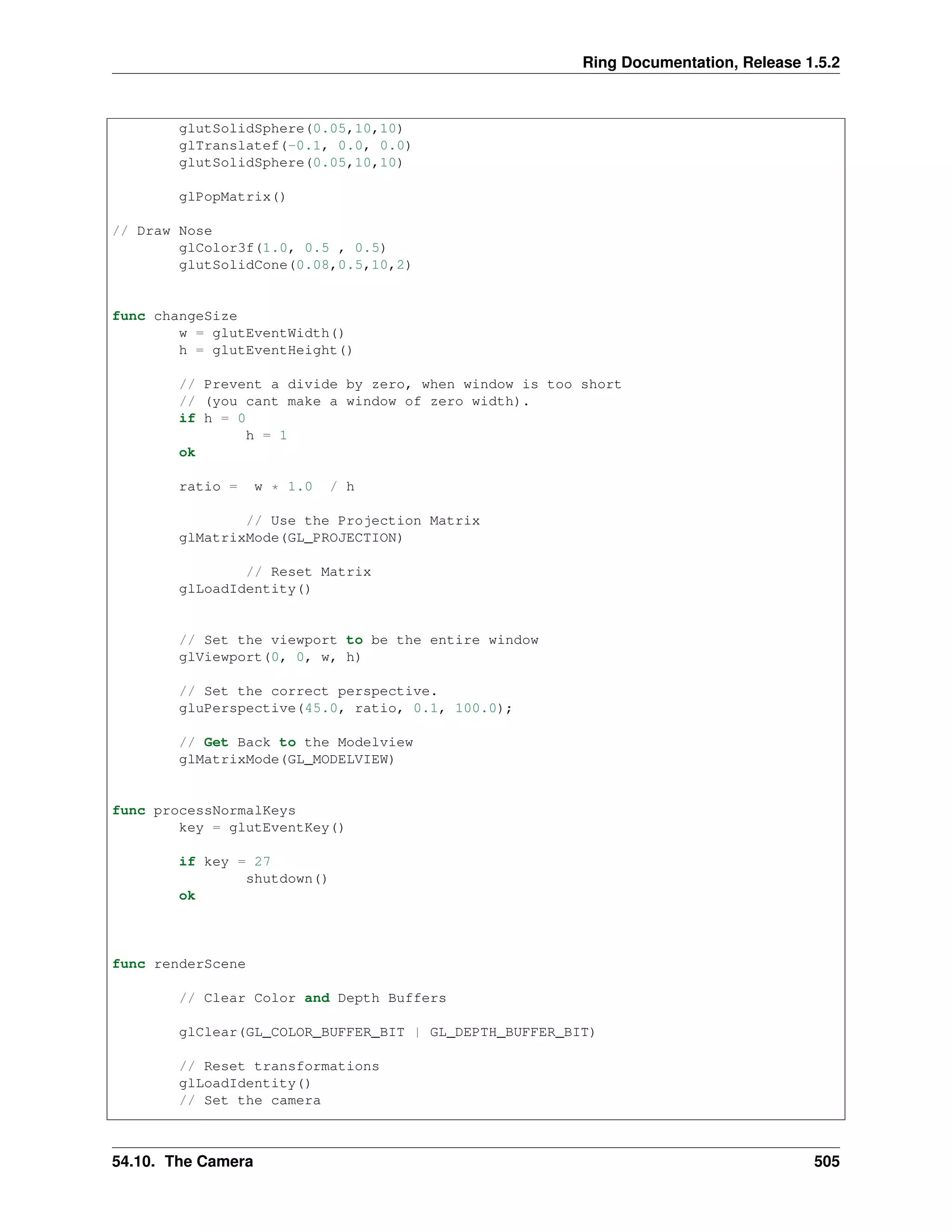

1. Ring Documentation, Release 1.5.2
glutSolidSphere(0.05,10,10)
glTranslatef(-0.1, 0.0, 0.0)
glutSolidSphere(0.05,10,10)
glPopMatrix()
// Draw Nose
glColor3f(1.0, 0.5 , 0.5)
glutSolidCone(0.08,0.5,10,2)
func changeSize
w = glutEventWidth()
h = glutEventHeight()
// Prevent a divide by zero, when window is too short
// (you cant make a window of zero width).
if h = 0
h = 1
ok
ratio = w * 1.0 / h
// Use the Projection Matrix
glMatrixMode(GL_PROJECTION)
// Reset Matrix
glLoadIdentity()
// Set the viewport to be the entire window
glViewport(0, 0, w, h)
// Set the correct perspective.
gluPerspective(45.0, ratio, 0.1, 100.0);
// Get Back to the Modelview
glMatrixMode(GL_MODELVIEW)
func processNormalKeys
key = glutEventKey()
if key = 27
shutdown()
ok
func renderScene
// Clear Color and Depth Buffers
glClear(GL_COLOR_BUFFER_BIT | GL_DEPTH_BUFFER_BIT)
// Reset transformations
glLoadIdentity()
// Set the camera
54.10. The Camera 505

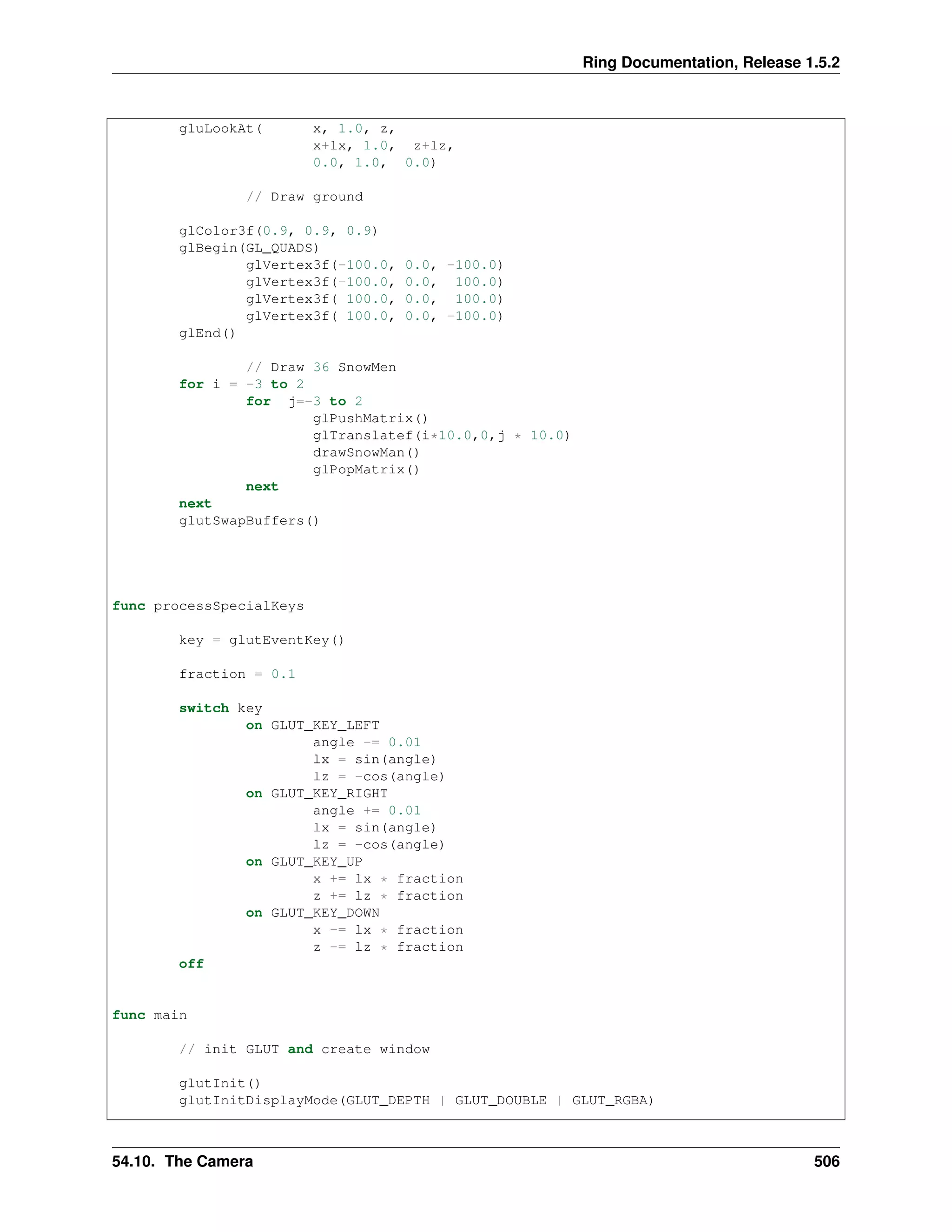

2. Ring Documentation, Release 1.5.2
gluLookAt( x, 1.0, z,
x+lx, 1.0, z+lz,
0.0, 1.0, 0.0)
// Draw ground
glColor3f(0.9, 0.9, 0.9)
glBegin(GL_QUADS)
glVertex3f(-100.0, 0.0, -100.0)
glVertex3f(-100.0, 0.0, 100.0)
glVertex3f( 100.0, 0.0, 100.0)
glVertex3f( 100.0, 0.0, -100.0)
glEnd()
// Draw 36 SnowMen
for i = -3 to 2
for j=-3 to 2
glPushMatrix()
glTranslatef(i*10.0,0,j * 10.0)
drawSnowMan()
glPopMatrix()
next
next
glutSwapBuffers()
func processSpecialKeys
key = glutEventKey()
fraction = 0.1
switch key
on GLUT_KEY_LEFT
angle -= 0.01
lx = sin(angle)
lz = -cos(angle)
on GLUT_KEY_RIGHT
angle += 0.01
lx = sin(angle)
lz = -cos(angle)
on GLUT_KEY_UP
x += lx * fraction
z += lz * fraction
on GLUT_KEY_DOWN
x -= lx * fraction
z -= lz * fraction
off
func main
// init GLUT and create window
glutInit()
glutInitDisplayMode(GLUT_DEPTH | GLUT_DOUBLE | GLUT_RGBA)
54.10. The Camera 506

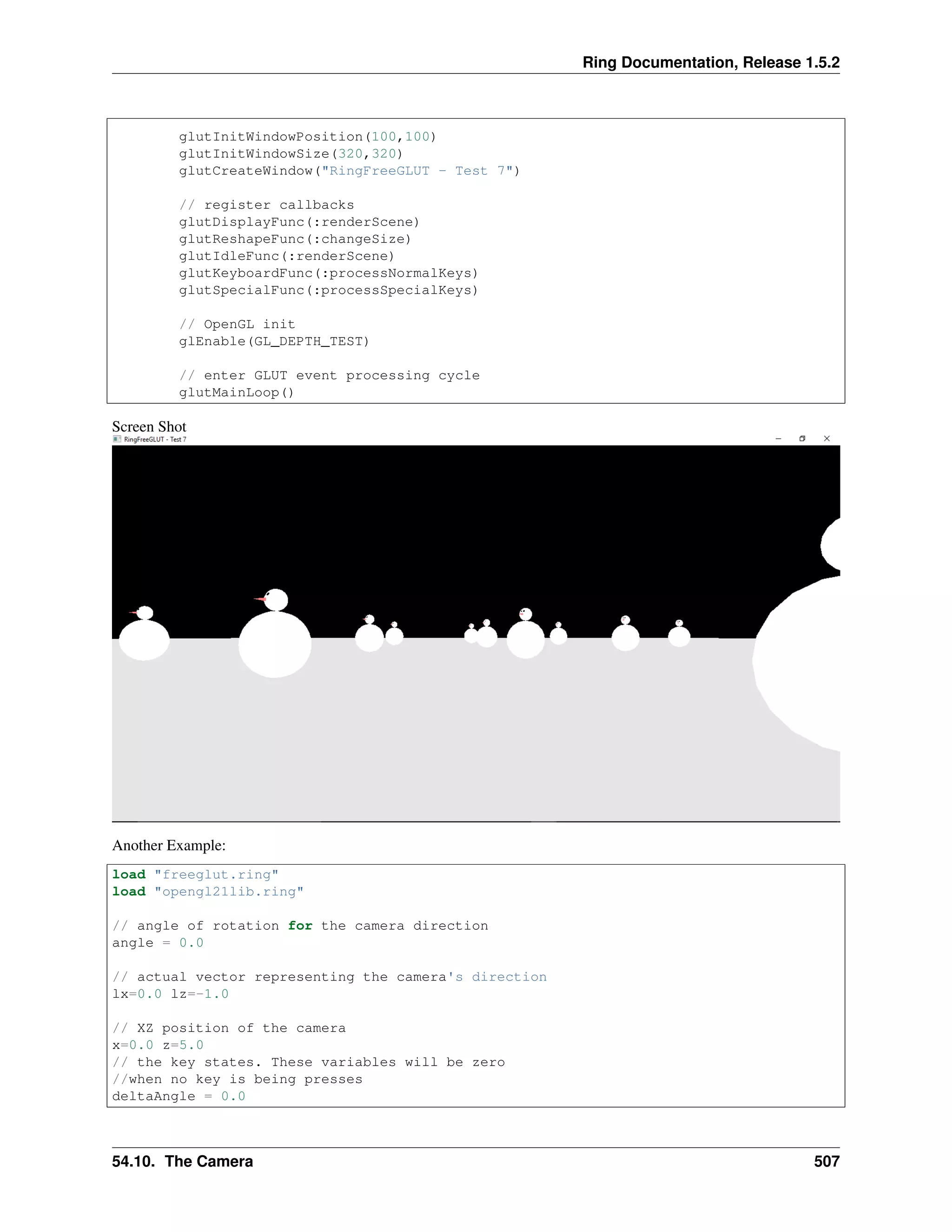

3. Ring Documentation, Release 1.5.2
glutInitWindowPosition(100,100)
glutInitWindowSize(320,320)
glutCreateWindow("RingFreeGLUT - Test 7")
// register callbacks
glutDisplayFunc(:renderScene)
glutReshapeFunc(:changeSize)
glutIdleFunc(:renderScene)
glutKeyboardFunc(:processNormalKeys)
glutSpecialFunc(:processSpecialKeys)
// OpenGL init
glEnable(GL_DEPTH_TEST)
// enter GLUT event processing cycle
glutMainLoop()
Screen Shot
Another Example:
load "freeglut.ring"
load "opengl21lib.ring"
// angle of rotation for the camera direction
angle = 0.0
// actual vector representing the camera's direction
lx=0.0 lz=-1.0
// XZ position of the camera
x=0.0 z=5.0
// the key states. These variables will be zero
//when no key is being presses
deltaAngle = 0.0
54.10. The Camera 507

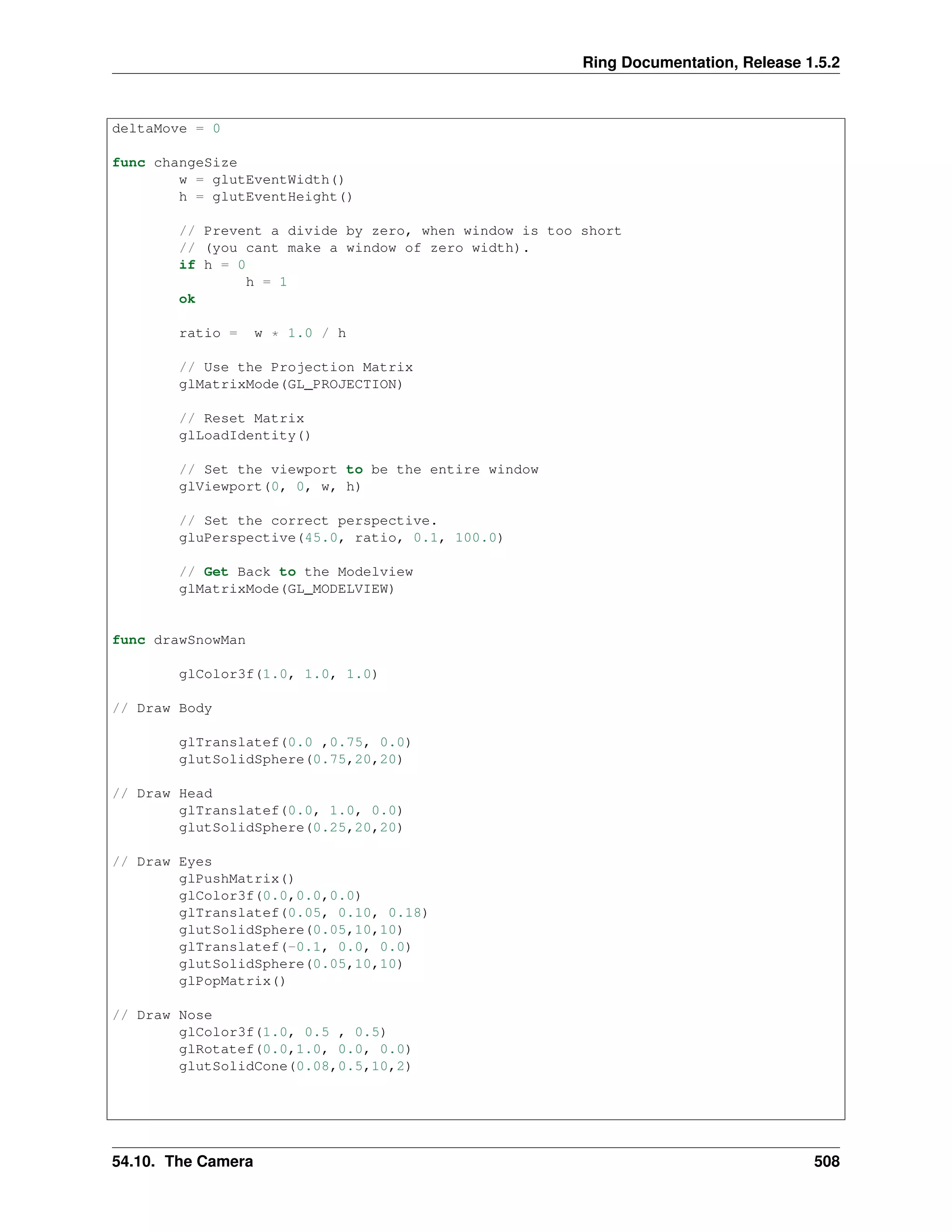

4. Ring Documentation, Release 1.5.2
deltaMove = 0
func changeSize
w = glutEventWidth()
h = glutEventHeight()
// Prevent a divide by zero, when window is too short
// (you cant make a window of zero width).
if h = 0
h = 1
ok
ratio = w * 1.0 / h
// Use the Projection Matrix
glMatrixMode(GL_PROJECTION)
// Reset Matrix
glLoadIdentity()
// Set the viewport to be the entire window
glViewport(0, 0, w, h)
// Set the correct perspective.
gluPerspective(45.0, ratio, 0.1, 100.0)
// Get Back to the Modelview
glMatrixMode(GL_MODELVIEW)
func drawSnowMan
glColor3f(1.0, 1.0, 1.0)
// Draw Body
glTranslatef(0.0 ,0.75, 0.0)
glutSolidSphere(0.75,20,20)
// Draw Head
glTranslatef(0.0, 1.0, 0.0)
glutSolidSphere(0.25,20,20)
// Draw Eyes
glPushMatrix()
glColor3f(0.0,0.0,0.0)
glTranslatef(0.05, 0.10, 0.18)
glutSolidSphere(0.05,10,10)
glTranslatef(-0.1, 0.0, 0.0)
glutSolidSphere(0.05,10,10)
glPopMatrix()
// Draw Nose
glColor3f(1.0, 0.5 , 0.5)
glRotatef(0.0,1.0, 0.0, 0.0)
glutSolidCone(0.08,0.5,10,2)
54.10. The Camera 508

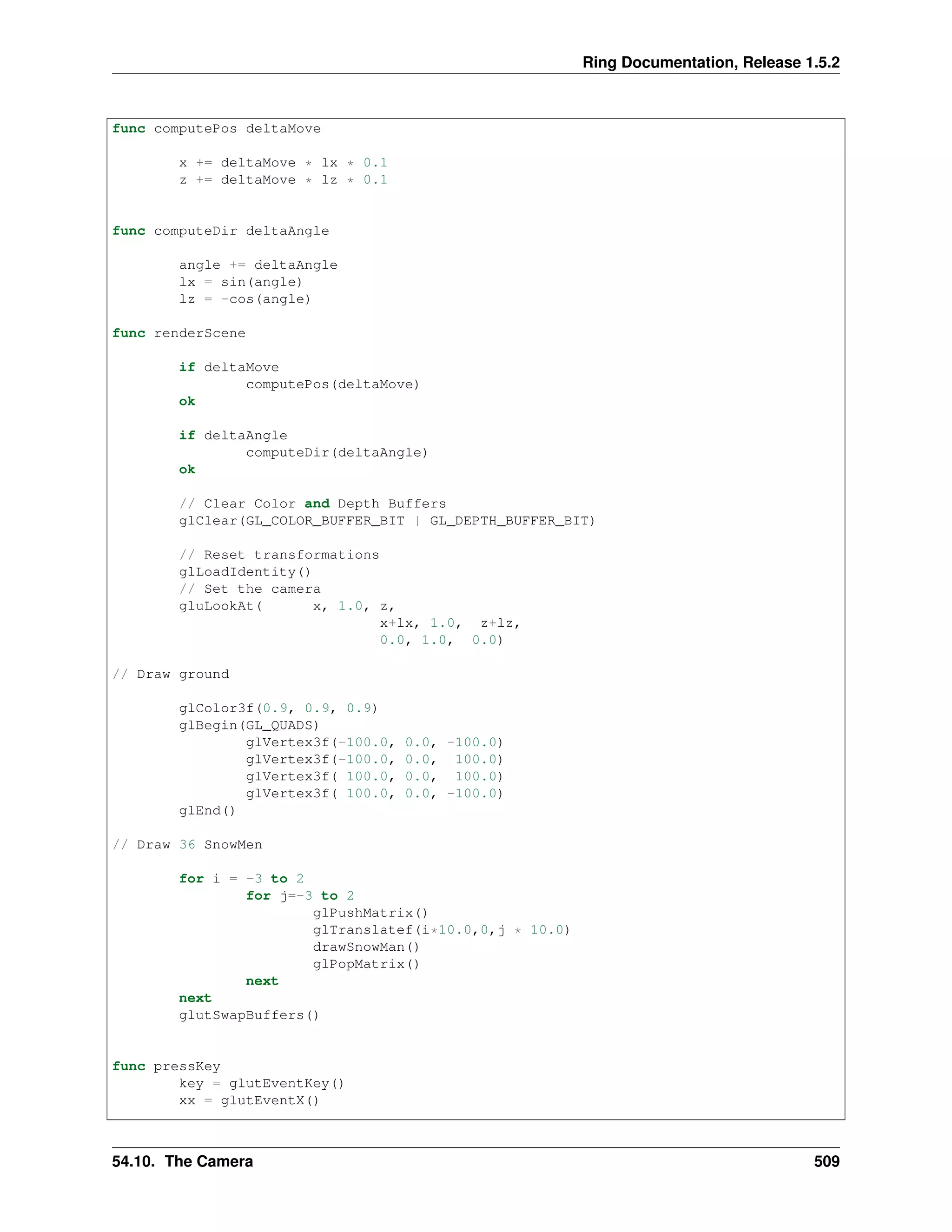

5. Ring Documentation, Release 1.5.2
func computePos deltaMove
x += deltaMove * lx * 0.1
z += deltaMove * lz * 0.1
func computeDir deltaAngle
angle += deltaAngle
lx = sin(angle)
lz = -cos(angle)
func renderScene
if deltaMove
computePos(deltaMove)
ok
if deltaAngle
computeDir(deltaAngle)
ok
// Clear Color and Depth Buffers
glClear(GL_COLOR_BUFFER_BIT | GL_DEPTH_BUFFER_BIT)
// Reset transformations
glLoadIdentity()
// Set the camera
gluLookAt( x, 1.0, z,
x+lx, 1.0, z+lz,
0.0, 1.0, 0.0)
// Draw ground
glColor3f(0.9, 0.9, 0.9)
glBegin(GL_QUADS)
glVertex3f(-100.0, 0.0, -100.0)
glVertex3f(-100.0, 0.0, 100.0)
glVertex3f( 100.0, 0.0, 100.0)
glVertex3f( 100.0, 0.0, -100.0)
glEnd()
// Draw 36 SnowMen
for i = -3 to 2
for j=-3 to 2
glPushMatrix()
glTranslatef(i*10.0,0,j * 10.0)
drawSnowMan()
glPopMatrix()
next
next
glutSwapBuffers()
func pressKey
key = glutEventKey()
xx = glutEventX()
54.10. The Camera 509

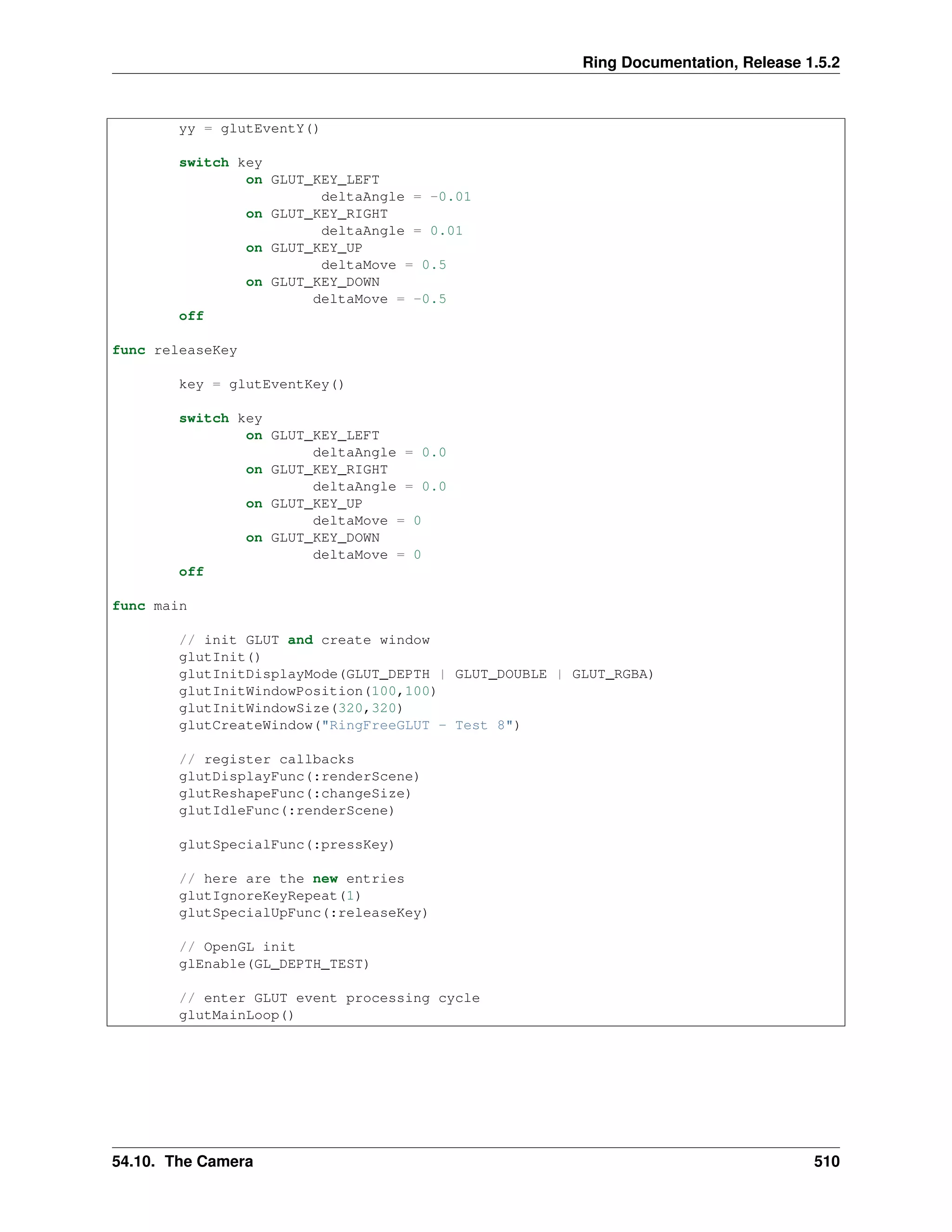

6. Ring Documentation, Release 1.5.2
yy = glutEventY()
switch key
on GLUT_KEY_LEFT
deltaAngle = -0.01
on GLUT_KEY_RIGHT
deltaAngle = 0.01
on GLUT_KEY_UP
deltaMove = 0.5
on GLUT_KEY_DOWN
deltaMove = -0.5
off
func releaseKey
key = glutEventKey()
switch key
on GLUT_KEY_LEFT
deltaAngle = 0.0
on GLUT_KEY_RIGHT
deltaAngle = 0.0
on GLUT_KEY_UP
deltaMove = 0
on GLUT_KEY_DOWN
deltaMove = 0
off
func main
// init GLUT and create window
glutInit()
glutInitDisplayMode(GLUT_DEPTH | GLUT_DOUBLE | GLUT_RGBA)
glutInitWindowPosition(100,100)
glutInitWindowSize(320,320)
glutCreateWindow("RingFreeGLUT - Test 8")
// register callbacks
glutDisplayFunc(:renderScene)
glutReshapeFunc(:changeSize)
glutIdleFunc(:renderScene)
glutSpecialFunc(:pressKey)
// here are the new entries
glutIgnoreKeyRepeat(1)
glutSpecialUpFunc(:releaseKey)
// OpenGL init
glEnable(GL_DEPTH_TEST)
// enter GLUT event processing cycle
glutMainLoop()
54.10. The Camera 510

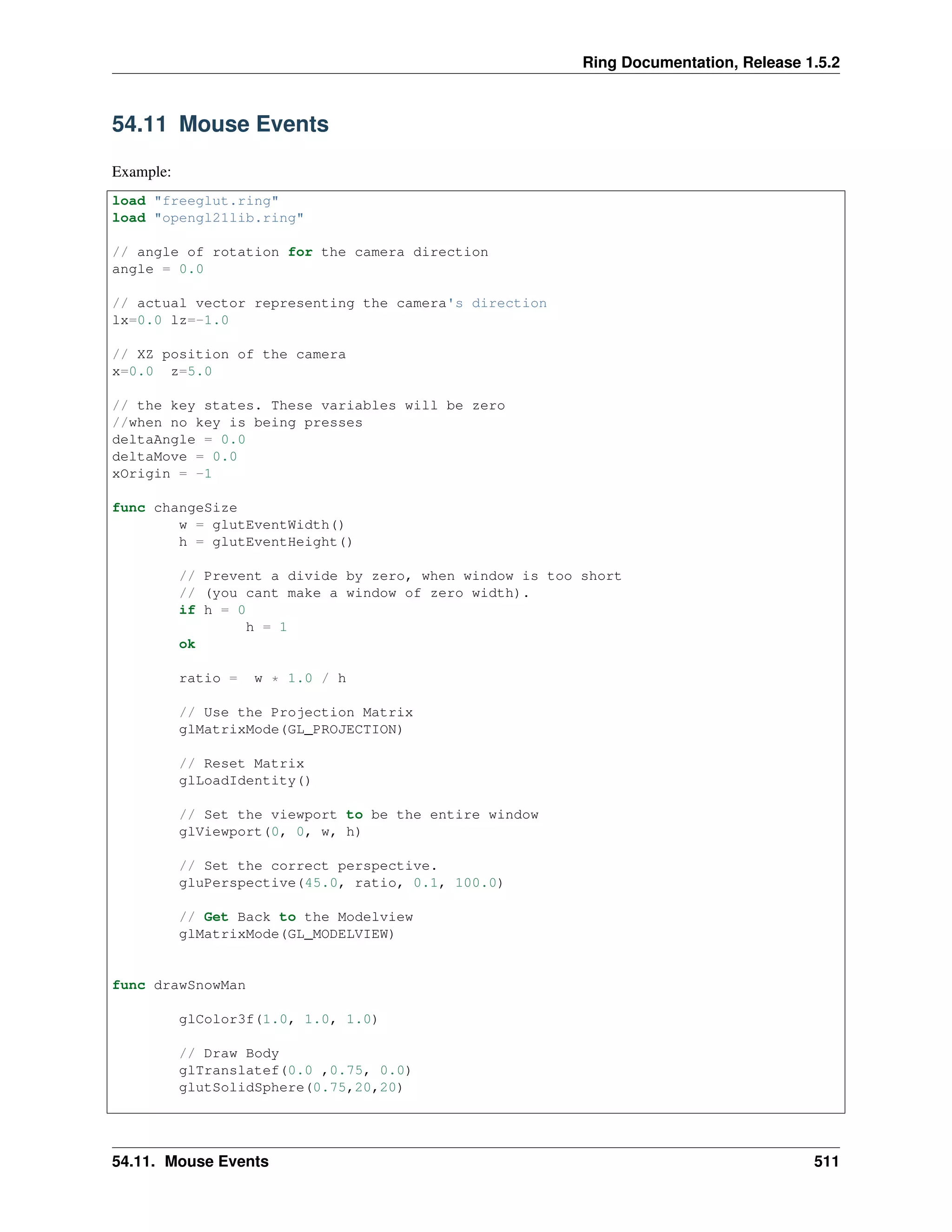

7. Ring Documentation, Release 1.5.2
54.11 Mouse Events
Example:
load "freeglut.ring"
load "opengl21lib.ring"
// angle of rotation for the camera direction
angle = 0.0
// actual vector representing the camera's direction
lx=0.0 lz=-1.0
// XZ position of the camera
x=0.0 z=5.0
// the key states. These variables will be zero
//when no key is being presses
deltaAngle = 0.0
deltaMove = 0.0
xOrigin = -1
func changeSize
w = glutEventWidth()
h = glutEventHeight()
// Prevent a divide by zero, when window is too short
// (you cant make a window of zero width).
if h = 0
h = 1
ok
ratio = w * 1.0 / h
// Use the Projection Matrix
glMatrixMode(GL_PROJECTION)
// Reset Matrix
glLoadIdentity()
// Set the viewport to be the entire window
glViewport(0, 0, w, h)
// Set the correct perspective.
gluPerspective(45.0, ratio, 0.1, 100.0)
// Get Back to the Modelview
glMatrixMode(GL_MODELVIEW)
func drawSnowMan
glColor3f(1.0, 1.0, 1.0)
// Draw Body
glTranslatef(0.0 ,0.75, 0.0)
glutSolidSphere(0.75,20,20)
54.11. Mouse Events 511

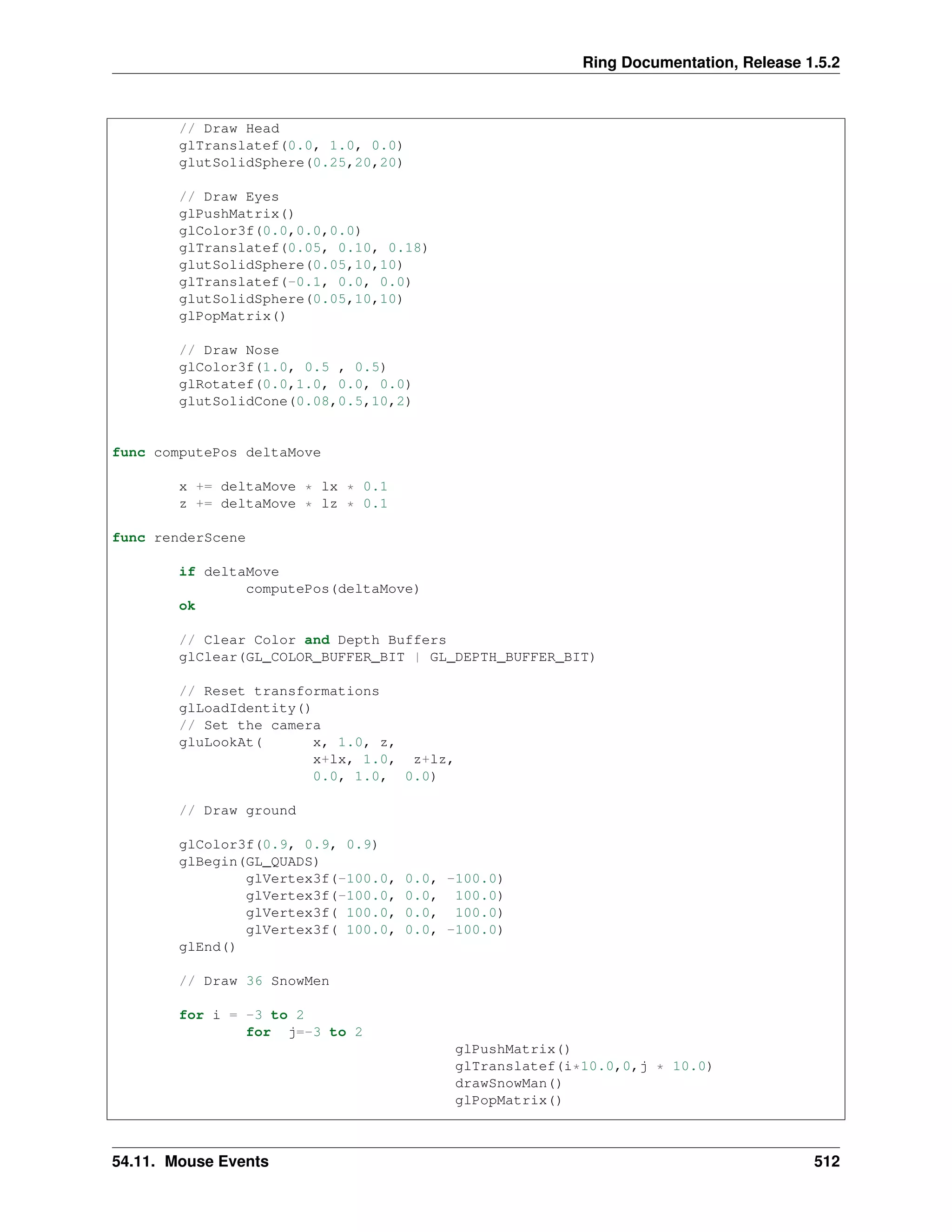

8. Ring Documentation, Release 1.5.2
// Draw Head
glTranslatef(0.0, 1.0, 0.0)
glutSolidSphere(0.25,20,20)
// Draw Eyes
glPushMatrix()
glColor3f(0.0,0.0,0.0)
glTranslatef(0.05, 0.10, 0.18)
glutSolidSphere(0.05,10,10)
glTranslatef(-0.1, 0.0, 0.0)
glutSolidSphere(0.05,10,10)
glPopMatrix()
// Draw Nose
glColor3f(1.0, 0.5 , 0.5)
glRotatef(0.0,1.0, 0.0, 0.0)
glutSolidCone(0.08,0.5,10,2)
func computePos deltaMove
x += deltaMove * lx * 0.1
z += deltaMove * lz * 0.1
func renderScene
if deltaMove
computePos(deltaMove)
ok
// Clear Color and Depth Buffers
glClear(GL_COLOR_BUFFER_BIT | GL_DEPTH_BUFFER_BIT)
// Reset transformations
glLoadIdentity()
// Set the camera
gluLookAt( x, 1.0, z,
x+lx, 1.0, z+lz,
0.0, 1.0, 0.0)
// Draw ground
glColor3f(0.9, 0.9, 0.9)
glBegin(GL_QUADS)
glVertex3f(-100.0, 0.0, -100.0)
glVertex3f(-100.0, 0.0, 100.0)
glVertex3f( 100.0, 0.0, 100.0)
glVertex3f( 100.0, 0.0, -100.0)
glEnd()
// Draw 36 SnowMen
for i = -3 to 2
for j=-3 to 2
glPushMatrix()
glTranslatef(i*10.0,0,j * 10.0)
drawSnowMan()
glPopMatrix()
54.11. Mouse Events 512

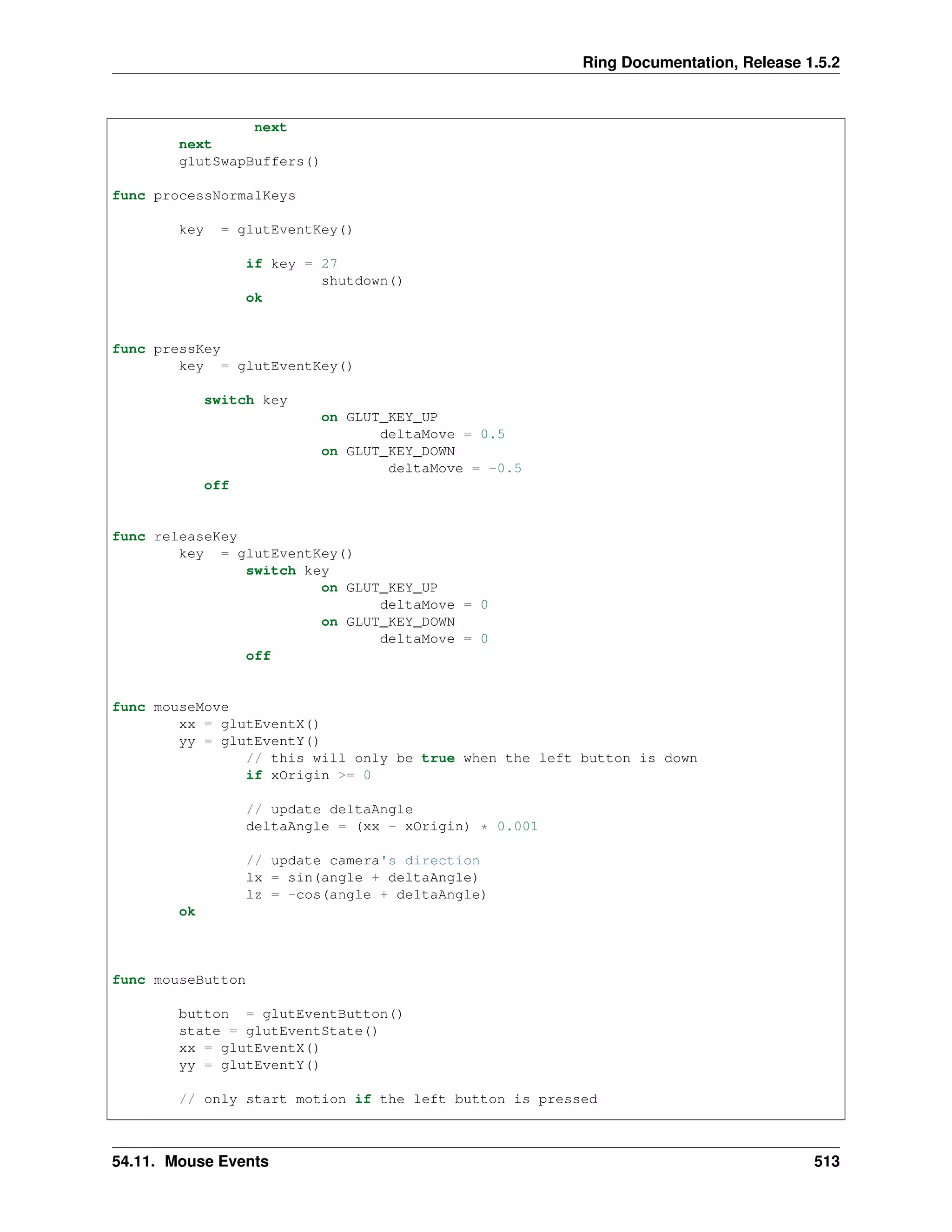

9. Ring Documentation, Release 1.5.2
next
next
glutSwapBuffers()
func processNormalKeys
key = glutEventKey()
if key = 27
shutdown()
ok
func pressKey
key = glutEventKey()
switch key
on GLUT_KEY_UP
deltaMove = 0.5
on GLUT_KEY_DOWN
deltaMove = -0.5
off
func releaseKey
key = glutEventKey()
switch key
on GLUT_KEY_UP
deltaMove = 0
on GLUT_KEY_DOWN
deltaMove = 0
off
func mouseMove
xx = glutEventX()
yy = glutEventY()
// this will only be true when the left button is down
if xOrigin >= 0
// update deltaAngle
deltaAngle = (xx - xOrigin) * 0.001
// update camera's direction
lx = sin(angle + deltaAngle)
lz = -cos(angle + deltaAngle)
ok
func mouseButton
button = glutEventButton()
state = glutEventState()
xx = glutEventX()
yy = glutEventY()
// only start motion if the left button is pressed
54.11. Mouse Events 513

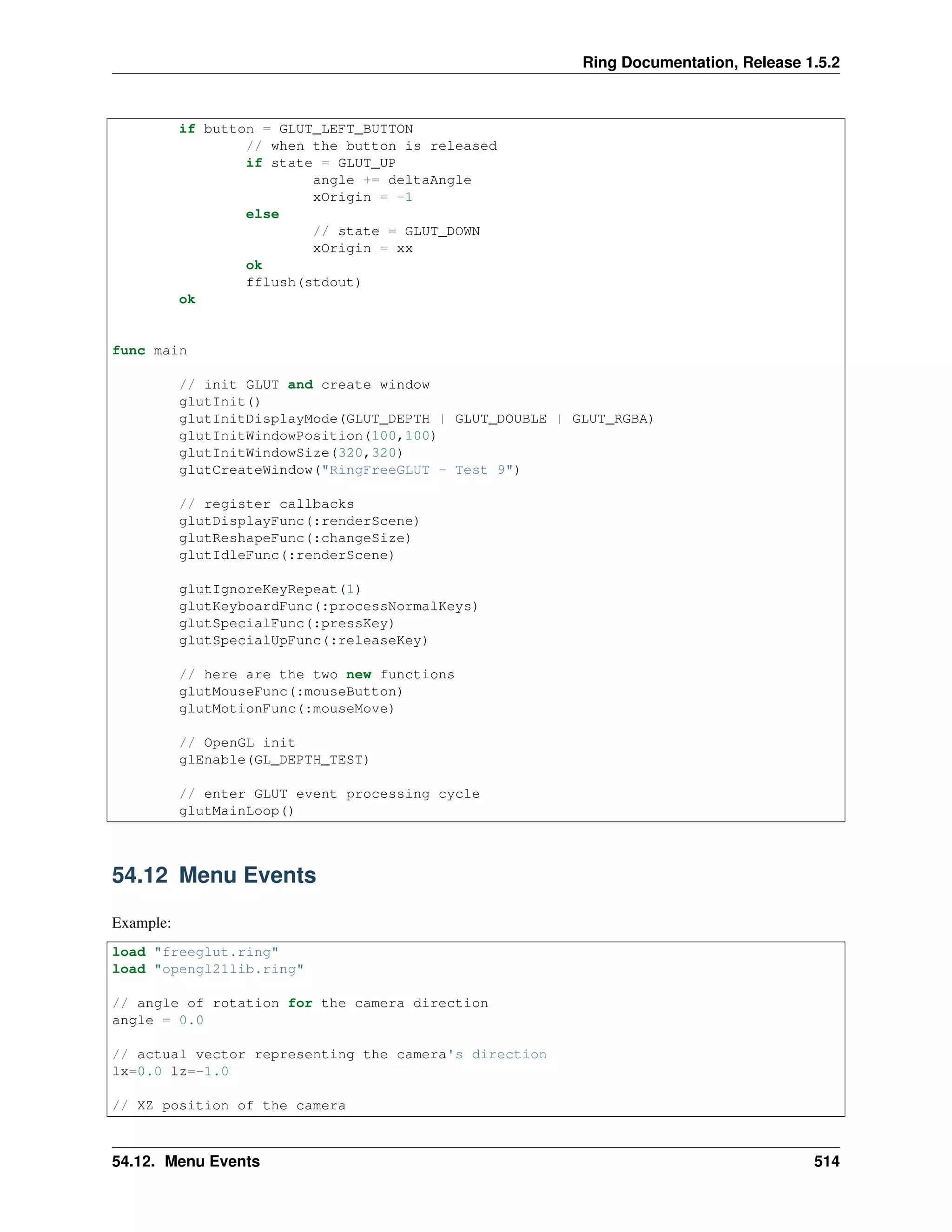

10. Ring Documentation, Release 1.5.2
if button = GLUT_LEFT_BUTTON
// when the button is released
if state = GLUT_UP
angle += deltaAngle
xOrigin = -1
else
// state = GLUT_DOWN
xOrigin = xx
ok
fflush(stdout)
ok
func main
// init GLUT and create window
glutInit()
glutInitDisplayMode(GLUT_DEPTH | GLUT_DOUBLE | GLUT_RGBA)
glutInitWindowPosition(100,100)
glutInitWindowSize(320,320)
glutCreateWindow("RingFreeGLUT - Test 9")
// register callbacks
glutDisplayFunc(:renderScene)
glutReshapeFunc(:changeSize)
glutIdleFunc(:renderScene)
glutIgnoreKeyRepeat(1)
glutKeyboardFunc(:processNormalKeys)
glutSpecialFunc(:pressKey)
glutSpecialUpFunc(:releaseKey)
// here are the two new functions
glutMouseFunc(:mouseButton)
glutMotionFunc(:mouseMove)
// OpenGL init
glEnable(GL_DEPTH_TEST)
// enter GLUT event processing cycle
glutMainLoop()
54.12 Menu Events
Example:
load "freeglut.ring"
load "opengl21lib.ring"
// angle of rotation for the camera direction
angle = 0.0
// actual vector representing the camera's direction
lx=0.0 lz=-1.0
// XZ position of the camera
54.12. Menu Events 514
