The greener facility
The document discusses sustainable strategies for performing arts facilities that go beyond LEED certification. It provides several case studies of performing arts centers that implemented sustainable best practices in areas like indoor environmental quality, materials selection, water and energy conservation. Key strategies included natural ventilation, displacement ventilation, radiant heating/cooling, waterless urinals, energy efficient equipment, construction waste diversion, and use of low-VOC and recycled materials. The case studies demonstrate how facilities tailored their sustainability approaches based on factors like climate, site conditions, and user needs.
The greener facility
- 1. The Greener Facility: GoingBeyond LEED Thursday, October 27, 2011
- 2. Matt Welander, TheatreProjects Consultants Katie Oman, LEED AP, Fisher-Dachs Associates John Shorb, LEED AP, AIA, Opsis Architecture Denis Blount, ARUP
- 3. The Greener Facility What’sLEED got to do with it?
- 4.
- 5. Pros and consof LEED
- 6.
- 7. The bike rackargument
- 8.
- 9.
- 10. Do we reallyneed a LEED rating?
- 12. LEED EBOM Existing Buildings: Operations & Maintenance The Greener Facility: Beyond LEED LDI 2011
- 13. LEED EBOM Sustainable Sites Water Efficiency Energy and Atmosphere Materials and Resources Indoor Environmental Quality Innovation in Operations Regional Priority
- 14. LEED EBOM Measurement & Reporting -Water and Energy Performance Measurement -Emissions reduction reporting -Energy sub-metering -Waste auditing Policy and Planning -Landscape, Hardscape, Pest Management plans -Purchasing and Waste Policies -Green Cleaning Policies -Alternative Commuting Policy -Planning for building upgrades & expansion Best Practices -Commissioning -Energy- and water-efficient equipement & practices -IAQ best practices -Systems control -Sustainable site management and design -Renewable Energy -People-friendly design
- 16. Case Study: SeattleRep 1) Document Baseline What’s being done now? How does this affect the bottom line (to ID savings) How are we communicating to our patrons about sustainability? 2) Identify Areas for Improvement What can we do to improve? How much will it cost? What impact will it have? Can we leverage any partnerships? 3) Implement Develop Environmental Action Plan Harvest Low-hanging Fruit Report on progress
- 18. Image courtesy GustafsonGuthrie Nichol ltd

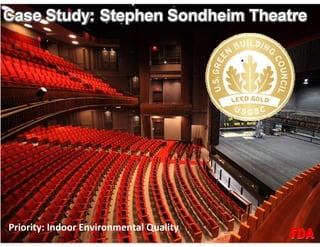

- 20.
- 21. Case Study: StephenSondheim Theatre Indoor Environmental Quality • HVAC system filters out 95% of particulate matter • CO2 sensors help deliver 30% more fresh air than code requires • Paints, sealants, and adhesives are low VOC • Green Label Plus certified carpeting • Wood products are low VOC and contain no added urea- formaldehyde • All furniture is Greenguard Indoor Air Quality Certified • Strict construction procedures prevented dust and debris from entering the theatre’s ductwork system The Greener Facility: Beyond LEED LDI 2011

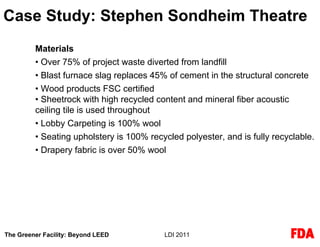

- 22. Case Study: StephenSondheim Theatre Materials • Over 75% of project waste diverted from landfill • Blast furnace slag replaces 45% of cement in the structural concrete • Wood products FSC certified • Sheetrock with high recycled content and mineral fiber acoustic ceiling tile is used throughout • Lobby Carpeting is 100% wool • Seating upholstery is 100% recycled polyester, and is fully recyclable. • Drapery fabric is over 50% wool The Greener Facility: Beyond LEED LDI 2011
- 23. Case Study: StephenSondheim Theatre Water Conservation • Waterless urinals reduce potable water consumption by 1/3 • Wastewater is reused for flushing toilets Energy Efficiency • Energy Star equipment and appliances • Equipment and systems commissioning The Greener Facility: Beyond LEED LDI 2011
- 25. Case Study: GerdingTheatre

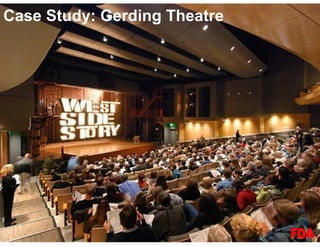

- 26. Case Study: GerdingTheatre

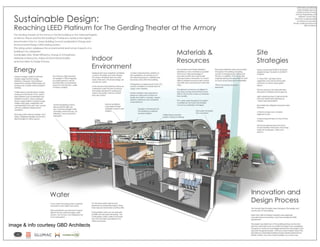

- 28. Case Study: GerdingTheatre image & info courtesy GBD Architects The Greener Facility: Beyond LEED LDI 2011

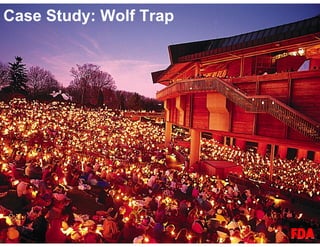

- 29. Case Study: WolfTrap

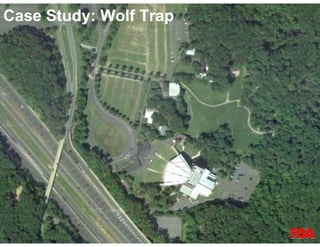

- 30. Case Study: WolfTrap
- 32. Case Study: WolfTrap
- 33. Pierce College Artsand Allied Health Common Ground
- 34.
- 35. Approach to Sustainabilityis influenced by… Client, Campus Culture, Who Program User Group Climate, Specific Site, Slope, Views, Where Response to Existing Buildings, Native Vegetation Program Requirements, Acoustics, What Air Quality, Light, Public Access Needs, Local Resources & Programs
- 36. Program Related SustainabilityDrivers Arts & Allied Health Offices Natural Ventilation Lobby & Tempered Air Art Studios Theatre Displacement Vocal Recital Hall Ventilation Recording Studio Mechanical Air Practice Studio Computer Labs Classrooms Offices, Lobby Radiant Heating Project Rooms, & Cooling Art Studios
- 38. Classrooms Theater Allied Health Music Multi-Media First Floor Plan
- 39. Music Study Rooms Art Studios Faculty
- 40.

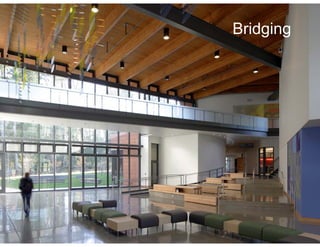

- 41.
- 42. Natural Ventilation Modeling Step 0: Plan modeling strategy How is the building best simulated? Identify objectives Establish comfort parameters Determine acceptable levels of comfort LEED Comfort Parameters Temperature Acceptable Hours Annually 75-80 ºF 150 Hours 80-85 ºF 50 Hours >85 ºF 20 Hours Arts
- 43. Natural Ventilation Modeling Lobby Analysis 567 600 485 445 500 400 294 Hours in Range 300 174 101 197 200 100 81 17 24 0 14 29 No Shading E façade Top Shading Sliding doors open Preliminary Sliding Doors closed Revised > 85 80-85 75-80 Arts
- 44.
- 46.
- 47.
- 50.
- 51.
- 52.
- 53.

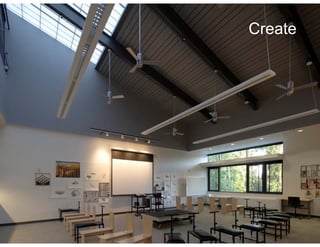

- 54.

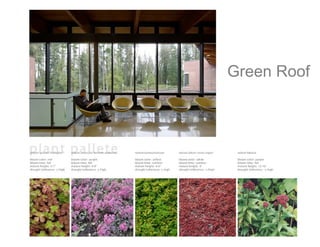

- 55.
- 57. The AAH Buildingcreates something greater than the sum of the individual pieces
- 58. Lasting outcomes… • Began“sustainable” campus identity discussion • Users played an active role in sustainability decisions • Enhanced recycling program in the City of Puyallup • Sustainable landscaping plan campus-wide at Ft. Steilacoom • Development of sustainable curriculum in conjunction with other area colleges.
- 59. Reed College PerformingArts Building
- 60.
- 61. WATZEK SPORTS CENTER 1 GRAY COMMONS KAUL AUDITORIUM 3 2 4 Wintergarden 4 OLD DORM BLOCK View To West Hills ANNA LEGEND 1 MANN 1. Planted Stormwater Infiltration Basin 2. Hardy Native Landscaping 3. Existing Tree Preservation 4. Covered Outdoor Plazas MACNAUGHTON 5. Solar Array 6. Green Roof FOSTER 7. Skylights

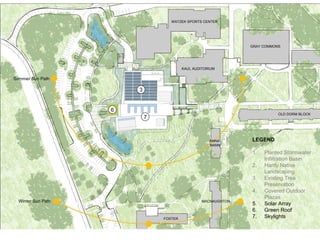

- 62. WATZEK SPORTS CENTER GRAY COMMONS KAUL AUDITORIUM Summer Sun Path 3 6 OLD DORM BLOCK 7 ANNA LEGEND MANN 1. Planted Stormwater Infiltration Basin 2. Hardy Native Landscaping 3. Existing Tree Preservation 4. Covered Outdoor Plazas Winter Sun Path MACNAUGHTON 5. Solar Array 6. Green Roof FOSTER 7. Skylights
- 64.
- 65.
- 67. West Entry East Entry From Parking From Campus

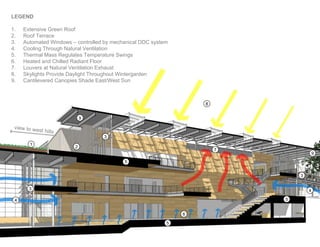

- 68. LEGEND 1. Extensive Green Roof 2. Roof Terrace 3. Automated Windows – controlled by mechanical DDC system 4. Cooling Through Natural Ventilation 5. Thermal Mass Regulates Temperature Swings 6. Heated and Chilled Radiant Floor 7. Louvers at Natural Ventilation Exhaust 8. Skylights Provide Daylight Throughout Wintergarden 9. Cantilevered Canopies Shade East/West Sun 8 9 view to we st hills 3 1 2 7 9 5 3 3 4 4 5 6 5
- 69. Daylight Analysis Daylight Factor Averages 1st Floor: 5% 2 nd Floor: 7.3% 3 rd Floor 15% SEPT 21, 9AM SEPT 21, NOON SEPT 21, 3 PM SOUTH WALL
- 71.
- 72.
- 73.
- 74. Daylight Analysis DANCE STUDIO 9.6% AVERAGE 7.4% AVERAGE JUNE 21 SUMMER SOLSTICE 7.0% AVERAGE CLEAR SKY RGB 7.2% AVERAGE 7.3% AVERAGE
- 75.
- 76.

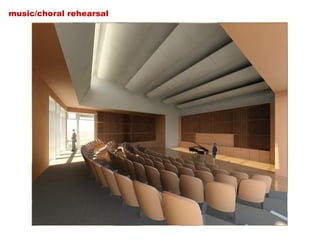

- 77.
- 78. LEGEND 1. Daylighting 2. Displacement Ventilation 3. Acoustic Clouds 4. Diffusive Acoustic Wood Panels 5. Floating Floor 1 3 1 4 2 5
- 79. Going Beyond LEED DenisBlount, Arup
- 80. Arup and Sustainability SirOve Arup founded his practice in London in 1946 based on a belief in ‘total design’ — the integration of the design process and the interdependence of all the professions involved, the creative nature of engineering, the value of innovation and the social purpose of design. Today we understand this as a commitment to sustainability.
- 81. ` 81 My Perspective

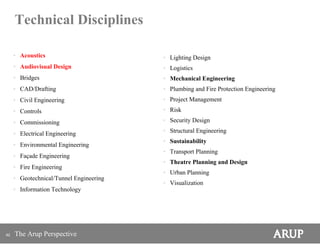

- 82. Technical Disciplines • Acoustics • Lighting Design • Audiovisual Design • Logistics • Bridges • Mechanical Engineering • CAD/Drafting • Plumbing and Fire Protection Engineering • Civil Engineering • Project Management • Controls • Risk • Commissioning • Security Design • Electrical Engineering • Structural Engineering • Sustainability • Environmental Engineering • Transport Planning • Façade Engineering • Theatre Planning and Design • Fire Engineering • Urban Planning • Geotechnical/Tunnel Engineering • Visualization • Information Technology 82 The Arup Perspective
- 83. Loads per BuildingType Museum Residential Windows Windows Walls Walls Infiltration Infiltration People People Lights Lights Equipment Equipment Ventilation Ventilation Office Lab Windows Windows Walls Walls Infiltration Infiltration People People Lights Lights Equipment Equipment Ventilation Ventilation 83 Sustainable Design for Venues?
- 84. Concert for Diana:Carbon Footprint Sustainable Design for Venues?
- 85. Additional Resources BS 8901 – Sustainable Event Management www.greentheatres.org 85 Going Beyond LEED
- 86.

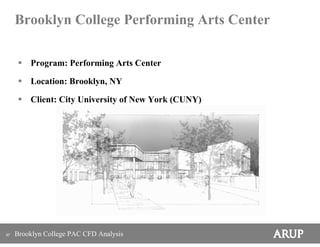

- 87. Brooklyn College PerformingArts Center Program: Performing Arts Center Location: Brooklyn, NY Client: City University of New York (CUNY) 87 Brooklyn College PAC CFD Analysis
- 88. Theatre Rehearsal Room Theatrical lighting loads at +18’ in space Occupied zone with 80 people sitting in rafters 88 Brooklyn College PAC CFD Analysis
- 89. Theatre Rehearsal Room Design challenges: Reduce airflow by 50% Minimize ductwork size - Reduces architectural impact - Reduces cost - Minimize energy consumption Meet air velocity requirements No draft on occupants 89 Brooklyn College PAC CFD Analysis
- 90. Air Temperature/Flow Solution: downward deflectionangle of 15° 90 Brooklyn College PAC CFD Analysis
- 91. Air Temperature Plot Volumetric average temperature of occupied zone – 74.5 F; meets temperature criteria 91 Brooklyn College PAC CFD Analysis

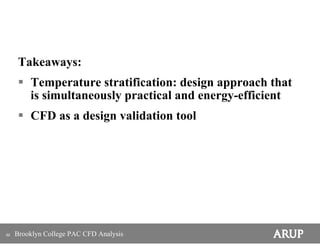

- 92. Takeaways: Temperature stratification: design approach that is simultaneously practical and energy-efficient CFD as a design validation tool 92 Brooklyn College PAC CFD Analysis
- 93. 93 Load Driven Design – ART NY
- 94. Case study: Loaddriven design Design challenges: 800 amp equipment electrical load and 400 amps for mechanical equipment allocated for performance space Equipment specification and system design to meet loads Solutions Distributed dimming LED fixtures Strand S21 Dimmer Strip Elation LED Par Zoom MM ‘Mighty Output’ LED Batten 94 Load Driven Design – ART NY
- 95. Going Beyond LEED DenisBlount, Arup
