The document compares four PLC models: LX3V, LX3VP, LX3VE, and LX3VM. LX3VP adds N:N networking and improves pulse output frequency and ladder capacity over LX3V. LX3VE expands on LX3VP with additions like S-type acceleration/deceleration, jitter pulse support, and E-CAM functions. LX3VM is similar to LX3VE but also includes circle interpolation functionality.

1. The difference
among LX3V, LX3VP,
LX3VE and LX3VM
Website: http://www.we-con.com.cn/en
Technical Support: liux@we-con.com.cn
Skype: “fcwkkj” or “Jason.chen842”
Phone: 86-591-87868869
QQ Group: 465230233
Technical forum: http://wecon.freeforums.net/

2. LX3V Series PLC
1 FUZHOU FU CHANG WECON ELECTRONICS TECHNOLOGY CO., LTD.

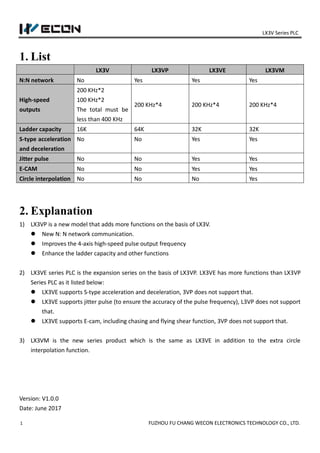

1. List
LX3V LX3VP LX3VE LX3VM
N:N network No Yes Yes Yes
High-speed
outputs
200 KHz*2
100 KHz*2
The total must be
less than 400 KHz
200 KHz*4 200 KHz*4 200 KHz*4
Ladder capacity 16K 64K 32K 32K
S-type acceleration
and deceleration
No No Yes Yes
Jitter pulse No No Yes Yes
E-CAM No No Yes Yes
Circle interpolation No No No Yes
2. Explanation
1) LX3VP is a new model that adds more functions on the basis of LX3V.
 New N: N network communication.
 Improves the 4-axis high-speed pulse output frequency
 Enhance the ladder capacity and other functions
2) LX3VE series PLC is the expansion series on the basis of LX3VP. LX3VE has more functions than LX3VP
Series PLC as it listed below:
 LX3VE supports S-type acceleration and deceleration, 3VP does not support that.
 LX3VE supports jitter pulse (to ensure the accuracy of the pulse frequency), L3VP does not support
that.
 LX3VE supports E-cam, including chasing and flying shear function, 3VP does not support that.
3) LX3VM is the new series product which is the same as LX3VE in addition to the extra circle
interpolation function.
Version: V1.0.0
Date: June 2017
