The document summarizes the features of the Testo 570 digital manifold, including: 1. It can simultaneously measure pressure, temperature, current, and perform vacuum measurement in one instrument. 2. It stores up to 999 hours of recorded measurement values and data from 40 refrigeration systems. 3. It supports extensive refrigeration system analysis functions like superheating, subcooling, and vacuum measurement.

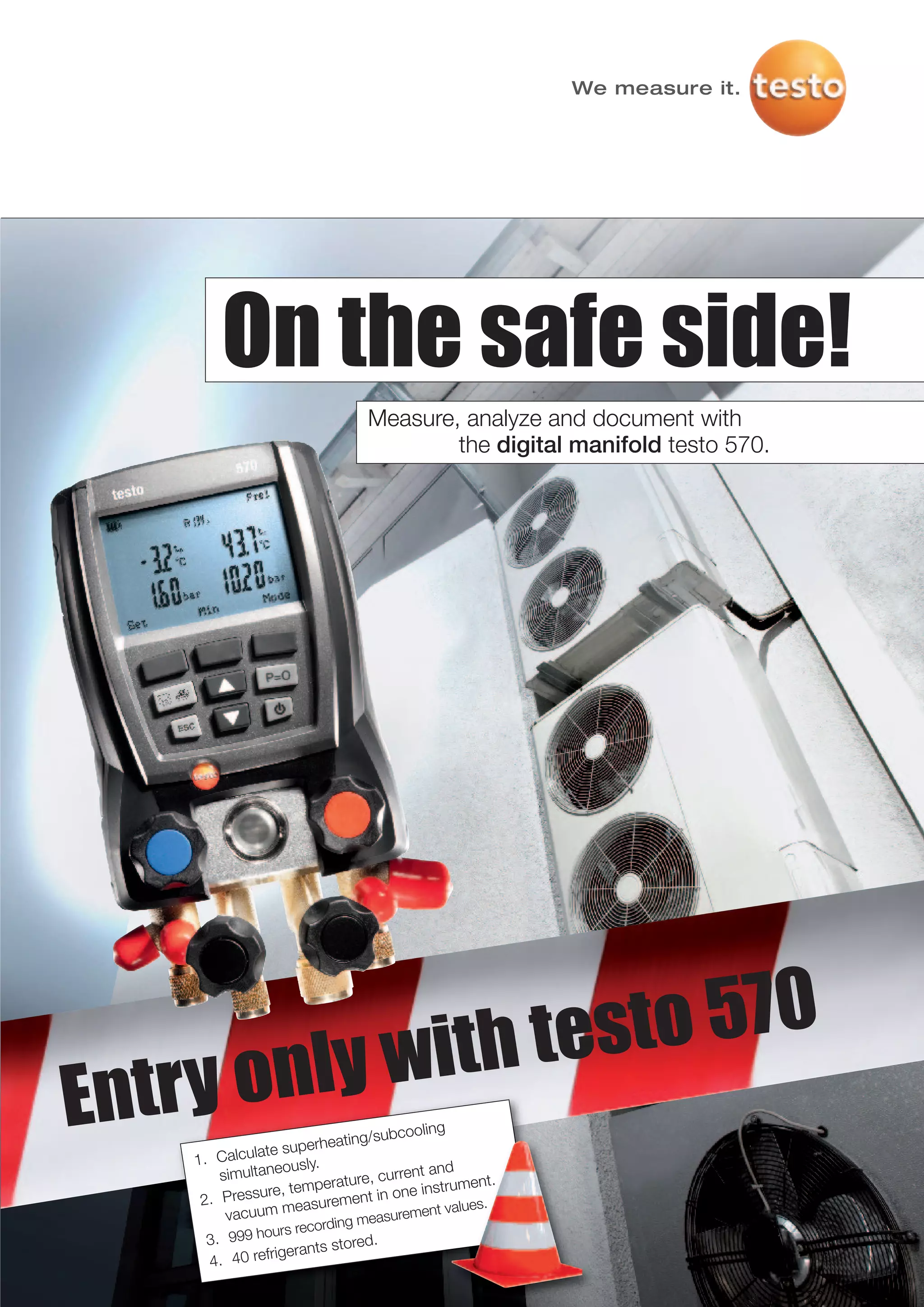

1. testo 570 brochure_Master_2012:testo_330-2LL_01_DE.qxd 14.12.2011 13:03 Seite 1
We measure it.
On the safe side!
Measure, analyze and document with
the digital manifold testo 570.
ith tes to 570
Entry only w ling
g/subcoo
late su perheatin
1. Calcu .
simu ltaneously ent and
ture, curr ment.
ure , tempera one instru
2. Press easu rement in
vacuum m nt values.
easureme
ours re cording m
3. 999 h .
nts stored
4. 4 0 refrigera

2. testo 570 brochure_Master_2012:testo_330-2LL_01_DE.qxd 14.12.2011 13:03 Seite 2
testo 570 We measure it.
Measure, analyze and document with testo 570.
The new, robust refrigeration system analyzer!
One instrument, multiple benefits
The new digital manifold testo 570 is a robust tool for all imagi-
nable measurements on a refrigeration system or heat pump.
testo 570 is capable of considerably more than just measure-
ment. Whether pressures, temperatures, vacuum or current,
testo 570 analyzes everything. It stores all measurement data,
from commissioning to service and maintenance up to error
analysis.
On the safe side
The internal data store of the testo 570 replaces manual work
steps, thanks to the clear and easily understood documentation
option of a measurement. Proof of the correct maintenance of a
refrigeration system can always be supplied. This ensures trans-
2
parency and inspires trust in the customer.

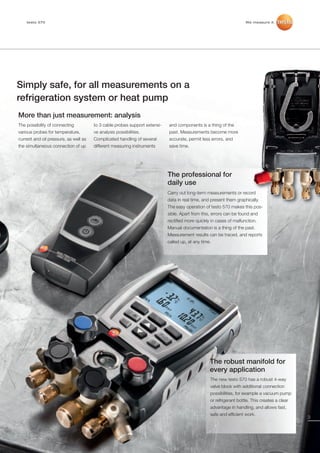

3. testo 570 brochure_Master_2012:testo_330-2LL_01_DE.qxd 14.12.2011 13:03 Seite 3
testo 570 We measure it.
Simply safe, for all measurements on a
refrigeration system or heat pump
More than just measurement: analysis
The possibility of connecting to 3 cable probes support extensi- and components is a thing of the
various probes for temperature, ve analysis possibilities. past. Measurements become more
current and oil pressure, as well as Complicated handling of several accurate, permit less errors, and
the simultaneous connection of up different measuring instruments save time.
The professional for
daily use
Carry out long-term measurements or record
data in real time, and present them graphically.
The easy operation of testo 570 makes this pos-
sible. Apart from this, errors can be found and
rectified more quickly in cases of malfunction.
Manual documentation is a thing of the past.
Measurement results can be traced, and reports
called up, at any time.
The robust manifold for
every application
The new testo 570 has a robust 4-way
valve block with additional connection
possibilities, for example a vacuum pump
or refrigerant bottle. This creates a clear
advantage in handling, and allows fast,
safe and efficient work.
3

4. testo 570 brochure_Master_2012:testo_330-2LL_01_DE.qxd 14.12.2011 13:03 Seite 4
testo 570 We measure it.
testo 570:
Everything you need
testo Easykool software - online measurement testo 570
testo 570 Meas. instrument Archive Refrigerants Settings
Connection assistent Measurement process Meas. cycle (sec) Refrigerants Pressure type
Refrigerant level 2 R502 relative
Configuration
Readings Display Diagram Display sequence
Online measurement
Instrument Explorer
Save graph
4

5. testo 570 brochure_Master_2012:testo_330-2LL_01_DE.qxd 14.12.2011 13:03 Seite 5
testo 570 We measure it.
Extensive measurement task support for:
Superheating and Integrated memory
subcooling testo 570 can store the measured
Simultaneous calculation of super- values from up to 999 hours and
heating and subcooling with 2 from different systems. Manual
externally connectable temperature documetation of the values is super-
probes. Accurate and reliable results fluous.
are achieved using surface probes.
The clamp probes included in deli- Troubleshooting
very are attached to the pipe and
Online measurement with the testo
record its surface temperature.
570 allows the computer-supported
monitoring of a system over a longer
Vacuum measure- period, and thus a detailed error
ment analysis which would not be possi-
The integrated vacuum measure- ble using spot measurements.
ment supports in evacuating a
system and indicates the level of
“EasyKool” software
vacuum achieved.
The documentation of the measure-
ment results helps the customer to
Heat pump mode understand which work has been
The hoses no longer need to be carried out, and provides proof of
switched over for maintenance on this for the technician. The intuitive
heat pumps. testo 570 automatical- operation of the software, route
ly switches over the high and low planning for larger systems, custo-
pressure and the temperatures as mer data management and the
soon as the heat pump mode is graphic representation of the mea-
activated. surement results are welcome
additions.
Temperature-
compensated tight- Refrigerant manage-
ness testing ment
Thanks to the temperature-compensa- With the new “EasyKool” software,
ted tightness test, users can test the not only can new refrigerant curves
system for tightness using the testo 570 be downloaded into the instrument
manifold. The system pressure and the from the internet, but refrigerant fil-
ambient temperature are measured, and ling levels can also be managed
the time period of the measurement can accurately.
be defined by the user.
5

6. testo 570 brochure_Master_2012:testo_330-2LL_01_DE.qxd 14.12.2011 13:03 Seite 6
testo 570 We measure it.
Overview of the Testo manifolds. Guaranteed the
testo 550 testo 557
The tool for tough applications The tool for commissioning,
Ideal for commissioning, service and maintenance
Ideal for service, maintenance and commissioning on air condi- grated vacuum measurement.
tioning systems and heat pumps.
Display of
MIN/MAX/MEAN
2 temperature probe
connections
Display illumination
2-way valve block
with 3 connections, 3
hose parkers and
sight glass
Instrument functions: Additional instrument functions to testo 550:
· High-quality sensors measure high and low pressure · Integrated vacuum measurement supports
· Calculation of superheating/subcooling in real time evacuation of the system
· 39 refrigerants are stored in instrument · 4-way valve block allows fast and
efficient work
· Temperature-compensated tightness testing
· Heat pump mode
· Vacuum display
Set testo 550-1 testo 557
The digital manifold for service and maintenance incl. clamp probe, The digital manifold testo 557 incl.
calibration protocol and batteries batteries and calibration protocol
Order no. 0563 5505 Order no. 0563 5571
Set testo 550-2 Set testo 557-2
The digital manifold for service and maintenance incl. 2 clamp The digital manifold testo 557 incl. batteries,
probes, calibration protocol and batteries calibration protocol, 2x clamp probes and
6
transport case
Order no. 0563 5506 Order no. 0563 5572

7. testo 570 brochure_Master_2012:testo_330-2LL_01_DE.qxd 14.12.2011 13:03 Seite 7
testo 570 We measure it.
Accessories for the manifolds testo 550, 557 and 570
Probes fo testo 550, testo 557 and testo 570
Probe Illustration Measuring range Accuracy Order no.EUR
Clamp probe for pipes from Ø 6 mm to -40 to +125 °C ± 1 °C (-20 to +85 °C) 0613 5505
Ø 35 mm, NTC
e
Pipe wrap probe with Velcro tape for pipe dia- 300 mm
meters of up to max. 75 mm, Tmax. +75°C, 30 mm -50 to +70 ± 0.2 °C (-25 to +70 °C) 0613 4611
NTC ±0.4 °C (-50 to -25.1 °C)
Connection: Fixed cable 1.5 m
Watertight NTC surface probe for flat 115 mm 50 mm
-50 to +150 °C ±0.5 % of reading (+100 to +150 0613 1912
surfaces Long-term measuring
Ø 5 mm Ø 6 mm °C)
range to +125 °C,
Connection: Fixed cable 1.2 m briefly to +150 °C ±0.2 °C (-25 to +74.9 °C)
(2 minutes) ±0.4 °C (remaining meas. range)
115 mm 50 mm
Precise, robust NTC air probe -50 to +125 °C
2)
± 0.2 °C (-25 to +80 °C) 0613 1712
Ø 5 mm Ø 4 mm ±0.4 °C (remaining meas.
Connection: Fixed cable 1.2 m range)
Pipe clamp probe (NTC) for pipe -50 to +120 °C ± 0.2 °C (-25 to +80 °C) 0613 5605
diameters 5 to 65 mm
Connection: Fixed cable 1.5 m
Accessories for testo 550, testo 557 and testo 570
For testo 550, testo 557: Order no. EUR
Transport case for measuring instrument, probes and 0516 5505
accessories
Transport case, provides space for testo 570, probes, 0516 5700
accessories and refrigerant hoses
For testo 570: Measuring range Accuracy Order no. EUR
0:
Current probe for the measurement of current 0 to 20/200 A 0 to 9.9 A 4% 0554 5607
s
consumption on compressors with switchable meas- 10 to 49.9 A 3% Connection:
uring range 50 to 200 A 2% Fixed cable 2.9 m
Oil pressure probe for checking oil level in
0 to 15 bar rel 0.5% of final value 0638 1742
compressor
Overload: 50 bar Connection:
Fixed cable 2.9m
Mains unit, 5VDC 500mA with Euro plug, 100-250
0554 0447
VAC, -250-60 Hz
USB data transmission cable, instrument – PC 0449 0047
Software “EasyKool” with measurement data management, incl. USB data cable 0554 5604
Testo fast printer with wireless IRDA and infrared interface, 1 roll of thermal paper and 4 AA batteries 0554 0549
7

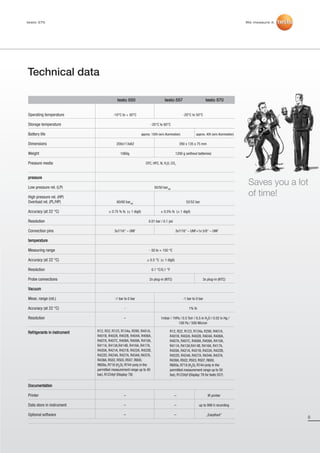

8. testo 570 brochure_Master_2012:testo_330-2LL_01_DE.qxd 14.12.2011 13:03 Seite 8
testo 570 We measure it.
Technical data
testo 550 testo 557 testo 570
Operating temperature -10°C to + 50°C -20°C to 50°C
Storage temperature -20°C to 60°C
Battery life approx. 150h (w/o illumination) approx. 40h (w/o illumination)
Dimensions 200x113x62 280 x 135 x 75 mm
Weight 1060g 1200 g (without batteries)
Pressure media CFC, HFC, N, H2O, CO2
pressure
Low pressure rel. (LP) 50/50 barrel
Saves you a lot
High pressure rel. (HP)
of time!
Overload rel. (PL/HP) 60/60 barrel 52/52 bar
Accuracy (at 22 °C) ± 0.75 % fs (± 1 digit) ± 0.5% fs (± 1 digit)
Resolution 0.01 bar / 0.1 psi
Connection pins 3x7/16“ – UNF 3x7/16“ – UNF+1x 5/8“ – UNF
temperature
Measuring range - 50 to + 150 °C
Accuracy (at 22 °C) ± 0.5 °C (± 1 digit)
Resolution 0.1 °C/0,1 °F
Probe connections 2x plug-in (NTC) 3x plug-in (NTC)
Vacuum
Meas. range (rel.) -1 bar to 0 bar -1 bar to 0 bar
Accuracy (at 22 °C) - 1% fs
Resolution – 1mbar / 1hPa / 0.5 Torr / 0.5 in H2O / 0.02 in Hg /
100 Pa / 500 Micron
Refrigerants in instrument R12, R22, R123, R134a, R290, R401A, R12, R22, R123, R134a, R290, R401A,
R401B, R402A, R402B, R404A, R406A, R401B, R402A, R402B, R404A, R406A,
R407A, R407C, R408A, R409A, R410A, R407A, R407C, R408A, R409A, R410A,
R411A, R413A,R414B, R416A, R417A, R411A, R413A,R414B, R416A, R417A,
R420A, R421A, R421B, R422A, R422B, R420A, R421A, R421B, R422A, R422B,
R422D, R424A, R427A, R434A, R437A, R422D, R424A, R427A, R434A, R437A,
R438A, R502, R503, R507, R600, R438A, R502, R503, R507, R600,
R600a, R718 (H2O), R744 (only in the R600a, R718 (H2O), R744 (only in the
permitted measurement range up to 40 permitted measurement range up to 50
bar), R1234yf (Display: T8) bar), R1234yf (Display: T8 for testo 557)
Documentation
Printer – – IR printer
Data store in instrument – – up to 999 h recording
Optional software – – „EasyKool”
8

9. testo 570 brochure_Master_2012:testo_330-2LL_01_DE.qxd 14.12.2011 13:04 Seite 9
testo 570 We measure it.
right solution for every application!
testo 570
service and maintenance The professional solution for commissioning,
service and maintenance
thanks to the 4-way valve block and the inte-
Ideal for all measurement tasks on refrigeration systems and heat pumps.
In particular,the integrated data store and the vacuum measurement
simplify all activities.
Display of Display of
MIN/MAX/MEAN MIN/MAX/MEAN
2 temperature probe 3 temperature probe
connections connections
Display illumination Display illumination
4-way valve block 4-way valve block
with 4 connections, 4 with 4 connections,
hose parkers and 4 hose parkers and
sight glass sight glass
Additional instrument functions to testo 550 and
testo 557:
· Up to 999 h measurement values can be stored via
optional software “EasyKool”
· Refrigerant update by customer possible
· Direct printout on site with Testo fast printer
· Extensive accessories connectable
Set testo 570-1
The digital manifold testo 570 incl. batteries, calibration protocol
and clamp probe
Order no. 0563 5701
Set testo 570-2
Digital manifold testo 570 incl. batteries, calibration protocol,
2x clamp probes, transport case, software with USB data cable
and mains unit. 9
Order no. 0563 5702

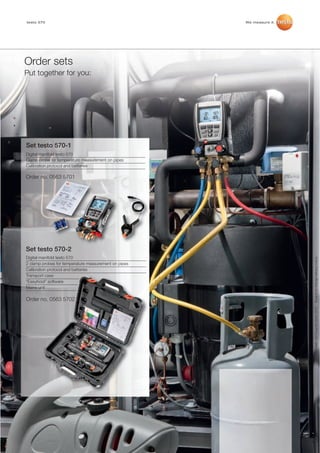

10. testo 570 brochure_Master_2012:testo_330-2LL_01_DE.qxd 14.12.2011 13:04 Seite 10
testo 570 We measure it.
Order sets
Put together for you:
Set testo 570-1
Digital manifold testo 570
Clamp probe for temperature measurement on pipes
Calibration protocol and batteries
Order no. 0563 5701
Set testo 570-2
Digital manifold testo 570
Subject to change without notice.
2 clamp probes for temperature measurement on pipes
Calibration protocol and batteries
Transport case
“EasyKool” software
Mains unit
Order no. 0563 5702
0981 3574/oa/AC/Q/01.2012
9
