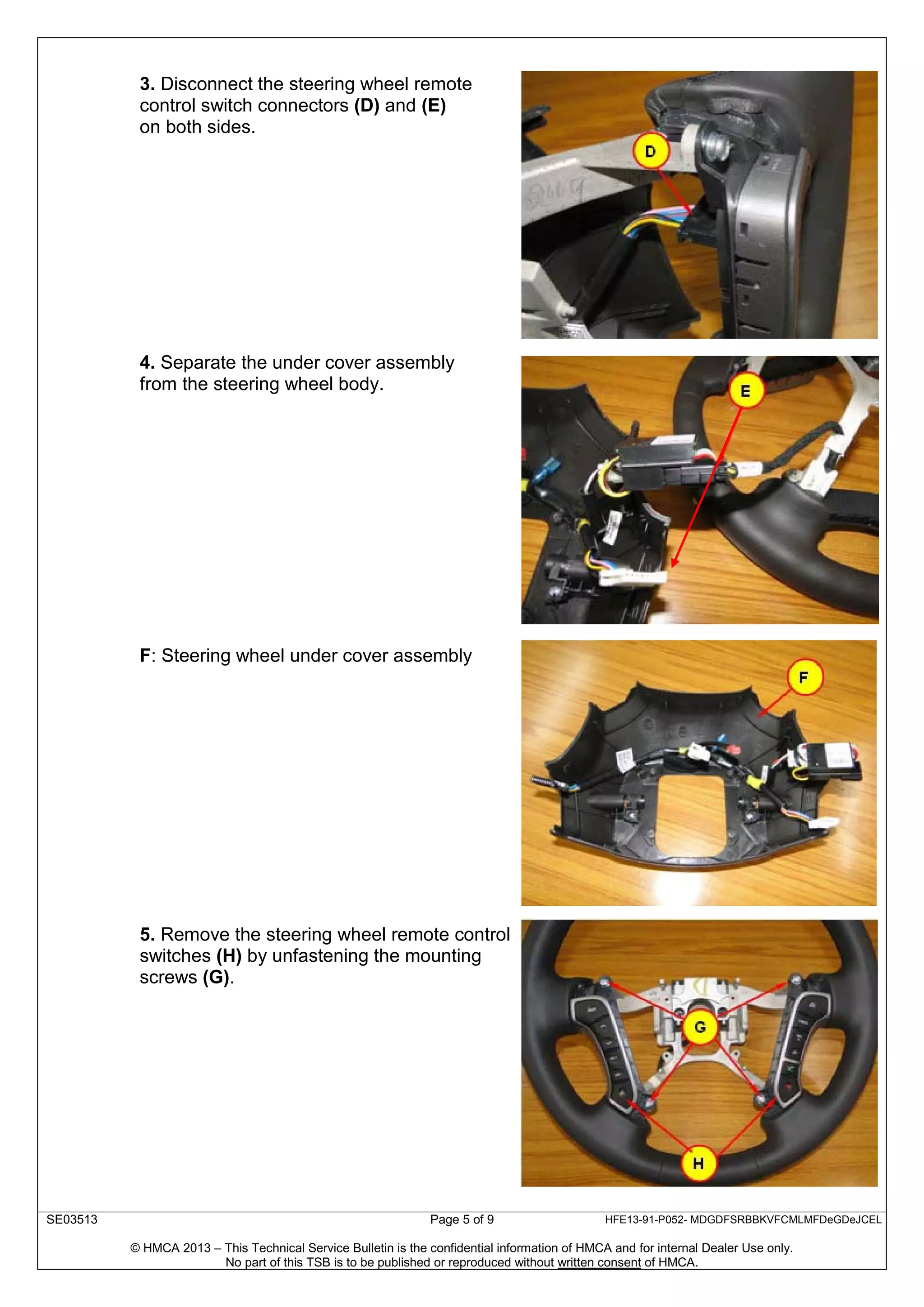

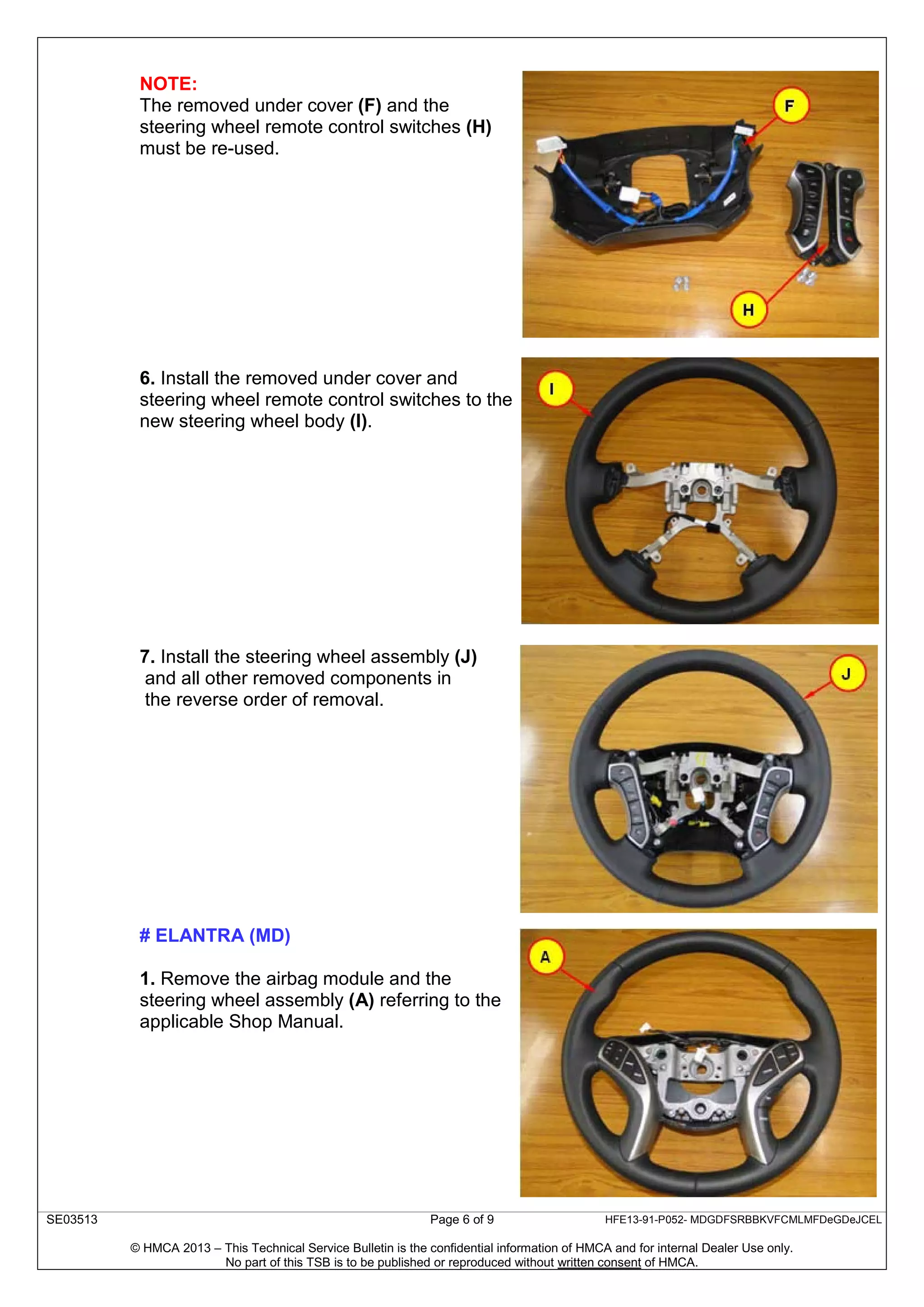

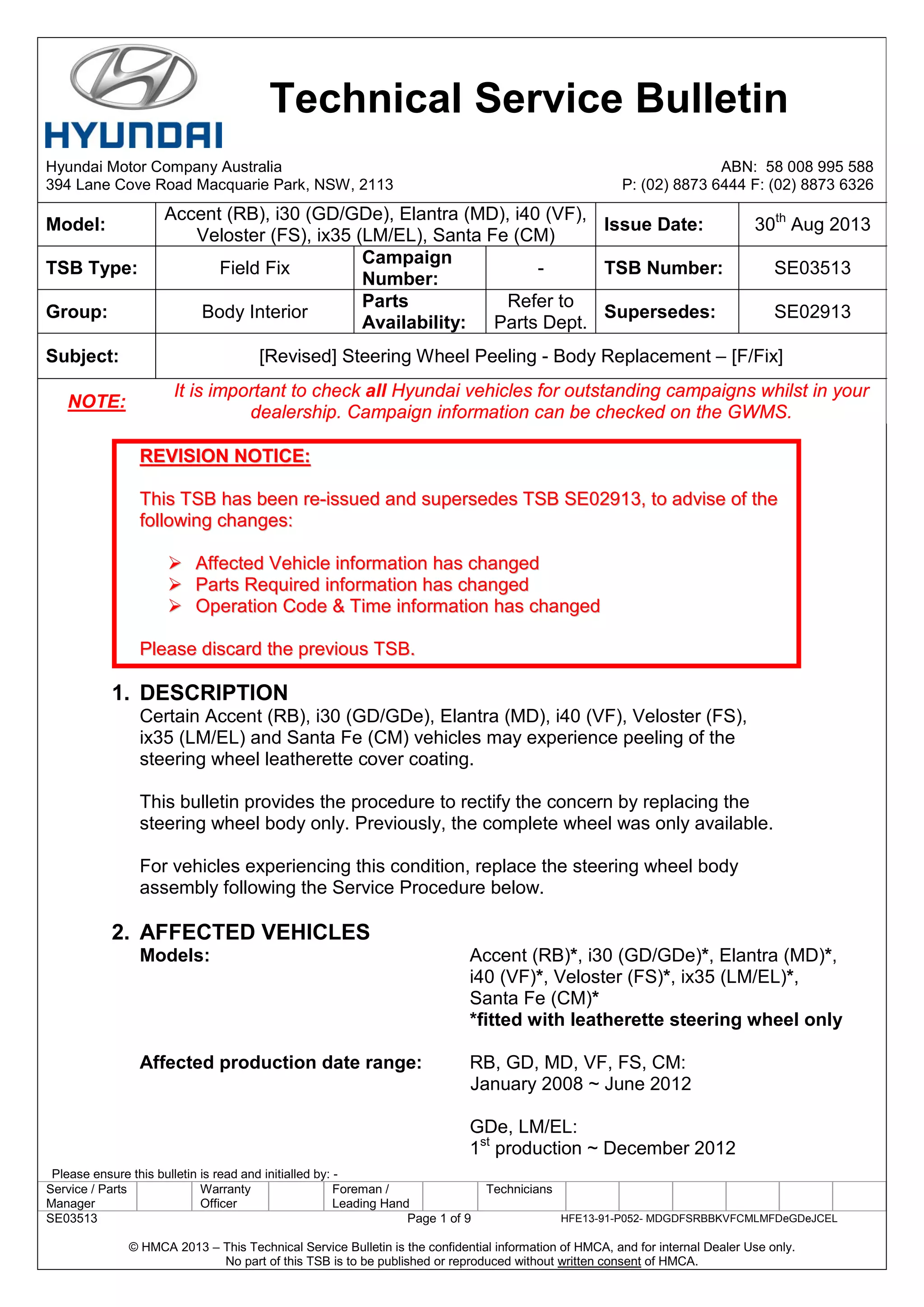

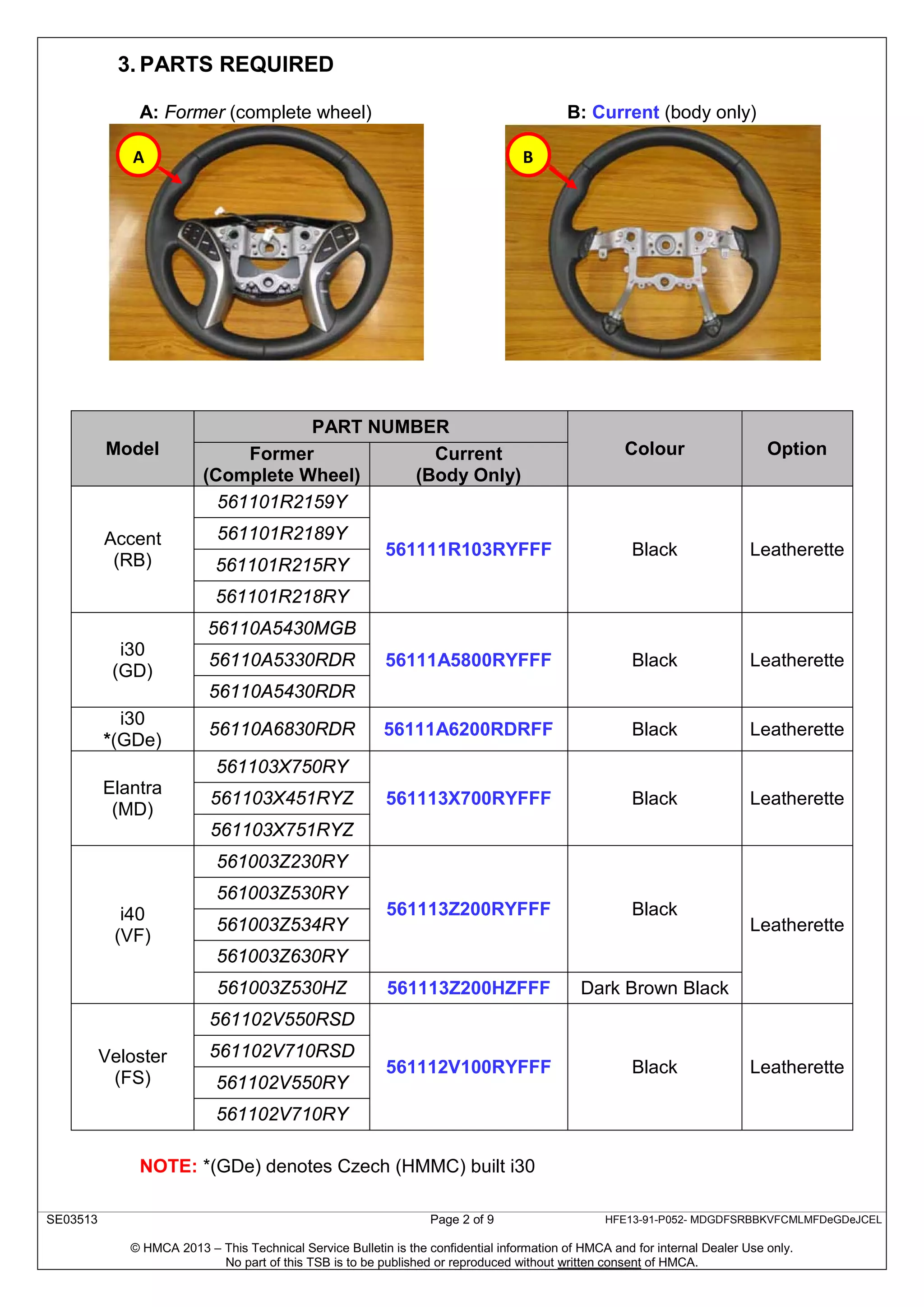

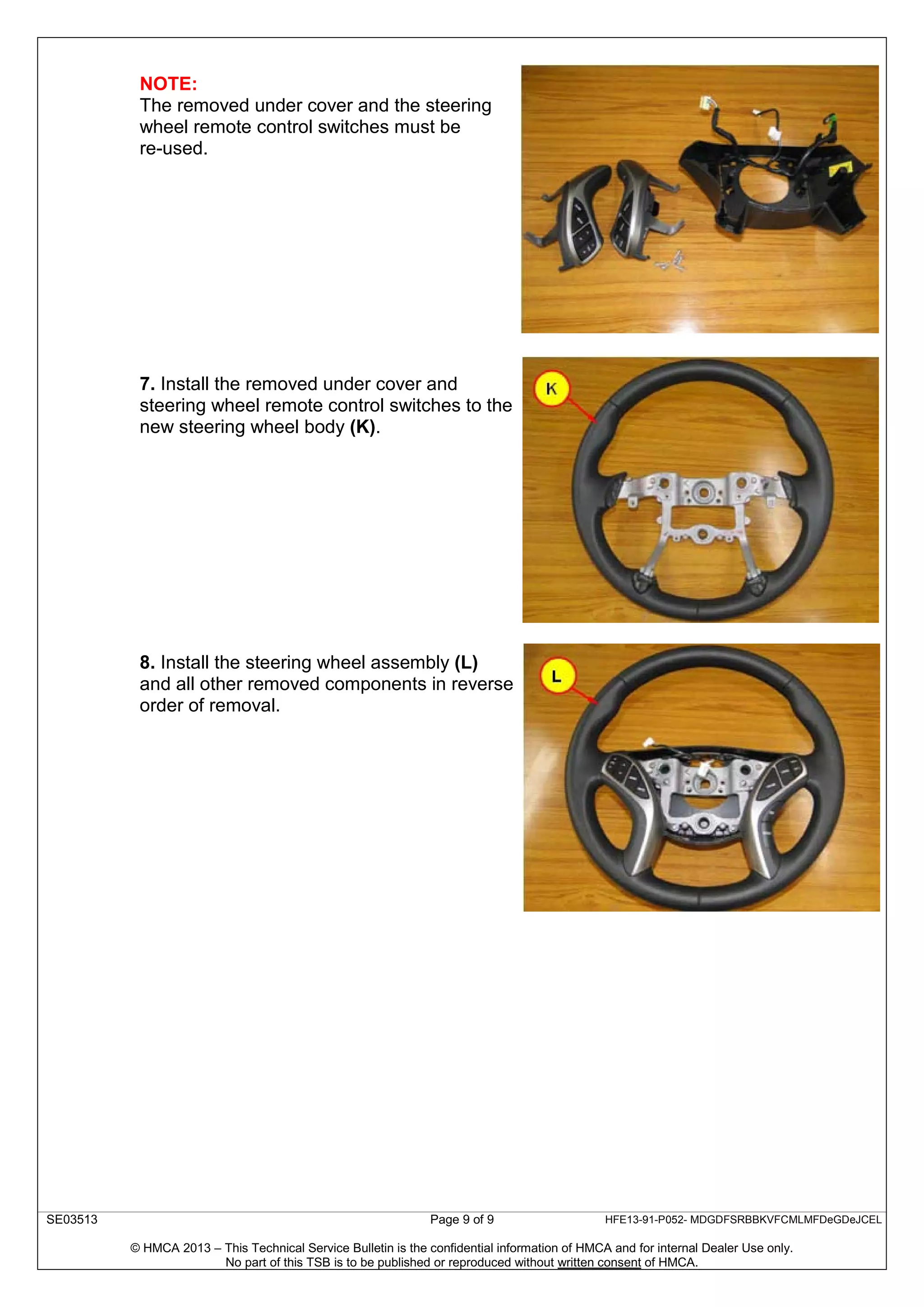

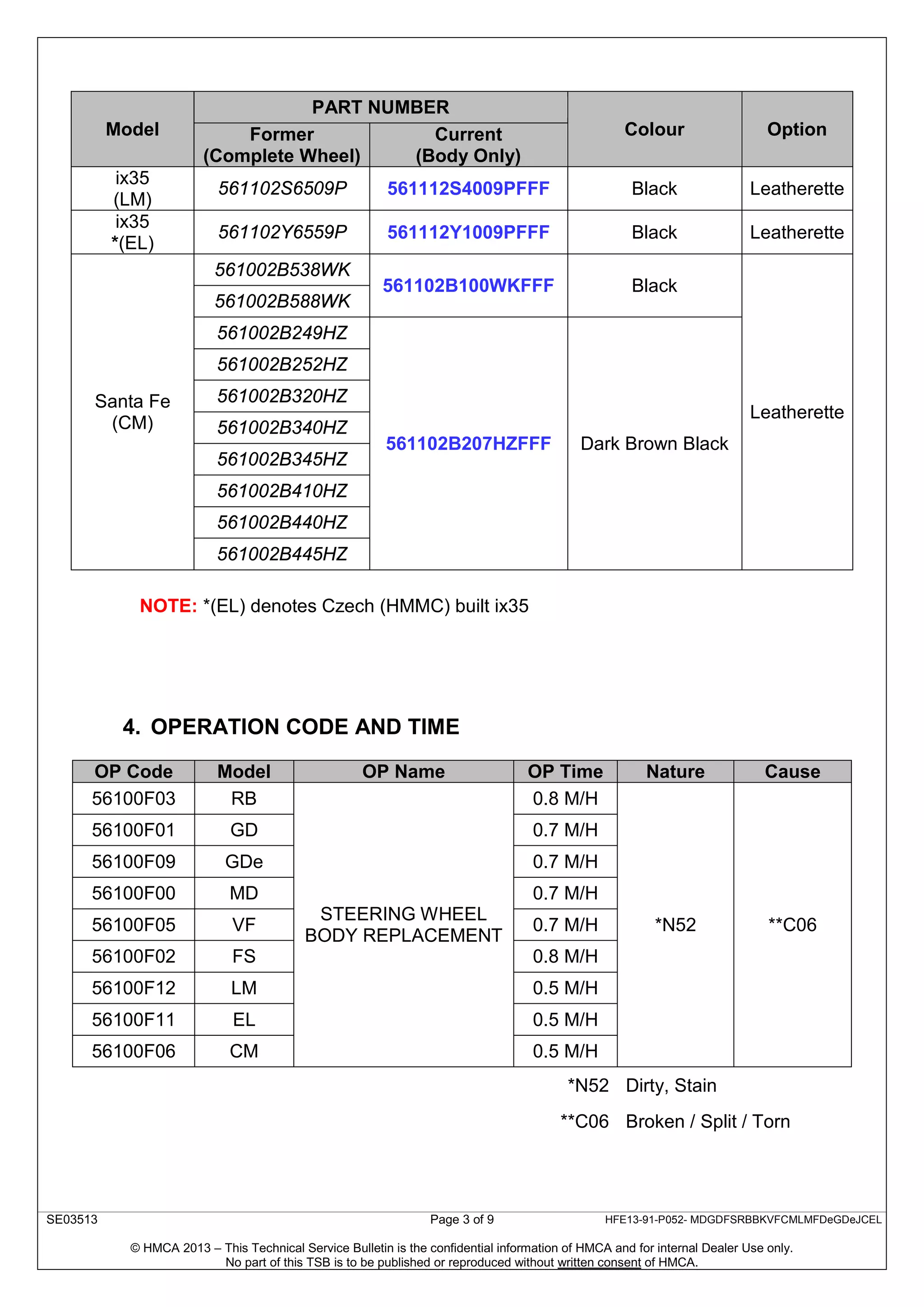

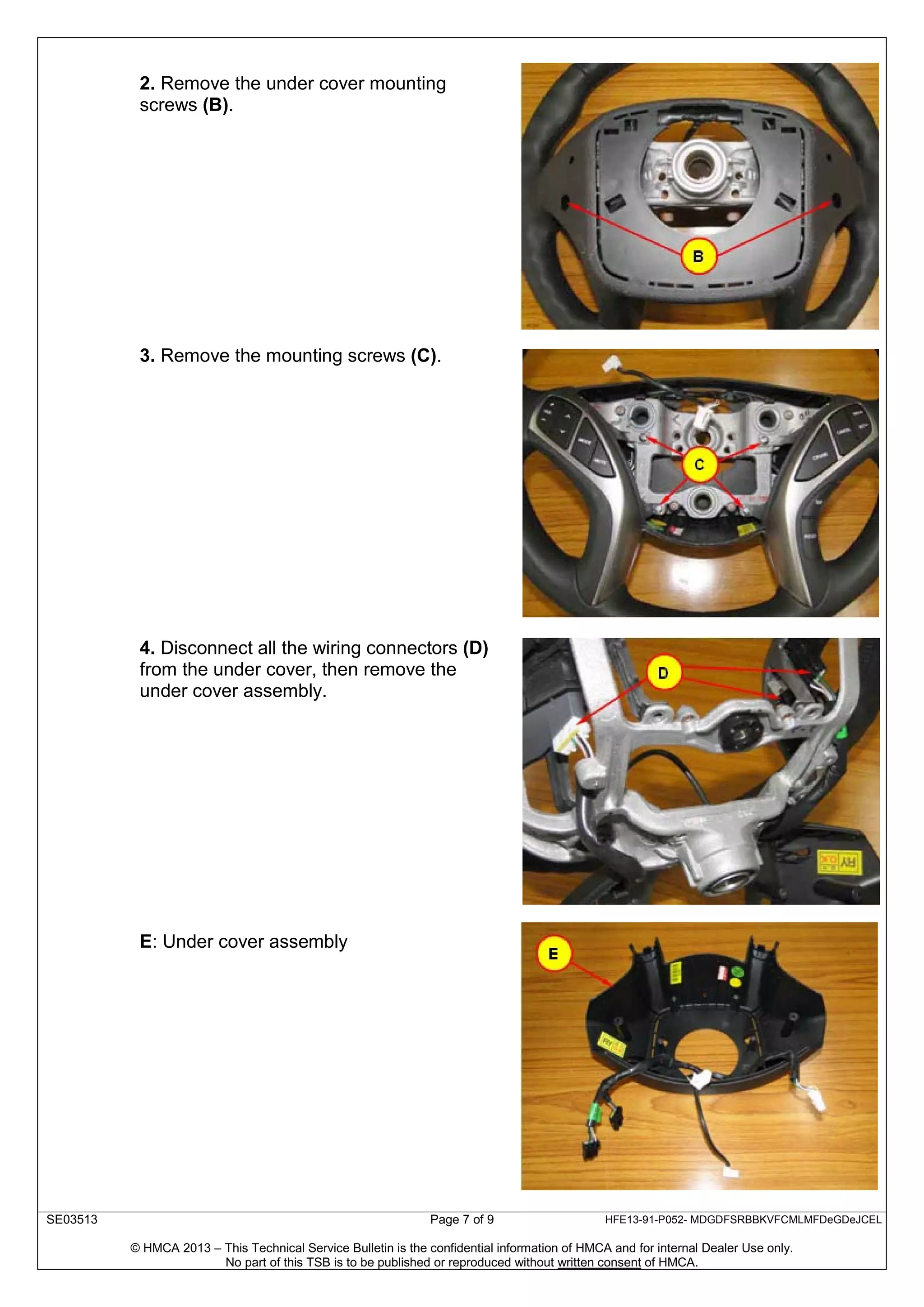

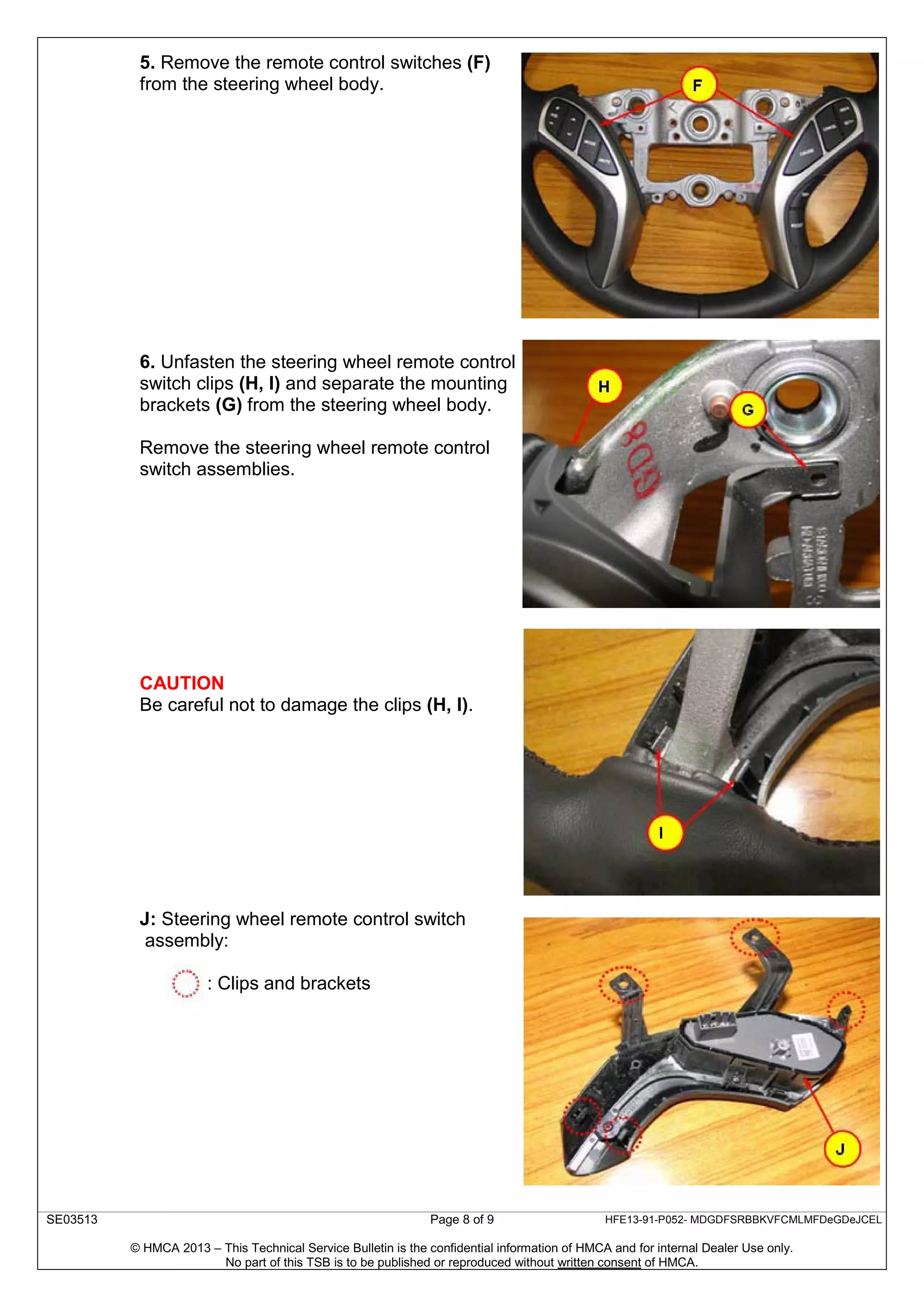

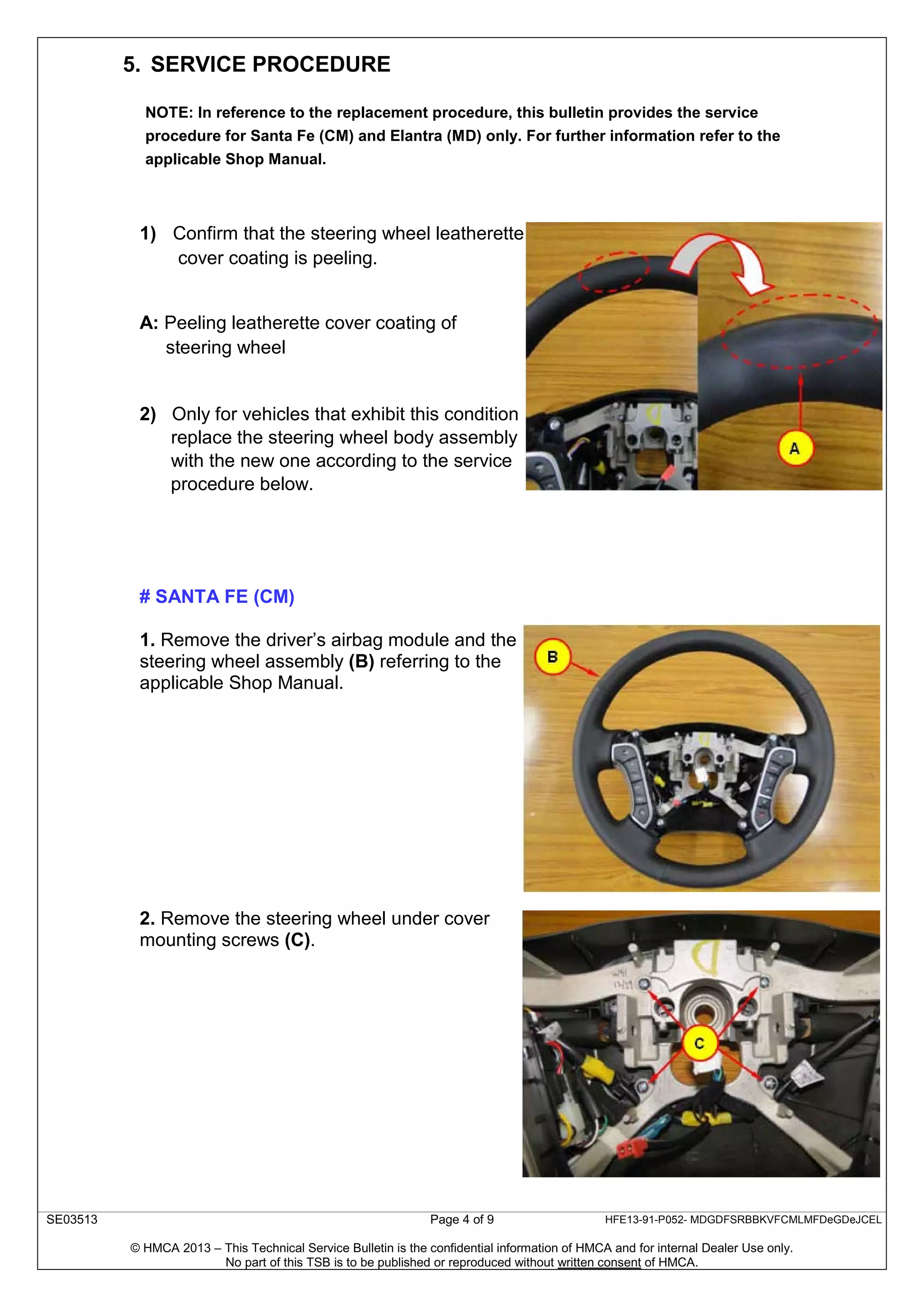

Tech'l service bulletin steering wheel peeling (replacement)
•
1 like
•
1,745 views
C
c_kokiks_2
Follow
steering wheel peeling
Read less
Read more
Automotive
Report
Share
Report
Share
1 of 9
Download now
Download to read offline
Recommended
1995 JEEP GRAND CHEROKEE Service Repair Manual
1995 JEEP GRAND CHEROKEE Service Repair Manual
jksemd dysjekmdm
Analysis of Brake Biasing (Balance Bar) on BAJA (ATV) vehicle
Analysis of Brake Biasing (Balance Bar) on BAJA (ATV) vehicle
Aditya Deshpande
cam report windshield wiper mechanism
cam report windshield wiper mechanism
Gopi Krishna Mandadi
Arai crash test facility at chakan
Arai crash test facility at chakan
RushLane
2003 Nissan Altima Service Repair Manual
2003 Nissan Altima Service Repair Manual
fjjskekmdme
Manual dafra next 250 estrangeiro (sym wolf)
Manual dafra next 250 estrangeiro (sym wolf)
Nome Sobrenome
Clark c500, y300 l forklift service repair manual
Clark c500, y300 l forklift service repair manual
fhsjekdmme
dr ecus null-1.pdf
dr ecus null-1.pdf
Miguel Angel Sejas Villarroel
Recommended
1995 JEEP GRAND CHEROKEE Service Repair Manual
1995 JEEP GRAND CHEROKEE Service Repair Manual
jksemd dysjekmdm
Analysis of Brake Biasing (Balance Bar) on BAJA (ATV) vehicle
Analysis of Brake Biasing (Balance Bar) on BAJA (ATV) vehicle
Aditya Deshpande
cam report windshield wiper mechanism
cam report windshield wiper mechanism
Gopi Krishna Mandadi
Arai crash test facility at chakan
Arai crash test facility at chakan
RushLane
2003 Nissan Altima Service Repair Manual
2003 Nissan Altima Service Repair Manual
fjjskekmdme
Manual dafra next 250 estrangeiro (sym wolf)
Manual dafra next 250 estrangeiro (sym wolf)
Nome Sobrenome
Clark c500, y300 l forklift service repair manual
Clark c500, y300 l forklift service repair manual
fhsjekdmme
dr ecus null-1.pdf
dr ecus null-1.pdf
Miguel Angel Sejas Villarroel
Emergency braking system
Emergency braking system
pradeepsairam
Volvo g940 motor grader service repair manual
Volvo g940 motor grader service repair manual
fjsekkskem
Mahindra bolero wiring
Mahindra bolero wiring
P P Deshmukh
New holland t5.105 tractor service repair manual
New holland t5.105 tractor service repair manual
usuejjskkemme
Manual 793 d
Manual 793 d
luismirandahuallpa
Manual Peugeot 308.pdf
Manual Peugeot 308.pdf
ClaudioCuevas17
John deere 310 d backhoe loaders service repair technical manual (tm1497)
John deere 310 d backhoe loaders service repair technical manual (tm1497)
ufjjsjefkksemm
http://vnx.su/_мустанг_2005-2010
http://vnx.su/_мустанг_2005-2010
rukford1
Zf error codes (1)
Zf error codes (1)
Rached Douahchia
Massey Ferguson MF 8220 Tractor Service Repair Manual
Massey Ferguson MF 8220 Tractor Service Repair Manual
jkemdmisokldd
1999 Jeep Grand Cherokee WJ Service Manual.pdf
1999 Jeep Grand Cherokee WJ Service Manual.pdf
thiagoPimenta34
Caterpillar engine speed timing sensor circuit test
Caterpillar engine speed timing sensor circuit test
noelsalazar
1 ktze pinin pinout
1 ktze pinin pinout
google.com
2009 2010 toyota corolla electrical wiring diagrams
2009 2010 toyota corolla electrical wiring diagrams
Carlos Coronel Sotillo
U340 automatic transaxle
U340 automatic transaxle
Luis Enrique Chavez Garay
Anti-Lock braking system
Anti-Lock braking system
Saqlain Ahmed
Dafra next 250 manual de servico em ingles (sym wolf)
Dafra next 250 manual de servico em ingles (sym wolf)
Nome Sobrenome
Hyster c203 (a1.25 xl europe) forklift service repair manual
Hyster c203 (a1.25 xl europe) forklift service repair manual
fuksfemmeme
Yamaha G2-E Golf Cart Service Repair Manual
Yamaha G2-E Golf Cart Service Repair Manual
jksmreremmd
370 El CRAFTER 2006 Sistema Electrico.pdf
370 El CRAFTER 2006 Sistema Electrico.pdf
jcarrey
Sääntelyn ja hallinnon nykytila yrittäjän näkökulmasta
Sääntelyn ja hallinnon nykytila yrittäjän näkökulmasta
Linnunmaa Oy
Sääntelyn rooli biotaloudessa
Sääntelyn rooli biotaloudessa
Linnunmaa Oy
More Related Content
What's hot
Emergency braking system
Emergency braking system
pradeepsairam
Volvo g940 motor grader service repair manual
Volvo g940 motor grader service repair manual
fjsekkskem
Mahindra bolero wiring
Mahindra bolero wiring
P P Deshmukh
New holland t5.105 tractor service repair manual
New holland t5.105 tractor service repair manual
usuejjskkemme
Manual 793 d
Manual 793 d
luismirandahuallpa
Manual Peugeot 308.pdf
Manual Peugeot 308.pdf
ClaudioCuevas17
John deere 310 d backhoe loaders service repair technical manual (tm1497)
John deere 310 d backhoe loaders service repair technical manual (tm1497)
ufjjsjefkksemm
http://vnx.su/_мустанг_2005-2010
http://vnx.su/_мустанг_2005-2010
rukford1
Zf error codes (1)
Zf error codes (1)
Rached Douahchia
Massey Ferguson MF 8220 Tractor Service Repair Manual
Massey Ferguson MF 8220 Tractor Service Repair Manual
jkemdmisokldd
1999 Jeep Grand Cherokee WJ Service Manual.pdf
1999 Jeep Grand Cherokee WJ Service Manual.pdf
thiagoPimenta34
Caterpillar engine speed timing sensor circuit test
Caterpillar engine speed timing sensor circuit test
noelsalazar
1 ktze pinin pinout
1 ktze pinin pinout
google.com
2009 2010 toyota corolla electrical wiring diagrams
2009 2010 toyota corolla electrical wiring diagrams
Carlos Coronel Sotillo
U340 automatic transaxle
U340 automatic transaxle
Luis Enrique Chavez Garay
Anti-Lock braking system
Anti-Lock braking system
Saqlain Ahmed
Dafra next 250 manual de servico em ingles (sym wolf)
Dafra next 250 manual de servico em ingles (sym wolf)
Nome Sobrenome
Hyster c203 (a1.25 xl europe) forklift service repair manual
Hyster c203 (a1.25 xl europe) forklift service repair manual
fuksfemmeme
Yamaha G2-E Golf Cart Service Repair Manual
Yamaha G2-E Golf Cart Service Repair Manual
jksmreremmd
370 El CRAFTER 2006 Sistema Electrico.pdf
370 El CRAFTER 2006 Sistema Electrico.pdf
jcarrey
What's hot
(20)
Emergency braking system
Emergency braking system
Volvo g940 motor grader service repair manual
Volvo g940 motor grader service repair manual
Mahindra bolero wiring
Mahindra bolero wiring
New holland t5.105 tractor service repair manual
New holland t5.105 tractor service repair manual
Manual 793 d
Manual 793 d
Manual Peugeot 308.pdf
Manual Peugeot 308.pdf
John deere 310 d backhoe loaders service repair technical manual (tm1497)
John deere 310 d backhoe loaders service repair technical manual (tm1497)
http://vnx.su/_мустанг_2005-2010
http://vnx.su/_мустанг_2005-2010
Zf error codes (1)
Zf error codes (1)
Massey Ferguson MF 8220 Tractor Service Repair Manual
Massey Ferguson MF 8220 Tractor Service Repair Manual
1999 Jeep Grand Cherokee WJ Service Manual.pdf
1999 Jeep Grand Cherokee WJ Service Manual.pdf
Caterpillar engine speed timing sensor circuit test
Caterpillar engine speed timing sensor circuit test
1 ktze pinin pinout
1 ktze pinin pinout
2009 2010 toyota corolla electrical wiring diagrams
2009 2010 toyota corolla electrical wiring diagrams
U340 automatic transaxle
U340 automatic transaxle
Anti-Lock braking system
Anti-Lock braking system
Dafra next 250 manual de servico em ingles (sym wolf)
Dafra next 250 manual de servico em ingles (sym wolf)
Hyster c203 (a1.25 xl europe) forklift service repair manual
Hyster c203 (a1.25 xl europe) forklift service repair manual
Yamaha G2-E Golf Cart Service Repair Manual
Yamaha G2-E Golf Cart Service Repair Manual
370 El CRAFTER 2006 Sistema Electrico.pdf
370 El CRAFTER 2006 Sistema Electrico.pdf
Viewers also liked
Sääntelyn ja hallinnon nykytila yrittäjän näkökulmasta
Sääntelyn ja hallinnon nykytila yrittäjän näkökulmasta
Linnunmaa Oy
Sääntelyn rooli biotaloudessa
Sääntelyn rooli biotaloudessa
Linnunmaa Oy
Luonto- ja hyvinvointisektori biotaloudessa
Luonto- ja hyvinvointisektori biotaloudessa
Linnunmaa Oy
Tech'l service bulletin engine cover & fuel line interference
Tech'l service bulletin engine cover & fuel line interference
c_kokiks_2
RESUME 17.3.2016
RESUME 17.3.2016
Satish Boppana
Dirección por valores caso práctico
Dirección por valores caso práctico
Patricio Muñoz Flores ☑️
Viewers also liked
(6)
Sääntelyn ja hallinnon nykytila yrittäjän näkökulmasta
Sääntelyn ja hallinnon nykytila yrittäjän näkökulmasta
Sääntelyn rooli biotaloudessa
Sääntelyn rooli biotaloudessa
Luonto- ja hyvinvointisektori biotaloudessa
Luonto- ja hyvinvointisektori biotaloudessa
Tech'l service bulletin engine cover & fuel line interference
Tech'l service bulletin engine cover & fuel line interference
RESUME 17.3.2016
RESUME 17.3.2016
Dirección por valores caso práctico
Dirección por valores caso práctico
Recently uploaded
Call Girls In Kirti Nagar 📱 9999965857 🤩 Delhi 🫦 HOT AND SEXY VVIP 🍎 SERVICE
Call Girls In Kirti Nagar 📱 9999965857 🤩 Delhi 🫦 HOT AND SEXY VVIP 🍎 SERVICE
Call Girls In Delhi Whatsup 9873940964 Enjoy Unlimited Pleasure
John Deere 300 3029 4039 4045 6059 6068 Engine Operation and Service Manual
John Deere 300 3029 4039 4045 6059 6068 Engine Operation and Service Manual
Excavator
83778-77756 ( HER.SELF ) Brings Call Girls In Laxmi Nagar
83778-77756 ( HER.SELF ) Brings Call Girls In Laxmi Nagar
dollysharma2066
FULL ENJOY - 9953040155 Call Girls in Sector 61 | Noida
FULL ENJOY - 9953040155 Call Girls in Sector 61 | Noida
MalviyaNagarCallGirl
UNIT-II-ENGINE AUXILIARY SYSTEMS &TURBOCHARGER
UNIT-II-ENGINE AUXILIARY SYSTEMS &TURBOCHARGER
DineshKumar4165
UNIT-III-TRANSMISSION SYSTEMS REAR AXLES
UNIT-III-TRANSMISSION SYSTEMS REAR AXLES
DineshKumar4165
Innovating Manufacturing with CNC Technology
Innovating Manufacturing with CNC Technology
quickpartslimitlessm
Dubai Call Girls Size E6 (O525547819) Call Girls In Dubai
Dubai Call Girls Size E6 (O525547819) Call Girls In Dubai
kojalkojal131
What Causes BMW Chassis Stabilization Malfunction Warning To Appear
What Causes BMW Chassis Stabilization Malfunction Warning To Appear
JCL Automotive
John Deere 200lc Excavator Operation And Tests Repair Manual.pdf
John Deere 200lc Excavator Operation And Tests Repair Manual.pdf
Excavator
UNIT-1-VEHICLE STRUCTURE AND ENGINES.ppt
UNIT-1-VEHICLE STRUCTURE AND ENGINES.ppt
DineshKumar4165
Rockwell Automation 2711R PanelView 800 HMI
Rockwell Automation 2711R PanelView 800 HMI
Asteam Techno
VIP Mumbai Call Girls Thakur village Just Call 9920874524 with A/C Room Cash ...
VIP Mumbai Call Girls Thakur village Just Call 9920874524 with A/C Room Cash ...
Garima Khatri
Alia +91-9537192988-Experience the Unmatchable Pleasure with Model Ahmedabad ...
Alia +91-9537192988-Experience the Unmatchable Pleasure with Model Ahmedabad ...
Niya Khan
ENJOY Call Girls In Okhla Vihar Delhi Call 9654467111
ENJOY Call Girls In Okhla Vihar Delhi Call 9654467111
Sapana Sha
Indian Downtown Call Girls # 00971528903066 # Indian Call Girls In Downtown D...
Indian Downtown Call Girls # 00971528903066 # Indian Call Girls In Downtown D...
Business Bay Call Girls || 0529877582 || Call Girls Service in Business Bay Dubai
Crash Vehicle Emergency Rescue Slideshow.ppt
Crash Vehicle Emergency Rescue Slideshow.ppt
VlademirGebDubouzet1
VIP Kolkata Call Girl Kasba 👉 8250192130 Available With Room
VIP Kolkata Call Girl Kasba 👉 8250192130 Available With Room
divyansh0kumar0
꧁ ୨⎯Call Girls In Ashok Vihar, New Delhi **✿❀7042364481❀✿**Escorts ServiCes C...
꧁ ୨⎯Call Girls In Ashok Vihar, New Delhi **✿❀7042364481❀✿**Escorts ServiCes C...
Hot Call Girls In Sector 58 (Noida)
Transformative journey for Automotive Components Manufacturers- D&V Business ...
Transformative journey for Automotive Components Manufacturers- D&V Business ...
D&V Business Consulting
Recently uploaded
(20)
Call Girls In Kirti Nagar 📱 9999965857 🤩 Delhi 🫦 HOT AND SEXY VVIP 🍎 SERVICE
Call Girls In Kirti Nagar 📱 9999965857 🤩 Delhi 🫦 HOT AND SEXY VVIP 🍎 SERVICE
John Deere 300 3029 4039 4045 6059 6068 Engine Operation and Service Manual
John Deere 300 3029 4039 4045 6059 6068 Engine Operation and Service Manual
83778-77756 ( HER.SELF ) Brings Call Girls In Laxmi Nagar
83778-77756 ( HER.SELF ) Brings Call Girls In Laxmi Nagar
FULL ENJOY - 9953040155 Call Girls in Sector 61 | Noida
FULL ENJOY - 9953040155 Call Girls in Sector 61 | Noida
UNIT-II-ENGINE AUXILIARY SYSTEMS &TURBOCHARGER
UNIT-II-ENGINE AUXILIARY SYSTEMS &TURBOCHARGER
UNIT-III-TRANSMISSION SYSTEMS REAR AXLES
UNIT-III-TRANSMISSION SYSTEMS REAR AXLES
Innovating Manufacturing with CNC Technology
Innovating Manufacturing with CNC Technology
Dubai Call Girls Size E6 (O525547819) Call Girls In Dubai
Dubai Call Girls Size E6 (O525547819) Call Girls In Dubai
What Causes BMW Chassis Stabilization Malfunction Warning To Appear
What Causes BMW Chassis Stabilization Malfunction Warning To Appear
John Deere 200lc Excavator Operation And Tests Repair Manual.pdf
John Deere 200lc Excavator Operation And Tests Repair Manual.pdf
UNIT-1-VEHICLE STRUCTURE AND ENGINES.ppt
UNIT-1-VEHICLE STRUCTURE AND ENGINES.ppt
Rockwell Automation 2711R PanelView 800 HMI
Rockwell Automation 2711R PanelView 800 HMI
VIP Mumbai Call Girls Thakur village Just Call 9920874524 with A/C Room Cash ...
VIP Mumbai Call Girls Thakur village Just Call 9920874524 with A/C Room Cash ...
Alia +91-9537192988-Experience the Unmatchable Pleasure with Model Ahmedabad ...
Alia +91-9537192988-Experience the Unmatchable Pleasure with Model Ahmedabad ...
ENJOY Call Girls In Okhla Vihar Delhi Call 9654467111
ENJOY Call Girls In Okhla Vihar Delhi Call 9654467111
Indian Downtown Call Girls # 00971528903066 # Indian Call Girls In Downtown D...
Indian Downtown Call Girls # 00971528903066 # Indian Call Girls In Downtown D...
Crash Vehicle Emergency Rescue Slideshow.ppt
Crash Vehicle Emergency Rescue Slideshow.ppt
VIP Kolkata Call Girl Kasba 👉 8250192130 Available With Room
VIP Kolkata Call Girl Kasba 👉 8250192130 Available With Room
꧁ ୨⎯Call Girls In Ashok Vihar, New Delhi **✿❀7042364481❀✿**Escorts ServiCes C...
꧁ ୨⎯Call Girls In Ashok Vihar, New Delhi **✿❀7042364481❀✿**Escorts ServiCes C...
Transformative journey for Automotive Components Manufacturers- D&V Business ...
Transformative journey for Automotive Components Manufacturers- D&V Business ...
Tech'l service bulletin steering wheel peeling (replacement)
1.
Please ensure this
bulletin is read and initialled by: - Service / Parts Manager Warranty Officer Foreman / Leading Hand Technicians SE03513 Page 1 of 9 HFE13-91-P052- MDGDFSRBBKVFCMLMFDeGDeJCEL © HMCA 2013 – This Technical Service Bulletin is the confidential information of HMCA, and for internal Dealer Use only. No part of this TSB is to be published or reproduced without written consent of HMCA. RREEVVIISSIIOONN NNOOTTIICCEE:: TThhiiss TTSSBB hhaass bbeeeenn rree--iissssuueedd aanndd ssuuppeerrsseeddeess TTSSBB SSEE0022991133,, ttoo aaddvviissee ooff tthhee ffoolllloowwiinngg cchhaannggeess:: AAffffeecctteedd VVeehhiiccllee iinnffoorrmmaattiioonn hhaass cchhaannggeedd PPaarrttss RReeqquuiirreedd iinnffoorrmmaattiioonn hhaass cchhaannggeedd OOppeerraattiioonn CCooddee && TTiimmee iinnffoorrmmaattiioonn hhaass cchhaannggeedd PPlleeaassee ddiissccaarrdd tthhee pprreevviioouuss TTSSBB.. 1. DESCRIPTION Certain Accent (RB), i30 (GD/GDe), Elantra (MD), i40 (VF), Veloster (FS), ix35 (LM/EL) and Santa Fe (CM) vehicles may experience peeling of the steering wheel leatherette cover coating. This bulletin provides the procedure to rectify the concern by replacing the steering wheel body only. Previously, the complete wheel was only available. For vehicles experiencing this condition, replace the steering wheel body assembly following the Service Procedure below. 2. AFFECTED VEHICLES Models: Accent (RB)*, i30 (GD/GDe)*, Elantra (MD)*, i40 (VF)*, Veloster (FS)*, ix35 (LM/EL)*, Santa Fe (CM)* *fitted with leatherette steering wheel only Affected production date range: RB, GD, MD, VF, FS, CM: January 2008 ~ June 2012 GDe, LM/EL: 1st production ~ December 2012 Technical Service Bulletin Hyundai Motor Company Australia ABN: 58 008 995 588 394 Lane Cove Road Macquarie Park, NSW, 2113 P: (02) 8873 6444 F: (02) 8873 6326 Model: Accent (RB), i30 (GD/GDe), Elantra (MD), i40 (VF), Veloster (FS), ix35 (LM/EL), Santa Fe (CM) Issue Date: 30th Aug 2013 TSB Type: Field Fix Campaign Number: - TSB Number: SE03513 Group: Body Interior Parts Availability: Refer to Parts Dept. Supersedes: SE02913 Subject: [Revised] Steering Wheel Peeling - Body Replacement – [F/Fix] It is important to check all Hyundai vehicles for outstanding campaigns whilst in your dealership. Campaign information can be checked on the GWMS. NOTE:
2.
SE03513 Page 2
of 9 HFE13-91-P052- MDGDFSRBBKVFCMLMFDeGDeJCEL © HMCA 2013 – This Technical Service Bulletin is the confidential information of HMCA and for internal Dealer Use only. No part of this TSB is to be published or reproduced without written consent of HMCA. 3. PARTS REQUIRED A: Former (complete wheel) B: Current (body only) Model PART NUMBER Colour OptionFormer (Complete Wheel) Current (Body Only) Accent (RB) 561101R2159Y 561111R103RYFFF Black Leatherette 561101R2189Y 561101R215RY 561101R218RY i30 (GD) 56110A5430MGB 56111A5800RYFFF Black Leatherette56110A5330RDR 56110A5430RDR i30 *(GDe) 56110A6830RDR 56111A6200RDRFF Black Leatherette Elantra (MD) 561103X750RY 561113X700RYFFF Black Leatherette561103X451RYZ 561103X751RYZ i40 (VF) 561003Z230RY 561113Z200RYFFF Black Leatherette 561003Z530RY 561003Z534RY 561003Z630RY 561003Z530HZ 561113Z200HZFFF Dark Brown Black Veloster (FS) 561102V550RSD 561112V100RYFFF Black Leatherette 561102V710RSD 561102V550RY 561102V710RY NOTE: *(GDe) denotes Czech (HMMC) built i30 A B
3.
SE03513 Page 3
of 9 HFE13-91-P052- MDGDFSRBBKVFCMLMFDeGDeJCEL © HMCA 2013 – This Technical Service Bulletin is the confidential information of HMCA and for internal Dealer Use only. No part of this TSB is to be published or reproduced without written consent of HMCA. Model PART NUMBER Colour OptionFormer (Complete Wheel) Current (Body Only) ix35 (LM) 561102S6509P 561112S4009PFFF Black Leatherette ix35 *(EL) 561102Y6559P 561112Y1009PFFF Black Leatherette Santa Fe (CM) 561002B538WK 561102B100WKFFF Black Leatherette 561002B588WK 561002B249HZ 561102B207HZFFF Dark Brown Black 561002B252HZ 561002B320HZ 561002B340HZ 561002B345HZ 561002B410HZ 561002B440HZ 561002B445HZ NOTE: *(EL) denotes Czech (HMMC) built ix35 4. OPERATION CODE AND TIME OP Code Model OP Name OP Time Nature Cause 56100F03 RB STEERING WHEEL BODY REPLACEMENT 0.8 M/H *N52 **C06 56100F01 GD 0.7 M/H 56100F09 GDe 0.7 M/H 56100F00 MD 0.7 M/H 56100F05 VF 0.7 M/H 56100F02 FS 0.8 M/H 56100F12 LM 0.5 M/H 56100F11 EL 0.5 M/H 56100F06 CM 0.5 M/H *N52 Dirty, Stain **C06 Broken / Split / Torn
4.
SE03513 Page 4
of 9 HFE13-91-P052- MDGDFSRBBKVFCMLMFDeGDeJCEL © HMCA 2013 – This Technical Service Bulletin is the confidential information of HMCA and for internal Dealer Use only. No part of this TSB is to be published or reproduced without written consent of HMCA. 5. SERVICE PROCEDURE NOTE: In reference to the replacement procedure, this bulletin provides the service procedure for Santa Fe (CM) and Elantra (MD) only. For further information refer to the applicable Shop Manual. 1) Confirm that the steering wheel leatherette cover coating is peeling. A: Peeling leatherette cover coating of steering wheel 2) Only for vehicles that exhibit this condition replace the steering wheel body assembly with the new one according to the service procedure below. # SANTA FE (CM) 1. Remove the driver’s airbag module and the steering wheel assembly (B) referring to the applicable Shop Manual. 2. Remove the steering wheel under cover mounting screws (C).
5.
SE03513 Page 5
of 9 HFE13-91-P052- MDGDFSRBBKVFCMLMFDeGDeJCEL © HMCA 2013 – This Technical Service Bulletin is the confidential information of HMCA and for internal Dealer Use only. No part of this TSB is to be published or reproduced without written consent of HMCA. 3. Disconnect the steering wheel remote control switch connectors (D) and (E) on both sides. 4. Separate the under cover assembly from the steering wheel body. F: Steering wheel under cover assembly 5. Remove the steering wheel remote control switches (H) by unfastening the mounting screws (G).
6.
SE03513 Page 6
of 9 HFE13-91-P052- MDGDFSRBBKVFCMLMFDeGDeJCEL © HMCA 2013 – This Technical Service Bulletin is the confidential information of HMCA and for internal Dealer Use only. No part of this TSB is to be published or reproduced without written consent of HMCA. NOTE: The removed under cover (F) and the steering wheel remote control switches (H) must be re-used. 6. Install the removed under cover and steering wheel remote control switches to the new steering wheel body (I). 7. Install the steering wheel assembly (J) and all other removed components in the reverse order of removal. # ELANTRA (MD) 1. Remove the airbag module and the steering wheel assembly (A) referring to the applicable Shop Manual.
7.
SE03513 Page 7
of 9 HFE13-91-P052- MDGDFSRBBKVFCMLMFDeGDeJCEL © HMCA 2013 – This Technical Service Bulletin is the confidential information of HMCA and for internal Dealer Use only. No part of this TSB is to be published or reproduced without written consent of HMCA. 2. Remove the under cover mounting screws (B). 3. Remove the mounting screws (C). 4. Disconnect all the wiring connectors (D) from the under cover, then remove the under cover assembly. E: Under cover assembly
8.
SE03513 Page 8
of 9 HFE13-91-P052- MDGDFSRBBKVFCMLMFDeGDeJCEL © HMCA 2013 – This Technical Service Bulletin is the confidential information of HMCA and for internal Dealer Use only. No part of this TSB is to be published or reproduced without written consent of HMCA. 5. Remove the remote control switches (F) from the steering wheel body. 6. Unfasten the steering wheel remote control switch clips (H, I) and separate the mounting brackets (G) from the steering wheel body. Remove the steering wheel remote control switch assemblies. CAUTION Be careful not to damage the clips (H, I). J: Steering wheel remote control switch assembly: : Clips and brackets
9.
SE03513 Page 9
of 9 HFE13-91-P052- MDGDFSRBBKVFCMLMFDeGDeJCEL © HMCA 2013 – This Technical Service Bulletin is the confidential information of HMCA and for internal Dealer Use only. No part of this TSB is to be published or reproduced without written consent of HMCA. NOTE: The removed under cover and the steering wheel remote control switches must be re-used. 7. Install the removed under cover and steering wheel remote control switches to the new steering wheel body (K). 8. Install the steering wheel assembly (L) and all other removed components in reverse order of removal.
