1. TEAM BUILDING
T&I SERVICES FOR ST-PIP’S
JACKET AND ITS APPURTENANCES

2. TRANSPOTATION AND INSTALLATION SERVICES FOR
ST-PIP’S JACKET AND ITS APPURTENANCES

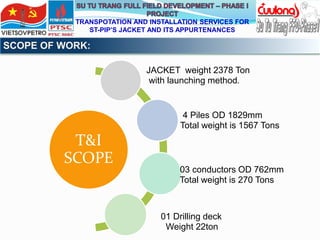

SCOPE OF WORK:
T&I
SCOPE
JACKET weight 2378 Ton
with launching method.
4 Piles OD 1829mm
Total weight is 1567 Tons
03 conductors OD 762mm
Total weight is 270 Tons
01 Drilling deck
Weight 22ton

3. 3

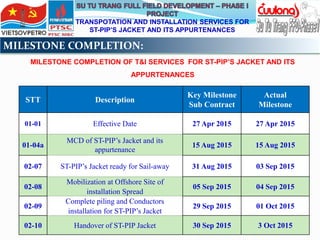

MILESTONE COMPLETION OF T&I SERVICES FOR ST-PIP’S JACKET AND ITS
APPURTENANCES
STT Description
Key Milestone
Sub Contract
Actual
Milestone
01-01 Effective Date 27 Apr 2015 27 Apr 2015
01-04a
MCD of ST-PIP’s Jacket and its
appurtenance
15 Aug 2015 15 Aug 2015
02-07 ST-PIP’s Jacket ready for Sail-away 31 Aug 2015 03 Sep 2015
02-08
Mobilization at Offshore Site of
installation Spread
05 Sep 2015 04 Sep 2015
02-09
Complete piling and Conductors
installation for ST-PIP’s Jacket
29 Sep 2015 01 Oct 2015
02-10 Handover of ST-PIP Jacket 30 Sep 2015 3 Oct 2015
TRANSPOTATION AND INSTALLATION SERVICES FOR
ST-PIP’S JACKET AND ITS APPURTENANCES
MILESTONE COMPLETION:

4. TRANSPOTATION AND INSTALLATION SERVICES FOR
ST-PIP’S JACKET AND ITS APPURTENANCES
EXECUTION>> PREPARATION ONSHORE

5. TRANSPOTATION AND INSTALLATION SERVICES FOR
ST-PIP’S JACKET AND ITS APPURTENANCES

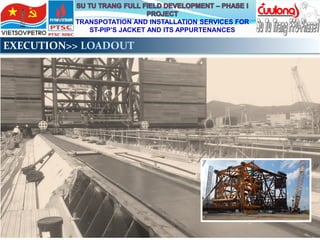

EXECUTION>> LOADOUT

6. TRANSPOTATION AND INSTALLATION SERVICES FOR
ST-PIP’S JACKET AND ITS APPURTENANCES

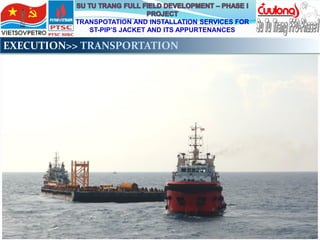

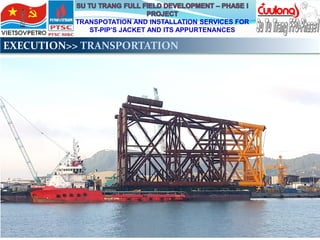

EXECUTION>> TRANSPORTATION

7. TRANSPOTATION AND INSTALLATION SERVICES FOR
ST-PIP’S JACKET AND ITS APPURTENANCES
EXECUTION>> TRANSPORTATION

8. TRANSPOTATION AND INSTALLATION SERVICES FOR
ST-PIP’S JACKET AND ITS APPURTENANCES

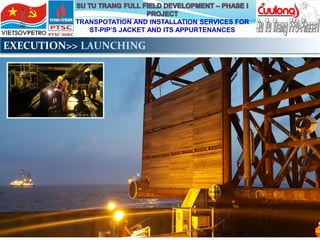

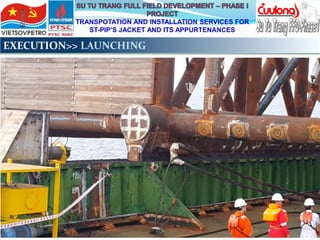

EXECUTION>> LAUNCHING

9. TRANSPOTATION AND INSTALLATION SERVICES FOR
ST-PIP’S JACKET AND ITS APPURTENANCES
EXECUTION>> LAUNCHING

10. TRANSPOTATION AND INSTALLATION SERVICES FOR
ST-PIP’S JACKET AND ITS APPURTENANCES
EXECUTION>> LAUNCHING

11. TRANSPOTATION AND INSTALLATION SERVICES FOR
ST-PIP’S JACKET AND ITS APPURTENANCES

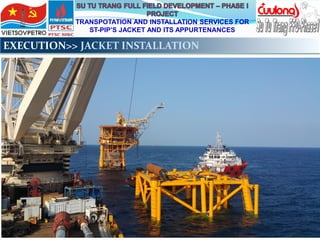

EXECUTION>> JACKET INSTALLATION

12. TRANSPOTATION AND INSTALLATION SERVICES FOR
ST-PIP’S JACKET AND ITS APPURTENANCES

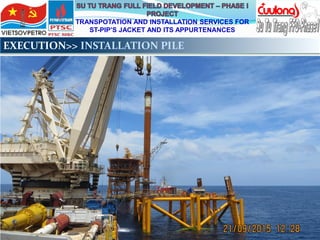

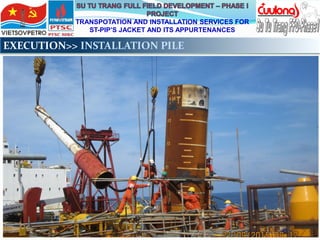

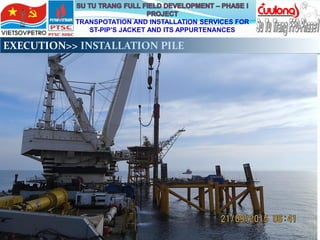

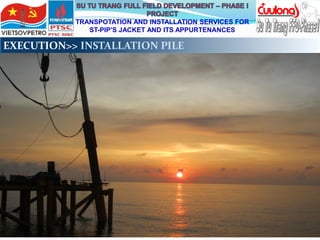

EXECUTION>> INSTALLATION PILE

13. TRANSPOTATION AND INSTALLATION SERVICES FOR
ST-PIP’S JACKET AND ITS APPURTENANCES
EXECUTION>> INSTALLATION PILE

14. TRANSPOTATION AND INSTALLATION SERVICES FOR
ST-PIP’S JACKET AND ITS APPURTENANCES
EXECUTION>> INSTALLATION PILE

15. TRANSPOTATION AND INSTALLATION SERVICES FOR
ST-PIP’S JACKET AND ITS APPURTENANCES
EXECUTION>> INSTALLATION PILE

16. TRANSPOTATION AND INSTALLATION SERVICES FOR
ST-PIP’S JACKET AND ITS APPURTENANCES

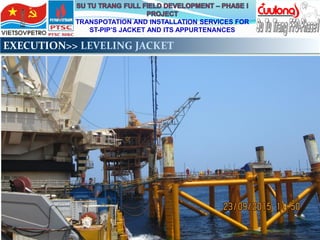

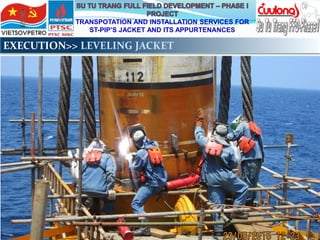

EXECUTION>> LEVELING JACKET

17. TRANSPOTATION AND INSTALLATION SERVICES FOR
ST-PIP’S JACKET AND ITS APPURTENANCES
EXECUTION>> LEVELING JACKET

18. TRANSPOTATION AND INSTALLATION SERVICES FOR
ST-PIP’S JACKET AND ITS APPURTENANCES

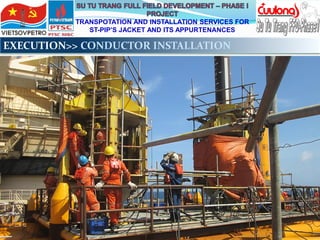

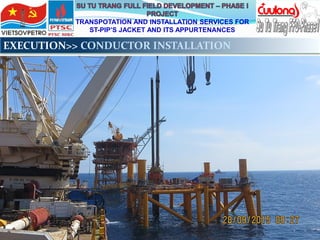

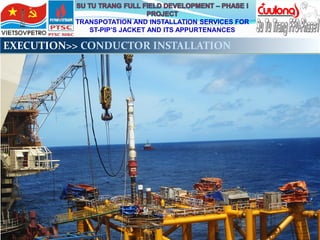

EXECUTION>> CONDUCTOR INSTALLATION

19. TRANSPOTATION AND INSTALLATION SERVICES FOR
ST-PIP’S JACKET AND ITS APPURTENANCES
EXECUTION>> CONDUCTOR INSTALLATION

20. TRANSPOTATION AND INSTALLATION SERVICES FOR
ST-PIP’S JACKET AND ITS APPURTENANCES
EXECUTION>> CONDUCTOR INSTALLATION

21. TRANSPOTATION AND INSTALLATION SERVICES FOR
ST-PIP’S JACKET AND ITS APPURTENANCES

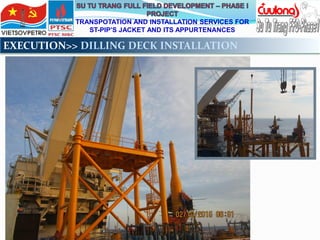

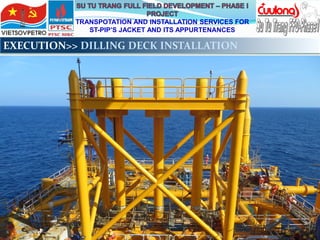

EXECUTION>> DILLING DECK INSTALLATION

22. TRANSPOTATION AND INSTALLATION SERVICES FOR
ST-PIP’S JACKET AND ITS APPURTENANCES
EXECUTION>> DILLING DECK INSTALLATION

23. TRANSPOTATION AND INSTALLATION SERVICES FOR
ST-PIP’S JACKET AND ITS APPURTENANCES

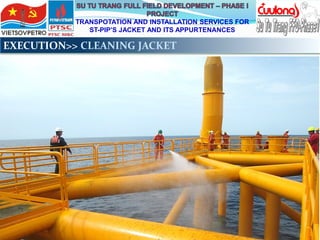

EXECUTION>> CLEANING JACKET

24. TRANSPOTATION AND INSTALLATION SERVICES FOR
ST-PIP’S JACKET AND ITS APPURTENANCES
