TDD step patterns

Eduardo Guerra

TDD STEP
PATTERNS

Every TDD cycle is a
step in direction of
the desired
functionality.

But the path is
usually not linear...

There are different kinds of
steps which can be applied
in different orders...

What test should
I introduce now
to evolve my
functionality?

The TDD step patterns
help you to understand
the kinds of steps that
you can make

It is important to
understant how the test
introduced will
guide the
production code
towards the desired
functionality

How do you
test what you
can't see?

You first need to define
how the surface look like,
to verify what is inside!

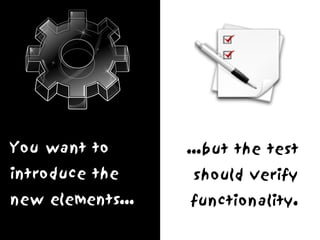

You want to ...but the test
introduce the should verify
new elements... functionality.

How should I
introduce a new
programming
element?

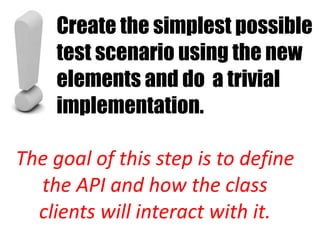

Create the simplest possible
test scenario using the new
elements and do a trivial
implementation.

The goal of this step is to define
the API and how the class
clients will interact with it.

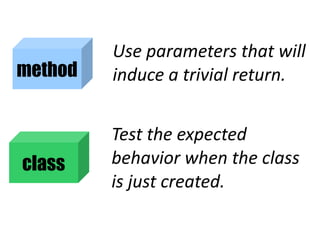

Use parameters that will
method induce a trivial return.

Test the expected
class behavior when the class
is just created.

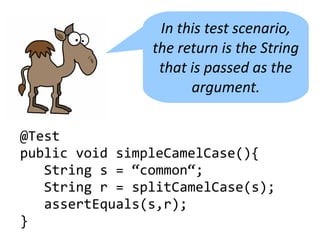

In this test scenario,
the return is the String
that is passed as the
argument.

@Test
public void simpleCamelCase(){
String s = “common“;
String r = splitCamelCase(s);
assertEquals(s,r);
}

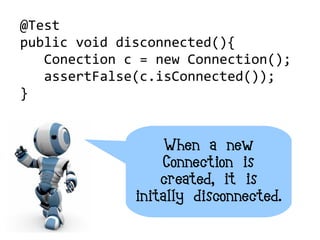

@Test
public void disconnected(){
Conection c = new Connection();
assertFalse(c.isConnected());
}

When a new
Connection is
created, it is
initally disconnected.

After the test, the class and
methods are created with a
trivial implementation.

And when I don't have
a simple scenario?

Fake the implementation
returning a fixed value
expected by the test.

If you write
a new successfull test, it
does not motivate any
change on the source code.

If you add a complex test,
you lose the quick
feedback rithm.

How to
increment a
functionality?

Add a test that induce a
small increment on the
current class functionality.

The goal of this step is to move
forward on the TDD session,
incrementing functionality.

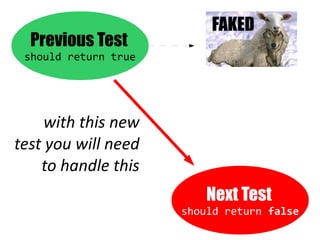

FAKED
Previous Test
should return true

with this new
test you will need
to handle this
Next Test
should return false

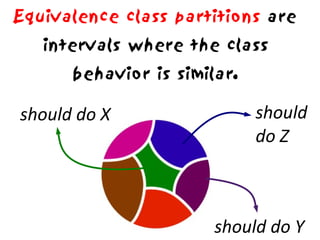

Equivalence class partitions are
intervals where the class
behavior is similar.

should do X should
do Z

should do Y

To increment functionality,
the test need to jump to
another equivalence
partition!

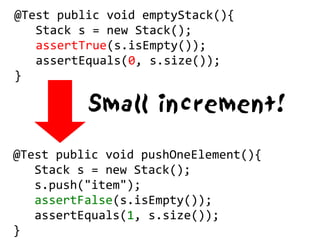

@Test public void emptyStack(){
Stack s = new Stack();
assertTrue(s.isEmpty());
assertEquals(0, s.size());
}

Small increment!

@Test public void pushOneElement(){
s.push("item");
assertFalse(s.isEmpty());
assertEquals(1, s.size());
}

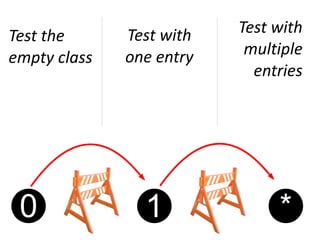

Test the Test with Test with
empty class one entry multiple
entries

0 1 *

0 1 *

Create Introduce Complete
class API basic flow behavior

A complex scenario
can be created, but
adding a single
thing in comparison
to the previous
ones.

TDD is a happy process
when you add
continouslly functionality

But you need to think
about the scenarios
that your class won't
work properly

How to define
when my class
do not work?

Add a test that introduce an
invalid scenario and verify if
the class behaves accordingly.

The goal of this step is to add
on the class the capability to
handle exceptional situations.

Here my
class works!

Here my class
raises an error...

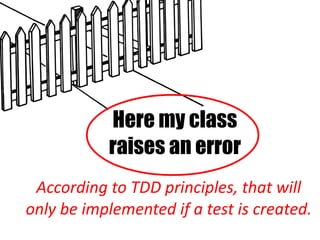

Here my class
raises an error
According to TDD principles, that will
only be implemented if a test is created.

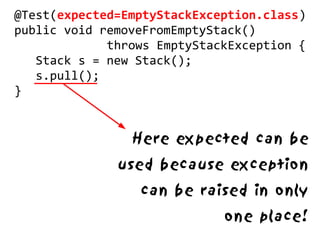

@Test(expected=EmptyStackException.class)
public void removeFromEmptyStack()
throws EmptyStackException {
s.pull();
}

Here expected can be
used because exception
can be raised in only
one place!

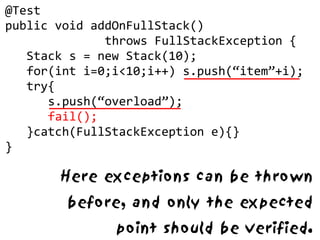

@Test
public void addOnFullStack()
throws FullStackException {
Stack s = new Stack(10);
for(int i=0;i<10;i++) s.push(“item”+i);
try{
s.push(“overload”);
fail();
}catch(FullStackException e){}
}

Here exceptions can be thrown
before, and only the expected
point should be verified.

On TDD, functionality
is tested and
introduced little by
little.

Every test
focus on a scenario that
exercises a single
functionality.

But how they should
work on a mixed
scenario?

How to make sure
that
functionalities are
working together?

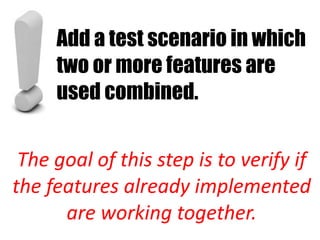

Add a test scenario in which
two or more features are
used combined.

The goal of this step is to verify if
the features already implemented
are working together.

Special Company
Account Account
Features Features

Company
Special
Account

When you are doing
this kind of step,
there is no problem
to create a tests
that are already

green.

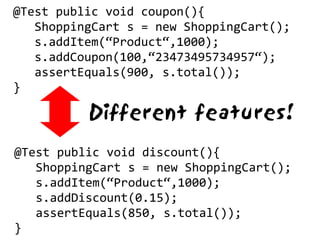

@Test public void coupon(){
ShoppingCart s = new ShoppingCart();
s.addItem(“Product“,1000);
s.addCoupon(100,“23473495734957“);
assertEquals(900, s.total());
}

Different features!
@Test public void discount(){
s.addDiscount(0.15);
assertEquals(850, s.total());
}

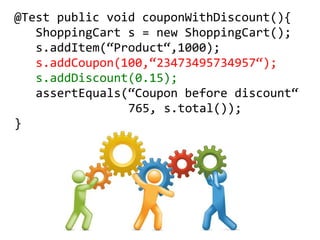

@Test public void couponWithDiscount(){
s.addCoupon(100,“23473495734957“);
s.addDiscount(0.15);
assertEquals(“Coupon before discount“
765, s.total());
}

Sometimes the solution is not
suitable for the next test.

What can I do when
the simplest solution
is not suitable for the
next requirements?

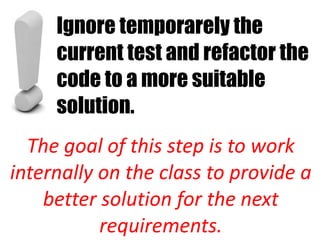

Ignore temporarely the
current test and refactor the
code to a more suitable
solution.
The goal of this step is to work
internally on the class to provide a
better solution for the next
requirements.

Don't destroy everything to
restart from the scratch...

Perform the change on
small steps and run the
tests between them.

For some time there will be two
solutions or data structures
doing the same thing.

When the new solution is
ready, remove completely
the old solution.

After the refactoring,
remove the ignore from the
test and move on!

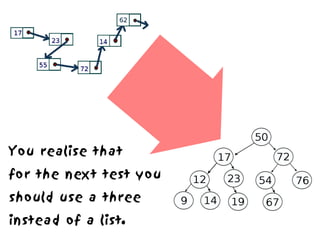

You realise that
for the next test you
should use a three
instead of a list.

Create the new data structure

Add code to populate the tree

Add code to use data from the tree

Delete the old solution

Sometimes you
need to implement
a complicated
logic...

If I have an auxiliary
method or a
helper class...

You can also feel
that this code does
not belong to the
class that you are
developing.

What can I do when I
feel that an auxiliary
code would help on
the implementation?

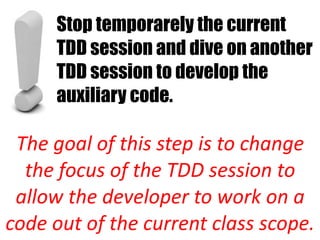

Stop temporarely the current
TDD session and dive on another
TDD session to develop the
auxiliary code.

The goal of this step is to change
the focus of the TDD session to
allow the developer to work on a
code out of the current class scope.

Class A TDD Session STOP
I need a
function that
break strings
that use camel
case...

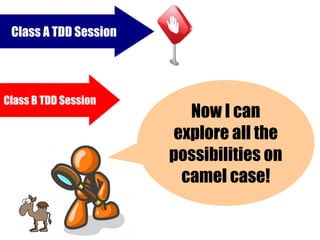

Class A TDD Session

Class B TDD Session
Now I can
explore all the
possibilities on
camel case!

I can relax and
continue my
TDD knowing
that camel case
is working

Class A TDD Session

Class B TDD Session

When you go deep, you can
focus on different scenarios,
and don`t need to include all
of them on the main class test

My class needs to
use functions from
a hardware...

My class needs to
access a remote
server...

What can I do when it
is realy hard to test
something that my
class needs to do?

Create a test that defines a
mock object that mimic the
behavior responsible for the
complicated part.

The goal is to decouple your main
logic from the access to external
resources, defining which
functionalities you need from it.

Hard to test!

Test
Message Server

The tested class

Business needs to send a
Class message to a Queue.

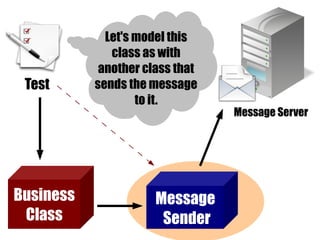

Let's model this
class as with
another class that
Test sends the message
to it.
Message Server

Business Message
Class Sender

Now it is easy to
replace Message
Test Sender by a mock
object!

Business
Class MOCK

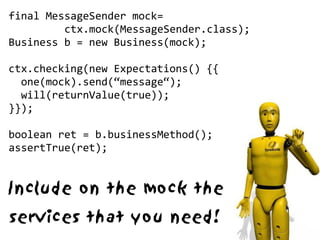

final MessageSender mock=
ctx.mock(MessageSender.class);
Business b = new Business(mock);

ctx.checking(new Expectations() {{
one(mock).send(“message“);
will(returnValue(true));
}});

boolean ret = b.businessMethod();
assertTrue(ret);

Include on the mock the
services that you need!

Can I mock the
APIs instead of
creating a new
class?

QueueConnectionFactory f = new QueueConnectionFactory();
QueueConnection conn = f.createQueueConnection();
QueueSession session = conn.createQueueSession(false,
Session.AUTO_ACKNOWLEDGE);
Queue q = new Queue("world");
QueueSender sender = session.createSender(q);
TextMessage msg = session.createTextMessage();
msg.setText(parameter);
sender.send(msg);

MOCK THIS

By creating a new class you
decouple your business class
and implement a perfect match
of your application needs.

And how do I
test the class
that I mocked?

The test for the class “hard
to test“ may be manual

You can incude the test of
this part on functional tests

If you decide to automate
the test, you will need to
handle this only once.

Using TDD we are modeling
alone classes...

But to design a object
oriented software you need to
define relationships and
colaboration!

There are
dependencies
that the class
wants to hide...

… and others
that it needs
to expose.

How can I drive my
class using tests to
define an explicit
dependency?

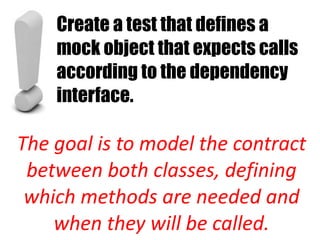

Create a test that defines a
mock object that expects calls
according to the dependency
interface.

The goal is to model the contract
between both classes, defining
which methods are needed and
when they will be called.

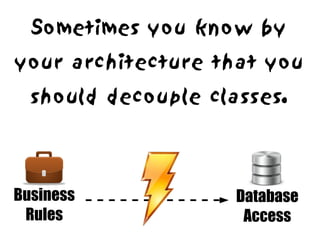

Sometimes you know by
your architecture that you
should decouple classes.

Business Database
Rules Access

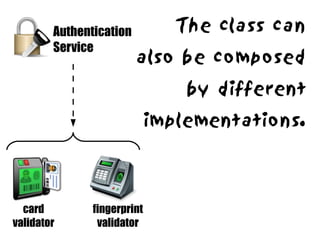

Authentication The class can
Service
also be composed
by different
implementations.

card fingerprint
validator validator

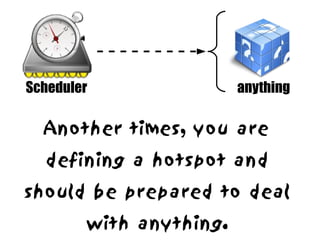

Scheduler anything

Another times, you are
defining a hotspot and
should be prepared to deal
with anything.

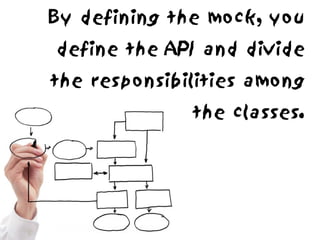

By defining the mock, you
define the API and divide
the responsibilities among
the classes.

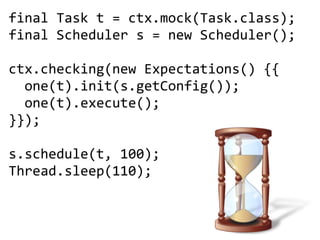

final Task t = ctx.mock(Task.class);
final Scheduler s = new Scheduler();

one(t).init(s.getConfig());
one(t).execute();
}});

s.schedule(t, 100);
Thread.sleep(110);

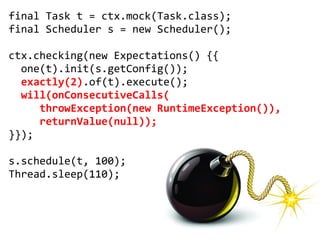

final Task t = ctx.mock(Task.class);
final Scheduler s = new Scheduler();

one(t).init(s.getConfig());
exactly(2).of(t).execute();
will(onConsecutiveCalls(
throwException(new RuntimeException()),
returnValue(null));
}});

s.schedule(t, 100);
Thread.sleep(110);

Do you think that you
are protected from
errors just because you
are using TDD?

A bug can come from a
scenario that was not
included on the
test suite!

How should I
handle bugs when
I'm using TDD?

Create a test that simulates the
bug scenario and fail because
of it. After that, fix the code to
make the test pass.

The goal is to locate the bug
using the tests and to make sure
that a similar problem will not
return in the future.

When a bug is found,
the first impulse is to
go straight to the
code and try to fix it!

If a bug appear it is
because the tests
are not covering
that scenario.

So, the first thing that you need
to do is to create the tests!

If you find other things wrong
on the code, do not start
digging deep to
solve all
of them !

KEEP
CALM
AND

CREATE
TESTS

Avoid the short
blanket effect!

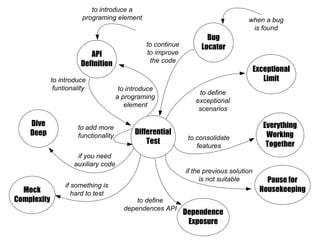

to introduce a
programing element when a bug
is found
Bug
to continue Locator
API to improve
the code
Definition
Exceptional
to introduce Limit
funtionality to introduce
to define
a programing
exceptional
element
scenarios

Dive to add more Everything
Deep functionality
Differential Working
to consolidate
Test Together
features
if you need
auxiliary code
if the previous solution
is not suitable Pause for
if something is
Mock hard to test
Housekeeping
Complexity to define
dependences API
Dependence
Exposure

TDD step patterns

Recommended

Recommended

More Related Content

What's hot

What's hot (20)

Similar to TDD step patterns

Similar to TDD step patterns (20)

TDD step patterns
