Tcf Nashville Canopy Framing Axo

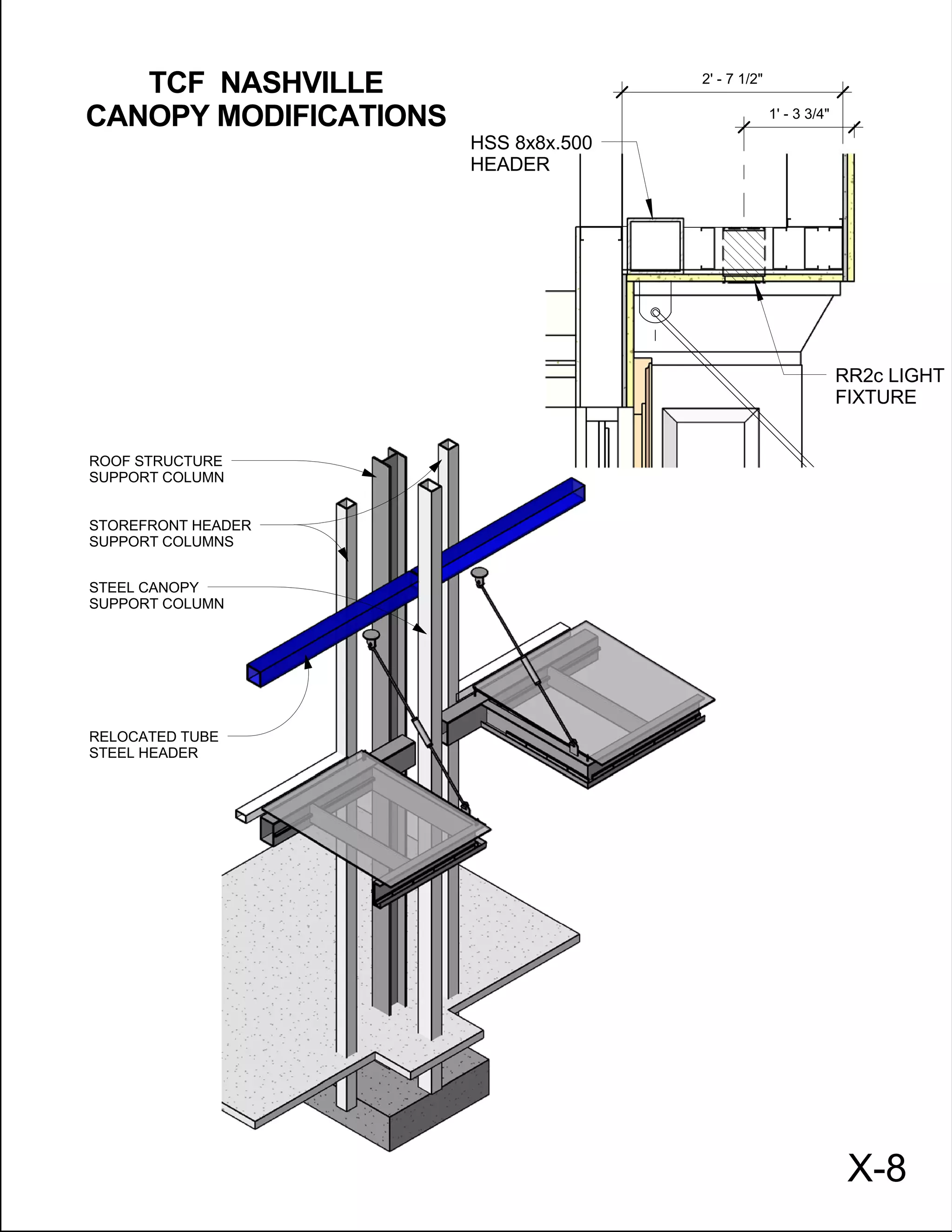

The document provides dimensions for modifications to a canopy structure. A canopy will be modified by 1 foot 3 3/4 inches and supported by HSS 8x8x0.500 header and columns. A relocated tube steel header will support an RR2c light fixture above the modified canopy structure.

Embed presentation

TCF NASHVILLE 2' - 7 1/2" CANOPY MODIFICATIONS 1' - 3 3/4" HSS 8x8x.500 HEADER RR2c LIGHT FIXTURE ROOF STRUCTURE SUPPORT COLUMN STOREFRONT HEADER SUPPORT COLUMNS STEEL CANOPY SUPPORT COLUMN RELOCATED TUBE STEEL HEADER X-8
