TB Davies Pro Ladder Catalogue 2012

TB Davies is a leading manufacturer of access equipment that has been in business since 1945. They operate from two sites covering over 12 acres in South Wales and employ over 100 people. They supply a wide range of products including ladders, scaffolding towers, mobile safety steps, and loft ladders. Their distribution network allows for quick shipping and most items can be delivered the next working day if ordered by 5pm. Customer relationships are important to their success.

Embed presentation

Download as PDF, PPTX
PROFESSIONAL ACCESS EQUIPMENT 2012

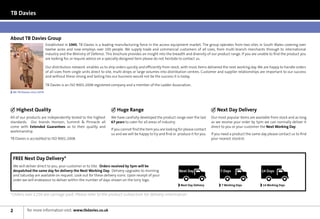

TB Davies About TB Davies Group Established in 1945, TB Davies is a leading manufacturing force in the access equipment market. The group operates from two sites in South Wales covering over twelve acres and now employs over 100 people. We supply trade and commercial customers of all sizes, from multi-branch merchants through to international industry and the Ministry of Defence. This brochure provides an insight into the breadth and diversity of our product range. If you are unable to find the product you are looking for, or require advice on a specially designed item please do not hesitate to contact us. Our distribution network enables us to ship orders quickly and efficiently from stock, with most items delivered the next working day. We are happy to handle orders of all sizes from single units direct to site, multi-drops or large volumes into distribution centres. Customer and supplier relationships are important to our success and without these strong and lasting ties our business would not be the success it is today. TB Davies is an ISO 9001:2008 registered company and a member of the Ladder Association. Mr TB Davies circa 1970 ighest Quality H uge Range H ext Day Delivery N All of our products are independently tested to the highest We have carefully developed the product range over the last Our most popular items are available from stock and as long standards. Our brands Horizon, Summit Pinnacle all 67 years to cater for all areas of industry. as we receive your order by 5pm we can normally deliver it come with Extended Guarantees as to their quality and direct to you or your customer the Next Working Day. If you cannot find the item you are looking for please contact workmanship. us and we will be happy to try and find or produce it for you. If you need a product the same day please contact us to find TB Davies is accredited to ISO 9001:2008. your nearest stockist. FREE Next Day Delivery* We will deliver direct to you, your customer or to Site. Orders received by 5pm will be despatched the same day for delivery the Next Working Day. Delivery upgrades to morning Next Day 7 Days 14 Days and Saturday are available on request. Look out for these delivery icons. Upon receipt of your order we will endeavour to deliver within the number of days shown on the lorry logo. Next Day Delivery 7 Working Days 14 Working Days *Orders over £250 are carriage paid. Please refer to the product subsection for delivery information 2 for more information visit: www.tbdavies.co.uk

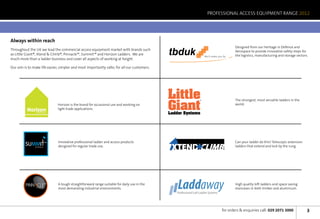

PROFESSIONAL ACCESS EQUIPMENT RANGE 2012 Always within reach Designed from our heritage in Defence and Throughout the UK we lead the commercial access equipment market with brands such as Little Giant®, Xtend Climb®, Pinnacle™, Summit™ and Horizon Ladders. We are much more than a ladder business and cover all aspects of working at height. tbduk We’ll make you fly Aerospace to provide innovative safety steps for the logistics, manufacturing and storage sectors. Our aim is to make life easier, simpler and most importantly safer, for all our customers. Little Giant ® The strongest, most versatile ladders in the Horizon is the brand for occasional use and working on world. light trade applications. by TB Davies Ladder Systems Innovative professional ladder and access products Can your ladder do this? Telescopic extension by TB Davies designed for regular trade use. ladders that extend and lock by the rung. by TB Davies A tough straightforward range suitable for daily use in the most demanding industrial environments. Laddaway Professional Loft Ladder Systems High quality loft ladders and space saving staircases in both timber and aluminium. for orders enquiries call: 029 2071 3000 3

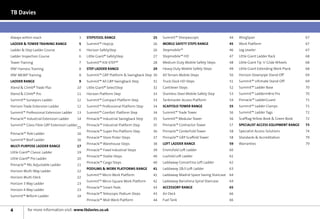

TB Davies Always within reach 3 STEPSTOOL RANGE 25 Summit™ Sherpascopic 44 WingSpan 67 LADDER TOWER TRAINING RANGE 5 Summit™ HopUp 26 MOBILE SAFETY STEPS RANGE 45 Work Platform 67 Ladder Step Ladder Course 6 Horizon SafetyStep 26 Stepmobile™ 46 Leg Leveler 67 Ladder Inspection Course 6 Little Giant® SafetyStep 27 Stepmobile™ HD 47 Little Giant Ladder Rack 68 Tower Training 7 Summit™ KIK-STEP™ 28 Medium Duty Mobile Safety Steps 48 Little Giant Tip ‘n’ Glide Wheels 68 IPAF Harness Training 8 STEP LADDER RANGE 29 Heavy Duty Mobile Safety Steps 49 Little Giant Extending Work Plank 68 IPAF MEWP Training 8 Summit™ GRP Platform Swingback Step 30 All Terrain Mobile Steps 50 Horizon Downpipe Stand-Off 69 LADDER RANGE 9 Summit™ All GRP Swingback Step 31 Truck Dock HD Steps 51 Summit™ Ultimate Stand-Off 69 Xtend Climb® Trade Plus 10 Little Giant® SelectStep 32 Cantilever Steps 52 Summit™ Ladder Base 70 Xtend Climb® Pro 11 Horizon Platform Step 33 Stainless Steel Mobile Safety Step 53 Summit™ Ladderm8rix Pro 70 Summit™ Surveyors Ladder 12 Summit™ Compact Platform Step 33 Tankmaster Access Platform 54 Pinnacle™ LadderGuard 71 Horizon Trade Extension Ladder 12 Summit™ Professional Platform Step 34 SCAFFOLD TOWER RANGE 55 Summit™ Ladder Clamps 71 Summit™ Professional Extension Ladder 13 Summit™ Comfort Platform Step 34 Summit™ Trade Tower 56 Summit™ Ladder Tags 72 Pinnacle™ Industrial Extension Ladder 14 Pinnacle™ Industrial Swingback Step 35 Summit™ Modular Tower 56 Scafftag Yellow Book Green Book 72 Summit™ Glass Fibre GRP Extension Ladder Pinnacle™ Industrial Platform Step 35 Pinnacle™ Contractor Tower 57 SPECIALIST ACCESS EQUIPMENT RANGE 73 15 Pinnacle™ Super-Pro Platform Step 36 Pinnacle™ CenterFold Tower 58 Specialist Access Solutions 74 Pinnacle™ Pole Ladder 16 Pinnacle™ Store Picker Steps 37 Pinnacle™ GRP Scaffold Tower 58 Standards Accreditation 79 Summit™ Roof Ladder 16 Pinnacle™ Warehouse Steps 38 LOFT LADDER RANGE 59 Warranties 79 MULTI PURPOSE LADDER RANGE 17 Pinnacle™ Fixed Industrial Steps 39 EnviroFold Loft Ladder 60 Little Giant® Classic Ladder 19 Pinnacle™ Stable Steps 40 LuxFold Loft Ladder 61 Little Giant® Pro Ladder 20 Pinnacle™ Cargo Steps 40 Laddaway Concertina Loft Ladder 62 Pinnacle™ PAL Adjustable Ladder 21 PODIUMS WORK PLATFORMS RANGE 41 Laddaway 23 Loft Ladder 63 Horizon Multi-Way Ladder 22 Summit™ Micro Work Platform 42 Laddaway Madrid Space Saving Staircase 64 Horizon Multi-Deck 22 Summit™ Micro Square Work Platform 42 Laddaway Barcelona Spiral Staircase 64 Horizon 3 Way Ladder 23 Pinnacle™ Smart Pods 43 ACCESSORY RANGE 65 Horizon 4 Way Ladder 23 Pinnacle™ Telescopic Podium Steps 43 Air Deck 66 Summit™ Reform Ladder 24 Pinnacle™ Midi Work Platform 44 Fuel Tank 66 4 for more information visit: www.tbdavies.co.uk

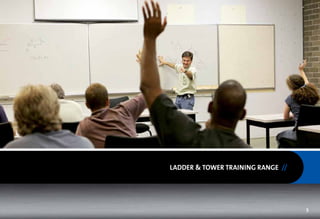

LADDER TOWER TRAINING RANGE // 5

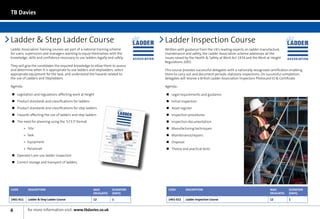

TB Davies Ladder Step Ladder Course Ladder Inspection Course Ladder Association Training courses are part of a national training scheme Written with guidance from the UK’s leading experts on ladder manufacture, for users, supervisors and managers wanting to equip themselves with the maintenance and safety, the Ladder Association scheme addresses all the knowledge, skills and confidence necessary to use ladders legally and safely. issues raised by the Health Safety at Work Act 1974 and the Work at Height Regulations 2005. They will give the candidates the required knowledge to allow them to assess and determine when it is appropriate to use ladders and stepladders, select This course provides successful delegates with a nationally recognised certification enabling appropriate equipment for the task, and understand the hazards related to them to carry out and document periodic statutory inspections. On successful completion, the use of Ladders and Stepladders. delegates will receive a British Ladder Association Inspectors Photocard ID Certificate. Agenda: Agenda: nn Legislation and regulations affecting work at height nn Legal requirements and guidance nn Product standards and classifications for ladders nn Initial inspection nn Product standards and classifications for step ladders nn Asset register nn Hazards affecting the use of ladders and step ladders nn Inspection procedures nn The need for planning using the ‘S.T.E.P’ format nn Inspection documentation »»  Site nn Manufacturing techniques »» Task nn Maintenance/repairs »» Equipment nn Disposal »» Personnel nn Theory and practical tests nn Operator’s pre-use ladder inspection nn Correct storage and transport of ladders CODE DESCription Max Duration CODE DESCription Max Duration Delegates (Days) Delegates (Days) 1401-011 Ladder Step Ladder Course 12 1 1401-012 Ladder Inspection Course 12 1 6 for more information visit: www.tbdavies.co.uk
LADDER TOWER TRAINING RANGE 2012 Tower Training Tower training courses will give delegates the necessary knowledge to allow them to choose, build, alter, move, disassemble, inspect and make effective use of mobile access towers safely. A training photo card and certificate provides written evidence that you have taken and successfully completed training to an accredited standard. Many sites will not allow the assembly, dismantling, movement and in some cases even the use of mobile scaffold towers without first seeing proof of certified tower training. The Work at Height Regulations requires that the assembly of mobile access towers be only undertaken by, or under the supervision of a competent person. A competent person is someone considered to have training, relevant technical knowledge and experience. Having worked in close conjunction with the HSE to develop the course, tower training qualifications are now recognised as proof of competence and widely accepted throughout the UK. Agenda: nn Introduction to mobile scaffold towers nn Assembling the mobile scaffold towers nn Stability of the mobile scaffold towers nn Using mobile scaffold towers safely nn Moving mobile scaffold towers safely nn Inspection of mobile scaffold towers nn Care maintenance of tower components nn Disassembling mobile scaffold towers nn Relevant regulations and standards CODE DESCription Max Duration Delegates (Days) 1401-010 Tower Training 12 1 for orders enquiries call: 029 2071 3000 7

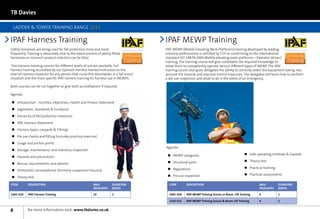

TB Davies LADDER TOWER TRAINING RANGE 2012 IPAF Harness Training IPAF MEWP Training Safety harnesses are being used for fall protection more and more in association with IPAF MEWP (Mobile Elevating Work Platforms) training developed by leading in association with frequently. Training is absolutely vital as the repercussions of poorly fitted industry professionals is certified by TÜV as conforming to the international harnesses or incorrect product selection can be fatal. standard ISO 18878:2004 Mobile elevating work platforms—Operator (driver) training. The training course will give candidates the required knowledge to Two harness training courses for different levels of use are available. Full allow them to competently operate various different types of MEWP. The IPAF harness training accredited by our Spanset Harness trained Instructors to the training course also gives delegates the ability to correctly select the equipment taking into level of Harness Inspector for any person that could find themselves in a fall arrest account the hazards and required control measures. The delegates will learn how to perform situation and the more specific IPAF harness training for harness use in MEWPS. a pre use inspection and what to do in the event of an emergency. Both courses can be run together to give both accreditations if required. Agenda: nn Introduction - Facilities, Objectives, Health and Fitness Statement nn Legislation, Standards Guidance nn Hierarchy of fall protection measures nn IPAF Harness Statement nn Harness types, Lanyards Fittings nn Pre use checks and fitting (includes practical exercise) nn Usage and anchor points Agenda: nn nn Storage, maintenance, and statutory inspection nn MEWP categories nn Safe operating methods hazards nn Hazards and precautions nn Structural parts nn Theory test nn Rescue, requirements, and options nn Regulations nn Practical training nn Orthostatic incompetence (Formerly suspension trauma) nn Pre use inspection nn Practical assessments nn Theory test CODE DESCription Max Duration CODE DESCription Max Duration Delegates (Days) Delegates (Days) 1401-025 IPAF Harness Training 10 1 1401-020 IPAF MEWP Training Scissor or Boom Lift Training 6 1 1410-021 IPAF MEWP Training Scissor Boom Lift Training 4 1 8 for more information visit: www.tbdavies.co.uk

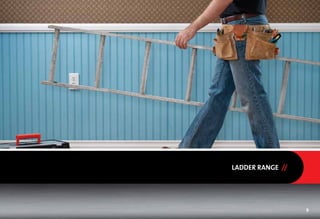

LADDER RANGE // 9

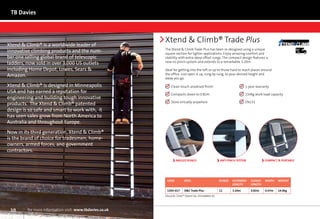

TB Davies Xtend Climb® is a worldwide leader of Xtend Climb® Trade Plus The Xtend Climb Trade Plus has been re-designed using a unique innovative climbing products and the num- Next Day square section for lighter applications. Enjoy amazing comfort and ber one selling global brand of telescopic stability with extra-deep offset rungs. The compact design features a new no pinch system and extends to a remarkable 3.20m. ladders, now sold in over 3,000 US outlets including Home Depot, Lowes, Sears Ideal for getting into the loft or up to those hard to reach places around Amazon. the office. Just open it up, rung by rung, to your desired height and away you go. Xtend Climb® is designed in Minneapolis lean-touch anodised finish C -year warranty 1 USA and has earned a reputation for ompacts down to 0.82m C 50kg work load capacity 1 engineering and building tough innovative products. The Xtend Climb® patented tore virtually anywhere S N131 E design is so safe and smart to work with, it has seen sales grow from North America to Australia and throughout Europe. Now in its third generation, Xtend Climb® is the brand of choice for tradesmen, home- owners, armed forces, and government contractors. ANGLED RUNGS ANTI PINCH SYSTEM COMPACT PORTABLE CODE DESC. RUNGS EXTENDED CLOSED WIDTH WEIGHT LENGTH LENGTH 1303-017 XC Trade Plus 11 3.20m 0.82m 0.47m 14.0kg Xtend Climb™ Patent No. EP1448865 B1 10 for more information visit: www.tbdavies.co.uk

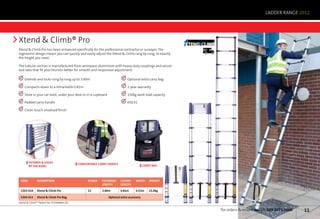

LADDER RANGE 2012 Xtend Climb® Pro Xtend Climb Pro has been enhanced specifically for the professional contractor or surveyor. The Next Day ergonomic design means you can quickly and easily adjust the Xtend Climb rung by rung, to exactly the height you need. The tubular section is manufactured from aerospace aluminium with heavy-duty couplings and secure lock tabs that fit your thumbs better for smooth and responsive adjustment. Extends and locks rung by rung up to 3.80m Optional extra carry bag Compacts down to a remarkable 0.81m 1-year warranty Store in your car boot, under your desk or in a cupboard 150kg work load capacity Padded carry handle EN131 Clean-touch anodised finish EXTENDS LOCKS COMFORTABLE CARRY HANDLE BY THE RUNG CARRY BAG Code Description rungs Extended closed WIDTH WEIGHT length length 1303-010 Xtend Climb Pro 13 3.80m 0.81m 0.53m 15.0kg 1303-011 Xtend Climb Pro Bag Optional extra accessory Xtend Climb™ Patent No. EP1448865 B1 for orders enquiries call: 029 2071 3000 11

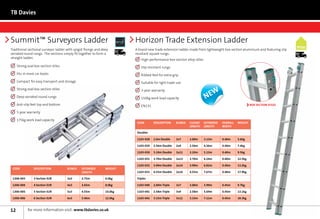

TB Davies Summit™ Surveyors Ladder Horizon Trade Extension Ladder Traditional sectional surveyor ladder with spigot fixings and deep Next A brand new trade extension ladder made from lightweight box section aluminium and featuring slip Day serrated round rungs. The sections simply fit together to form a resistant square rungs. Next Day straight ladder. igh-performance box-section alloy stiles H Strong oval box section stiles Slip-resistant rungs its in most car boots F Ribbed feet for extra grip Compact for easy transport and storage Suitable for light trade use Strong oval box section stiles 3-year warranty Deep serrated round rungs 150kg work load capacity New Anti-slip feet top and bottom EN131 BOX SECTION STILES 5-year warranty 175kg work load capacity Code Description rungs closed extended OVERALL weight length length WIDTH Doubles 1103-028 2.0m Double 2x7 2.00m 3.13m 0.40m 5.6kg 1103-029 2.56m Double 2x9 2.56m 4.26m 0.40m 7.4kg 1103-030 3.10m Double 2x11 3.10m 5.12m 0.40m 9.5kg 1103-031 3.70m Double 2x13 3.70m 6.24m 0.40m 12.5kg 1103-032 3.99m Double 2x14 3.99m 6.82m 0.40m 13.2kg Code Description rungs Extended WEIGHT Length 1103-033 4.55m Double 2x16 4.55m 7.67m 0.40m 17.9kg 1306-003 3 Section SUR 3x3 2.75m 6.0kg Triples 1306-004 4 Section SUR 4x3 3.65m 8.0kg 1103-040 2.00m Triple 3x7 2.00m 3.99m 0.45m 9.7kg 1306-005 5 Section SUR 5x3 4.55m 10.0kg 1103-041 2.58m Triple 3x9 2.58m 5.69m 0.45m 13.1kg 1306-006 6 Section SUR 6x3 5.46m 12.0kg 1103-042 3.15m Triple 3x11 3.15m 7.11m 0.45m 18.3kg 12 for more information visit: www.tbdavies.co.uk

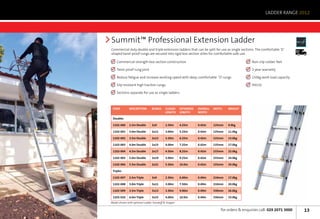

LADDER RANGE 2012 Summit™ Professional Extension Ladder Commercial duty double and triple extension ladders that can be split for use as single sections. The comfortable ‘D’ Next Day shaped twist-proof rungs are secured into rigid box section stiles for comfortable safe use. ommercial strength box section construction C Non-slip rubber feet Twist proof rung joint 5-year warranty Reduce fatigue and increase working speed with deep, comfortable ‘D’ rungs 150kg work load capacity Slip resistant high traction rungs EN131 Sections separate for use as single ladders Code Description rungs closed extended OVERALL Depth weight length length WIDTH Doubles 1102-000 2.5m Double 2x9 2.50m 4.25m 0.42m 125mm 9.0kg 1102-001 3.0m Double 2x11 3.00m 5.25m 0.42m 125mm 11.0kg 1102-002 3.5m Double 2x13 3.50m 6.25m 0.42m 125mm 13.0kg 1102-003 4.0m Double 2x15 4.00m 7.25m 0.42m 135mm 17.0kg 1102-004 4.5m Double 2x17 4.50m 8.25m 0.42m 155mm 22.0kg 1102-005 5.0m Double 2x19 5.00m 9.25m 0.42m 155mm 24.0kg 1102-006 5.5m Double 2x21 5.50m 10.0m 0.42m 155mm 29.0kg Triples 1102-007 2.5m Triple 3x9 2.50m 6.00m 0.49m 210mm 17.0kg 1102-008 3.0m Triple 3x11 3.00m 7.50m 0.49m 210mm 20.0kg 1102-009 3.5m Triple 3x13 3.50m 9.00m 0.49m 330mm 26.0kg 1102-010 4.0m Triple 3x15 4.00m 10.0m 0.49m 330mm 33.0kg Model shown with optional Ladder Standoff Stopper for orders enquiries call: 029 2071 3000 13
TB Davies Pinnacle™ Industrial Extension Ladder Pinnacle Industrial Ladders are constructed from tough heavy wall aluminium and feature rigid box section stiles fitted Next with large twist proof rungs. The high traction and comfortable ‘D’ shaped rungs help reduce fatigue and increase working Day speed. Extra heavy duty thick wall box section stiles Twist proof rung joints Code Description rungs closed ext. OVERALL Depth weight Reduce fatigue with deep, comfortable ‘D’ rungs length length WIDTH Rung locks fitted ensure sections do not separate Singles Non-slip rubber feet 1100-000 2.5m Ind. Single 1x9 2.50m N/A 0.38m 63.5mm 5.0kg 1100-001 3.0m Ind. Single 1 x 11 3.00m N/A 0.38m 63.5mm 6.0kg 10-year warranty 1100-002 3.5m Ind. Single 1 x 13 3.50m N/A 0.38m 63.5mm 7.0kg 175kg work load capacity 1100-003 4.0m Ind. Single 1 x 15 4.00m N/A 0.38m 63.5mm 8.0kg BS2037 Class 1 Doubles 1100-010 2.5m Ind. Double 2x9 2.50m 4.25m 0.41m 125mm 11.0kg 1100-011 3.0m Ind. Double 2 x 11 3.00m 5.25m 0.41m 125mm 13.0kg 1100-012 3.5m Ind. Double 2 x 13 3.50m 6.25m 0.41m 140mm 17.0kg 1100-013 4.0m Ind. Double 2 x 15 4.00m 7.25m 0.41m 140mm 20.0kg 1100-014 4.5m Ind. Double 2 x 17 4.50m 8.25m 0.41m 155mm 26.0kg 1100-015 5.0m Ind. Double 2 x 19 5.00m 9.25m 0.41m 155mm 29.0kg 1100-016 5.5m Ind. Double 2 x 21 5.50m 10.0m 0.41m 155mm 31.0kg Triples 1100-020 2.5m Ind. Triple 3x9 2.50m 6.00m 0.46m 200mm 20.0kg 1100-021 3.0m Ind. Triple 3 x 11 3.00m 7.50m 0.48m 225mm 28.0kg 1100-022 3.5m Ind. Triple 3 x 13 3.50m 9.00m 0.48m 225mm 32.0kg 1100-023 4.0m Ind. Triple 3x15 4.00m 10.0m 0.48m 225mm 39.0kg 14 for more information visit: www.tbdavies.co.uk

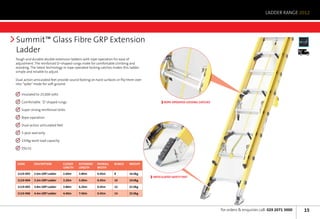

LADDER RANGE 2012 Summit™ Glass Fibre GRP Extension Ladder Next Day Tough and durable double extension ladders with rope-operation for ease of adjustment. The reinforced D–shaped rungs make for comfortable climbing and standing. The latest technology in rope-operated locking catches makes this ladder simple and reliable to adjust. Dual action articulated feet provide sound footing on hard surfaces or flip them over into “spike” mode for soft ground. Insulated to 25,000 volts Comfortable ‘D’ shaped rungs ROPE-OPERATED LOCKING CATCHES Super strong reinforced stiles Rope-operation Dual-action articulated feet 5-year warranty 150kg work load capacity EN131 Code Description closed Extended OVERALL Rungs WEIGHT length length WIDTH 1119-003 2.6m GRP Ladder 2.60m 3.80m 0.45m 8 16.0kg ARTICULATED SAFETY FEET 1119-004 3.2m GRP Ladder 3.20m 5.00m 0.45m 10 19.0kg 1119-005 3.8m GRP Ladder 3.80m 6.20m 0.45m 12 22.0kg 1119-006 4.4m GRP Ladder 4.40m 7.40m 0.45m 14 25.0kg for orders enquiries call: 029 2071 3000 15

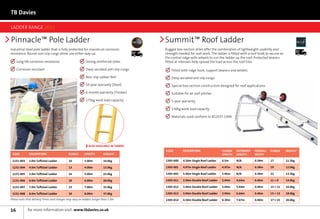

TB Davies LADDER RANGE 2012 Pinnacle™ Pole Ladder Summit™ Roof Ladder Industrial steel pole ladder that is fully protected for maximum corrosion Rugged box-section stiles offer the combination of lightweight usability and Next Next Day resistance. Round non-slip rungs allow use either way up. Day strength needed for roof work. The ladder is fitted with a roof hook to secure on the central ridge with wheels to run the ladder up the roof. Protected bearers Long life corrosion resistance Strong reinforced stiles fitted at intervals help spread the load across the roof tiles. Corrosion resistant Deep serrated anti-slip rungs Fitted with ridge hook, support bearers and wheels Non-slip rubber feet Deep serrated anti slip rungs 10-year warranty (Steel) Special box-section construction designed for roof applications 6-month warranty (Timber) Suitable for all roof pitches 175kg work load capacity 5-year warranty 130kg work load capacity Materials used conform to BS2037:1994 ALSO AVAILABLE IN TIMBER Code Description closed extended OVERALL Rungs weight Code Description Rungs Length weight length length WIDTH 1151-003 3.0m Tuffsteel Ladder 10 3.00m 10.0kg 1305-000 4.50m Single Roof Ladder 4.5m N/A 0.38m 17 11.5kg 1151-004 4.0m Tuffsteel Ladder 13 4.00m 13.0kg 1305-001 4.97m Single Roof Ladder 4.97m N/A 0.38m 19 12.0kg 1151-005 5.0m Tuffsteel Ladder 16 5.00m 23.0kg 1305-002 5.46m Single Roof Ladder 5.46m N/A 0.38m 21 13.5kg 1151-006 6.0m Tuffsteel Ladder 20 6.00m 28.0kg 1305-011 2.94m Double Roof Ladder 2.94m 4.64m 0.40m 11 + 9 14.0kg 1151-007 7.0m Tuffsteel Ladder 23 7.00m 32.0kg 1305-012 3.44m Double Roof Ladder 3.44m 5.64m 0.40m 13 + 11 16.0kg 1151-008 8.0m Tuffsteel Ladder 26 8.00m 37.0kg 1305-013 3.94m Double Roof Ladder 3.94m 6.64m 0.40m 15 + 13 18.0kg Please note that delivery times and charges may vary on ladders longer than 5.0m 1305-014 4.30m Double Roof Ladder 4.30m 7.67m 0.40m 17 + 15 20.0kg 16 for more information visit: www.tbdavies.co.uk
MULTI PURPOSE LADDER RANGE // 17
TB Davies Little The Little Giant Ladder story began over thirty years ago from its Utah headquarters in the USA. Giant ® Little Giant Ladder Systems created the articulated ladder market after the launch of a hugely successful TV infomercial back in 2003. Today it holds world wide patents and trademarks on many innovations in ladder design and manufacturing. Ladder Systems With Global distribution Little Giant will continue to lead the industry in innovation and product excellence. LITTLE GIANT LADDERS HEADQUARTERS, SPRINGVILLE, UTAH, USA 18 for more information visit: www.tbdavies.co.uk

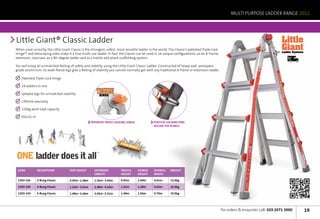

MULTI PURPOSE LADDER RANGE 2012 Little Giant® Classic Ladder Little Giant ® When used correctly, the Little Giant Classic is the strongest, safest, most versatile ladder in the world. The Classic’s patented Triple-Lock Ladder Systems Hinge™ and telescoping sides make it a true multi-use ladder. In fact, the Classic can be used in 16 unique configurations, as an A-Frame, extension, staircase, as a 90–degree ladder and as a trestle and plank scaffolding system. Next Day You will enjoy an unmatched feeling of safety and stability using the Little Giant Classic Ladder. Constructed of heavy wall, aerospace grade aluminium, its wide-flared legs give a feeling of stability you cannot normally get with any traditional A-frame or extension ladder. Patented Triple-Lock Hinge 24 ladders in one Splayed legs for unmatched stability Lifetime warranty 150kg work load capacity EN131–4 PATENTED TRIPLE LOCKING HINGE POSITIVE LOCKING PINS SECURE THE RUNGS Code Description Step height Extended trestle stored OVERALL WEIGHT length height height WIDTH 1303-101 3-Rung Classic 0.95m–1.48m 1.92m–3.04m 0.95m 1.09m 0.61m 12.0kg 1303-102 4-Rung Classic 1.22m–2.01m 2.48m–4.16m 1.22m 1.28m 0.62m 16.0kg 1303-103 5-Rung Classic 1.48m–2.46m 3.05m–5.21m 1.48m 1.56m 0.70m 19.0kg for orders enquiries call: 029 2071 3000 19

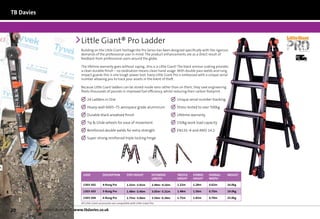

TB Davies Little Giant® Pro Ladder Building on the Little Giant heritage the Pro Series has been designed specifically with the rigorous demands of the professional user in mind. The product enhancements are as a direct result of Next feedback from professional users around the globe. Day The lifetime warranty goes without saying…this is a Little Giant! The black armour coating provides a clean durable finish – no oxidisation means clean hand usage. With double pass welds and rung impact guards this is one tough power tool. Every Little Giant Pro is embossed with a unique serial number allowing you to track your assets in the event of theft. Because Little Giant ladders can be stored inside vans rather than on them, they save engineering fleets thousands of pounds in improved fuel efficiency, whilst reducing their carbon footprint. 4 Ladders in One 2 nique serial number tracking U eavy-wall 6005–T5 aerospace grade aluminium H tress tested to over 500kg S urable black anodised finish D ifetime warranty L ip Glide wheels for ease of movement T 50kg work load capacity 1 einforced double welds for extra strength R N131–4 and ANSI 14.2 E uper strong reinforced triple locking hinge S Code Description Step Height Extended TRESTLE Stored OVERALL Weight Length Height Height WIDTH 1303-302 4-Rung Pro 1.22m–2.01m 2.48m–4.16m 1.22m 1.28m 0.62m 16.0kg 1303-303 5-Rung Pro 1.48m–2.46m 3.05m–5.21m 1.48m 1.56m 0.70m 19.0kg 1303-304 6-Rung Pro 1.75m–3.06m 3.59m–6.38m 1.75m 1.83m 0.79m 25.0kg All Little Giant accessories are compatible with Little Giant Pro. 20 for more information visit: www.tbdavies.co.uk

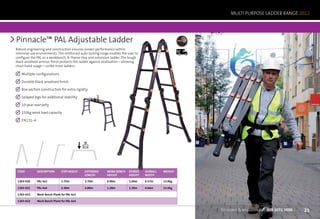

MULTI PURPOSE LADDER RANGE 2012 Pinnacle™ PAL Adjustable Ladder Robust engineering and construction ensures proven performance within Next Day intensive use environments. The reinforced auto-locking hinge enables the user to configure the PAL as a workbench, A–frame step and extension ladder. The tough black anodised armour finish protects the ladder against oxidisation—allowing clean hand usage—unlike most ladders. ultiple configurations M urable black anodised finish D ox-section construction for extra rigidity B played legs for additional stability S 0-year warranty 1 50kg work load capacity 1 N131–4 E Code Description Step Height Extended Work Bench Stored OVERALL Weight Length Height Height WIDTH 1303-020 PAL 4x3 1.75m 3.70m 0.98m 1.00m 0.57m 13.0kg 1303-021 PAL 4x4 2.30m 4.80m 1.28m 1.30m 0.66m 15.0kg 1303-022 Work Bench Plank for PAL 4x3 1303-023 Work Bench Plank for PAL 4x4 for orders enquiries call: 029 2071 3000 21

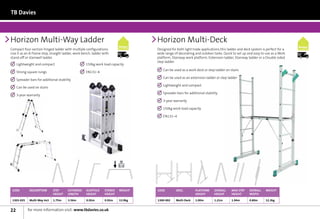

TB Davies Horizon Multi-Way Ladder Horizon Multi-Deck Compact four-section hinged ladder with multiple configurations. Designed for both light trade applications this ladder and deck system is perfect for a Use it as an A-frame step, straight ladder, work bench, ladder with Next Day wide range of decorating and outdoor tasks. Quick to set up and easy to use as a Work Next Day stand-off or stairwell ladder. platform, Stairway work platform, Extension ladder, Stairway ladder or a Double sided step ladder. Lightweight and compact 150kg work load capacity Strong square rungs EN131–4 an be used as a work deck or step ladder on stairs C Spreader bars for additional stability an be used as an extension ladder or step ladder C Can be used on stairs ightweight and compact L 3-year warranty preader bars for additional stability S -year warranty 3 50kg work load capacity 1 N131–4 E Code Description step extended Scaffold Stored WEIGHT Code DESC. Platform Overall max step Overall WEIGHT height length Height Height Height Height height width 1303-025 Multi-Way 4x3 1.75m 3.56m 0.92m 0.92m 13.9kg 1300-002 Multi-Deck 1.00m 1.21m 1.94m 0.80m 12.3kg 22 for more information visit: www.tbdavies.co.uk

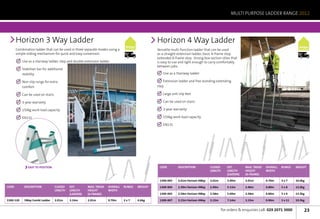

MULTI PURPOSE LADDER RANGE 2012 Horizon 3 Way Ladder Horizon 4 Way Ladder Combination ladder that can be used in three separate modes using a Versatile multi-function ladder that can be used simple sliding mechanism for quick and easy conversion. Next Day as a straight extension ladder, basic A-frame step, Next Day extended A-frame step. Strong box section stiles that se as a stairway ladder, step and double extension ladder U is easy to use and light enough to carry comfortably between jobs. tabiliser bar for additional S stability se as a Stairway ladder U Non-slip rungs for extra Extension ladder and free standing extending comfort step an be used on stairs C arge anti-slip feet L -year warranty 3 an be used on stairs C 150kg work load capacity -year warranty 3 N131 E 50kg work load capacity 1 N131 E EASY TO POSITION Code Description Closed ext. max. tread OVERALL RUNGS WEIGHT Length length height WIDTH (Ladder) (A-frame) 1300-003 2.01m Horizon 4Way 2.01m 3.99m 2.01m 0.70m 3x7 10.0kg Code Description Closed ext. max. tread OVERALL RUNGS WEIGHT 1300-004 2.30m Horizon 4Way 2.40m 5.13m 2.40m 0.80m 3x8 12.0kg Length length height WIDTH (Ladder) (A-frame) 1300-005 2.58m Horizon 4Way 2.58m 5.69m 2.58m 0.80m 3x9 13.3kg 1300-120 3Way Combi Ladder 2.01m 3.14m 2.01m 0.70m 2x7 6.6kg 1300-007 3.15m Horizon 4Way 3.15m 7.14m 3.15m 0.90m 3 x 11 19.5kg for orders enquiries call: 029 2071 3000 23

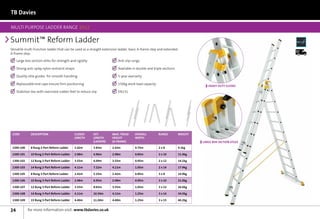

TB Davies MULTI PURPOSE LADDER RANGE 2012 Summit™ Reform Ladder Versatile multi-function ladder that can be used as a straight extension ladder, basic A-frame step and extended Next Day A-frame step. arge box section stiles for strength and rigidity L nti slip rungs A trong anti-splay nylon restraint straps S vailable in double and triple sections A uality stile guides for smooth handling Q -year warranty 5 eplaceable end caps ensure firm positioning R 50kg work load capacity 1 HEAVY DUTY GUIDES tabiliser bar with oversized rubber feet to reduce slip S N131 E Code Description closed ext. max. tread OVERALL RUNGS WEIGHT length length height WIDTH (Ladder) (A-frame) LARGE BOX SECTION STILES 1300-100 8 Rung 2-Part Reform Ladder 2.42m 3.83m 2.42m 0.75m 2x8 9.1kg 1300-101 10 Rung 2-Part Reform Ladder 2.98m 4.96m 2.98m 0.85m 2 x 10 11.4kg 1300-102 12 Rung 2-Part Reform Ladder 3.55m 6.09m 3.55m 0.95m 2 x 12 14.1kg 1300-103 14 Rung 2-Part Reform Ladder 4.11m 7.22m 4.11m 1.05m 2 x 14 17.9kg 1300-105 8 Rung 3-Part Reform Ladder 2.42m 5.25m 2.42m 0.85m 3x8 14.9kg 1300-106 10 Rung 3-Part Reform Ladder 2.98m 6.95m 2.98m 0.95m 3 x 10 21.0kg 1300-107 12 Rung 3-Part Reform Ladder 3.55m 8.65m 3.55m 1.05m 3 x 12 26.6kg 1300-108 14 Rung 3-Part Reform Ladder 4.11m 10.34m 4.11m 1.25m 3 x 14 34.5kg 1300-109 15 Rung 3-Part Reform Ladder 4.40m 11.20m 4.40m 1.25m 3 x 15 40.2kg 24 for more information visit: www.tbdavies.co.uk

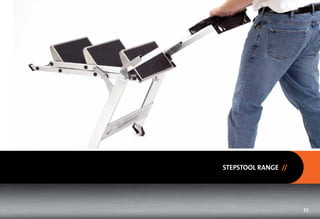

STEPSTOOL RANGE // 25
TB Davies Summit™ HopUp Horizon SafetyStep Ideal for quick and easy access to shelves, high cabinets or even ceilings. Next Ideal for accessing low shelves and wall cupboards. Features include deep Day When you need to get up high quickly, these folding steps with the large comfortable platform treads with anti-slip rubber surface. Wide base for extra Next Day standing area will always come in handy. stability, slip resistant feet and a high knee rail for added safety. Large, non-slip rubber treads for extra safety Tough, light and handy Folds away easily for storage Very compact when disassembled, can be stowed away in the smallest of spaces Smooth handrail surface that is comfortable to hold Wide and deep ribbed aluminium steps—large standing and sitting area Deep 260mm x 380mm platform treads Ribbed feet Non-slip rubber feet 5-year warranty 3-year warranty 150kg work load capacity 150kg work load capacity EN131 EN14183 Code Description Top Tread Closed OPEN Weight Code Description Top Tread CLOSED OPEN Weight Height Height FOOTPRINT Height Height FOOTPRINT 1216-022 2 Tread 0.40m 0.42m 0.46m x 0.39m 1.8kg 1216-050 2 Tread 0.45m 1.08m 0.51m x 0.54m 6.3kg 1216-023 3 Tread 0.61m 0.64m 0.64m x 0.41m 2.6kg 1216-051 3 Tread 0.67m 1.31m 0.51m x 0.64m 9.3kg Number of treads includes the top platform Number of treads includes the top platform 26 for more information visit: www.tbdavies.co.uk

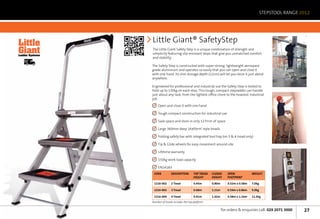

STEPSTOOL RANGE 2012 Little Little Giant® SafetyStep Giant ® The Little Giant Safety Step is a unique combination of strength and Ladder Systems simplicity featuring slip-resistant steps that give you unmatched comfort and stability. Next Day The Safety Step is constructed with super-strong, lightweight aerospace grade aluminium and operates so easily that you can open and close it with one hand. Its slim storage depth (12cm) will let you store it just about anywhere. Engineered for professional and industrial use the Safety Step is tested to hold up to 130kg on each step. This tough, compact stepladder can handle just about any task, from the lightest office chore to the heaviest industrial job. Open and close it with one hand Tough compact construction for industrial use Save space and store in only 127mm of space Large 360mm deep ‘platform’ style treads Folding safety bar with integrated tool tray (on 3 4 tread only) Tip Glide wheels for easy movement around site Lifetime warranty 150kg work load capacity EN14183 Code Description Top Tread Closed OPEN Weight Height Height FOOTPRINT 1216-002 2 Tread 0.45m 0.80m 0.52m x 0.58m 7.0kg 1216-003 3 Tread 0.68m 1.11m 0.54m x 0.86m 9.0kg 1216-004 4 Tread 0.91m 1.42m 0.58m x 1.16m 11.5kg Number of treads includes the top platform for orders enquiries call: 029 2071 3000 27

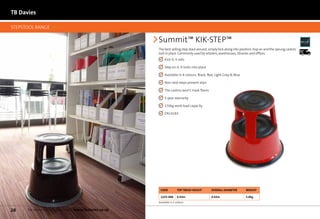

TB Davies STEPSTOOL RANGE 2012 Summit™ KIK-STEP™ The best selling step stool around, simply kick along into position, hop on and the sprung castors Next Day lock in place. Commonly used by retailers, warehouses, libraries and offices. ick it, it rolls K tep on it, it locks into place S vailable in 4 colours: Black, Red, Light Grey Blue A on-skid steps prevent slips N he castors won’t mark floors T -year warranty 5 50kg work load capacity 1 N14183 E Code Top Tread Height Overall diameter Weight 1225-000 0.43m 0.43m 5.0kg Available in 5 colours 28 for more information visit: www.tbdavies.co.uk

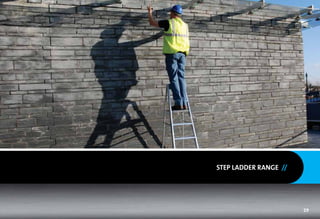

STEP LADDER RANGE // 29

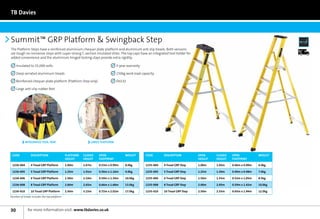

TB Davies Summit™ GRP Platform Swingback Step The Platform Steps have a reinforced aluminium chequer plate platform and aluminium anti slip treads. Both versions Next Day are tough no nonsense steps with super-strong C-section insulated stiles. The top caps have an integrated tool holder for added convenience and the aluminium hinged locking stays provide extra rigidity. I nsulated to 25,000 volts 5 -year warranty Deep serrated aluminium treads 1 50kg work load capacity Reinforced chequer plate platform (Platform Step only) EN131 Large anti-slip rubber feet INTEGRATED TOOL TRAY LARGE PLATFORM Code Description Platform closed OPEN weight Code Description Open closed OPEN weight Height height FOOTPRINT Height height FOOTPRINT 1236-004 4 Tread GRP Platform 1.00m 1.67m 0.53m x 0.99m 8.0kg 1235-004 4 Tread GRP Step 1.00m 1.05m 0.46m x 0.90m 6.0kg 1236-005 5 Tread GRP Platform 1.25m 1.91m 0.56m x 1.16m 9.0kg 1235-005 5 Tread GRP Step 1.25m 1.30m 0.49m x 0.98m 7.0kg 1236-006 6 Tread GRP Platform 1.50m 2.14m 0.59m x 1.34m 10.0kg 1235-006 6 Tread GRP Step 1.50m 1.55m 0.52m x 1.05m 8.5kg 1236-008 8 Tread GRP Platform 2.00m 2.65m 0.66m x 1.68m 13.0kg 1235-008 8 Tread GRP Step 2.00m 2.05m 0.59m x 1.42m 10.0kg 1236-010 10 Tread GRP Platform 2.50m 3.15m 0.72m x 2.02m 17.0kg 1235-010 10 Tread GRP Step 2.50m 2.55m 0.65m x 1.94m 12.0kg Number of treads includes the top platform 30 for more information visit: www.tbdavies.co.uk

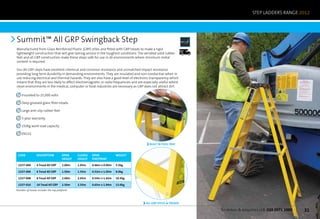

STEP LADDERS RANGE 2012 Summit™ All GRP Swingback Step Manufactured from Glass Reinforced Plastic (GRP) stiles and fitted with GRP treads to make a rigid Next Day lightweight construction that will give lasting service in the toughest conditions. The serrated solid rubber feet and all GRP construction make these steps safe for use in all environments where minimum metal content is required. Our All GRP steps have excellent chemical and corrosion resistance and unmatched impact resistance providing long term durability in demanding environments. They are insulated and non-conductive when in use reducing electrical and thermal hazards. They are also have a good level of electronic transparency which means that they are less likely to affect electromagnetic or radio frequencies and are especially useful where clean environments in the medical, computer or food industries are necessary as GRP does not attract dirt. I nsulated to 25,000 volts D eep grooved glass fibre treads L arge anti-slip rubber feet 5 -year warranty 1 50kg work load capacity E N131 BUILT IN TOOL TRAY Code Description OPEN CLOSED OPEN Weight HEIGHT HEIGHT FOOTPRINT 1237-004 4 Tread All GRP 1.00m 1.05m 0.46m x 0.90m 5.5kg 1237-006 6 Tread All GRP 1.50m 1.55m 0.52m x 1.05m 8.0kg 1237-008 8 Tread All GRP 2.00m 2.05m 0.59m x 1.42m 10.5kg 1237-010 10 Tread All GRP 2.50m 2.55m 0.65m x 1.94m 13.0kg Number of treads includes the top platform ALL GRP STILES TREADS for orders enquiries call: 029 2071 3000 31

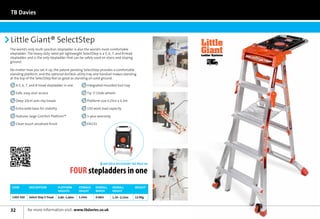

TB Davies Little Giant® SelectStep Little Giant ® The world’s only multi-position stepladder is also the world’s most comfortable stepladder. The heavy duty rated yet lightweight SelectStep is a 5, 6, 7, and 8 tread Ladder Systems stepladder, and is the only stepladder that can be safely used on stairs and sloping Next ground. Day No matter how you set it up, the patent-pending SelectStep provides a comfortable standing platform, and the optional AirDeck utility tray and handrail makes standing at the top of the SelectStep feel as good as standing on solid ground. A 5, 6, 7, and 8-tread stepladder in one Integrated moulded tool tray Safe, easy stair access Tip ‘n’ Glide wheels Deep 10cm anti-slip treads Platform size 0.25m x 0.3m Extra wide base for stability 150 work load capacity Features large Comfort Platform™ 1-year warranty Clean touch anodised finish EN131 AIR DECK ACCESSORY SEE PAGE 66 FOUR stepladders in one Code Description Platform Storage overall Overall Weight Heights Height width Height 1303-350 Select Step 5 Tread 0.80–1.60m 1.54m 0.68m 1.35–2.15m 12.0kg 32 for more information visit: www.tbdavies.co.uk

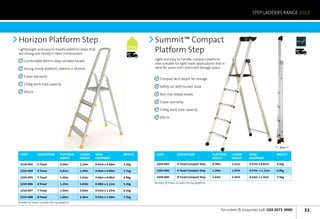

STEP LADDERS RANGE 2012 Horizon Platform Step Summit™ Compact Lightweight and easy to handle platform steps that are strong and sturdy in their construction. Next Day Platform Step Next Day Comfortable 80mm deep serrated treads Light and easy to handle, compact platform step suitable for light trade applications that is Strong sturdy platform 264mm x 262mm ideal for areas with restricted storage space. 3-year warranty Compact 8cm depth for storage 150kg work load capacity Safety rail with bucket hook EN131 Non-slip ribbed treads 3-year warranty 150kg work load capacity EN131 4 8cm 3 Code Description Platform Closed OPEN WEIGHT Code Description Platform Closed Open Weight Height Height FOOTPRINT Height Height Footprint 1210-003 3 Tread 0.59m 1.19m 0.41m x 0.66m 3.2kg 1204-004 4 Tread Compact Step 0.78m 1.51m 0.53m x 0.81m 4.5kg 1210-004 4 Tread 0.81m 1.49m 0.44m x 0.80m 3.7kg 1204-006 6 Tread Compact Step 1.20m 1.97m 0.57m x 1.11m 6.0kg 1210-005 5 Tread 1.02m 1.62m 0.46m x 0.96m 4.5kg 1204-008 8 Tread Compact Step 1.63m 2.43m 0.62m x 1.42m 7.5kg 1210-006 6 Tread 1.23m 1.83m 0.48m x 1.11m 5.2kg Number of treads includes the top platform 1210-007 7 Tread 1.44m 2.04m 0.51m x 1.25m 6.3kg 1210-008 8 Tread 1.66m 2.26m 0.53m x 1.40m 7.3kg Number of treads includes the top platform for orders enquiries call: 029 2071 3000 33

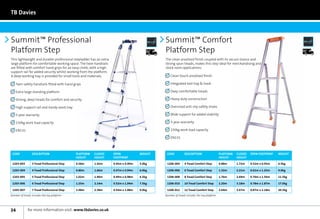

TB Davies Summit™ Professional Summit™ Comfort Platform Step Next Day Platform Step Next Day This lightweight and durable professional stepladder has an extra The clean anodised finish coupled with its secure stance and large platform for comfortable working space. The twin handrails strong spun treads, makes this step ideal for merchandising and are fitted with comfort hand grips for an easy climb, with a high stock room applications. support rail for added security whilst working from the platform. A deep working tray is provided for small tools and materials. Clean touch anodised finish Twin safety handrails fitted with hand grips Integrated tool tray hook Extra large standing platform Deep comfortable treads Strong, deep treads for comfort and security Heavy duty construction High support rail and handy work tray Oversized anti-slip safety shoes 5-year warranty Wide support for added stability 150kg work load capacity 5-year warranty EN131 150kg work load capacity EN131 Code Description Platform Closed OPEN Weight Code Description Platform Closed OPEN FOOTPRINT Weight Height Height FOOTPRINT Height Height 1203-003 3 Tread Professional Step 0.58m 1.42m 0.45m x 0.90m 5.0kg 1206-004 4 Tread Comfort Step 0.88m 1.72m 0.52m x 0.95m 6.5kg 1203-004 4 Tread Professional Step 0.80m 1.66m 0.47m x 0.94m 6.0kg 1206-006 6 Tread Comfort Step 1.32m 2.21m 0.61m x 1.25m 9.0kg 1203-005 5 Tread Professional Step 1.02m 1.90m 0.49m x 0.98m 6.5kg 1206-008 8 Tread Comfort Step 1.76m 2.69m 0.70m x 1.56m 11.5kg 1203-006 6 Tread Professional Step 1.25m 2.14m 0.52m x 1.04m 7.5kg 1206-010 10 Tread Comfort Step 2.20m 3.18m 0.78m x 1.87m 17.0kg 1203-007 7 Tread Professional Step 1.48m 2.38m 0.54m x 1.08m 9.0kg 1206-012 12 Tread Comfort Step 2.64m 3.67m 0.87m x 2.18m 20.5kg Number of treads includes the top platform Number of treads includes the top platform 34 for more information visit: www.tbdavies.co.uk

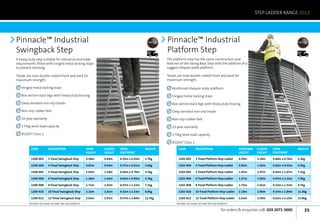

STEP LADDER RANGE 2012 Pinnacle™ Industrial Pinnacle™ Industrial Swingback Step Next Day Platform Step Next Day A heavy duty step suitable for industrial and trade The platform step has the same construction and requirements fitted with hinged metal locking stays features of the Swing Back Step with the addition of a to prevent twisting. rugged chequer-plate platform. Treads are now double riveted front and back for Treads are now double riveted front and back for maximum strength. maximum strength. Hinged metal locking stays Reinforced chequer-plate platform Box section back legs with heavy duty bracing Hinged metal locking stays Deep serrated non-slip treads Box section back legs with heavy duty bracing Non-slip rubber feet Deep serrated non-slip treads 10-year warranty Non-slip rubber feet 175kg work load capacity 10-year warranty BS2037 Class 1 175kg work load capacity BS2037 Class 1 Code Description Open Closed OPEN Weight Code Description Platform Closed OPEN Weight Height Height FOOTPRINT Height Height FOOTPRINT 1200-003 3 Tread Swingback Step 0.58m 0.69m 0.35m x 0.45m 2.7kg 1202-003 3 Tread Platform Step Ladder 0.59m 1.18m 0.40m x 0.76m 5.3kg 1200-004 4 Tread Swingback Step 0.81m 0.93m 0.37m x 0.61m 3.6kg 1202-004 4 Tread Platform Step Ladder 0.82m 1.42m 0.42m x 0.92m 6.2kg 1200-005 5 Tread Swingback Step 1.03m 1.18m 0.40m x 0.76m 4.5kg 1202-005 5 Tread Platform Step Ladder 1.05m 1.47m 0.45m x 1.07m 7.1kg 1200-006 6 Tread Swingback Step 1.26m 1.42m 0.42m x 0.92m 5.3kg 1202-006 6 Tread Platform Step Ladder 1.27m 1.92m 0.47m x 1.22m 7.9kg 1200-008 8 Tread Swingback Step 1.71m 1.92m 0.47m x 1.22m 7.1kg 1202-008 8 Tread Platform Step Ladder 1.72m 2.41m 0.52m x 1.53m 9.7kg 1200-010 10 Tread Swingback Step 2.16m 2.41m 0.52m x 1.53m 8.8kg 1202-010 10 Tread Platform Step Ladder 2.18m 2.90m 0.57m x 1.84m 11.4kg 1200-012 12 Tread Swingback Step 2.62m 2.91m 0.57m x 1.84m 12.3kg 1202-012 12 Tread Platform Step Ladder 2.63m 3.39m 0.61m x 2.15m 15.8kg Number of treads includes the top platform Number of treads includes the top platform for orders enquiries call: 029 2071 3000 35

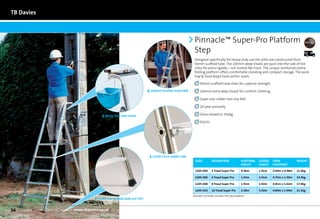

TB Davies Pinnacle™ Super-Pro Platform Step Next Day Designed specifically for heavy-duty use the stiles are constructed from 50mm scaffold tube. The 100mm deep treads are spun into the side of the stiles for extra rigidity – not riveted like most. The unique reinforced centre folding platform offers comfortable standing and compact storage. The work tray hook keeps tools within reach. 50mm scaffold tube stiles for superior strength UNIQUE FOLDING PLATFORM 100mm extra deep treads for comfort climbing Super-size rubber non-slip feet 10-year warranty WORK TRAY AND HOOK Stress tested to 350kg EN131 EXTRA THICK 50mm TUbe Code Description Platform Closed OPEN Weight Height Height FOOTPRINT 1205-004 4 Tread Super Pro 0.96m 1.91m 0.69m x 0.98m 11.0kg 1205-006 6 Tread Super Pro 1.43m 2.41m 0.75m x 1.30m 14.5kg 1205-008 8 Tread Super Pro 1.91m 2.92m 0.81m x 1.62m 17.0kg 1205-010 10 Tread Super Pro 2.38m 3.42m 0.84m x 1.94m 21.5kg Number of treads includes the top platform Super-size rubber non-slip feet 36 for more information visit: www.tbdavies.co.uk

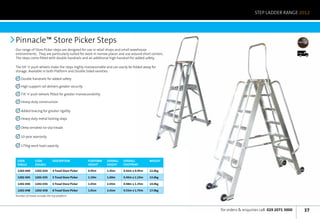

STEP LADDER RANGE 2012 Pinnacle™ Store Picker Steps Our range of Store Picker steps are designed for use in retail shops and small warehouse environments. They are particularly suited for work in narrow places and use around short corners. 7 Days The steps come fitted with double handrails and an additional high handrail for added safety. The tilt ‘n’ push wheels make the steps highly manoeuvrable and can easily be folded away for storage. Available in both Platform and Double Sided varieties. Double handrails for added safety High support rail delivers greater security Tilt ‘n’ push wheels fitted for greater manoeuvrability Heavy-duty construction Added bracing for greater rigidity Heavy duty metal locking stays Deep serrated no-slip treads 10-year warranty 175kg work load capacity Code Code Description Platform Overall OVERALL Weight Single Double Height Height FOOTPRINT 1202-044 1202-034 4 Tread Store Picker 0.95m 1.45m 0.42m x 0.95m 12.0kg 1202-045 1202-035 5 Tread Store Picker 1.19m 1.69m 0.45m x 1.15m 13.0kg 1202-046 1202-036 6 Tread Store Picker 1.43m 2.03m 0.48m x 1.35m 14.0kg 1202-048 1202-038 8 Tread Store Picker 1.91m 2.41m 0.53m x 1.75m 17.0kg Number of treads includes the top platform for orders enquiries call: 029 2071 3000 37

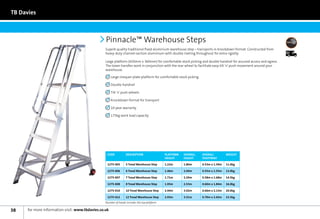

TB Davies Pinnacle™ Warehouse Steps Superb quality traditional fixed aluminium warehouse step—transports in knockdown format. Constructed from Next heavy-duty channel-section aluminium with double riveting throughout for extra rigidity. Day Large platform (450mm x 360mm) for comfortable stock picking and double handrail for assured access and egress. The lower handles work in conjunction with the rear wheel to facilitate easy tilt ‘n’ push movement around your warehouse. Large chequer-plate platform for comfortable stock picking Double handrail Tilt ‘n’ push wheels Knockdown format for transport 10-year warranty 175kg work load capacity Code Description Platform Overall OVERALL Weight Height Height FOOTPRINT 1275-005 5 Tread Warehouse Step 1.22m 1.80m 0.53m x 1.39m 11.0kg 1275-006 6 Tread Warehouse Step 1.46m 2.04m 0.55m x 1.55m 13.0kg 1275-007 7 Tread Warehouse Step 1.71m 2.29m 0.58m x 1.68m 14.5kg 1275-008 8 Tread Warehouse Step 1.95m 2.53m 0.60m x 1.84m 16.0kg 1275-010 10 Tread Warehouse Step 2.44m 3.02m 0.66m x 2.13m 20.0kg 1275-012 12 Tread Warehouse Step 2.93m 3.51m 0.70m x 2.42m 23.5kg Number of treads includes the top platform 38 for more information visit: www.tbdavies.co.uk

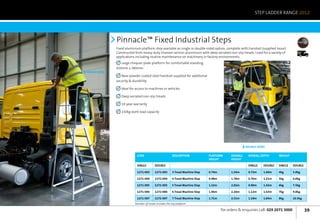

STEP LADDER RANGE 2012 Pinnacle™ Fixed Industrial Steps Fixed aluminium platform step available as single or double-sided option, complete with handrail (supplied loose). Constructed from heavy-duty channel section aluminium with deep serrated non-slip treads. Used for a variety of Next Day applications including routine maintenance on machinery in factory environments. Large chequer-plate platform for comfortable standing 420mm x 380mm SINGLE SIDED New powder coated steel handrail supplied for additional security durability Ideal for access to machines or vehicles Deep serrated non-slip treads 10-year warranty 150kg work load capacity DOUBLE SIDED Code Description Platform Overall Overall Depth Weight Height Height Single Double Single Double Single Double 1271-003 1272-003 3 Tread Machine Step 0.74m 1.54m 0.72m 1.00m 4kg 5.0kg 1271-004 1272-004 4 Tread Machine Step 0.98m 1.78m 0.76m 1.21m 5kg 6.0kg 1271-005 1272-005 5 Tread Machine Step 1.22m 2.02m 0.90m 1.42m 6kg 7.5kg 1271-006 1272-006 6 Tread Machine Step 1.46m 2.26m 1.12m 1.63m 7kg 9.0kg 1271-007 1272-007 7 Tread Machine Step 1.71m 2.51m 1.18m 1.84m 8kg 10.5kg Number of treads includes the top platform for orders enquiries call: 029 2071 3000 39
TB Davies STEP LADDER RANGE 2012 Pinnacle™ Stable Steps Pinnacle™ Cargo Steps Single-sided fixed steps that provide stable and comfortable The Cargo Step is the safer alternative to access goods vehicle trailers. Two sizes Next Next access to a range of apparatus in industry environments. Day cover a range of trailer heights up to 1.4m. Constructed from tough industrial Day strength aluminium ladder section with a chequer plate platform that grips the Deep serrated non-slip treads trailer. Platform size 500mm x 250mm Single folding handrail for safe access on and off trailer 10-year warranty Complete with brackets and lock for secure vehicle 150kg work load capacity storage Max height - 1.17m Step heights adjust to accommodate varying ground and load heights Integral tie for securing to underside of vehicle 5-year warranty 150kg work load capacity Code Description Platform Footprint Weight Height 1271-061 1 Tread Stable Step 0.20m 0.26m x 0.53m 2.7kg Code Desc. MIN MAX OVERALL OVERALL RUNG Weight 1271-062 2 Tread Stable Step 0.40m 0.53m x 0.64m 5.7kg HEIGHT HEIGHT HEIGHT WIDTH 1271-063 3 Tread Stable Step 0.60m 0.76m x 0.64m 8.9kg 1206-050 Cargo 1 0.95m 1.17m 2.13m 0.48m 4 7.0kg 1271-064 4 Tread Stable Step 0.80m 0.99m x 0.64m 12kg 1206-051 Cargo 2 1.17m 1.40m 2.53m 0.48m 5 8.0kg Number of treads includes the top platform 40 for more information visit: www.tbdavies.co.uk

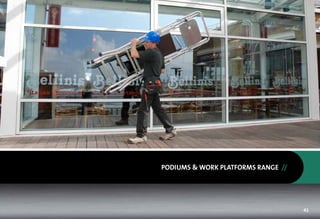

PODIUMS WORK PLATFORMS RANGE // 41

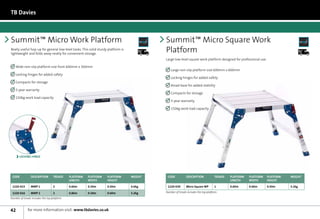

TB Davies Summit™ Micro Work Platform Summit™ Micro Square Work Really useful hop-up for general low-level tasks. This solid sturdy platform is lightweight and folds away neatly for convenient storage. Next Day Platform Next Day Large low-level square work platform designed for professional use. Wide non-slip platform size from 600mm x 300mm Large non-slip platform size 600mm x 600mm Locking hinges for added safety Locking hinges for added safety Compacts for storage Broad base for added stability 5-year warranty Compacts for storage 150kg work load capacity 5-year warranty 150kg work load capacity LOCKING HINGE Code Description TREADS Platform platform PLATFORM WEIGHT Code Description TREADS Platform PLATFORM PLATFORM WEIGHT length width HEIGHT LENGTH WIDTH HEIGHT 1220-015 MWP 1 2 0.60m 0.30m 0.50m 4.6kg 1220-030 Micro Square WP 1 0.60m 0.60m 0.50m 5.2kg 1220-016 MWP 2 2 0.86m 0.30m 0.60m 5.2kg Number of treads includes the top platform Number of treads includes the top platform 42 for more information visit: www.tbdavies.co.uk

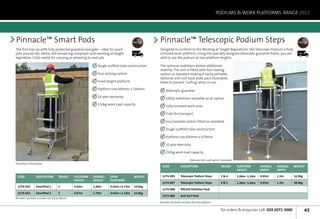

PODIUMS WORK PLATFORMS RANGE 2012 Pinnacle™ Smart Pods Pinnacle™ Telescopic Podium Steps The first hop-up with fully protected guardrail and gate—ideal for quick Designed to conform to the Working at Height Regulations, the Telescopic Podium is fully jobs around site, whilst still remaining compliant with working at height 7 Days enclosed work platform. Using the specially designed telescopic guardrail frame, you are 7 Days legislation. Folds neatly for carrying or wheeling to next job. able to use the podium at two platform heights. Tough scaffold tube construction The optional stabilisers deliver additional stability. The unit is fitted with four locking Four locking castors castors as standard making it easily portable. Optional anti-surf base plate pack illustrated, Fixed height platform helps to prevent ‘surfing’ when in use. Platform size 600mm x 540mm Telescopic guardrail 10-year warranty Safety stabilisers available as an option 150kg work load capacity Fully enclosed work zone Folds for transport Four lockable castors fitted as standard Tough scaffold tube construction Platform size 600mm x 670mm 10 year warranty 250kg work load capacity Optional Anti-surf option illustrated SmartPod 2 Illustrated Code Description TREADS Platform Overall Overall WEIGHT Height width depth Code Description TREADS Platform Overall OPEN WEIGHT 1274-085 Telescopic Podium Steps 34 1.00m–1.20m 0.65m 1.2m 32.0kg Height Height FOOTPRINT 1274-087 Telescopic Podium Steps 45 1.20m–1.45m 0.65m 1.2m 38.0kg 1274-052 SmartPod 1 1 0.42m 1.40m 0.65m x 0.73m 19.0kg 1274-088 PAS250 Stabiliser Pack 1274-053 SmartPod 2 2 0.67m 1.70m 0.65m x 1.10m 23.0kg 1274-086 Anti Surf Pack Number of treads includes the top platform Number of treads includes the top platform for orders enquiries call: 029 2071 3000 43
TB Davies PODIUMS WORK PLATFORMS RANGE 2012 Pinnacle™ Midi Work Platform Summit™ Sherpascopic Providing the user with a high handrail incorporating a clip on chain “gate” Range-topping work platforms with enclosed safe work zone. Sherpascopic has Next which completes the full surrounding guardrail system. Folds for easy Next Day adjustable legs and outriggers that telescope for increased versatility and stability, Day transport and distribution and fabricated from industrial strength channel enabling work on uneven surfaces and staircases. The 250mm spaced, 80mm deep section material. treads afford comfortable climbing—much like a traditional stepladder, but with the added safety features. Extra wide working platform Large, deep serrated treads Safe fully enclosed work zone with High handrails to both sides back guardrail and toe boards Clip on/off Chain for entry/exit Adjustable for work on uneven ground 2 rear wheels for effortless manoeuvrability Safety outriggers provide extra large footprint Folds for storage transportation Integrated tool tray 10-year warranty Working height up to 4.23m 150kg work load capacity One person operation Tip ‘n’ push wheels for easy on site movement Platform size 600mm x 420mm 5-year warranty 150kg work load capacity Code DESC. Platform Closed WIDTH Weight height Height PIR NFP 93 352 PIRL NFP 93 353 1274-203 3 Tread 0.71m 1.83m 0.73m 15.0kg Code Description Platform CLOSED OPEN FOOTPRINT* Weight Height HEIGHT 1274-204 4 Tread 0.95m 2.08m 0.77m 16.0kg 1274-013 4–6 Tread Sherpascopic 1.06m–1.52m 2.38m 2.15m x 1.39–1.73m 30.0kg 1274-205 5 Tread 1.18m 2.34m 0.83m 18.0kg 1274-014 7–9 Tread Sherpascopic 1.77m–2.23m 3.13m 2.3-2.9m x 1.91–2.24m 36.0kg 1274-206 6 Tread 1.42m 2.59m 0.88m 19.0kg Number of treads includes the top platform 44 for more information visit: www.tbdavies.co.uk
MOBILE SAFETY STEPS RANGE // 45

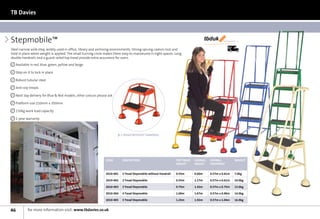

TB Davies Stepmobile™ tbduk We’ll make you fly Next Steel narrow aisle step, widely used in office, library and archiving environments. Strong sprung castors lock and Day hold in place when weight is applied. The small turning circle makes them easy to manoeuvre in tight spaces. Long double handrails and a guard railed top tread provide extra assurance for users. Available in red, blue, green, yellow and beige Step on it to lock in place Robust tubular steel Anti-slip treads Next day delivery for Blue Red models, other colours please ask Platform size 210mm x 350mm 150kg work load capacity 1-year warranty 2 TREAD WITHOUT HANDRAIL Code Description Top Tread Overall OVERALL Weight Height Height FOOTPRINT 2010-001 2 Tread Stepmobile without Handrail 0.55m 0.60m 0.57m x 0.61m 7.0kg 2010-002 2 Tread Stepmobile 0.55m 1.17m 0.57m x 0.61m 10.0kg 2010-003 3 Tread Stepmobile 0.75m 1.42m 0.57m x 0.75m 13.0kg 2010-004 4 Tread Stepmobile 1.00m 1.67m 0.57m x 0.90m 14.0kg 2010-005 5 Tread Stepmobile 1.25m 1.92m 0.57m x 1.04m 16.0kg 46 for more information visit: www.tbdavies.co.uk

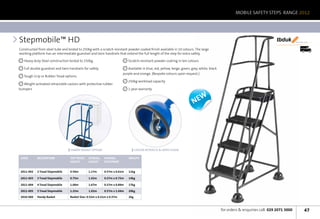

MOBILE SAFETY STEPS RANGE 2012 Stepmobile™ HD tbduk We’ll make you fly Constructed from steel tube and tested to 250kg with a scratch resistant powder coated finish available in 10 colours. The large 14 Days working platform has an intermediate guardrail and twin handrails that extend the full length of the step for extra safety. Heavy duty Steel construction tested to 250kg. Scratch-resistant powder coating in ten colours Full double guardrail and twin handrails for safety. Available in blue, red, yellow, beige, green, grey, white, black purple and orange. (Bespoke colours upon request.) Tough Grip or Rubber Tread options. 250kg workload capacity Weight-activated retractable castors with protective rubber bumpers 1-year warranty New HANDY BASKET OPTION CASTOR RETRACTS GRIPS FLOOR Code Description Top Tread Overall OVERALL Weight Height Height FOOTPRINT 2011-002 2 Tread Stepmobile 0.50m 1.17m 0.57m x 0.61m 11kg 2011-003 3 Tread Stepmobile 0.75m 1.42m 0.57m x 0.75m 14kg 2011-004 4 Tread Stepmobile 1.00m 1.67m 0.57m x 0.89m 17kg 2011-005 5 Tread Stepmobile 1.25m 1.92m 0.57m x 1.04m 20kg 2010-060 Handy Basket Basket Size: 0.52m x 0.21m x 0.37m 2kg for orders enquiries call: 029 2071 3000 47

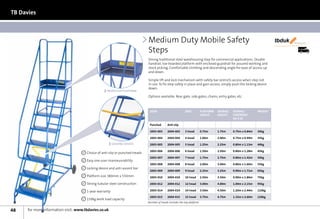

TB Davies Medium Duty Mobile Safety tbduk We’ll make you fly Steps 21 Days Strong traditional steel warehousing step for commercial applications. Double handrail, toe-boarded platform with enclosed guardrail for assured working and stock picking. Comfortable climbing and descending angle for ease of access up and down. Simple lift and lock mechanism with safety bar restricts access when step not in use. To fix step safely in place and gain access, simply push the locking device down. PROTECTED PLATFORM Options available: Rear gate, side gates, chains, entry gates, etc. Code DesC. Platform Overall OVERALL Weight Height Height FOOTPRINT (W x d) Punched Anti-slip 2003-003 2004-003 3 tread 0.75m 1.75m 0.75m x 0.84m 30kg 2003-004 2004-004 4 tread 1.00m 2.00m 0.75m x 0.99m 35kg LOCKING DEVICE 2003-005 2004-005 5 tread 1.25m 2.25m 0.80m x 1.13m 40kg 2003-006 2004-006 6 tread 1.50m 2.50m 0.80m x 1.28m 45kg Choice of anti-slip or punched treads 2003-007 2004-007 7 tread 1.75m 2.75m 0.80m x 1.42m 50kg Easy one-user manoeuvrability 2003-008 2004-008 8 tread 2.00m 3.00m 0.80m x 1.60m 55kg Locking device and anti-ascent bar 2003-009 2004-009 9 tread 2.25m 3.25m 0.90m x 1.71m 65kg Platform size 380mm x 550mm 2003-010 2004-010 10 tread 2.50m 3.50m 0.90m x 1.86m 75kg Strong tubular steel construction 2003-012 2004-012 12 tread 3.00m 4.00m 1.00m x 2.15m 95kg 1-year warranty 2003-014 2004-014 14 tread 3.50m 4.50m 1.20m x 2.44m 110kg 2003-015 2004-015 15 tread 3.75m 4.75m 1.32m x 2.60m 120kg 150kg work load capacity Number of treads includes the top platform 48 for more information visit: www.tbdavies.co.uk

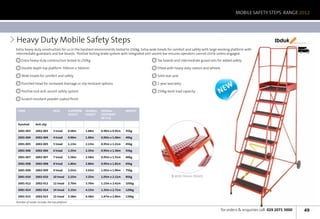

MOBILE SAFETY STEPS RANGE 2012 Heavy Duty Mobile Safety Steps tbduk We’ll make you fly Extra heavy-duty construction for us in the harshest environments tested to 250kg. Extra wide treads for comfort and safety with large working platform with 21 Days intermediate guardrails and toe boards. Positive locking brake system with integrated anti-ascent bar ensures operators cannot climb unless engaged. Extra heavy-duty construction tested to 250kg Toe boards and intermediate guard rails for added safety Double depth top platform 700mm x 560mm Fitted with heavy duty castors and wheels Wide treads for comfort and safety Solid rear axle Punched tread for increased drainage or slip resistant options 1-year warranty Positive lock anti-ascent safety system 250kg work load capacity New Scratch resistant powder coated finish Code DesC. Platform Overall OVERALL Weight Height Height FOOTPRINT (W x D) Punched Anti-slip 2001-003 2002-003 3 tread 0.68m 1.68m 0.90m x 0.91m 35kg 2001-004 2002-004 4 tread 0.90m 1.90m 0.90m x 1.06m 40kg 2001-005 2002-005 5 tread 1.13m 2.13m 0.95m x 1.21m 45kg 2001-006 2002-006 6 tread 1.35m 2.35m 0.95m x 1.36m 55kg 2001-007 2002-007 7 tread 1.58m 2.58m 0.95m x 1.51m 60kg 2001-008 2002-008 8 tread 1.80m 2.80m 0.95m x 1.81m 65kg 2001-009 2002-009 9 tread 2.03m 3.03m 1.05m x 1.96m 75kg 2001-010 2002-010 10 tread 2.25m 3.25m 1.05m x 2.11m 85kg WIDE 700mm TREADS 2001-012 2002-012 12 tread 2.70m 3.70m 1.15m x 2.41m 105kg 2001-014 2002-014 14 tread 3.15m 4.15m 1.35m x 2.71m 120kg 2001-015 2002-015 15 tread 3.38m 4.38m 1.47m x 2.86m 130kg Number of treads includes the top platform for orders enquiries call: 029 2071 3000 49

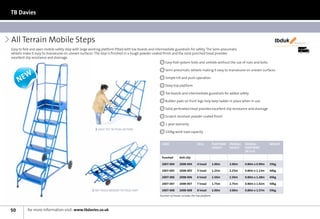

TB Davies All Terrain Mobile Steps tbduk We’ll make you fly Easy to fold and open mobile safety step with large working platform fitted with toe boards and intermediate guardrails for safety. The Semi-pneumatic 21 Days wheels make it easy to manoeuvre on uneven surfaces. The step is finished in a tough powder coated finish and the solid punched tread provides excellent slip resistance and drainage. Easy-fold system folds and unfolds without the use of nuts and bolts Semi-pneumatic wheels making it easy to manoeuvre on uneven surfaces New Simple tilt and push operation Deep top platform Toe boards and intermediate guardrails for added safety Rubber pads on front legs help keep ladder in place when in use Solid perforated tread provides excellent slip resistance and drainage Scratch resistant powder coated finish 1-year warranty EASY TILT ‘N’ PUSH ACTION 150kg work load capacity Code DesC. Platform Overall OVERALL Weight Height Height FOOTPRINT (w x D) Punched Anti-slip 2007-004 2008-004 4 tread 1.00m 2.00m 0.80m x 0.99m 35kg 2007-005 2008-005 5 tread 1.25m 2.25m 0.80m x 1.13m 40kg 2007-006 2008-006 6 tread 1.50m 2.50m 0.80m x 1.28m 45kg 2007-007 2008-007 7 tread 1.75m 2.75m 0.80m x 1.42m 50kg NO TOOLS NEEDED TO FOLD UNIT 2007-008 2008-008 8 tread 2.00m 3.00m 0.80m x 1.57m 55kg Number of treads includes the top platform 50 for more information visit: www.tbdavies.co.uk

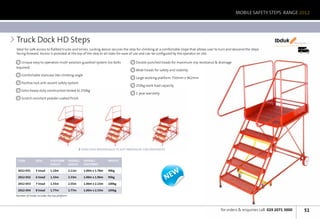

MOBILE SAFETY STEPS RANGE 2012 Truck Dock HD Steps tbduk We’ll make you fly Ideal for safe access to flatbed trucks and lorries. Locking device secures the step for climbing at a comfortable slope that allows user to turn and descend the steps 21 Days facing forward. Access is provided at the top of the step to all sides for ease of use and can be configured by the operator on site. Unique easy to operation multi-position guardrail system (no bolts Double punched treads for maximum slip resistance drainage required) Wide treads for safety and stability Comfortable staircase like climbing angle Large working platform 750mm x 962mm Positive lock anti-ascent safety system 250kg work load capacity Extra heavy duty construction tested to 250kg 1-year warranty Scratch resistant powder coated finish SIDES FOLD INDIVIDUALLY TO SUIT INDIVIDUAL CIRCUMSTANCES Code DesC. Platform Overall OVERALL Weight Height Height FOOTPRINT 2012-051 5 tread 1.10m 2.11m 1.00m x 1.78m 90kg 2012-052 6 tread 1.33m 2.33m 1.00m x 1.96m 95kg New 2012-053 7 tread 1.55m 2.55m 1.00m x 2.15m 100kg 2012-054 8 tread 1.77m 2.77m 1.00m x 2.33m 105kg Number of treads includes the top platform for orders enquiries call: 029 2071 3000 51

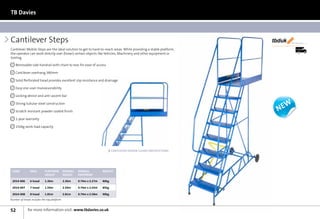

TB Davies Cantilever Steps tbduk We’ll make you fly Cantilever Mobile Steps are the ideal solution to get to hard-to-reach areas. While providing a stable platform, 21 Days the operator can work directly over (hover) certain objects like Vehicles, Machinery and other equipment or tooling. Removable side handrail with chain to rear for ease of access Cantilever overhang 380mm Solid Perforated tread provides excellent slip resistance and drainage Easy one-user manoeuvrability Locking device and anti-ascent bar Strong tubular steel construction Scratch resistant powder coated finish New 1-year warranty 150kg work load capacity CANTILEVER DESIGN CLEARS OBSTRUCTIONS Code DesC. Platform Overall OVERALL Weight Height Height FOOTPRINT 2014-006 6 tread 1.36m 2.36m 0.74m x 2.27m 80kg 2014-007 7 tread 1.59m 2.59m 0.74m x 2.43m 85kg 2014-008 8 tread 1.81m 2.81m 0.74m x 2.58m 90kg Number of treads includes the top platform 52 for more information visit: www.tbdavies.co.uk

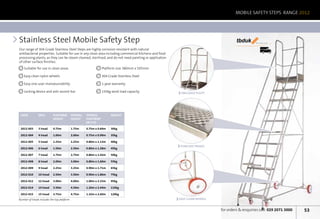

MOBILE SAFETY STEPS RANGE 2012 Stainless Steel Mobile Safety Step tbduk We’ll make you fly Our range of 304 Grade Stainless Steel Steps are highly corrosion resistant with natural 21 Days antibacterial properties. Suitable for use in any clean area including commercial kitchens and food processing plants, as they can be steam cleaned, sterilised, and do not need painting or application of other surface finishes. Suitable for use in clean areas Platform size 380mm x 505mm Easy clean nylon wheels 304 Grade Stainless Steel Easy one-user manoeuvrability 1-year warranty Locking device and anti-ascent bar 150kg work load capacity ENCLOSED PULPIT Code DesC. Platform Overall OVERALL Weight Height Height FOOTPRINT (W x d) 2012-003 3 tread 0.75m 1.75m 0.75m x 0.84m 30kg 2012-004 4 tread 1.00m 2.00m 0.75m x 0.99m 35kg 2012-005 5 tread 1.25m 2.25m 0.80m x 1.13m 40kg PUNCHED TREADS 2012-006 6 tread 1.50m 2.50m 0.80m x 1.28m 45kg 2012-007 7 tread 1.75m 2.75m 0.80m x 1.42m 50kg 2012-008 8 tread 2.00m 3.00m 0.80m x 1.60m 55kg 2012-009 9 tread 2.25m 3.25m 0.90m x 1.71m 65kg 2012-010 10 tread 2.50m 3.50m 0.90m x 1.86m 75kg 2012-012 12 tread 3.00m 4.00m 1.00m x 2.15m 95kg 2012-014 14 tread 3.50m 4.50m 1.20m x 2.44m 110kg 2012-015 15 tread 3.75m 4.75m 1.32m x 2.60m 120kg Number of treads includes the top platform EASY CLEAN WHEELS for orders enquiries call: 029 2071 3000 53

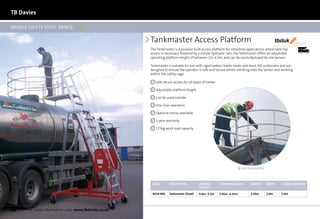

TB Davies MOBILE SAFETY STEPS RANGE 2012 Tankmaster Access Platform tbduk We’ll make you fly The Tankmaster is a purpose built access platform for industrial applications where tank top 21 Days access is necessary. Powered by a simple hydraulic ram, the Tankmaster offers an adjustable operating platform height of between 3.0–4.5m, and can be easily deployed by one person. Tankmaster is suitable for use with rigid tankers, trailer tanks and most ISO containers and are designed to ensure the operator is safe and secure whilst climbing onto the tanker and working within the safety cage. Safe secure access for all types of tanker Adjustable platform height Can be used outside One man operation Optional extras available 1-year warranty 175kg work load capacity EASY SAFE ACCESS Code Description Overall Platform Height length WIDTH GUARD DIAMETER Height 4010-000 Tankmaster (Steel) 4.0m–5.5m 3.45m–4.35m 3.45m 2.0m 2.0m 54 for more information visit: www.tbdavies.co.uk

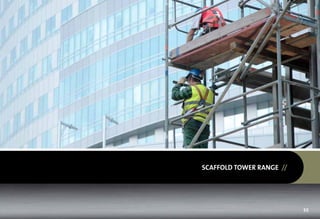

SCAFFOLD TOWER RANGE // 55

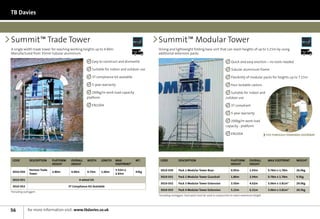

TB Davies Summit™ Trade Tower Summit™ Modular Tower A single width trade tower for reaching working heights up to 4.90m. Strong and lightweight folding base unit that can reach heights of up to 5.15m by using 7 Days 7 Days Manufactured from 35mm tubular aluminium. additional extension packs. Easy to construct and dismantle Quick and easy erection – no tools needed Suitable for indoor and outdoor use Tubular aluminium frame 3T compliance kit available Flexibility of modular packs for heights up to 7.15m 5-year warranty Four lockable castors 200kg/m work load capacity Suitable for indoor and platform outdoor use EN1004 3T compliant 5-year warranty 200kg/m work load capacity - platform EN1004 FITS THROUGH STANDARD DOORWAY Code Description Platform Overall width length MAX WT. Code Description Platform Overall MAX FOOTPRINT WEIGHT Height Height FOOTPRINT* Height Height Horizon Trade 3.52m x 3010-030 Pack 1 Modular Tower Base 0.95m 1.93m 0.78m x 1.78m 26.0kg 3010-050 2.80m 4.00m 0.74m 1.60m 43kg Tower 2.83m 3010-031 Pack 2 Modular Tower Guardrail 1.80m 2.94m 0.78m x 1.78m 9.5kg 3010-051 4-wheel kit 3010-032 Pack 3 Modular Tower Extension 3.50m 4.62m 3.06m x 3.81m* 29.0kg 3010-052 3T Compliance Kit Available 3010-033 Pack 4 Modular Tower Extension 5.15m 6.31m 3.06m x 3.81m* 20.5kg *Including outriggers *Including outriggers. Each pack must be used in conjunction to reach maximum height 56 for more information visit: www.tbdavies.co.uk

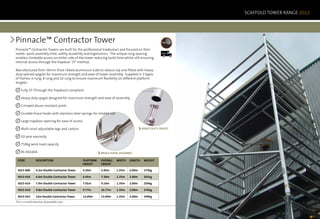

SCAFFOLD TOWER RANGE 2012 Pinnacle™ Contractor Tower Pinnacle™ Contractor Towers are built for the professional tradesman and focused on their needs: quick assembly time, safety, durability and ergonomics. The unique rung spacing 7 Days enables climbable access on either side of the tower reducing build time whilst still ensuring internal access through the trapdoor ‘3T’ method. Manufactured from 50mm thick ribbed aluminium tube to reduce slip and fitted with heavy- duty splined spigots for maximum strength and ease of tower assembly. Supplied in 3 types of frames, 6 rung, 8 rung and 10 rung to ensure maximum flexibility on different platform heights. Fully 3T (Through the Trapdoor) compliant Heavy duty spigot designed for maximum strength and ease of assembly Crimped abuse resistant joints Durable brace hooks with stainless steel springs for reliable use Large trapdoor opening for ease of access Multi-start adjustable legs and castors HEAVY DUTY SPIGOT 10-year warranty 750kg work load capacity BS EN1004 BRACE HOOK ASSEMBLY Code Description Platform Overall width length WEIGHT Height Height 3015-006 4.2m Double Contractor Tower 4.20m 5.45m 1.35m 2.00m 175kg 3015-010 6.0m Double Contractor Tower 6.05m 7.30m 1.35m 2.00m 201kg 3015-014 7.9m Double Contractor Tower 7.91m 9.16m 1.35m 2.00m 250kg 3015-018 9.8m Double Contractor Tower 9.77m 10.77m 1.35m 2.00m 276kg 3015-023 12m Double Contractor Tower 12.09m 13.09m 1.35m 2.00m 349kg This is a small selection of available sizes. for orders enquiries call: 029 2071 3000 57

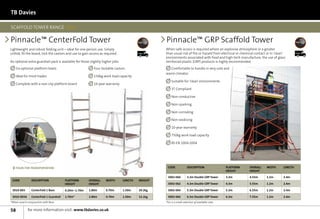

TB Davies SCAFFOLD TOWER RANGE 2012 Pinnacle™ CenterFold Tower Pinnacle™ GRP Scaffold Tower Lightweight and robust folding unit—ideal for one person use. Simply When safe access is required where an explosive atmosphere or a greater unfold, fit the board, lock the castors and use to gain access as required. 7 Days than usual risk of fire or hazard from electrical or chemical contact or in ‘clean’ 7 Days environments associated with food and high-tech manufacture, the use of glass An optional extra guardrail pack is available for those slightly higher jobs. reinforced plastic (GRP) products is highly recommended. Six optional platform levels Four lockable castors Comfortable to handle in very cold and warm climates Ideal for most trades 150kg work load capacity Suitable for ‘clean’ environments Complete with a non-slip platform board 10-year warranty 3T Compliant Non-conductive Non-sparking Non-corroding Non-oxidising 10-year warranty 750kg work load capacity BS EN 1004:2004 FOLDS FOR TRANSPORTATION Code Description Platform Overall width length Height Height 3002-060 3.3m Double GRP Tower 3.3m 4.55m 1.2m 2.4m Code Description Platform Overall width length Weight Height Height 3002-062 4.3m Double GRP Tower 4.3m 5.55m 1.2m 2.4m 3010-003 CenterFold 1 Base 0.20m–1.70m 1.80m 0.70m 1.50m 29.2kg 3002-064 5.3m Double GRP Tower 5.3m 6.55m 1.2m 2.4m 3010-003A CenterFold 1 Guardrail 1.70m* 2.80m 0.70m 1.50m 12.1kg 3002-066 6.3m Double GRP Tower 6.3m 7.55m 1.2m 2.4m *When used in conjunction with Base This is a small selection of available sizes. 58 for more information visit: www.tbdavies.co.uk
LOFT LADDER RANGE // 59

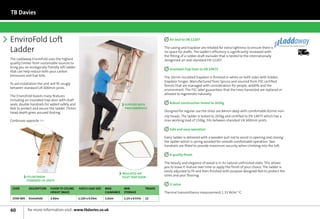

TB Davies EnviroFold Loft Air Seal to EN 12207 Laddaway Professional Loft Ladder Systems Ladder The casing and trapdoor are rebated for extra tightness to ensure there is no space for drafts. The ladder’s efficiency is significantly increased with Next Day the fitting of a rubber draft excluder that is tested to the internationally The Laddaway EnviroFold uses the highest recognised air-seal standard EN 12207. quality timber from sustainable sources to bring you an ecologically friendly loft ladder Insulated Trap Door to EN 14975 that can help reduce both your carbon emissions and fuel bills. The 26mm insulated trapdoor is finished in white on both sides with hidden trapdoor hinges. Manufactured from Spruce and sourced from FSC certified To aid installation the unit will fit snugly forests that are managed with consideration for people, wildlife and the between standard UK 600mm joists. environment. The FSC label guarantees that the trees harvested are replaced or allowed to regenerate naturally. The EnviroFold boasts many features including an insulated trap door with draft seals, double handrails for added safety and SUPPLIED WITH Robust construction tested to 265kg feet to protect and secure the ladder. 75mm TWO HANDRAILS tread depth gives assured footing. Designed for regular use the stiles are 84mm deep with comfortable 82mm non- slip treads. The ladder is tested to 265kg and certified to EN 14975 which has a Continues opposite max working load of 150kg. Fits between standard UK 600mm joists. Safe and easy operation Every ladder is delivered with a wooden pull rod to assist in opening and closing the ladder which is spring assisted for smooth comfortable operation. Two handrails are fitted to provide maximum security when climbing into the loft. A quality finish The beauty and elegance of wood is in its natural unfinished state. This allows you to leave it mature over time or apply the finish of your choice. The ladder is easily adjusted to fit and then finished with purpose designed feet to protect the INSULATED AIR FITS BETWEEN TIGHT TRAP DOOR stiles and your flooring. STANDARD UK JOISTS U value Code description floor to ceiling hatch Case size max. min. treads height (MAX) clearance storage Thermal transmittance measurement 1.33 W/m2 oC 1530-005 EnviroFold 2.82m 1.125 x 0.55m 1.61m 1.15 x 0.57m 12 60 for more information visit: www.tbdavies.co.uk

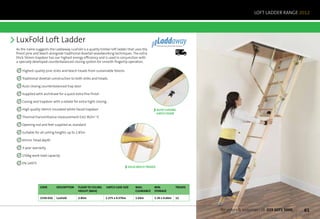

LOFT LADDER RANGE 2012 LuxFold Loft Ladder Laddaway Professional Loft Ladder Systems As the name suggests the Laddaway LuxFold is a quality timber loft ladder that uses the Next Day finest pine and beech alongside traditional dovetail woodworking techniques. The extra thick 56mm trapdoor has our highest energy efficiency and is used in conjunction with a specially developed counterbalanced closing system for smooth fingertip operation. Highest quality pine stiles and beech treads from sustainable forests Traditional dovetail construction to both stiles and treads Auto closing counterbalanced trap door Supplied with architrave for a quick extra fine finish Casing and trapdoor with a rebate for extra-tight closing High quality 56mm insulated white-faced trapdoor AUTO CLOSING HATCH DOOR Thermal transmittance measurement 0.62 W/m2 oC Opening rod and feet supplied as standard Suitable for all ceiling heights up to 2.85m 65mm Tread depth 3-year warranty 150kg work load capacity EN 14975 SOLID BEECH TREADS Code description floor to ceiling hatch Case size max. min. treads height (MAX) clearance storage 1530-010 LuxFold 2.85m 1.275 x 0.576m 1.64m 1.30 x 0.60m 12 for orders enquiries call: 029 2071 3000 61

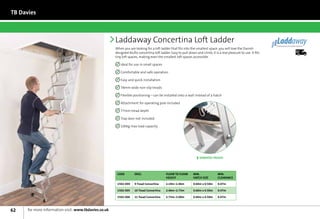

TB Davies Laddaway Concertina Loft Ladder Laddaway Professional Loft Ladder Systems When you are looking for a loft ladder that fits into the smallest space, you will love the Danish Next designed Alufix concertina loft ladder. Easy to pull down and climb, it is a real pleasure to use. It fits Day tiny loft spaces, making even the smallest loft spaces accessible. Ideal for use in small spaces Comfortable and safe operation Easy and quick installation 78mm wide non-slip treads Flexible positioning—can be installed onto a wall instead of a hatch Attachment for operating pole included 77mm tread depth Trap door not included 100kg max load capacity SERRATED TREADS Code Desc. floor to floor min. Min. height hatch size clearance 1502-004 9 Tread Concertina 2.19m–2.46m 0.60m x 0.50m 0.47m 1502-005 10 Tread Concertina 2.46m–2.73m 0.60m x 0.50m 0.47m 1502-006 11 Tread Concertina 2.73m–3.00m 0.60m x 0.50m 0.47m 62 for more information visit: www.tbdavies.co.uk

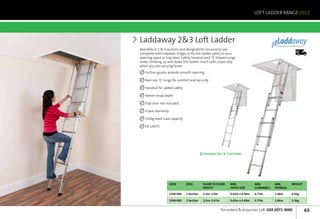

LOFT LADDER RANGE 2012 Laddaway 23 Loft Ladder Laddaway Professional Loft Ladder Systems Available in 2 3 sections and designed for occasional use. Next Day Complete with trapdoor hinges to fix the ladder safely to your opening space or trap door. Safety handrail and ‘D’ shaped rungs make climbing up and down this ladder much safer, especially when you are carrying boxes. Friction guides provide smooth opening Non-slip ‘D’ rungs for comfort and security Handrail for added safety 30mm tread depth Trap door not included 3-year warranty 150kg work load capacity EN 14975 AVAILABLE IN 2 3 SECTIONS Code Desc. floor to floor min. Min. min. weight height hatch size clearance storage 1500-006 3 Section 2.3m–3.0m 0.65m x 0.40m 0.73m 1.40m 6.5kg 1500-000 2 Section 2.2m–2.67m 0.65m x 0.40m 0.73m 1.66m 5.5kg for orders enquiries call: 029 2071 3000 63

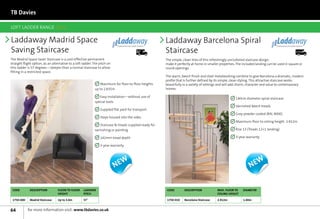

TB Davies LOFT LADDER RANGE 2012 Laddaway Madrid Space Laddaway Professional Loft Ladder Systems Laddaway Barcelona Spiral Laddaway Professional Loft Ladder Systems Saving Staircase Next Day Staircase 14 Days The Madrid Space Saver Staircase is a cost-effective permanent The simple, clean lines of this refreshingly uncluttered staircase design, straight flight option, as an alternative to a loft ladder. The pitch on make it perfectly at home in smaller properties. The included landing can be used in square or this ladder is 57 degrees—steeper than a normal staircase to allow round openings. fitting in a restricted space. The warm, beech finish and steel metalworking combine to give Barcelona a dramatic, modern profile that is further defined by its simple, clean styling. This attractive staircase works Maximum for floor-to-floor heights beautifully in a variety of settings and will add charm, character and value to contemporary up to 2.835m homes. Easy installation—without use of 140cm diameter spiral staircase special tools Varnished beech treads Supplied flat pack for transport Grey powder coated (RAL 9006) Steps housed into the sides Maximum floor to ceiling height: 2.912m Staircase treads supplied ready for varnishing or painting Rise 13 (Treads 12+1 landing) 142mm tread depth 3-year warranty 3-year warranty New New Code Description floor to floor Laddder Code Description max. floor to Diameter height Pitch ceiling height 1750-000 Madrid Staircase Up to 3.0m 57˚ 1750-010 Barcelona Staircase 2.912m 1.40m 64 for more information visit: www.tbdavies.co.uk
ACCESSORY RANGE // 65

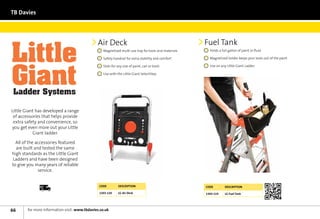

TB Davies Air Deck Fuel Tank Magnetised multi-use tray for tools and materials Holds a full gallon of paint or fluid Safety handrail for extra stability and comfort Magnetised holder keeps your tools out of the paint Slots for any size of paint, can or tools Use on any Little Giant Ladder Use with the Little Giant SelectStep Little Giant has developed a range of accessories that helps provide extra safety and convenience, so you get even more out your Little Giant ladder. All of the accessories featured are built and tested the same high standards as the Little Giant Ladders and have been designed to give you many years of reliable service. Next Day Code Description Code Description 1303-120 LG Air Deck 1303-119 LG Fuel Tank 66 for more information visit: www.tbdavies.co.uk
ACCESSORIES RANGE 2012 WingSpan Work Platform Leg Leveler Easier access to vertical work surfaces Comfortable standing platform Increased stability on uneven surfaces Wide contact points for lateral stability Use as a tray for paint or bucket 28cm of adjustment Use with Little Giant Classic or Pro Use with Little Giant Classic or Pro Use with Little Giant Classic or Pro Code Description Code Description Code Description 1303-112 LG Wing Span 1303-110 LG Work Platform 1303-111 LG Leg Leveler Only for use with Little Giant Classic or Pro Only for use with Little Giant Classic or Pro Only for use with Little Giant Classic or Pro for orders enquiries call: 029 2071 3000 67

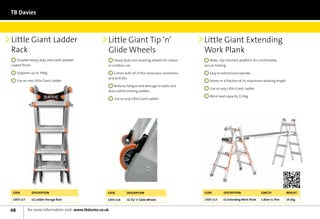

TB Davies Little Giant Ladder Little Giant Tip ‘n’ Little Giant Extending Rack Glide Wheels Work Plank Durable heavy-duty steel with powder Heavy duty non-marking wheels for indoor Wide, slip-resistant platform for comfortable, coated finish or outdoor use secure footing Supports up to 34Kg Comes with all of the necessary connectors Easy to extend and operate and drill bits Use on any Little Giant Ladder Stores in a fraction of its maximum working length Reduces fatigue and damage to walls and doors while moving ladders Use on any Little Giant Ladder Work load capacity 113kg Use on any Little Giant Ladder Code Description Code Description Code Description Length Weight 1303-117 LG Ladder Storage Rack 1303-116 LG Tip ‘n’ Glide Wheels 1303-113 LG Extending Work Plank 1.82m–2.74m 14.5kg 68 for more information visit: www.tbdavies.co.uk

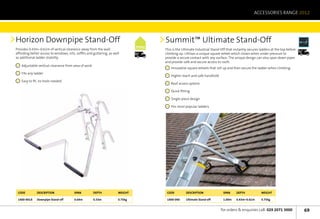

ACCESSORIES RANGE 2012 Horizon Downpipe Stand-Off Summit™ Ultimate Stand-Off Provides 0.43m–0.61m of vertical clearance away from the wall, This is the Ultimate Industrial Stand-Off that instantly secures ladders at the top before Next Day affording better access to windows, sills, soffits and guttering, as well Next Day climbing up. Utilises a unique square wheel which closes when under pressure to as additional ladder stability. provide a secure contact with any surface. The unique design can also span down pipes and provide safe and secure access to roofs. Adjustable vertical clearance from area of work Innovative square wheels that roll up and then secure the ladder when climbing Fits any ladder Higher reach and safe handhold Easy to fit, no tools needed Roof access system Quick fitting Single-piece design Fits most popular ladders Code Description SPAN DEPTH weight Code Description SPAN DEPTH weight 1400-001A Downpipe Stand-off 0.64m 0.33m 0.75kg 1400-040 Ultimate Stand-off 1.00m 0.43m–0.61m 0.75kg for orders enquiries call: 029 2071 3000 69

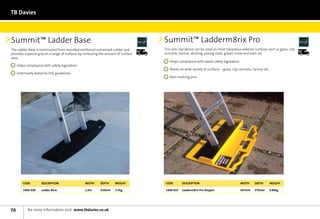

TB Davies Summit™ Ladder Base Summit™ Ladderm8rix Pro The Ladder Base is constructed from moulded reinforced vulcanised rubber and Next This anti-slip device can be used on most hazardous exterior surfaces such as grass, oily Next Day Day provides superior grip on a range of surfaces by increasing the amount of surface concrete, tarmac, decking, paving slabs, gravel, snow and even ice. area. Helps compliance with latest safety legislation Helps compliance with safety legislation Works on wide variety of surfaces – grass, oily concrete, tarmac etc Extensively tested to HSE guidelines Non-marking pins Code Description Width Depth Weight Code Description WIDTH DEPTH weight 1400-058 Ladder Base 1.0m 250mm 5.5kg 1400-033 Ladderm8rix Pro Stopper 507mm 370mm 0.80kg 70 for more information visit: www.tbdavies.co.uk
ACCESSORIES RANGE 2012 Pinnacle™ LadderGuard Summit™ Ladder Clamps Restricts unauthorised ladder access on site. Secure your ladders and steps safely to a roof or van rack. Next Next Day Day Helps compliance with latest safety legislation Transport your ladders safely Padlock included Will fit any roof or ladder rack Restricts unauthorised access Comes complete with padlock Quick and easy to use Protect your kit LOCKABLE FOR ADDED SECURITY Code Description WIDTH LENGTH weight Code Description weight 1400-052 Ladder Guard P1 0.40m 1.40m 0.5kg 1400-005 Ladder Roof Rack Clamps 0.30kg for orders enquiries call: 029 2071 3000 71

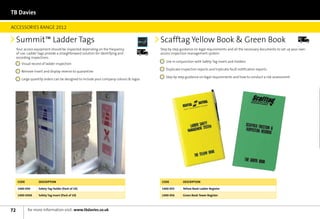

TB Davies ACCESSORIES RANGE 2012 Summit™ Ladder Tags Scafftag Yellow Book Green Book Next Day Your access equipment should be inspected depending on the frequency Next Step by step guidance on legal requirements and all the necessary documents to set up your own Day of use. Ladder tags provide a straighforward solution for identifying and access inspection management system. recording inspections. se in conjunction with Safety Tag Insert and Holders U isual record of ladder inspection V uplicate inspection reports and triplicate fault notification reports D Remove insert and display reverse to quarantine tep by step guidance on legal requirements and how to conduct a risk assessment S Large quantity orders can be designed to include your company colours logos Code Description Code Description 1400-050 Safety Tag Holder (Pack of 10) 1400-055 Yellow Book Ladder Register 1400-050A Safety Tag Insert (Pack of 10) 1400-056 Green Book Tower Register 72 for more information visit: www.tbdavies.co.uk
SPECIALIST ACCESS EQUIPMENT RANGE // 73

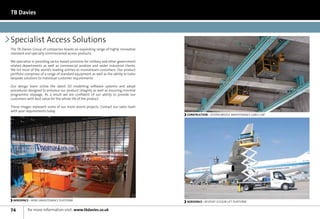

TB Davies Specialist Access Solutions The TB Davies Group of companies boasts an expanding range of highly innovative standard and specially commissioned access products. We specialise in providing sector based solutions for military and other government related departments as well as commercial aviation and wider industrial clients. We list most of the world’s leading airlines as mainstream customers. Our product portfolio comprises of a range of standard equipment as well as the ability to tailor bespoke solutions to individual customer requirements. Our design team utilise the latest 3D modelling software systems and adopt procedures designed to enhance our product integrity as well as ensuring minimal programme slippage. As a result we are confident of our ability to provide our customers with best value for the whole life of the product. These images represent some of our more recent projects. Contact our sales team with your requirements today. CONSTRUCTION - SEVERN BRIDGE MAINTENANCE CABLE CAR AEROSPACE - WING MAINTENANCE PLATFORM AEROSPACE - BESPOKE SCISSOR LIFT PLATFORM 74 for more information visit: www.tbdavies.co.uk

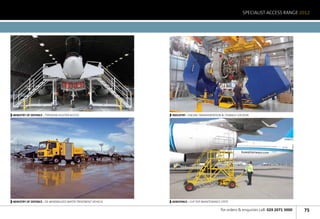

SPECIALIST ACCESS RANGE 2012 MINISTRY OF DEFENCE - TYPHOON FIGHTER ACCESS INDUSTRY - ENGINE TRANSPORTATION STORAGE COCOON MINISTRY OF DEFENCE - DE-MINERALISED WATER TREATMENT VEHICLE AEROSPACE - FLIP TOP MAINTENANCE STEPS for orders enquiries call: 029 2071 3000 75

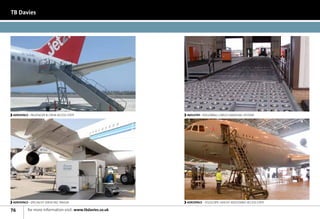

TB Davies AEROSPACE - PASSENGER CREW ACCESS STEPS INDUSTRY - ROLLERBALL CARGO HANDLING SYSTEMS AEROSPACE - SPECIALIST SERVICING TRAILER AEROSPACE - TELESCOPIC HEIGHT ADJUSTABLE ACCESS STEPS 76 for more information visit: www.tbdavies.co.uk

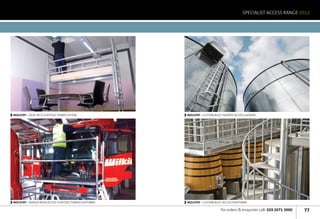

SPECIALIST ACCESS RANGE 2012 INDUSTRY - DESK DECK SCAFFOLD TOWER SYSTEM INDUSTRY - CUSTOM BUILT HOOPED ACCESS LADDERS INDUSTRY - WINDSCREEN ACCESS SCAFFOLD TOWER PLATFORMS INDUSTRY - CUSTOM BUILT ACCESS PLATFORMS for orders enquiries call: 029 2071 3000 77

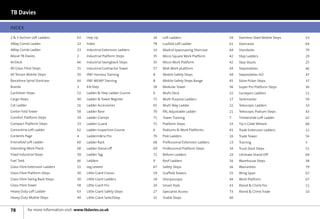

TB Davies INDEX 2 3 Section Loft Ladders 63 Hop Up 26 Loft Ladders 59 Stainless Steel Mobile Steps 53 3Way Combi Ladder 23 Index 78 Luxfold Loft Ladder 61 Staircases 64 4Way Combi Ladder 23 Industrial Extension Ladders 14 Madrid Spacesaving Staircase 64 Standards 79 About TB Davies 2 Industrial Platform Steps 35 Micro Square Work Platform 42 Step Ladders 29 AirDeck 66 Industrial Swingback Steps 35 Micro Work Platform 42 Step Stools 25 All Glass Fibre Steps 31 Industrial Contractor Tower 57 Midi Work pLatform 44 Stepmobiles 46 All Terrain Mobile Steps 50 IPAF Harness Training 8 Mobile Safety Steps 48 Stepmobiles HD 47 Barcelona Spiral Staircase 64 IPAF MEWP Training 8 Mobile Safety Steps Range 45 Store Picker Steps 37 Brands 3 Kik-Step 28 Modular Tower 56 Super-Pro Platform Steps 36 Cantilever Steps 52 Ladder Step Ladder Course 6 Multi Deck 22 Surveyors Ladders 12 Cargo Steps 40 Ladder Tower Register 72 Multi Purpose Ladders 17 Tankmaster 54 Cat Ladder 16 Ladder Accessories 65 Multi Way Ladder 22 Telescopic Ladders 10 Center Fold Tower 58 Ladder Base 70 PAL Adjustable Ladder 21 Telescopic Podium Steps 43 Comfort Platform Steps 34 Ladder Clamps 71 Tower Training 7 Timberslide Loft Ladder 62 Compact Platform Steps 33 Ladder Guard 71 Platform Steps 33 Tip n Glide Wheels 68 Concertina Loft Ladder 62 Ladder Inspection Course 6 Podiums Work Platforms 41 Trade Extension Ladders 12 Contents Page 4 Ladderm8rix Pro 70 Pole Ladders 16 Trade Tower 56 Envirofold Loft Ladder 60 Ladder Rack 68 Professional Extension Ladders 13 Training 5 Extending Work Plank 68 Ladder Stand-off 69 Professional Platform Steps 34 Truck Dock Steps 51 Fixed Industrial Steps 39 Ladder Tag 72 Reform Ladders 24 Ultimate Stand-Off 69 Fuel Tank 66 Ladders 9 Roof Ladders 16 Warehouse Steps 38 Glass Fibre Extension Ladders 15 Leg Leveler 67 Safety Steps 26 Warranties 79 Glass Fibre Platform Steps 30 Little Giant Classic 19 Scaffold Towers 55 Wing Span 67 Glass Fibre Swing Back Steps 30 Little Giant Ladders 18 Sherpascopic 44 Work Platform 67 Glass Fibre Tower 58 Little Giant Pro 20 Smart Pods 43 Xtend Climb Pro 11 Heavy Duty Loft Ladder 63 Little Giant Safety Steps 27 Specialist Access 73 Xtend Climb Trade 10 Heavy Duty Mobile Steps 49 Little Giant SelectStep 32 Stable Steps 40 78 for more information visit: www.tbdavies.co.uk

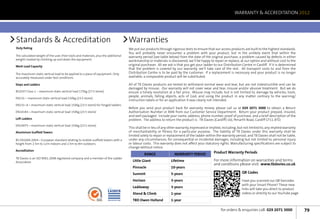

WARRANTY ACCREDITATION 2012 Standards Accreditation Warranties Duty Rating We put our products through rigorous tests to ensure that our access products are built to the highest standards. You will probably never encounter a problem with your product, but in the unlikely event that within the The calculated weight of the user, their tools and materials, plus the additional warranty period (see table below) from the date of the original purchase, a problem caused by defects in either weight created by climbing up and down the equipment. workmanship or materials is discovered, we’ll be happy to repair or replace, at our option and without cost to the Work Load Capacity original purchaser. All we ask is that you get your ladder to our Distribution Centre in Cardiff. If it is determined that the problem is covered by our warranty, we’ll take care of the rest. All transport costs to and from the The maximum static vertical load to be applied to a piece of equipment. Only Distribution Centre is to be paid by the customer. If a replacement is necessary and your product is no longer accurately measured under test conditions. available, a comparable product will be substituted. Steps and Ladders All of TB Davies products are tested to withstand normal wear and tear, but are not indestructible and can be damaged by misuse. Our warranty will not cover wear and tear, misuse and/or abusive treatment. But we do BS2037 Class 1 – maximum static vertical load 175kg (27.5 stone) ensure a timely resolution at a fair price. Misuse may include, but is not limited to, damage by vehicles, tools, people, animals, falling objects, acts of God, and using the product in any matter contrary to the warning/ EN131—maximum static vertical load 150kg (23.5 stone) instruction labels or for an application it was clearly not intended. EN131–4—maximum static vertical load 150kg (23.5 stone) for hinged ladders Before you send your product back for warranty review, please call us at 029 2071 3000 to obtain a Return EN14183—maximum static vertical load 150kg (23.5 stone) Authorisation Number or RAN from our Customer Service Department. Return your product prepaid, insured, and well packaged. Include your name, address, phone number, proof of purchase, and a brief description of the Loft Ladders problem. The address to return the product is: TB Davies (Cardiff) Ltd, Penarth Road, Cardiff CF11 8TD. EN14975—maximum static vertical load 150kg (23.5 stone) This shall be in lieu of any other warranty, expressed or implied, including, but not limited to, any implied warranty Aluminium Scaffold Towers of merchantability or fitness for a particular purpose. The liability of TB Davies under this warranty shall be limited solely to repair or replacement of the ladder within the warranty period; and TB Davies shall not be liable, BS EN1004:2004—European standard relating to mobile scaffold towers with a under any circumstances, for consequential or incidental damages, including but not limited to, personal injury height from 2.5m to 12m indoors and 2.5m to 8m outdoors. or labour costs. This warranty does not affect your statutory rights. Manufacturing specifications are subject to change without notice. Accreditation Range Warranty Period Product Warranty Periods TB Davies is an ISO 9001:2008 registered company and a member of the Ladder Association Little Giant Lifetime For more information on warranties and terms and conditions please visit: www.tbdavies.co.uk Pinnacle 10-years Summit 5-years QR Codes Horizon 3-years Have you scanned our QR barcodes with your Smart Phone? These new Laddaway 3-years links will take you direct to product Xtend Climb 1-year videos or directly to our YouTube page. TBD Owen Holland 1-year for orders enquiries call: 029 2071 3000 79

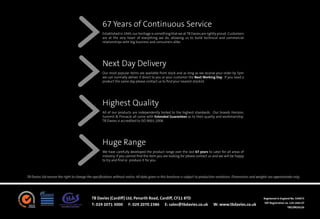

67 Years of Continuous Service Established in 1945, our heritage is something that we at TB Davies are rightly proud. Customers are at the very heart of everything we do, allowing us to build technical and commercial relationships with big business and consumers alike. Next Day Delivery Our most popular items are available from stock and as long as we receive your order by 5pm we can normally deliver it direct to you or your customer the Next Working Day. If you need a product the same day please contact us to find your nearest stockist. Highest Quality All of our products are independently tested to the highest standards. Our brands Horizon, Summit Pinnacle all come with Extended Guarantees as to their quality and workmanship. TB Davies is accredited to ISO 9001:2008. Huge Range We have carefully developed the product range over the last 67 years to cater for all areas of industry. If you cannot find the item you are looking for please contact us and we will be happy to try and find or produce it for you. TB Davies Ltd reserve the right to change the specifications without notice. All data given in this brochure is subject to production variations. Dimensions and weights are approximate only. TB Davies (Cardiff) Ltd, Penarth Road, Cardiff, CF11 8TD Registered in England No. 534073 VAT Registration no. 134 1442 07 T: 029 2071 3000 F: 029 2070 2386 E: sales@tbdavies.co.uk W: www.tbdavies.co.uk TBD/BR2012b
