This document is a table providing height specifications for engine heads from various vehicle manufacturers. It lists manufacturer, model, fuel type, materials, standard height, and minimum height for over 100 engine models from brands like Peugeot, Renault, Toyota, Kia, Hyundai, Mitsubishi, Honda, BMW, Suzuki, Audi, Jeep, Nissan, Citroen, Mazda, Caterpillar, Komatsu, Volvo, Mercedes, Cummins, Perkins, MWM, Scania, Yanmar, GM, and others. The specifications range from 45mm to 180mm and cover gasoline, diesel, LPG, and other fuel types along with various head materials.

1. RETSUL RET. E RECUP. DE CAB. LTDA
AV. ARTHUR MULLER, 800 CENTRO
TROMBUDO CENTRAL – SC.
CEP. 89160-000
FONE / FAX (0**47) 3544 8200 retsul@retsul.com.br / www.retsul.com.br
TABELA DE ALTURA DE CABECOTES
MARCA MOTOR DIESEL ALC GAS ALUM FERRO STD MIN.
PEUGEOT PEUGEOT 106 X X 111,20 110,70
PEUGEOT 206 X X 111,30 110,80
PEUGEOT 307 X X 137,00 136,5
PEUGEOT 504 X X 90,15 89,45
PEUGEOT 16 v 4CIL 137,0 136,50
PEUGEOT XUD-9 (JPX) X X 115,00 114,00
RENAULT RENAULT 19 X X 169,50 169,00
TWINGO X X 71,50 70,50
LAGUNA V6 X X 140,00 139,50
SCENIC 2.0 8 v X X 93,50 93,00
TRAFFIC G. X X 111,50 111,00
TRAFFIC D. X X 104,50 104,00
RENAULT SCENIC 1.6 16 v 137,00 136,50
RENAULT KANGOO 1.0 X X 113,00 112,50
RENAULT CLIO 1.0 8 v X X 113,00 112,50
RENAULT 1.6 16 v 135,10 134,70
RENAULT MASTER 2.5 16 V GAS 90,20 90,20
TOYOTA TOYOTA X X 92,00 91,00
TOYOTA HILUX 2.4/2.8/3.0 ASP X X 133,00 132,00
TOYOTA HILUX 3.0 KZT X X 133,50 133,00
TOYOTA COROLLA 1.8 16 V X X 116,00 115,50
TOYOTA BX C/ABA X 102,00 101,00
TOYOTA 14B IMPORTADO X X 95,00 94,00
TOYOTA 16 v X X 126,00 125,70
KIA/ASIA BESTA 2.2 X X 134,00 133,00
BESTA 2.7/3.0 GS X X 88,00 87,00
TOWNER X X 126,00 125,50
BONGO X X 82,50 82,00
TOPIC X X 83,00 82,00
CARNIVAL V6 X X 119,00 118,00
EXPORTAGE 2.0 16 V X X 134,00 133,50
KIA CDI 16 v K56AK 96,00 95,70
KIA CLARUS 16 v 134,05 133,95
HYNDAI H 100 HYNDAI X X 94,00 93,50
ELANTRA 16 v X X 132,00 131,50
HYNUNDAI X X 45,00 45,00
SEPHIA 16 v X X 133,90 133,40
MITSUBISHI L200 – H100 X X 94,00 93,50
MITSUBICHI X X 132,00 131,50
MITSUBICHI G-72 V6 X X 84,00 83,50
PAGERO FULL 137,80 137,80
PAGERO 2.8 X X 137,50 137,00
PAGERO 3.2 16 v X X 128,00 127,70
L300 X X 88,50 88,00
MITSUBISCH ECLIPSE X X 133,00 132,50
MITSUBISCH LANCER X X 89,50 89,00
HONDA ACORDE VTEC X X 100,00 99,50
CIVIC IMPORTADO X X 95,00 94,50
CIVIC X X 92,90 91,90
BMW BMW 4 CIL / 6 CIL X X 140,00 139,50
BMW 24 v 325/I X X 140,40 139,90
SUZUKI SUZUKI 8 v X X 95,40 95,00
SUZUKI 16 v X X 120,00 119,70
AUDI AUDI 20 v X X 139,50 139,00
TERMOKING TERMOKING X X 91,70 90,70
JEEP CHEROKEE 5 CILINDROS X X 90,00 89,00
WYLLIS 6 cc X X 83,00 81,50
WYLLIS 4 cc X X 81,50 81,00
NISSAN AMERICANA X X X 82,70 82,20
H20 VG 30 X X 91,00 90,00
CITROEN BERLINGO X X 111,25 111,00
XSARA 16 v 4 cc. 2.0 X X 132,00 131,50
MAZDA MAZDA 4 cc X X 124,50 124,00
MAZDA SE 2.0 8 VALVULAS 92,45 91,75
MAZDA 8 V FE79 K-2 A X X 91,60 91,10
MAZDA 2.500 X X 120,25 119,95
MAZDA 2.0 8 v X X 92,00 91,50
DODGE DAKOTA 90,00 89,00
ISUZO ISUZO 4cc X X 92,00 91,00
VALTRA VALTRA X X 105,00 104,00
KUBOTA KUBOTA 3cc E 4cc X X 70,00 69,00
SUBARU SUBARU X X 128,00 127,20
AGRALE M-90 X X 73,00 72,00
M-790 X X 86,00 85,00

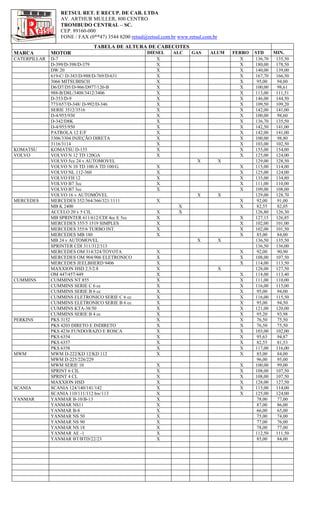

2. RETSUL RET. E RECUP. DE CAB. LTDA
AV. ARTHUR MULLER, 800 CENTRO
TROMBUDO CENTRAL – SC.
CEP. 89160-000
FONE / FAX (0**47) 3544 8200 retsul@retsul.com.br www.retsul.com.br
TABELA DE ALTURA DE CABECOTES
MARCA MOTOR DIESEL ALC GAS ALUM FERRO STD MIN.
CATERPILLAR D-7 X X 136,70 135,50
D-399/D-398/D-379 X X 180,00 178,50
DW 20 X X 140,00 139,00
619-C/ D-343/D-988/D-769/D-631 X X 167,70 166,50
3066 MITSUBISCH X X 95,00 94,00
D6/D7/D5/D-966/D977/120-B X X 100,00 98,61
988-B/D8L/3408/3412/3406 X X 113,00 111,51
D-353/D-9 X X 146,00 144,50
773/657/D-348/ D-992/D-346 X X 109,50 109,20
SERIE 3512/3516 X X 142,00 141,00
D-4/955/930 X X 100,00 98,60
D-342/D8K X X 136,70 135,50
D-4/955/950 X X 142,50 141,00
PATROLA 12 E/F X X 142,00 141,00
3306/3304 INJEÇÃO DIRETA X X 100,00 98,80
3116/3114 X X 103,00 102,50
KOMATSU KOMATSU D-155 X X 155,00 154,00
VOLVO VOLVO N 12 TD 120GA X X 125,00 124,00
VOLVO 5cc 24 v AUTOMOVEL X X 129,00 128,50
VOLVO N 10 TD 100/A TD 100/G X X 115,00 114,00
VOLVO NL 112-360 X X 125,00 124,00
VOLVO FH 12 X X 135,00 134,80
VOLVO B7 3cc X X 111,00 110,00
VOLVO B7 3cc X X 109,00 108,00
VOLVO 16 v AUTOMÓVEL X X 129,00 128,70
MERCEDES MERCEDES 352/364/366/321/1111 X X 92,00 91,00
MB K 2400 X X 82,55 82,05
ACCELO 20 v 5 CIL X X 126,80 126,30
MB SPRINTER 611/612/CDI 4cc E 5cc X X 127,15 126,85
MERCEDES 355/5 1519 SIMPLES X X 102,00 101,00
MERCEDES 355/6 TURBO INT. X X 102,00 101,50
MERCEDES MB 180 X X 85,00 84,00
MB 24 v AUTOMOVEL X X 136,50 135,50
SPRINTER CDI 311/312/313 136,50 136,00
MERCEDES OM 314/324/TOYOTA X X 92,00 90,90
MERCEDES OM 904/906 ELETRONICO X X 108,00 107,50
MERCEDES JEELBHERD 9406 X X 114,00 113,50
MAXXION HSD 2.5/2.8 X X 128,00 127,50
OM 447/457/449 X X 114,00 113,40
CUMMINS CUMMINS NT 855 X X 111,00 110,00
CUMMINS SERIE C 6 cc X X 116,00 115,00
CUMMINS SERIE B 6 cc X X 95,00 94,00
CUMMINS ELETRONICO SERIE C 6 cc X X 116,00 115,50
CUMMINS ELETRONICO SERIE B 6 cc X X 95,00 94,50
CUMMINS KTA-38/50 X X 121,00 120,00
CUMMINS SERIE B 4 cc X X 95,20 93,98
PERKINS PKS 3152 X X 76,50 75,50
PKS 4203 DIRETO E INDIRETO X X 76,50 75,50
PKS 4236 FUNDO/RAZO E ROSCA X X 103,00 102,00
PKS 6354 X X 95,63 94,87
PKS 6357 X X 82,55 81,53
PKS 6358 X X 117,00 116,00
MWM MWM D-222/KD 12/KD 112 X X 85,00 84,00
MWM D-225/226/229 96,00 95,00
MWM SERIE 10 X X 100,00 99,00
SPRINT 6 CIL X X 108,00 107,50
SPRINT 4 CL X X 108,00 107,50
MAXXION HSD X X 128,00 127,50
SCANIA SCANIA 124/140/141/142 X X 115,00 114,00
SCANIA 110/111/112 hw/113 X X 125,00 124,00
YANMAR YANMAR B-10/B-13 X 78,00 77,00
YANMAR NS11 X 87,00 86,00
YANMAR B-8 X 66,00 65,00
YANMAR NS 50 X 75,00 74,00
YANMAR NS 90 X 77,00 76,00
YANMAR NS 18 X 78,00 77,00
YANMAR AE -1 X 112,50 111,50
YANMAR BT/BTD/22/23 X 85,00 84,00

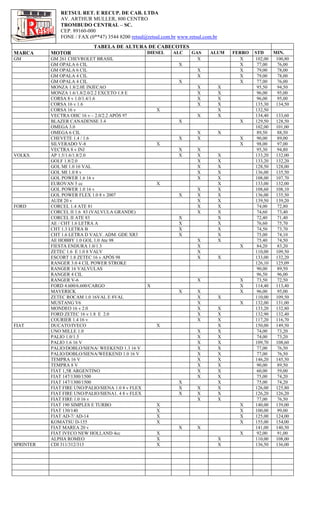

3. RETSUL RET. E RECUP. DE CAB. LTDA
AV. ARTHUR MULLER, 800 CENTRO
TROMBUDO CENTRAL – SC.
CEP. 89160-000
FONE / FAX (0**47) 3544 8200 retsul@retsul.com.br www.retsul.com.br
TABELA DE ALTURA DE CABECOTES
MARCA MOTOR DIESEL ALC GAS ALUM FERRO STD MIN.
GM GM 261 CHEVROLET BRASIL X X 102,00 100,80
GM OPALA 6 CIL X X 77,00 76,00
GM OPALA 6 CIL X X 79,00 78,00
GM OPALA 4 CIL X X 79,00 78,00
GM OPALA 4 CIL X X 77,00 76,00
MONZA 1.8/2.0E INJECAO X X 95,50 94,50
MONZA 1.6/1.8/2.0/2.2 EXCETO 1.8 E X X 96,00 95,00
CORSA 8 v 1.0/1.4/1.6 X X 96,00 95,00
CORSA 16 v 1.6 X X 135,30 134,50
CORSA 16 v X X 132,50
VECTRA OHC 16 v – 2.0/2.2 APÓS 97 X X 134,40 133,60
BLAZER CANADENSE 3.4 X X 129,50 128,50
OMEGA 3.0 102,00 101,00
OMEGA 6 CIL X X 89,50 88,50
CHEVETE 1.4 / 1.6 X X X 90,00 89,00
SILVERADO V-8 X X 98,00 97,00
VECTRA 8 v INJ X X 95,30 94,80
VOLKS. AP 1.5/1.6/1.8/2.0 X X X 133,20 132,00
GOLF 1.8/2.0 X X 133,20 132,20
GOL MI 1.0 16 VAL X X 128,50 128,00
GOL MI 1.0 8 v X X 136,00 135,50
GOL POWER 1.6 16 v X X 108,00 107,70
EUROVAN 5 cc X X 133,00 132,00
GOL POWER 1.0 16 v X X 108,60 108,10
GOL POWER FLEX 1.0 8 v 2007 X X X 136,00 135,50
AUDI 20 v X X 139,50 139,20
FORD CORCEL 1.4 ATE 81 X X 74,00 72,80
CORCEL II 1.6 83 (VALVULA GRANDE) X X 74,60 73,40
CORCEL II ATE 83 X X 72,40 71,40
AE / CHT 1.6 LETRA A X X 76,60 75,70
CHT 1.3 LETRA B X X 74,50 73,70
CHT 1.6 LETRA D VALV. ADM. GDE XR3 X X 75,00 74,10
AE HOBBY 1.0 GOL 1.0 Ate 98 X X 75,40 74,50
FIESTA ENDURA 1.0/1.3 X X 84,20 83,20
ZETEC 1.6 E 1.0 8 VALV X 110,00 109,50
ESCORT 1.8 ZETEC 16 v APÓS 98 X X 133,00 132,20
RANGER 3.0 4 CIL POWER STROKE 126,10 125,09
RANGER 16 VALVULAS 90,00 89,50
RANGER 4 CIL 96,50 96,00
RANGER V-6 X X 73,50 72,50
FORD 4.600/6.600/CARGO X X 114,40 113,40
MAVERICK X X X 96,00 95,00
ZETEC ROCAM 1.0 16VAL E 8VAL X X 110,00 109,50
MUSTANG V6 X X 132,00 131,00
MONDEO 16 v 2.0 X X 133,20 132,80
FORD ZETEC 16 v 1.8 E 2.0 X X 132,90 132,40
COURIER 1.4 16 v X X 117,20 116,70
FIAT DUCATO/IVECO X X 150,00 149,50
UNO MILLE 1.0 X X 74,00 73,20
PALIO 1.0/1.5 X X 74,00 73,20
PALIO 1.6 16 V X X 109,70 108,60
PALIO/DOBLO/SIENA/ WEEKEND 1.3 16 V X X 77,00 76,50
PALIO/DOBLO/SIENA/WEEKEND 1.0 16 V X X 77,00 76,50
TEMPRA 16 V X X 146,20 145,50
TEMPRA 8 V X X 90,00 89,50
FIAT 1,5R ARGENTINO X X 60,00 59,00
FIAT 147/1300/1500 X X 75,00 74,20
FIAT 147/1300/1500 X X 75,00 74,20
FIAT FIRE UNO/PALIO/SIENA 1.0 8 v FLEX X X X 126,00 125,80
FIAT FIRE UNO/PALIO/SIENA1. 4 8 v FLEX X X X 126,20 126,20
FIAT FIRE 1.0 16 v X X 77,00 76,50
FIAT 190 SIMPLES E TURBO X X 140,00 139,00
FIAT 130/140 X X 100,00 99,00
FIAT AD-7/ AD-14 X X 125,00 124,00
KOMATSU D-155 X X 155,00 154,00
FIAT MAREA 20 v X X 141,00 140,50
FIAT IVECO NEW HOLLAND 4cc X X 92,00 91,00
ALPHA ROMEO X X 110,00 108,00
SPRINTER CDI 311/312/313 X X 136,50 136,00
