This document contains inspection results for 19 items against drawing specifications. It includes nominal dimensions, tolerances, measured values, and whether items were accepted or rejected. Acceptance rates were 73.7% overall with some items rejected for being out of tolerance, needing remeasurement, or modification. Inspection methods included calipers, micrometers, CMM probes, height gauges, and visual inspection.

1. ITEM CTF LOCATION NOMINAL +TOL -TOL 1 2 3 1 2 3 UPPER LOWER HIGH LOW
001 8E 1.80 0.10 0.10 Gage block 1.780 1.800 1.780 -0.020 0.000 -0.020 1.787 0% 20%
001 8E 1.80 0.10 0.10 Gage block 1.800 1.830 1.820 0.000 0.030 0.020 1.817 30% 0%
002 5F 148.50 0.75 0.75 Cal 148.620 148.650 148.630 0.120 0.150 0.130 148.633 20% 0% Warpage
003 7E 39.30 0.30 0.40 HG 39.070 39.100 39.060 -0.230 -0.200 -0.240 39.077 0% 60%
004 6E 2.00 0.11 0.11 Cal 1.960 1.950 1.950 -0.040 -0.050 -0.050 1.953 0% 45%
005 5E 3.80 0.12 0.12 HG 3.74 3.75 3.75 -0.060 -0.050 -0.050 3.747 0% 50%
005 5E 3.80 0.12 0.12 HG 3.75 3.78 3.76 -0.050 -0.020 -0.040 3.763 0% 42%
005 5E 3.80 0.12 0.12 HG 3.83 3.85 3.8 0.030 0.050 0.000 3.827 42% 0%
005 5E 3.80 0.12 0.12 HG 3.76 3.78 3.76 -0.040 -0.020 -0.040 3.767 0% 33%
006 5E 94.30 0.20 0.20 Cal 94.21 94.18 94.18 -0.090 -0.120 -0.120 94.190 0% 60%
007 4E 1.80 0.10 0.20 HG 1.840 1.830 1.820 0.040 0.030 0.020 1.830 40% 0%
008 3E 1.50 0.11 0.11 Cal 1.450 1.430 1.440 -0.050 -0.070 -0.060 1.440 0% 64%
009 2F 7.00 0.20 0.10 Cal 6.850 6.880 6.860 -0.150 -0.120 -0.140 6.863 0% 150% Reject Re-measure with PROJ.
010 7C 15.70 0.10 0.10 Cal 15.600 15.600 15.640 -0.100 -0.100 -0.060 15.613 0% 100%
011 Cal ∕ ∕ ∕ Could not pick the feature
012 7D 6.60 0.10 0.10 Cal 6.520 6.500 6.520 -0.080 -0.100 -0.080 6.513 0% 100%
012 7D 6.60 0.10 0.10 Cal 6.500 6.520 6.500 -0.100 -0.080 -0.100 6.507 0% 100%
013 5D 131.10 0.30 0.30 Cal 130.950 130.940 130.970 -0.150 -0.160 -0.130 130.953 0% 53%
014 3D 76.70 0.50 0.50 Cal 76.130 76.150 76.100 -0.570 -0.550 -0.600 76.127 0% 120% Reject Accepted
015 3D 5.20 0.12 0.12 Cal 5.060 5.080 5.060 -0.140 -0.120 -0.140 5.067 0% 117% Reject Modify
016 3C 51.30 0.20 0.20 Cal 51.160 51.230 51.170 -0.140 -0.070 -0.130 51.187 0% 70%
017 2C 35.20 0.28 0.28 HG 35.570 35.600 35.580 0.370 0.400 0.380 35.583 143% 0% Reject Re-measure
018 4B 63.90 0.40 0.40 Cal 63.460 63.400 63.420 -0.440 -0.500 -0.480 63.427 0% 125% Reject Re-measure with PROJ.
019 5A 98.00 0.60 0.60 Cal 98.140 98.090 98.110 0.140 0.090 0.110 98.113 23% 0%
FAI OK rate: 73.7%

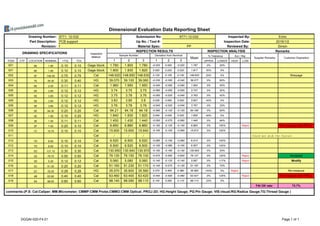

Dimensional Evaluation Data Reporting Sheet
9771. 12-032
PCB support
Supplier Remarks
Sample Number
Customer Disposition
Remarks
Submission No:
fRevision: Material Spec:
Drawing Number:
Part Description:
Deviation from Nominal
Up No. / Tool #:
INSPECTION RESULTS
comments:(P.S: Cal:Caliper; MM:Micrometer; CMMP:CMM Probe;CMMO:CMM Optical; PROJ:2D; HG:Height Gauge; PG:Pin Gauge; VIS:visual;RG:Radius Gauge;TG:Thread Gauge )
Echo
2016/1/2
Simon
Inspected By:
DRAWING SPECIFICATIONS Inspection
Method
PP
9771.12-032
INSPECTION ANALYSIS
Reviewed By:
% Tolerance Acc / Rej
Mean
Inspection Date:
DGQAI-020-F4.01 Page 1 of 1
