The document discusses installing and configuring Struts2 and provides an example of creating a basic Struts2 application. It includes downloading Struts2 files, configuring the web.xml and struts.xml files, and creating simple JSP pages and an action class to demonstrate passing data between the view and controller.

1. Chaper 2 Struts2 Course Installing and configuring Struts2 & Struts2 Architecture

2. Struts2 course topics Chapter 1: Evolution of web applications Chapter 2: Struts2 Installation and configuration Chapter 3: Actions and results Chapter 4: OGNL - Object-Graph Navigation Language Chapter 5: Form Tags Chapter 6: Generic Tags Chapter 7: type conversion Chapter 8: Input validation Chapter 9: Message Handling and Internationalization Chapter 10: Model Driven and Prepare Interceptors Chapter 11: The Persistence Layer Chapter 12: File upload and File download Chapter 13: Securing Struts2 applications in Tomcat Chapter 14: Custom Interceptors Chapter 15: Custom Result Types Chapter 16: Preventing Double Submits Chapter 17: The Execute and Wait Interceptor Chapter 18: Decorating Struts2 with Tiles Chapter 19: Decorating Struts2 with SiteMesh Chapter 20: Zero Configuration Chapter 21: AJAX

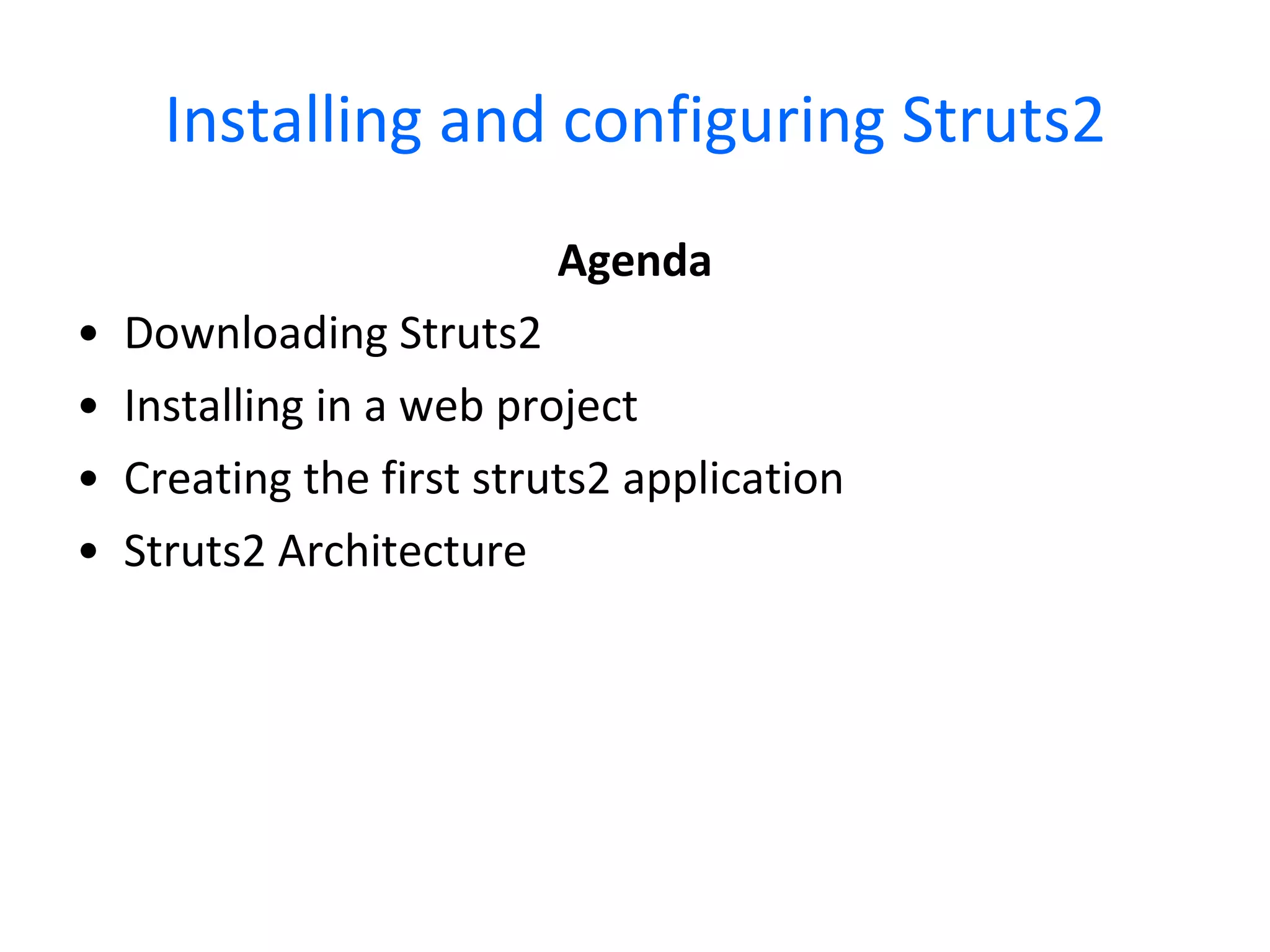

3. Installing and configuring Struts2 Agenda Downloading Struts2 Installing in a web project Creating the first struts2 application Struts2 Architecture

4. Downloading Struts2

5. Downloading Struts2 Download from: http://struts.apache.org/download.cgi

6. Files Release Notes Full Distribution: struts-2.1.6-all.zip (110mb) Example Applications: struts-2.1.6-apps.zip (34mb) Essential Dependencies Only: struts-2.1.6-lib.zip (11mb) Documentation: struts-2.1.6-docs.zip (60mb) Source: struts-2.1.6-src.zip (20mb)

7. Installing Struts2

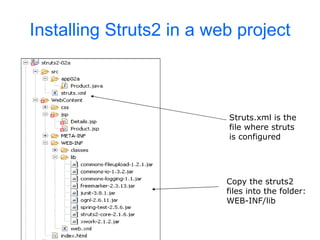

8. Installing Struts2 in a web project Struts.xml is the file where struts is configured Copy the struts2 files into the folder: WEB-INF/lib

9. Creating the first struts2 application

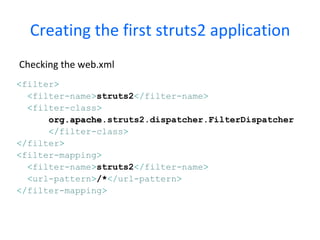

10. Creating the first struts2 application Checking the web.xml < filter > < filter-name > struts2 </ filter-name > < filter-class > org.apache .struts2.dispatcher.FilterDispatcher </ filter-class > </ filter > < filter-mapping > < filter-name > struts2 </ filter-name > < url-pattern > /* </ url-pattern > </ filter-mapping >

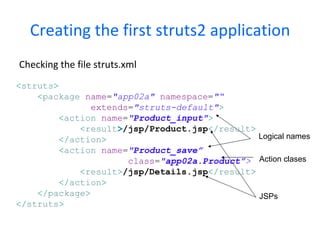

11. Creating the first struts2 application Checking the file struts.xml Logical names Action clases JSPs < struts > < package name = &quot;app02a&quot; namespace = &quot;“ extends = &quot;struts-default&quot; > < action name = &quot; Product_input &quot; > < result > /jsp/Product.jsp </ result > </ action > < action name = &quot; Product_save” class = &quot; app02a.Product” > < result > /jsp/Details.jsp </ result > </ action > </ package > </ struts >

12. The file product.jsp <%@ taglib prefix = &quot;s&quot; uri = &quot;/struts-tags&quot; %> < html > < head > < title > Add Product Form </ title > < style type = &quot;text/css&quot; > @import url(css/main.css) ; </ style > </ head > < body > < div id = &quot;global&quot; > < h3 > Add a product </ h3 > < s:form action = &quot;Product_save&quot; > < s:textfield label = &quot;Product Name&quot; key = &quot;productName&quot; /> < s:textfield label = &quot;Description&quot; key = &quot;description&quot; /> <s:textfield label = &quot;Price&quot; key = &quot;price&quot; /> < s:submit /> </ s:form > </ div > </ body > </ html > Properties of the action class

13. The file details.jsp <%@ taglib prefix = &quot;s&quot; uri = &quot;/struts-tags&quot; %> < html > < head > < title > Save Product </ title > < style type = &quot;text/css&quot; > @imp o rt url(css/main.c s s); </ style > </ head > < body > < div id = &quot;global&quot; > < h4 > The product has been saved. </ h4 > < p > < h5 > Details: </ h5 > Product Name: < s:property value = &quot;productName&quot; />< br /> Description: < s:property value = &quot;description&quot; />< br /> Price: $ < s:property value = &quot;price&quot; /> </ p > </ div > </ body > </ html > Properties of the action class

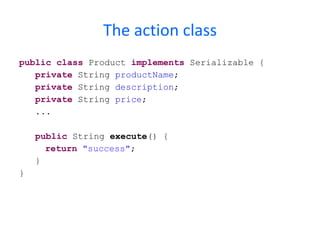

14. The action class public class Product implements Serializable { private String productName ; private String description ; private String price ; ... public String execute () { return &quot;success&quot; ; } }

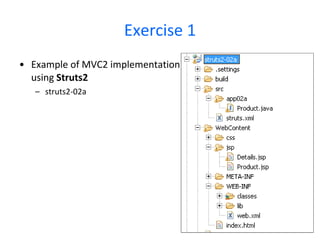

15. Exercise 1 Example of MVC2 implementation using Struts2 struts2-02a

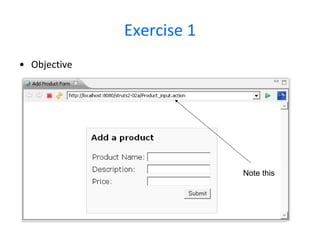

16. Exercise 1 Objective Note this

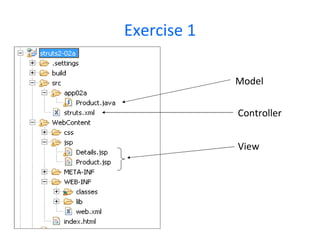

17. Exercise 1 Model View Controller
