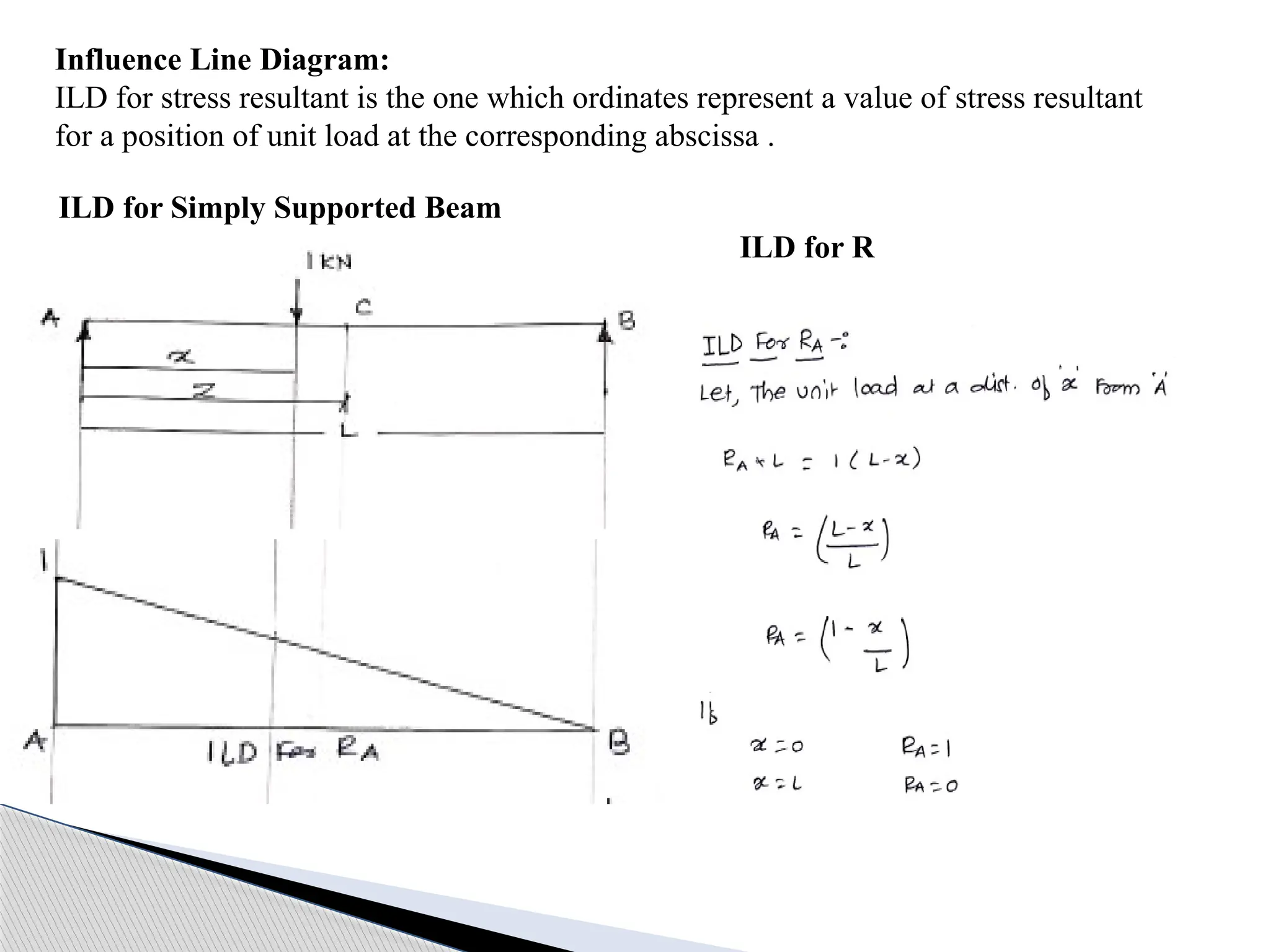

2. Influence Line Diagram:
ILD for stress resultant is the one which ordinates represent a value of stress resultant
for a position of unit load at the corresponding abscissa .
ILD for Simply Supported Beam
ILD for R

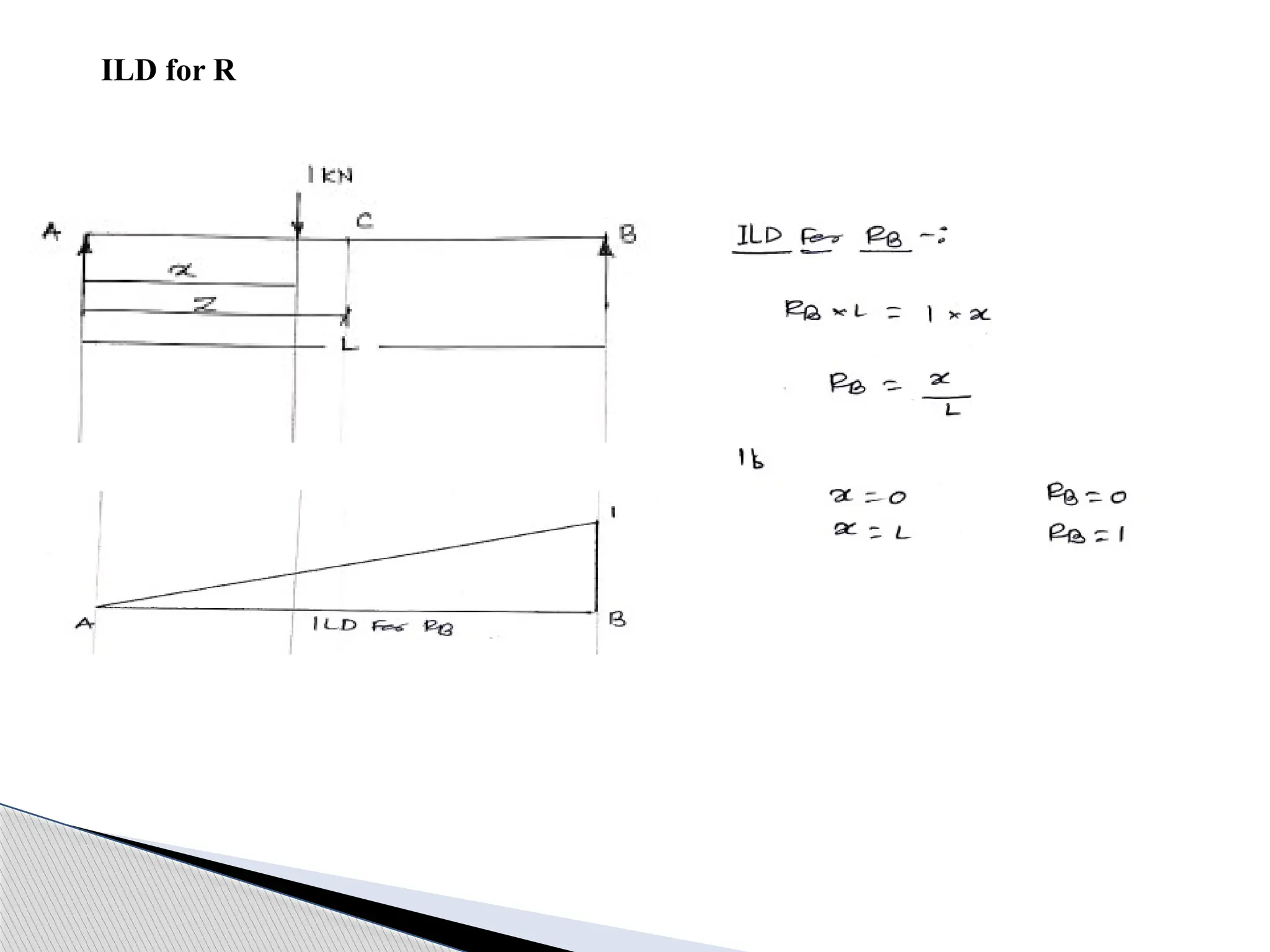

3. ILD for R

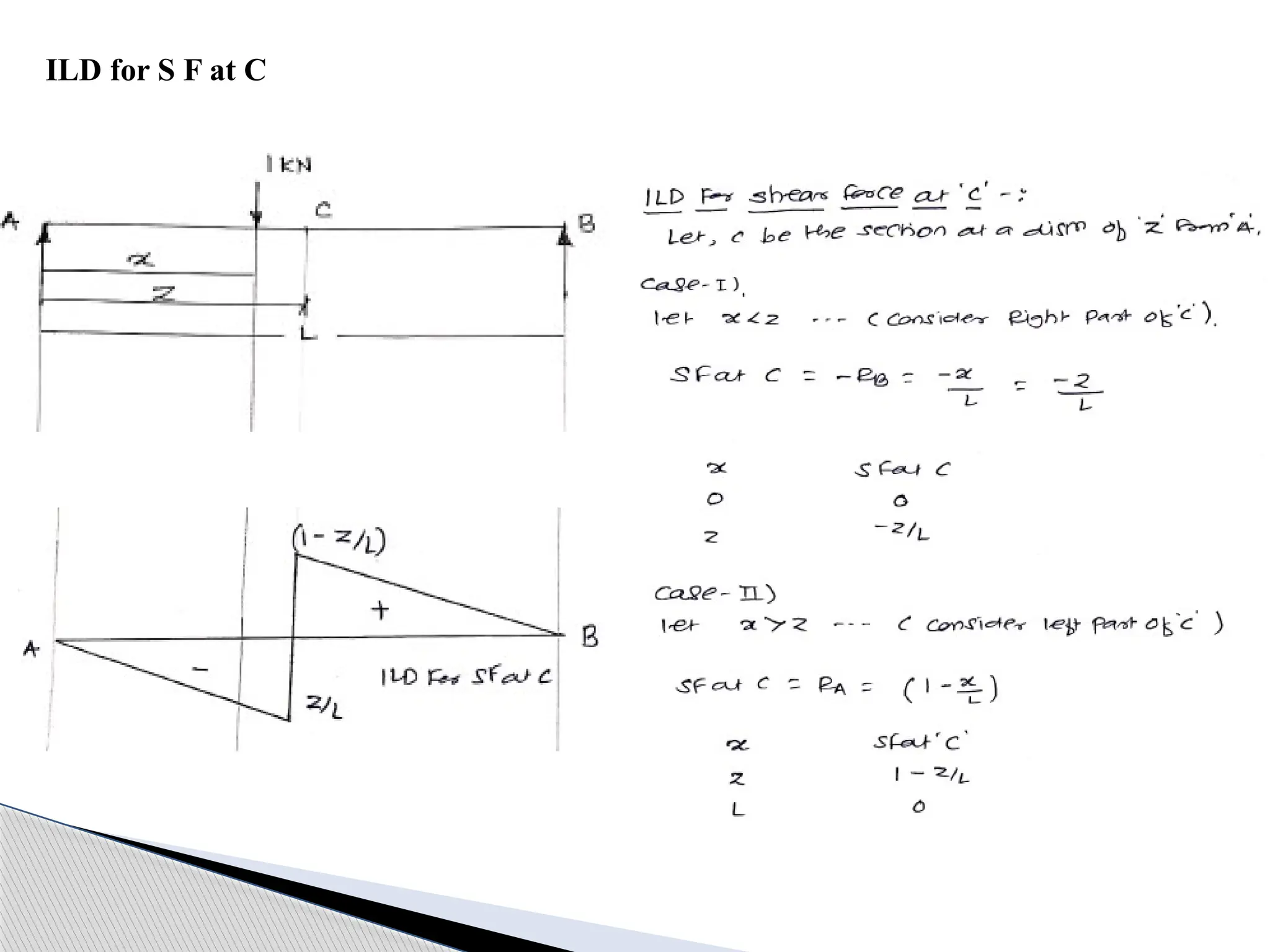

4. ILD for S F at C

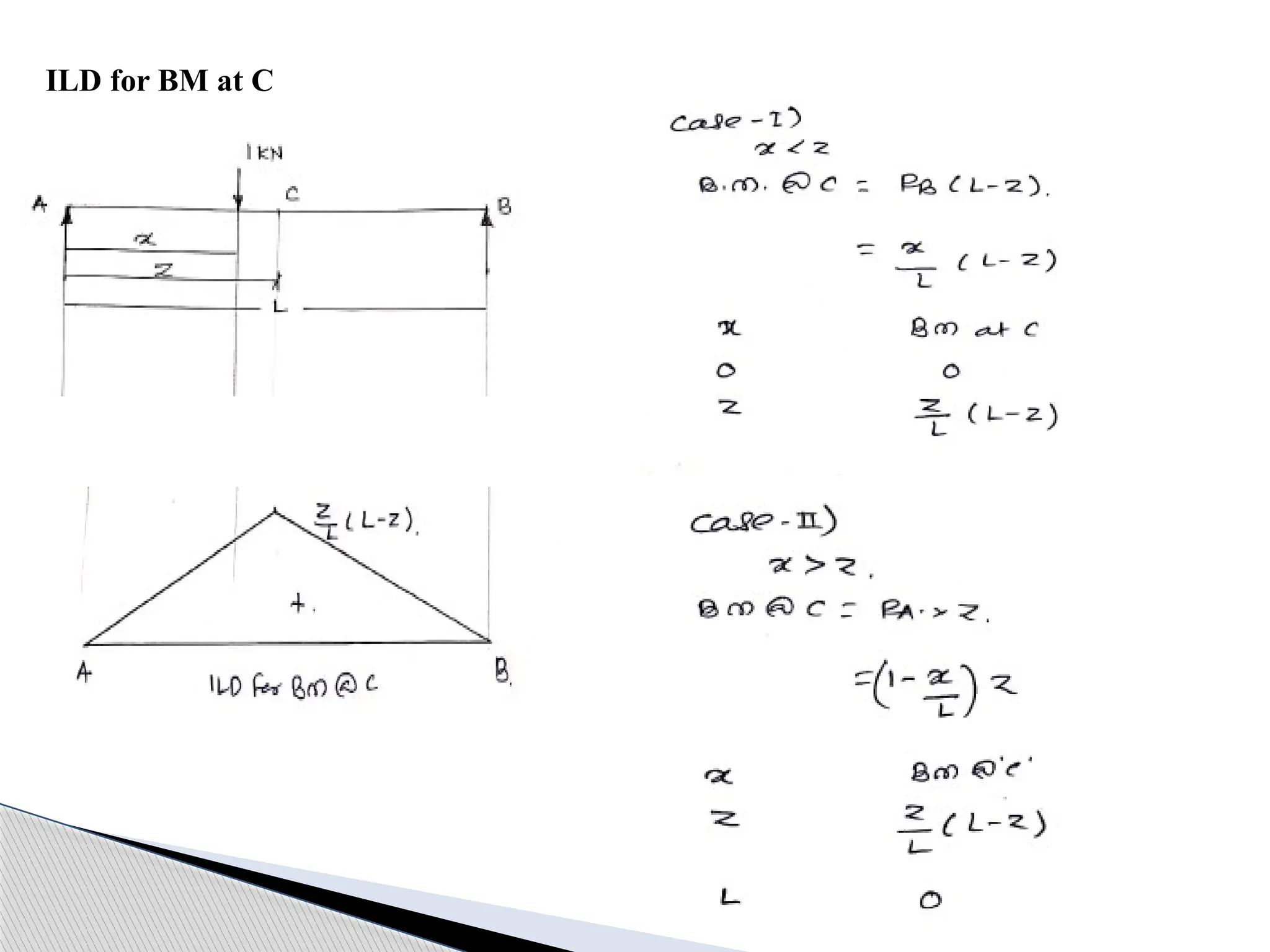

5. ILD for BM at C
