System Design
with UML & Rational Rose
Robert C. Chi
cnchi@iis.sinica.edu.tw
Academia Sinica

2. 2 / 26

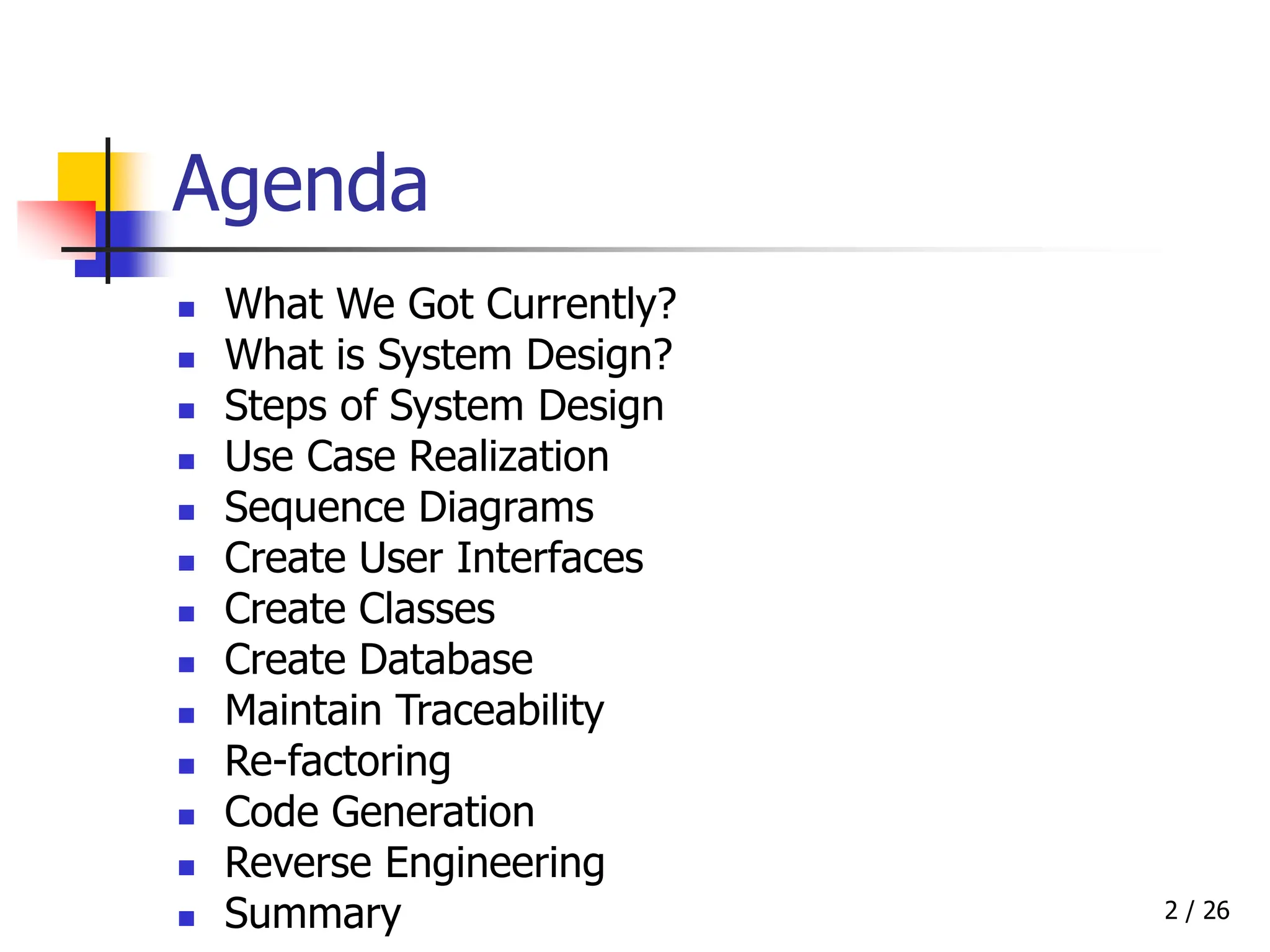

Agenda
 What We Got Currently?
 What is System Design?
 Steps of System Design
 Use Case Realization
 Sequence Diagrams
 Create User Interfaces
 Create Classes
 Create Database
 Maintain Traceability
 Re-factoring
 Code Generation
 Reverse Engineering
 Summary

3. 3 / 26
What We Got Currently
Customer
Workers
Request Project
Create Project
Create Tasks of Project
Schedule Tasks
Assign Tasks
Report Status of Tasks
Check Status
Project Manager
Business Use Case Diagrams
Not Yet Request
Wait for
Approval
Download the
Request Form
Fill out the
Request Form
Send the
Request Form
Project Request Form
[Request Approved]
Project Request Form
[Request Disapproved]
Review the
Request
Review
Finished
Request Approved
Request Disapproved
Project Request
Form
[Not Yet Request]
Project Request Form
[Wait for Approval]
Got the
Request Form
Review the
Request Form
Approve the
Request
[ Approved ]
Disapprove the
Request
[ Disapproved ]
Project Manager
Customer
Workflow by Activity Diagrams

4. 4 / 26
What We Got Currently
Conceptual Models by Class Diagram

5. 5 / 26
What We Got Currently
Assign Tasks
Check Status
Create Project
Create Tasks of Project
Assign Tasks
(from Business Model)
Check Status
(from Business Model)
Create Project
(from Business Model)
Create Tasks of Project
(from Business Model)
Report Status of Tasks
Request Project
Schedule Tasks
Report Status of Tasks
(from Business Model)
Request Project
(from Business Model)
Schedule Tasks
(from Business Model)
Realization of Business Use Cases by Use Case Diagrams

6. 6 / 26
What We Got Currently
Apply Account
Login Account
Logout Account
User
(from 010 Actors)
Confirm Account
<<include>>
Use Case Diagrams
Not Login
Login the
System
Error
Message
Main Page
[Login]
Home Page
[Not Login]
Validate the
User
Show Error
Message
[ Invalid ]
Redirect to
Main Page
[ Valid ]
Show Main
Page
Login
System
User
System Flow by Activity Diagrams

7. 7 / 26
What We Got Currently
No Account
Wait for
Confirm
Has
Account
Account Closed
Apply Account
Confirm
Account
Login Account
Login
Logout Account
Logout
Dependency of Use Cases by Activity Diagrams

8. 8 / 26
What is System Design
 Find the UI & Classes
that realize the System
Functions (Use Cases)
 Find the Architecture to
Integrate all the UI and
Classes

9. 9 / 26
Steps of System Design
 Realize the Use Cases
 Find UI & Classes by Sequence Diagrams
 Create UI & Classes
 Create Database
 Maintain Traceability
 Re-factoring
 Code Generation
 Reverse Engineering

10. 10 / 26
Use Case Realization
Apply Account
(from 020 System Flow)
Confirm Account
(from 020 System Flow)
Login Account
(from 020 System Flow)
Logout Account
(from 020 System Flow)
Apply Account
Confirm Account
Login Account
Logout Account

11. 11 / 26
Use Case Realization
 Why Realization Diagrams?
Modify Independently
Traceability

12. 12 / 26
Use Case Realization
 Practice
 Realize all the Use Cases in Logical View of
“Mr. Delay Software Company” System
Models

13. 13 / 26
Sequence Diagrams
: User : index : login : main
Visit
Fill Username & Password
Submit
'validateForm( )
Sequence Diagram:
Login Account / E1
Form Invalid
redirect
ValidateUser(String, String)
Sequence Diagram:
Login Account / E2
Login Fail

14. 14 / 26
Create User Interfaces
 Before Start
 Make Sure Your “Default Language” is “Web Modeler”

15. 15 / 26
Create User Interfaces
 How-to
 Tools  Options…  Notation  Default Language 
“Web Modeler”

16. 16 / 26
Create User Interfaces
 Create Virtual Directory

17. 17 / 26
Create User Interfaces
 Create Client Page

18. 18 / 26
Create User Interfaces
 Create Forms

19. 19 / 26
Create User Interfaces
 Practice
 Create the Home Page and Main Page of
the “Mr. Delay Software Company” Project
 Create the Sequence Diagram with the
pages you have

20. 20 / 26
Create Database
 Steps of Creating Database
 Create a Database in Component View
 Assign Target Database (SQL92, Oracle…)
 Create a Schema in Logical View
 Assign the Schema to a Database
 Add Tables, Views, Store Procedures
 Create the Relationships between Tables

21. 21 / 26
Create Database
 Practice
 Create the necessary tables and
relationships of Mr. Delay Software
Company

22. 22 / 26
Maintain Traceability
 Steps to Maintain the Traceability
 Create Class Diagrams under Use Case
Realization
 Drag & Drop the following items to
maintain the traceability
 UI (Web Pages)
 Classes
 Schema

23. 23 / 26
Re-factoring
 Definition
 The activities to apply changes on previous
results
 Guideline
 Only create pages, classes, schema that
just realize the current use case, not going
to far.

24. 24 / 26
Code Generation
 Rational Rose can generate the
following code
 HTML Code
 Prototype of Functions
 Classes & its functions interfaces
 Database schema

25. 25 / 26
Reverse Engineering
 Rational Rose can do the reverse
engineering to the code it generated

26. 26 / 26
Summary
 Steps for System Design
 Realize all Use Cases
 Use Sequence Diagrams to get the web
pages, classes, and database schema
 Maintain the traceability
 Synchronize the models and codes by
round-trip code generation of Rational
Rose
