The document discusses and compares Sony's Pregius and STARVIS sensor lines. It explains the technology behind Exmor sensors, which allow for improved low-light performance and reduced noise compared to traditional CCD and CMOS sensors. The document outlines key specifications and features of first and second generation Pregius sensors as well as STARVIS sensors. It provides examples of applications that would be well-suited for each sensor type based on considerations like light sensitivity, resolution, and timing requirements. Representatives are available to answer additional questions.

1. Public | © Basler AG 01/30/2017

2. Public | © Basler AG 11/30/2017
Sony Pregius & STARVIS Sensor Lines
Are All IMXs Created Equal?

3. Public | © Basler AG 21/30/2017
CCD -> CMOS -> EXMOR
Sensor Technology

4. Public | © Basler AG 31/30/2017
Typical Sensor
How do you get an image from your sensor

5. Public | © Basler AG 41/30/2017
Exmor Technology
How Is Sony Different?

6. Public | © Basler AG 51/30/2017
Exmor Technology
How is Sony Different?
 Queue Builds Up
 Streamline

7. Public | © Basler AG 61/30/2017
Exmor Technology
How is Sony Different?
 More noise on Sensor
 Responds like
CCD

8. Public | © Basler AG 71/30/2017
Exmor Technology
How is Sony Different?
 Move Analog to Digital
Converted (ADC)
 Improves Noise behavior
 Removes Bottleneck
 Shorter exposure times

9. Public | © Basler AG 81/30/2017
Pregius
Exmor Technology

10. Public | © Basler AG 91/30/2017
1st Generation IMX
Pregius IMX174/IMX249
 Large Pixels
 Creates large Sat. Cap.
 With low noise
 Produces excellent SNR

11. Public | © Basler AG 101/30/2017
2nd Generation
Pregius

12. Public | © Basler AG 111/30/2017
Comparing
1st Gen and 2nd Gen IMX
 500 µm  600 µm
 Shifted the response
 Overall more response
in visible range
 Boosted IR response
 20% @ 800nm
 10% @ 900nm

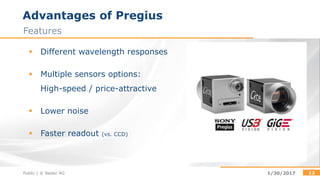

13. Public | © Basler AG 12
 Different wavelength responses
 Multiple sensors options:
High-speed / price-attractive
 Lower noise
 Faster readout (vs. CCD)
1/30/2017
Advantages of Pregius
Features

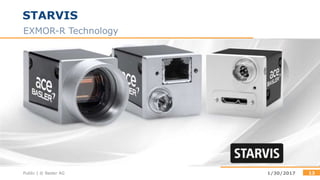

14. Public | © Basler AG 131/30/2017
STARVIS
EXMOR-R Technology

15. Public | © Basler AG 141/30/2017
Exmor-R Technology
Backside illumination

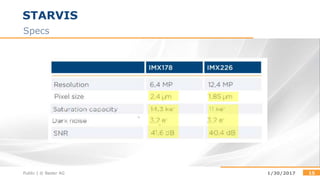

16. Public | © Basler AG 151/30/2017
STARVIS
Specs

17. Public | © Basler AG 16
 Low Noise Design
 High Sensitivity
 Improved response in IR
range
 Optimized 4k readout
 Continuous mode, requires
trigger signal from FPGA
1/30/2017
Exmor-R Technology
Features

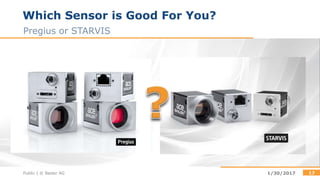

18. Public | © Basler AG 171/30/2017
Which Sensor is Good For You?
Pregius or STARVIS

19. Public | © Basler AG 181/30/2017
Light Sensitivity
STARVIS or Preguis

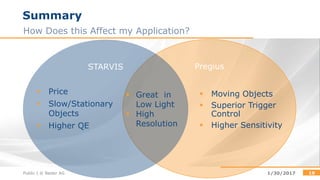

20. Public | © Basler AG 19
PregiusSTARVIS
 Price
 Slow/Stationary
Objects
 Higher QE
 Moving Objects
 Superior Trigger
Control
 Higher Sensitivity
1/30/2017
Summary
How Does this Affect my Application?
 Great in
Low Light
 High
Resolution

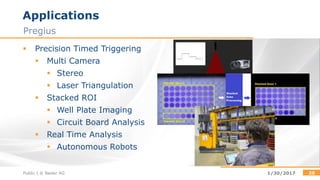

21. Public | © Basler AG 20
 Precision Timed Triggering
 Multi Camera
 Stereo
 Laser Triangulation
 Stacked ROI
 Well Plate Imaging
 Circuit Board Analysis
 Real Time Analysis
 Autonomous Robots
1/30/2017
Applications
Pregius

22. Public | © Basler AG 211/30/2017
Applications
STARVIS
 Low Light
 Microscopy
 Astronomy
 High Resolution Applications
 Defect Detection
 Facial Detection
 Low Cost NIR substitute
 Fruit Bruise Detection
