1. © Copyright 2018 Pivotal Software, Inc. All rights Reserved.
May 2019
Spring Data JPA
0-100 in 60 minutes

3. “for they know not what they do”
(Lk 23:34)

4. Spring Data JPA builds on JPA
JPA Basics

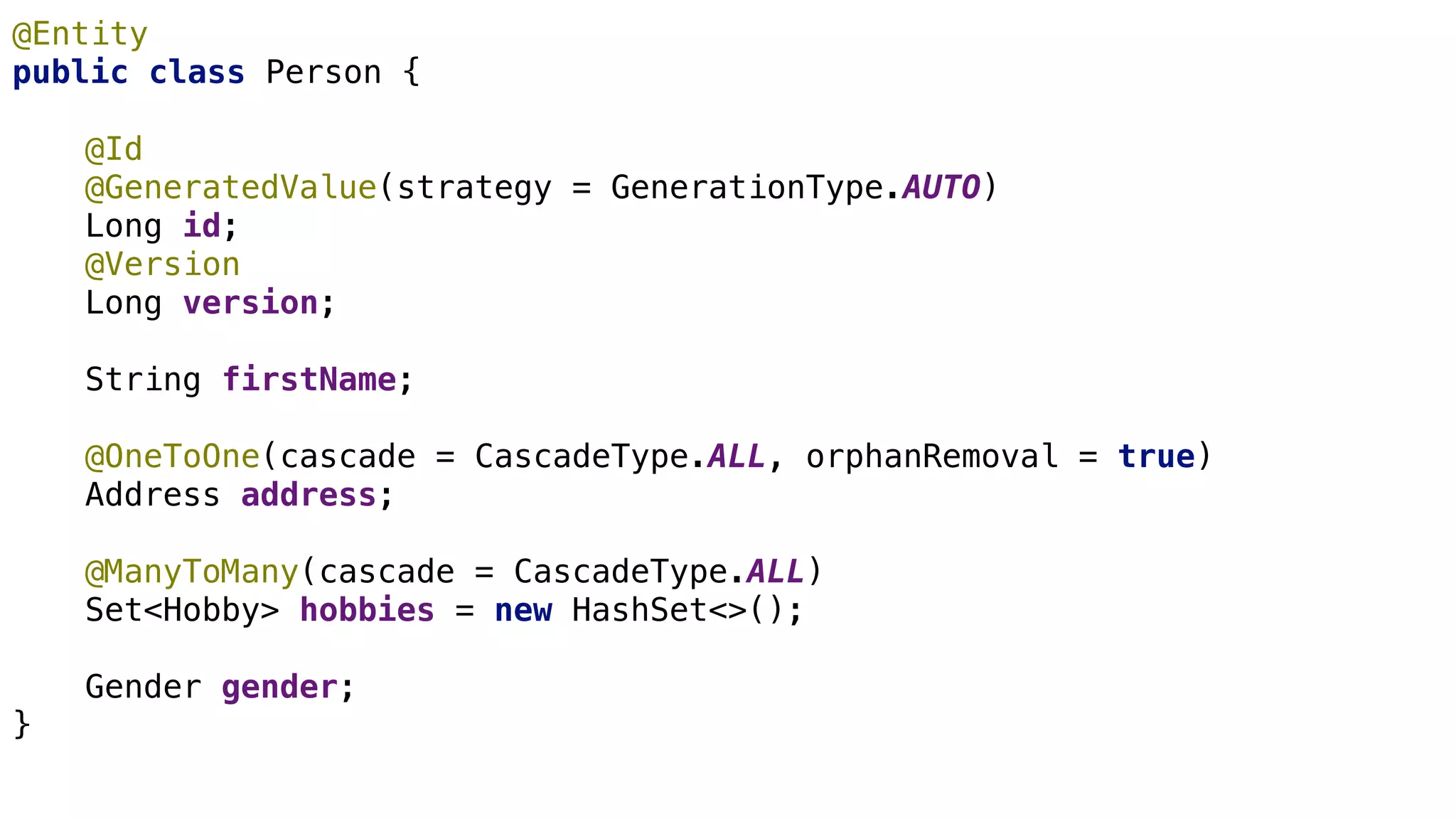

5. JPA Basics
@Entity
public class Person {
@Id
@GeneratedValue(strategy = GenerationType.AUTO)
Long id;
@Version
Long version;
String firstName;
@OneToOne(cascade = CascadeType.ALL, orphanRemoval = true)
Address address;
@ManyToMany(cascade = CascadeType.ALL)
Set<Hobby> hobbies = new HashSet<>();
Gender gender;
}

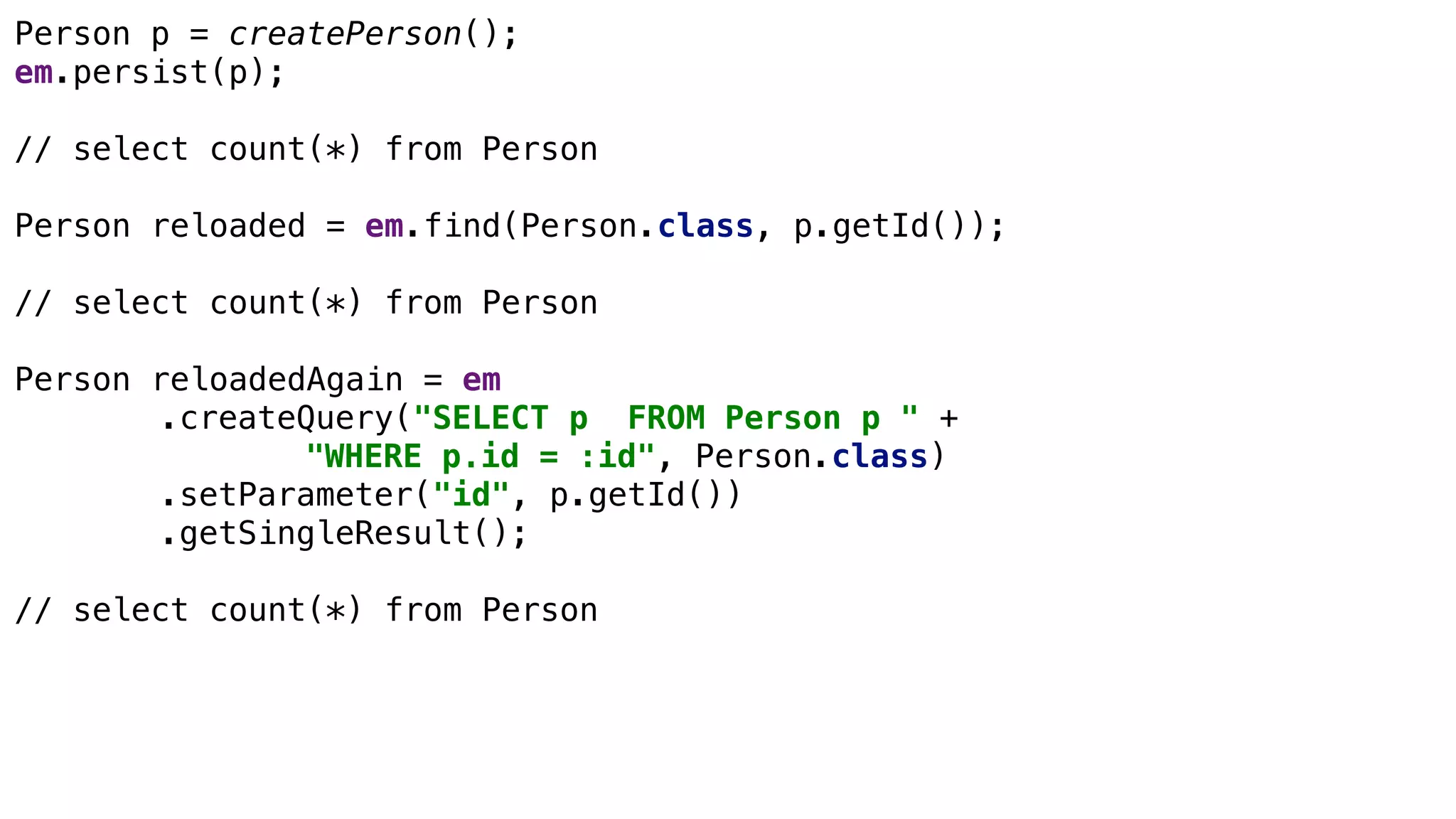

6. JPA Basics
Person p = createPerson();
em.persist(p);
// select count(*) from Person
Person reloaded = em.find(Person.class, p.getId());
// select count(*) from Person
Person reloadedAgain = em
.createQuery("SELECT p FROM Person p " +
"WHERE p.id = :id", Person.class)
.setParameter("id", p.getId())
.getSingleResult();
// select count(*) from Person

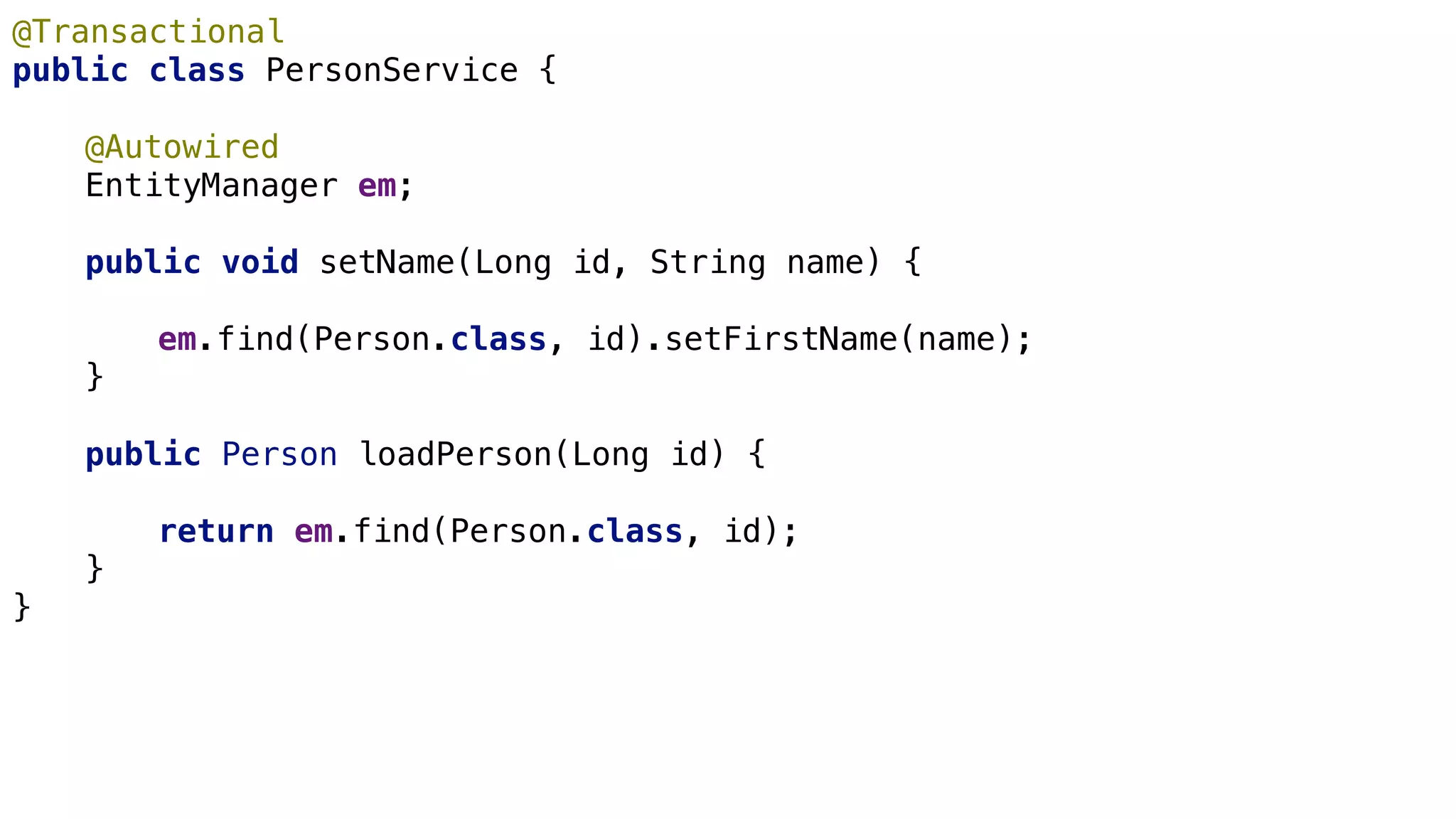

7. JPA Basics
@Transactional
public class PersonService {
@Autowired
EntityManager em;
public void setName(Long id, String name) {
em.find(Person.class, id).setFirstName(name);
}
public Person loadPerson(Long id) {
return em.find(Person.class, id);
}
}

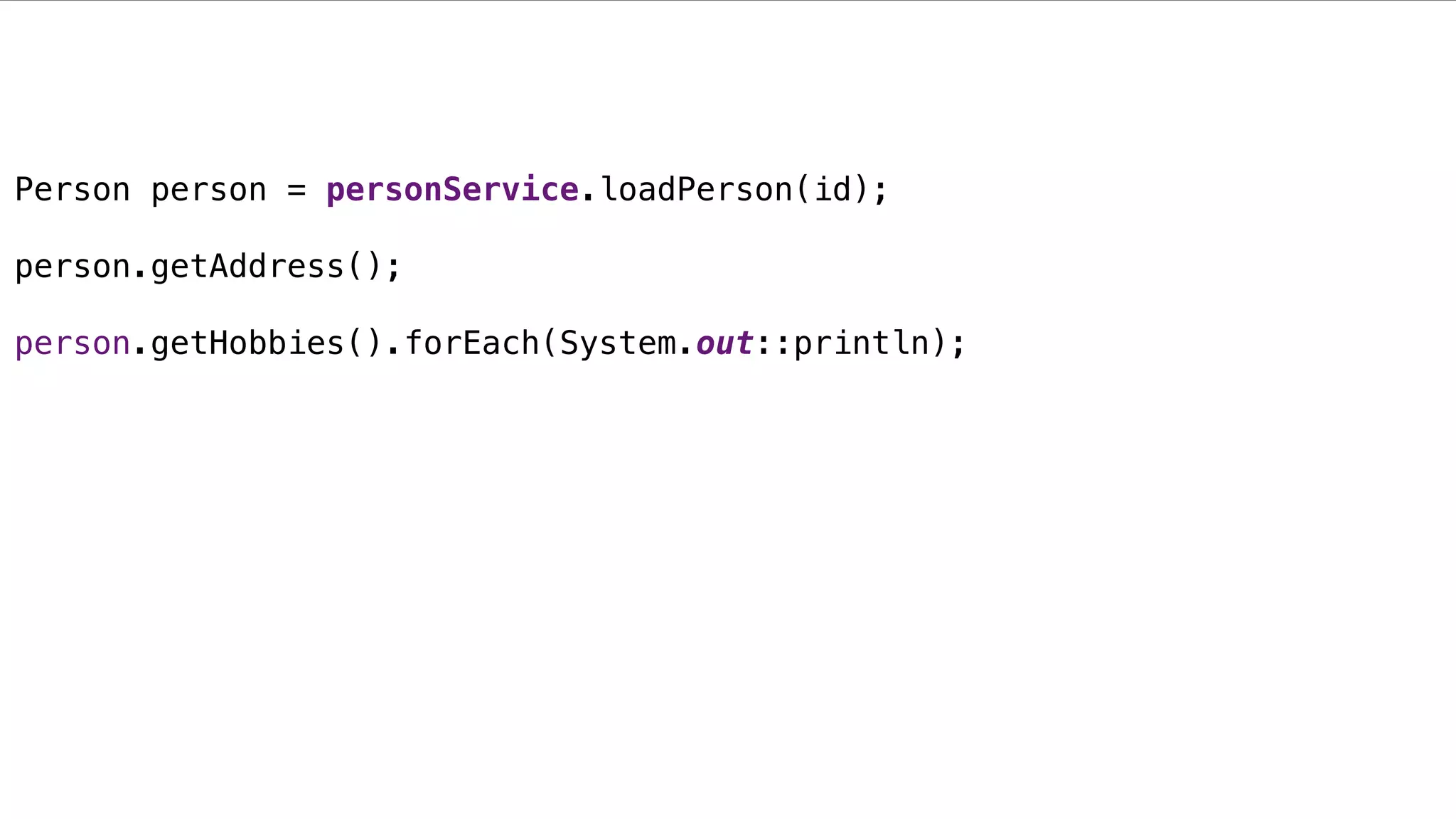

8. JPA Basics
Person person = personService.loadPerson(id);
person.getAddress();
person.getHobbies().forEach(System.out::println);

9. What does
Spring Data JPA do for you?
Spring Data JPA

10. CRUD
Spring Data JPA

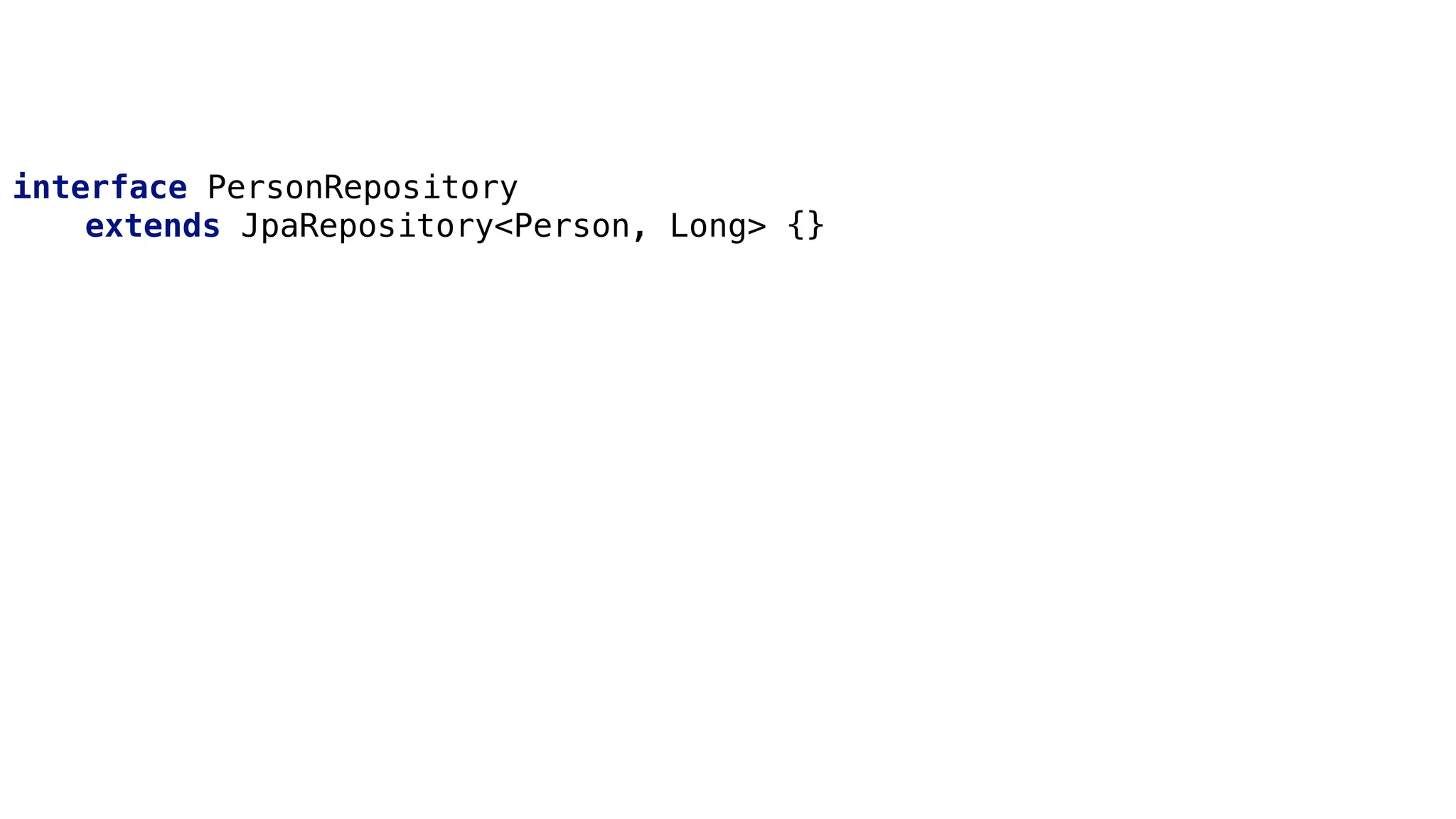

11. CRUD
interface PersonRepository
extends JpaRepository<Person, Long> {}

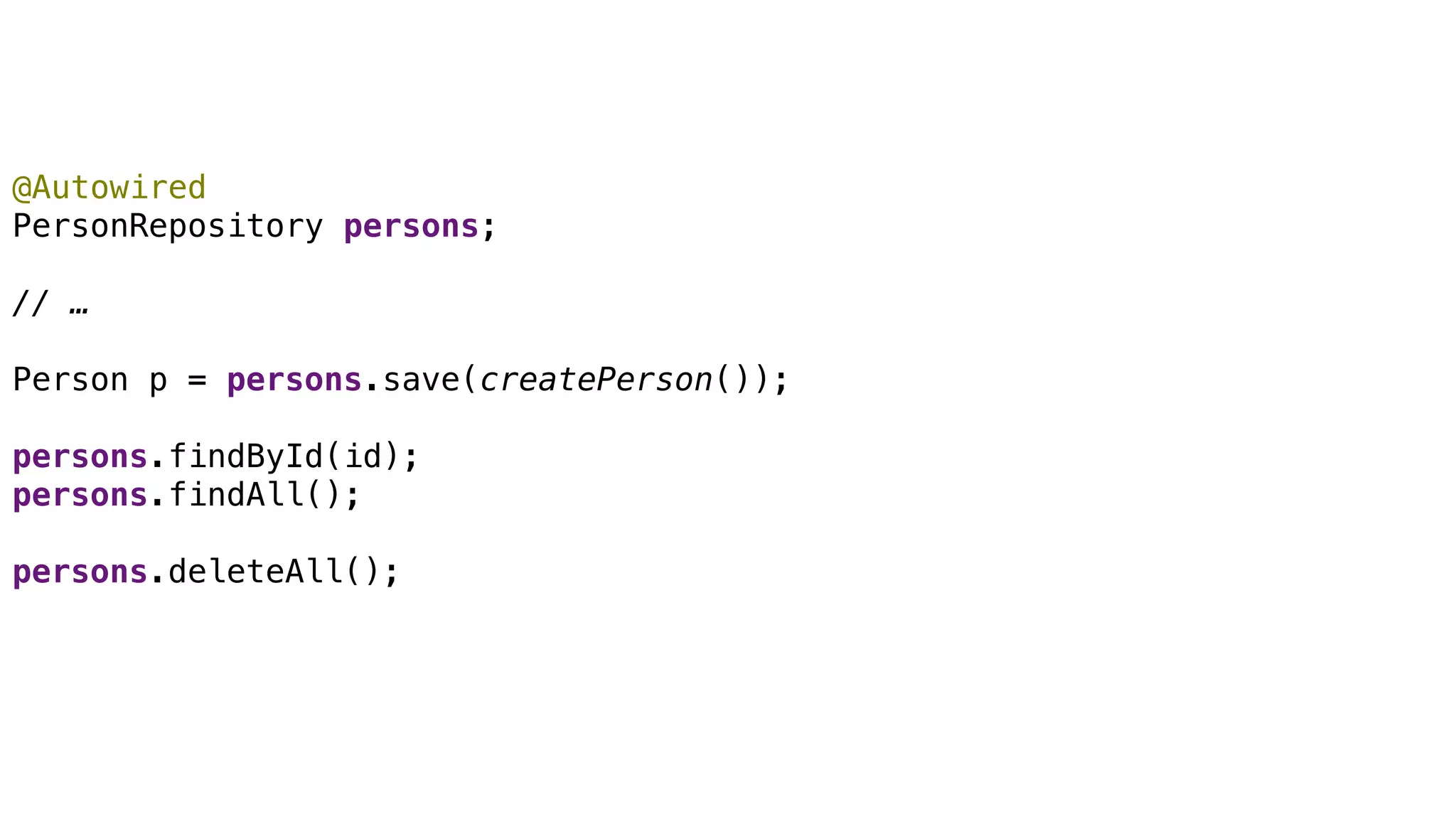

12. CRUD
@Autowired
PersonRepository persons;
// …
Person p = persons.save(createPerson());
persons.findById(id);
persons.findAll();
persons.deleteAll();

13. Query Derivation
Spring Data JPA

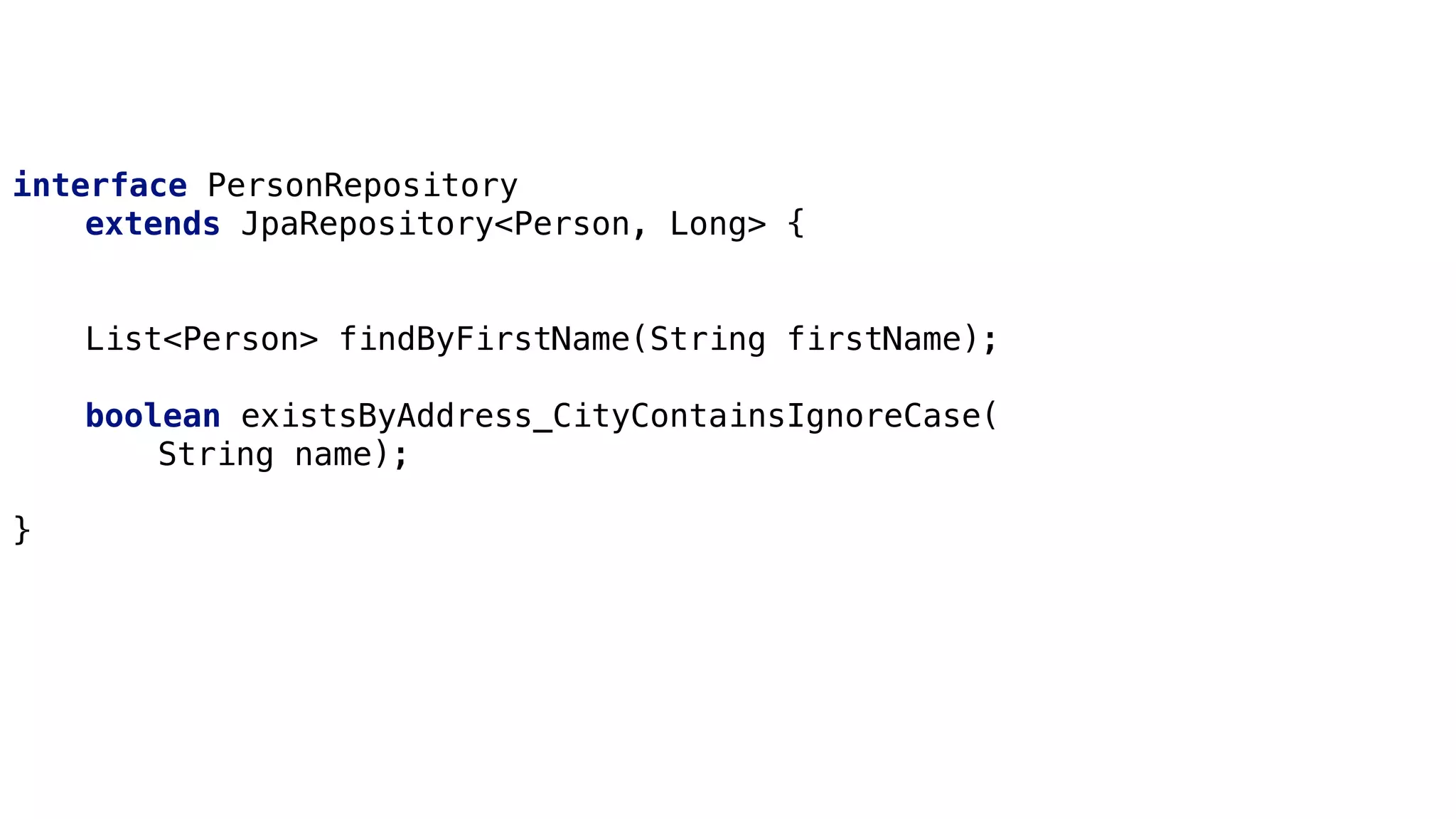

14. Derived Queries
interface PersonRepository
extends JpaRepository<Person, Long> {
List<Person> findByFirstName(String firstName);
boolean existsByAddress_CityContainsIgnoreCase(
String name);
}

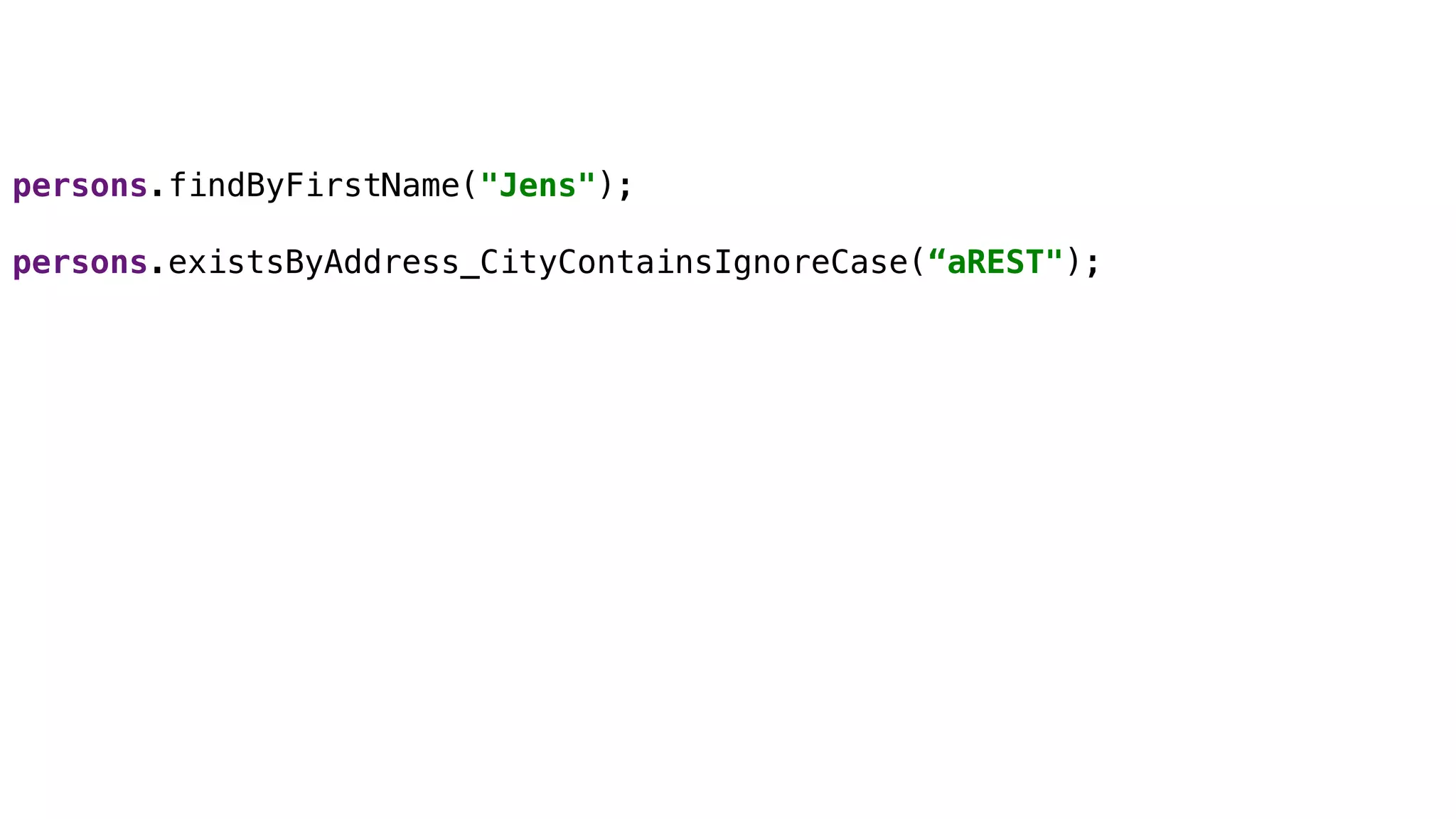

15. Derived Queries
persons.findByFirstName("Jens");
persons.existsByAddress_CityContainsIgnoreCase(“aREST");

16. Annotated Queries
Spring Data JPA

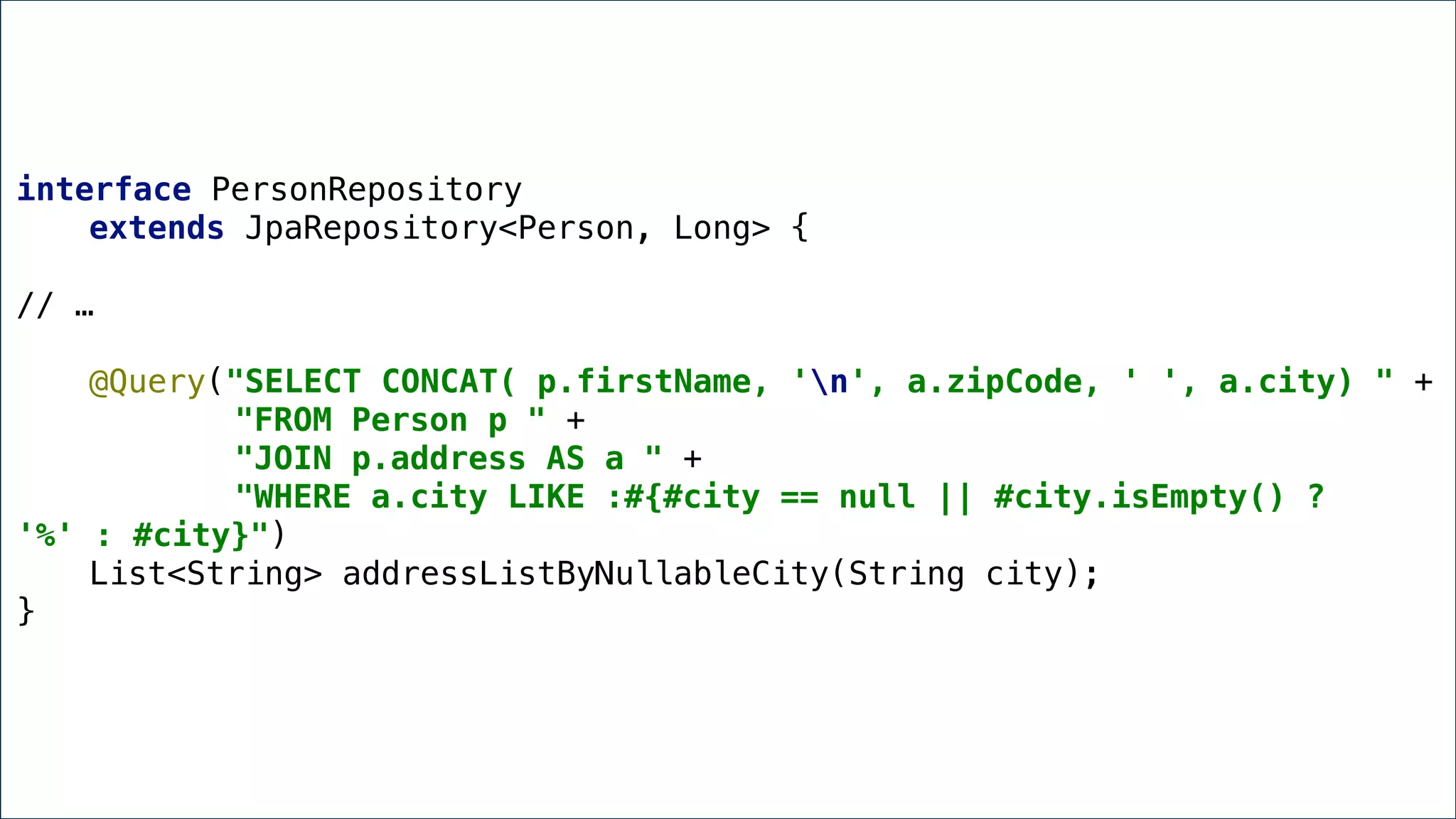

17. Annotated Queries
interface PersonRepository
extends JpaRepository<Person, Long> {
// …
@Query("SELECT CONCAT( p.firstName, 'n', a.zipCode, ' ', a.city) " +
"FROM Person p " +
"JOIN p.address AS a " +
"WHERE a.city LIKE :#{#city == null || #city.isEmpty() ?
'%' : #city}")
List<String> addressListByNullableCity(String city);
}

18. Pagination
Spring Data JPA

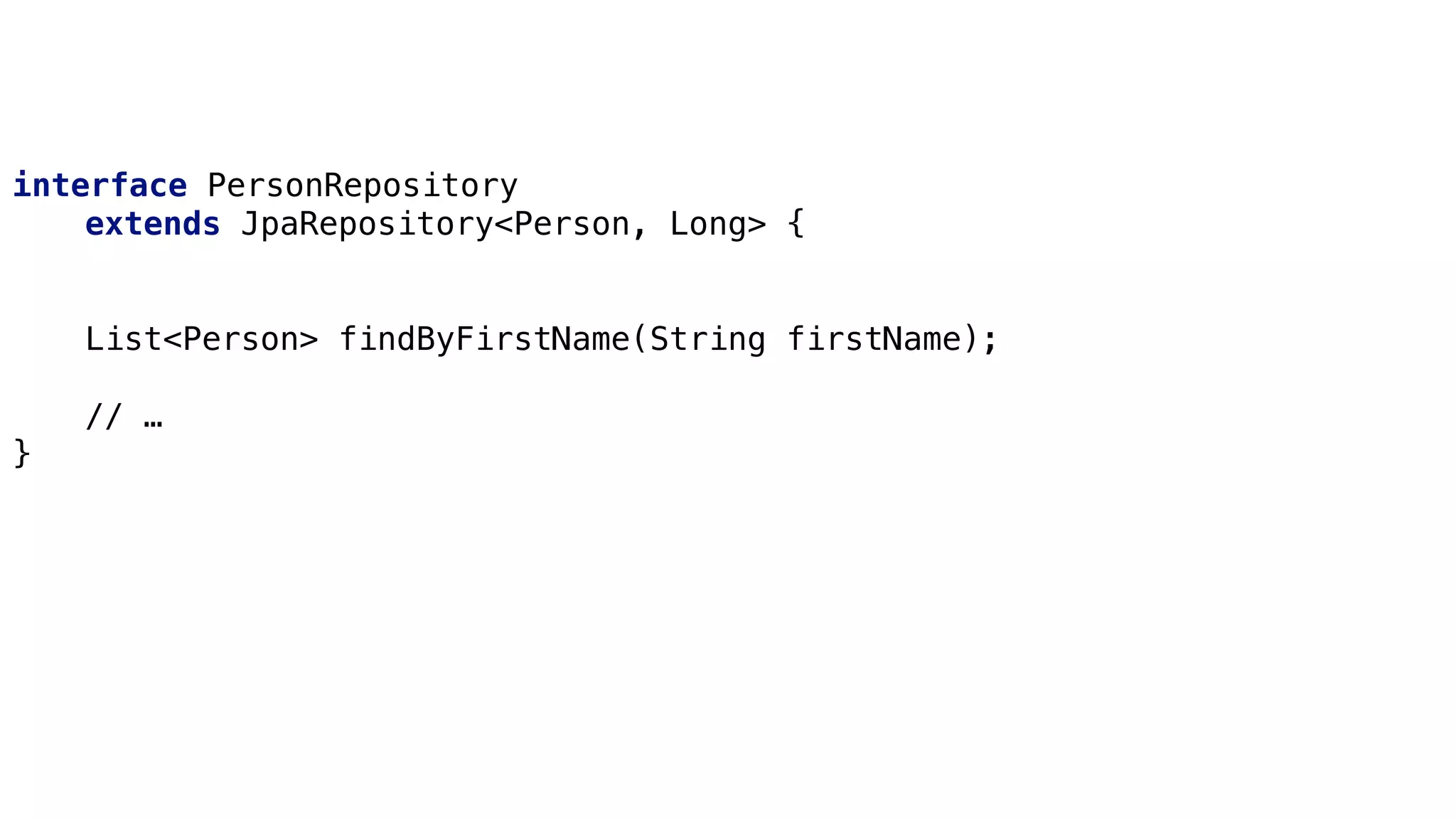

19. Derived Queries
interface PersonRepository
extends JpaRepository<Person, Long> {
List<Person> findByFirstName(String firstName);
// …
}

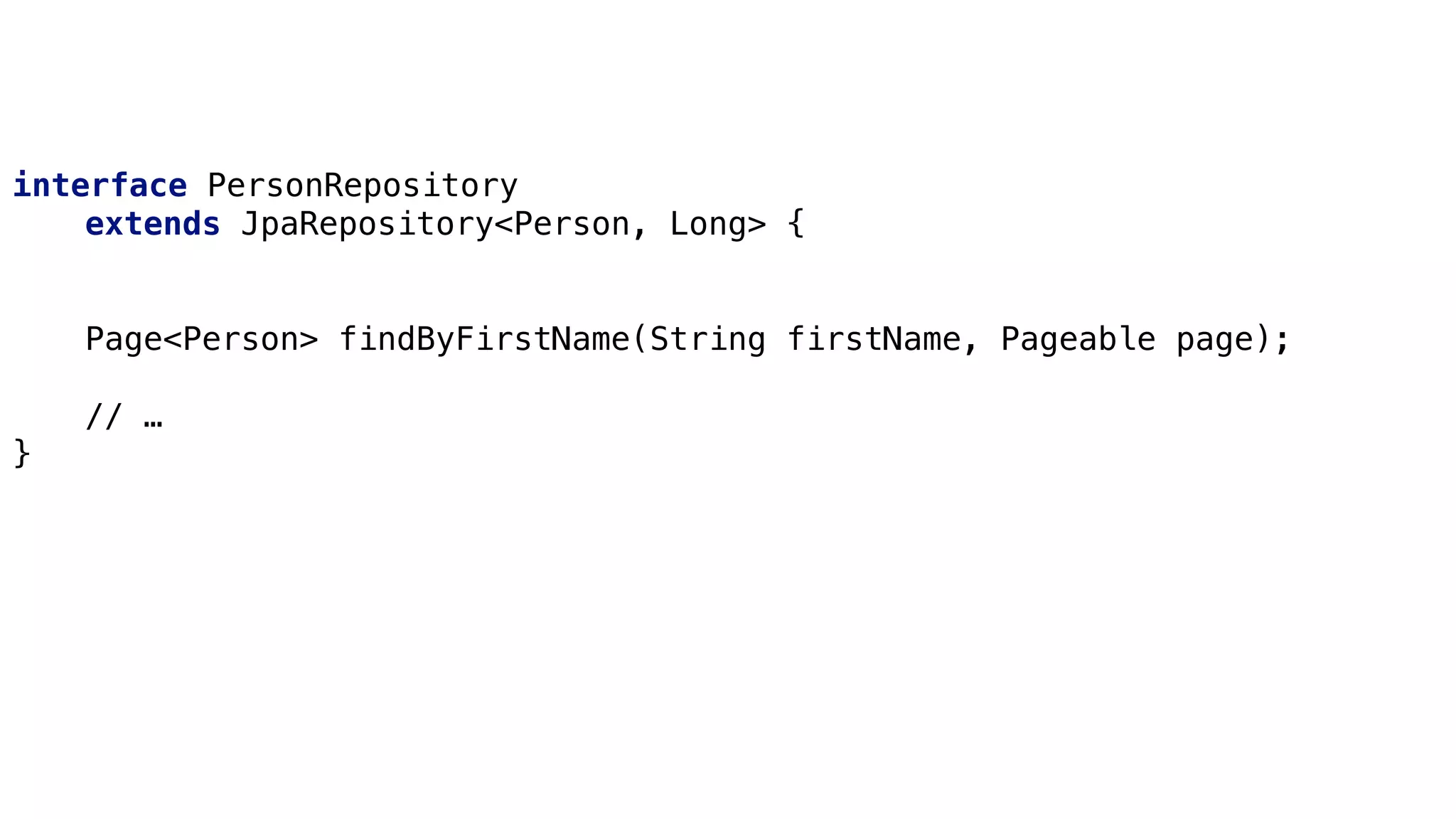

20. Derived Queries
interface PersonRepository
extends JpaRepository<Person, Long> {
Page<Person> findByFirstName(String firstName, Pageable page);
// …
}

21. Derived Queries
interface PersonRepository
extends JpaRepository<Person, Long> {
Slice<Person> findByFirstName(String firstName, Pageable page);
// …
}

22. Projections
Spring Data JPA

23. Derived Queries
interface PersonRepository
extends JpaRepository<Person, Long> {
List<Person> findByFirstName(String firstName);
// …
}

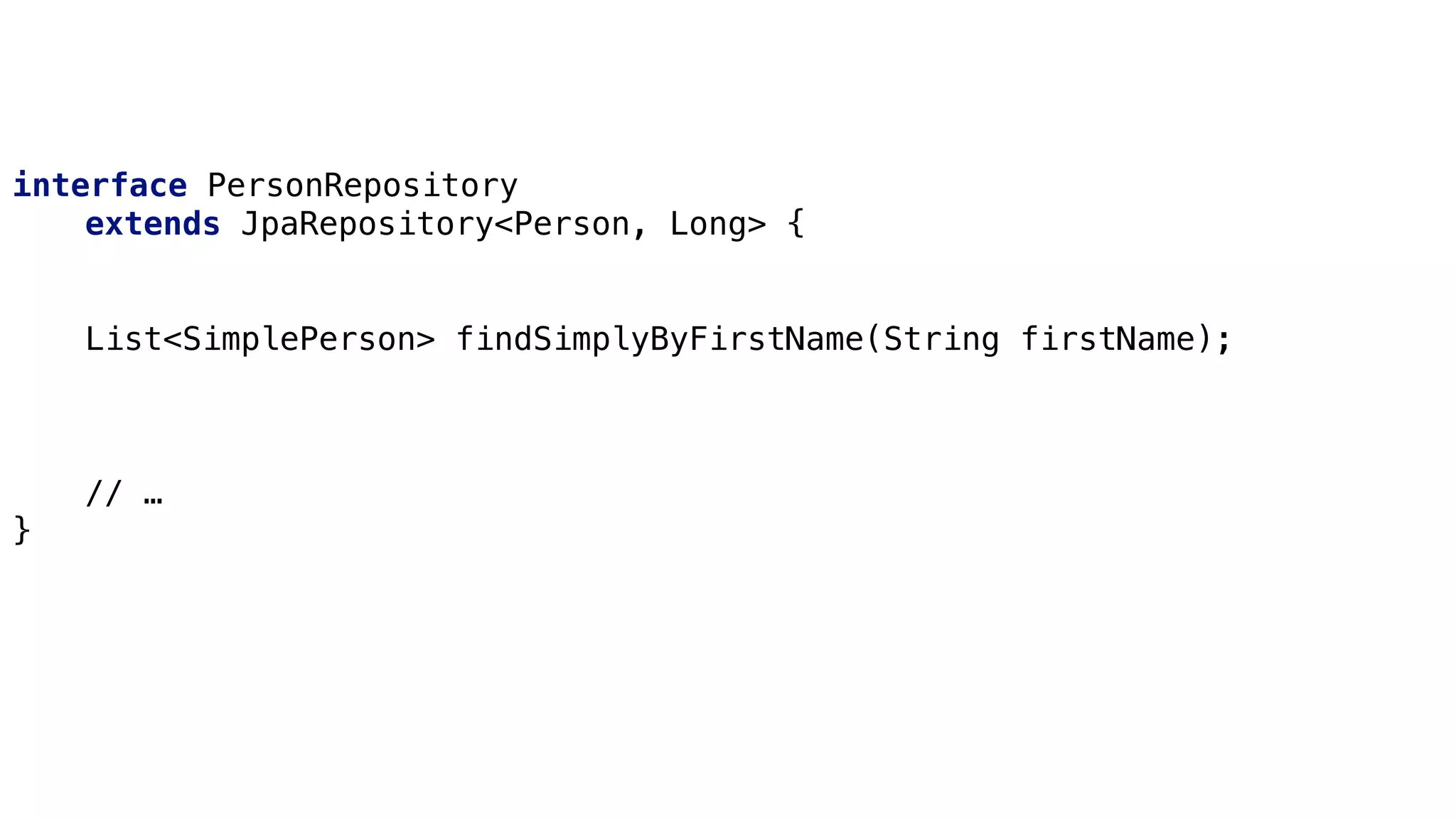

24. Derived Queries
interface PersonRepository
extends JpaRepository<Person, Long> {
List<SimplePerson> findSimplyByFirstName(String firstName);
// …
}

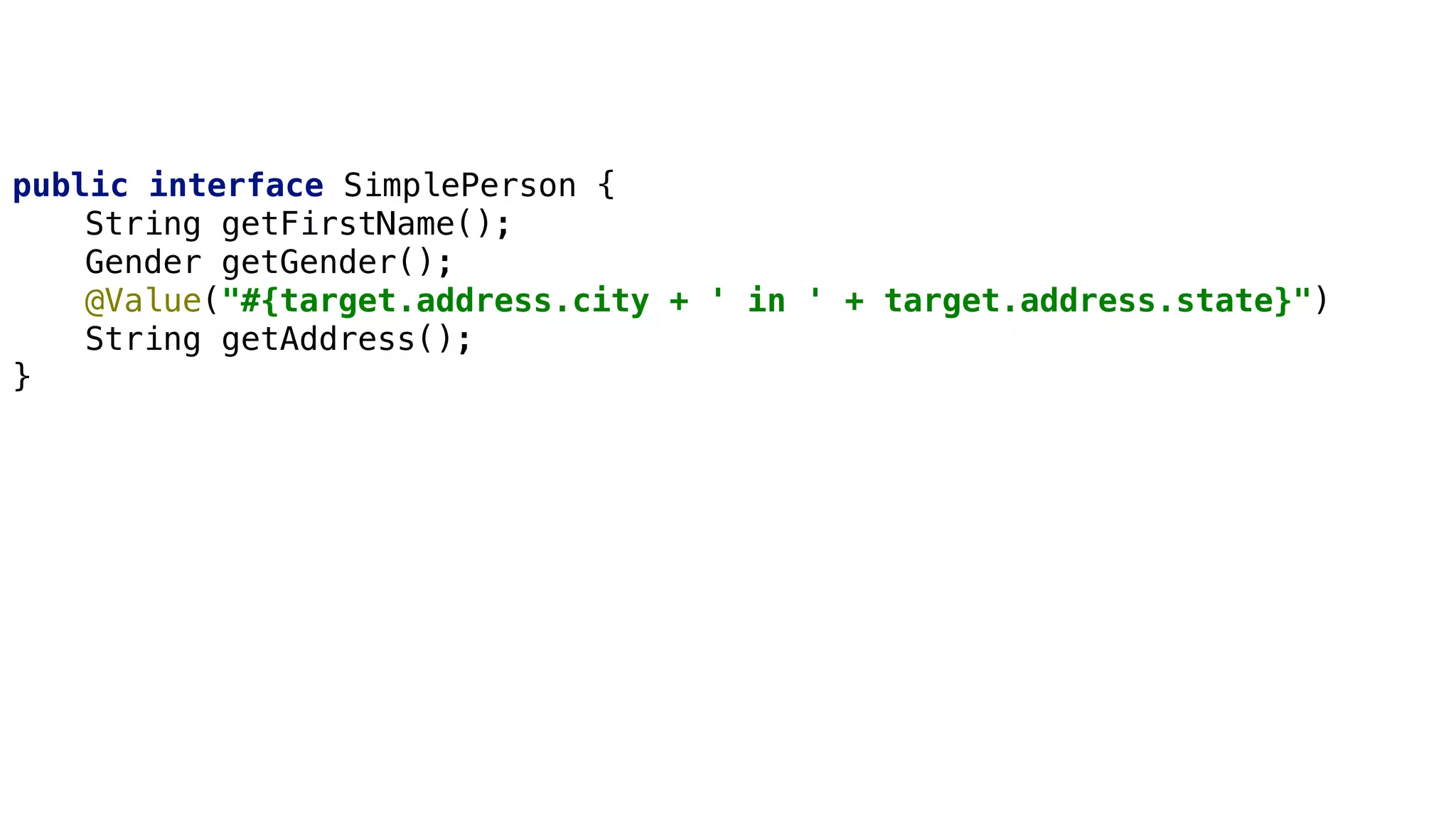

25. Derived Queries
public interface SimplePerson {
String getFirstName();
Gender getGender();
@Value("#{target.address.city + ' in ' + target.address.state}")
String getAddress();
}

26. Conversions
Spring Data JPA

27. Query By Example
Spring Data JPA

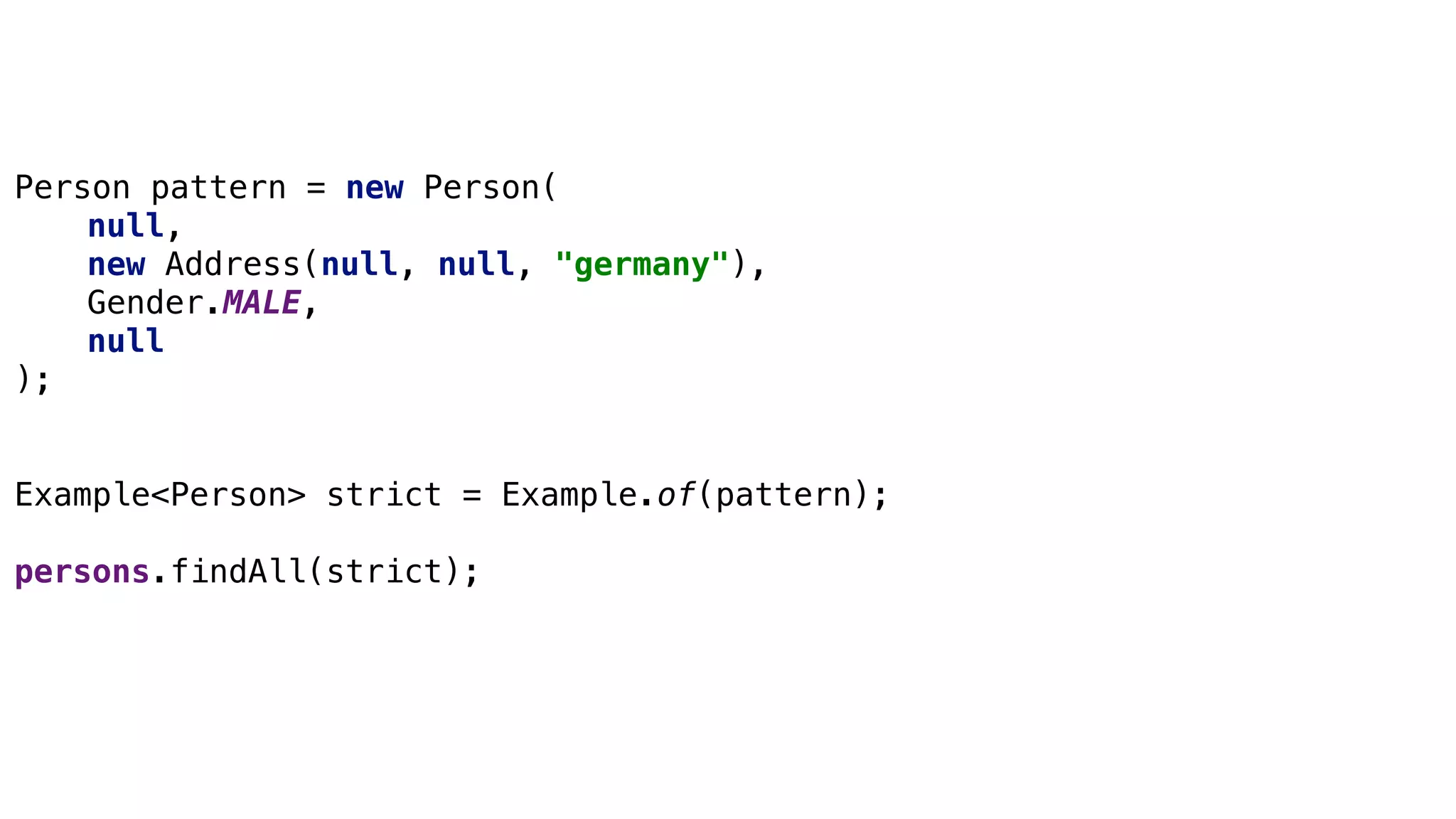

28. Query by Example
Person pattern = new Person(
null,
new Address(null, null, "germany"),
Gender.MALE,
null
);
Example<Person> strict = Example.of(pattern);
persons.findAll(strict);

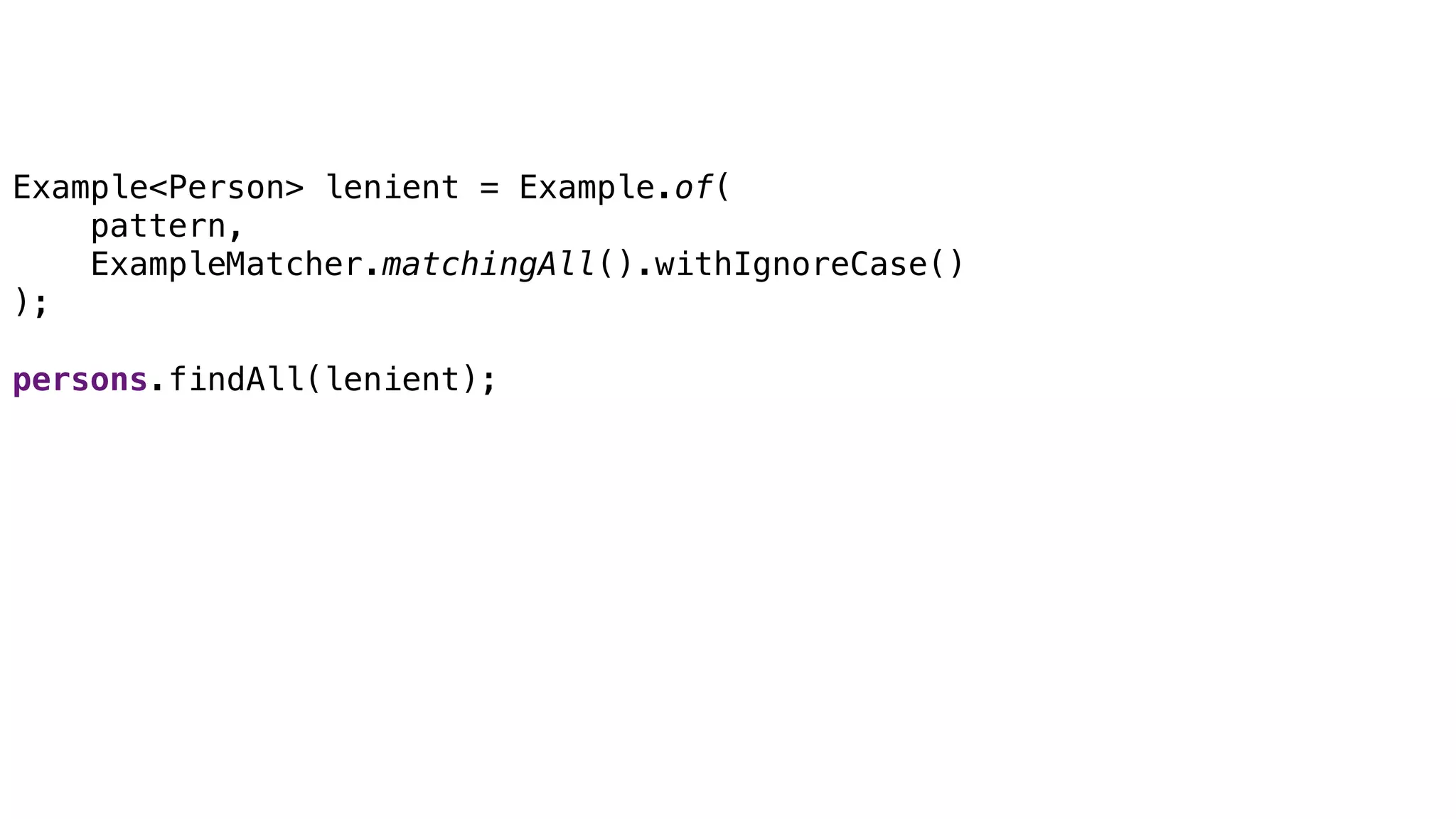

29. Query by Example
Example<Person> lenient = Example.of(
pattern,
ExampleMatcher.matchingAll().withIgnoreCase()
);
persons.findAll(lenient);

30. Specifications
Spring Data JPA

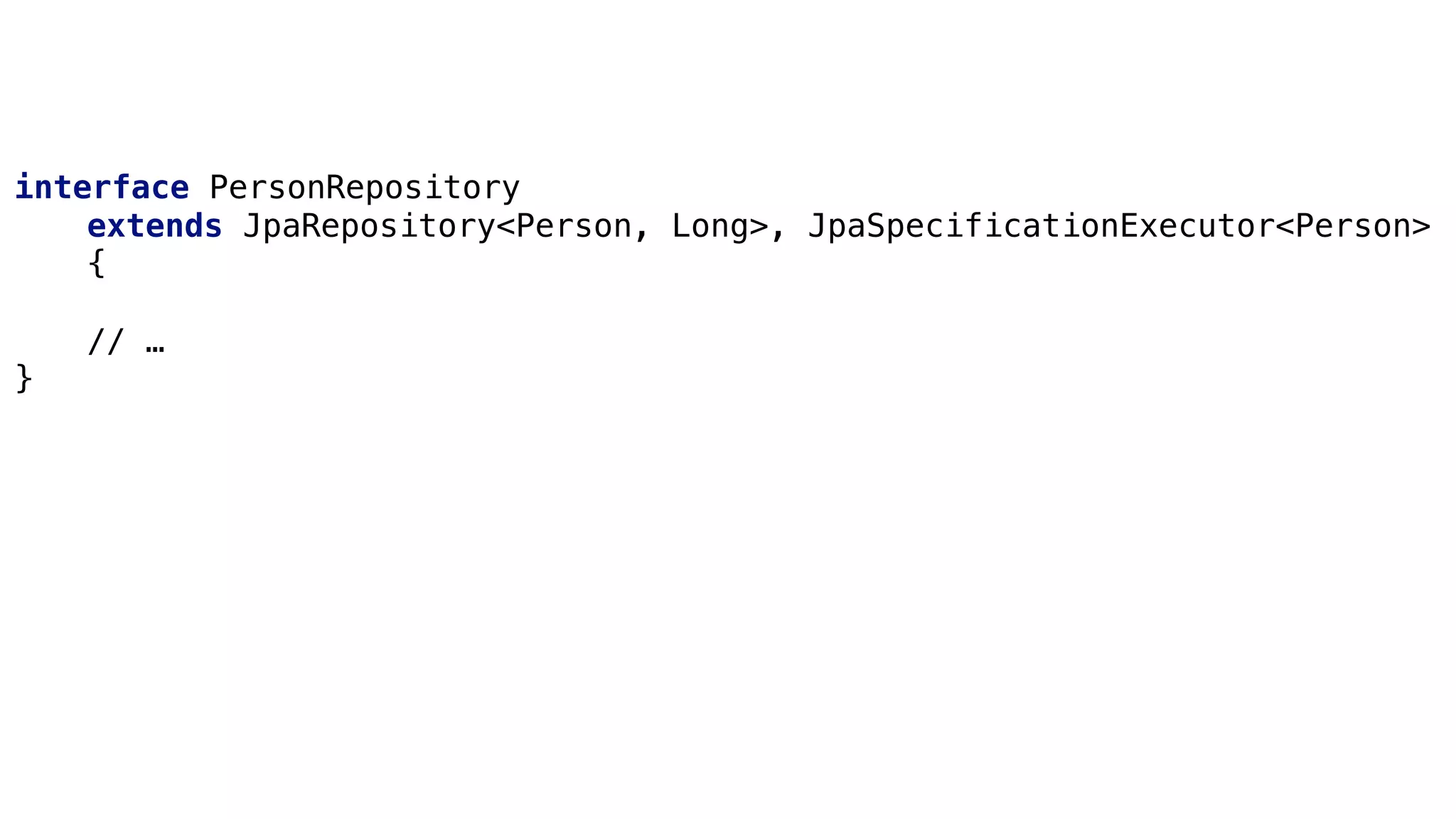

31. Specifications
interface PersonRepository
extends JpaRepository<Person, Long>, JpaSpecificationExecutor<Person>
{
// …
}

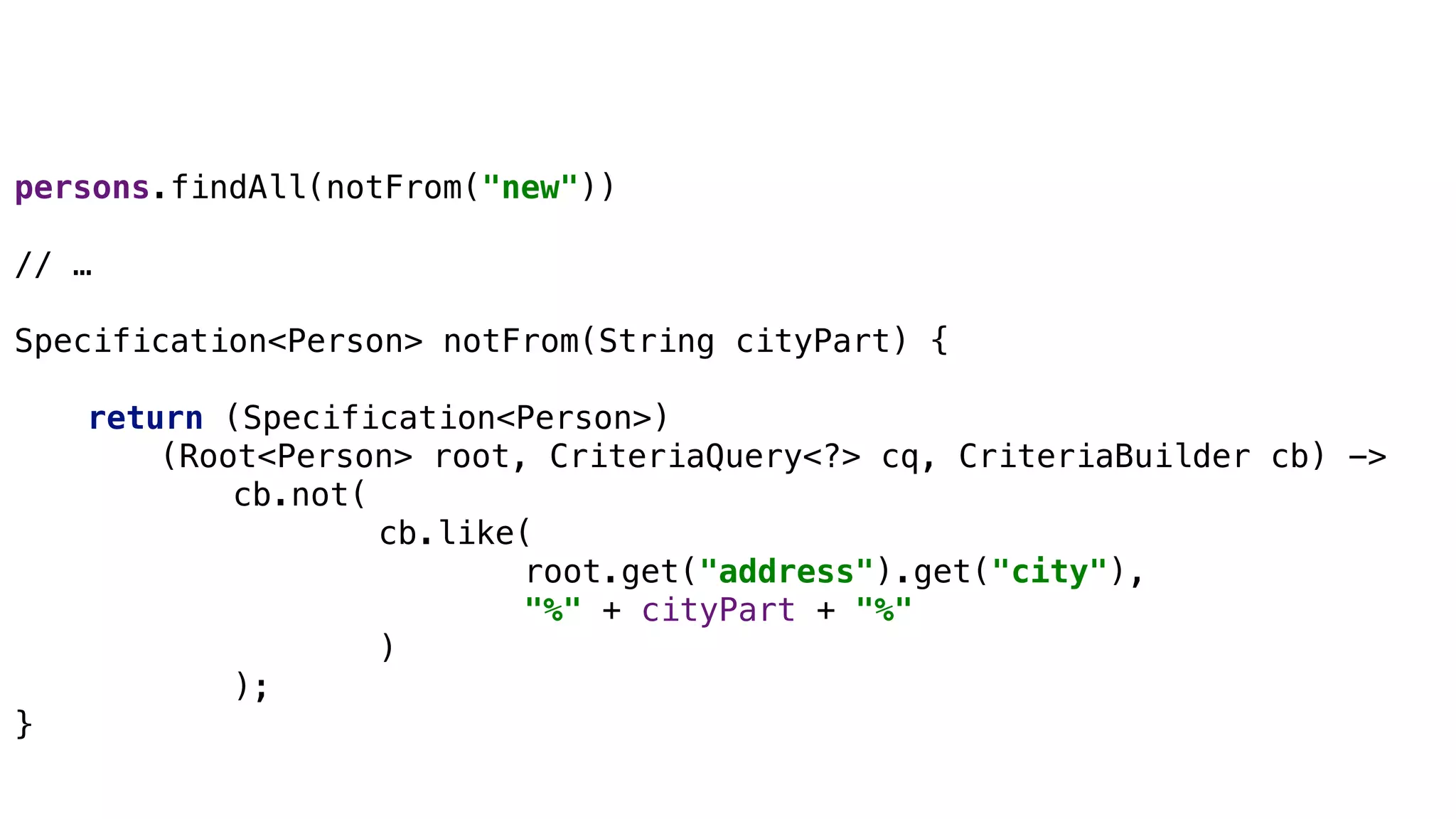

32. Specifications
persons.findAll(notFrom("new"))
// …
Specification<Person> notFrom(String cityPart) {
return (Specification<Person>)
(Root<Person> root, CriteriaQuery<?> cq, CriteriaBuilder cb) ->
cb.not(
cb.like(
root.get("address").get("city"),
"%" + cityPart + "%"
)
);
}

33. Querydsl Support
Spring Data JPA

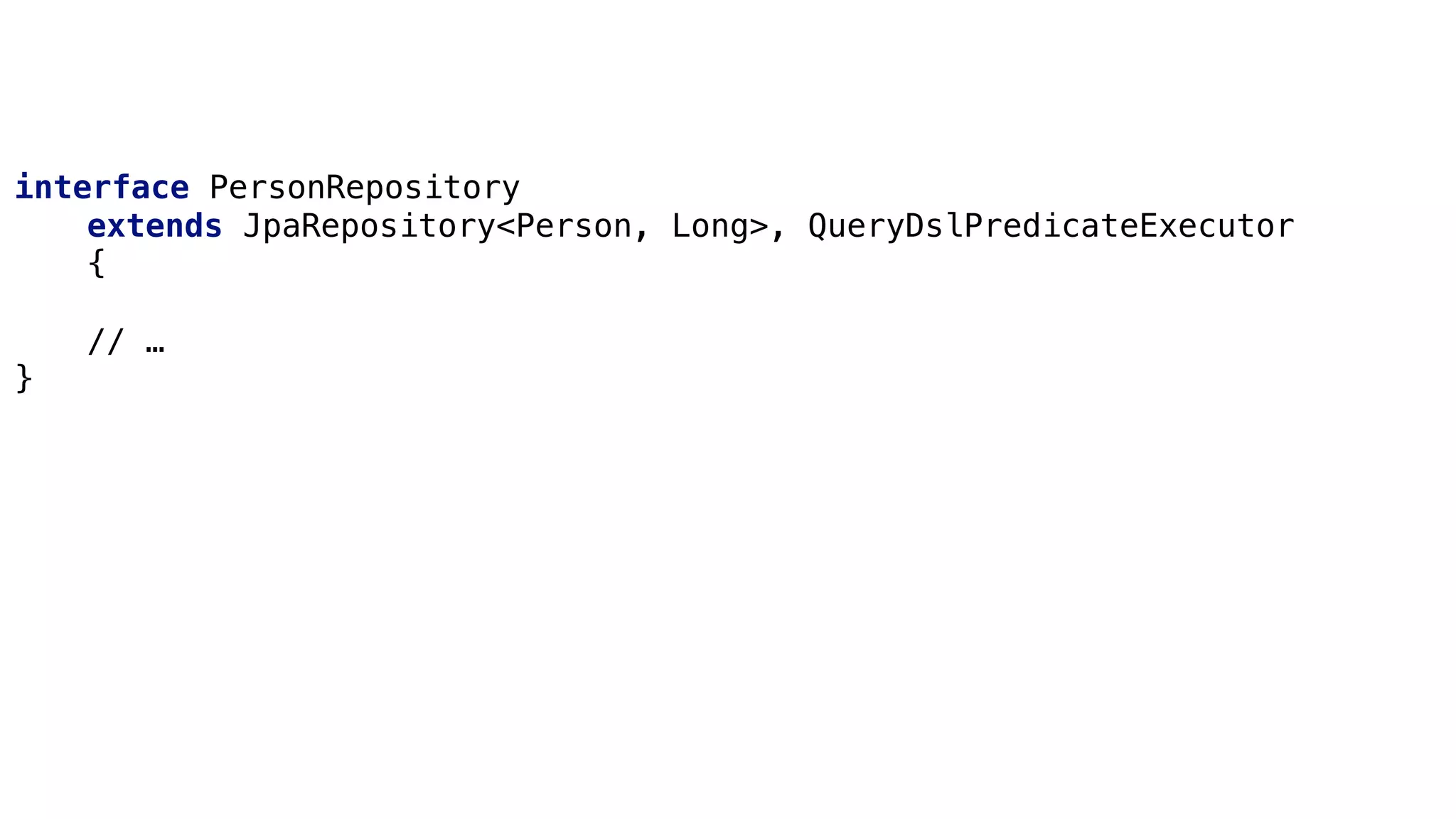

34. Specifications
interface PersonRepository
extends JpaRepository<Person, Long>, QueryDslPredicateExecutor
{
// …
}

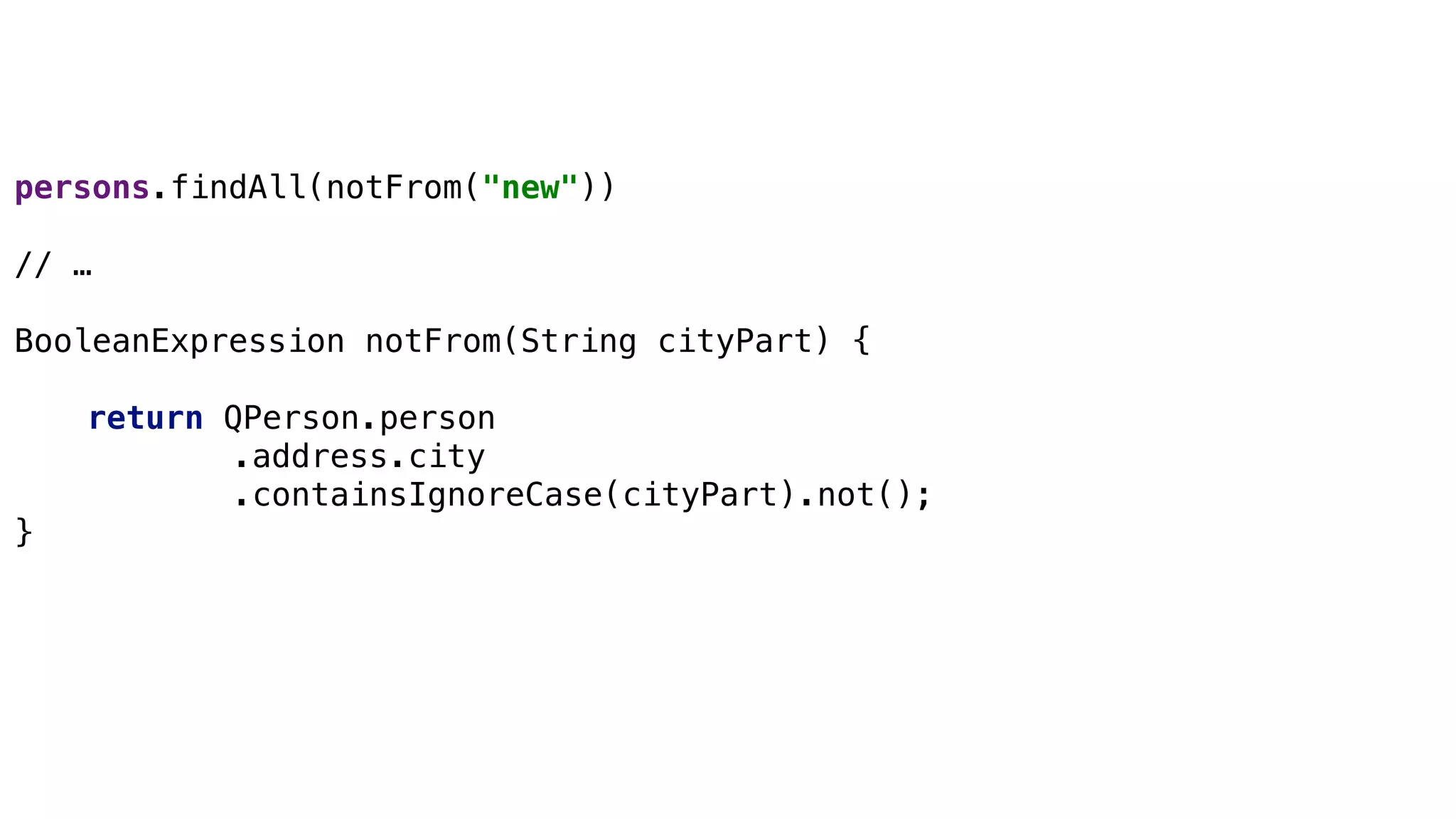

35. Specifications
persons.findAll(notFrom("new"))
// …
BooleanExpression notFrom(String cityPart) {
return QPerson.person
.address.city
.containsIgnoreCase(cityPart).not();
}

36. What is Spring Data JDBC?
Alternativ to Spring Data JPA

37. What if something breaks?
Spring Data JPA or JPA

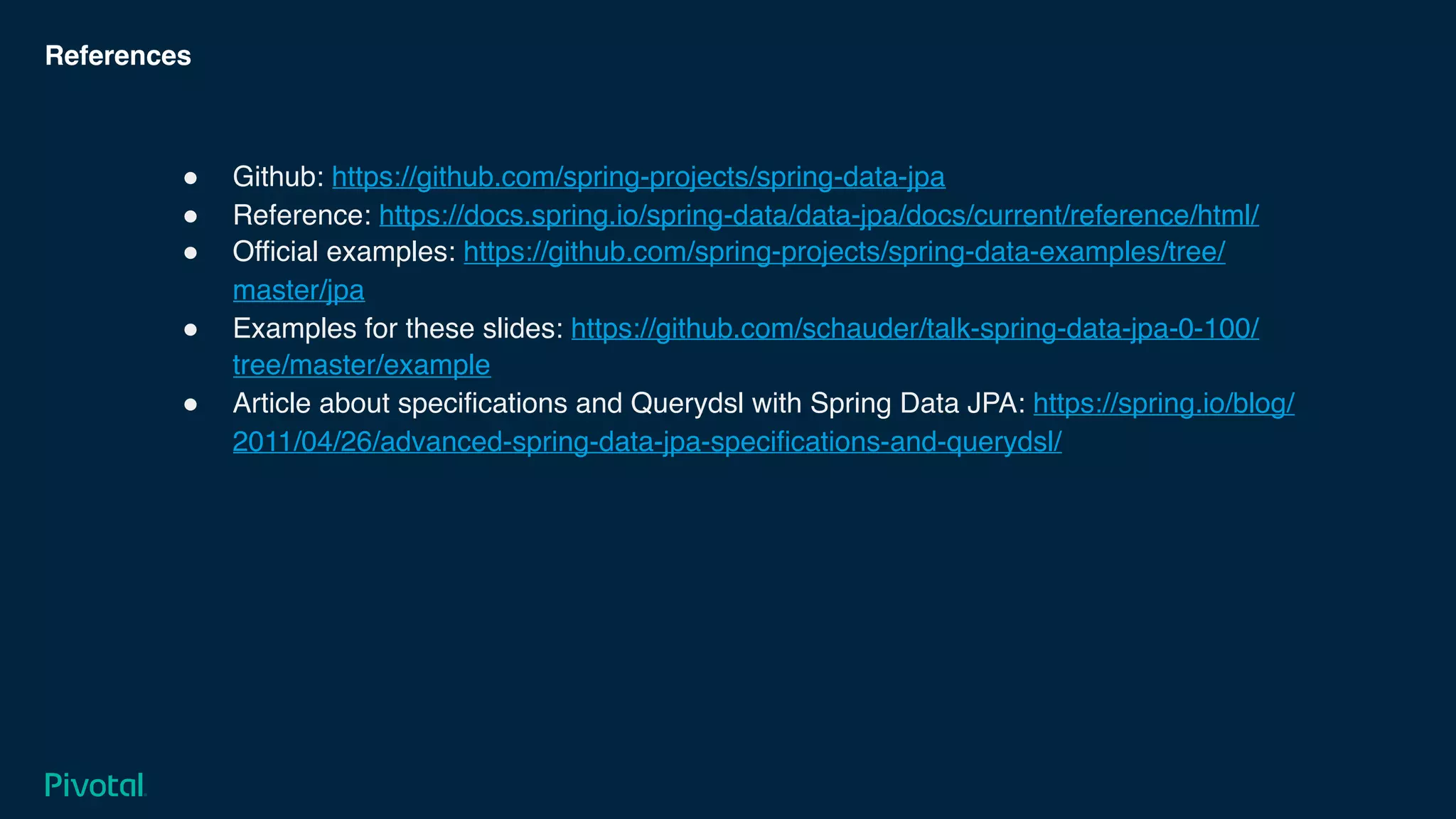

38. References
! Github: https://github.com/spring-projects/spring-data-jpa
! Reference: https://docs.spring.io/spring-data/data-jpa/docs/current/reference/html/
! Official examples: https://github.com/spring-projects/spring-data-examples/tree/
master/jpa
! Examples for these slides: https://github.com/schauder/talk-spring-data-jpa-0-100/
tree/master/example
! Article about specifications and Querydsl with Spring Data JPA: https://spring.io/blog/
2011/04/26/advanced-spring-data-jpa-specifications-and-querydsl/
