Spark sql meetup

Spark SQL 漫谈
Cheng Hao
Oct 25, 2014
Copyright © 2014 Intel Corporation.

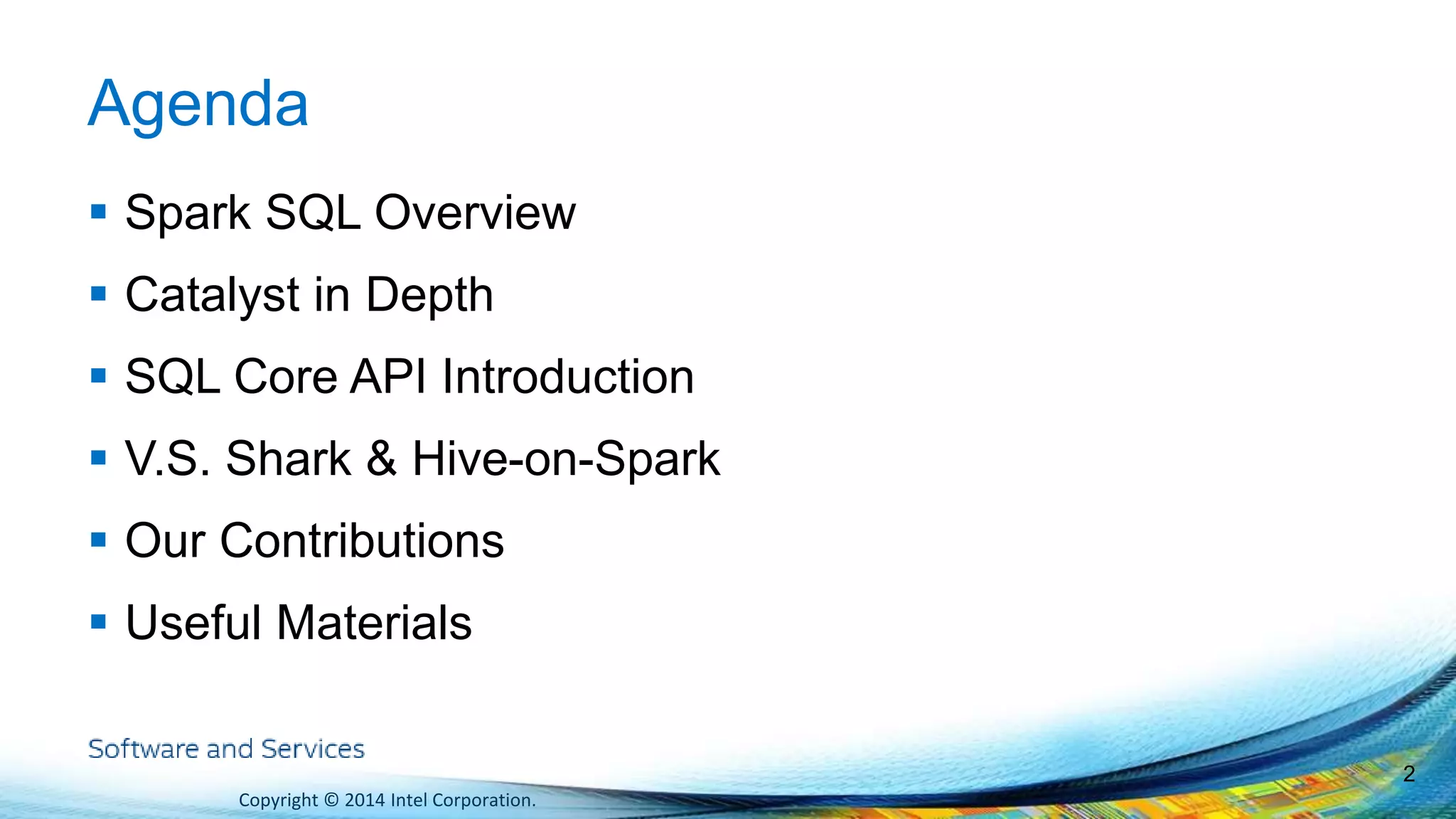

Agenda
 Spark SQL Overview
 Catalyst in Depth
 SQL Core API Introduction
 V.S. Shark & Hive-on-Spark
 Our Contributions
 Useful Materials
2

Spark SQL Overview

Spark SQL in Spark
4
Spark
Streaming
real-time
GraphX
Graph
(alpha)
MLLib
Machine
Learning
Spark Core
Spark SQL
 Spark SQL was first released in Spark 1.0 (May, 2014)
 Initial committed by Michael Armbrust & Reynold Xin from Databricks

Spark SQL Component Stack (User Perspective)
 Hive-like interface(JDBC Service / CLI)
 SQL API support (LINQ-like)
 Both Hive QL & Simple SQL dialects are Supported
 DDL is 100% compatible with Hive Metastore
 Hive QL aims to 100% compatible with Hive DML
 Simple SQL dialect is now very weak in functionality,
but easy to extend
5
User Application
CLI JDBC Service
SQL API
Hive QL Simple SQL
Catalyst
Spark Execution Operators
Spark Core
Data Analyst
Hive Meta Store Simple Catalog

Spark SQL Architecture
6
Frontend Backend
Catalyst
By Michael Armbrust @ Databricks

Catalyst in Depth

Understand Some Terminology
 Logical and Physical query plans
 Both are trees representing query evaluation
 Internal nodes are operators over the data
 Logical plan is higher-level and algebraic
 Physical plan is lower-level and operational
 Logical plan operators
 Correspond to query language constructs
 Conceptually describe what operation needs to be
8
performed
 Physical plan operators
 Correspond to implemented access methods
 Physically Implement the operation described by logical
operators
SQL Text
Parsing
Unresolved
Logical Plan
Binding & Analyzing
Logical Plan
Optimizing
Optimized
Logical Plan
Query Planning
Physical Plan

Examples
9
We execute the following commands on Spark SQL CLI.
• CREATE TABLE T (key: String, value: String)
• EXPLAIN EXTENDED
SELECT
a.key * (2 + 3), b.value
FROM T a JOIN T b
ON a.key=b.key AND a.key>3

== Parsed Logical Plan ==
Project [('a.key * (2 + 3)) AS c_0#24,'b.value]
Join Inner, Some((('a.key = 'b.key) && ('a.key > 3)))
Understand some terminologies
UnresolvedRelation None, T, Some(a)
UnresolvedRelation None, T, Some(b)
== Analyzed Logical Plan ==
Project [(CAST(key#27, DoubleType) * CAST((2 + 3), DoubleType)) AS c_0#24,value#30]
Join Inner, Some(((key#27 = key#29) && (CAST(key#27, DoubleType) > CAST(3, DoubleType))))
MetastoreRelation default, T, Some(a)
MetastoreRelation default, T, Some(b)
== Optimized Logical Plan ==
Project [(CAST(key#27, DoubleType) * 5.0) AS c_0#24,value#30]
Join Inner, Some((key#27 = key#29))
Project [key#27]
Filter (CAST(key#27, DoubleType) > 3.0)
MetastoreRelation default, T, Some(a)
MetastoreRelation default, T, Some(b)
== Physical Plan ==
Project [(CAST(key#27, DoubleType) * 5.0) AS c_0#24,value#30]
BroadcastHashJoin [key#27], [key#29], BuildLeft
Filter (CAST(key#27, DoubleType) > 3.0)
HiveTableScan [key#27], (MetastoreRelation default, T, Some(a)), None
HiveTableScan [key#29,value#30], (MetastoreRelation default, T, Some(b)), None
10

Catalyst Overview
• Catalyst essentially a extensible framework to Analyze & Optimize the logical plan,
expression.
• Core Elements:
• Tree Node API
• Expression Optimization
• Data Type & Schema
• Row API
• Logical Plan (Unresolved) Binding & Analyzing (Rules)
• Logical Plan (Resolved) Optimizing (Rules)
• SPI (Service Provider Interface)
• FunctionRegistry
• Schema Catalog
11

Data Type & Schema
 Primitive Type
 StringType, FloatType, IntegerType, ByteType, ShortType, DoubleType, LongType,
BinaryType, BooleanType, DecimalType, TimestampType, DateType, Varchar(Not
Complete Supported Yet), Char(Not Complete Supported Yet)
 Complex Type
 ArrayType
 ArrayType(elementType: DataType)
 StructType
 StructField(name: String, dataType: DataType)
 StructType(fields: Seq[StructField])
 MapType
 MapType(keyType: DataType, valueType: DataType)
 UnionType (Not Supported Yet)
12
Relation Schema

Row API
13
trait Row extends Seq[Any] with Serializable
{
def apply(i: Int): Any
def isNullAt(i: Int): Boolean
def getInt(i: Int): Int
def getLong(i: Int): Long
def getDouble(i: Int): Double
def getFloat(i: Int): Float
def getBoolean(i: Int): Boolean
def getShort(i: Int): Short
def getByte(i: Int): Byte
def getString(i: Int): String
def getAs[T](int: Int): T
}
 Row class is the key data structure widely used
internal / external Spark SQL.
 “def getAs[T]” is used for non-primitive data types
 Field value represented as native language data
type.
 Field type represented as DataType described in last
slice.

Logical Plan Binding & Analyzing
• Essentially about data binding & semantic analysis
• Example Rules
• Bind Attributes, Relations with concrete data.
• ResolveReferences, ResolveRelation
• Expressions Analysis
• Data Type Coercion (PropagateTypes, PromoteString, BooleanCasts, Division etc.)
• Bind UDF(ResolveFunctions)
• Evict / Expand the Analysis Logical Plan Operators
• StarExpansion, EliminateAnalysisOperators
• Implicit Semantic Supplement
• Add sort expressions into the child projection list.(ResolveSortReferences)
• Convert projection into aggregation if the projection contains aggregate
function(GlobalAggregates).
• UnresolvedHavingClauseAttributes
• Semantic Checking
• Unresolved Function, Relation, Attributes (CheckResolution)
• Illegal expressions in projection of an Aggregation (CheckAggregation)
• ….
14 Copyright © 2014 Intel Corporation.

Logical Plan Optimizing
• Simplify the Logical Plan Tree based on Relational / Logical Algebra, Common Sense (Rule Based)
• Example Rules
• Expression Optimization.
• NullPropagation, ConstantFolding, SimplifyFilters, SimplifyCasts, OptimizeIn etc.
• Filter PushDown
• UnionPushdown, PushPredicateThroughProject,
PushPredicateThroughJoin,ColumnPruning
• Combine Operators
• CombineFilters, CombineLimits
• Concrete Example
• IsNull(‘a + null) => IsNull(null) => Literal(true)
• SELECT a.key, b.key FROM a, b ON a.key=b.key AND b.key>10 =>
SELECT a.key, b.key FROM a, (SELECT key FROM b WHERE key>10) ON a.key=b.key

Spark SQL Dialects
16
Hive Parser
Hive AST
Logical Plan
Optimized Logical
Plan
Hive+Spark
Planner
DSL API
Spark
Planner
Execution
Operators
SQL Parser
Unresolved
Logical Plan
Hive
Catelog
Simple
Catelog
HiveContext SQLContext
Frontend
Catalyst
Backend
XX Parser / API
XXX
Catelog
XXX
Planner
XXXContext
Frontend
+
Catalyst + SPI
+
Backend
||
Tool

Spark Plan (Physical Plan)
 Root class of Spark Plan Operator (Physical Plan Operator for Spark)
 Spark Plan Operators
 Joins: BroadcastHashJoin, CartesianProduct, HashOuterJoin, LeftSemiJoinHash etc.)
 Aggregate: Aggregate
 BasicOperators: Distinct, Except, Filter, Limit, Project, Sort, Union etc.)
 Shuffle: AddExchange, Exchange
 Commands: CacheTableCommand, DescribeCommand, ExplainCommand etc.)
 ..
 Spark Strategy (SparkPlanner)
 Map the Optimized Logical Plan to Spark Plan
17
abstract class SparkPlan {
def children: Seq[SparkPlan]
/** Specifies how data is partitioned across different nodes in the cluster. */
def outputPartitioning: Partitioning = UnknownPartitioning(0)
/** Specifies any partition requirements on the input data for this operator. */
def requiredChildDistribution: Seq[Distribution] =
Seq.fill(children.size)(UnspecifiedDistribution)
def execute(): RDD[Row]
}
Optimized
Logical Plan
Spark Plan
RDD
Spark Execution

Case Study for Catalyst in Depth
• StreamSQL
18
• Reuse the HiveContext but with different Frontend / Backend.
• Frontend: Slight modification of the HiveParser
• Backend: Customed Query Planner, to generate the physical plan based on Spark
DStream.
• JIRA: https://issues.apache.org/jira/browse/SPARK-1363
• Source: https://github.com/thunderain-project/StreamSQL
• SQL 92 Support
• Reuse the HiveContext but with different Frontend
• Frontend: A modified HiveParser & Hive QL translator.
• https://github.com/intel-hadoop/spark/tree/panthera
• Pig on Spark POC
• Modify the SQLContext
• Provide a PigParser to translate the Pig script into Catalyst unresolved logical plan
• https://github.com/databricks/pig-on-spark

SQL Core API Introduction

SchemaRDD
• What’s SchemaRDD?
• Spark SQL Core API (In Scala)
20
• Create SchemaRDD instance from
• Plain SQL Text def sql(sqlText: String)
• An existed Logical Plan def logicalPlanToSparkQuery(plan: LogicalPlan)
• Spark RDD def createSchemaRDD[A <: Product: TypeTag](rdd: RDD[A])
• Spark RDD with Schema def applySchema(rowRDD: RDD[Row], schema: StructType)
• Frequently used format file (json, parquet, etc.) def parquetFile(path: String)
• SQL DSL
• select, where, join, orderBy, limit, groupBy, unionAll, etc.
• Data Sink
• Persist the data with specified storage level def persist(newLevel: StorageLevel)
• Save the data as ParquetFile def saveAsParquetFile(path: String)
• Save the data as a new Table def registerTempTable(tableName: String)
• Insert the data into existed table def insertInto(tableName: String, overwrite: Boolean)
• ….
• Java API / Python API supported
class SchemaRDD(
@transient val sqlContext: SQLContext,
@transient val baseLogicalPlan: LogicalPlan)
extends RDD[Row](sqlContext.sparkContext, Nil)

Conceptual State Transition Diagram
21
RDD
Schema RDD
Unresolved
Logical Plan
SQL API
SQL Text / File / Table
* Unresolved Logical Plan  RDD (Unresolved Logical Plan  Logical
Plan  Optimized Logical Plan  Physical Plan  Spark RDD)
File / Memory etc.
…

Code Example
sbt/sbt hive/console
// HiveContext is created by default, and the object is imported, so we can call the object methods directly.
sql("CREATE TABLE IF NOT EXISTS kv_text(key INT, value STRING)")
sql("LOAD DATA LOCAL INPATH '/tmp/kv1.txt' INTO TABLE kv_text") // create a Hive table and load data into it
case class KV(key: Int, value: String)
val kvRdd = sparkContext.parallelize((1 to 100).map(i => KV(i, s"val_$i"))) // create a normal RDD
// implicitly convert the kvRDD into a SchemaRDD
kvRdd.where('key >= 1).where('key <=5).registerTempTable("kv_rdd") // create a Hive Table from a SchemaRDD
jsonFile("/tmp/file2.json").registerTempTable("kv_json") // load json file and register as a Hive Table
val result = sql("SELECT a.key, b.value, c.key from kv_text a join kv_rdd b join kv_json c")
result.collect().foreach(row => {
val f0 = if(row.isNullAt(0)) "null" else row.getInt(0)
val f1 = if(row.isNullAt(1)) "null" else row.getString(1)
val f2 = if(row.isNullAt(2)) "null" else row.getInt(2)
println(s"result:$f0, $f1, $f2")
22
})

V.S. Shark &
Hive

 Background of Shark/Hive-on-Spark/Spark SQL
 Shark is the first SQL on Spark product, based on the earlier versions of Hive (with a re-write QueryPlanner to generate
Spark RDD-based Physicial Plan); Shark is retired now and replaced by Spark SQL.
 Hive-on-Spark is an QueryPlanner extension of Hive, it focus on the SparkPlanner and Spark RDD-based physical
operators implementation. Spark users will automatically get the whole set of Hive’s rich features, including any new
features that Hive might introduce in the future.
 Spark SQL is a new SQL engine on Spark developed from scratch.
 Functionality
 Spark SQL almost support all of the functionalities that Hive provided from the perspective of data analysts.
 SQL API on Spark Shell V.S. Pig latin.
 Spark SQL is an extensible / flexible framework for developers (based on Catalyst), new extensions are very easy to
be integrated.
 Implementation Philosophy of Spark SQL (Simple & Nature)
 Largely employs the Scala features (Pattern Matching, Implicit Conversion, Partial Function etc.)
 Large small pieces of simple rule to bind, analyze, optimize logical plan & expression tree, and also the physical plan
generation.
 In-memory Computing & Maximize the Memory Usage (Cache related SQL API & Command).
 Spark SQL benefits a lot from Hive by reusing its components (Hive QL Parser, Metatore, SerDe, StorageHandler etc.)
 Stability
 Hive is the defacto standard for SQL on big data so far, and it has been proven as a productive tool for couple of years
in practices, many corner cases are covered in its continuous enhancements.
 Spark SQL just start its journey ( ~0.5 year), we need more time to prove / improve it.

Our Contributions

 Totally 60+ PRs, 50+ Merged on Spark SQL
 Features
26
 Add serde support for CTAS (PR2570)
 Support the Grouping Set (PR1567)
 Support EXTENDED for EXPLAIN (PR1982)
 Cross join support in HiveQL (PR2124)
 Add support for left semi join (PR837)
 Add Date type support (PR2344)
 Add Timestamp type support (PR275)
 Add Expression RLike & Like support (PR224)
 ..
 Performance Enhancement / Improvement
 Avoid table creation in logical plan analyzing for CTAS (PR1846)
 Extract the joinkeys from join condition (PR1190)
 Reduce the Expression tree object creations for aggregation function (min/max) (PR2113)
 Pushdown the join filter & predication for outer join (PR1015)
 Constant Folding for Expression Optimization (PR482)
 Fix Performance Issue in data type casting (PR679)
 Not limit argument type for hive simple udf (PR2506)
 Use GenericUDFUtils.ConversionHelper for Simple UDF type conversions (PR2407)
 Select null from table would throw a MatchError (PR2396)
 Type Coercion should support every type to have null value (PR2246)
 ….
 Bugs Fixing
 ….

Useful Materials

 References
28
 http://spark-summit.org/wp-content/uploads/2013/10/J-Michael-Armburst-catalyst-spark-summit-dec-2013.pptx
 http://spark-summit.org/wp-content/uploads/2014/07/Performing-Advanced-Analytics-on-Relational-Data-with-Spark-
SQL-Michael-Armbrust.pdf
 https://www.youtube.com/watch?v=GQSNJAzxOr8
 http://www.slideshare.net/ueshin/20140908-spark-sql-catalyst?qid=3bb8abf4-3d8d-433f-9397-c24c5256841d
 https://cwiki.apache.org/confluence/display/Hive/Hive+on+Spark
 http://web.stanford.edu/class/cs346/qpnotes.html
 http://www.cse.ohio-state.edu/hpcs/WWW/HTML/publications/papers/TR-11-7.pdf
 http://codex.cs.yale.edu/avi/db-book/db6/slide-dir/PDF-dir/ch13.pdf
 https://courses.cs.washington.edu/courses/cse444/12sp/lectures/
 http://www.cs.uiuc.edu/class/sp06/cs411/lectures.html
• User Mail List
 user@spark.apache.org
• Dev Mail List
 dev@spark.apache.org
• Jira
 https://issues.apache.org/jira/browse/SPARK/component/12322623
• DevDoc
 https://spark.apache.org/docs/latest/sql-programming-guide.html
• Github
 https://github.com/apache/spark/tree/master/sql

Notice and Disclaimers:
 Intel, the Intel logo are trademarks of Intel Corporation in the U.S. and/or other countries. *Other names and brands
may be claimed as the property of others.
See Trademarks on intel.com for full list of Intel trademarks.
 Optimization Notice:
Intel's compilers may or may not optimize to the same degree for non-Intel microprocessors for optimizations that
are not unique to Intel microprocessors. These optimizations include SSE2, SSE3, and SSSE3 instruction sets and
other optimizations. Intel does not guarantee the availability, functionality, or effectiveness of any optimization on
microprocessors not manufactured by Intel.
Microprocessor-dependent optimizations in this product are intended for use with Intel microprocessors. Certain
optimizations not specific to Intel microarchitecture are reserved for Intel microprocessors. Please refer to the
applicable product User and Reference Guides for more information regarding the specific instruction sets covered
by this notice.
 Intel technologies may require enabled hardware, specific software, or services activation. Check with your system
manufacturer or retailer.
 No computer system can be absolutely secure. Intel does not assume any liability for lost or stolen data or systems
or any damages resulting from such losses.
 You may not use or facilitate the use of this document in connection with any infringement or other legal analysis
concerning Intel products described herein. You agree to grant Intel a non-exclusive, royalty-free license to any
patent claim thereafter drafted which includes subject matter disclosed herein.
 No license (express or implied, by estoppel or otherwise) to any intellectual property rights is granted by this
document.
 The products described may contain design defects or errors known as errata which may cause the product to
deviate from publish.

Spark sql meetup

Recommended

Recommended

More Related Content

What's hot

What's hot (20)

Viewers also liked

Viewers also liked (20)

Similar to Spark sql meetup

Similar to Spark sql meetup (20)

More from Michael Zhang

More from Michael Zhang (20)

Recently uploaded

Recently uploaded (20)

Spark sql meetup
