1. Solution of DC networks using C
Programming
Dr. Siba Prasada Panigrahi
&
Students of Mechanical Engineering
(2016-20), VSSUT, Burla

2. The Problem
• Write a program to solve this network that will
ask input for ‘a’ and find current, with:
b=6 , c=6 , d=4 , e=6 , f=100 , g=50.

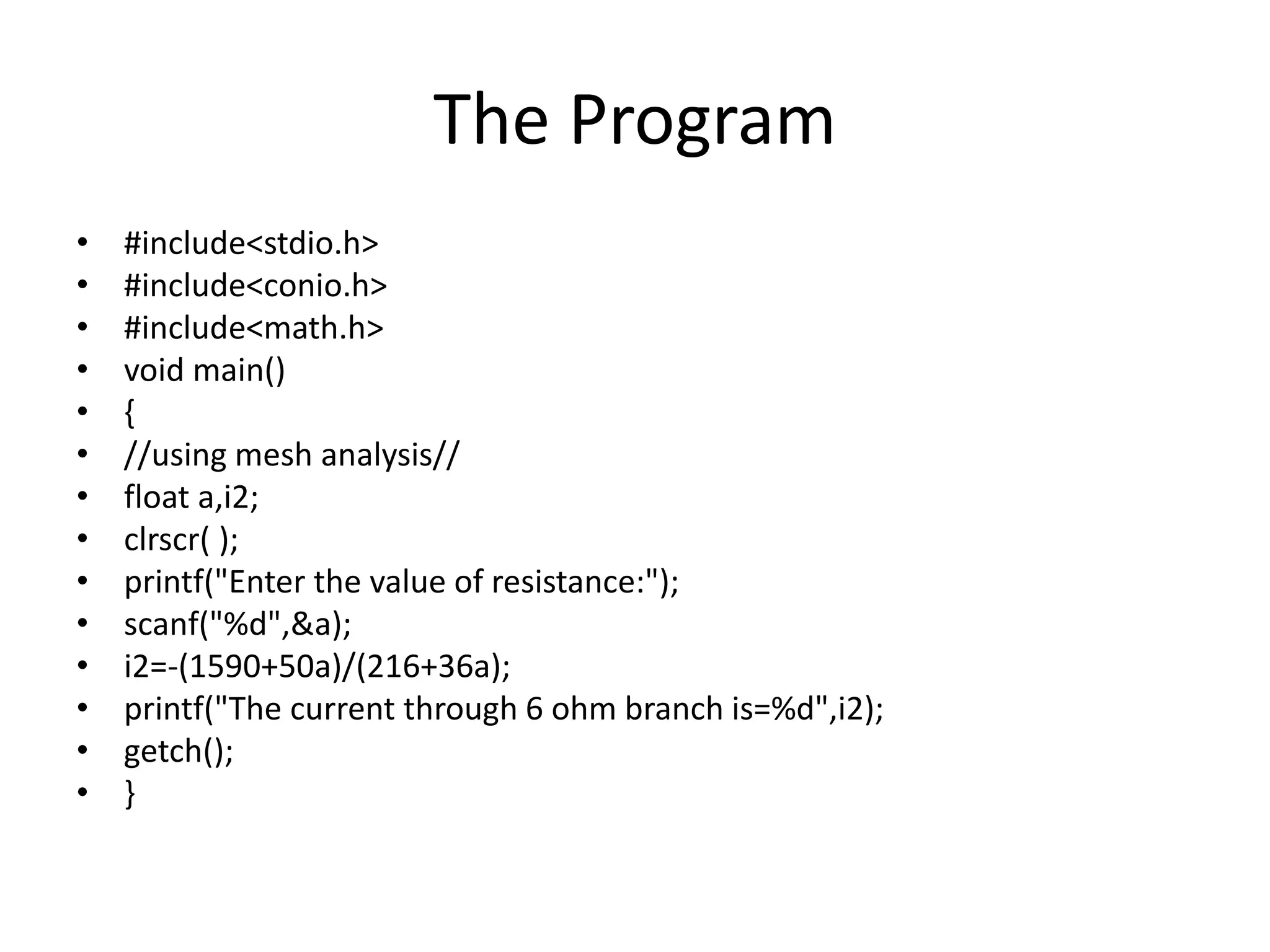

3. The Program
• #include<stdio.h>
• #include<conio.h>
• #include<math.h>
• void main()
• {
• //using mesh analysis//
• float a,i2;
• clrscr( );
• printf("Enter the value of resistance:");
• scanf("%d",&a);
• i2=-(1590+50a)/(216+36a);
• printf("The current through 6 ohm branch is=%d",i2);
• getch();
• }

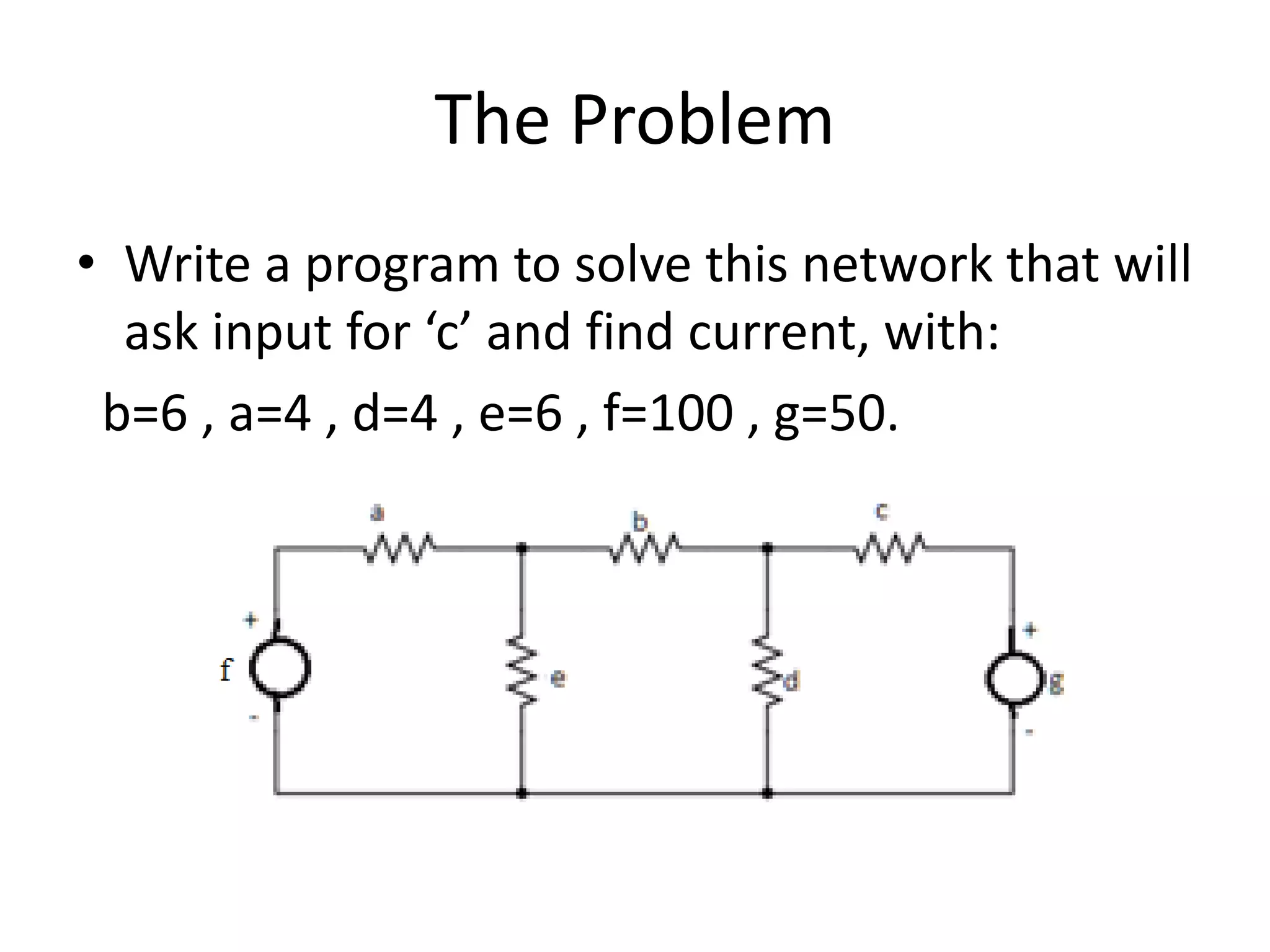

4. The Problem
• Write a program to solve this network that will
ask input for ‘c’ and find current, with:
b=6 , a=4 , d=4 , e=6 , f=100 , g=50.

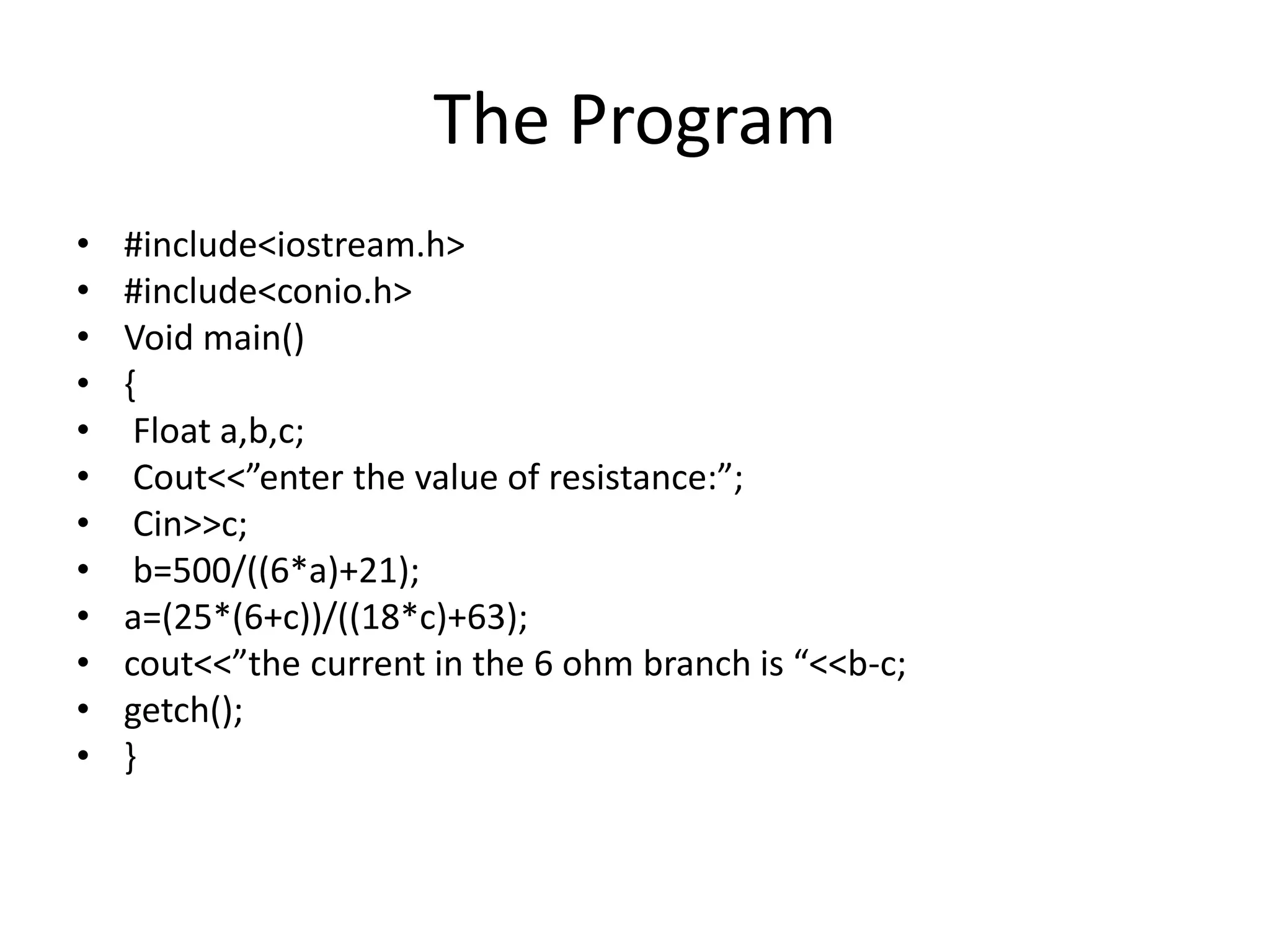

5. The Program
• #include<iostream.h>
• #include<conio.h>
• Void main()
• {
• Float a,b,c;
• Cout<<”enter the value of resistance:”;
• Cin>>c;
• b=500/((6*a)+21);
• a=(25*(6+c))/((18*c)+63);
• cout<<”the current in the 6 ohm branch is “<<b-c;
• getch();
• }
