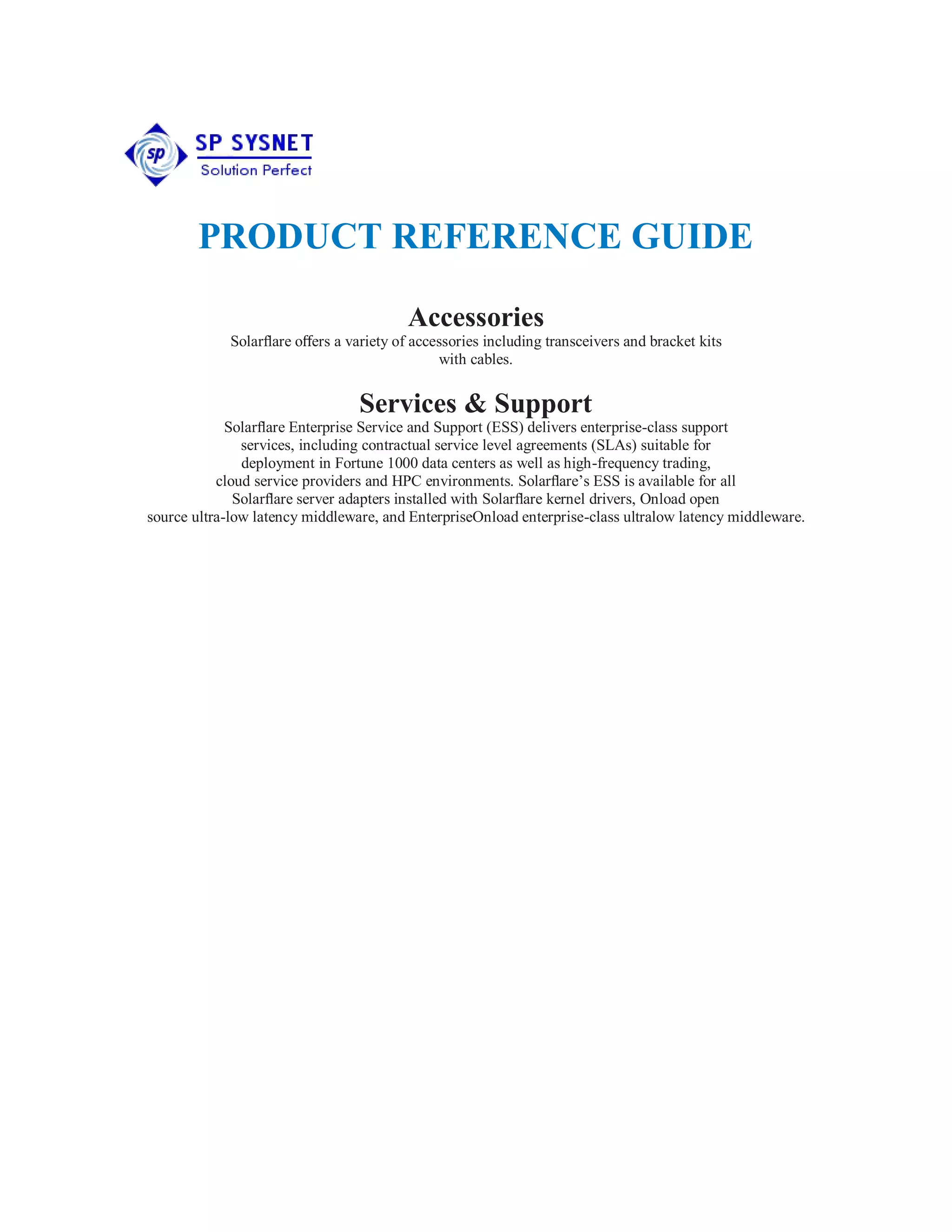

PRODUCT REFERENCE GUIDE
Accessories
Solarflare offers a variety of accessories including transceivers and bracket kits
with cables.
Services & Support
Solarflare Enterprise Service and Support (ESS) delivers enterprise-class support
services, including contractual service level agreements (SLAs) suitable for
deployment in Fortune 1000 data centers as well as high-frequency trading,
cloud service providers and HPC environments. Solarflare’s ESS is available for all
Solarflare server adapters installed with Solarflare kernel drivers, Onload open
source ultra-low latency middleware, and EnterpriseOnload enterprise-class ultralow latency middleware.
Making Server I/O
Communication Faster,
Smarter, More Secure
You can confdently rely upon
Solarflare’s innovative solutions to
build out private cloud networks and
run critical applications.
• Reduce CapEx and business risk
while increasing ROI
• Provide selective control of
value-added network services
• All in a single standards-based
Ethernet platform
Deployed by more than 1,500
customers globally and trusted by
nearly every major stock exchange
and large commercial bank in the
world, Solarflare is used in scaleout server environments such as
electronic trading, high performance
computing, content delivery, cloud,
virtualization and big data.
Solarflare is revolutionizing
the way enterprises scale
and secure data centers.
Solarflare server I/O
solutions offer an extensive
confgurable suite of
software and hardware,
architected and optimized
to intelligently deliver
an unparalleled level of
performance, visibility
and security — all in a
single platform.

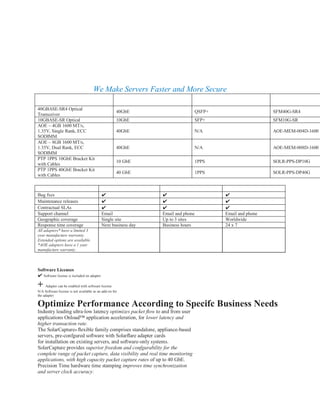

We Make Servers Faster and More Secure
Accessory Ethernet Speed Connector
Order
Information
40GBASE-SR4 Optical
Transceiver
40GbE QSFP+ SFM40G-SR4
10GBASE-SR Optical 10GbE SFP+ SFM10G-SR
AOE – 4GB 1600 MT/s,
1.35V, Single Rank, ECC
SODIMM
40GbE N/A AOE-MEM-004D-1600
AOE – 8GB 1600 MT/s,
1.35V, Dual Rank, ECC
SODIMM
40GbE N/A AOE-MEM-008D-1600
PTP 1PPS 10GbE Bracket Kit
with Cables
10 GbE 1PPS SOLR-PPS-DP10G
PTP 1PPS 40GbE Bracket Kit
with Cables
40 GbE 1PPS SOLR-PPS-DP40G
ESS Basic Standard Premium
Bug fxes ✔ ✔ ✔
Maintenance releases ✔ ✔ ✔
Contractual SLAs ✔ ✔ ✔
Support channel Email Email and phone Email and phone
Geographic coverage Single site Up to 3 sites Worldwide
Response time coverage Next business day Business hours 24 x 7
All adapters* have a limited 3
year manufacture warranty.
Extended options are available.
*AOE adapters have a 1 year
manufacture warranty.
Software Licenses
✔ Software license is included on adapter
+ Adapter can be enabled with software license
N/A Software license is not available as an add-on for
the adapter
Optimize Performance According to Specifc Business Needs
Industry leading ultra-low latency optimizes packet flow to and from user
applications Onload™ application acceleration, for lower latency and
higher transaction rate.
The SolarCapture® flexible family comprises standalone, appliance-based
servers, pre-confgured software with Solarflare adapter cards
for installation on existing servers, and software-only systems.
SolarCapture provides superior freedom and confgurability for the
complete range of packet capture, data visibility and real time monitoring
applications, with high capacity packet capture rates of up to 40 GbE.
Precision Time hardware time stamping improves time synchronization
and server clock accuracy.

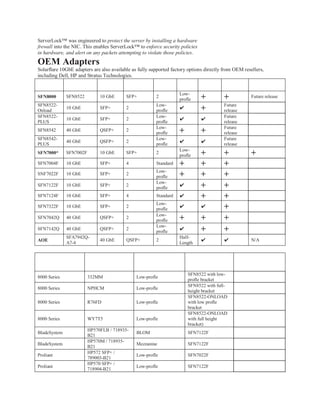

ServerLock™ was engineered to protect the server by installing a hardware
frewall into the NIC. This enables ServerLock™ to enforce security policies
in hardware, and alert on any packets attempting to violate those policies.
OEM Adapters
Solarflare 10GbE adapters are also available as fully supported factory options directly from OEM resellers,
including Dell, HP and Stratus Technologies.
Solarflare
Series
Order
Information
Ethernet
Speed
Connector # Ports
Form
Factor
Onload
Precision
Time
SolarCapture
SFN8000 SFN8522 10 GbE SFP+ 2
Low-
profle + + Future release
SFN8522-
Onload
10 GbE SFP+ 2
Low-
profle
✔ + Future
release
SFN8522-
PLUS
10 GbE SFP+ 2
Low-
profle
✔ ✔
Future
release
SFN8542 40 GbE QSFP+ 2
Low-
profle + + Future
release
SFN8542-
PLUS
40 GbE QSFP+ 2
Low-
profle
✔ ✔
Future
release
SFN7000* SFN7002F 10 GbE SFP+ 2
Low-
profle + + +
SFN7004F 10 GbE SFP+ 4 Standard + + +
SNF7022F 10 GbE SFP+ 2
Low-
profle + + +
SFN7122F 10 GbE SFP+ 2
Low-
profle
✔ + +
SFN7124F 10 GbE SFP+ 4 Standard ✔ + +
SFN7322F 10 GbE SFP+ 2
Low-
profle
✔ ✔ +
SFN7042Q 40 GbE QSFP+ 2
Low-
profle + + +
SFN7142Q 40 GbE QSFP+ 2
Low-
profle
✔ + +
AOE
SFA7942Q-
A7-4
40 GbE QSFP+ 2
Half-
Length
✔ ✔ N/A
OEM Product
Model Number/
Order
Information
Form
Factor
Comparable
Solarflare Adapters
8000 Series 332MM Low-profle
SFN8522 with low-
profle bracket
8000 Series NPHCM Low-profle
SFN8522 with full-
height bracket
8000 Series R76FD Low-profle
SFN8522-ONLOAD
with low profle
bracket
8000 Series WY7T5 Low-profle
SFN8522-ONLOAD
with full height
bracket)
BladeSystem
HP570FLB / 718935-
B21
BLOM SFN7122F
BladeSystem
HP570M / 718935-
B21
Mezzanine SFN7122F
Proliant
HP572 SFP+ /
789003-B21
Low-profle SFN7022F
Proliant
HP570 SFP+ /
718904-B21
Low-profle SFN7122F

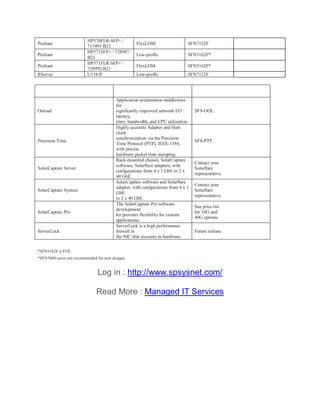

Proliant
HP570FLR-SFP+ /
717491-B21
FlexLOM SFN7122F
Proliant
HP571SFP+ / 728987-
B21
Low-profle SFN5162F*
Proliant
HP571FLR-SFP+ /
728992-B21
FlexLOM SFN5162F*
ftServer U116-P Low-profle SFN7122F
Product Description
Order
Information
Onload
Application acceleration middleware
for
signifcantly improved network I/O
latency,
jitter, bandwidth, and CPU utilization.
SFS-OOL
Precision Time
Highly accurate Adapter and Host
clock
synchronization via the Precision
Time Protocol (PTP), IEEE-1588,
with precise
hardware packet time stamping.
SFS-PTP
SolarCapture Server
Rack-mounted chassis, SolarCapture
software, Solarflare adapters, with
confgurations from 4 x 1 GbE to 2 x
40 GbE.
Contact your
Solarflare
representative
SolarCapture System
SolarCapture software and Solarflare
adapter, with confgurations from 4 x 1
GbE
to 2 x 40 GbE.
Contact your
Solarflare
representative
SolarCapture Pro
The SolarCapture Pro software
development
kit provides flexibility for custom
applications.
See price list
for 10G and
40G options
ServerLock
ServerLock is a high performance
frewall in
the NIC that executes in hardware.
Future release
*SFN5162F is EOL
*SFN7000 series not recommended for new designs SEE OUR SOLUTIONS
