This document discusses SAP R/3 architecture. It provides an overview of SAP as a company and software, outlines the three-tier architecture of SAP R/3, describes key components like the internet communication manager and dispatcher, and highlights features such as scalability and support for open standards. It also notes some issues with SAP R/3 including its lack of cache memory, treatment of clients as dumb terminals, complex architecture, and only supporting the ABAP programming language.

1. Study of SAP R/3 Architecture
Submitted by:
Manjinder Singh Sohi
mss046000@utdallas.edu

2. Manjinder Singh Sohi

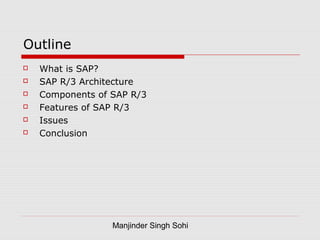

Outline
 What is SAP?
 SAP R/3 Architecture
 Components of SAP R/3
 Features of SAP R/3
 Issues
 Conclusion

3. Manjinder Singh Sohi

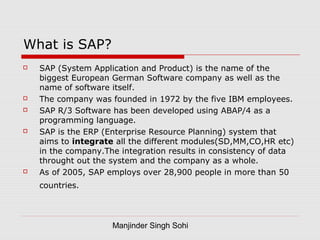

What is SAP?
 SAP (System Application and Product) is the name of the
biggest European German Software company as well as the
name of software itself.
 The company was founded in 1972 by the five IBM employees.
 SAP R/3 Software has been developed using ABAP/4 as a
programming language.
 SAP is the ERP (Enterprise Resource Planning) system that
aims to integrate all the different modules(SD,MM,CO,HR etc)
in the company.The integration results in consistency of data
throught out the system and the company as a whole.
 As of 2005, SAP employs over 28,900 people in more than 50
countries.

4. Manjinder Singh Sohi
SAP R/3 Architecture
 SAP R/3 is one of the main product of SAP,where R
stands for RealTime and the number 3 relates to three
tier application architecture(Data base,Application Server
and Client).
 Most of the business in todays world runs on SAP R/3
system.About 80% of the companies implemented this
software.

5. Manjinder Singh Sohi

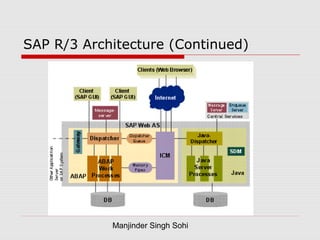

SAP R/3 Architecture (Continued)

6. Manjinder Singh Sohi
Components of SAP R/3 Architecture
 Internet communication Manager(ICM)-set up
connection to internet. Supports protocol HTTP,SMTP.
 Dispatcher distributes the requests to the work
processes. If all the processes are occupied then the
requests are stored in dispatcher queue.
 ABAP Work Process executes the ABAP code.
 SAP gateway makes the RFC interface between SAP
instances available.
 Message server exchanges the messages and balances
the load.

7. Manjinder Singh Sohi

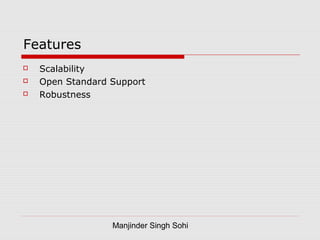

Features
 Scalability
 Open Standard Support
 Robustness

8. Manjinder Singh Sohi

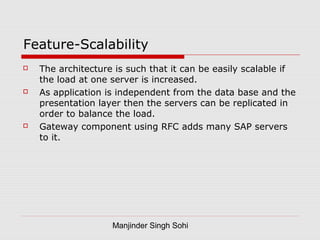

Feature-Scalability
 The architecture is such that it can be easily scalable if
the load at one server is increased.
 As application is independent from the data base and the
presentation layer then the servers can be replicated in
order to balance the load.
 Gateway component using RFC adds many SAP servers
to it.

9. Manjinder Singh Sohi

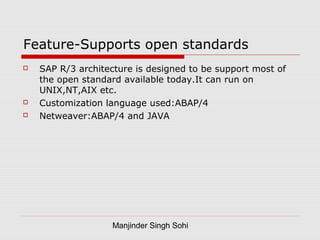

Feature-Supports open standards
 SAP R/3 architecture is designed to be support most of
the open standard available today.It can run on
UNIX,NT,AIX etc.
 Customization language used:ABAP/4
 Netweaver:ABAP/4 and JAVA

10. Manjinder Singh Sohi

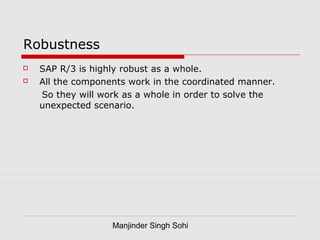

Robustness
 SAP R/3 is highly robust as a whole.
 All the components work in the coordinated manner.
So they will work as a whole in order to solve the
unexpected scenario.

11. Manjinder Singh Sohi

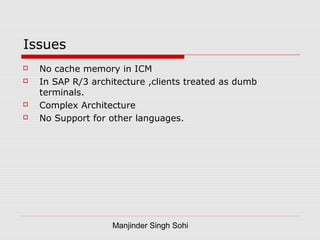

Issues
 No cache memory in ICM
 In SAP R/3 architecture ,clients treated as dumb
terminals.
 Complex Architecture
 No Support for other languages.

12. Manjinder Singh Sohi

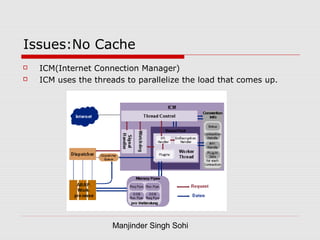

Issues:No Cache
 ICM(Internet Connection Manager)
 ICM uses the threads to parallelize the load that comes up.

13. Manjinder Singh Sohi

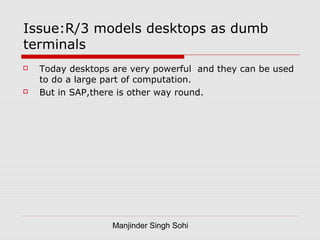

Issue:R/3 models desktops as dumb
terminals
 Today desktops are very powerful and they can be used
to do a large part of computation.
 But in SAP,there is other way round.

14. Manjinder Singh Sohi

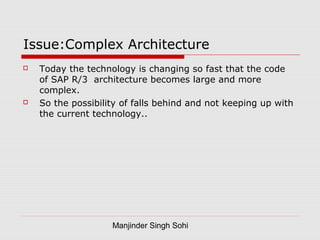

Issue:Complex Architecture
 Today the technology is changing so fast that the code
of SAP R/3 architecture becomes large and more
complex.
 So the possibility of falls behind and not keeping up with
the current technology..

15. Manjinder Singh Sohi
Issue:No support for other languages.
 SAP R/3 architecture only supports ABAP/4 language.
 New architecture from SAP-Netweaver supports JAVA
also.
 But still support for other popular languages C/C++ etc
left.

16. Manjinder Singh Sohi

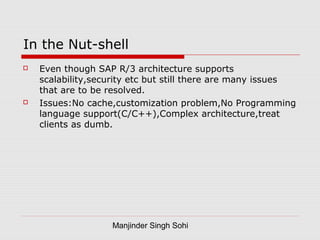

In the Nut-shell
 Even though SAP R/3 architecture supports
scalability,security etc but still there are many issues
that are to be resolved.
 Issues:No cache,customization problem,No Programming
language support(C/C++),Complex architecture,treat
clients as dumb.

17. Manjinder Singh Sohi

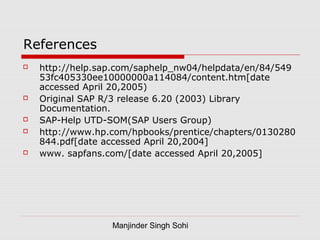

References
 http://help.sap.com/saphelp_nw04/helpdata/en/84/549
53fc405330ee10000000a114084/content.htm[date
accessed April 20,2005)
 Original SAP R/3 release 6.20 (2003) Library
Documentation.
 SAP-Help UTD-SOM(SAP Users Group)
 http://www.hp.com/hpbooks/prentice/chapters/0130280
844.pdf[date accessed April 20,2004]
 www. sapfans.com/[date accessed April 20,2005]
