- Jura was founded in 1986 and is owned by F. Koltai and led by CEO K. Manhercz. It has 70 employees. - Jura provides software and hardware for pre-press and high security printing, including security design software, high resolution printing plates, and direct laser engraving for intaglio printing. - It supplies over 85 banknote printing works globally and was the first company certified as a security supplier by Intergraf and VPGI under ISO 9001:2000 standards. In 2012 it filed a patent for smartphone authentication.

1. • Founded in 1986
• Owner F. Koltai, CEO K. Manhercz
• 70 employees
• Software & hardware for pre-press, for banknotes
passports and ID documents
• Security design software for high security printing
• High resolution dry &wet offset CTPs
• Direct Laser Engraver for intaglio print, security features
• Supplier to 85 banknote printing works on all continents
• The first company 'Certified Security Supplier‚ based on
ISO 9001:2000 at Intergraf and VPGI.
• 2012 patent application for smartphone authentication

2. substrats
inks
design
pre-press
printing
presses
OVDs
Security printing

3. Security Design Software
Guilloches ArtScreen
Line thickness modulated Micro text

4. Security Design Software
ArtScreen
Relief structure

5. IQ-R: Intelligent Registration
• digitally printed with min 600 dpi
• serial feature
• for tax stamps, packaging, labels, documents
BPAS: Brand Protection Authentication System
• printed with rotogravure or offset, min 5080 dpi
• constant feature
• for labels and flexible packaging
SPAS: Security Protection Authentication System
• intaglio printed, 12.700 dpi
• constant feature
• for banknotes
IC Reader: Invisible Constant Information
• offset printed, min 5080 dpi
• constant feature
• for packaging

6. Since 1987 JURA engineers have developed
software and hardware for the prepress of the
security printing industry.
The specific skills for creating a security
design from images, and for the
development of high resolution CTPs for
printing plates were the basic know how for
the development of the new IQ-R
authentication feature.

7. The principle: optical recognition
with the IQ-R app
The guilloche line in pantone colour will be
reproduced by a colour copy machine of
the latest technology with CYMK dots in the
following way:
Original Jura business card with
guilloche printed offset with 12.000 dpi
Jura business card reproduced with
a 1250 dpi colour copy machine

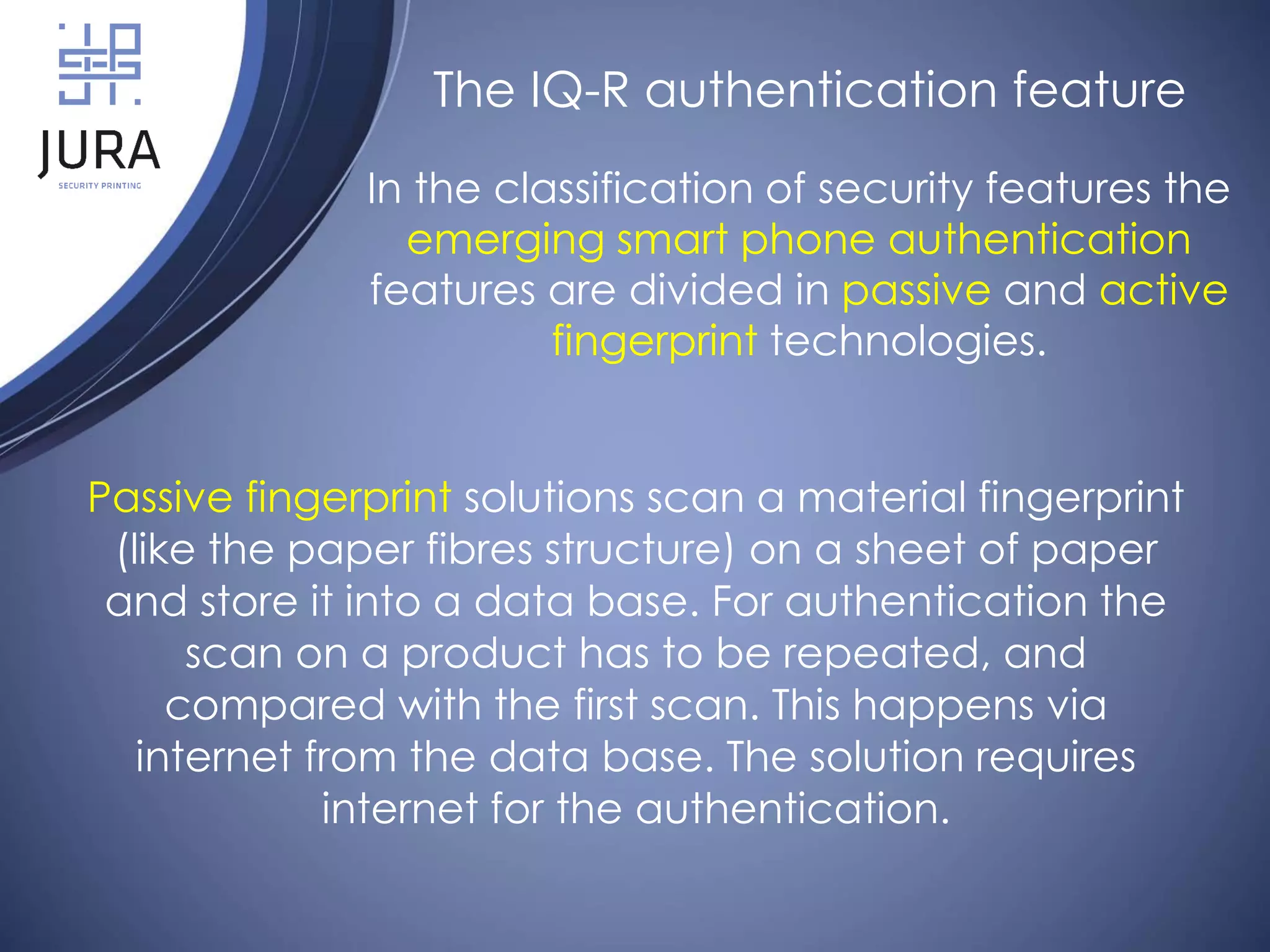

8. Passive fingerprint solutions scan a material fingerprint
(like the paper fibres structure) on a sheet of paper
and store it into a data base. For authentication the
scan on a product has to be repeated, and
compared with the first scan. This happens via
internet from the data base. The solution requires
internet for the authentication.
The IQ-R authentication feature
In the classification of security features the
emerging smart phone authentication
features are divided in passive and active
fingerprint technologies.

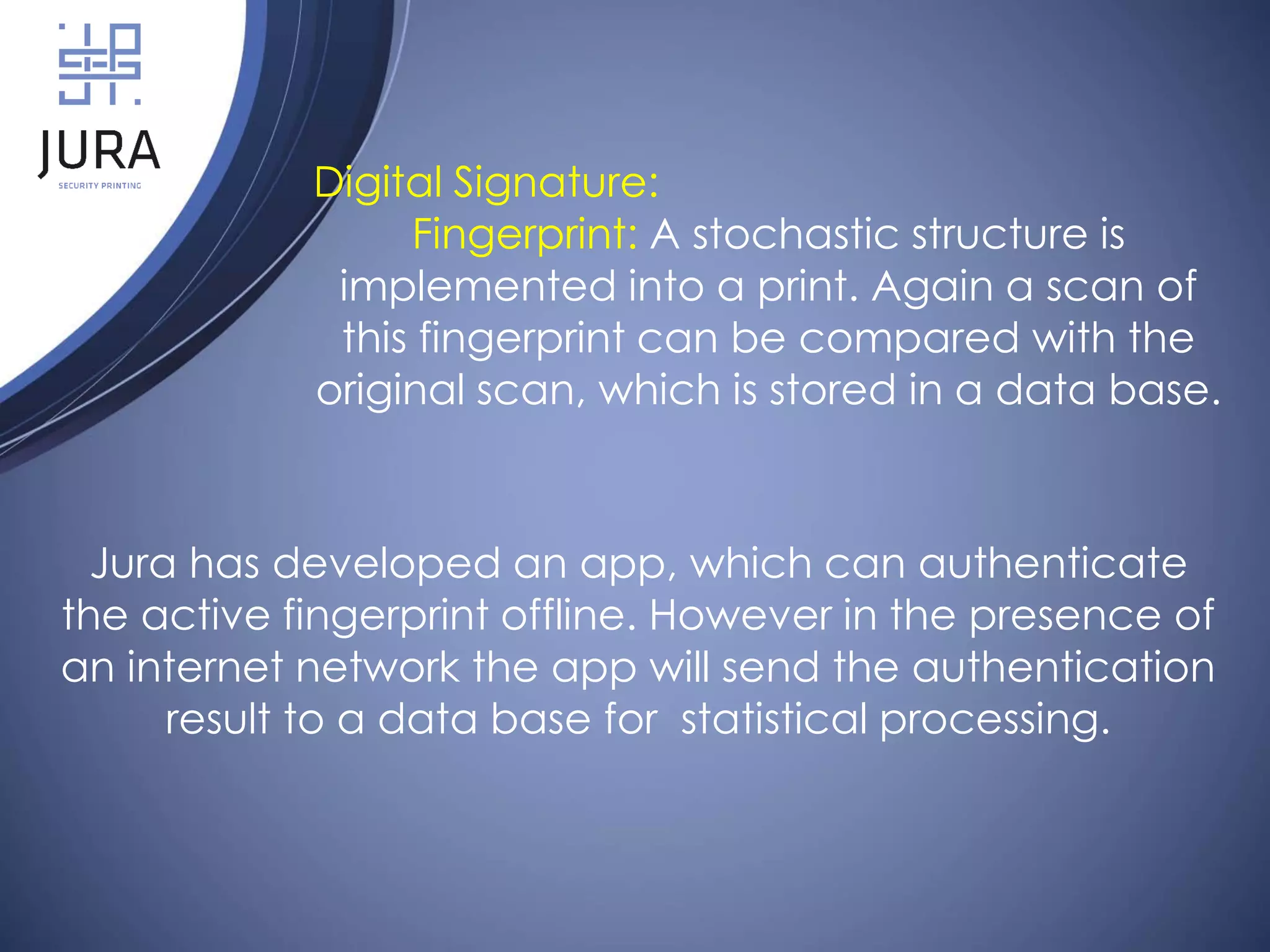

9. Digital Signature:
Fingerprint: A stochastic structure is
implemented into a print. Again a scan of
this fingerprint can be compared with the
original scan, which is stored in a data base.
Jura has developed an app, which can authenticate
the active fingerprint offline. However in the presence of
an internet network the app will send the authentication
result to a data base for statistical processing.

10. IQ-R: Intelligent Registration
• digitally printed with min 600 dpi
• serial feature
• for tax stamps, packaging, labels, documents

11. Tax stamp copy scanOriginal tax stamp scan
Tax stamp
authentication and
Identification

12. Type: Samsung S4, S5, S6, S7, Sony Xperia Z3 and
LG G3, Motorola Nexus 6, Xiaomi MI5, OnePlus 3, or
any Android device.
The app can be programmed for Iphone as well.
Data Matrix codes scanned with a smart
phone, Android software and the IQ-R app

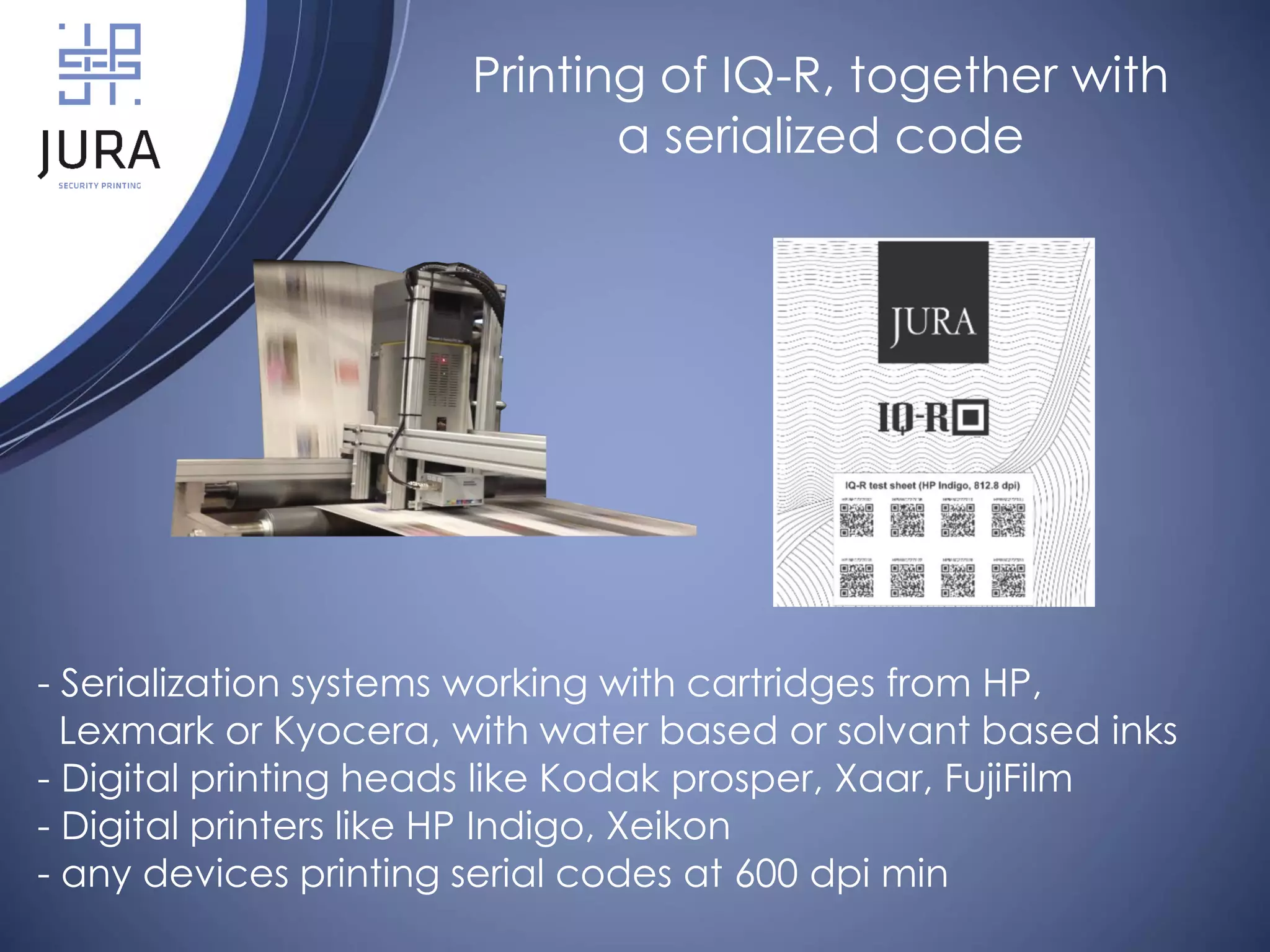

13. - Serialization systems working with cartridges from HP,
Lexmark or Kyocera, with water based or solvant based inks
- Digital printing heads like Kodak prosper, Xaar, FujiFilm
- Digital printers like HP Indigo, Xeikon
- any devices printing serial codes at 600 dpi min
Printing of IQ-R, together with
a serialized code

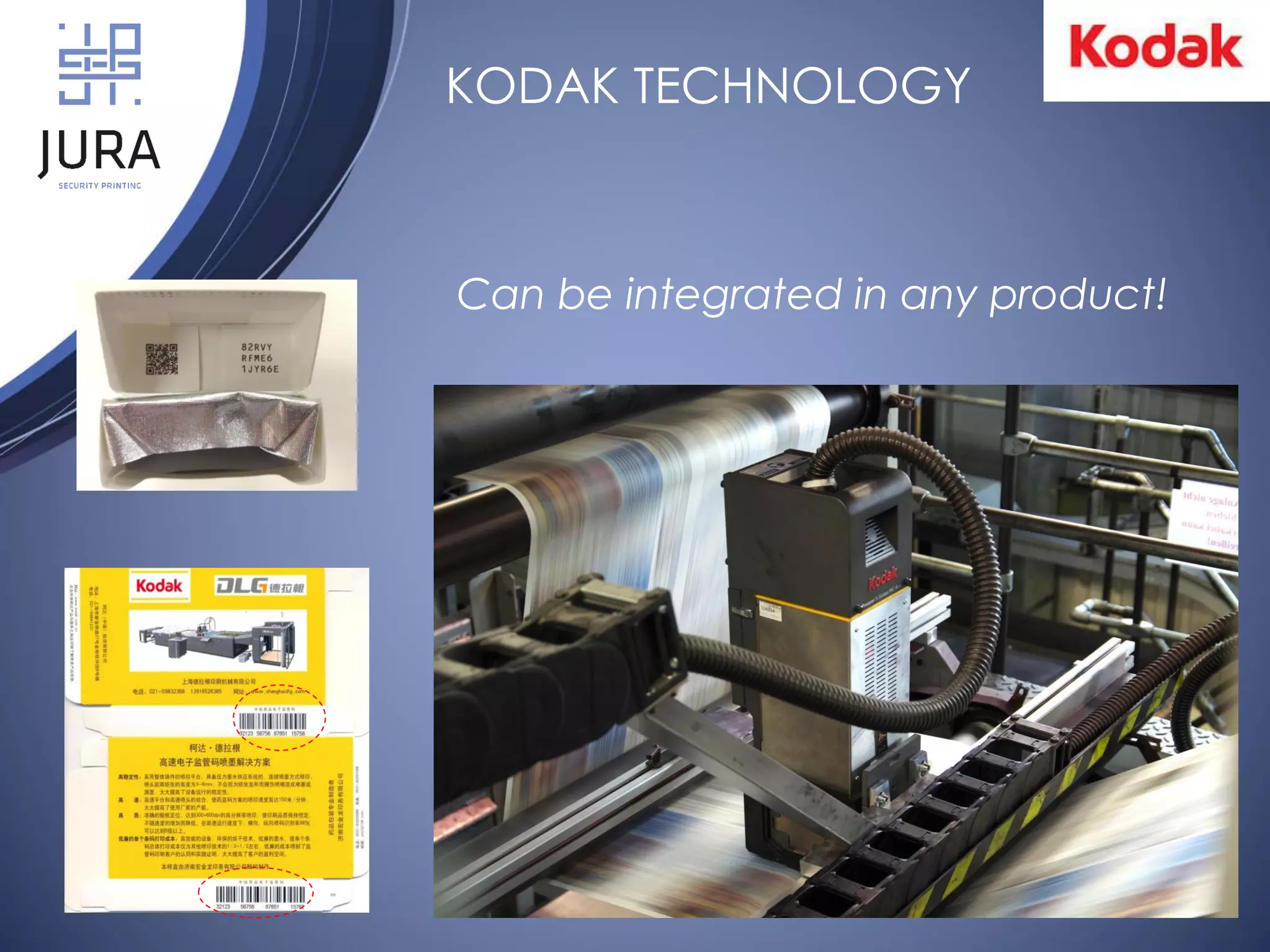

14. KODAK TECHNOLOGY
Can be integrated in any product!

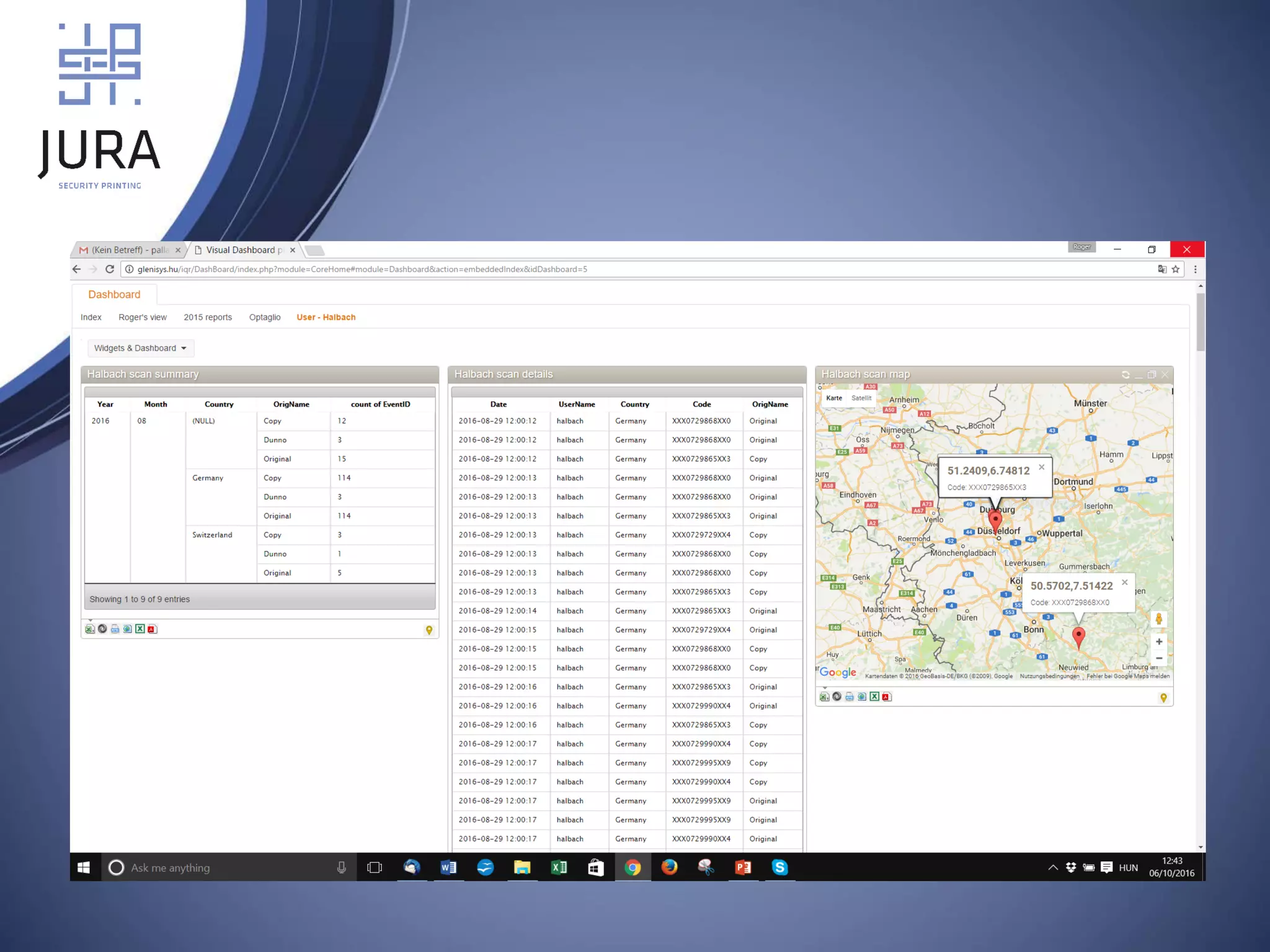

15. Data stored from the smart phone
• authentication result
• time and date
• geo location data
• name of the smart phone owner
• phone number and e-mail (depending on legal
regulations)
• customer relation management
• patient relations for pharmaceuticals (R&D to patient)
• customer VIP clubs

16. Code scan:
The smart phone shall be
parallel to the code. A red
frame on the screen will help to
position the phone, in case of
poor light condition the phone
flash is needed
Authentication:
The result is shown on the screen,
and sent to a data base,
together with geo location data,
time and date, and user ID

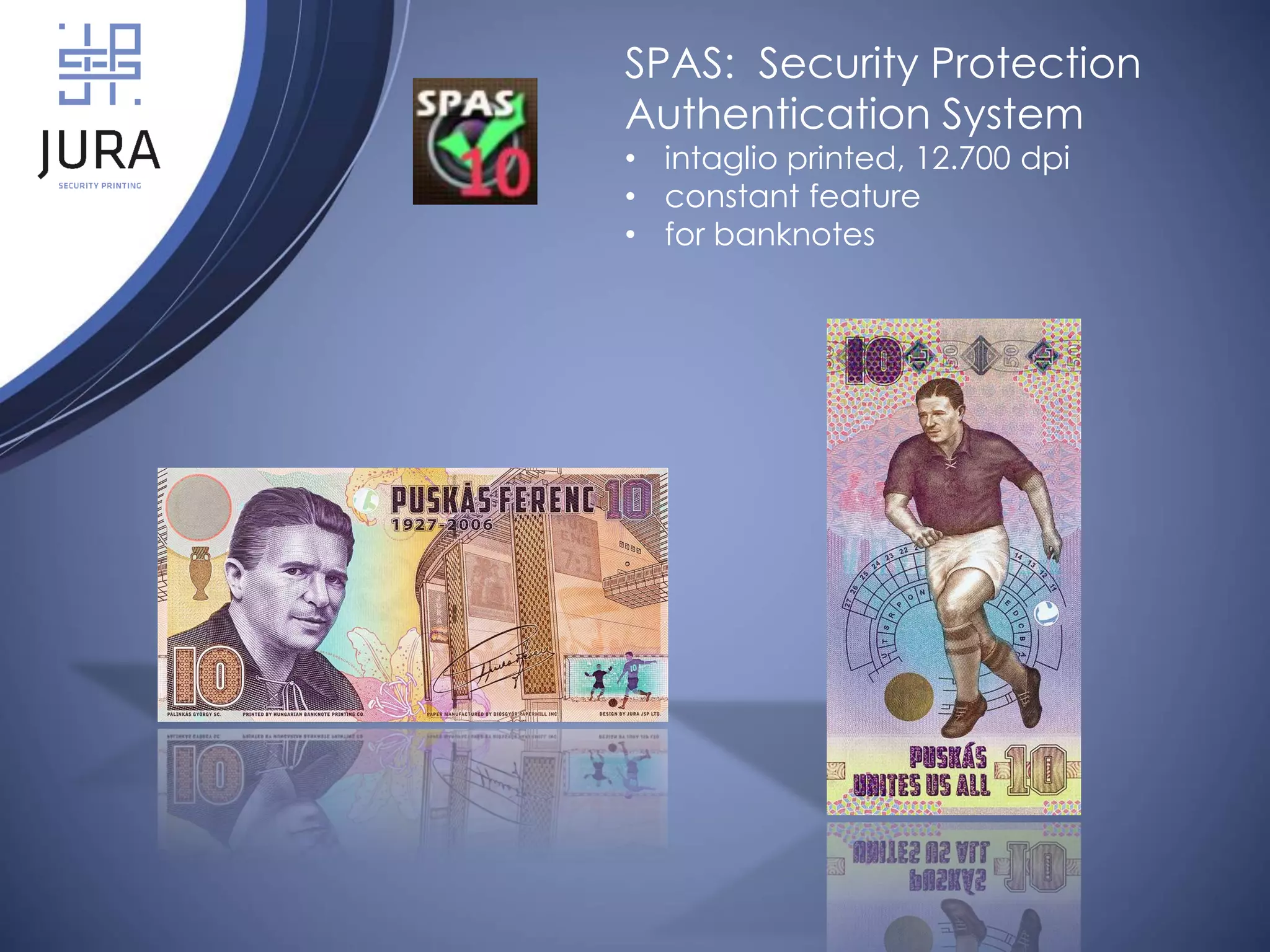

17. SPAS: Security Protection
Authentication System
• intaglio printed, 12.700 dpi
• constant feature
• for banknotes

18. Original sample note scan Copy sample note scan

19. BPAS: Brand Protection Authentication
System
• printed with rotogravure or offset, min 5080 dpi
• constant feature
• for labels and flexible packaging

20. IC Reader: invisible Constant Information
• offset printed, min 5080 dpi
• constant feature
• for packaging

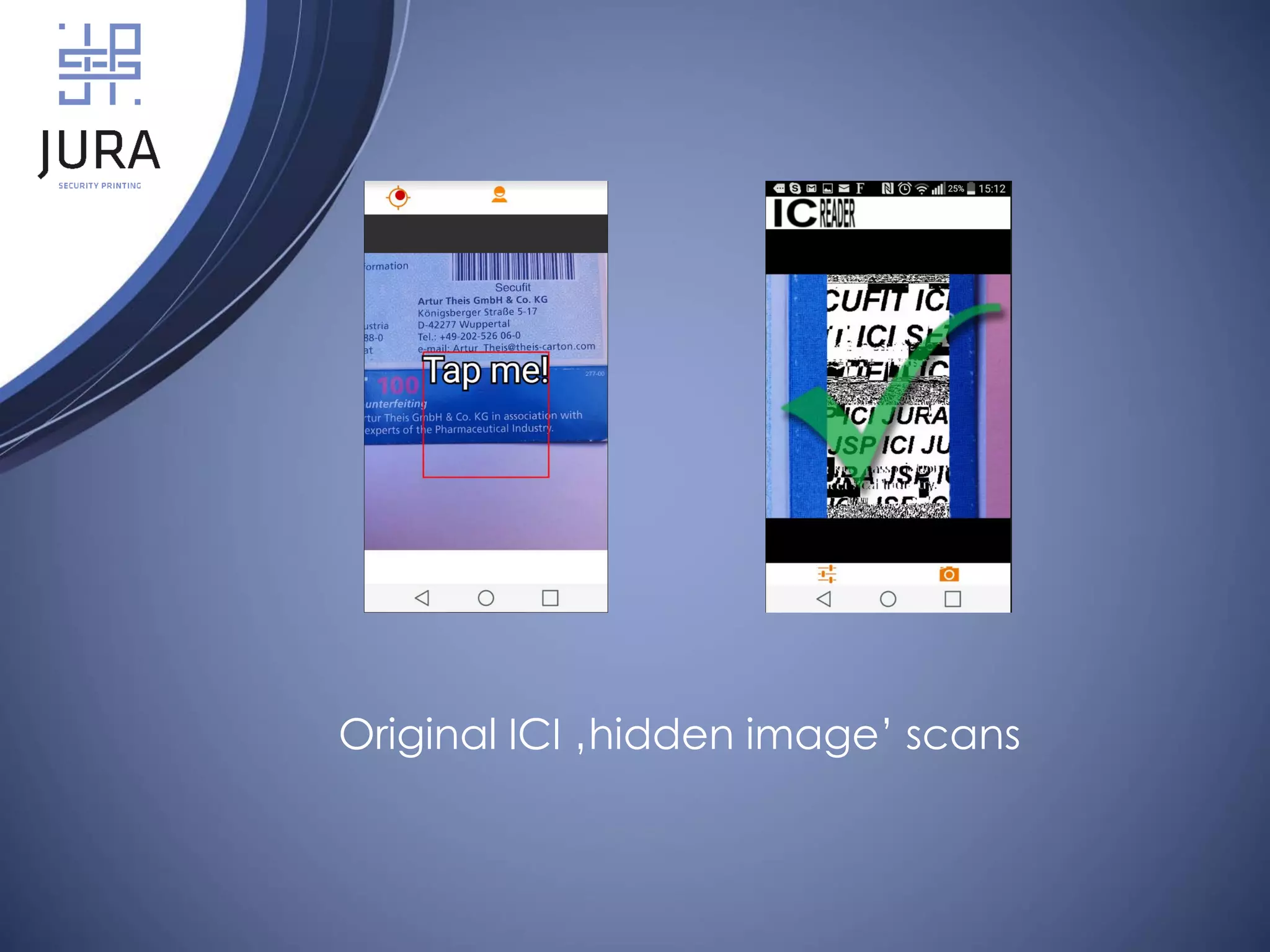

21. Original ICI ‚hidden image’ scans

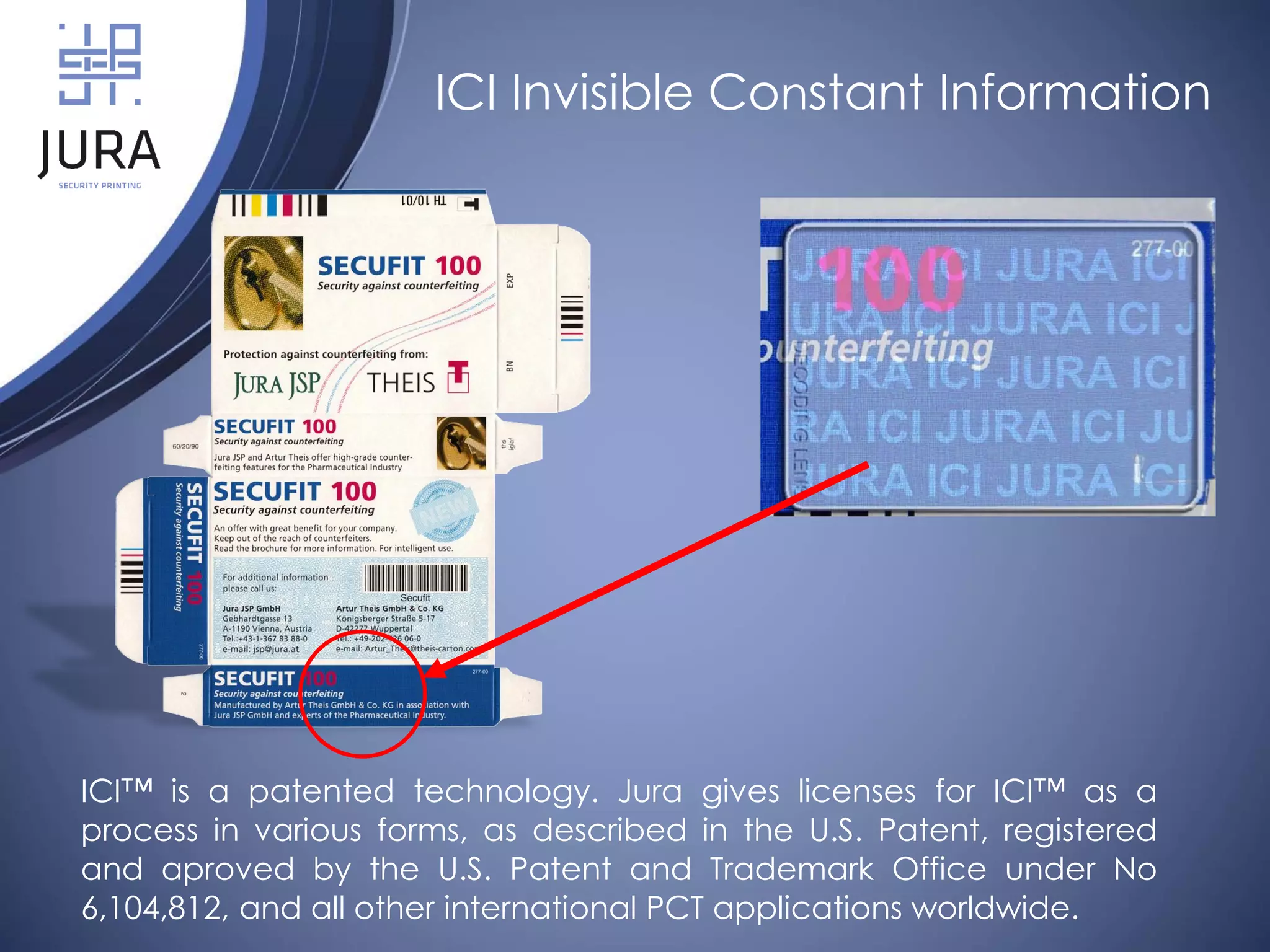

22. ICI™ is a patented technology. Jura gives licenses for ICI™ as a
process in various forms, as described in the U.S. Patent, registered
and aproved by the U.S. Patent and Trademark Office under No
6,104,812, and all other international PCT applications worldwide.
ICI Invisible Constant Information

25. Thank you very much
