Smart entry for master

1. The document describes the components and operation of a smart entry and start system used in Toyota vehicles. It details the key fob, antenna locations, control modules and circuits involved in remote locking, unlocking, engine starting and other functions. 2. The system uses transponder technology and radio frequency signals to authorize operation based on detection of a valid key within range. Various control units coordinate functions and provide diagnostic indicators through the engine switch. 3. Troubleshooting procedures involve verifying battery voltage, checking for diagnostic trouble codes relating to communication faults, and analyzing driver reports before potentially replacing modules or keys if issues arise. Basic service points are also outlined to prevent interference and ensure proper detection range.

Embed presentation

Download to read offline
1 Model Outline Engine Chassis Body Body Electrical Smart Entry & Start System

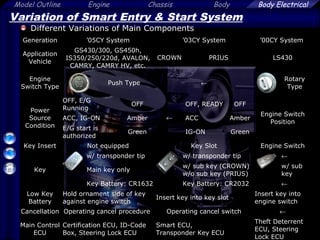

2 Model Outline Engine Chassis Body Body Electrical Variation of Smart Entry & Start System Different Variations of Main Components Generation ’05CY System ’03CY System ’00CY System Application Vehicle GS430/300, GS450h, IS350/250/220d, AVALON, CAMRY, CAMRY HV, etc. CROWN PRIUS LS430 Engine Switch Type Push Type ← Rotary Type Power Source Condition OFF, E/G Running OFF ← OFF, READY OFF Engine Switch Position ACC, IG-ON Amber ACC Amber E/G start is authorized Green IG-ON Green Key Insert Not equipped Key Slot Engine Switch Key w/ transponder tip w/ transponder tip ← Main key only w/ sub key (CROWN) w/o sub key (PRIUS) w/ sub key Key Battery: CR1632 Key Battery: CR2032 ← Low Key Battery Hold ornament side of key against engine switch Insert key into key slot Insert key into engine switch Cancellation Operating cancel procedure Operating cancel switch ← Main Control ECU Certification ECU, ID-Code Box, Steering Lock ECU Smart ECU, Transponder Key ECU Theft Deterrent ECU, Steering Lock ECU

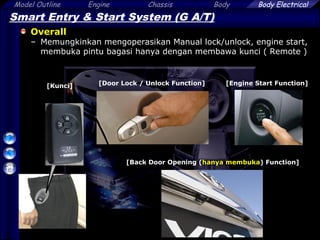

3 Model Outline Engine Chassis Body Body Electrical Smart Entry & Start System (G A/T) Overall – Memungkinkan mengoperasikan Manual lock/unlock, engine start, membuka pintu bagasi hanya dengan membawa kunci ( Remote ) [Kunci] [Back Door Opening (hanya membuka) Function] [Door Lock / Unlock Function] [Engine Start Function]

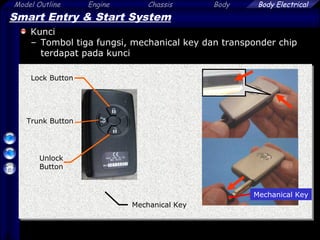

4 Model Outline Engine Chassis Body Body Electrical Smart Entry & Start System Kunci – Tombol tiga fungsi, mechanical key dan transponder chip terdapat pada kunci Unlock Button Lock Button Mechanical Key Mechanical Key Trunk Button

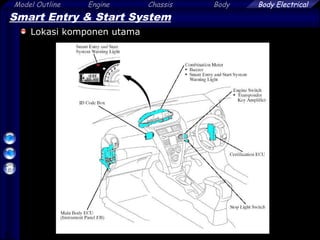

5 Model Outline Engine Chassis Body Body Electrical Smart Entry & Start System Lokasi komponen utama

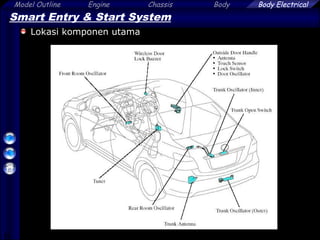

6 Model Outline Engine Chassis Body Body Electrical Smart Entry & Start System Lokasi komponen utama
7 Model Outline Engine Chassis Body Body Electrical Smart Entry & Start System Lokasi komponen utama Front FrontFront Di bawah bumper belakang Trunk Oscillator ( inside ) Rear Room Oscillator Trunk Oscillator ( outside ) Front Room Oscillator Main Body ECU

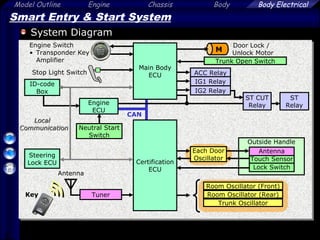

8 Model Outline Engine Chassis Body Body Electrical Outside Handle Smart Entry & Start System System Diagram Steering Lock ECU Touch Sensor Each Door Oscillator Lock Switch Room Oscillator (Front) Trunk Oscillator Room Oscillator (Rear)Key Antenna Antenna CAN Tuner Certification ECU M Door Lock / Unlock Motor ACC Relay IG1 Relay Engine Switch • Transponder Key Amplifier ID-code Box Stop Light Switch LocalLocal CommunicationCommunication Neutral Start Switch IG2 Relay Engine ECU Trunk Open Switch Main Body ECU ST Relay ST CUT Relay

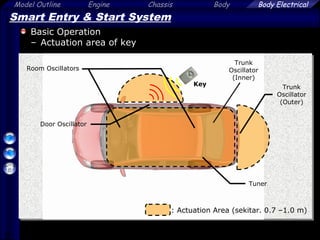

9 Model Outline Engine Chassis Body Body Electrical Smart Entry & Start System Basic Operation – Actuation area of key Trunk Oscillator (Outer) Room Oscillators Tuner : Actuation Area (sekitar. 0.7 –1.0 m) Door Oscillator Key Trunk Oscillator (Inner)

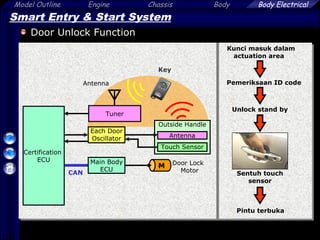

10 Model Outline Engine Chassis Body Body Electrical Smart Entry & Start System Door Unlock Function Kunci masuk dalam actuation area Pemeriksaan ID code Unlock stand by Pintu terbuka Outside Handle Touch Sensor Antenna M Door Lock MotorCAN Certification ECU Sentuh touch sensor Main Body ECU Key Tuner Antenna Each Door Oscillator

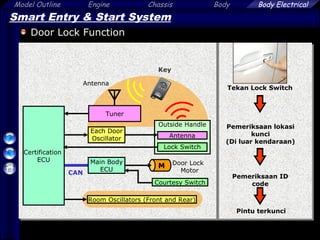

11 Model Outline Engine Chassis Body Body Electrical Smart Entry & Start System Door Lock Function Pemeriksaan lokasi kunci (Di luar kendaraan) Pintu terkunci Pemeriksaan ID code Tekan Lock Switch M Door Lock Motor Room Oscillators (Front and Rear) Courtesy Switch Certification ECU Outside Handle Lock Switch Antenna Each Door Oscillator Key Antenna Main Body ECU Tuner CAN

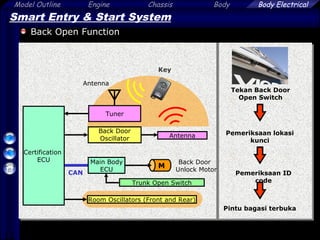

12 Model Outline Engine Chassis Body Body Electrical Smart Entry & Start System Back Open Function Pemeriksaan lokasi kunci Pintu bagasi terbuka Pemeriksaan ID code M Back Door Unlock Motor Main Body ECU Room Oscillators (Front and Rear) Antenna Back Door Oscillator Key Certification ECU Antenna Tekan Back Door Open Switch Tuner CAN Trunk Open Switch

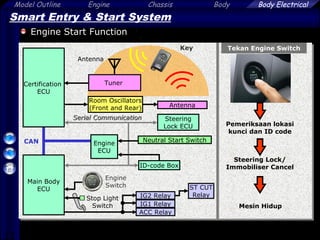

13 Model Outline Engine Chassis Body Body Electrical Smart Entry & Start System Engine Start Function Steering Lock/ Immobiliser Cancel Mesin Hidup Pemeriksaan lokasi kunci dan ID code Room Oscillators (Front and Rear) Key Antenna Steering Lock ECU Serial CommunicationSerial Communication Certification ECU Engine Switch Stop Light Switch IG1 Relay ACC Relay Main Body ECU CAN Tekan Engine Switch Tuner Antenna Engine ECU Neutral Start Switch ID-code Box ST CUT RelayIG2 Relay

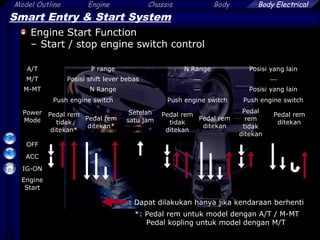

14 Model Outline Engine Chassis Body Body Electrical Smart Entry & Start System Engine Start Function – Start / stop engine switch control A/T P range N Range Posisi yang lain M/T Posisi shift lever bebas   M-MT N Range  Posisi yang lain Power Mode Push engine switch Setelah satu jam Push engine switch Push engine switch Pedal rem tidak ditekan* Pedal rem ditekan* Pedal rem tidak ditekan Pedal rem ditekan Pedal rem tidak ditekan Pedal rem ditekan OFF ACC IG-ON Engine Start : Dapat dilakukan hanya jika kendaraan berhenti *: Pedal rem untuk model dengan A/T / M-MT Pedal kopling untuk model dengan M/T

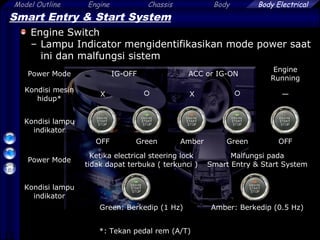

15 Model Outline Engine Chassis Body Body Electrical Power Mode IG-OFF ACC or IG-ON Engine Running Kondisi mesin hidup* X  X  — Kondisi lampu indikator OFF Green Amber Green OFF Smart Entry & Start System Engine Switch – Lampu Indicator mengidentifikasikan mode power saat ini dan malfungsi sistem Power Mode Ketika electrical steering lock tidak dapat terbuka ( terkunci ) Malfungsi pada Smart Entry & Start System Kondisi lampu indikator Green: Berkedip (1 Hz) Amber: Berkedip (0.5 Hz) *: Tekan pedal rem (A/T)

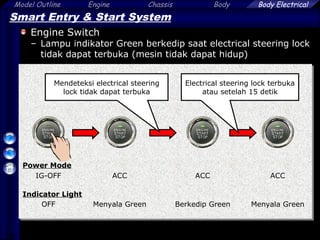

16 Model Outline Engine Chassis Body Body Electrical Smart Entry & Start System Engine Switch – Lampu indikator Green berkedip saat electrical steering lock tidak dapat terbuka (mesin tidak dapat hidup) IG-OFF OFF ACC Menyala Green ACC Berkedip Green ACC Menyala Green Power Mode Indicator Light Mendeteksi electrical steering lock tidak dapat terbuka Electrical steering lock terbuka atau setelah 15 detik

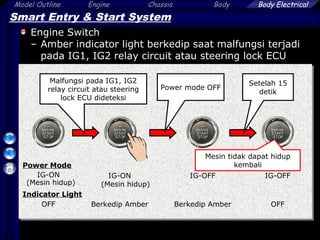

17 Model Outline Engine Chassis Body Body Electrical Smart Entry & Start System Engine Switch – Amber indicator light berkedip saat malfungsi terjadi pada IG1, IG2 relay circuit atau steering lock ECU IG-ON (Mesin hidup) OFF IG-ON (Mesin hidup) Berkedip Amber IG-OFF Berkedip Amber IG-OFF OFF Power Mode Indicator Light Mesin tidak dapat hidup kembali Malfungsi pada IG1, IG2 relay circuit atau steering lock ECU dideteksi Power mode OFF Setelah 15 detik

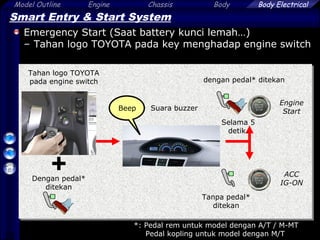

18 Model Outline Engine Chassis Body Body Electrical Smart Entry & Start System Emergency Start (Saat battery kunci lemah…) – Tahan logo TOYOTA pada key menghadap engine switch Beep Tahan logo TOYOTA pada engine switch Suara buzzer Engine Start ACC IG-ON Selama 5 detik. Dengan pedal* ditekan Tanpa pedal* ditekan dengan pedal* ditekan *: Pedal rem untuk model dengan A/T / M-MT Pedal kopling untuk model dengan M/T

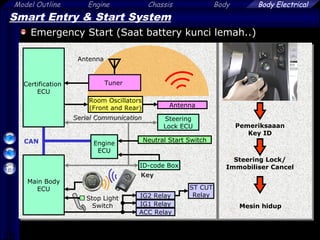

19 Model Outline Engine Chassis Body Body Electrical Steering Lock ECU Serial CommunicationSerial Communication CAN Smart Entry & Start System Emergency Start (Saat battery kunci lemah..) Steering Lock/ Immobiliser Cancel Mesin hidup Pemeriksaaan Key ID Key Room Oscillators (Front and Rear) Antenna Certification ECU Tuner Antenna Neutral Start Switch ID-code Box Engine ECU Stop Light Switch IG1 Relay ACC Relay ST CUT RelayIG2 Relay Main Body ECU

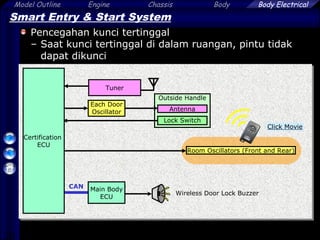

20 Model Outline Engine Chassis Body Body Electrical Smart Entry & Start System Pencegahan kunci tertinggal – Saat kunci tertinggal di dalam ruangan, pintu tidak dapat dikunci Room Oscillators (Front and Rear) Outside Handle Lock Switch Antenna Each Door Oscillator Tuner CAN Main Body ECU Certification ECU Wireless Door Lock Buzzer Click Movie

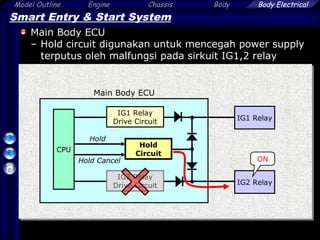

21 Model Outline Engine Chassis Body Body Electrical Smart Entry & Start System Main Body ECU – Hold circuit digunakan untuk mencegah power supply terputus oleh malfungsi pada sirkuit IG1,2 relay Main Body ECU IG1 Relay CPU Hold Hold Cancel IG2 Relay Hold Circuit IG1 Relay Drive Circuit IG2 Relay Drive Circuit ON

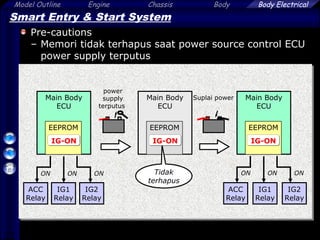

22 Model Outline Engine Chassis Body Body Electrical Smart Entry & Start System Pre-cautions – Memori tidak terhapus saat power source control ECU power supply terputus Main Body ECU Main Body ECU power supply terputus Main Body ECU EEPROM ACC Relay IG1 Relay Suplai power IG2 Relay EEPROM EEPROM ACC Relay IG1 Relay IG2 Relay Tidak terhapus ON ON ON ON ON ON IG-ON IG-ON IG-ON

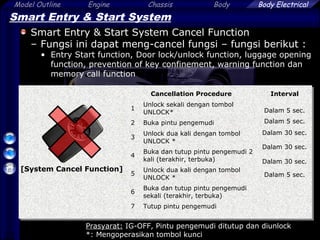

23 Model Outline Engine Chassis Body Body Electrical Smart Entry & Start System Smart Entry & Start System Cancel Function – Fungsi ini dapat meng-cancel fungsi – fungsi berikut : • Entry Start function, Door lock/unlock function, luggage opening function, prevention of key confinement, warning function dan memory call function [System Cancel Function] Cancellation Procedure 1 Unlock sekali dengan tombol UNLOCK* 2 Buka pintu pengemudi 3 Unlock dua kali dengan tombol UNLOCK * 4 Buka dan tutup pintu pengemudi 2 kali (terakhir, terbuka) 5 Unlock dua kali dengan tombol UNLOCK * 6 Buka dan tutup pintu pengemudi sekali (terakhir, terbuka) 7 Tutup pintu pengemudi Interval Dalam 5 sec. Dalam 5 sec. Dalam 30 sec. Dalam 30 sec. Dalam 30 sec. Dalam 5 sec. Prasyarat: IG-OFF, Pintu pengemudi ditutup dan diunlock *: Mengoperasikan tombol kunci

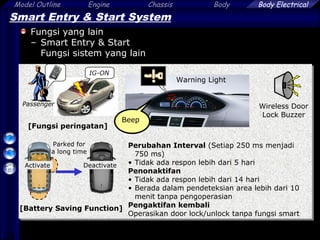

24 Model Outline Engine Chassis Body Body Electrical Smart Entry & Start System Fungsi yang lain – Smart Entry & Start Fungsi sistem yang lain Parked for a long time [Battery Saving Function] Activate IG-ON [Fungsi peringatan] Deactivate Wireless Door Lock Buzzer Beep Warning Light Perubahan Interval (Setiap 250 ms menjadi 750 ms) • Tidak ada respon lebih dari 5 hari Penonaktifan • Tidak ada respon lebih dari 14 hari • Berada dalam pendeteksian area lebih dari 10 menit tanpa pengoperasian Pengaktifan kembali Operasikan door lock/unlock tanpa fungsi smart Passenger

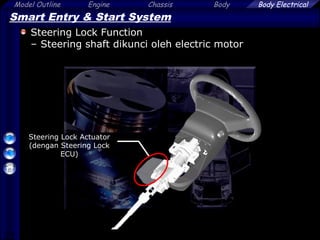

25 Model Outline Engine Chassis Body Body Electrical Smart Entry & Start System Steering Lock Function – Steering shaft dikunci oleh electric motor Steering Lock Actuator (dengan Steering Lock ECU)

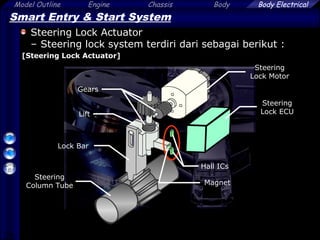

26 Model Outline Engine Chassis Body Body Electrical Smart Entry & Start System Steering Lock Actuator – Steering lock system terdiri dari sebagai berikut : [Steering Lock Actuator] Steering Column Tube Lock Bar Hall ICs Gears Steering Lock ECU Steering Lock Motor Lift Magnet
Model Outline Engine Chassis Body 27 Body Electrical Smart Entry & Start System System Diagram Steering Lock Motor Hall ICs Main Body ECU Steering Lock ECU Power Supply Lock Bar Position Lock/unlock Order Power Supply for motor Certification ECU ID-code Box

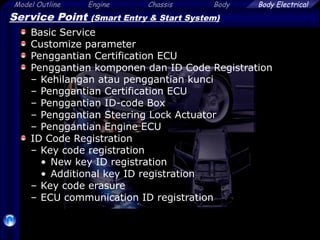

Model Outline Engine Chassis Body 28 Body Electrical Service Point (Smart Entry & Start System) Basic Service Customize parameter Penggantian Certification ECU Penggantian komponen dan ID Code Registration – Kehilangan atau penggantian kunci – Penggantian Certification ECU – Penggantian ID-code Box – Penggantian Steering Lock Actuator – Penggantian Engine ECU ID Code Registration – Key code registration • New key ID registration • Additional key ID registration – Key code erasure – ECU communication ID registration
29 Model Outline Engine Chassis Body Body Electrical Service Point (Smart Entry & Start System) Basic Service – Tindakan pencegahan untuk seluruh system • Pastikan membawa kunci selama pemeriksaan smart system • Seperti gelombang radio lemah, area pendeteksian bisa berkurang, atau kunci tidak bisa dideteksi dalam situasi sebagai berikut : 1. Batere kunci habis 2. Segala fasilitas yang membangkitkan gelombang radio tinggi seperti menara TV, Pembangkit listrik, Stasiun pemancar, Pom Bensin otomatis, berada didekat area pemeriksaan 3. Peralatan Wireless seperti cellular phone dibawa bersama kunci 4. Kunci terhubung atau ditutupi dengan logam (metal) 5. wireless door lock control yang lain sedang dioperasikan didekat kendaraan 6. Kunci berada di dekat lokasi peralatan yang membangkitkan tegangan tinggi atau noise • Kunci kemungkinan sulit dioperasikan sehubungan dengan bentuk body kendaraan • Kunci kemungkinan tidak dideteksi secara tepat disekitar kaca kendaraan, handle pintu, atau di tengah bumper meskipun saat itu area pendeteksian berada pada bagian luar kendaraan • Kunci kemungkinan tidak dideteksi secara tepat jika berada di instrument panel, rear package tray, floor, atau di dalam glove box meskipun saat itu area pendeteksian berada pada bagian dalam kendaraan • Smart system tidak dapat bekerja pada kondisi sebagai berikut : 1. Smart system sedang di cancel 2. Batere kunci habis / kosong (indicator tidak berkedip saat tombol kunci ditekan)

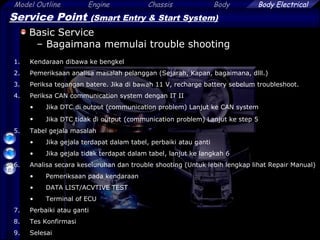

30 Model Outline Engine Chassis Body Body Electrical Service Point (Smart Entry & Start System) Basic Service – Bagaimana memulai trouble shooting 1. Kendaraan dibawa ke bengkel 2. Pemeriksaan analisa masalah pelanggan (Sejarah, Kapan, bagaimana, dlll.) 3. Periksa tegangan batere. Jika di bawah 11 V, recharge battery sebelum troubleshoot. 4. Periksa CAN communication system dengan IT II • Jika DTC di output (communication problem) Lanjut ke CAN system • Jika DTC tidak di output (communication problem) Lanjut ke step 5 5. Tabel gejala masalah • Jika gejala terdapat dalam tabel, perbaiki atau ganti • Jika gejala tidak terdapat dalam tabel, lanjut ke langkah 6 6. Analisa secara keseluruhan dan trouble shooting (Untuk lebih lengkap lihat Repair Manual) • Pemeriksaan pada kendaraan • DATA LIST/ACVTIVE TEST • Terminal of ECU 7. Perbaiki atau ganti 8. Tes Konfirmasi 9. Selesai
31 Model Outline Engine Chassis Body Body Electrical Smart Entry & Start System Case Example – Share a key Key Sharing New Certification ECU I want to also take my wife’s vehicle with my vehicle key

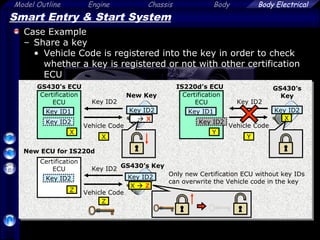

32 Model Outline Engine Chassis Body Body Electrical Certification ECU X Vehicle Code X Certification ECU Y Key ID1 Key ID1 Key ID2 Vehicle Code Y Certification ECU Z New ECU for IS220d Key ID2 Vehicle Code Z Key ID2 Key ID2 Key ID2 Key ID2 GS430’s ECU IS220d’s ECU Smart Entry & Start System Case Example – Share a key • Vehicle Code is registered into the key in order to check whether a key is registered or not with other certification ECU Only new Certification ECU without key IDs can overwrite the Vehicle code in the key X X  Z New Key Key ID2 Key ID2 Key ID2  X GS430’s Key GS430’s Key

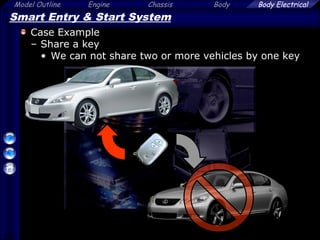

33 Model Outline Engine Chassis Body Body Electrical Smart Entry & Start System Case Example – Share a key • We can not share two or more vehicles by one key Key Sharing
34 Model Outline Engine Chassis Body Body Electrical Smart Entry & Start System Case Example – After execute new key ID registration New Certification ECU Lost I found the lost key yesterday··· Please register this key

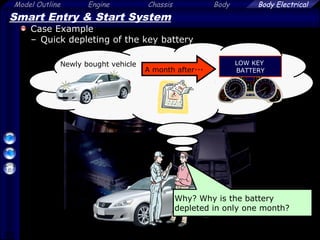

35 Model Outline Engine Chassis Body Body Electrical Smart Entry & Start System Case Example – Quick depleting of the key battery Newly bought vehicle LOW KEY BATTERYA month after··· Why? Why is the battery depleted in only one month?

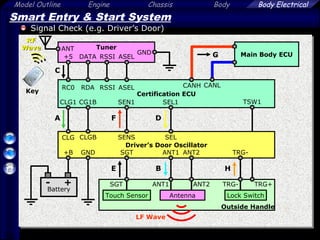

36 Model Outline Engine Chassis Body Body Electrical Smart Entry & Start System Signal Check (e.g. Driver’s Door) Outside Handle Touch Sensor SGT Lock Switch Driver’s Door Oscillator ANT1 ANT2 TRG- TRG+ Certification ECU TSW1 SGT ANT1 ANT2 TRG-GND+B CLG1 CLG CLGB SENS SEL CG1B SEN1 SEL1 Battery +- CANLCANH A Key Tuner RC0 RDA ASELRSSI +5 DATA ASELRSSI GND ANT B C D E F G H Main Body ECU Antenna LF Wave RFRF WaveWave

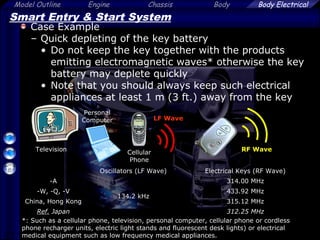

37 Model Outline Engine Chassis Body Body Electrical Smart Entry & Start System Case Example – Quick depleting of the key battery • Do not keep the key together with the products emitting electromagnetic waves* otherwise the key battery may deplete quickly • Note that you should always keep such electrical appliances at least 1 m (3 ft.) away from the key *: Such as a cellular phone, television, personal computer, cellular phone or cordless phone recharger units, electric light stands and fluorescent desk lights) or electrical medical equipment such as low frequency medical appliances. Oscillators (LF Wave) Electrical Keys (RF Wave) -A 134.2 kHz 314.00 MHz -W, -Q, -V 433.92 MHz China, Hong Kong 315.12 MHz Ref. Japan 312.25 MHz LF Wave RF WaveTelevision Personal Computer Cellular Phone

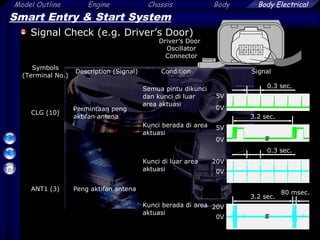

38 Model Outline Engine Chassis Body Body Electrical Smart Entry & Start System Signal Check (e.g. Driver’s Door) Symbols (Terminal No.) Description (Signal) Condition Signal CLG (10) Permintaan peng aktifan antena Semua pintu dikunci dan kunci di luar area aktuasi Kunci berada di area aktuasi ANT1 (3) Peng aktifan antena Kunci di luar area aktuasi Kunci berada di area aktuasi 10 9 8 7 6 5 4 3 2 1 Driver’s Door Oscillator Connector 0V 5V 0.3 sec. 0V 5V 3.2 sec. 80 msec. 3.2 sec. 0.3 sec. 0V 20V 0V 20V
39 Model Outline Engine Chassis Body Body Electrical Smart Entry & Start System Signal Check (e.g. Driver’s Door) Symbols (Terminal No.) Description (Signal) Condition Signal SEL (4) Permintaan peng aktifan touch sensor Kunci di luar area aktuasi 12V Kunci berada di area aktuasi SGT (2) Kondisi Touch sensor Tidak disentuh 12V Disentuh 0V SENS (6) Output kondisi Touch sensor Outside handle tidak disentuh 12V Outside handle disentuh 0V TRG- (9) Kondisi Lock switch Lock switch tidak ditekan Lock switch ditekan 0V 10 9 8 7 6 5 4 3 2 1 Driver’s Door Oscillator Connector 0V 12V 3.2 sec. 0V 12V 20 msec.
40 Model Outline Engine Chassis Body Body Electrical Smart Entry & Start System Case Example – System operation glitch by disturbance electric wave My vehicle sometimes does not work properly

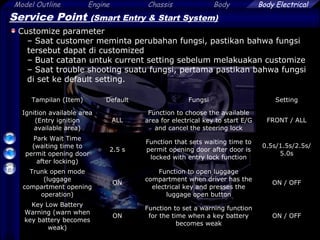

41 Model Outline Engine Chassis Body Body Electrical Service Point (Smart Entry & Start System) Customize parameter – Saat customer meminta perubahan fungsi, pastikan bahwa fungsi tersebut dapat di customized – Buat catatan untuk current setting sebelum melakuakan customize – Saat trouble shooting suatu fungsi, pertama pastikan bahwa fungsi di set ke default setting. Tampilan (Item) Default Fungsi Setting Ignition available area (Entry ignition available area) ALL Function to choose the available area for electrical key to start E/G and cancel the steering lock FRONT / ALL Park Wait Time (waiting time to permit opening door after locking) 2.5 s Function that sets waiting time to permit opening door after door is locked with entry lock function 0.5s/1.5s/2.5s/ 5.0s Trunk open mode (luggage compartment opening operation) ON Function to open luggage compartment when driver has the electrical key and presses the luggage open button ON / OFF Key Low Battery Warning (warn when key battery becomes weak) ON Function to set a warning function for the time when a key battery becomes weak ON / OFF

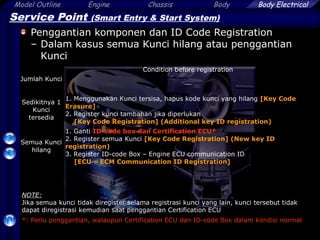

Model Outline Engine Chassis Body 42 Body Electrical Service Point (Smart Entry & Start System) Penggantian komponen dan ID Code Registration – Dalam kasus semua Kunci hilang atau penggantian Kunci NOTE: Jika semua kunci tidak diregister selama registrasi kunci yang lain, kunci tersebut tidak dapat diregistrasi kemudian saat penggantian Certification ECU *: Perlu penggantian, walaupun Certification ECU dan ID-code Box dalam kondisi normal Jumlah Kunci Condition before registration  Sedikitnya 1 Kunci tersedia 1. Menggunakan Kunci tersisa, hapus kode kunci yang hilang [Key Code Erasure] 2. Register kunci tambahan jika diperlukan [Key Code Registration] (Additional key ID registration) Semua Kunci hilang 1. Ganti ID-code box dan Certification ECU* 2. Register semua Kunci [Key Code Registration] (New key ID registration) 3. Register ID-code Box – Engine ECU communication ID [ECU – ECM Communication ID Registration]

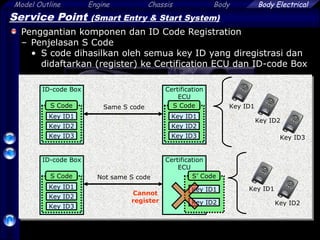

Model Outline Engine Chassis Body 43 Body Electrical Service Point (Smart Entry & Start System) Penggantian komponen dan ID Code Registration – Penjelasan S Code • S code dihasilkan oleh semua key ID yang diregistrasi dan didaftarkan (register) ke Certification ECU dan ID-code Box Certification ECU S Code Key ID1 Key ID2 Key ID3 ID-code Box S Code Key ID1 Key ID2 Key ID3 Certification ECU S’ Code Key ID1 Key ID2 ID-code Box S Code Key ID1 Key ID2 Key ID3 Cannot register Same S code Not same S code Key ID1 Key ID2 Key ID3 Key ID1 Key ID2

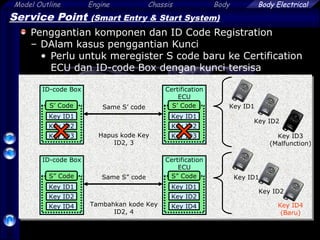

Model Outline Engine Chassis Body 44 Body Electrical Service Point (Smart Entry & Start System) Penggantian komponen dan ID Code Registration – DAlam kasus penggantian Kunci • Perlu untuk meregister S code baru ke Certification ECU dan ID-code Box dengan kunci tersisa Certification ECU S’ Code Key ID1 Key ID2 Key ID3 Certification ECU ID-code Box S’ Code Key ID1 Key ID2 Key ID3 ID-code Box Same S’ code Same S” code Hapus kode Key ID2, 3 Tambahkan kode Key ID2, 4 Key ID1 Key ID2 Key ID3 (Malfunction) S” Code Key ID1 Key ID2 Key ID4 S” Code Key ID1 Key ID2 Key ID4 Key ID1 Key ID2 Key ID4 (Baru)

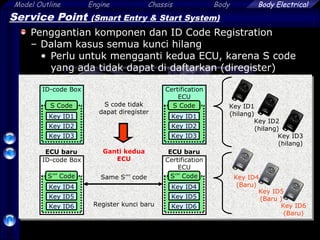

Model Outline Engine Chassis Body 45 Body Electrical Service Point (Smart Entry & Start System) Penggantian komponen dan ID Code Registration – Dalam kasus semua kunci hilang • Perlu untuk mengganti kedua ECU, karena S code yang ada tidak dapat di daftarkan (diregister) Certification ECU S Code Key ID1 Key ID2 Key ID3 Certification ECU ID-code Box S Code Key ID1 Key ID2 Key ID3 ID-code Box Same S’’’ code Ganti kedua ECU Register kunci baru Key ID1 (hilang) Key ID2 (hilang) Key ID3 (hilang) S’’’ Code Key ID4 Key ID5 Key ID6 S’’’ Code Key ID4 Key ID5 Key ID6 ECU baruECU baru S code tidak dapat diregister Key ID4 (Baru) Key ID5 (Baru ) Key ID6 (Baru)

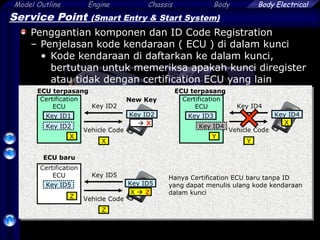

Model Outline Engine Chassis Body 46 Body Electrical Certification ECU X Vehicle Code X Certification ECU Y Key ID1 Key ID3 Key ID4 Vehicle Code Y X Certification ECU Z ECU baru Key ID5 Vehicle Code Z X  Z New Key Key ID2 Key ID2 Key ID2 Key ID5Key ID5 Key ID4 Key ID4 X ECU terpasang ECU terpasang Service Point (Smart Entry & Start System) Penggantian komponen dan ID Code Registration – Penjelasan kode kendaraan ( ECU ) di dalam kunci • Kode kendaraan di daftarkan ke dalam kunci, bertutuan untuk memeriksa apakah kunci diregister atau tidak dengan certification ECU yang lain Hanya Certification ECU baru tanpa ID yang dapat menulis ulang kode kendaraan dalam kunci
Model Outline Engine Chassis Body 47 Body Electrical Service Point (Smart Entry & Start System) Penggantian komponen dan ID Code Registration – Dalam kasus penggantian Certification ECU Jumlah kunci Condition before registration Key ID codes can be registered / erased Key ID codes cannot be either registered / erased Semua kunci terpasang 1. Ganti certification ECU 2. Register semua kunci [Key Code Registration] (New key ID registration) Beberapa kunci hilang 1. Hapus kode kunci [Key Code Erasure] 2. Register kunci tersisa [Key Code Registration] (Additional key ID registration) 3. Ganti certification ECU 4. Register semua kunci[Key Code Registration] (New key ID registration) 1. Ganti certification ECU dan ID-code box* 2. Register semua kunci [Key Code Registration] (New key ID registration) 3. Register ID-code Box – engine ECU communication ID [ECU – ECM Communication ID Registration] Catatan: Jika beberapa kunci tidak diregister selama meregistrasi kunci yang lain, kunci tersebut tidak dapat diregistrasi kemudian *: Perlu penggantian, meskipun ID-code box dalam kondisi normal

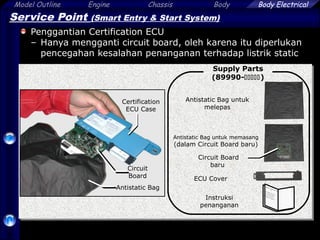

Model Outline Engine Chassis Body 48 Body Electrical Service Point (Smart Entry & Start System) Penggantian Certification ECU – Hanya mengganti circuit board, oleh karena itu diperlukan pencegahan kesalahan penanganan terhadap listrik static Certification ECU Case Circuit Board Antistatic Bag untuk melepas Supply Parts (89990-) Antistatic Bag untuk memasang (dalam Circuit Board baru) ECU Cover Antistatic Bag Instruksi penanganan Circuit Board baru Replacem ent of Certification ECU On ly replace the circuit board, therefore static electricity prevention coun term easure is requ ired

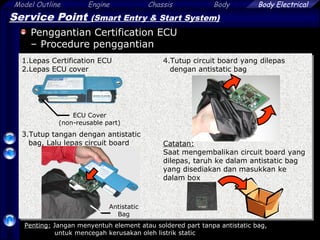

Model Outline Engine Chassis Body 49 Body Electrical Service Point (Smart Entry & Start System) Penggantian Certification ECU – Procedure penggantian 1.Lepas Certification ECU 2.Lepas ECU cover ECU Cover (non-reusable part) 3.Tutup tangan dengan antistatic bag, Lalu lepas circuit board Antistatic Bag 4.Tutup circuit board yang dilepas dengan antistatic bag Penting: Jangan menyentuh element atau soldered part tanpa antistatic bag, untuk mencegah kerusakan oleh listrik static Catatan: Saat mengembalikan circuit board yang dilepas, taruh ke dalam antistatic bag yang disediakan dan masukkan ke dalam box
Model Outline Engine Chassis Body 50 Body Electrical Service Point (Smart Entry & Start System) Penggantian Certification ECU – Procedure penggantian 5.Putar antistatic bag pada circuit board baru 6.pasang circuit board baru sepanjang guide rail Guide Rail 7. Pasang ECU cover baru 8. Pasang Certification ECU

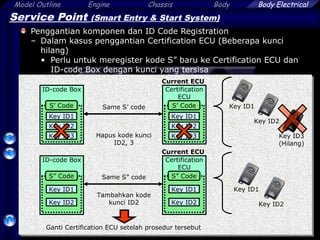

Model Outline Engine Chassis Body 51 Body Electrical Service Point (Smart Entry & Start System) Penggantian komponen dan ID Code Registration – Dalam kasus penggantian Certification ECU (Beberapa kunci hilang) • Perlu untuk meregister kode S” baru ke Certification ECU dan ID-code Box dengan kunci yang tersisa Certification ECU S’ Code Key ID1 Key ID2 Key ID3 Certification ECU S” Code Key ID1 Key ID2 ID-code Box S’ Code Key ID1 Key ID2 Key ID3 ID-code Box S” Code Key ID1 Key ID2 Same S’ code Same S” code Hapus kode kunci ID2, 3 Tambahkan kode kunci ID2 Current ECU Ganti Certification ECU setelah prosedur tersebut Key ID1 Key ID2 Key ID3 (Hilang) Key ID1 Key ID2 Current ECU

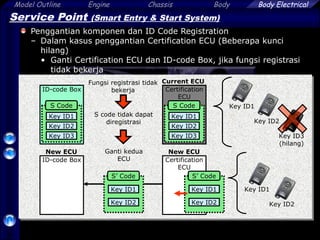

Model Outline Engine Chassis Body 52 Body Electrical Service Point (Smart Entry & Start System) Penggantian komponen dan ID Code Registration – Dalam kasus penggantian Certification ECU (Beberapa kunci hilang) • Ganti Certification ECU dan ID-code Box, jika fungsi registrasi tidak bekerja Certification ECU ID-code Box Certification ECU S Code Key ID1 Key ID2 Key ID3 ID-code Box S Code Key ID1 Key ID2 Key ID3 Fungsi registrasi tidak bekerja S’ Code Key ID1 Key ID2 S’ Code Key ID1 Key ID2 Current ECU Ganti kedua ECU S code tidak dapat diregistrasi New ECUNew ECU Key ID1 Key ID2 Key ID3 (hilang) Key ID1 Key ID2

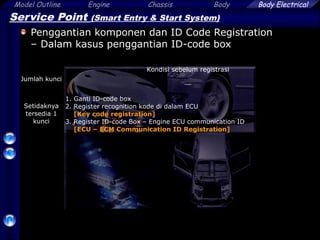

Model Outline Engine Chassis Body 53 Body Electrical Service Point (Smart Entry & Start System) Penggantian komponen dan ID Code Registration – Dalam kasus penggantian ID-code box Jumlah kunci Kondisi sebelum registrasi  Setidaknya tersedia 1 kunci 1. Ganti ID-code box 2. Register recognition kode di dalam ECU [Key code registration] 3. Register ID-code Box – Engine ECU communication ID [ECU – ECM Communication ID Registration]

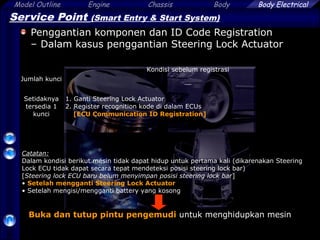

Model Outline Engine Chassis Body 54 Body Electrical Service Point (Smart Entry & Start System) Penggantian komponen dan ID Code Registration – Dalam kasus penggantian Steering Lock Actuator Jumlah kunci Kondisi sebelum registrasi  Setidaknya tersedia 1 kunci 1. Ganti Steering Lock Actuator 2. Register recognition kode di dalam ECUs [ECU Communication ID Registration] Catatan: Dalam kondisi berikut mesin tidak dapat hidup untuk pertama kali (dikarenakan Steering Lock ECU tidak dapat secara tepat mendeteksi posisi steering lock bar) [Steering lock ECU baru belum menyimpan posisi steering lock bar] • Setelah mengganti Steering Lock Actuator • Setelah mengisi/mengganti battery yang kosong Buka dan tutup pintu pengemudi untuk menghidupkan mesin

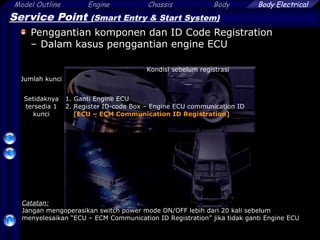

Model Outline Engine Chassis Body 55 Body Electrical Service Point (Smart Entry & Start System) Penggantian komponen dan ID Code Registration – Dalam kasus penggantian engine ECU Jumlah kunci Kondisi sebelum registrasi  Setidaknya tersedia 1 kunci 1. Ganti Engine ECU 2. Register ID-code Box – Engine ECU communication ID [ECU – ECM Communication ID Registration] Catatan: Jangan mengoperasikan switch power mode ON/OFF lebih dari 20 kali sebelum menyelesaikan “ECU – ECM Communication ID Registration” jika tidak ganti Engine ECU

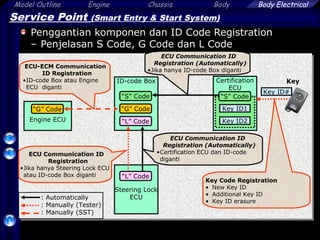

Model Outline Engine Chassis Body 56 Body Electrical ID-code Box “G” Code “S” Code “L” Code Service Point (Smart Entry & Start System) Penggantian komponen dan ID Code Registration – Penjelasan S Code, G Code dan L Code Steering Lock ECU “L” Code Engine ECU “G” Code KeyCertification ECU “S” Code Key ID1 Key ID2 Key Code Registration • New Key ID • Additional Key ID • Key ID erasure ECU-ECM Communication ID Registration •ID-code Box atau Engine ECU diganti ECU Communication ID Registration •Jika hanya Steering Lock ECU atau ID-code Box diganti ECU Communication ID Registration (Automatically) •Certification ECU dan ID-code diganti ECU Communication ID Registration (Automatically) •Jika hanya ID-code Box diganti : Automatically : Manually (Tester) : Manually (SST) Key ID#

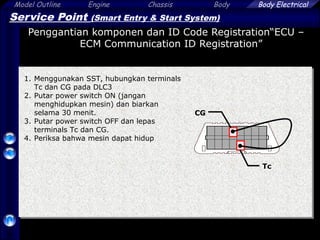

Model Outline Engine Chassis Body 57 Body Electrical Service Point (Smart Entry & Start System) Penggantian komponen dan ID Code Registration“ECU – ECM Communication ID Registration” CG Tc 1. Menggunakan SST, hubungkan terminals Tc dan CG pada DLC3 2. Putar power switch ON (jangan menghidupkan mesin) dan biarkan selama 30 menit. 3. Putar power switch OFF dan lepas terminals Tc dan CG. 4. Periksa bahwa mesin dapat hidup

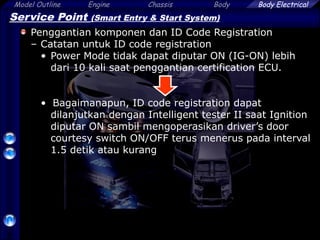

Model Outline Engine Chassis Body 58 Body Electrical Service Point (Smart Entry & Start System) Penggantian komponen dan ID Code Registration – Catatan untuk ID code registration • Power Mode tidak dapat diputar ON (IG-ON) lebih dari 10 kali saat penggantian certification ECU. • Bagaimanapun, ID code registration dapat dilanjutkan dengan Intelligent tester II saat Ignition diputar ON sambil mengoperasikan driver’s door courtesy switch ON/OFF terus menerus pada interval 1.5 detik atau kurang

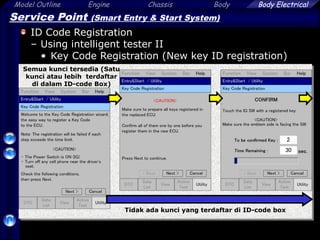

Model Outline Engine Chassis Body 59 Body Electrical Service Point (Smart Entry & Start System) ID Code Registration – Using intelligent tester II • Key Code Registration (New key ID registration) Tidak ada kunci yang terdaftar di ID-code box Semua kunci tersedia (Satu kunci atau lebih terdaftar di dalam ID-code Box)

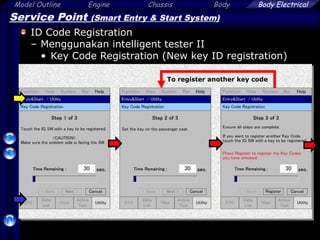

Model Outline Engine Chassis Body 60 Body Electrical Service Point (Smart Entry & Start System) ID Code Registration – Menggunakan intelligent tester II • Key Code Registration (New key ID registration) To register another key code
Model Outline Engine Chassis Body 61 Body Electrical Service Point (Smart Entry & Start System) ID Code Registration – Menggunakan intelligent tester II • Key Code Registration (New key ID registration) [5] [2]

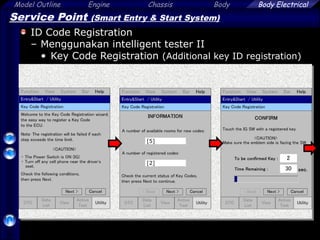

Model Outline Engine Chassis Body 62 Body Electrical [5] [2] Service Point (Smart Entry & Start System) ID Code Registration – Menggunakan intelligent tester II • Key Code Registration (Additional key ID registration)
Model Outline Engine Chassis Body 63 Body Electrical Service Point (Smart Entry & Start System) ID Code Registration – Menggunakan intelligent tester II • Key Code Registration (Additional key ID registration) To register another key code

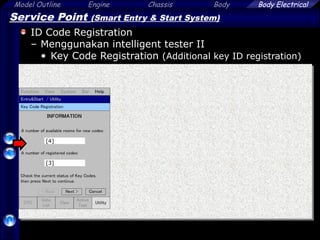

Model Outline Engine Chassis Body 64 Body Electrical Service Point (Smart Entry & Start System) ID Code Registration – Menggunakan intelligent tester II • Key Code Registration (Additional key ID registration) [4] [3]

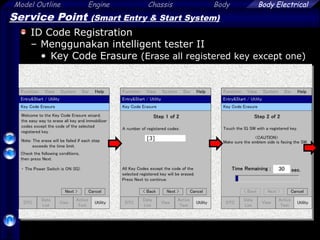

Model Outline Engine Chassis Body 65 Body Electrical [3] Service Point (Smart Entry & Start System) ID Code Registration – Menggunakan intelligent tester II • Key Code Erasure (Erase all registered key except one)
Model Outline Engine Chassis Body 66 Body Electrical Service Point (Smart Entry & Start System) ID Code Registration – Menggunakan intelligent tester II • Key Code Erasure (Erase all registered key except one)

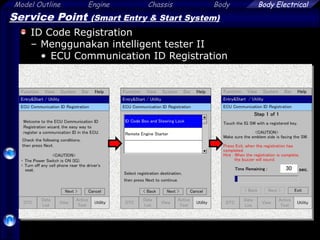

Model Outline Engine Chassis Body 67 Body Electrical Service Point (Smart Entry & Start System) ID Code Registration – Menggunakan intelligent tester II • ECU Communication ID Registration
68 Model Outline Engine Chassis Body Body Electrical Smart Entry & Start System Communication Check (Key Diag Mode) – Each oscillator can be checked by activating specified oscillator • Buzzer sounds when the key is detected in activated actuation area

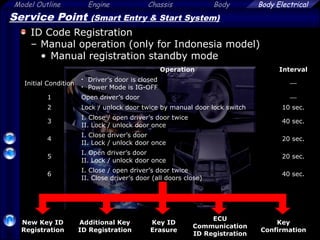

Model Outline Engine Chassis Body 69 Body Electrical Service Point (Smart Entry & Start System) ID Code Registration – Manual operation (only for Indonesia model) • Manual registration standby mode Operation Interval Initial Condition • Driver’s door is closed • Power Mode is IG-OFF  1 Open driver’s door  2 Lock / unlock door twice by manual door lock switch 10 sec. 3 I. Close / open driver’s door twice II. Lock / unlock door once 40 sec. 4 I. Close driver’s door II. Lock / unlock door once 20 sec. 5 I. Open driver’s door II. Lock / unlock door once 20 sec. 6 I. Close / open driver’s door twice II. Close driver’s door (all doors close) 40 sec. New Key ID Registration Additional Key ID Registration Key ID Erasure ECU Communication ID Registration Key Confirmation

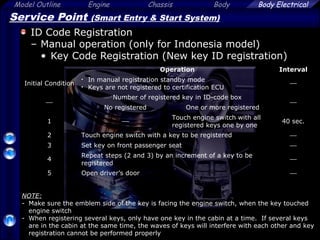

Model Outline Engine Chassis Body 70 Body Electrical Service Point (Smart Entry & Start System) ID Code Registration – Manual operation (only for Indonesia model) • Key Code Registration (New key ID registration) Operation Interval Initial Condition • In manual registration standby mode • Keys are not registered to certification ECU   Number of registered key in ID-code box  No registered One or more registered 1  Touch engine switch with all registered keys one by one 40 sec. 2 Touch engine switch with a key to be registered  3 Set key on front passenger seat  4 Repeat steps (2 and 3) by an increment of a key to be registered  5 Open driver’s door  NOTE: - Make sure the emblem side of the key is facing the engine switch, when the key touched engine switch - When registering several keys, only have one key in the cabin at a time. If several keys are in the cabin at the same time, the waves of keys will interfere with each other and key registration cannot be performed properly

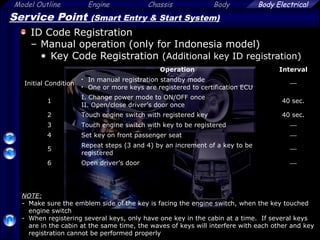

Model Outline Engine Chassis Body 71 Body Electrical Service Point (Smart Entry & Start System) ID Code Registration – Manual operation (only for Indonesia model) • Key Code Registration (Additional key ID registration) Operation Interval Initial Condition • In manual registration standby mode • One or more keys are registered to certification ECU  1 I. Change power mode to ON/OFF once II. Open/close driver’s door once 40 sec. 2 Touch engine switch with registered key 40 sec. 3 Touch engine switch with key to be registered  4 Set key on front passenger seat  5 Repeat steps (3 and 4) by an increment of a key to be registered  6 Open driver’s door  NOTE: - Make sure the emblem side of the key is facing the engine switch, when the key touched engine switch - When registering several keys, only have one key in the cabin at a time. If several keys are in the cabin at the same time, the waves of keys will interfere with each other and key registration cannot be performed properly

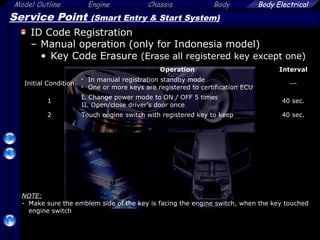

Model Outline Engine Chassis Body 72 Body Electrical Service Point (Smart Entry & Start System) ID Code Registration – Manual operation (only for Indonesia model) • Key Code Erasure (Erase all registered key except one) Operation Interval Initial Condition • In manual registration standby mode • One or more keys are registered to certification ECU  1 I. Change power mode to ON / OFF 5 times II. Open/close driver’s door once 40 sec. 2 Touch engine switch with registered key to keep 40 sec. NOTE: - Make sure the emblem side of the key is facing the engine switch, when the key touched engine switch
Model Outline Engine Chassis Body 73 Body Electrical Service Point (Smart Entry & Start System) ID Code Registration – Manual operation (only for Indonesia model) • ECU Communication ID Registration Operation Interval Initial Condition • In manual registration standby mode • One or more keys are registered to certification ECU  1 I. Change power mode to ON / OFF 2 times II. Open/close driver’s door once 40 sec. 2 Touch engine switch with registered key 40 sec. NOTE: - Make sure the emblem side of the key is facing the engine switch, when the key touched engine switch

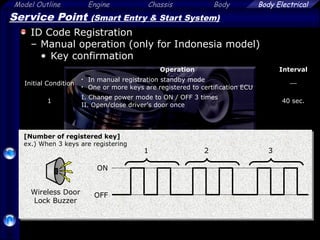

Model Outline Engine Chassis Body 74 Body Electrical Service Point (Smart Entry & Start System) ID Code Registration – Manual operation (only for Indonesia model) • Key confirmation Operation Interval Initial Condition • In manual registration standby mode • One or more keys are registered to certification ECU  1 I. Change power mode to ON / OFF 3 times II. Open/close driver’s door once 40 sec. [Number of registered key] ex.) When 3 keys are registering Wireless Door Lock Buzzer OFF ON 1 2 3
75 Model Outline Engine Chassis Body Body Electrical

More Related Content

PDF
Avc lan-and-avc-lan-plus
byInstituto Nacional de Aprendizaje

PDF
Hgm72 v1.2 en
byPhamVinh36

PPT
Immobiliser
byUbaz Ky

PDF
Diagnóstico obd2 de vehículos
byabsolute scan

PDF
2012 Ford Explorer Available from Bozard Ford Near Jacksonville
byBozard Ford Lincoln

PDF
Hgm180 hc v2.7_en
byPhamVinh36

PDF
Unidrive m400 sheet issue 1
byToàn Huỳnh

PDF
2011 Scion TC For Sale In Virginia Beach VA | Checkered Flag Scion
byCheckered Flag Scion

Avc lan-and-avc-lan-plus
byInstituto Nacional de Aprendizaje

Hgm72 v1.2 en
byPhamVinh36

Immobiliser
byUbaz Ky

Diagnóstico obd2 de vehículos
byabsolute scan

2012 Ford Explorer Available from Bozard Ford Near Jacksonville
byBozard Ford Lincoln

Hgm180 hc v2.7_en
byPhamVinh36

Unidrive m400 sheet issue 1
byToàn Huỳnh

2011 Scion TC For Sale In Virginia Beach VA | Checkered Flag Scion
byCheckered Flag Scion


What's hot

PDF
2011 Scion TC For Sale Near Long Island NY| Penn Scion
byPenn Scion

PDF
catalogue_export_2015_web
byPeter Porubcan

PDF
Tlk43 Controller
byJoseph

PDF
Iai pmec amec_controller_catalog
byElectromate

PDF
Universal IMMO VAG immobilizer/emulator - User‘s manual
bydegarden

PDF
OBD-II On Board Diagnostics - Electrónica del automóvil
bydegarden

PDF
Luxaflex motorisation installation guide
byperthblinds

PDF
2012 Toyota Prius Gauges
byJerry's Toyota

PDF
Toyota prius owners_manual_2001
bydashaa_82

DOC
Multi-Function Automatic Move Smart Car for Arduino
byWanita Long

PDF
AUDI A4 B5 1.8L 1996 ELECTRICAL EQUIPMENT 01 1 instrument cluster, on board d...
byGherghescu Gabriel

PDF
11145204 pats-troubleshooting-diagnostic-service-tips
byAlfredo Gracida

PDF
AUDI A4 B5 1.8L 1996 BADY 55 24 rear lid vin 8 d xa 200 001
byGherghescu Gabriel

PDF
Tegal equipment spare parts
byEmily Tan

PDF
2012 Toyota Rav4 Instrument Cluster
byJerry's Toyota

PPT
E4800 ej501 topic_5_designing_plc_application
byMohd Sedik

PDF
AUDI A4 B5 1.8L 1996 BADY 55 32 tailgate avant vin 8 d xa 200 000
byGherghescu Gabriel

PDF
Park Brake Tipper alarm Technical Specification
byRimsky Cheng

2011 Scion TC For Sale Near Long Island NY| Penn Scion
byPenn Scion

catalogue_export_2015_web
byPeter Porubcan

Tlk43 Controller
byJoseph

Iai pmec amec_controller_catalog
byElectromate

Universal IMMO VAG immobilizer/emulator - User‘s manual
bydegarden

OBD-II On Board Diagnostics - Electrónica del automóvil
bydegarden

Luxaflex motorisation installation guide
byperthblinds

2012 Toyota Prius Gauges
byJerry's Toyota

Toyota prius owners_manual_2001
bydashaa_82

Multi-Function Automatic Move Smart Car for Arduino
byWanita Long

AUDI A4 B5 1.8L 1996 ELECTRICAL EQUIPMENT 01 1 instrument cluster, on board d...
byGherghescu Gabriel

11145204 pats-troubleshooting-diagnostic-service-tips
byAlfredo Gracida

AUDI A4 B5 1.8L 1996 BADY 55 24 rear lid vin 8 d xa 200 001
byGherghescu Gabriel

Tegal equipment spare parts
byEmily Tan

2012 Toyota Rav4 Instrument Cluster
byJerry's Toyota

E4800 ej501 topic_5_designing_plc_application
byMohd Sedik

AUDI A4 B5 1.8L 1996 BADY 55 32 tailgate avant vin 8 d xa 200 000
byGherghescu Gabriel

Park Brake Tipper alarm Technical Specification
byRimsky Cheng


Similar to Smart entry for master

DOCX
Códigos de Falha Genérico OBD 2
byGeraldo Sebastian

PDF
New Technology Daihatsu.pdf
byAyiAgungJayaSaputra1

PDF
2012 Chevy Volt in Baltimore, Maryland
byJerry's Chevrolet

PDF
Manual_bobina_sensores_ENG.pdf
bygigioGigio1

PDF
Electrical Troubleshooting.pdf
byPedroArguino

PPT
EN body Electrical Hyndai training service
byAbdelhadiElamir

PDF
2012 hyundaiaccent
byEvansWilliams2

PDF
Entry & start
byShalman Farisy

PPTX
1.%20Ikhtisar%20Model%20(Terjemahan).pptx
byakbarword22

PDF
2010 2015 volkswagen passat (b7) fuse box diagram
byAmancioGarciaGarcia

PDF
shcematic Electrical dump truck Tata 3338.pdf
byReynalKurniawan1

PDF
tata safari storme ppt.pdf
bySauravkumarMallick1

PDF
Manual_Toyota-Corolla_2006_EN__7ab0fe7a4d.pdf
byFernandoBrito804510

PDF
1- Diagramas Electricos EcoSport 2010 Euro IV 08-2011.pdf
byCarlosAndresRiera

PPT
10 700 Model Operation and Maintenance EDIT.ppt
byfajrhafifi

PDF
Xtool_X100_PAD2_other_special diagrama p
byLuis8723

PPT
YARIS (Model Outlinel Ind)..................................
byAmir465376

PPTX
Engine Electronic Control System dump truck hanvan XCMG.pptx
byroxykendarihrd

PDF
Auris, Corolla (EM3026E) Overall Electrical Wiring Diagram.pdf
byCyrilKakouski

PDF
2012 Chevy Sonic in Baltimore, Maryland
byJerry's Chevrolet

Códigos de Falha Genérico OBD 2
byGeraldo Sebastian

New Technology Daihatsu.pdf
byAyiAgungJayaSaputra1

2012 Chevy Volt in Baltimore, Maryland
byJerry's Chevrolet

Manual_bobina_sensores_ENG.pdf
bygigioGigio1

Electrical Troubleshooting.pdf
byPedroArguino

EN body Electrical Hyndai training service
byAbdelhadiElamir

2012 hyundaiaccent
byEvansWilliams2

Entry & start
byShalman Farisy

1.%20Ikhtisar%20Model%20(Terjemahan).pptx
byakbarword22

2010 2015 volkswagen passat (b7) fuse box diagram
byAmancioGarciaGarcia

shcematic Electrical dump truck Tata 3338.pdf
byReynalKurniawan1

tata safari storme ppt.pdf
bySauravkumarMallick1

Manual_Toyota-Corolla_2006_EN__7ab0fe7a4d.pdf
byFernandoBrito804510

1- Diagramas Electricos EcoSport 2010 Euro IV 08-2011.pdf
byCarlosAndresRiera

10 700 Model Operation and Maintenance EDIT.ppt
byfajrhafifi

Xtool_X100_PAD2_other_special diagrama p
byLuis8723

YARIS (Model Outlinel Ind)..................................
byAmir465376

Engine Electronic Control System dump truck hanvan XCMG.pptx
byroxykendarihrd

Auris, Corolla (EM3026E) Overall Electrical Wiring Diagram.pdf
byCyrilKakouski

2012 Chevy Sonic in Baltimore, Maryland
byJerry's Chevrolet


Smart entry for master

  • 1.
    1 Model Outline EngineChassis Body Body Electrical Smart Entry & Start System
  • 2.
    2 Model Outline EngineChassis Body Body Electrical Variation of Smart Entry & Start System Different Variations of Main Components Generation ’05CY System ’03CY System ’00CY System Application Vehicle GS430/300, GS450h, IS350/250/220d, AVALON, CAMRY, CAMRY HV, etc. CROWN PRIUS LS430 Engine Switch Type Push Type ← Rotary Type Power Source Condition OFF, E/G Running OFF ← OFF, READY OFF Engine Switch Position ACC, IG-ON Amber ACC Amber E/G start is authorized Green IG-ON Green Key Insert Not equipped Key Slot Engine Switch Key w/ transponder tip w/ transponder tip ← Main key only w/ sub key (CROWN) w/o sub key (PRIUS) w/ sub key Key Battery: CR1632 Key Battery: CR2032 ← Low Key Battery Hold ornament side of key against engine switch Insert key into key slot Insert key into engine switch Cancellation Operating cancel procedure Operating cancel switch ← Main Control ECU Certification ECU, ID-Code Box, Steering Lock ECU Smart ECU, Transponder Key ECU Theft Deterrent ECU, Steering Lock ECU
  • 3.
    3 Model Outline EngineChassis Body Body Electrical Smart Entry & Start System (G A/T) Overall – Memungkinkan mengoperasikan Manual lock/unlock, engine start, membuka pintu bagasi hanya dengan membawa kunci ( Remote ) [Kunci] [Back Door Opening (hanya membuka) Function] [Door Lock / Unlock Function] [Engine Start Function]
  • 4.
    4 Model Outline EngineChassis Body Body Electrical Smart Entry & Start System Kunci – Tombol tiga fungsi, mechanical key dan transponder chip terdapat pada kunci Unlock Button Lock Button Mechanical Key Mechanical Key Trunk Button
  • 5.
    5 Model Outline EngineChassis Body Body Electrical Smart Entry & Start System Lokasi komponen utama
  • 6.
    6 Model Outline EngineChassis Body Body Electrical Smart Entry & Start System Lokasi komponen utama
  • 7.
    7 Model Outline EngineChassis Body Body Electrical Smart Entry & Start System Lokasi komponen utama Front FrontFront Di bawah bumper belakang Trunk Oscillator ( inside ) Rear Room Oscillator Trunk Oscillator ( outside ) Front Room Oscillator Main Body ECU
  • 8.
    8 Model Outline EngineChassis Body Body Electrical Outside Handle Smart Entry & Start System System Diagram Steering Lock ECU Touch Sensor Each Door Oscillator Lock Switch Room Oscillator (Front) Trunk Oscillator Room Oscillator (Rear)Key Antenna Antenna CAN Tuner Certification ECU M Door Lock / Unlock Motor ACC Relay IG1 Relay Engine Switch • Transponder Key Amplifier ID-code Box Stop Light Switch LocalLocal CommunicationCommunication Neutral Start Switch IG2 Relay Engine ECU Trunk Open Switch Main Body ECU ST Relay ST CUT Relay
  • 9.
    9 Model Outline EngineChassis Body Body Electrical Smart Entry & Start System Basic Operation – Actuation area of key Trunk Oscillator (Outer) Room Oscillators Tuner : Actuation Area (sekitar. 0.7 –1.0 m) Door Oscillator Key Trunk Oscillator (Inner)
  • 10.
    10 Model Outline EngineChassis Body Body Electrical Smart Entry & Start System Door Unlock Function Kunci masuk dalam actuation area Pemeriksaan ID code Unlock stand by Pintu terbuka Outside Handle Touch Sensor Antenna M Door Lock MotorCAN Certification ECU Sentuh touch sensor Main Body ECU Key Tuner Antenna Each Door Oscillator
  • 11.
    11 Model Outline EngineChassis Body Body Electrical Smart Entry & Start System Door Lock Function Pemeriksaan lokasi kunci (Di luar kendaraan) Pintu terkunci Pemeriksaan ID code Tekan Lock Switch M Door Lock Motor Room Oscillators (Front and Rear) Courtesy Switch Certification ECU Outside Handle Lock Switch Antenna Each Door Oscillator Key Antenna Main Body ECU Tuner CAN
  • 12.
    12 Model Outline EngineChassis Body Body Electrical Smart Entry & Start System Back Open Function Pemeriksaan lokasi kunci Pintu bagasi terbuka Pemeriksaan ID code M Back Door Unlock Motor Main Body ECU Room Oscillators (Front and Rear) Antenna Back Door Oscillator Key Certification ECU Antenna Tekan Back Door Open Switch Tuner CAN Trunk Open Switch
  • 13.
    13 Model Outline EngineChassis Body Body Electrical Smart Entry & Start System Engine Start Function Steering Lock/ Immobiliser Cancel Mesin Hidup Pemeriksaan lokasi kunci dan ID code Room Oscillators (Front and Rear) Key Antenna Steering Lock ECU Serial CommunicationSerial Communication Certification ECU Engine Switch Stop Light Switch IG1 Relay ACC Relay Main Body ECU CAN Tekan Engine Switch Tuner Antenna Engine ECU Neutral Start Switch ID-code Box ST CUT RelayIG2 Relay
  • 14.
    14 Model Outline EngineChassis Body Body Electrical Smart Entry & Start System Engine Start Function – Start / stop engine switch control A/T P range N Range Posisi yang lain M/T Posisi shift lever bebas   M-MT N Range  Posisi yang lain Power Mode Push engine switch Setelah satu jam Push engine switch Push engine switch Pedal rem tidak ditekan* Pedal rem ditekan* Pedal rem tidak ditekan Pedal rem ditekan Pedal rem tidak ditekan Pedal rem ditekan OFF ACC IG-ON Engine Start : Dapat dilakukan hanya jika kendaraan berhenti *: Pedal rem untuk model dengan A/T / M-MT Pedal kopling untuk model dengan M/T
  • 15.
    15 Model Outline EngineChassis Body Body Electrical Power Mode IG-OFF ACC or IG-ON Engine Running Kondisi mesin hidup* X  X  — Kondisi lampu indikator OFF Green Amber Green OFF Smart Entry & Start System Engine Switch – Lampu Indicator mengidentifikasikan mode power saat ini dan malfungsi sistem Power Mode Ketika electrical steering lock tidak dapat terbuka ( terkunci ) Malfungsi pada Smart Entry & Start System Kondisi lampu indikator Green: Berkedip (1 Hz) Amber: Berkedip (0.5 Hz) *: Tekan pedal rem (A/T)
  • 16.
    16 Model Outline EngineChassis Body Body Electrical Smart Entry & Start System Engine Switch – Lampu indikator Green berkedip saat electrical steering lock tidak dapat terbuka (mesin tidak dapat hidup) IG-OFF OFF ACC Menyala Green ACC Berkedip Green ACC Menyala Green Power Mode Indicator Light Mendeteksi electrical steering lock tidak dapat terbuka Electrical steering lock terbuka atau setelah 15 detik
  • 17.
    17 Model Outline EngineChassis Body Body Electrical Smart Entry & Start System Engine Switch – Amber indicator light berkedip saat malfungsi terjadi pada IG1, IG2 relay circuit atau steering lock ECU IG-ON (Mesin hidup) OFF IG-ON (Mesin hidup) Berkedip Amber IG-OFF Berkedip Amber IG-OFF OFF Power Mode Indicator Light Mesin tidak dapat hidup kembali Malfungsi pada IG1, IG2 relay circuit atau steering lock ECU dideteksi Power mode OFF Setelah 15 detik
  • 18.
    18 Model Outline EngineChassis Body Body Electrical Smart Entry & Start System Emergency Start (Saat battery kunci lemah…) – Tahan logo TOYOTA pada key menghadap engine switch Beep Tahan logo TOYOTA pada engine switch Suara buzzer Engine Start ACC IG-ON Selama 5 detik. Dengan pedal* ditekan Tanpa pedal* ditekan dengan pedal* ditekan *: Pedal rem untuk model dengan A/T / M-MT Pedal kopling untuk model dengan M/T
  • 19.
    19 Model Outline EngineChassis Body Body Electrical Steering Lock ECU Serial CommunicationSerial Communication CAN Smart Entry & Start System Emergency Start (Saat battery kunci lemah..) Steering Lock/ Immobiliser Cancel Mesin hidup Pemeriksaaan Key ID Key Room Oscillators (Front and Rear) Antenna Certification ECU Tuner Antenna Neutral Start Switch ID-code Box Engine ECU Stop Light Switch IG1 Relay ACC Relay ST CUT RelayIG2 Relay Main Body ECU
  • 20.
    20 Model Outline EngineChassis Body Body Electrical Smart Entry & Start System Pencegahan kunci tertinggal – Saat kunci tertinggal di dalam ruangan, pintu tidak dapat dikunci Room Oscillators (Front and Rear) Outside Handle Lock Switch Antenna Each Door Oscillator Tuner CAN Main Body ECU Certification ECU Wireless Door Lock Buzzer Click Movie
  • 21.
    21 Model Outline EngineChassis Body Body Electrical Smart Entry & Start System Main Body ECU – Hold circuit digunakan untuk mencegah power supply terputus oleh malfungsi pada sirkuit IG1,2 relay Main Body ECU IG1 Relay CPU Hold Hold Cancel IG2 Relay Hold Circuit IG1 Relay Drive Circuit IG2 Relay Drive Circuit ON
  • 22.
    22 Model Outline EngineChassis Body Body Electrical Smart Entry & Start System Pre-cautions – Memori tidak terhapus saat power source control ECU power supply terputus Main Body ECU Main Body ECU power supply terputus Main Body ECU EEPROM ACC Relay IG1 Relay Suplai power IG2 Relay EEPROM EEPROM ACC Relay IG1 Relay IG2 Relay Tidak terhapus ON ON ON ON ON ON IG-ON IG-ON IG-ON
  • 23.
    23 Model Outline EngineChassis Body Body Electrical Smart Entry & Start System Smart Entry & Start System Cancel Function – Fungsi ini dapat meng-cancel fungsi – fungsi berikut : • Entry Start function, Door lock/unlock function, luggage opening function, prevention of key confinement, warning function dan memory call function [System Cancel Function] Cancellation Procedure 1 Unlock sekali dengan tombol UNLOCK* 2 Buka pintu pengemudi 3 Unlock dua kali dengan tombol UNLOCK * 4 Buka dan tutup pintu pengemudi 2 kali (terakhir, terbuka) 5 Unlock dua kali dengan tombol UNLOCK * 6 Buka dan tutup pintu pengemudi sekali (terakhir, terbuka) 7 Tutup pintu pengemudi Interval Dalam 5 sec. Dalam 5 sec. Dalam 30 sec. Dalam 30 sec. Dalam 30 sec. Dalam 5 sec. Prasyarat: IG-OFF, Pintu pengemudi ditutup dan diunlock *: Mengoperasikan tombol kunci
  • 24.
    24 Model Outline EngineChassis Body Body Electrical Smart Entry & Start System Fungsi yang lain – Smart Entry & Start Fungsi sistem yang lain Parked for a long time [Battery Saving Function] Activate IG-ON [Fungsi peringatan] Deactivate Wireless Door Lock Buzzer Beep Warning Light Perubahan Interval (Setiap 250 ms menjadi 750 ms) • Tidak ada respon lebih dari 5 hari Penonaktifan • Tidak ada respon lebih dari 14 hari • Berada dalam pendeteksian area lebih dari 10 menit tanpa pengoperasian Pengaktifan kembali Operasikan door lock/unlock tanpa fungsi smart Passenger
  • 25.
    25 Model Outline EngineChassis Body Body Electrical Smart Entry & Start System Steering Lock Function – Steering shaft dikunci oleh electric motor Steering Lock Actuator (dengan Steering Lock ECU)
  • 26.
    26 Model Outline EngineChassis Body Body Electrical Smart Entry & Start System Steering Lock Actuator – Steering lock system terdiri dari sebagai berikut : [Steering Lock Actuator] Steering Column Tube Lock Bar Hall ICs Gears Steering Lock ECU Steering Lock Motor Lift Magnet
  • 27.
    Model Outline EngineChassis Body 27 Body Electrical Smart Entry & Start System System Diagram Steering Lock Motor Hall ICs Main Body ECU Steering Lock ECU Power Supply Lock Bar Position Lock/unlock Order Power Supply for motor Certification ECU ID-code Box
  • 28.
    Model Outline EngineChassis Body 28 Body Electrical Service Point (Smart Entry & Start System) Basic Service Customize parameter Penggantian Certification ECU Penggantian komponen dan ID Code Registration – Kehilangan atau penggantian kunci – Penggantian Certification ECU – Penggantian ID-code Box – Penggantian Steering Lock Actuator – Penggantian Engine ECU ID Code Registration – Key code registration • New key ID registration • Additional key ID registration – Key code erasure – ECU communication ID registration
  • 29.
    29 Model Outline EngineChassis Body Body Electrical Service Point (Smart Entry & Start System) Basic Service – Tindakan pencegahan untuk seluruh system • Pastikan membawa kunci selama pemeriksaan smart system • Seperti gelombang radio lemah, area pendeteksian bisa berkurang, atau kunci tidak bisa dideteksi dalam situasi sebagai berikut : 1. Batere kunci habis 2. Segala fasilitas yang membangkitkan gelombang radio tinggi seperti menara TV, Pembangkit listrik, Stasiun pemancar, Pom Bensin otomatis, berada didekat area pemeriksaan 3. Peralatan Wireless seperti cellular phone dibawa bersama kunci 4. Kunci terhubung atau ditutupi dengan logam (metal) 5. wireless door lock control yang lain sedang dioperasikan didekat kendaraan 6. Kunci berada di dekat lokasi peralatan yang membangkitkan tegangan tinggi atau noise • Kunci kemungkinan sulit dioperasikan sehubungan dengan bentuk body kendaraan • Kunci kemungkinan tidak dideteksi secara tepat disekitar kaca kendaraan, handle pintu, atau di tengah bumper meskipun saat itu area pendeteksian berada pada bagian luar kendaraan • Kunci kemungkinan tidak dideteksi secara tepat jika berada di instrument panel, rear package tray, floor, atau di dalam glove box meskipun saat itu area pendeteksian berada pada bagian dalam kendaraan • Smart system tidak dapat bekerja pada kondisi sebagai berikut : 1. Smart system sedang di cancel 2. Batere kunci habis / kosong (indicator tidak berkedip saat tombol kunci ditekan)
  • 30.
    30 Model Outline EngineChassis Body Body Electrical Service Point (Smart Entry & Start System) Basic Service – Bagaimana memulai trouble shooting 1. Kendaraan dibawa ke bengkel 2. Pemeriksaan analisa masalah pelanggan (Sejarah, Kapan, bagaimana, dlll.) 3. Periksa tegangan batere. Jika di bawah 11 V, recharge battery sebelum troubleshoot. 4. Periksa CAN communication system dengan IT II • Jika DTC di output (communication problem) Lanjut ke CAN system • Jika DTC tidak di output (communication problem) Lanjut ke step 5 5. Tabel gejala masalah • Jika gejala terdapat dalam tabel, perbaiki atau ganti • Jika gejala tidak terdapat dalam tabel, lanjut ke langkah 6 6. Analisa secara keseluruhan dan trouble shooting (Untuk lebih lengkap lihat Repair Manual) • Pemeriksaan pada kendaraan • DATA LIST/ACVTIVE TEST • Terminal of ECU 7. Perbaiki atau ganti 8. Tes Konfirmasi 9. Selesai
  • 31.
    31 Model Outline EngineChassis Body Body Electrical Smart Entry & Start System Case Example – Share a key Key Sharing New Certification ECU I want to also take my wife’s vehicle with my vehicle key
  • 32.
    32 Model Outline EngineChassis Body Body Electrical Certification ECU X Vehicle Code X Certification ECU Y Key ID1 Key ID1 Key ID2 Vehicle Code Y Certification ECU Z New ECU for IS220d Key ID2 Vehicle Code Z Key ID2 Key ID2 Key ID2 Key ID2 GS430’s ECU IS220d’s ECU Smart Entry & Start System Case Example – Share a key • Vehicle Code is registered into the key in order to check whether a key is registered or not with other certification ECU Only new Certification ECU without key IDs can overwrite the Vehicle code in the key X X  Z New Key Key ID2 Key ID2 Key ID2  X GS430’s Key GS430’s Key
  • 33.
    33 Model Outline EngineChassis Body Body Electrical Smart Entry & Start System Case Example – Share a key • We can not share two or more vehicles by one key Key Sharing
  • 34.
    34 Model Outline EngineChassis Body Body Electrical Smart Entry & Start System Case Example – After execute new key ID registration New Certification ECU Lost I found the lost key yesterday··· Please register this key
  • 35.
    35 Model Outline EngineChassis Body Body Electrical Smart Entry & Start System Case Example – Quick depleting of the key battery Newly bought vehicle LOW KEY BATTERYA month after··· Why? Why is the battery depleted in only one month?
  • 36.
    36 Model Outline EngineChassis Body Body Electrical Smart Entry & Start System Signal Check (e.g. Driver’s Door) Outside Handle Touch Sensor SGT Lock Switch Driver’s Door Oscillator ANT1 ANT2 TRG- TRG+ Certification ECU TSW1 SGT ANT1 ANT2 TRG-GND+B CLG1 CLG CLGB SENS SEL CG1B SEN1 SEL1 Battery +- CANLCANH A Key Tuner RC0 RDA ASELRSSI +5 DATA ASELRSSI GND ANT B C D E F G H Main Body ECU Antenna LF Wave RFRF WaveWave
  • 37.
    37 Model Outline EngineChassis Body Body Electrical Smart Entry & Start System Case Example – Quick depleting of the key battery • Do not keep the key together with the products emitting electromagnetic waves* otherwise the key battery may deplete quickly • Note that you should always keep such electrical appliances at least 1 m (3 ft.) away from the key *: Such as a cellular phone, television, personal computer, cellular phone or cordless phone recharger units, electric light stands and fluorescent desk lights) or electrical medical equipment such as low frequency medical appliances. Oscillators (LF Wave) Electrical Keys (RF Wave) -A 134.2 kHz 314.00 MHz -W, -Q, -V 433.92 MHz China, Hong Kong 315.12 MHz Ref. Japan 312.25 MHz LF Wave RF WaveTelevision Personal Computer Cellular Phone
  • 38.
    38 Model Outline EngineChassis Body Body Electrical Smart Entry & Start System Signal Check (e.g. Driver’s Door) Symbols (Terminal No.) Description (Signal) Condition Signal CLG (10) Permintaan peng aktifan antena Semua pintu dikunci dan kunci di luar area aktuasi Kunci berada di area aktuasi ANT1 (3) Peng aktifan antena Kunci di luar area aktuasi Kunci berada di area aktuasi 10 9 8 7 6 5 4 3 2 1 Driver’s Door Oscillator Connector 0V 5V 0.3 sec. 0V 5V 3.2 sec. 80 msec. 3.2 sec. 0.3 sec. 0V 20V 0V 20V
  • 39.
    39 Model Outline EngineChassis Body Body Electrical Smart Entry & Start System Signal Check (e.g. Driver’s Door) Symbols (Terminal No.) Description (Signal) Condition Signal SEL (4) Permintaan peng aktifan touch sensor Kunci di luar area aktuasi 12V Kunci berada di area aktuasi SGT (2) Kondisi Touch sensor Tidak disentuh 12V Disentuh 0V SENS (6) Output kondisi Touch sensor Outside handle tidak disentuh 12V Outside handle disentuh 0V TRG- (9) Kondisi Lock switch Lock switch tidak ditekan Lock switch ditekan 0V 10 9 8 7 6 5 4 3 2 1 Driver’s Door Oscillator Connector 0V 12V 3.2 sec. 0V 12V 20 msec.
  • 40.
    40 Model Outline EngineChassis Body Body Electrical Smart Entry & Start System Case Example – System operation glitch by disturbance electric wave My vehicle sometimes does not work properly
  • 41.
    41 Model Outline EngineChassis Body Body Electrical Service Point (Smart Entry & Start System) Customize parameter – Saat customer meminta perubahan fungsi, pastikan bahwa fungsi tersebut dapat di customized – Buat catatan untuk current setting sebelum melakuakan customize – Saat trouble shooting suatu fungsi, pertama pastikan bahwa fungsi di set ke default setting. Tampilan (Item) Default Fungsi Setting Ignition available area (Entry ignition available area) ALL Function to choose the available area for electrical key to start E/G and cancel the steering lock FRONT / ALL Park Wait Time (waiting time to permit opening door after locking) 2.5 s Function that sets waiting time to permit opening door after door is locked with entry lock function 0.5s/1.5s/2.5s/ 5.0s Trunk open mode (luggage compartment opening operation) ON Function to open luggage compartment when driver has the electrical key and presses the luggage open button ON / OFF Key Low Battery Warning (warn when key battery becomes weak) ON Function to set a warning function for the time when a key battery becomes weak ON / OFF
  • 42.
    Model Outline EngineChassis Body 42 Body Electrical Service Point (Smart Entry & Start System) Penggantian komponen dan ID Code Registration – Dalam kasus semua Kunci hilang atau penggantian Kunci NOTE: Jika semua kunci tidak diregister selama registrasi kunci yang lain, kunci tersebut tidak dapat diregistrasi kemudian saat penggantian Certification ECU *: Perlu penggantian, walaupun Certification ECU dan ID-code Box dalam kondisi normal Jumlah Kunci Condition before registration  Sedikitnya 1 Kunci tersedia 1. Menggunakan Kunci tersisa, hapus kode kunci yang hilang [Key Code Erasure] 2. Register kunci tambahan jika diperlukan [Key Code Registration] (Additional key ID registration) Semua Kunci hilang 1. Ganti ID-code box dan Certification ECU* 2. Register semua Kunci [Key Code Registration] (New key ID registration) 3. Register ID-code Box – Engine ECU communication ID [ECU – ECM Communication ID Registration]
  • 43.
    Model Outline EngineChassis Body 43 Body Electrical Service Point (Smart Entry & Start System) Penggantian komponen dan ID Code Registration – Penjelasan S Code • S code dihasilkan oleh semua key ID yang diregistrasi dan didaftarkan (register) ke Certification ECU dan ID-code Box Certification ECU S Code Key ID1 Key ID2 Key ID3 ID-code Box S Code Key ID1 Key ID2 Key ID3 Certification ECU S’ Code Key ID1 Key ID2 ID-code Box S Code Key ID1 Key ID2 Key ID3 Cannot register Same S code Not same S code Key ID1 Key ID2 Key ID3 Key ID1 Key ID2
  • 44.
    Model Outline EngineChassis Body 44 Body Electrical Service Point (Smart Entry & Start System) Penggantian komponen dan ID Code Registration – DAlam kasus penggantian Kunci • Perlu untuk meregister S code baru ke Certification ECU dan ID-code Box dengan kunci tersisa Certification ECU S’ Code Key ID1 Key ID2 Key ID3 Certification ECU ID-code Box S’ Code Key ID1 Key ID2 Key ID3 ID-code Box Same S’ code Same S” code Hapus kode Key ID2, 3 Tambahkan kode Key ID2, 4 Key ID1 Key ID2 Key ID3 (Malfunction) S” Code Key ID1 Key ID2 Key ID4 S” Code Key ID1 Key ID2 Key ID4 Key ID1 Key ID2 Key ID4 (Baru)
  • 45.
    Model Outline EngineChassis Body 45 Body Electrical Service Point (Smart Entry & Start System) Penggantian komponen dan ID Code Registration – Dalam kasus semua kunci hilang • Perlu untuk mengganti kedua ECU, karena S code yang ada tidak dapat di daftarkan (diregister) Certification ECU S Code Key ID1 Key ID2 Key ID3 Certification ECU ID-code Box S Code Key ID1 Key ID2 Key ID3 ID-code Box Same S’’’ code Ganti kedua ECU Register kunci baru Key ID1 (hilang) Key ID2 (hilang) Key ID3 (hilang) S’’’ Code Key ID4 Key ID5 Key ID6 S’’’ Code Key ID4 Key ID5 Key ID6 ECU baruECU baru S code tidak dapat diregister Key ID4 (Baru) Key ID5 (Baru ) Key ID6 (Baru)
  • 46.
    Model Outline EngineChassis Body 46 Body Electrical Certification ECU X Vehicle Code X Certification ECU Y Key ID1 Key ID3 Key ID4 Vehicle Code Y X Certification ECU Z ECU baru Key ID5 Vehicle Code Z X  Z New Key Key ID2 Key ID2 Key ID2 Key ID5Key ID5 Key ID4 Key ID4 X ECU terpasang ECU terpasang Service Point (Smart Entry & Start System) Penggantian komponen dan ID Code Registration – Penjelasan kode kendaraan ( ECU ) di dalam kunci • Kode kendaraan di daftarkan ke dalam kunci, bertutuan untuk memeriksa apakah kunci diregister atau tidak dengan certification ECU yang lain Hanya Certification ECU baru tanpa ID yang dapat menulis ulang kode kendaraan dalam kunci
  • 47.
    Model Outline EngineChassis Body 47 Body Electrical Service Point (Smart Entry & Start System) Penggantian komponen dan ID Code Registration – Dalam kasus penggantian Certification ECU Jumlah kunci Condition before registration Key ID codes can be registered / erased Key ID codes cannot be either registered / erased Semua kunci terpasang 1. Ganti certification ECU 2. Register semua kunci [Key Code Registration] (New key ID registration) Beberapa kunci hilang 1. Hapus kode kunci [Key Code Erasure] 2. Register kunci tersisa [Key Code Registration] (Additional key ID registration) 3. Ganti certification ECU 4. Register semua kunci[Key Code Registration] (New key ID registration) 1. Ganti certification ECU dan ID-code box* 2. Register semua kunci [Key Code Registration] (New key ID registration) 3. Register ID-code Box – engine ECU communication ID [ECU – ECM Communication ID Registration] Catatan: Jika beberapa kunci tidak diregister selama meregistrasi kunci yang lain, kunci tersebut tidak dapat diregistrasi kemudian *: Perlu penggantian, meskipun ID-code box dalam kondisi normal
  • 48.
    Model Outline EngineChassis Body 48 Body Electrical Service Point (Smart Entry & Start System) Penggantian Certification ECU – Hanya mengganti circuit board, oleh karena itu diperlukan pencegahan kesalahan penanganan terhadap listrik static Certification ECU Case Circuit Board Antistatic Bag untuk melepas Supply Parts (89990-) Antistatic Bag untuk memasang (dalam Circuit Board baru) ECU Cover Antistatic Bag Instruksi penanganan Circuit Board baru Replacem ent of Certification ECU On ly replace the circuit board, therefore static electricity prevention coun term easure is requ ired
  • 49.
    Model Outline EngineChassis Body 49 Body Electrical Service Point (Smart Entry & Start System) Penggantian Certification ECU – Procedure penggantian 1.Lepas Certification ECU 2.Lepas ECU cover ECU Cover (non-reusable part) 3.Tutup tangan dengan antistatic bag, Lalu lepas circuit board Antistatic Bag 4.Tutup circuit board yang dilepas dengan antistatic bag Penting: Jangan menyentuh element atau soldered part tanpa antistatic bag, untuk mencegah kerusakan oleh listrik static Catatan: Saat mengembalikan circuit board yang dilepas, taruh ke dalam antistatic bag yang disediakan dan masukkan ke dalam box
  • 50.
    Model Outline EngineChassis Body 50 Body Electrical Service Point (Smart Entry & Start System) Penggantian Certification ECU – Procedure penggantian 5.Putar antistatic bag pada circuit board baru 6.pasang circuit board baru sepanjang guide rail Guide Rail 7. Pasang ECU cover baru 8. Pasang Certification ECU
  • 51.
    Model Outline EngineChassis Body 51 Body Electrical Service Point (Smart Entry & Start System) Penggantian komponen dan ID Code Registration – Dalam kasus penggantian Certification ECU (Beberapa kunci hilang) • Perlu untuk meregister kode S” baru ke Certification ECU dan ID-code Box dengan kunci yang tersisa Certification ECU S’ Code Key ID1 Key ID2 Key ID3 Certification ECU S” Code Key ID1 Key ID2 ID-code Box S’ Code Key ID1 Key ID2 Key ID3 ID-code Box S” Code Key ID1 Key ID2 Same S’ code Same S” code Hapus kode kunci ID2, 3 Tambahkan kode kunci ID2 Current ECU Ganti Certification ECU setelah prosedur tersebut Key ID1 Key ID2 Key ID3 (Hilang) Key ID1 Key ID2 Current ECU
  • 52.
    Model Outline EngineChassis Body 52 Body Electrical Service Point (Smart Entry & Start System) Penggantian komponen dan ID Code Registration – Dalam kasus penggantian Certification ECU (Beberapa kunci hilang) • Ganti Certification ECU dan ID-code Box, jika fungsi registrasi tidak bekerja Certification ECU ID-code Box Certification ECU S Code Key ID1 Key ID2 Key ID3 ID-code Box S Code Key ID1 Key ID2 Key ID3 Fungsi registrasi tidak bekerja S’ Code Key ID1 Key ID2 S’ Code Key ID1 Key ID2 Current ECU Ganti kedua ECU S code tidak dapat diregistrasi New ECUNew ECU Key ID1 Key ID2 Key ID3 (hilang) Key ID1 Key ID2
  • 53.
    Model Outline EngineChassis Body 53 Body Electrical Service Point (Smart Entry & Start System) Penggantian komponen dan ID Code Registration – Dalam kasus penggantian ID-code box Jumlah kunci Kondisi sebelum registrasi  Setidaknya tersedia 1 kunci 1. Ganti ID-code box 2. Register recognition kode di dalam ECU [Key code registration] 3. Register ID-code Box – Engine ECU communication ID [ECU – ECM Communication ID Registration]
  • 54.
    Model Outline EngineChassis Body 54 Body Electrical Service Point (Smart Entry & Start System) Penggantian komponen dan ID Code Registration – Dalam kasus penggantian Steering Lock Actuator Jumlah kunci Kondisi sebelum registrasi  Setidaknya tersedia 1 kunci 1. Ganti Steering Lock Actuator 2. Register recognition kode di dalam ECUs [ECU Communication ID Registration] Catatan: Dalam kondisi berikut mesin tidak dapat hidup untuk pertama kali (dikarenakan Steering Lock ECU tidak dapat secara tepat mendeteksi posisi steering lock bar) [Steering lock ECU baru belum menyimpan posisi steering lock bar] • Setelah mengganti Steering Lock Actuator • Setelah mengisi/mengganti battery yang kosong Buka dan tutup pintu pengemudi untuk menghidupkan mesin
  • 55.
    Model Outline EngineChassis Body 55 Body Electrical Service Point (Smart Entry & Start System) Penggantian komponen dan ID Code Registration – Dalam kasus penggantian engine ECU Jumlah kunci Kondisi sebelum registrasi  Setidaknya tersedia 1 kunci 1. Ganti Engine ECU 2. Register ID-code Box – Engine ECU communication ID [ECU – ECM Communication ID Registration] Catatan: Jangan mengoperasikan switch power mode ON/OFF lebih dari 20 kali sebelum menyelesaikan “ECU – ECM Communication ID Registration” jika tidak ganti Engine ECU
  • 56.
    Model Outline EngineChassis Body 56 Body Electrical ID-code Box “G” Code “S” Code “L” Code Service Point (Smart Entry & Start System) Penggantian komponen dan ID Code Registration – Penjelasan S Code, G Code dan L Code Steering Lock ECU “L” Code Engine ECU “G” Code KeyCertification ECU “S” Code Key ID1 Key ID2 Key Code Registration • New Key ID • Additional Key ID • Key ID erasure ECU-ECM Communication ID Registration •ID-code Box atau Engine ECU diganti ECU Communication ID Registration •Jika hanya Steering Lock ECU atau ID-code Box diganti ECU Communication ID Registration (Automatically) •Certification ECU dan ID-code diganti ECU Communication ID Registration (Automatically) •Jika hanya ID-code Box diganti : Automatically : Manually (Tester) : Manually (SST) Key ID#
  • 57.
    Model Outline EngineChassis Body 57 Body Electrical Service Point (Smart Entry & Start System) Penggantian komponen dan ID Code Registration“ECU – ECM Communication ID Registration” CG Tc 1. Menggunakan SST, hubungkan terminals Tc dan CG pada DLC3 2. Putar power switch ON (jangan menghidupkan mesin) dan biarkan selama 30 menit. 3. Putar power switch OFF dan lepas terminals Tc dan CG. 4. Periksa bahwa mesin dapat hidup
  • 58.
    Model Outline EngineChassis Body 58 Body Electrical Service Point (Smart Entry & Start System) Penggantian komponen dan ID Code Registration – Catatan untuk ID code registration • Power Mode tidak dapat diputar ON (IG-ON) lebih dari 10 kali saat penggantian certification ECU. • Bagaimanapun, ID code registration dapat dilanjutkan dengan Intelligent tester II saat Ignition diputar ON sambil mengoperasikan driver’s door courtesy switch ON/OFF terus menerus pada interval 1.5 detik atau kurang
  • 59.
    Model Outline EngineChassis Body 59 Body Electrical Service Point (Smart Entry & Start System) ID Code Registration – Using intelligent tester II • Key Code Registration (New key ID registration) Tidak ada kunci yang terdaftar di ID-code box Semua kunci tersedia (Satu kunci atau lebih terdaftar di dalam ID-code Box)
  • 60.
    Model Outline EngineChassis Body 60 Body Electrical Service Point (Smart Entry & Start System) ID Code Registration – Menggunakan intelligent tester II • Key Code Registration (New key ID registration) To register another key code
  • 61.
    Model Outline EngineChassis Body 61 Body Electrical Service Point (Smart Entry & Start System) ID Code Registration – Menggunakan intelligent tester II • Key Code Registration (New key ID registration) [5] [2]
  • 62.
    Model Outline EngineChassis Body 62 Body Electrical [5] [2] Service Point (Smart Entry & Start System) ID Code Registration – Menggunakan intelligent tester II • Key Code Registration (Additional key ID registration)
  • 63.
    Model Outline EngineChassis Body 63 Body Electrical Service Point (Smart Entry & Start System) ID Code Registration – Menggunakan intelligent tester II • Key Code Registration (Additional key ID registration) To register another key code
  • 64.
    Model Outline EngineChassis Body 64 Body Electrical Service Point (Smart Entry & Start System) ID Code Registration – Menggunakan intelligent tester II • Key Code Registration (Additional key ID registration) [4] [3]
  • 65.
    Model Outline EngineChassis Body 65 Body Electrical [3] Service Point (Smart Entry & Start System) ID Code Registration – Menggunakan intelligent tester II • Key Code Erasure (Erase all registered key except one)
  • 66.
    Model Outline EngineChassis Body 66 Body Electrical Service Point (Smart Entry & Start System) ID Code Registration – Menggunakan intelligent tester II • Key Code Erasure (Erase all registered key except one)
  • 67.
    Model Outline EngineChassis Body 67 Body Electrical Service Point (Smart Entry & Start System) ID Code Registration – Menggunakan intelligent tester II • ECU Communication ID Registration
  • 68.
    68 Model Outline EngineChassis Body Body Electrical Smart Entry & Start System Communication Check (Key Diag Mode) – Each oscillator can be checked by activating specified oscillator • Buzzer sounds when the key is detected in activated actuation area
  • 69.
    Model Outline EngineChassis Body 69 Body Electrical Service Point (Smart Entry & Start System) ID Code Registration – Manual operation (only for Indonesia model) • Manual registration standby mode Operation Interval Initial Condition • Driver’s door is closed • Power Mode is IG-OFF  1 Open driver’s door  2 Lock / unlock door twice by manual door lock switch 10 sec. 3 I. Close / open driver’s door twice II. Lock / unlock door once 40 sec. 4 I. Close driver’s door II. Lock / unlock door once 20 sec. 5 I. Open driver’s door II. Lock / unlock door once 20 sec. 6 I. Close / open driver’s door twice II. Close driver’s door (all doors close) 40 sec. New Key ID Registration Additional Key ID Registration Key ID Erasure ECU Communication ID Registration Key Confirmation
  • 70.
    Model Outline EngineChassis Body 70 Body Electrical Service Point (Smart Entry & Start System) ID Code Registration – Manual operation (only for Indonesia model) • Key Code Registration (New key ID registration) Operation Interval Initial Condition • In manual registration standby mode • Keys are not registered to certification ECU   Number of registered key in ID-code box  No registered One or more registered 1  Touch engine switch with all registered keys one by one 40 sec. 2 Touch engine switch with a key to be registered  3 Set key on front passenger seat  4 Repeat steps (2 and 3) by an increment of a key to be registered  5 Open driver’s door  NOTE: - Make sure the emblem side of the key is facing the engine switch, when the key touched engine switch - When registering several keys, only have one key in the cabin at a time. If several keys are in the cabin at the same time, the waves of keys will interfere with each other and key registration cannot be performed properly
  • 71.
    Model Outline EngineChassis Body 71 Body Electrical Service Point (Smart Entry & Start System) ID Code Registration – Manual operation (only for Indonesia model) • Key Code Registration (Additional key ID registration) Operation Interval Initial Condition • In manual registration standby mode • One or more keys are registered to certification ECU  1 I. Change power mode to ON/OFF once II. Open/close driver’s door once 40 sec. 2 Touch engine switch with registered key 40 sec. 3 Touch engine switch with key to be registered  4 Set key on front passenger seat  5 Repeat steps (3 and 4) by an increment of a key to be registered  6 Open driver’s door  NOTE: - Make sure the emblem side of the key is facing the engine switch, when the key touched engine switch - When registering several keys, only have one key in the cabin at a time. If several keys are in the cabin at the same time, the waves of keys will interfere with each other and key registration cannot be performed properly
  • 72.
    Model Outline EngineChassis Body 72 Body Electrical Service Point (Smart Entry & Start System) ID Code Registration – Manual operation (only for Indonesia model) • Key Code Erasure (Erase all registered key except one) Operation Interval Initial Condition • In manual registration standby mode • One or more keys are registered to certification ECU  1 I. Change power mode to ON / OFF 5 times II. Open/close driver’s door once 40 sec. 2 Touch engine switch with registered key to keep 40 sec. NOTE: - Make sure the emblem side of the key is facing the engine switch, when the key touched engine switch
  • 73.
    Model Outline EngineChassis Body 73 Body Electrical Service Point (Smart Entry & Start System) ID Code Registration – Manual operation (only for Indonesia model) • ECU Communication ID Registration Operation Interval Initial Condition • In manual registration standby mode • One or more keys are registered to certification ECU  1 I. Change power mode to ON / OFF 2 times II. Open/close driver’s door once 40 sec. 2 Touch engine switch with registered key 40 sec. NOTE: - Make sure the emblem side of the key is facing the engine switch, when the key touched engine switch
  • 74.
    Model Outline EngineChassis Body 74 Body Electrical Service Point (Smart Entry & Start System) ID Code Registration – Manual operation (only for Indonesia model) • Key confirmation Operation Interval Initial Condition • In manual registration standby mode • One or more keys are registered to certification ECU  1 I. Change power mode to ON / OFF 3 times II. Open/close driver’s door once 40 sec. [Number of registered key] ex.) When 3 keys are registering Wireless Door Lock Buzzer OFF ON 1 2 3
  • 75.
    75 Model Outline EngineChassis Body Body Electrical

Editor's Notes

  • #3 Other Different Key Reminder Function for Luggage Room ’05CY System: Can be opened by pushing the trunk open switch when all doors are locking ’03CY and ’00CY System: Can be opened by pushing the trunk open switch (Regardless door lock conditions)
  • #4 Smart Entry & Start System is equipped for the following modes W: Model with auto A/C as OPT T: Model with G Limited as STD D: Model with S LTD as STD This system has a following functions; Door lock / unlock Engine start Back door opening
  • #6 Engine ECU located in the engine compartment Steering Lock Assembly consists of the following items: Steering Lock/Unlock Detection Switch Steering Lock ECU Steering Lock Motor
  • #7 In TMT product models, Touch sensor, lock switch, antenna and oscillator are not equipped on front passenger’s door handle
  • #10 Oscillators for key detection: Driver door, front passenger door (except TMT product models), outside back door and front/ rear in cabin Actuation area: approximately 0.7 to 1.0 m from oscillator Basic operation: Oscillator from vehicle outputs command signal to key (134 kHz) After receiving the command signal, key sends IDs to wireless door lock receiver (wireless ID or Immobiliser ID)Ref.: 433.92 MHz (-W, -T, -D)
  • #15 When it is necessary to stop the engine compulsorily in the emergency etc. while driving, it can stop the engine by pushing engine switch 3 sec. or more Power mode is Changed to ACC mode
  • #16 The engine switch indicator blinks an amber color, when the DTC B2271, B2272, B2273 or B2781 is detected B2271: Ignition hold monitor malfunction B2272: Ignition1 outside-monitor malfunction B2273: Ignition2 outside-monitor malfunction B2781: Steering lock ECU internal malfunction The engine switch indicator blinks a green color, when the electrical steering lock is not unlocked or malfunction of clutch start switch is occurred
  • #17 [Electrical steering lock does not lock] When the electrical steering lock does not lock, and the driver’s door is opened, the key reminder system operates. The engine switch indicator does not blink even when the electrical steering lock does not lock
  • #18 The engine switch indicator blinks an amber color, when the DTC B2271, B2272, B2273 or B2781 is detected
  • #19 [Emergency Engine starting / power mode ACC, ON] To operate the engine switch when the key battery is low or empty, the TOYOTA mark portion of the key is touched and held on the engine switch with brake pedal (A/T / M-MT models) / clutch pedal (M/T model) depressedNOTE: Distance between engine switch and key within 10 mm (0.39 in.) The buzzer in the combination meter sounds once Push the engine switch within 5 sec. after the buzzer sounds Engine Starting: with brake pedal (M-MT models) / clutch pedal (M/T model) depressed Power mode ACC, ON: without pedal depressed
  • #22 In case one of the drive circuits fails, the hold circuit keeps the IG relays activated during engine operation
  • #24 Smart Entry & Start System cancel switch is not equipped Smart Entry & Start System Cancel Procedure: Unlock once with the UNLOCK button of the key Open the driver’s door within 5 seconds Unlock twice with the UNLOCK button of the key within 5 seconds Alternately close and open of the driver’s door twice within 30 seconds Unlock twice with the UNLOCK button of the key within 30 seconds Alternately open and close of the driver’s door 1 times within 30 seconds, and open again Close the driver’s door within 5 seconds NOTE: When Smart Entry & Start System is deactivated, the wireless door lock buzzer sounds once. To return to the Smart Entry & Start System activation condition, perform the procedures again. When Smart Entry & Start System is activated, the wireless door lock buzzer sounds twice.
  • #25 Other functions for Smart Entry & Start System Warning function; The key carried out in the vehicle (door open and close except driver’s door) with the power source mode is other than “OFF” Engine switch operation or door lock/unlock operation was operated without the key Door lock operation was operated while the key is still in the vehicle Low capacity of key battery Battery saving function; Oscillator sends the signal every 250 ms normally. To prevent battery dropping, oscillator operation is changed (as vehicle in stock) 1st: Every 250 ms to 750 ms / No response more than 5 days 2nd: Deactivation / No response more than 14 days Key and Vehicle Battery Savings; If key is in actuation area more than 10 minutes without no operation, system is automatically deactivated
  • #27 The steering lock system consists of a steering lock motor, steering lock ECU, Hall ICs / magnet (for lock bar position detection) and lock bar. The steering lock ECU is included in the steering lock actuator.
  • #33 Impossible to register already used keys in a used certification ECU
  • #37 Indicate this is a CAMRY HV example Sequence Door lock to door unlock- A > B > C > D > E > F > G Door unlock to door lock- H > A > B > C > G A: Signal for requesting the antenna (for driver’s door) activation B: Signal for activating the antenna C: Signal the receiving the code D: Signal for requesting the touch sensor (for driver’s door) activation E: Signal for touch sensor F: Signal for Touch sensor signal G: Signal for requesting the door locking/unlocking to Main Body ECU H: Signal for lock switch pushed
  • #43 A maximum of 7 key codes can be registered A key gets an certification ECU code registered. This code in the key can not be erased, only overwritten by NEW certification ECU.
  • #44 S code Certification ECU and ID-code Box have the same S code S code is generated by all the registered key IDs The different S code from ID-code Box cannot be registered to Certification ECU
  • #45 Replacing keys (needs one or more registered keys) (ex. Key ID3 does not work) Using remaining key (Key ID1), erase other key codes (Key ID2 and 3) Register additional keys as necessary (Key ID2 and 4) New S” code is generated by the registered key IDs and it is registered to Certification ECU and ID-code Box
  • #46 Lost all key Replace ID-code box and Certification ECU It is necessary to change the both ECU, because current S code cannot be re-registered “Key Code Registration” / “Key Code Erasure” operation needs one or more registered keys Register new keys Register ID-code Box – Engine ECU communication ID
  • #47 Impossible to register already used keys in a used certification ECU
  • #49 Two kinds of supply parts 89990-: New circuit board, antistatic bags, ECU cover and servicing instruction Basically, use this part 89300-: Circuit board is installed in the Certification ECU case Use this part, when the Certification ECU case is broken, etc…
  • #50 [Replacement Procedure of Certification ECU] Remove the Certification ECU from the vehicle Remove the ECU cover from the caseNOTE: The ECU cover is not reused Cover a hand with the supplied antistatic bag, then remove the circuit boardNOTICE: DO NOT touch the circuit board without antistatic bag Cover the removed circuit board by antistatic bag NOTE: When returning the circuit board, pack the removed circuit board with antistatic bag in the box
  • #51 [Replacement Procedure of Certification ECU (continued)] Turn the antistatic bag of new circuit board Install the new circuit board along the guide rail inside of the ECU case Install the new ECU coverNOTE: DO NOT install the removed ECU cover Install the Certification ECU
  • #52 Replacing Certification ECU (some keys are lost, key ID codes can be erased) (ex. Lost Key of ID3) Erase key codes (Key ID2 and 3) Register remaining keys (Key ID2) Certification ECU and ID-code Box have a new S” code Replace certification ECU Register all keys (Key ID1 and 2)
  • #53 Replacing Certification ECU (some keys are lost, key ID codes cannot be erased) (ex. Lost Key of ID3) Replace certification ECU and ID-code box Register all keys (Key ID1 and 2) Register ID-code Box – engine ECU communication ID
  • #55 If a malfunction occurred in the steering lock ECU or lock/unlock position switch, the entire steering lock assembly must be replaced Open and close the driver’s door after replacing the steering lock actuator or recharging the depleted the battery to recognize the position of the steering lock bar
  • #60 [System Selection Screen] Body > Entry & Start > Utility > Key Code Registration
  • #63 [System Selection Screen] Body > Entry&Start > Utility > Key Code Registration HINT:Registration mode is automatically selected by intelligent tester II, new key ID registration mode or additional key ID registration mode
  • #66 [System Selection Screen] Body > Entry&Start > Utility > Key Code Erasure
  • #68 [System Selection Screen] Body > Entry&Start > Utility > ECU Communication ID Registration
  • #69 [System Selection Screen] Body > Entry & Start > Utility > Communication Check (Key Diag Mode) Key Communication Check Items Overhead + Driver Side Overhead + Passenger Side Overhead + Front Room Side Overhead + Rear Room Overhead + Back Door (inside) Overhead + Back Door Immobilizer Amp
  • #70 ID code registration by manual operation can be operated only for Indonesia model [Manual registration standby mode] Initial Condition Driver’s door close Power mode is IG-OFF Open driver’s door Lock / unlock the door twice by manual door lock switch ([Door unlock] > Lock > Unlock > Lock > Unlock) I. Close / open driver’s door twice ([Door open] > Close > Open > Close > Open)II. Lock / unlock the door once ([Door unlock] > Lock > Unlock) I. Close driver’s doorII. Lock / unlock the door once ([Door unlock] > Lock > Unlock) I. Open driver’s doorII. Lock / unlock the door once ([Door unlock] > Lock > Unlock) I. Close / open driver’s door twice ([Door open] > Close > Open > Close > Open)II. Close driver’s door (all doors close)
  • #71 [New Key ID Registration] This mode is selected automatically when the key are not registered to certification ECUWireless buzzer sounds 4 times (short sound) Number of registered key in ID-code box Not registered: Go to step 2 One or more registered: Start first step Touch engine switch with all registered keys one by one- Recognition: (one key) Buzzer sounds once (short sound), (all registered key) buzzer sounds twice (short and long sound) - Failure: Buzzer sounds once (long sound) Touch engine switch with a key to be registered- Recognition: Buzzer sounds once (short sound)- Failure: Buzzer sounds once (long sound) Set the key on the front passenger seat- Recognition: Buzzer sounds once (short sound)- Failure: Buzzer sounds once (long sound) Repeat steps (2 and 3) by an increment of a key to be registered Open driver’s door ([Door close] > Door open)Wireless buzzer sounds 3 times (short sound)
  • #72 [Additional Key ID Registration] I. Change the power mode to ON / OFF once ([IG-OFF] > IG-ON > IG-OFF)II. Open / Close the driver’s door once ([Door close] > Door open > door close)Wireless buzzer sounds once (short sound) Touch the engine switch with the registered key- Recognition: Buzzer sounds once (short sound)- Failure: Buzzer sounds once (long sound) Touch the engine switch with a key to be registered- Recognition: Buzzer sounds once (short sound)- Failure: Buzzer sounds once (long sound) Put the key on the front passenger seat- Recognition: Buzzer sounds once (short sound)- Failure: Buzzer sounds once (long sound) Repeat steps (3 and 4) by an increment of a key to be registered Driver’s door open ([Door close] > Door open)Wireless buzzer sounds 3 times (short sound)
  • #73 [Key Code Erasure] I. Change the power mode to ON / OFF 5 times([IG-OFF] > IG-ON > IG-OFF > IG-ON > IG-OFF > IG-ON > IG-OFF > IG-ON > IG-OFF > IG-ON > IG-OFF)II. Open / Close the driver’s door once ([Door close] > Door open > door close)Wireless buzzer sounds 5 times (short sound) Touch the engine switch with the registered key to keep- Recognition: Sounds buzzer once (short sound)- Failure: Sounds buzzer once (long sound)Wireless buzzer sounds 3 times (short sound) after erasing keys
  • #74 [ECU Communication ID Registration] I. Change the power mode to ON / OFF 2 times([IG-OFF] > IG-ON > IG-OFF > IG-ON > IG-OFF)II. Open / Close the driver’s door once ([Door close] > Door open > Door close)Wireless buzzer sounds 2 times (short sound) Touch the engine switch with the registered key- Recognition: Sounds buzzer once (short sound)- Failure: Sounds buzzer once (long sound)Wireless buzzer sounds 3 times (short sound) after ECU communication ID registration
  • #75 [Key Confirmation] I. Change the power mode to ON / OFF 3 times ([IG-OFF] > IG-ON > IG-OFF > IG-ON > IG-OFF > IG-ON > IG-OFF)II.Open / Close the driver’s door once ([Door close] > Door open > door close)Wireless buzzer sounds (2 buzzer x number of registered key) times
