1. The Slick Library
Rebecca Grenier
rebeccagrenier@gmail.com

2. Intro to Slick
 Static Typing + Compilation = Type Safety
 For-Comprehensions
 Compositionality: build complex queries out of simple
parts
@beckythebest

3. Introduction to Slick
@beckythebest

4. Slick Connection Drivers
 Oracle ($$$)
 DB2 ($$$)
 SQL Server ($$$)
@beckythebest
Note: Connection Pooling is your
responsibility
 PostgreSQL
 MySQL
 Access
 Derby
 H2
 Hsqldb
 SQLite

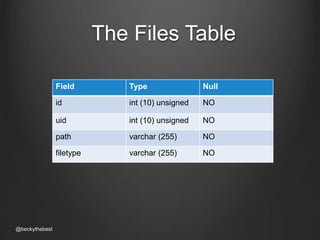

5. The Files Table
@beckythebest
Field Type Null
id int (10) unsigned NO
uid int (10) unsigned NO
path varchar (255) NO
filetype varchar (255) NO

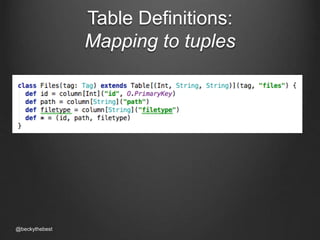

6. Table Definitions:
Mapping to tuples
@beckythebest

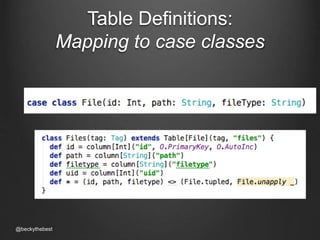

7. Table Definitions:
Mapping to case classes
@beckythebest

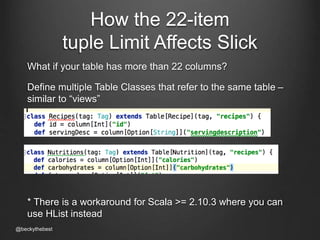

8. How the 22-item
tuple Limit Affects Slick
What if your table has more than 22 columns?
Define multiple Table Classes that refer to the same table –
similar to “views”
* There is a workaround for Scala >= 2.10.3 where you can
use HList instead
@beckythebest

9. Queries in Slick
Every query starts out as a TableQuery first:
val files = TableQuery[Files]
is the equivalent of
select * from files;
(You can use .selectStatement on any query to see
the SQL for a select statment that is generated
behind the scenes)
@beckythebest

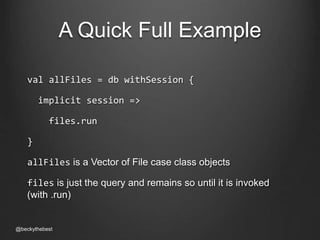

10. A Quick Full Example
val allFiles = db withSession {
implicit session =>
files.run
}
allFiles is a Vector of File case class objects
files is just the query and remains so until it is invoked
(with .run)
@beckythebest

11. Building Your Query:
Adding a Where Clause
With .filter
files.filter(_.filetype === ‘pdf’)
In SQL: select * from files where
filetype= ’pdf’
• In Slick, equals is ===
• Not-Equals is =!=
@beckythebest

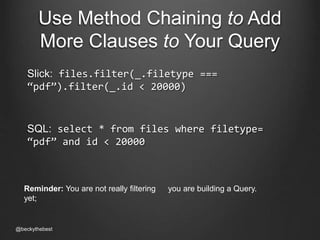

12. Use Method Chaining to Add
More Clauses to Your Query
Slick: files.filter(_.filetype ===
“pdf”).filter(_.id < 20000)
SQL: select * from files where filetype=
“pdf” and id < 20000
Reminder: You are not really filtering
yet;
@beckythebest
you are building a Query.

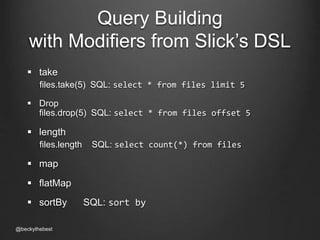

13. Query Building
with Modifiers from Slick’s DSL
 take
files.take(5) SQL: select * from files limit 5
 Drop
files.drop(5) SQL: select * from files offset 5
 length
files.length SQL: select count(*) from files
 map
 flatMap
 sortBy SQL: sort by
@beckythebest

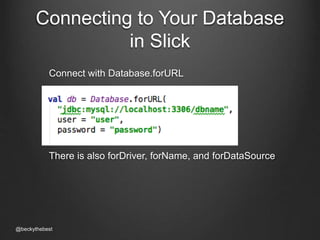

14. Connecting to Your Database
in Slick
Connect with Database.forURL
There is also forDriver, forName, and forDataSource
@beckythebest

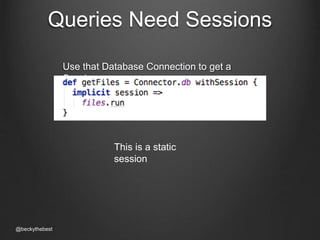

15. Queries Need Sessions
Use that Database Connection to get a
Session
@beckythebest
This is a static
session

16. Just Say No to
Dynamic Sessions
AKA A non-explicit session you hope was opened earlier this
thread
Dynamic
Sessions
You can’t count on your thread having a session in an
@beckythebest
asyncronous world

17. Query Invokers
Invoker Returns
Vector of results
List of results
First result or Exception
Some(first) or None
Nothing
files.run
files.list
files.first
files.firstOption
files.execute
@beckythebest

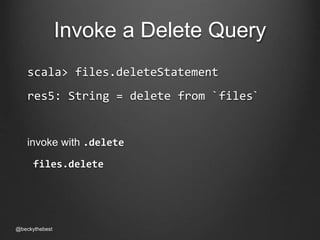

18. Invoke a Delete Query
scala> files.deleteStatement
res5: String = delete from `files`
invoke with .delete
files.delete
@beckythebest

19. Just Delete One Record
Reduce your query with filter:
> files.filter(_.id === 56).deleteStatement
res6: String = delete from `files` where
`files`.`id` = 56
Invoked:
files.filter(_.id === 56).delete
@beckythebest

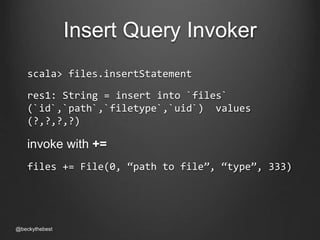

20. Insert Query Invoker
scala> files.insertStatement
res1: String = insert into `files`
(`id`,`path`,`filetype`,`uid`) values
(?,?,?,?)
invoke with +=
files += File(0, “path to file”, “type”, 333)
@beckythebest

21. Update Query Invoker
scala> files.map(_.path).updateStatement
res4: String = update `files` set `path` = ?
invoke with .update()
files.map(_.path).update(“new path to file”)
@beckythebest

22. Best Practice: Build your Query
Completely BEFORE Invoking
The commands below look similar but have very
different performance:
files.take(5).run
SQL: (select * from files limit 5)
files.run.take(5)
SQL: (select * from files) take 5
@beckythebest

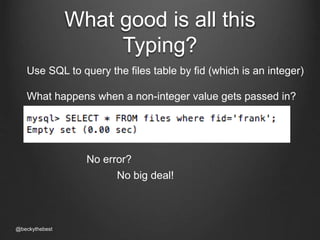

23. What good is all this
Typing?
Use SQL to query the files table by fid (which is an integer)
What happens when a non-integer value gets passed in?
@beckythebest
No error?
No big deal!

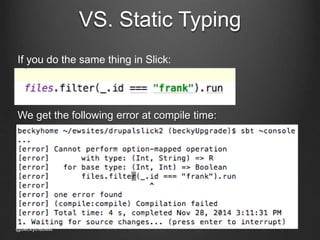

24. VS. Static Typing
If you do the same thing in Slick:
We get the following error at compile time:
@beckythebest

25. Joining: Introducing The Users
Table
@beckythebest

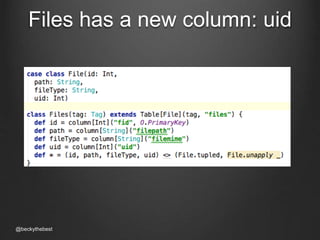

26. Files has a new column: uid
@beckythebest

27. Joining with For-
Comprehensions
SQL: select * from
users,files where
files.uid = users.id
When invoked (with innerJoinFileUser.run) this
returns a Collection of tuples with the first item being of
type User and the second being of type File
@beckythebest

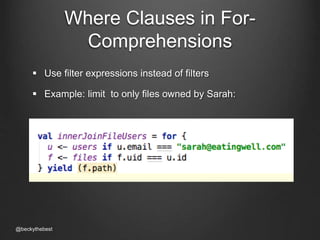

28. Where Clauses in For-
Comprehensions
 Use filter expressions instead of filters
 Example: limit to only files owned by Sarah:
@beckythebest

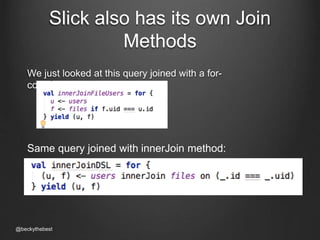

29. Slick also has its own Join
Methods
We just looked at this query joined with a for-comprehension:
Same query joined with innerJoin method:
@beckythebest

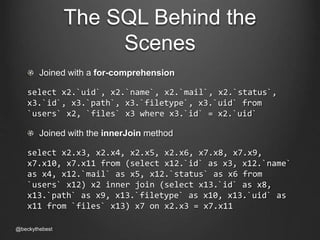

30. The SQL Behind the
Scenes
Joined with a for-comprehension
select x2.`uid`, x2.`name`, x2.`mail`, x2.`status`,
x3.`id`, x3.`path`, x3.`filetype`, x3.`uid` from
`users` x2, `files` x3 where x3.`id` = x2.`uid`
Joined with the innerJoin method
select x2.x3, x2.x4, x2.x5, x2.x6, x7.x8, x7.x9,
x7.x10, x7.x11 from (select x12.`id` as x3, x12.`name`
as x4, x12.`mail` as x5, x12.`status` as x6 from
`users` x12) x2 inner join (select x13.`id` as x8,
x13.`path` as x9, x13.`filetype` as x10, x13.`uid` as
x11 from `files` x13) x7 on x2.x3 = x7.x11
@beckythebest

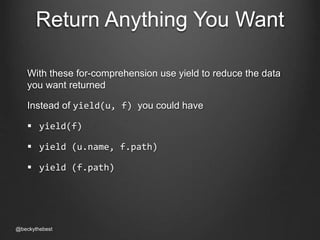

31. Return Anything You Want
With these for-comprehension use yield to reduce the data
you want returned
Instead of yield(u, f) you could have
 yield(f)
 yield (u.name, f.path)
 yield (f.path)
@beckythebest

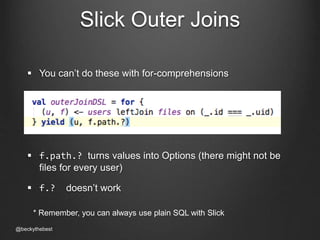

32. Slick Outer Joins
 You can’t do these with for-comprehensions
 f.path.? turns values into Options (there might not be
files for every user)
 f.? doesn’t work
* Remember, you can always use plain SQL with Slick
@beckythebest

33. Query Compositionality
Every query does Double
Duty:
1. Invoke to get data
2. Use as a building block for
another query
@beckythebest

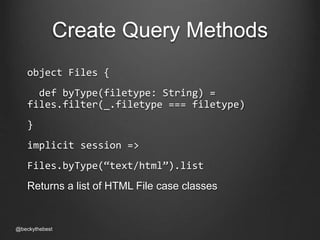

34. Create Query Methods
object Files {
def byType(filetype: String) =
files.filter(_.filetype === filetype)
}
implicit session =>
Files.byType(“text/html”).list
Returns a list of HTML File case classes
@beckythebest

35. Let’s Look at the SQL Behind
That
The method itself is not a Query, but it returns a Query
scala> filesByType.selectStatement
ERROR
scala> filesByType(“pdf").selectStatement
res3: String = select * from `files` x2 where
x2.`filetype` = ‘pdf'
@beckythebest

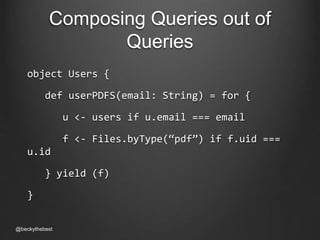

36. Composing Queries out of
Queries
object Users {
def userPDFS(email: String) = for {
u <- users if u.email === email
f <- Files.byType(“pdf”) if f.uid ===
u.id
} yield (f)
}
@beckythebest

37. Quick Look at the SQL
scala>
userPDFS("sarah@eatingwell.com").selectStatement
res0: String = select files`id`, files.`path`,
files.`filetype`, files.`id` from `users`,
`files` where ((users.`mail` =
'sarah@eatingwell.com') and (files.`filetype` =
'application/pdf')) and (files.`uid` =
users.`id`)
* There are many more advanced ways
@beckythebest

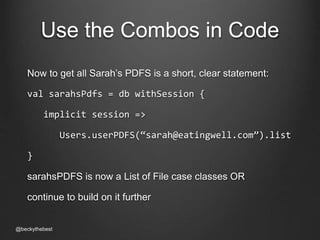

38. Use the Combos in Code
Now to get all Sarah’s PDFS is a short, clear statement:
val sarahsPdfs = db withSession {
implicit session =>
Users.userPDFS(“sarah@eatingwell.com”).list
}
sarahsPDFS is now a List of File case classes OR
continue to build on it further
@beckythebest

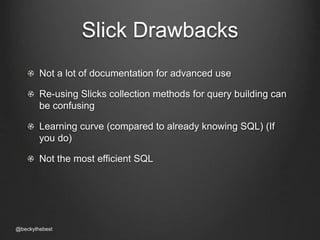

39. Slick Drawbacks
Not a lot of documentation for advanced use
Re-using Slicks collection methods for query building can
be confusing
Learning curve (compared to already knowing SQL) (If
you do)
Not the most efficient SQL
@beckythebest

40. Save Yourselves!
There is now code generation in Slick!
You don’t have to write out 65 Table class definitions like I did
@beckythebest

41. Summary
Slick uses Scala’s best features to bring type safety and
composability to your Relational Database access
• Static Typing
• Collection Methods
• For-Comprehensions
• Compositionality
@beckythebest

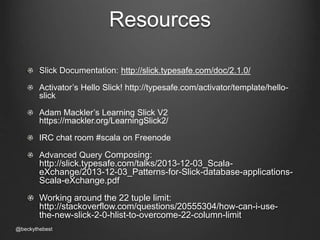

42. Resources
Slick Documentation: http://slick.typesafe.com/doc/2.1.0/
Activator’s Hello Slick! http://typesafe.com/activator/template/hello-slick
Adam Mackler’s Learning Slick V2
https://mackler.org/LearningSlick2/
IRC chat room #scala on Freenode
Advanced Query Composing:
http://slick.typesafe.com/talks/2013-12-03_Scala-eXchange/
2013-12-03_Patterns-for-Slick-database-applications-
Scala-eXchange.pdf
Working around the 22 tuple limit:
http://stackoverflow.com/questions/20555304/how-can-i-use-the-
new-slick-2-0-hlist-to-overcome-22-column-limit
@beckythebest

43. Thank You
Questions?
Rebecca Grenier
rebeccagrenier@gmail.com
@beckythebest
Special Thanks to: Underscore Consulting
@beckythebest
