Yeoman Rainguard has introduced a new SL rainwater system designed for new build properties, emphasizing its quality, durability, and low maintenance features. The system includes lightweight, corrosion-resistant aluminum components that are 100% recyclable and easy to install without mechanical fixings. It is available in various sizes and configurations, making it a versatile choice for enhancing any building.

1. When it comes to
rainwater systems
Qualitycounts
NEW
SL Range

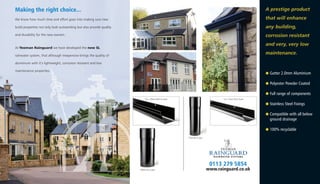

2. Making the right choice...
We know how much time and effort goes into making sure new
build properties not only look outstanding but also provide quality
and durability for the new owners.
At Yeoman Rainguard we have developed the new SL
rainwater system, that although inexpensive brings the quality of
aluminium with it’s lightweight, corrosion resistant and low
maintenance properties.
0113 279 5854
www.rainguard.co.uk
75mm dia SL pipe
100mm dia SL pipe
125 x 100mm MOG SL Gutter 125 x 75mm HR SL Gutter
G Gutter 2.0mm Aluminium
G Polyester Powder Coated
G Full range of components
G Stainless Steel Fixings
G Compatible with all below
ground drainage
G 100% recyclable
A prestige product
that will enhance
any building,
corrosion resistant
and very, very low
maintenance.

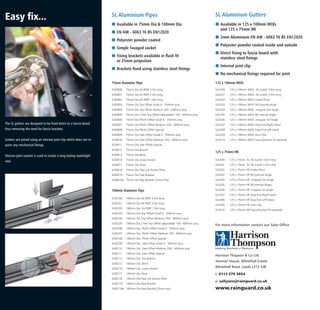

3. Easy fix...
The SL gutters are designed to be fixed direct to a fascia board
thus removing the need for fascia brackets.
Gutters are joined using an internal joint clip which does not re-
quire any mechanical fixings.
Silicone joint sealant is used to create a long lasting watertight
seal.
Harrison Thopson & Co Ltd
Yeoman House, Whitehall Estate
Whitehall Road, Leeds LS12 5JB
t: 0113 279 5854
e: sallyann@rainguard.co.uk
www.rainguard.co.uk
For more information contact our Sales Office
SL Aluminium Pipes
G Available in 75mm Dia & 100mm Dia
G EN AW - 6063 T6 BS EN12020
G Polyester powder coated
G Simple Swaged socket
G Fixing brackets available in flush fit
or 25mm projection
G Brackets fixed using stainless steel fixings
G Available in 125 x 100mm MOG
and 125 x 75mm HR
G 2mm Aluminium EN AW - 6063 T6 BS EN12020
G Polyester powder coated inside and outside
G Direct fixing to fascia board with
stainless steel fixings
G Internal joint clip
G No mechanical fixings required for joint
SL Aluminium Gutters
75mm Diameter Pipe
100mm Diameter Pipe
SLRZC00 100mm Dia Ali RWP 3.0m long
SLRZC01 100mm Dia Ali RWP 2.0m long
SLRZC02 100mm Dia Ali RWP 1.0m long
SLRZC03 100mm Dia Top Offset Small 0 - 350mm proj.
SLRZC04 100mm Dia Top Offset Medium 350 - 600mm proj.
SLRZC05 100mm Dia 2 Part Top Offset (adjustable) 150 - 600mm proj.
SLRZC06 100mm Dia Plinth Offset Small 0 - 350mm proj.
SLRZC07 100mm Dia Plinth Offset Medium 350 - 600mm proj.
SLRZC08 100mm Dia Plinth Offset Special
SLRZC09 100mm Dia Side Offset Small 0 - 350mm proj.
SLRZC10 100mm Dia Side Offset Medium 350 - 600mm proj.
SLRZC11 100mm Dia Side Offset Special
SLRZC12 100mm Dia Dia Branch
SLRZC13 100mm Dia Bend
SLRZC14 100mm Dia Loose Socket
SLRZC17 100mm Dia Shoe
SLRZC18 100mm Dia Pipe c/w Access Plate
SLRZC19 100mm Dia Pipe Bracket
SLRZC19a 100mm Dia Pipe Bracket 25mm proj
125 x 100mm MOG
SLGC00 125 x 100mm MOG Ali Gutter 3.0m long
SLGC01 125 x 100mm MOG Ali Gutter 2.0m long
SLGC02 125 x 100mm MOG Outlet Piece
SLGC03 125 x 100mm MOG 90 External Angle
SLGC04 125 x 100mm MOG Irregular Ext Angle
SLGC05 125 x 100mm MOG 90 Internal Angle
SLGC06 125 x 100mm MOG Irregular Int Angle
SLGC07 125 x 100mm MOG Stop End Right Hand
SLGC08 125 x 100mm MOG Stop End Left Hand
SLGC09 125 x 100mm MOG Joint Clip
SLGC10 125 x 100mm MOG Fascia Bracket (If required)
125 x 75mm HR
SLGS00 125 x 75mm XL Ali Gutter 3.0m long
SLGS01 125 x 75mm XL Ali Gutter 2.0m long
SLGS02 125 x 75mm HR Outlet Piece
SLGS03 125 x 75mm HR 90 External Angle
SLGS04 125 x 75mm HR Irregular Ext Angle
SLGS05 125 x 75mm HR 90 Internal Angle
SLGS06 125 x 75mm HR Irregular Int Angle
SLGS07 125 x 75mm HR Stop End Right Hand
SLGS08 125 x 75mm HR Stop End Left Hand
SLGS09 125 x 75mm HR Joint Clip
SLGS10 125 x 75mm HR Fascia Bracket (If required)
SLRZB00 75mm Dia Ali RWP 3.0m long
SLRZB01 75mm Dia Ali RWP 2.0m long
SLRZB02 75mm Dia Ali RWP 1.0m long
SLRZB03 75mm Dia Top Offset Small 0 - 350mm proj.
SLRZB04 75mm Dia Top Offset Medium 350 - 600mm proj.
SLRZB05 75mm Dia 2 Part Top Offset (adjustable) 150 - 600mm proj.
SLRZB06 75mm Dia Plinth Offset Small 0 - 350mm proj.
SLRZB07 75mm Dia Plinth Offset Medium 350 - 600mm proj.
SLRZB08 75mm Dia Plinth Offset Special
SLRZB09 75mm Dia Side Offset Small 0 - 350mm proj.
SLRZB10 75mm Dia Side Offset Medium 350 - 600mm proj.
SLRZB11 75mm Dia Side Offset Special
SLRZB12 75mm Dia Branch
SLRZB13 75mm Dia Bend
SLRZB14 75mm Dia Loose Socket
SLRZB17 75mm Dia Shoe
SLRZB18 75mm Dia Pipe c/w Access Plate
SLRZB19 75mm Dia Pipe Bracket
SLRZB19a 75mm Dia Pipe Bracket 25mm Proj
