2. S pomoću leće dobivamo povećanu ili umanjenu sliku predmeta.
o Možemo li s pomoću leće zapaliti vatru?
3. Optičke leće
Prozirno tijelo omeđeno plohama od kojih je bar
jedna zakrivljena zove se optička leća.
sabirna ili konvergentna leća
rastresna ili divergentna leća
4. Sabirna ili konvergentna leća
leća koja je u sredini deblja nego na rubu
Upadni snop svjetlosnih zraka paralelnih s optičkom osi nakon
prolaska kroz leću fokusira se u žarištu leće.
Skupljanje zraka u žarištu sabirne leće
5. Rastresna ili divergentna leća
leća koja je u sredini tanja nego na rubu
Ako na rastresnu leću padne snop svjetlosnih zraka paralelnih s
optičkom osi, te se zrake nakon prolaska kroz leću šire, tj. razilaze.
Rasipanje zraka svjetlosti na rastresnoj leći
6. Jakost leće
Jakost leće je recipročna vrijednost njezine
žarišne daljine.
dioptrija
-
1/m
;
1
f
j
Primjena leća :
naočale, povećalo, dalekozor, filmska kamera ...
7. Kakvu sliku predmeta daje sabirna leća?
Postavljaj predmet na različite udaljenosti od leće
i promatraj kakve slike nastaju.

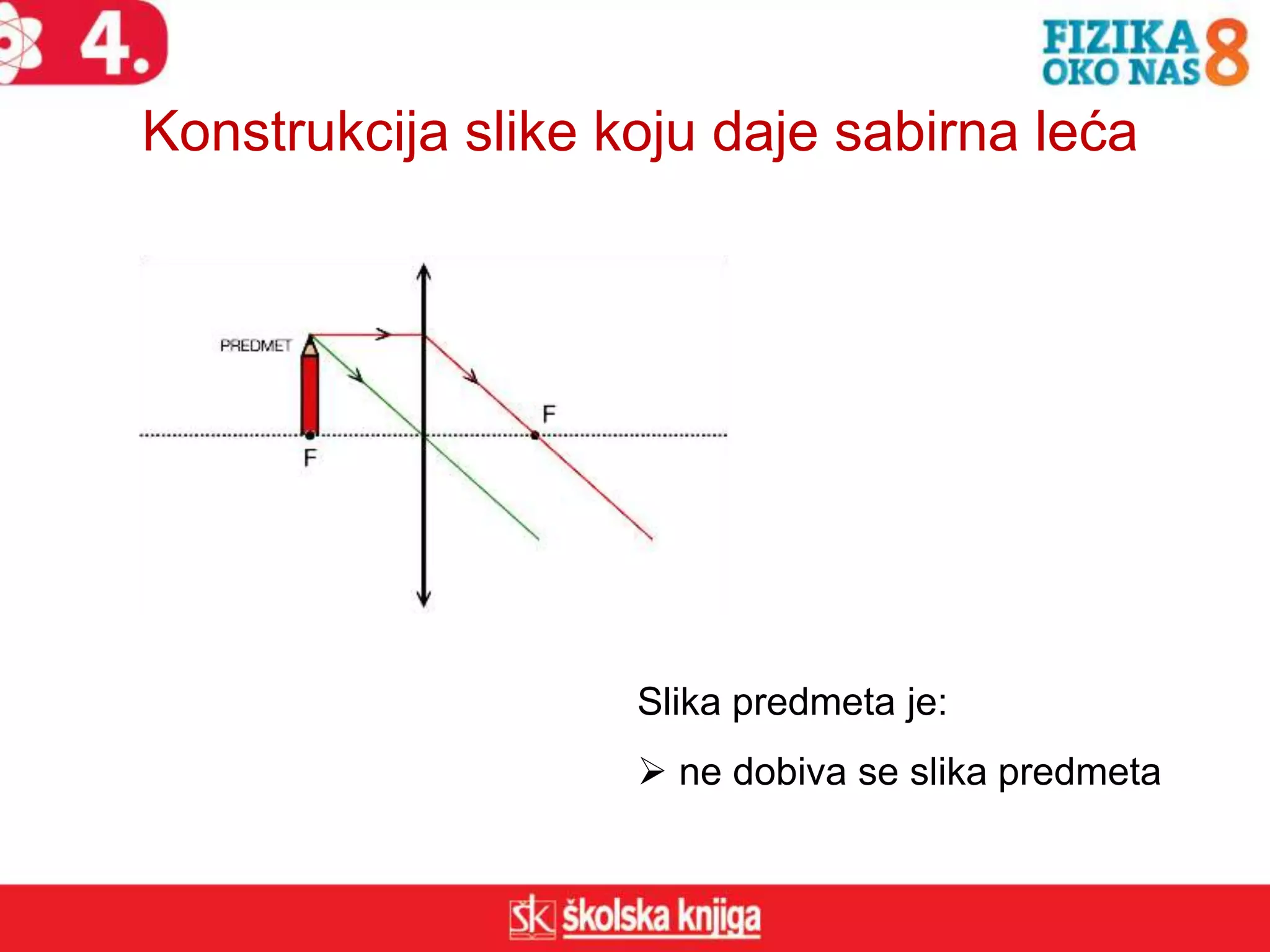

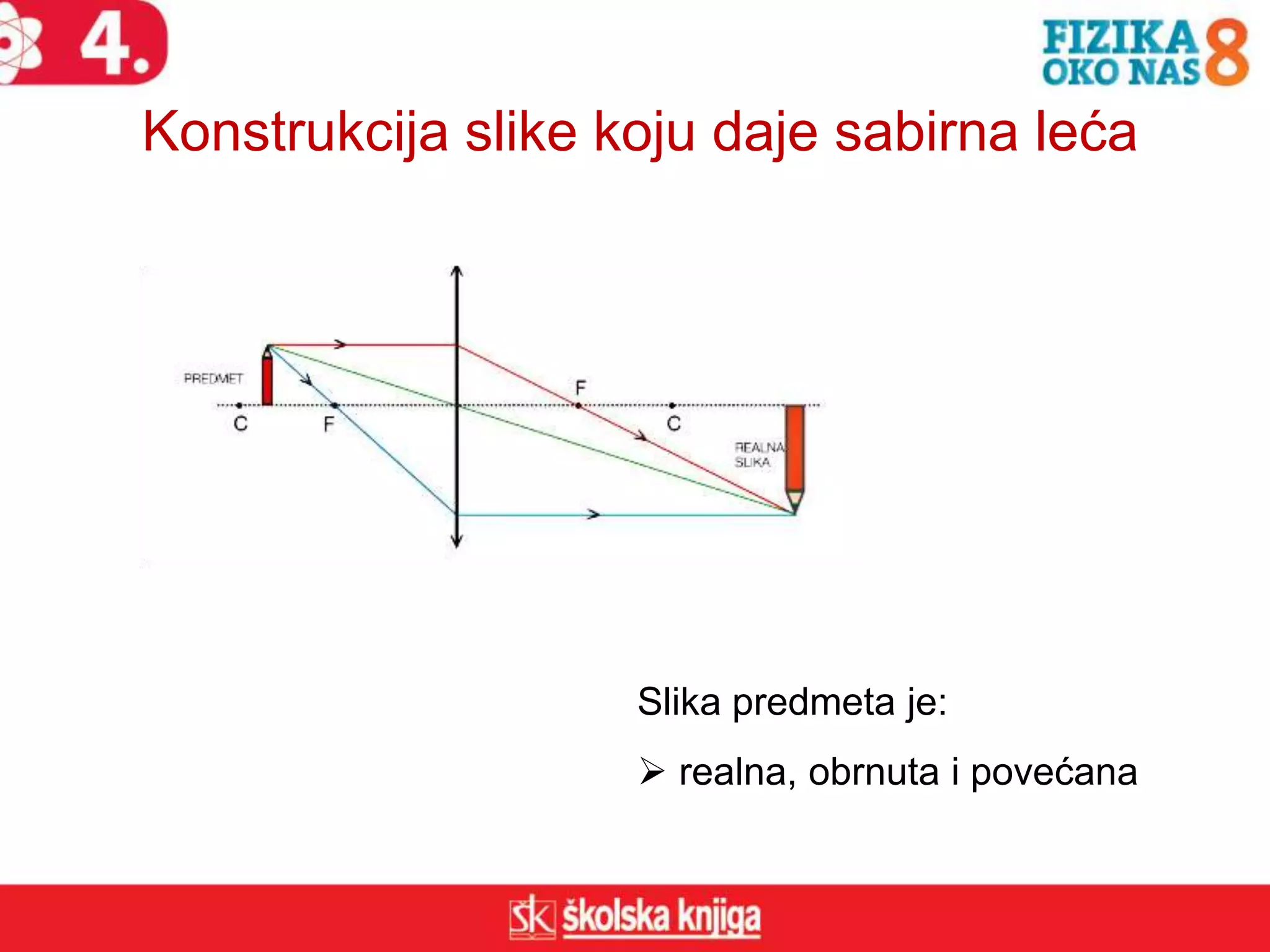

8. Konstrukcija slike koju daje sabirna leća
Karakteristične zrake za konstrukciju slike:
1. Zraka paralelna s optičkom osi koja se lomi kroz žarište F.
2. Zraka kroz žarište koja se lomi paralelno s optičkom osi.
3. Zraka kroz središte leće koja se ne lomi.

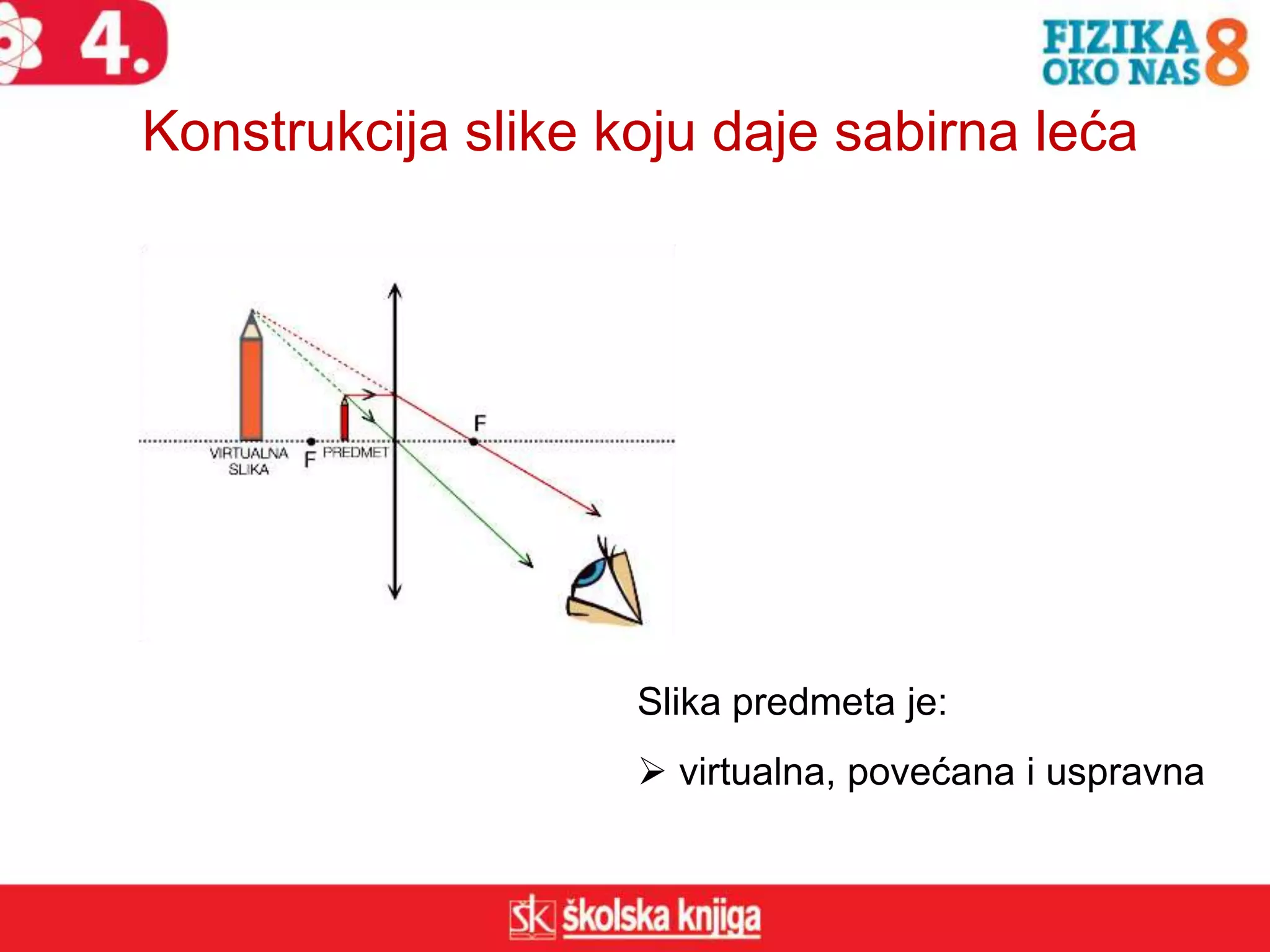

12. Konstrukcija slike koju daje sabirna leća
Slika predmeta je:
virtualna, povećana i uspravna
13. Konstrukcija slike koju daje rastresna leća
Rastresna leća uvijek, bez obzira gdje postavimo predmet, daje
virtualnu, uspravnu i umanjenu sliku predmeta.

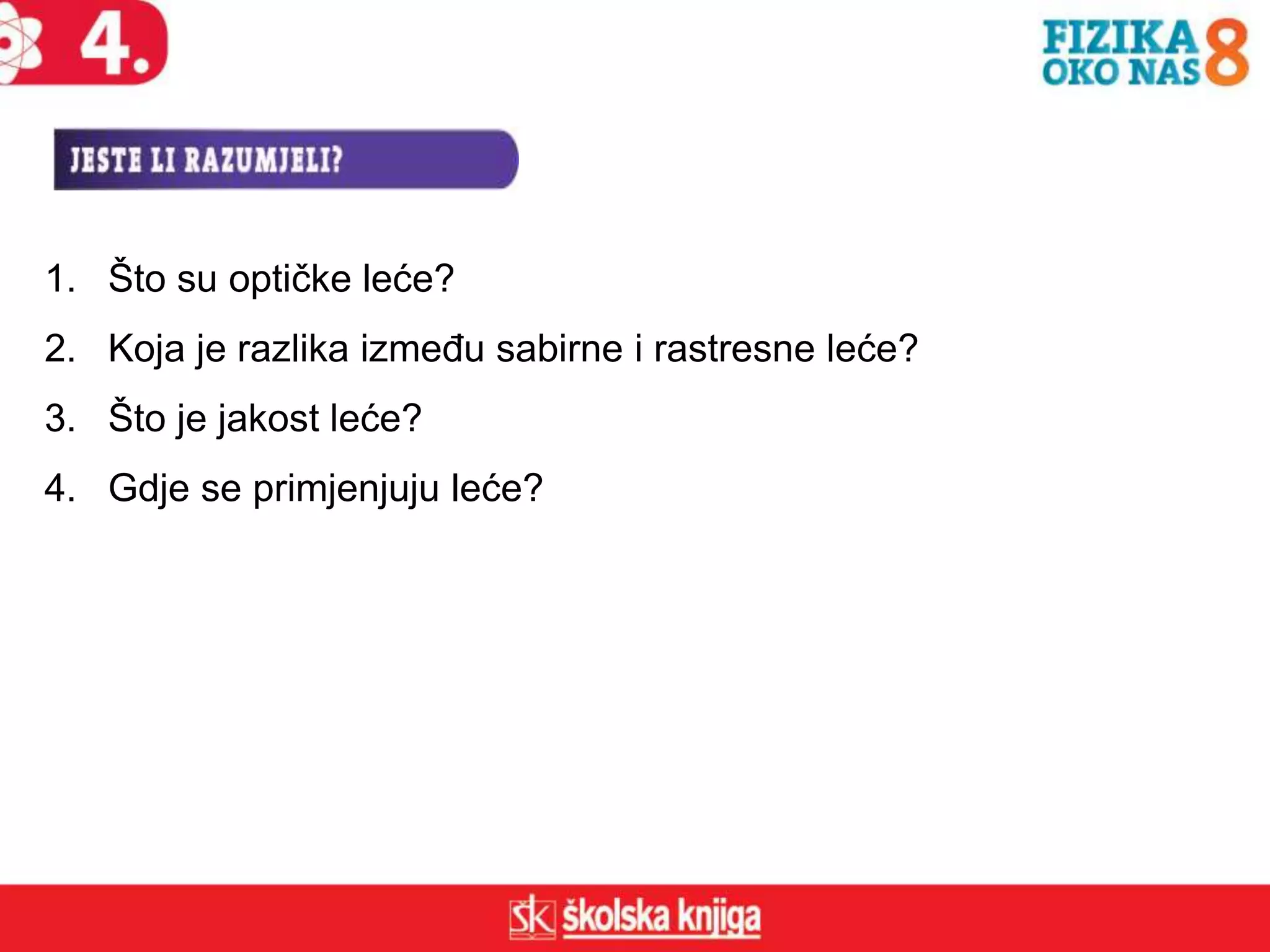

14. 1. Što su optičke leće?
2. Koja je razlika između sabirne i rastresne leće?
3. Što je jakost leće?
4. Gdje se primjenjuju leće?
