Sizing calculation high temperature[1]

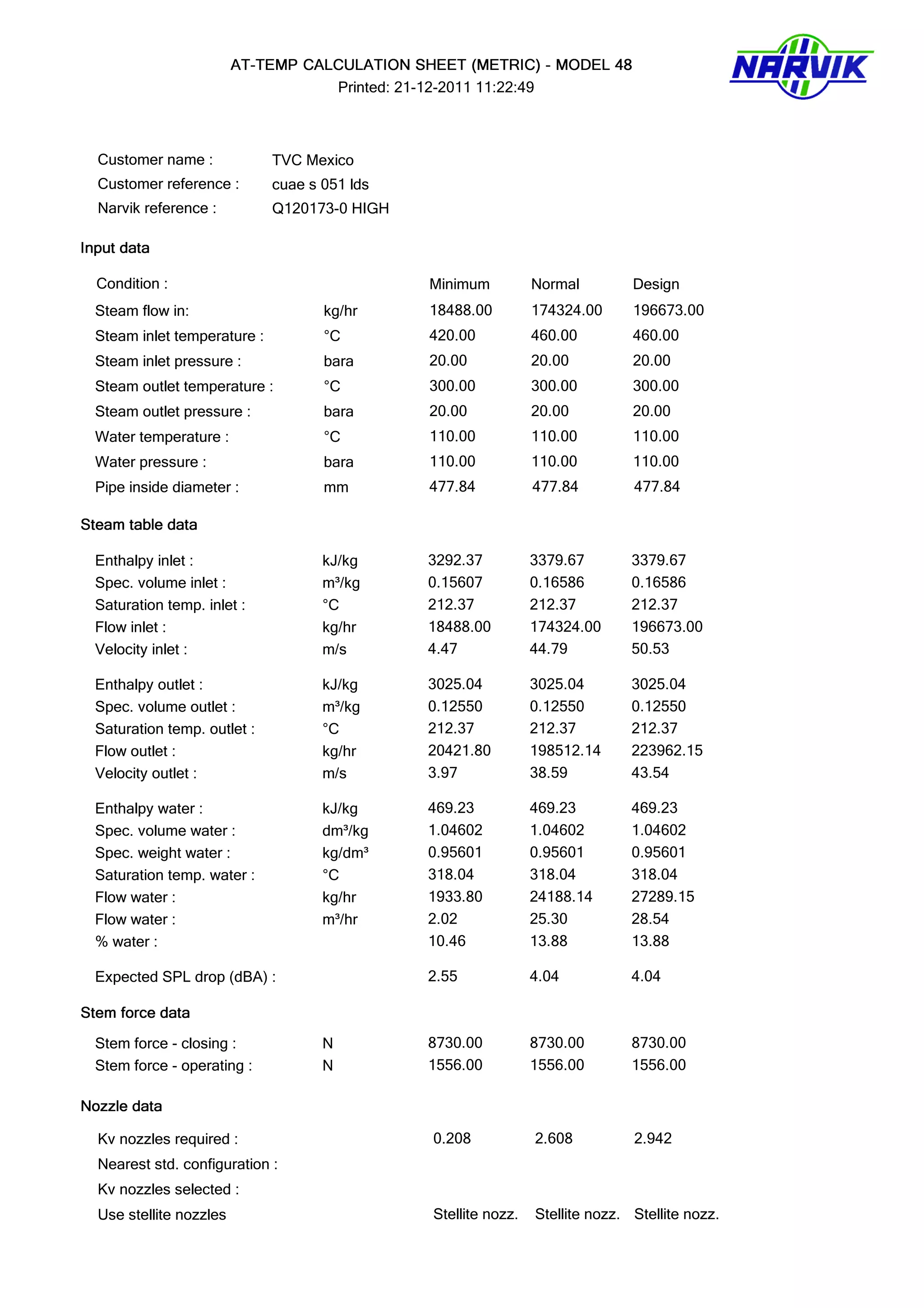

- 1. Printed: 21-12-2011 11:22:49 Customer name : TVC Mexico Customer reference : cuae s 051 lds Narvik reference : Q120173-0 HIGH Condition : Minimum Normal Design Steam flow in: kg/hr 18488.00 174324.00 196673.00 Steam inlet temperature : °C 420.00 460.00 460.00 Steam inlet pressure : bara 20.00 20.00 20.00 Steam outlet temperature : °C 300.00 300.00 300.00 Steam outlet pressure : bara 20.00 20.00 20.00 Water temperature : °C 110.00 110.00 110.00 Water pressure : bara 110.00 110.00 110.00 Pipe inside diameter : mm 477.84 477.84 477.84 Enthalpy inlet : kJ/kg 3292.37 3379.67 3379.67 Spec. volume inlet : m³/kg 0.15607 0.16586 0.16586 Saturation temp. inlet : °C 212.37 212.37 212.37 Flow inlet : kg/hr 18488.00 174324.00 196673.00 Velocity inlet : m/s 4.47 44.79 50.53 Enthalpy outlet : kJ/kg 3025.04 3025.04 3025.04 Spec. volume outlet : m³/kg 0.12550 0.12550 0.12550 Saturation temp. outlet : °C 212.37 212.37 212.37 Flow outlet : kg/hr 20421.80 198512.14 223962.15 Velocity outlet : m/s 3.97 38.59 43.54 Enthalpy water : kJ/kg 469.23 469.23 469.23 Spec. volume water : dm³/kg 1.04602 1.04602 1.04602 Spec. weight water : kg/dm³ 0.95601 0.95601 0.95601 Saturation temp. water : °C 318.04 318.04 318.04 Flow water : kg/hr 1933.80 24188.14 27289.15 Flow water : m³/hr 2.02 25.30 28.54 % water : 10.46 13.88 13.88 Expected SPL drop (dBA) : 2.55 4.04 4.04 Stem force - closing : N 8730.00 8730.00 8730.00 Stem force - operating : N 1556.00 1556.00 1556.00 Kv nozzles required : 0.208 2.608 2.942 Nearest std. configuration : Kv nozzles selected : Use stellite nozzles Stellite nozz. Stellite nozz. Stellite nozz.
