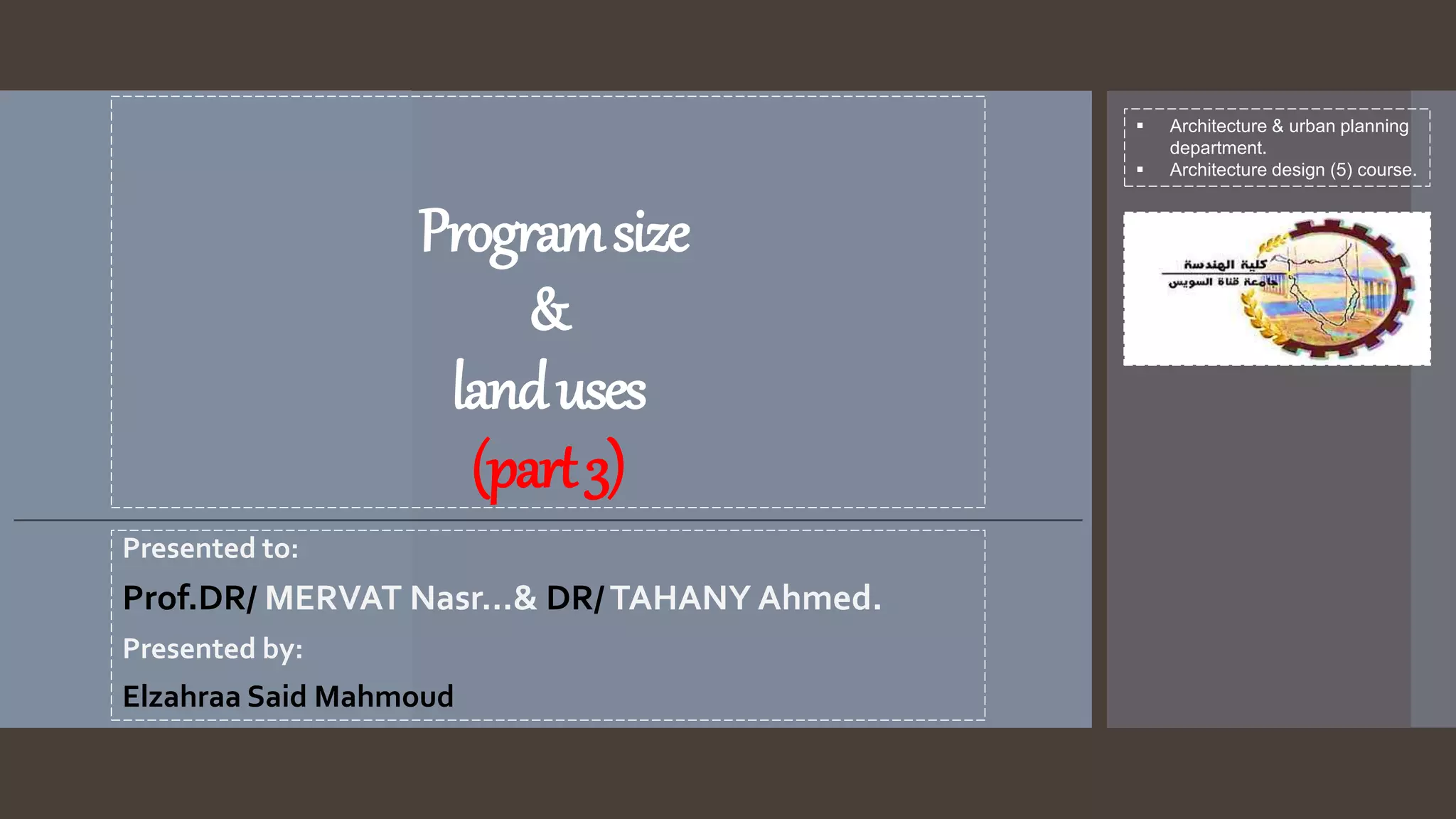

1. Programsize
&
landuses
(part3)
Presented to:
Prof.DR/ MERVAT Nasr…& DR/TAHANY Ahmed.
Presented by:
Elzahraa Said Mahmoud
 Architecture & urban planning
department.
 Architecture design (5) course.

2. References/
Program size Land uses
Building Ratio :
indoor
48%
outdoor
52%
indoor
outdoor

3. References/
Program size Land uses
IN
DOOR
43.3%
OF SITEAREA
=
13000 SQM
Per floor.
(total building
area
= 3*13000
=39000 sqm
+ parking
In basement F
(14300)
=54300 SQM).
SPACE NAME space elements NUMBER OF
SPACE
SPACE AREA
(sqm)
TATOTAL
AREA (sqm)
COMMERICAL
Small stores 60 32
20800
38.3% of
Building area
Large stores 30 128
Department stores 2 1500
Anchor stores 6 2000
ENTERTAINMENT
Food court 1 5000
5900
10.9% of
Building area
Cinema 1 300
Arcade 1 500
Caffes 1 100
SERVICES
Admin - 300
12300
22.7 % of
Building area
Wc. 9 200
circulation
Stairs 3
9000
Elevators 12
Escalators 3
Parking 1.1% of ground floor area (IN BASEMENT FLOOR) 14300
26.3% of
Building area
OUTDOOR Main plaza 6500 sqm.
