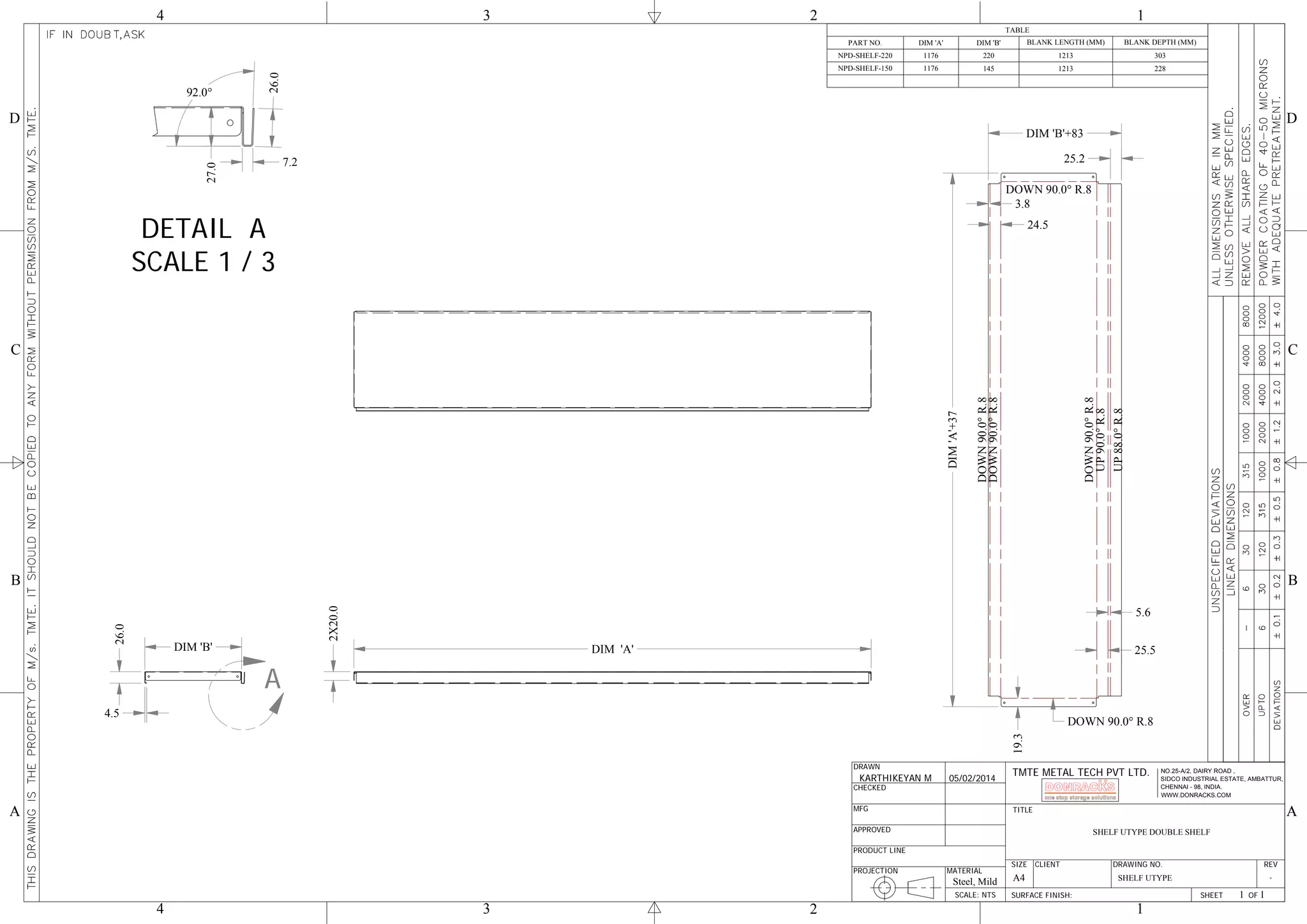

This document is an engineering drawing for a double shelf unit. It includes dimensions for two shelf models, technical specifications like material used and surface finish, as well as manufacturing details such as tolerances and a note about removing sharp edges. The drawing also contains title block information crediting the designer and manufacturer.

1. DETAIL A
SCALE 1 / 3
4 3 2 1
D
C
B
A
4 3 2 1
D
C
B
A
SHEET 1 OF 1
DRAWN
CHECKED
KARTHIKEYAN M
TITLE
SHELF UTYPE DOUBLE SHELF
SIZE
TMTE METAL TECH PVT LTD.
REV
PROJECTION
SCALE: NTS
Steel, Mild
MATERIAL
NO.25-A/2, DAIRY ROAD ,
SIDCO INDUSTRIAL ESTATE, AMBATTUR,
CLIENT
A4
MFG
APPROVED
DRAWING NO.
PRODUCT LINE
05/02/2014
-SHELF UTYPE
SURFACE FINISH:
DONRACKS
one stop storage solutions
CHENNAI - 98, INDIA.
WWW.DONRACKS.COM
UNSPECIFIEDDEVIATIONS
OVER
UPTO
LINEARDIMENSIONS
DEVIATIONS
-
6
±0.1
6
30
±0.2
30
120
±0.3
120
315
±0.5
315
1000
±0.8
1000
2000
±1.2
2000
4000
±2.0
4000
8000
±3.0
8000
12000
±4.0
ALLDIMENSIONSAREINMM
UNLESSOTHERWISESPECIFIED.
REMOVEALLSHARPEDGES.
POWDERCOATINGOF40-50MICRONS
WITHADEQUATEPRETREATMENT.
IF IN DOUBT,ASKTHISDRAWINGISTHEPROPERTYOFM/s.TMTE.ITSHOULDNOTBECOPIEDTOANYFORMWITHOUTPERMISSIONFROMM/S.TMTE.
A
DOWN 90.0° R.8
DOWN90.0°R.8
DOWN90.0°R.8
DOWN90.0°R.8
UP90.0°R.8
UP88.0°R.8
DOWN 90.0° R.8
DIM 'A'
26.0
DIM 'B'
4.5
27.0
7.2
92.0°
25.2
26.0
20.02X
3.8
24.5
5.6
25.5
19.3
TABLE
PART NO. DIM 'A' DIM 'B' BLANK LENGTH (MM) BLANK DEPTH (MM)
NPD-SHELF-220 1176 220 1213 303
NPD-SHELF-150 1176 145 1213 228
DIM 'B'+83
DIM'A'+37
