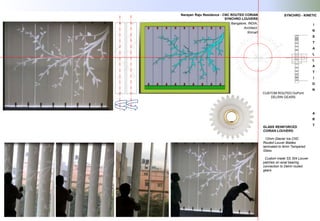

GLASS REINFORCED
CORIAN LOUVERS:
12mm Glacier Ice CNC
Routed Louver Blades
laminated to 6mm Tempered
Glass.
Custom made SS 304 Louver
patches on axial bearing
connection to Delrin routed
gears.
Narayan Raju Residence - CNC ROUTED CORIAN
SYNCHRO LOUVERS
Bangalore, INDIA.
Architect:
Klimart
SYNCHRO - KINETIC
CUSTOM ROUTED DuPont
DELRIN GEARS

3. I
N
S
T
A
L
L
A
T
I
O
N
A
R
T
TAMARAI TECH PARK, TEC RECEPTION.
Chennai, INDIA. Architect: atelier
SOLID WORKS MODELLING
CNC PROFILE CUT,
STACKED CARDBOARD
3D FEATURE WALL:
We took a simple
recycled packaging
material & used it in an
extremely complex way......
Jute & Coir Rope
reinforced; 20,000 CNC
cut corrugated cardboard
profiles stacked to form a
3D feature wall.

4. E
X
H
I
B
I
T
I
O
N
K
O
L
K
A
T
A
Le Corbusier
“…the details and the whole are one…”

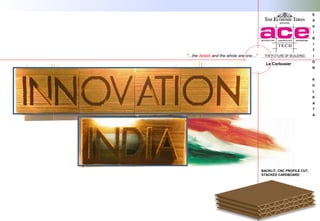

BACKLIT, CNC PROFILE CUT,
STACKED CARDBOARD

5. E
X
H
I
B
I
T
I
O
N
K
O
L
K
A
T
A
e n g i n e e r e d a r t

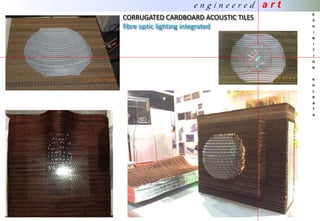

CORRUGATED CARDBOARD ACOUSTIC TILES
fibre optic lighting integrated

6. I
N
S
T
A
L
L
A
T
I
O
N
A
R
T

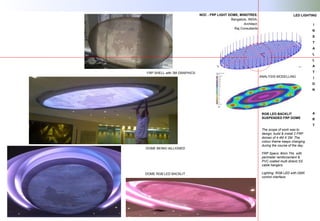

RGB LED BACKLIT
SUSPENDED FRP DOME
The scope of work was to
design, build & install 2 FRP
domes of 4.4M X 2M. The
colour theme keeps changing
during the course of the day.
FRP Specs: 8mm Thk. with
perimeter reinforcement &
PVC coated multi strand SS
cable hangers.
Lighting: RGB LED with DMX
control interface.
NOC - FRP LIGHT DOME, MINDTREE.
Bangalore, INDIA.
Architect:
Raj Consultants
FRP SHELL with 3M GRAPHICS
LED LIGHTING
DOME BEING IALLIGNED
DOME RGB LED BACKLIT
ANALYSIS MODELLING

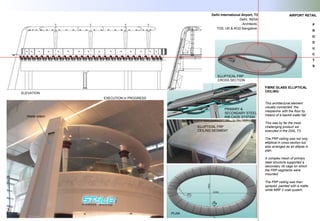

7. FIBRE GLASS ELLIPTICAL
CEILING:
This architectural element
visually connected the
mezzanine with the floor by
means of a backlit water fall.
This was by far the most
challenging product we
executed in the DIAL T3.
The FRP ceiling was not only
elliptical in cross section but
also arranged as an ellipse in
plan.
A complex mesh of primary
steel structure supported a
secondary rib cage on which
the FRP segments were
mounted.
The FRP ceiling was then
sprayed painted with a matte
white MRF 2 coat system.
PLAN
ELEVATION
Water totem
ELLIPTICAL FRP
CROSS SECTION
ELLIPTICAL FRP
CEILING SEGMENT
PRIMARY &
SECONDARY STEEL
RIB CAGE SYSTEM
EXECUTION in PROGRESS
Delhi International Airport, T3
Delhi, INDIA
Architects:
TDS, UK & KGD Bangalore.
AIRPORT RETAIL
P
R
O
D
U
C
T
S

8. I
N
S
T
A
L
L
A
T
I
O
N
A
R
T

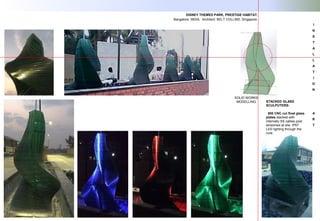

DISNEY THEMED PARK, PRESTIGE HABITAT.
Bangalore, INDIA. Architect: BELT COLLINS, Singapore.
SOLID WORKS
MODELLING STACKED GLASS
SCULPUTERS:
850 CNC cut float glass
plates stacked with
internally SS cables post
tensioned at site. IP67
LED lighting through the
core.

9. I
N
S
T
A
L
L
A
T
I
O
N
A
R
T

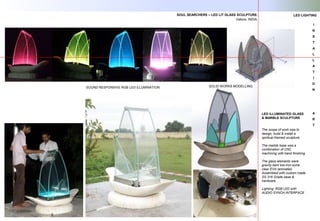

LED ILLUMINATED GLASS
& MARBLE SCULPTURE
The scope of work was to
design, build & install a
spiritual themed sculpture.
The marble base was a
combination of CNC
machining with hand finishing.
The glass elements were
gravity bent low-iron extra
clear EVA laminated.
Assembled with custom made
SS 316 Grade base &
hardware.
Lighting: RGB LED with
AUDIO SYNCH INTERFACE
SOUL SEARCHERS – LED LIT GLASS SCULPTURE.
Vellore, INDIA.
SOUND RESPONSIVE RGB LED ILLUMINATION
LED LIGHTING
SOLID WORKS MODELLING

10. I
N
S
T
A
L
L
A
T
I
O
N
A
R
T

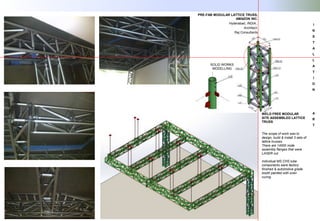

WELD FREE MODULAR
SITE ASSEMBLED LATTICE
TRUSS
The scope of work was to
design, build & install 3 sets of
lattice trusses.
There are 14000 node
assembly flanges that were
LASER cut.
Individual MS CHS tube
components were factory
finished & automotive grade
booth painted with oven
curing.
PRE-FAB MODULAR LATTICE TRUSS,
AMAZON INC.
Hyderabad, INDIA..
Architect:
Raj Consultants
SOLID WORKS
MODELLING

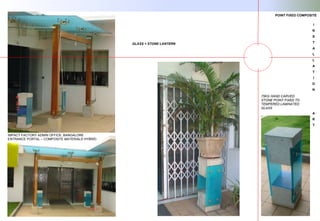

11. SKYLIGHTS & CANOPIES
IMPACT FACTORY ADMIN OFFICE, BANGALORE
ENTRANCE PORTAL – COMPOSITE MATERIALS HYBRID.
POINT FIXED COMPOSITE
75KG HAND CARVED
STONE POINT FIXED TO
TEMPERED LAMINATED
GLASS
I
N
S
T
A
L
L
A
T
I
O
N
A
R
T
GLASS + STONE LANTERN

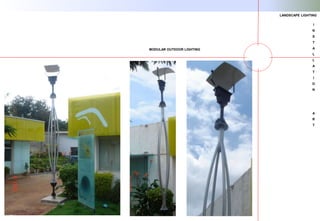

12. SKYLIGHTS & CANOPIES
MODULAR OUTDOOR LIGHTING
I
N
S
T
A
L
L
A
T
I
O
N
A
R
T
LANDSCAPE LIGHTING

13. SKYLIGHTS & CANOPIES

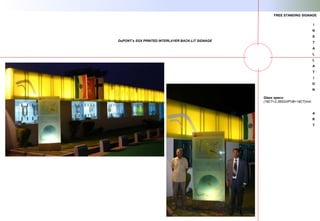

DuPONT’s SGX PRINTED INTERLAYER BACK-LIT SIGNAGE
I
N
S
T
A
L
L
A
T
I
O
N
A
R
T
FREE STANDING SIGNAGE
Glass specs:
(19CT+2.28SGXPVB+19CT)mm

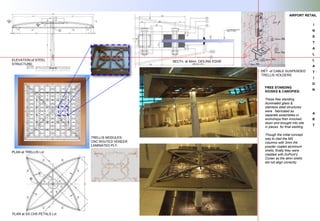

14. FREE STANDING
KIOSKS & CANOPIES:
These free standing
illuminated glass &
stainless steel structures
were fabricated as
separate assemblies in
workshops then knocked
down and brought into site
in pieces for final welding.
Though the initial concept
was to clad the MS
columns with 3mm thk
powder coated aluminum
shells; finally they were
cladded with DuPont’s
Corian as the almn shells
did not align correctly.
TRELLIS MODULES:
CNC ROUTED VENEER
LAMINATED PLY.
ELEVATION of STEEL
STRUCTURE.
PLAN at TRELLIS Lvl.
PLAN at SS CHS PETALS Lvl.
SECTn. at Almn. CEILING EDGE
DET. of CABLE SUSPENDED
TRELLIS HOLDERS
AIRPORT RETAIL
I
N
S
T
A
L
L
A
T
I
O
N
A
R
T

15. Delhi International Airport, T3
Delhi, INDIA
Architects:
TDS, UK & KGD Bangalore.
AS EXECUTED

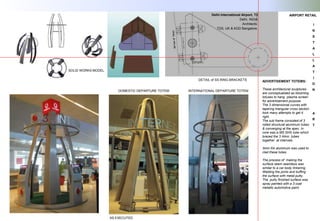

DETAIL of SS RING BRACKETS ADVERTISEMENT TOTEMS:
These architectural sculptures
are conceptualized as blooming
lotuses to hang plasma screen
for advertisement purpose.
The 3 dimensional curves with
tapering triangular cross section
took many attempts to get it
right.
The sub frame consisted of 3
rolled structural aluminum tubes
& converging at the apex. In
core was a MS SHS tube which
braced the 3 Almn. tubes
together at intervals.
3mm thk aluminum was used to
clad these tubes
The process of making the
surface seem seamless was
similar to a car body tinkering.
Welding the joints and buffing
the surface with metal putty.
The putty finished surface was
spray painted with a 3 coat
metallic automotive paint.
SOLID WORKS MODEL
DOMESTIC DEPARTURE TOTEM INTERNATIONAL DEPARTURE TOTEM
AIRPORT RETAIL
I
N
S
T
A
L
L
A
T
I
O
N
A
R
T

16. I
N
S
T
A
L
L
A
T
I
O
N
A
R
T

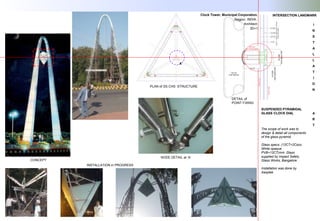

SUSPENDED PYRAMIDAL
GLASS CLOCK DIAL
The scope of work was to
design & detail all components
of the glass pyramid.
Glass specs: (12CT+2Coco
White opaque
PVB+12CT)mm. Glass
supplied by Impact Safety
Glass Works, Bangalore.
Installation was done by
Aasptek.
DETAIL of
POINT FIXING
Clock Tower, Municipal Corporation.
Nagpur, INDIA..
Architect:
3D+1
PLAN of SS CHS STRUCTURE
NODE DETAIL at ‘A’
A
INSTALLATION in PROGRESS
CONCEPT
INTERSECTION LANDMARK

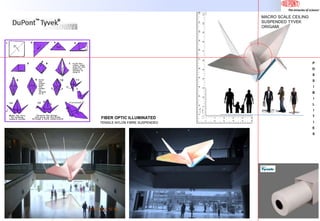

17. MACRO SCALE CEILING
SUSPENDED TYVEK
ORIGAMI
P
O
S
S
I
B
I
L
I
T
I
E
S
FIBER OPTIC ILLUMINATED
TENSILE NYLON FIBRE SUSPENDED

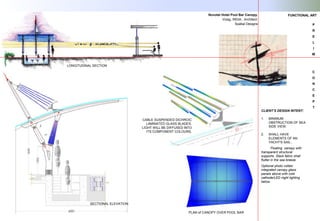

18. CLIENT’S DESIGN INTENT:
1. MINIMUM
OBSTRUCTION OF SEA
SIDE VIEW.
2. SHALL HAVE
ELEMENTS OF AN
YACHT'S SAIL..
Floating canopy with
transparent structural
supports. Slack fabric shall
flutter in the sea breeze.
Optional photo voltaic
integrated canopy glass
panels above with cold
cathode/LED night lighting
below.
Novotel Hotel Pool Bar Canopy.
Vizag, INDIA.. Architect:
Spatial Designs
SECTIONAL ELEVATION
PLAN of CANOPY OVER POOL BAR
LONGITUDINAL SECTION
CABLE SUSPENDED DICHROIC
LAMINATED GLASS BLADES.
LIGHT WILL BE DIFFUSED INTO
ITS COMPONENT COLOURS.
P
R
E
L
I
M
C
O
N
C
E
P
T
FUNCTIONAL ART

19. CONCEPT SKETCH
SGP IONOPLAST
INTERLAYER LAMINATED
COMPRESSION FINS
OPTICAL
CHARACTERISTICS
OF DICHROIC
GLASS
INSTALLATION ART WITH
TENSILE CABLE SUSPENDED
DICHROIC GLASS BLADES.
Image Courtesy Ed Carpenter
CABLE SUSPENDED DICHROIC
LAMINATED GLASS BLADES.
LIGHT WILL BE DIFFUSED INTO
ITS COMPONENT COLOURS.
BUILT UP PROFILED
MS STRUCTURE WITH
ANTI CORROSIVE
TREATMENT
P
R
E
L
I
M
C
O
N
C
E
P
T
FUNCTIONAL ARTNovotel Hotel Pool Bar Canopy.

20. K
I
N
E
T
I
C
S
C
U
L
P
T
U
R
E

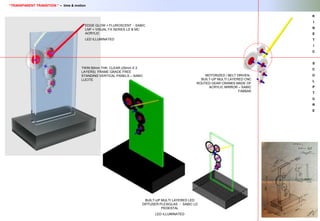

“TRANSPARENT TRANSITION ” – time & motion
MOTORIZED / BELT DRIVEN ;
BUILT-UP MULTI LAYERED CNC
ROUTED GEAR CRANKS MADE OF
ACRYLIC MIRROR – SABIC
FABBAK
BUILT-UP MULTI LAYERED LED
DIFFUSER PLEXIGLAS - SABIC LD
PEDESTAL
LED ILLUMINATED
TWIN 50mm THK. CLEAR (25mm X 2
LAYERS) FRAME GRADE FREE
STANDING VERTICAL PANELS – SABIC
LUCITE
EDGE GLOW + FLUROSCENT - SABIC
LNP + VISUAL FX SERIES LD & MC
ACRYLIC
LED ILLUMINATED

21. P
R
E
L
I
M
C
O
N
C
E
P
T

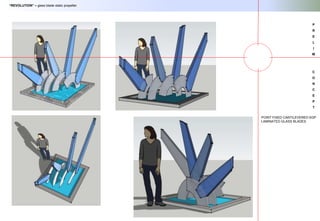

“REVOLUTION” – glass blade static propeller
POINT FIXED CANTILEVERED SGP
LAMINATED GLASS BLADES

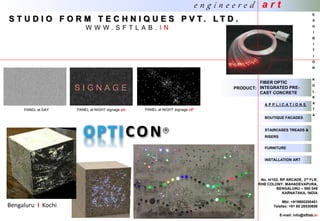

22. A P P L I C A T I O N S
BOUTIQUE FACADES
INSTALLATION ART
STAIRCASES TREADS &
RISERS
FURNITURE
FIBER OPTIC
INTEGRATED PRE-
CAST CONCRETE
No. H/102, RP ARCADE, 3rd FLR.
RHB COLONY, MAHADEVAPURA,
BENGALURU – 560 048
KARNATAKA, INDIA
Mbl: +919900200451
Telefax: +91 80 28530698
E-mail: info@sftlab.in
CON
Bengaluru I Kochi
PANEL at DAY PANEL at NIGHT signage on PANEL at NIGHT signage off
PRODUCT:
S T U D I O F O R M T E C H N I Q U E S P V T . L T D .
W W W . S F T L A B . I N
e n g i n e e r e d a r t
E
X
H
I
B
I
T
I
O
N
K
O
L
K
A
T
A

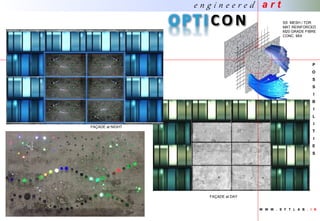

23. P
O
S
S
I
B
I
L
I
T
I
E
S
FAÇADE at NIGHT
FAÇADE at DAY
SS MESH / TOR
MAT REINFORCED
M20 GRADE FIBRE
CONC. MIX
W W W . S F T L A B . I N
e n g i n e e r e d a r t

24. P
O
S
S
I
B
I
L
I
T
I
E
S

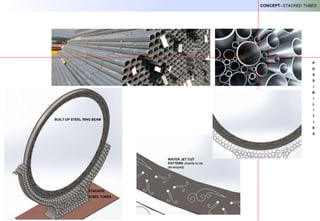

CONCEPT–STACKED TUBES
WATER JET CUT
PATTERN (theme to be
developed)
BUILT-UP STEEL RING BEAM
STACKED
STEEL TUBES

25. P
O
S
S
I
B
I
L
I
T
I
E
S

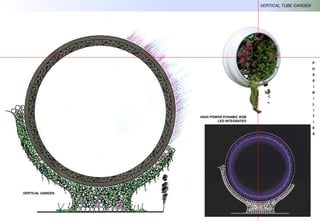

VERTICAL TUBE GARDEN
HIGH POWER DYNAMIC RGB
LED INTEGRATED
VERTICAL GARDEN

26. P
O
S
S
I
B
I
L
I
T
I
E
S

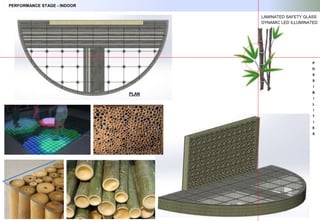

PLAN
PERFORMANCE STAGE - INDOOR
LAMINATED SAFETY GLASS
DYNAMIC LED ILLUMINATED

27. P
R
E
L
I
M
C
O
N
C
E
P
T
S
K
E
T
C
H
E
S

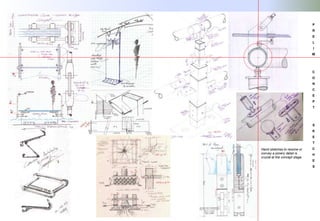

Hand sketches to resolve or
convey a joinery detail is
crucial at the concept stage.
.

28. QUALIFICATION: B. Arch - 1998 (Bachelor of Architecture, MIT Manipal, Mangalore University, India)
CAREER TIME LINE: 2000 – 2007 Consulting Architect to Impact Safety Glass Works, (Industrial Architecture.)
Parallel Practice of Architecture + Glass Engineering
2003 – 2007 Impact Design Cell (Glass Engineering Contracts Division) Design Director
Application Architect (consultant) to DuPont India, Solid Surfaces.
2008 – 2011 Permasteelisa India Pvt Ltd. Design Manager for Special Works,
2011 – Studio Form Techniques Pvt. Ltd. Founder & Managing Director.
REFERENCES: Phil Davis – DuPont, Australia. Dr. Rajam Sankaran – CSIRO, Australia.
Samy Hanna Helmy – Global Tech Design, Singapore.
Ar. Venkatramanan Snr. (Founder VA Architects, Bangalore.)
Thomas Henriksen - Director Design & Research Seele, Austria
EXPERIENCE: With an overall 15 years of experience in engineered glass design & turnkey contracting,
understanding working with various other composite materials & fabrication methods is not a
challenge.
VISION: Innovative approach to provide design solution & integrating emerging technology.
MISSION: To be the market leaders in the customized architectural products segment & steer the
company as a corporate entity that will take “innovation India” to the rest of the world.
FOUNDER & MANAGING DIRECTOR: UTTARAN BAIDYA RAY
P
R
O
F
I
L
E

29. QUALIFICATION: DE. Civil - 2006 ( Diploma in Civil Engineering, Achary Institute, Bangalore, India)
CAREER TIME LINE: 2006 – 2008 Design Engineer to Studio Ray Synthesis, ( Architectural Firm )
2008 – 2011 Permasteelisa India Pvt Ltd. Design Engg & Projects Coordinator for Special Works.
2011 – 2013 DORMA India Pvt Ltd. Consultant - Senior Engineer Products Marketing.
2011 – Studio Form Techniques Pvt. Ltd. Co-Founder & Director
Installation Art: Design & Build.
Complex Façade: Design, Engineering & Execution
REFERENCES: Dr. Kedar Nath Baidya IFS - Ex. Chief Conservator of Forests (Karnataka).
EXPERIENCE: With an overall 9 years of experience in design and execution of glass facade, Also have
experience working with different material. Also having experience in sales, marketing & business
development in the glass & hardware Industry.
VISION: Research & development of new products.
MISSION: To be the market leader as a solution provider of “never done before” projects.
CO-FOUNDER & DIRECTOR: DIPAYAN MAJUMDER
P
R
O
F
I
L
E
