In this session, you will learn: 1. Deployment Descriptor 2. Configuring and Mapping a Servlet 3. The flow of the demo web apps 4. JDBC Best practices 5. Design Patterns

1. Java & JEE Training
Session 34 – Design Patterns, JDBC Best Practices

2. Page 1Classification: Restricted
Agenda
• Deployment Descripter
• Configuring and Mapping a Servlet
• The flow of the demo web apps
• JDBC Best practices
• Design Patterns

3. Page 2Classification: Restricted
Quick review of previous session…
• Session management using Servlet technology
• Cookies
• Hidden Form Fields
• URL rewriting
• HttpSession (Preferred)

4. Page 3Classification: Restricted
What we covered till now in Servlets…
• Servlet API – GenericServlet and HttpServlet
• Servlet LifeCycle
• Servlet Collaboration using response.sendRedirect()
• Forwarding and Including using RequestDispatcher
• Parameters and Attributes
• Session Tracking / Session Management

5. Deployment Descriptor
– A detailed look

6. Page 5Classification: Restricted
Configuring and Mapping a Servlet
<?xml version="1.0" encoding="ISO-8859-1"?>
<!DOCTYPE web-app
PUBLIC "-//Sun Microsystems, Inc.//DTD Web Application 2.3//EN"
"http://java.sun.com/dtd/web-app_2_3.dtd">
<web-app>
<servlet>
<servlet-name>helloServlet</servlet-name>
<servlet-class>mypackage.ControlServlet</servlet-class>
</servlet>
<servlet-mapping>
<servlet-name>helloServlet</servlet-name>
<url-pattern>*.html</url-pattern>
</servlet-mapping>
</web-app>
Examples of URL patterns:
Xyz.htm
/Hello
/Hello.do

7. Page 6Classification: Restricted

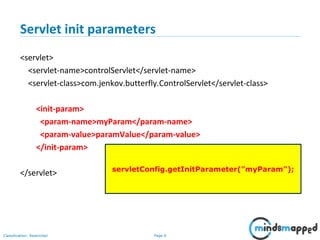

Servlet init parameters
<servlet>
<servlet-name>controlServlet</servlet-name>
<servlet-class>com.jenkov.butterfly.ControlServlet</servlet-class>
<init-param>
<param-name>myParam</param-name>
<param-value>paramValue</param-value>
</init-param>
</servlet> servletConfig.getInitParameter("myParam");

8. Page 7Classification: Restricted
Servlet load-on-startup
<servlet>
<servlet-name>controlServlet</servlet-name>
<servlet-class>com.jenkov.webui.ControlServlet</servlet-class>
<init-param><param-name>container.script.static</param-name>
<param-value>/WEB-INF/container.script</param-value>
</init-param>
<load-on-startup>1</load-on-startup>
</servlet>
• If not specified OR if values is negative, it is left to the container and it can
load when it wants. Typically it loads on first request to the servlet.
• used to control when the servlet container should load the servlet. If set, it
loads the servlet as soon as the container starts.
• Lower numbers are loaded first.

9. Page 8Classification: Restricted

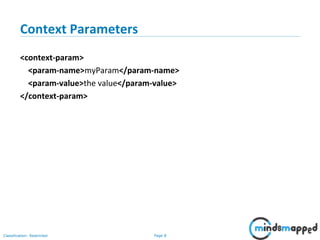

Context Parameters
<context-param>
<param-name>myParam</param-name>
<param-value>the value</param-value>
</context-param>

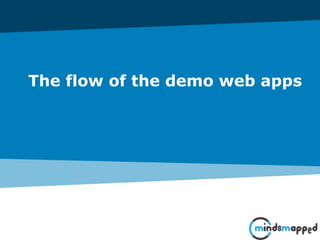

10. The flow of the demo web apps

11. Page 10Classification: Restricted
Flow of the demo app
CLIENT SERVER
/index.html
Sends back index.html (HTML
Code downloaded)
/Login
Login successful HTML
+ session id
/MoreInfo with parameters +
Session ID
Page with more information
/Logout
Page with Logout Success
Message

12. JDBC Best Practices

13. Page 12Classification: Restricted
Best Practice # 1
Use PreparedStatement
• Why?
• Prevents SQL Injection attacks.
• How?
• SQL Queries and precompiled, and bind variables are used.

14. Page 13Classification: Restricted
Best Practice # 2
Use Connection Pooling
• Why?
• Creating JDBC Connection takes relatively longer time, thus increasing
overall response time.
• How?
• Cache JDBC Connection in pool application and reuse the connection from
the pool.

15. Page 14Classification: Restricted
Best Practice # 3
Use JDBC Batch Update
• Why?
• Reduces number of database roundtrip which result in significant
performance gain for insertion and update queries.
• How?
• JDBC API provides addBatch() method to add SQL queries into batch and
executeBatch() to send batch queries for execution.

16. Page 15Classification: Restricted

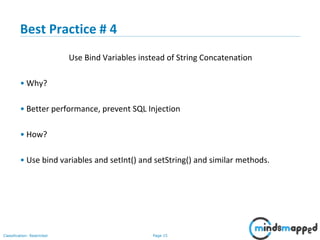

Best Practice # 4
Use Bind Variables instead of String Concatenation
• Why?
• Better performance, prevent SQL Injection
• How?
• Use bind variables and setInt() and setString() and similar methods.

17. Page 16Classification: Restricted
Best Practice # 5
Always close Statement, PreparedStatement and Connection.
• Why?
• JDBC Connection and other classes are costly resources.
• How?
• Close all resources in finally block.

18. Page 17Classification: Restricted

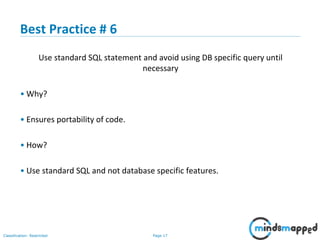

Best Practice # 6
Use standard SQL statement and avoid using DB specific query until
necessary
• Why?
• Ensures portability of code.
• How?
• Use standard SQL and not database specific features.

19. Page 18Classification: Restricted
Best Practice # 7
Use Appropriate Design Patterns
• Why?
• Ensures maintainability of code.
• How?
• Use Factory pattern to create Connections or get connections from the
pool. Use DAO pattern for database access logic. Use Value Object to
return records from the DB.

20. Page 19Classification: Restricted
Best Practice # 8
Separate Service Layer from Database Access (DAO) Layer
• Why?
• Ensures separation of concerns, enhances usability and modularity of the
code. Easier to maintain transactions.
• How?
• Separate the DAO classes from the service classes. Use the service classes
to implement transactions.

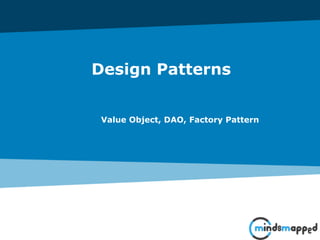

21. Design Patterns
Value Object, DAO, Factory Pattern

22. Page 21Classification: Restricted

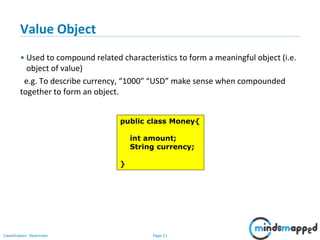

Value Object
• Used to compound related characteristics to form a meaningful object (i.e.
object of value)
e.g. To describe currency, “1000” “USD” make sense when compounded
together to form an object.
public class Money{
int amount;
String currency;
}

23. Page 22Classification: Restricted
Data Access Object
Value Object
in DAO
pattern

24. Page 23Classification: Restricted
Factory pattern

25. Page 24Classification: Restricted
Design Pattern Exercise
• Exercise: Create a class that can be instantiated
• max of 5 times.
• Max once.

26. Page 25Classification: Restricted
Topics to be covered in next session
• Design Patterns
• Flow of the Demo App
• Value objects
• Data Access object
• Factory pattern

27. Page 26Classification: Restricted

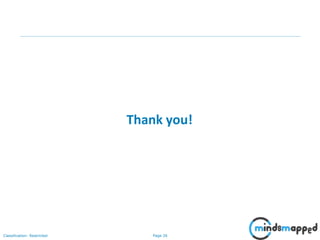

Thank you!
