1. Modular Servers: UCS M-Series 3
52. Blade Servers: UCS B-Series and Options
83. Rack Servers: UCS C-Series and Options
4. UCS Server and Systems Management Software 11
145. UCS Fabric Interconnects and Fabric Extenders
176. Server Adapters: Cisco UCS Server I/O,
Storage Accelerators, and GPUs
207. Rack and Power Infrastructure
SUNMEDIA Corporation

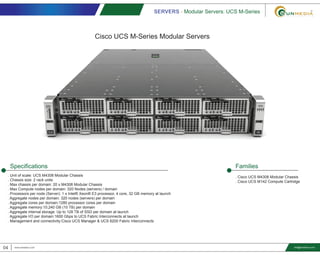

SERVERS - Modular Servers: UCS M-Series
www.smediavn.com
1MODULAR SERVERS
UCS M - SERIES
SUNMEDIA
TECHNOLOGY
actionINNOVATION
is
in
human

04 www.smediavn.com
. Cisco UCS M4308 Modular Chassis
. Cisco UCS M142 Compute Cartridge
FamiliesSpecifications
info@smediavn.com
. Unit of scale: UCS M4308 Modular Chassis
. Chassis size: 2 rack units
. Max chassis per domain: 20 x M4308 Modular Chassis
. Max Compute nodes per domain: 320 Nodes (servers) / domain
. Processors per node (Server): 1 x Intel® Xeon® E3 processor, 4 core, 32 GB memory at launch
. Aggregate nodes per domain: 320 nodes (servers) per domain
. Aggregate cores per domain:1280 processor cores per domain
. Aggregate memory:10,240 GB (10 TB) per domain
. Aggregate internal storage: Up to 128 TB of SSD per domain at launch
. Aggregate I/O per domain:1600 Gbps to UCS Fabric Interconnects at launch
. Management and connectivity:Cisco UCS Manager & UCS 6200 Fabric Interconnects
Cisco UCS M-Series Modular Servers

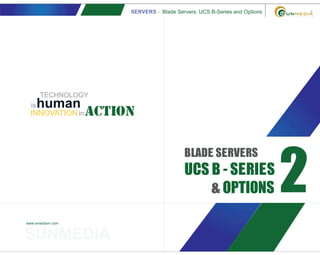

SERVERS - Blade Servers: UCS B-Series and Options
www.smediavn.com
2
BLADE SERVERS
UCS B - SERIES
& OPTIONS
SUNMEDIA
TECHNOLOGY
actionINNOVATION
is
in
human

Cisco UCS 5100 Series Blade Server Chassis
06 www.smediavn.com
. Cisco UCS B460 M4 Blade Server
. Cisco UCS B440 M2 High-Performance Blade Server
Families
Features
info@smediavn.com
. Increase server performance, flexibility, and scale for virtualized and non-virtualized applications
. Deploy server applications faster and manage connectivity as needed
. Get server memory and I/O capacity to meet every need
. Reduce the number of adapters, cables, and access-layer switches needed for server LAN and
SAN connectivity
Cisco UCS B-Series Blade Servers
Cisco UCS B
Series Blade Virtual Interface Cards
(VICs): 1240, 1280 & 1340, 1380Features
The Cisco UCS 5108 Blade Server Chassis
. Six rack units (6RU) high
. An mount in an industry-standard 19-inch rack
. Uses standard front-to-back cooling
. A chassis can accommodate up to eight half-width, or four full-width Cisco
UCS B-Series Blade Servers form factors within the same chassis.
Features
. Deliver up to 80 Gbps aggregate server bandwidth
. Simplify with SingleConnect: one connection for LAN, SAN, and systems management
. Help ensure policy adherence and consistent network visibility, down to the individual
vNIC
. Reduce TCO by consolidating NICs, HBAs, cables, and switches
. Collapse networking infrastructure using Cisco Virtual Machine Fabric Extender
(VM-FEX)

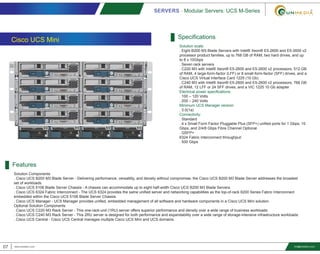

Cisco UCS Mini
Features
Solution Components
. Cisco UCS B200 M3 Blade Server - Delivering performance, versatility, and density without compromise, the Cisco UCS B200 M3 Blade Server addresses the broadest
set of workloads.
. Cisco UCS 5108 Blade Server Chassis - A chassis can accommodate up to eight half-width Cisco UCS B200 M3 Blade Servers.
. Cisco UCS 6324 Fabric Interconnect - The UCS 6324 provides the same unified server and networking capabilities as the top-of-rack 6200 Series Fabric Interconnect
embedded within the Cisco UCS 5108 Blade Server Chassis.
. Cisco UCS Manager - UCS Manager provides unified, embedded management of all software and hardware components in a Cisco UCS Mini solution.
Optional Solution Components
. Cisco UCS C220 M3 Rack Server - This one-rack-unit (1RU) server offers superior performance and density over a wide range of business workloads.
. Cisco UCS C240 M3 Rack Server - This 2RU server is designed for both performance and expandability over a wide range of storage-intensive infrastructure workloads.
. Cisco UCS Central - Cisco UCS Central manages multiple Cisco UCS Mini and UCS domains.
Specifications
Solution scale:
. Eight B200 M3 Blade Servers with Intel® Xeon® E5-2600 and E5-2600 v2
processor product families, up to 768 GB of RAM, two hard drives, and up
to 8 x 10Gbps
. Seven rack servers
. C220 M3 with Intel® Xeon® E5-2600 and E5-2600 v2 processors, 512 GB
of RAM, 4 large-form-factor (LFF) or 8 small-form-factor (SFF) drives, and a
Cisco UCS Virtual Interface Card 1225 (10 Gb)
. C240 M3 with Intel® Xeon® E5-2600 and E5-2600 v2 processors, 768 GB
of RAM, 12 LFF or 24 SFF drives, and a VIC 1225 10 Gb adapter
Electrical power specifications:
. 100 – 120 Volts
. 200 – 240 Volts
Minimum UCS Manager version:
. 3.0(1a)
Connectivity:
. Standard
. 4 x Small Form Factor Pluggable Plus (SFP+) unified ports for 1 Gbps, 10
Gbps, and 2/4/8 Gbps Fibre Channel Optional
. QSFP+
6324 Fabric Interconnect throughput:
. 500 Gbps
07 www.smediavn.com info@smediavn.com

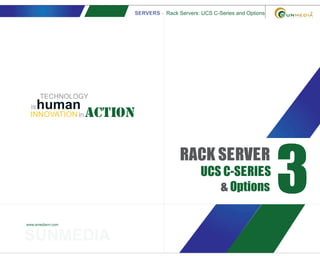

SERVERS - Rack Servers: UCS C-Series and Options
www.smediavn.com
3
RACK SERVER
UCS C-SERIES
& Options
SUNMEDIA
TECHNOLOGY
actionINNOVATION
is
in
human

09 www.smediavn.com
. Enterprise-class redundancy with full featured Redundant Array of
Independent Disks (RAID) plus Just a Bunch of Disks (JBOD)
. Standalone management interface (Cisco Integrated Management
Controller)
. No data migration required when replacing or upgrading server nodes
. No need for extended depth racks
FeaturesSpecifications
info@smediavn.com
. High-density, bare-metal, x86-based enterprise storage server
. Supports up to 360 TB of modular storage capacity
. Optimized for high throughput performance, high capacity, and small footprint
. Enterprise-class redundancy with full featured RAID plus JBOD
. Standalone management interface (CIMC)
. Up to 256 GB of memory
. Up to 62 drive bays
. Up to 4 GB of RAID cache

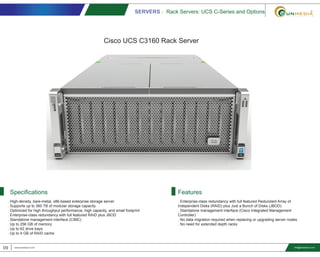

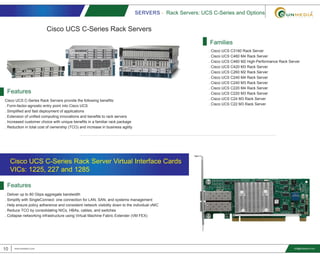

Cisco UCS C3160 Rack Server

10 www.smediavn.com
. Cisco UCS C3160 Rack Server
. Cisco UCS C460 M4 Rack Server
. Cisco UCS C460 M2 High-Performance Rack Server
Families
info@smediavn.com
Cisco UCS C-Series Rack Servers
Features
Cisco UCS C-Series Rack Servers provide the following benefits:
. Form-factor-agnostic entry point into Cisco UCS
. Simplified and fast deployment of applications
. Extension of unified computing innovations and benefits to rack servers
. Increased customer choice with unique benefits in a familiar rack package
. Reduction in total cost of ownership (TCO) and increase in business agility
Features
. Deliver up to 80 Gbps aggregate bandwidth
. Help ensure policy adherence and consistent network visibility down to the individual vNIC
. Collapse networking infrastructure using Virtual Machine Fabric Extender (VM FEX)
Cisco UCS C-Series Rack Server Virtual Interface Cards
VICs: 1225, 227 and 1285

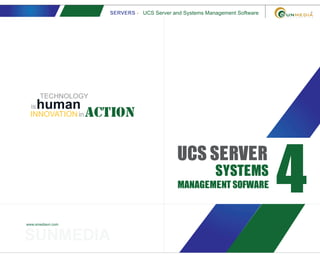

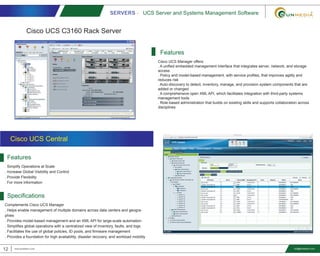

SERVERS - UCS Server and Systems Management Software
www.smediavn.com
4
UCS SERVER
SYSTEMS
MANAGEMENT SOFWARE
SUNMEDIA
TECHNOLOGY
actionINNOVATION
is
in
human

Features
. Simplify Operations at Scale
. Increase Global Visibility and Control
. Provide Flexibility
. For more information
Specifications
Complements Cisco UCS Manager
. Helps enable management of multiple domains across data centers and geogra-
phies
. Provides model-based management and an XML API for large-scale automation
. Simplifies global operations with a centralized view of inventory, faults, and logs
. Facilitates the use of global policies, ID pools, and firmware management
. Provides a foundation for high availability, disaster recovery, and workload mobility
Cisco UCS Central
Cisco UCS Manager offers:
. A unified embedded management interface that integrates server, network, and storage
access
. Policy and model-based management, with service profiles, that improves agility and
reduces risk
. Auto-discovery to detect, inventory, manage, and provision system components that are
added or changed
. A comprehensive open XML API, which facilitates integration with third-party systems
management tools
. Role-based administration that builds on existing skills and supports collaboration across
disciplines
Features
Cisco UCS C3160 Rack Server

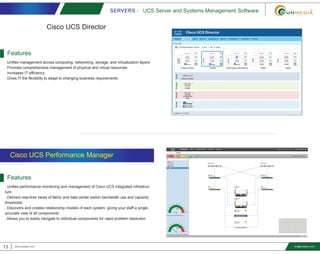

Cisco UCS Director
Features
. Unifies management across computing, networking, storage, and virtualization layers
. Provides comprehensive management of physical and virtual resources
. Increases IT efficiency
. Gives IT the flexibility to adapt to changing business requirements
Features
. Unifies performance monitoring and management of Cisco UCS integrated infrastruc-
ture
. Delivers real-time views of fabric and data center switch bandwidth use and capacity
thresholds
. Discovers and creates relationship models of each system, giving your staff a single,
accurate view of all components
. Allows you to easily navigate to individual components for rapid problem resolution
Cisco UCS Performance Manager

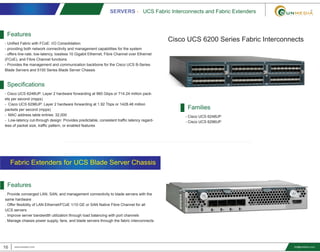

SERVERS - UCS Fabric Interconnects and Fabric Extenders
www.smediavn.com
5
UCS FABRIC
INTERCONNECTS
EXTENDERS
SUNMEDIA
TECHNOLOGY
actionINNOVATION
is
in
human

Features
. Seamless inclusion of UCS rack servers into UCS Manager domain with UCS blade servers
. Connect rack servers to UCS fabric interconnects with a single cable for I/O and management
. Provide converged LAN, SAN, and management connectivity to blade servers with the same hardware
. Deploy the right server and keep management simple by integrating with UCS fabric interconnects and UCS Manager
Specifications
Cisco UCS 6324 Fabric Interconnect:
- Fabric interconnect with 4 unified ports and 1 scalability port
- I/O module for Cisco UCS 5108 chassis
- Server ports: 16 x 10GBASE-KR lanes
- Throughput: 500 Gbps
- Quality-of-service (QoS) hardware queues: 16 (8 each for unicast and multicast)
- Provide the management and communication backbone
- Provide the flexibility to support LAN and storage connectivity for all blades within its
domain at configuration time
- Deliver uniform access to both networks and storage to facilitate a fully virtualized
environment

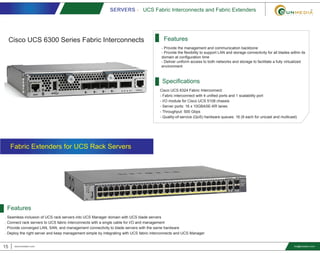

FeaturesCisco UCS 6300 Series Fabric Interconnects
Fabric Extenders for UCS Rack Servers

Cisco UCS 6200 Series Fabric Interconnects
Features
- Unified Fabric with FCoE: I/O Consolidation
- providing both network connectivity and management capabilities for the system
- offers line-rate, low-latency, lossless 10 Gigabit Ethernet, Fibre Channel over Ethernet
(FCoE), and Fibre Channel functions
- Provides the management and communication backbone for the Cisco UCS B-Series
Blade Servers and 5100 Series Blade Server Chassis
Specifications
- Cisco UCS 6248UP: Layer 2 hardware forwarding at 960 Gbps or 714.24 million pack-
ets per second (mpps)
- Cisco UCS 6296UP: Layer 2 hardware forwarding at 1.92 Tbps or 1428.48 million
packets per second (mpps)
- MAC address table entries: 32,000
- Low-latency cut-through design: Provides predictable, consistent traffic latency regard-
less of packet size, traffic pattern, or enabled features
Families
- Cisco UCS 6248UP
- Cisco UCS 6296UP
Features
. Provide converged LAN, SAN, and management connectivity to blade servers with the
same hardware
. Offer flexibility of LAN Ethernet/FCoE 1/10 GE or SAN Native Fibre Channel for all
UCS servers
. Improve server bandwidth utilization through load balancing with port channels
. Manage chassis power supply, fans, and blade servers through the fabric interconnects
Fabric Extenders for UCS Blade Server Chassis

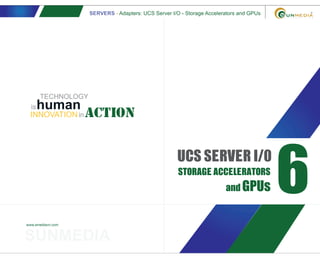

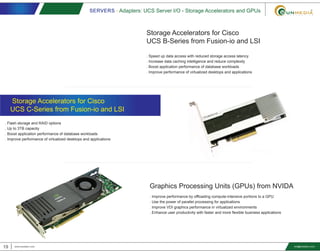

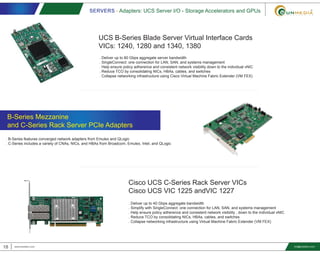

SERVERS - Adapters: UCS Server I/O - Storage Accelerators and GPUs
www.smediavn.com
6
UCS SERVER I/0
STORAGE ACCELERATORS
and GPUs
SUNMEDIA
TECHNOLOGY
actionINNOVATION
is
in
human

. Deliver up to 80 Gbps aggregate server bandwidth
. SingleConnect: one connection for LAN, SAN, and systems management
. Help ensure policy adherence and consistent network visibility down to the individual vNIC
. Collapse networking infrastructure using Cisco Virtual Machine Fabric Extender (VM FEX)
. B-Series features converged network adapters from Emulex and QLogic
. C-Series includes a variety of CNAs, NICs, and HBAs from Broadcom, Emulex, Intel, and QLogic
UCS B-Series Blade Server Virtual Interface Cards
VICs: 1240, 1280 and 1340, 1380
. Deliver up to 40 Gbps aggregate bandwidth
. Help ensure policy adherence and consistent network visibility , down to the individual vNIC
. Collapse networking infrastructure using Virtual Machine Fabric Extender (VM FEX)
Cisco UCS C-Series Rack Server VICs
Cisco UCS VIC 1225 andVIC 1227
B-Series Mezzanine
and C-Series Rack Server PCIe Adapters

Storage Accelerators for Cisco
UCS B-Series from Fusion-io and LSI
. Speed up data access with reduced storage access latency
. Increase data caching intelligence and reduce complexity
. Boost application performance of database workloads
. Improve performance of virtualized desktops and applications
. Flash storage and RAID options
. Up to 3TB capacity
. Boost application performance of database workloads
. Improve performance of virtualized desktops and applications
Storage Accelerators for Cisco
UCS C-Series from Fusion-io and LSI
Graphics Processing Units (GPUs) from NVIDA
. Improve performance by offloading compute-intensive portions to a GPU
. Use the power of parallel processing for applications
. Improve VDI graphics performance in virtualized environments
. Enhance user productivity with faster and more flexible business applications

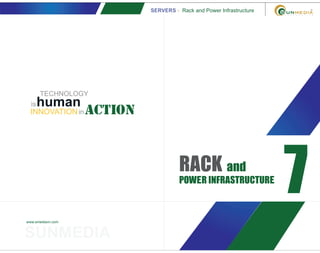

SERVERS - Rack and Power Infrastructure
www.smediavn.com
7RACK and
POWER INFRASTRUCTURE
SUNMEDIA
TECHNOLOGY
actionINNOVATION
is
in
human

. Ideal for mission-critical data center environments
. Delivers reliability, structural integrity, and security
. Delivers exceptional power, cooling, and cable management
. Optimized and certified for use with the Cisco Unified Computing System
. Part of a complete infrastructure solution, including computing, network, rack, power, and services
- Advanced cooling with more than 80 percent perforation on both the front and rear doors
- Advanced cable management
- Added security, with locking front and rear doors and side panels
- Ability to support 2100 pounds of static load
Cisco R42610 Rack
Cisco R Series Racks
Features
Specifications Families

. Ideal for mission-critical data center environments
. Delivers reliability, structural integrity, and security
. Delivers exceptional power, cooling, and cable management
. Optimized and certified for use with the Cisco Unified
Computing System
. Part of a complete infrastructure solution, including comput-
ing, network, rack, power, and services
1. 0RU strip PDU 20 C13 and 4 C19, single-phase, NA, 30A, fixed 3M L6-30P:
- Cisco option part number: RP208-30-1P-U-2
- Cisco field-replaceable unit (FRU) part number: RP208-30-1P-U-2=
- RU size: 0
- Input voltage: 200 to 240 VAC ±10%
- Frequency: 50 to 60 Hz
- Amperage: 30A
- UL rating: 24A
- Input plug: NEMA L6-30P
- Cord length: 3m
- Output voltage: 200 to 240 VAC
- Receptacles: • 20 IEC 320 C13
• 4 IEC 320 C19
- Circuit breakers: 2 two-pole 20A (UL 489)
2. 1RU PDU 2 C13 and 4 C19, single-phase, NA, 30A, fixed 3M L6-30P
- Cisco option part number: RP208-30-1P-U-1
- Cisco field-replaceable unit (FRU) part number: RP208-30-1P-U-1=
- RU size: 0/1
- Input voltage: 200 to 240 VAC ±10%
- Frequency:50 to 60 Hz
- Amperage: 30A
- UL rating: 24A
- Input plug: NEMA L6-30P
- Cord length: 3m
- Output voltage: 200 to 240 VAC
- Receptacles: • 20 IEC 320 C13
• 4 IEC 320 C19
- Circuit breakers: 2 two-pole 20A (UL 489)
1. 0RU strip PDU 20 C13 and 4 C19, single-phase, NA, 30A, fixed 3M L6-30P
2. 1RU PDU 2 C13 and 4 C19, single-phase, NA, 30A, fixed 3M L6-30P
Features
Specifications
Families
Cisco RP Series Power Distribution Units

ontact
with usC
SUNMEDIA Corporation
Ho Chi Minh Office
Floor 8, Pax Sky Building, 34A Pham Ngoc Thach Str., Ward 6, District 3, HCMC.
Tell: (84.8) 38 246 137 - Fax: (84.8) 38 270 941
Ha Noi Office
No. 02, Alley 26, Vo Van Dung Str., Dong Da Dist., Ha Noi City
Tell: (84.4) 3537 8646 - Fax: (84.4) 3537 8647
Da Nang Office
No. 83 Hoang Dieu Str., Hai Chau Dist., Da Nang City
Tell: (84.511) 356 5906 - Fax: (84.511) 356 5907
Website: www.smediavn.com - Email: marketing@smediavn.com1900-63-64-37HOTLINE:
THE LEADING SUPPLIER OF
SYSTEM INTEGRATION SOLUTIONS IN VIETNAM

Servers Cisco

More Related Content

What's hot

Similar to Servers Cisco

More from Sunmedia Corporation

Recently uploaded

Servers Cisco
