Serge Ferrari - Acoustic & Interior Design

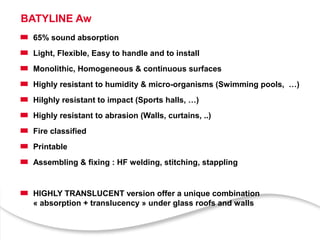

- 2. BATYLINE Aw 65% sound absorption Light, Flexible, Easy to handle and to install Monolithic, Homogeneous & continuous surfaces Highly resistant to humidity & micro-organisms (Swimming pools, …) Hilghly resistant to impact (Sports halls, …) Highly resistant to abrasion (Walls, curtains, ..) Fire classified Printable Assembling & fixing : HF welding, stitching, stappling HIGHLY TRANSLUCENT version offer a unique combination « absorption + translucency » under glass roofs and walls

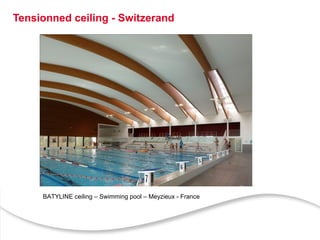

- 3. 3 Tensionned ceiling - Switzerand BATYLINE ceiling – Swimming pool – Meyzieux - France

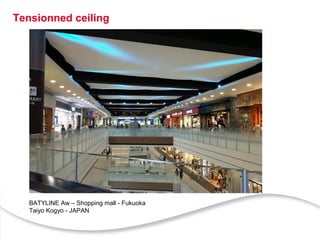

- 4. Tensionned ceiling BATYLINE Aw – Shopping mall - Fukuoka Taiyo Kogyo - JAPAN

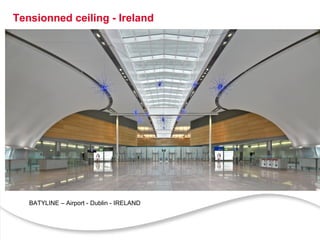

- 5. 5 Tensionned ceiling - Ireland BATYLINE – Airport - Dublin - IRELAND

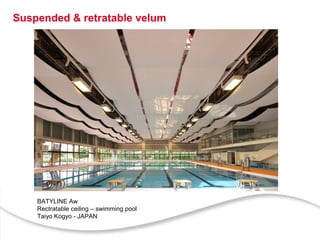

- 6. 6 Suspended & retratable velum BATYLINE Aw Rectratable ceiling – swimming pool Taiyo Kogyo - JAPAN
- 7. Suspended velum BATYLINE Aw ceiling – Junior school Taiyo Kogyo - JAPAN

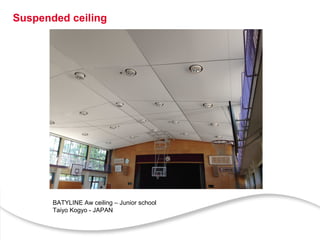

- 8. Suspended ceiling BATYLINE Aw ceiling – Junior school Taiyo Kogyo - JAPAN

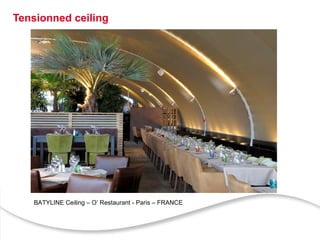

- 9. 9 Tensionned ceiling BATYLINE Ceiling – O’ Restaurant - Paris – FRANCE
- 10. 10 Suspended Baffles BATYLINE ceiling & Baffles – Swimming pool - FRANCE

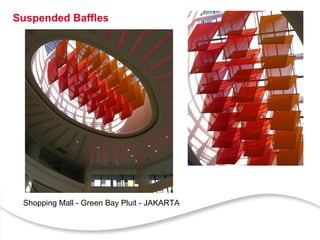

- 11. 11 Suspended Baffles Shopping Mall - Green Bay Pluit - JAKARTA

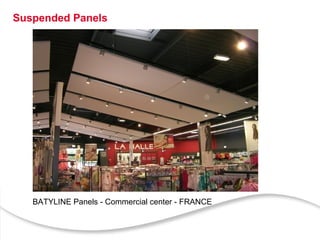

- 13. 13 Suspended Panels BATYLINE Panels - Commercial center - FRANCE

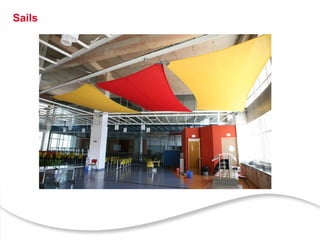

- 16. 16 Sails

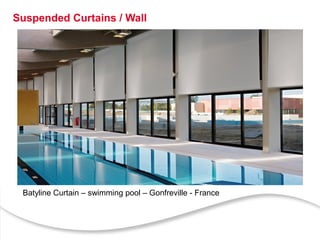

- 19. 19 Suspended Curtains / Wall Batyline Curtain – swimming pool – Gonfreville - France
- 20. Suspended Curtains / Wall Convent Caputxins de catalunya – Pompeia - Spain

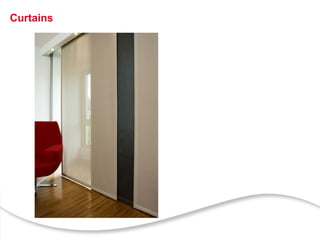

- 21. 21 Curtains

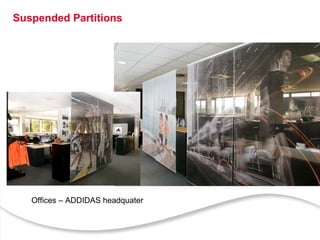

- 23. Suspended Partitions 23 Offices – ADDIDAS headquater

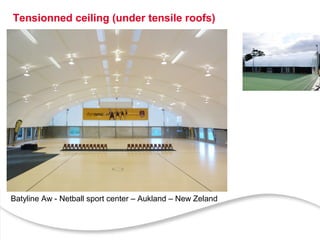

- 24. Tensionned ceiling (under tensile roofs) Batyline Aw - Netball sport center – Aukland – New Zeland
- 25. Printed acoustic panels Printed BATYLINE Aw – Always – KL Malaysia

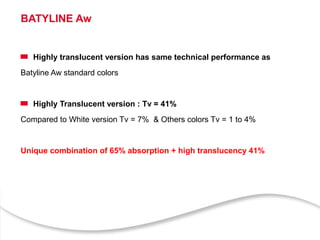

- 27. BATYLINE Aw Highly translucent version has same technical performance as Batyline Aw standard colors Highly Translucent version : Tv = 41% Compared to White version Tv = 7% & Others colors Tv = 1 to 4% Unique combination of 65% absorption + high translucency 41%
- 30. Natural light & acoustic

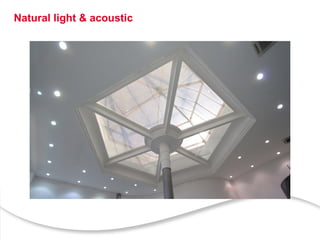

- 31. Natural light & acoustic

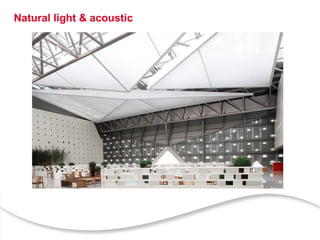

- 32. Natural light & acoustic

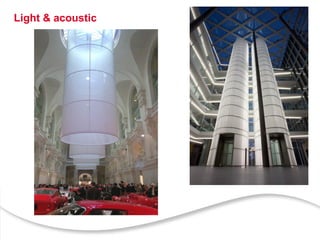

- 33. Light & acoustic

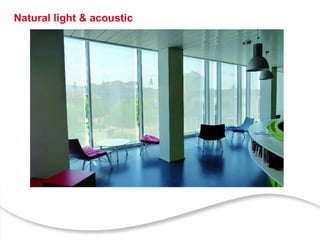

- 34. Natural light & acoustic

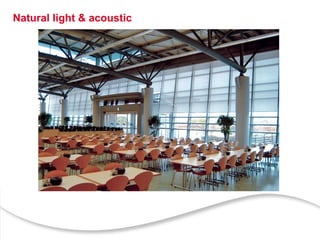

- 35. Natural light & acoustic
- 36. Light & Acoustic

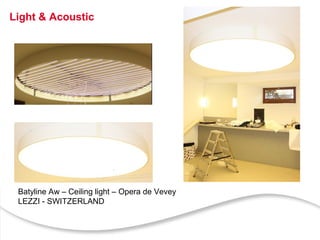

- 37. 37 Batyline Aw – Ceiling light – Opera de Vevey LEZZI - SWITZERLAND Light & Acoustic
- 38. BATYLINE Aw - Bvlgari offices - Luxury Neuchatel – Switzerland - LEZZI (CH) Light & Acoustic

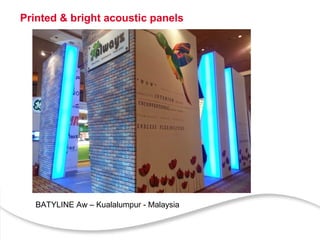

- 39. Printed & bright acoustic panels BATYLINE Aw – Kualalumpur - Malaysia
- 40. BATYLINE Aw – Kualalumpur - Malaysia Printed & bright acoustic panels
Editor's Notes
- Tensionned ceiling are one of the traditional application of BATYLINE and mainly in humid environments like swimming pools were this porduct is particularly resistant to humidity and moisture.
- Tensionned ceiling are also often installed in public building, big halls, theaters, cinemas, ....
- Velums can be an alternative to tensionned ceilings. The product is not tensionned and simply hanged. This simplifiy the system and confection that are minimized. In this project the velum is retractable to keep access to the roof but it can be built static or retractable.
- Some smaller tensionned ceiling are also installed in restaurants, …
- Baffles can also be a good solutions to absorb the sound and protect against solar rays.
- Here is presented an original type of baffles. System and confection are minimized. Acoustic + solar protection.
- Suspended panels is an anoter way to solve reverberation. The dimension of the panels can be adapted to the project.

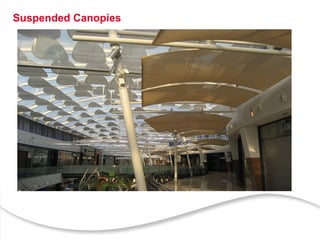

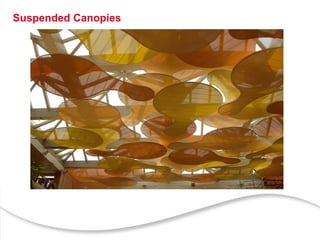

- Supended canopies – various design are possible.
- Acoustic can be treated not only on ceiling but also on the wall. The high resistance of this prodcut to abrasion and impact make it partiucularly adapetd for walls and curtains.
- Static wall curtain. Easy and fast installation. Economic solution because system is minimized. Simply hanged with one profil at top and bottom.
- Static curtains in humid atmosphere. Ideal product for sports halls and swiming pools.
- Movable curtains is a way to solve acoutsic reverberation.
- Batyline Aw can be printed with a very good finla aspect. (see samples availables)
- Batyline Aw can aslo be used as an inner layer in tensile membrane roofs structures. In this project BATYLINE Aw White (Tv 7%) is tensionned under a PRECONTRAINT 1202 S2. Project : NETBALL CENTER in NZ (BAYTEX).
- While most of acoustic absorbant are opak, this BATYLINE highly translucent product offer a unique combination of 65% sound Absorption and 41% light transmission. This product offer the opportunity to both absorb the sound and keep the natural light benefits through window and glass roof.
- The Highly translucent version of BATYLINE Aw is unique solution to provide both sound absorption and light transmission under glass roofs. It’s also a good solar protection.
- Possible to make translucent curtains in front of windows. Easy to install, relatively cheap solution;
- BATYLINE Aw higly translucent can be used in combination with lightings. The light rays shall be oriented parallel to the membrane to avoid seeing the light spot through the product.
- Static curtains covering walls. System and confection are minimized.
