This document provides specifications for Seraphim's SRP-6PB series of solar photovoltaic modules. It includes details on the product warranty, certifications, key features, and electrical and mechanical specifications for modules with power outputs ranging from 265W to 280W. The modules have a 10-year linear power output warranty and 25-year linear power warranty.

1. SRP-6PB SERIES 6 INCH 60 CELLS
265-280W
WARRANTY
INSURANCE
PRODUCT CERTIFICATES
MANAGEMENT SYSTEM
ISO 9001: Quality management system
ISO 14001: Standard for environmental management system
OHSAS 18001: International standard for occupational health and safety assessment
system
info@seraphim-energy.comwww.seraphim-energy.com
linear power
output warranty
Guarantee on product
material and workmanship
10YEARS
25YEARS
SRP-DS-EN-2018V2.0 © Copyright 2018 SeraphimSpecifications are subject to change without further notification
SERAPHIM SOLAR SYSTEM CO., LTD.

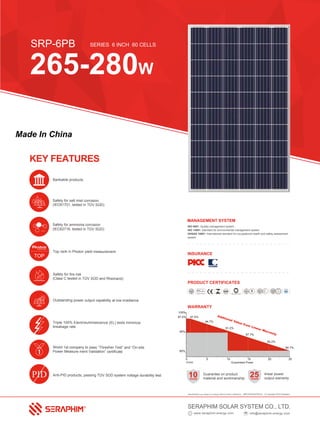

KEY FEATURES
YEARS
Addtional Value from Linear Warranty
Bankable products
Top rank in Photon yield measurement
World 1st company to pass “Thresher Test” and “On-site
Power Measure ment Validation” certificate
Outstanding power output capability at low irradiance
Triple 100% Electroluminescence (EL) tests minimize
breakage rate
Anti-PID products, passing TÜV SÜD system voltage durability test
Safety for ammonia corrosion
(IEC62716, tested in TÜV SÜD)
Safety for fire risk
(Class C tested in TÜV SÜD and Rheinand)
Safety for salt mist corrosion
(IEC61701, tested in TÜV SÜD)
100%
97.5% 97.5%
94.7%
91.2%
87.7%
84.2%
80.7%
90%
80%
0 5 10 15 20 25
Guaranteed Power
Made In China

2. 20’GP
30
12
360
40’GP
30
28
840
1640 x 992 x 35mm
Packing Configuration
NOCT: lrradiance 800 W/m2
ambient temperature 20°C wind speed :1m/s Power measurement tolerance: +/-3%
External Dimension
Container
Pieces per Pallet
Pallets per Container
Pieces per Container
STC: lrradiance 1000 W/m2
module temperature 25°C AM=1.5
Module Type
Maximum Power -Pmp
(W)
Open Circuit Voltage -Voc
(V)
Short Circuit Current -Isc
(A)
Maximum Power Voltage -Vmp
(V)
Maximum Power Current -Imp
(A)
Module Efficiency STC-ηm
(%)
Power Tolerance（W）
Maximum System Voltage (V)
Maximum Series Fuse Rating (A)
Pmax Temperature Coefficient
Voc Temperature Coefficient
Isc Temperature Coefficient
Operating Temperature
Nominal Operating Cell Temperature
Electrical Characteristics
SRP-265-6PB SRP-270-6PB SRP-275-6PB SRP-280-6PB
16.29
STC
265
38.3
8.83
31.1
8.53
NOCT
196
35.3
7.14
29.1
6.74
16.6
STC
270
38.5
8.94
31.3
8.63
NOCT
200
35.5
7.22
29.3
6.83
16.9
STC
275
38.8
9.02
31.6
8.71
NOCT
203
35.7
7.29
29.5
6.88
17.2
STC
280
39.0
9.12
31.8
8.81
NOCT
206
35.9
7.36
29.7
6.94
(0,+4.99)
1000 (TÜV)
15
-0.41%/°C
-0.32 %/°C
+0.05 %/°C
-40~+85 °C
45±2 °C
Curve

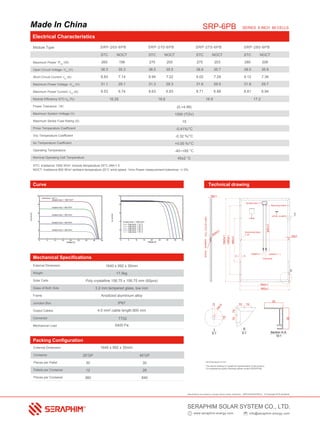

Mechanical Specifications
Technical drawing
External Dimension
Weight
Solar Cells
Glass of Both Side
Frame
Junction Box
Output Cables
Connector
Mechanical Load
1640 x 992 x 35mm
17.5kg
Poly crystalline 156.75 x 156.75 mm (60pcs)
3.2 mm tempered glass, low iron
Anodized aluminium alloy
IP67
4.0 mm2
,cable length:900 mm
5400 Pa
SRP-6PB SERIES 6 INCH 60 CELLS
info@seraphim-energy.comwww.seraphim-energy.com
SRP-DS-EN-2018V2.0 © Copyright 2018 SeraphimSpecifications are subject to change without further notification
SERAPHIM SOLAR SYSTEM CO., LTD.
* All Dimensions in mm
* The above drawing is a graphical representation of the product.
For engineering quality drawings please contact SERAPHIM.
35±1
Ø20±1
CELLCOLORLABEL
942±1
A A
Grounding holes
2×Ø
992±1
1640±1
1360±1
860±1
I
Ⅱ
positive ( + )negative ( - )
Connector
009±1
10±1
SERIALNUMBER
SERIAL NUMBER
SERIAL NUMBER
Mounting holes
Junction Box
Label
I
9
14
R4.5
5:1
70 70
7070
II
2:1 Section A-A
10:1
53
35
0 5 10 15 20 25 30 35 40
Voltage [V]
0
2
4
6
8
10
Current[A]
Incident Irrad. = 1000 W/m²
Cells temp. = 25 °C
Incident Irrad. = 800 W/m²
Incident Irrad. = 600 W/m²
Incident Irrad. = 400 W/m²
Incident Irrad. = 200 W/m²
0 5 10 15 20 25 30 35 40
Voltage [V]
0
2
4
6
8
10
Current[A]
Incident Irrad. = 1000 W/m²
Cells temp. = 10 °C
Cells temp. = 25 °C
Cells temp. = 40 °C
Cells temp. = 55 °C
Cells temp. = 70 °C
