• Is this play Shakespeare’s work?
• Comparing the play to Shakespeare’s known
library of works
• Track words and phases patterns in the data
• Calculate the probability the unknown U
given all the known Shakespeare’s work {S}
• Compare with a threshold θ
• Authentic work (a=1)
• Fake, Forgery or Plagiarism (a=0)
ˆa = sign[P(U|{S}) > ]](https://image.slidesharecdn.com/sensecmobileseclecturejiangzhu-131003132542-phpapp01/85/Guest-Lecture-SenSec-Mobile-Security-through-BehavioMetrics-16-320.jpg)
![17
• A special binary classification problem
• Given a normal BehavioMetrics model Pn, a new behavior text
sequence L, and a threshold θ, calculate the likelihood L is
generated by Pn and compare with θ
• If the outcome is -1, flag an anomaly alert
• Variation caused by noise could be smoothed out statistically
• Need certain feedbacks to handle false positives, usually caused
by unseen behaviors or sub-optimal threshold.
ˆa(L|n, ) = sign[P(L, n) > )]](https://image.slidesharecdn.com/sensecmobileseclecturejiangzhu-131003132542-phpapp01/85/Guest-Lecture-SenSec-Mobile-Security-through-BehavioMetrics-17-320.jpg)
![23
• Accelerometer
• Used to summarize
acceleration stream
• Calculated separately for each
dimension [x,y,z,m]
• Meta features:
Total Time, Window Size
• GPS: location string from Google Map API and mobility path
• WiFi: SSIDs, RSSIs and path
• Applications: Bitmap of well-known applications
• Application Traffic Pattern: TCP UDP traffic pattern vectors:
[ remote host, port, rate ]](https://image.slidesharecdn.com/sensecmobileseclecturejiangzhu-131003132542-phpapp01/85/Guest-Lecture-SenSec-Mobile-Security-through-BehavioMetrics-23-320.jpg)
Uploaded byJiang Zhu
Guest Lecture: SenSec - Mobile Security through BehavioMetrics
This document summarizes research on using mobile sensor data and behavioral biometrics for user authentication and activity recognition. It describes collecting data from accelerometers, GPS, WiFi and applications to build language models of user behavior. Scores are calculated to determine the likelihood a behavior belongs to a user or activity class. Authentication is triggered based on thresholds. The system was tested to identify users from single key presses and detect anomalies with days of training data at 80% accuracy. Future work involves expanded data collection, improved models, integration with security frameworks, and ensuring user privacy.
Guest Lecture: SenSec - Mobile Security through BehavioMetrics
- 1. 1 Jiang Zhu jiang.zhu@sv.cmu.edu September 30th,2013 Collaborators: Ben Draffin, Sean Wang, Pang Wu, Joy Ying Zhang* * In alphabetical order

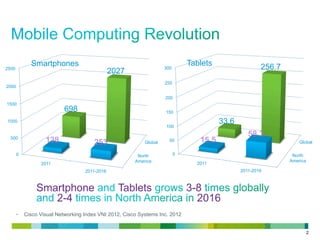

- 2. 2 North America Global 0 50 100 150 200 250 300 2011 2011-2016 15.5 58.3 33.6 256.7Tablets North America Global 0 500 1000 1500 2000 2500 2011 2011-2016 138 253 698 2027 Smartphones • CiscoVisual Networking Index VNI 2012, Cisco Systems Inc. 2012 Smartphone Tablets 3-8 2-4 2016
- 3. 3 0% 10% 20% 30% 40% 50% 60% Mobile Device Lossor theft Strategy One Survey conducted among a U.S. sample of 3017 adults age 18 years older in September 21-28, 2010, with an oversample in the top 20 cities (based on population). • “The 329 organizations polled had collectively lost more than 86,000 devices … with average cost of lost data at $49,246 per device, worth $2.1 billion or $6.4 million per organization. "The Billion Dollar Lost-Laptop Study," conducted by Intel Corporation and the Ponemon Institute, analyzed the scope and circumstances of missing laptop PCs.

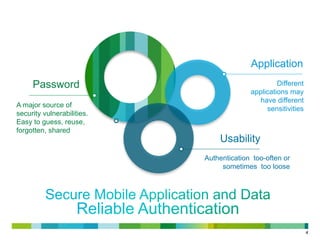

- 4. 4 Password Application Usability A major sourceof security vulnerabilities. Easy to guess, reuse, forgotten, shared Different applications may have different sensitivities Authentication too-often or sometimes too loose
- 5. 5 Passwords Normal passwords arenot strong enough: usually meaningful words that can be remembered Stringent strong password can be annoying Most users do not use the password-aid tools (Hong et al. 2009) Fingerprint? Iris recognition? Face recognition? Voice recognition? Password for the DHS E-file: Contain from 8 to 16 characters Contain at least 2 of the following 3 characters: uppercase alphabetic, lowercase alphabetic, numeric Contain at least 1 special character (e.g., @, #, $, %, & *, +, =) Begin and end with an alphabetic character Not contain spaces Not contain all or part of your UserID Not use 2 identical characters consecutively Not be a recently used password
- 6. 6 • Derived from • Behavioral: the way a human subject behaves • Biometrics: technologies and methods that measure and analyzes biological characteristics of the human body • Finger prints, eye retina, voice patterns • BehavioMetrics: Measurable behavior to Recognize or to Verify • Identity of a human subject, or • Subject’s certain behaviors Behavioral BiometricsBehaviometrics

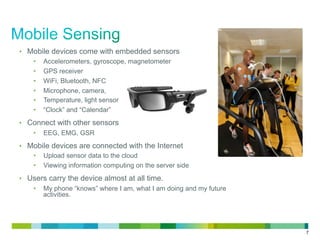

- 7. 7 • Mobile devicescome with embedded sensors • Accelerometers, gyroscope, magnetometer • GPS receiver • WiFi, Bluetooth, NFC • Microphone, camera, • Temperature, light sensor • “Clock” and “Calendar” • Connect with other sensors • EEG, EMG, GSR • Mobile devices are connected with the Internet • Upload sensor data to the cloud • Viewing information computing on the server side • Users carry the device almost at all time. • My phone “knows” where I am, what I am doing and my future activities.

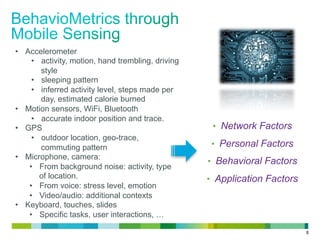

- 8. 8 • Network Factors • Personal Factors • Behavioral Factors • Application Factors • Accelerometer • activity, motion, hand trembling, driving style • sleeping pattern • inferred activity level, steps made per day, estimated calorie burned • Motion sensors, WiFi, Bluetooth • accurate indoor position and trace. • GPS • outdoor location, geo-trace, commuting pattern • Microphone, camera: • From background noise: activity, type of location. • From voice: stress level, emotion • Video/audio: additional contexts • Keyboard, touches, slides • Specific tasks, user interactions, …

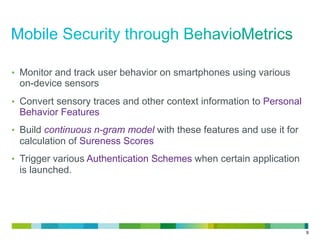

- 9. 9 • Monitor andtrack user behavior on smartphones using various on-device sensors • Convert sensory traces and other context information to Personal Behavior Features • Build continuous n-gram model with these features and use it for calculation of Sureness Scores • Trigger various Authentication Schemes when certain application is launched.
- 10. 10 • Human behavior/activitiesshare some common properties with natural languages • Meanings are composed from meanings of building blocks • Exists an underlying structure (grammar) • Expressed as a sequence (time-series) • Apply rich sets of Statistical NLPs to mobile sensory data 3 3.5 4 4.5 5 5.5 6 0 20 40 60 80 100 120 140 160 180 200 log(freq) Rank of words by frequency Zipf’s Law
- 11.

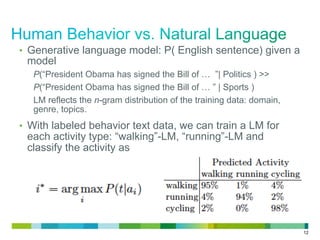

- 12. 12 • Generative languagemodel: P( English sentence) given a model P(“President Obama has signed the Bill of … ”| Politics ) >> P(“President Obama has signed the Bill of … ” | Sports ) LM reflects the n-gram distribution of the training data: domain, genre, topics. • With labeled behavior text data, we can train a LM for each activity type: “walking”-LM, “running”-LM and classify the activity as

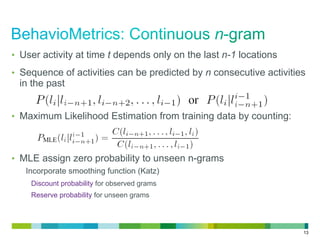

- 13. 13 • User activityat time t depends only on the last n-1 locations • Sequence of activities can be predicted by n consecutive activities in the past • Maximum Likelihood Estimation from training data by counting: • MLE assign zero probability to unseen n-grams Incorporate smoothing function (Katz) Discount probability for observed grams Reserve probability for unseen grams

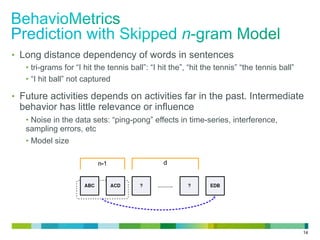

- 14. 14 • Long distancedependency of words in sentences • tri-grams for “I hit the tennis ball”: “I hit the”, “hit the tennis” “the tennis ball” • “I hit ball” not captured • Future activities depends on activities far in the past. Intermediate behavior has little relevance or influence • Noise in the data sets: “ping-pong” effects in time-series, interference, sampling errors, etc • Model size
- 15. 15 • Build BehavioMetricsmodels for M classes P0, P1, P2, PM-1 • Genders, age groups, occupations • Behaviors, activities, actions • Health and mental status • For a new behavioral text string L, we calculate the probability if L is generated by model m • Classification problem formulated as P(L, m) = P(l1, l2, . . . , lN , m) = NY i=1 Pm(li|li 1 i n+1) ˆu = argmax m P(L, m) = argmax m NX i=1 log Pm(li|li 1 i n+1)
- 16. 16 • Is thisplay Shakespeare’s work? • Comparing the play to Shakespeare’s known library of works • Track words and phases patterns in the data • Calculate the probability the unknown U given all the known Shakespeare’s work {S} • Compare with a threshold θ • Authentic work (a=1) • Fake, Forgery or Plagiarism (a=0) ˆa = sign[P(U|{S}) > ]

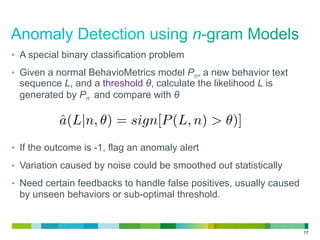

- 17. 17 • A specialbinary classification problem • Given a normal BehavioMetrics model Pn, a new behavior text sequence L, and a threshold θ, calculate the likelihood L is generated by Pn and compare with θ • If the outcome is -1, flag an anomaly alert • Variation caused by noise could be smoothed out statistically • Need certain feedbacks to handle false positives, usually caused by unseen behaviors or sub-optimal threshold. ˆa(L|n, ) = sign[P(L, n) > )]

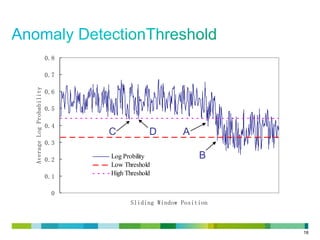

- 18. 18 0 0.1 0.2 0.3 0.4 0.5 0.6 0.7 0.8 Sliding Window Position AverageLogProbability LogProbility Low Threshold High Threshold A B DC

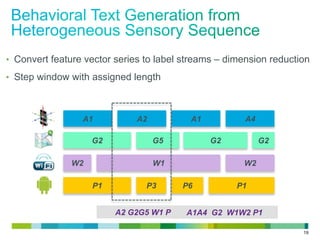

- 19. 19 • Convert featurevector series to label streams – dimension reduction • Step window with assigned length A1 A2 A1 A4 G2 G5 G2 G2 W2 W1 W2 P1 P3 P6 P1 A2 G2G5 W1 P1P3 A1A4 G2 W1W2 P1
- 20.

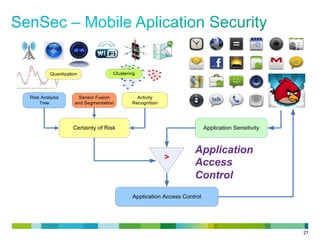

- 21. 21 Quantization Risk Analysis Tree Clustering Activity Recognition < Application Sensitivity ApplicationAccess Control Certainty of Risk Sensor Fusion and Segmentation Application Access Control

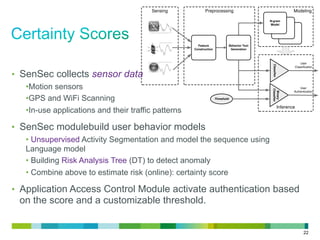

- 22. 22 Inference ModelingPreprocessingSensing Feature Construction Behavior Text Generation N-gram Model Classifier Binary Classifier Threshold User Authentication User Classification • SenSeccollects sensor data • Motion sensors • GPS and WiFi Scanning • In-use applications and their traffic patterns • SenSec modulebuild user behavior models • Unsupervised Activity Segmentation and model the sequence using Language model • Building Risk Analysis Tree (DT) to detect anomaly • Combine above to estimate risk (online): certainty score • Application Access Control Module activate authentication based on the score and a customizable threshold.
- 23. 23 • Accelerometer • Used tosummarize acceleration stream • Calculated separately for each dimension [x,y,z,m] • Meta features: Total Time, Window Size • GPS: location string from Google Map API and mobility path • WiFi: SSIDs, RSSIs and path • Applications: Bitmap of well-known applications • Application Traffic Pattern: TCP UDP traffic pattern vectors: [ remote host, port, rate ]
- 24.

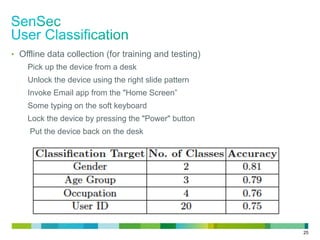

- 25. 25 • Offline datacollection (for training and testing) Pick up the device from a desk Unlock the device using the right slide pattern Invoke Email app from the "Home Screen” Some typing on the soft keyboard Lock the device by pressing the "Power" button Put the device back on the desk
- 26.
- 27.

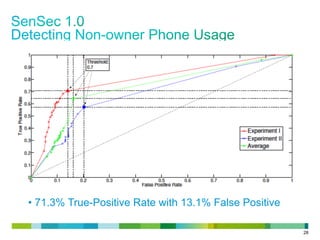

- 28. 28 • 71.3% True-Positive Ratewith 13.1% False Positive

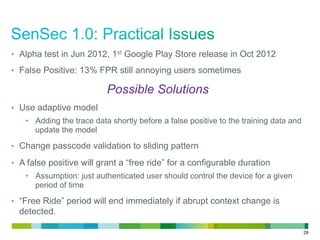

- 29. 29 • Alpha testin Jun 2012, 1st Google Play Store release in Oct 2012 • False Positive: 13% FPR still annoying users sometimes Possible Solutions • Use adaptive model • Adding the trace data shortly before a false positive to the training data and update the model • Change passcode validation to sliding pattern • A false positive will grant a “free ride” for a configurable duration • Assumption: just authenticated user should control the device for a given period of time • “Free Ride” period will end immediately if abrupt context change is detected.
- 30.

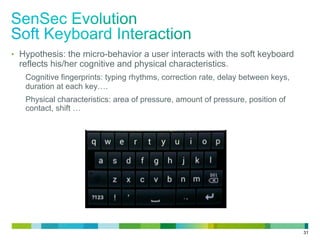

- 31. 31 • Hypothesis: themicro-behavior a user interacts with the soft keyboard reflects his/her cognitive and physical characteristics. Cognitive fingerprints: typing rhythms, correction rate, delay between keys, duration at each key…. Physical characteristics: area of pressure, amount of pressure, position of contact, shift …
- 32.

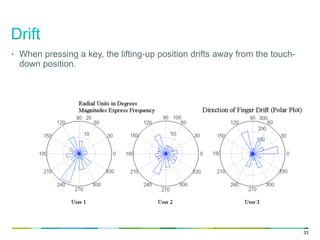

- 33. 33 • When pressinga key, the lifting-up position drifts away from the touch- down position.
- 34.

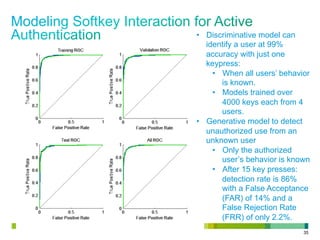

- 35. 35 • Discriminative modelcan identify a user at 99% accuracy with just one keypress: • When all users’ behavior is known. • Models trained over 4000 keys each from 4 users. • Generative model to detect unauthorized use from an unknown user • Only the authorized user’s behavior is known • After 15 key presses: detection rate is 86% with a False Acceptance (FAR) of 14% and a False Rejection Rate (FRR) of only 2.2%.

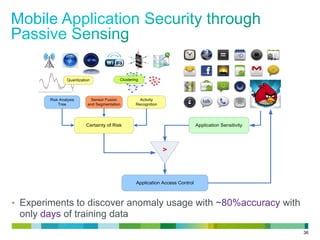

- 36. 36 • Experiments todiscover anomaly usage with ~80%accuracy with only days of training data Quantization Risk Analysis Tree Clustering Activity Recognition < Application Sensitivity Application Access Control Certainty of Risk Sensor Fusion and Segmentation

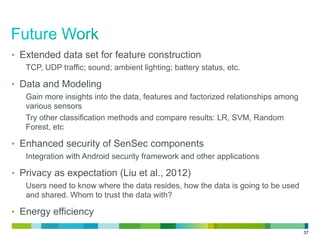

- 37. 37 • Extended dataset for feature construction TCP, UDP traffic; sound; ambient lighting; battery status, etc. • Data and Modeling Gain more insights into the data, features and factorized relationships among various sensors Try other classification methods and compare results: LR, SVM, Random Forest, etc • Enhanced security of SenSec components Integration with Android security framework and other applications • Privacy as expectation (Liu et al., 2012) Users need to know where the data resides, how the data is going to be used and shared. Whom to trust the data with? • Energy efficiency
- 38. 38 • Participate inMobiSens and StressSens Data Collection Experiments: http://mlt.sv.cmu.edu:3000/ • Sign-up for SenSec 2.0 and KeySens 1.0 Beta Testers
