1. Java EE 6 Security
in practice with
GlassFish
Markus Eisele & Masoud Kalali

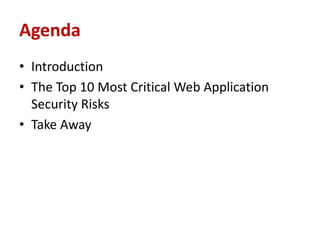

2. Agenda
• Introduction
• The Top 10 Most Critical Web Application
Security Risks
• Take Away

3. Masoud Kalali Markus Eisele
http://kalali.me http://blog.eisele.net
http://twitter.com/MasoudKalali http://twitter.com/myfear
Masoud.Kalali@oracle.com Markus.eisele@msg-systems.com
software engineer, Java EE 7 EG,
author, blogger, architect, husband, father of two,
climber and flute enthusiast photographer, speaker, writer

4. Java EE 6 & GlassFish
glassfish.org

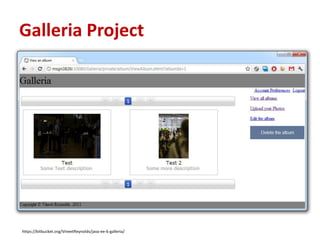

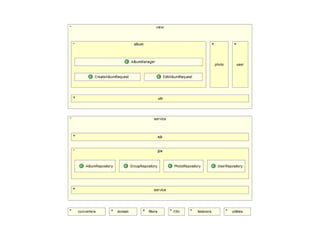

5. Galleria Project
https://bitbucket.org/VineetReynolds/java-ee-6-galleria/

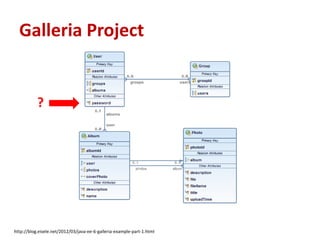

6. Galleria Project
?
http://blog.eisele.net/2012/03/java-ee-6-galleria-example-part-1.html

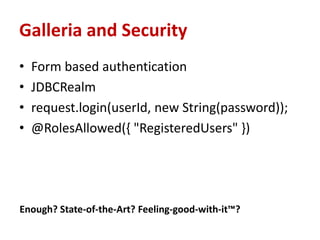

8. Galleria and Security
• Form based authentication
• JDBCRealm
• request.login(userId, new String(password));
• @RolesAllowed({ "RegisteredUsers" })
Enough? State-of-the-Art? Feeling-good-with-it™?

9. Motivation for this talk
• Seen a lot of Java EE out there with no or not
enough security.
• Providing you a starting point
• Having seen a lot – sharing something
• Making you aware about security
• Finding out about “the security state of
Galleria”

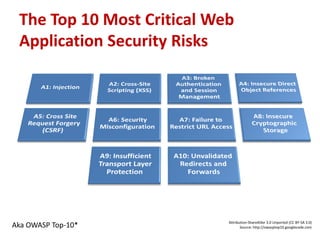

10. The Top 10 Most Critical Web
Application Security Risks
Attribution-ShareAlike 3.0 Unported (CC BY-SA 3.0)
Aka OWASP Top-10* Source: http://owasptop10.googlecode.com

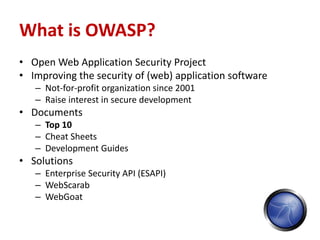

11. What is OWASP?
• Open Web Application Security Project
• Improving the security of (web) application software
– Not-for-profit organization since 2001
– Raise interest in secure development
• Documents
– Top 10
– Cheat Sheets
– Development Guides
• Solutions
– Enterprise Security API (ESAPI)
– WebScarab
– WebGoat

12. A1 - Injection

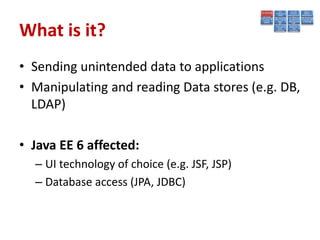

13. What is it?
• Sending unintended data to applications
• Manipulating and reading Data stores (e.g. DB,
LDAP)
• Java EE 6 affected:
– UI technology of choice (e.g. JSF, JSP)
– Database access (JPA, JDBC)

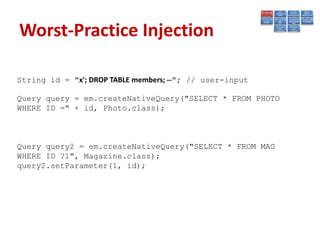

14. Worst-Practice Injection
String id = "x'; DROP TABLE members; --"; // user-input
Query query = em.createNativeQuery("SELECT * FROM PHOTO
WHERE ID =" + id, Photo.class);
Query query2 = em.createNativeQuery("SELECT * FROM MAG
WHERE ID ?1", Magazine.class);
query2.setParameter(1, id);

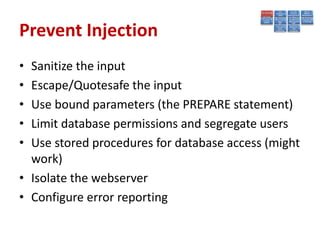

15. Prevent Injection
• Sanitize the input
• Escape/Quotesafe the input
• Use bound parameters (the PREPARE statement)
• Limit database permissions and segregate users
• Use stored procedures for database access (might
work)
• Isolate the webserver
• Configure error reporting

16. A2 - Cross-Site Scripting (XSS)

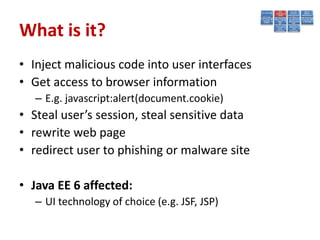

17. What is it?
• Inject malicious code into user interfaces
• Get access to browser information
– E.g. javascript:alert(document.cookie)
• Steal user’s session, steal sensitive data
• rewrite web page
• redirect user to phishing or malware site
• Java EE 6 affected:
– UI technology of choice (e.g. JSF, JSP)

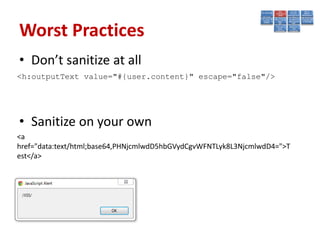

18. Worst Practices
• Don’t sanitize at all
<h:outputText value="#{user.content}" escape="false"/>
• Sanitize on your own
<a
href="data:text/html;base64,PHNjcmlwdD5hbGVydCgvWFNTLyk8L3NjcmlwdD4=">T
est</a>

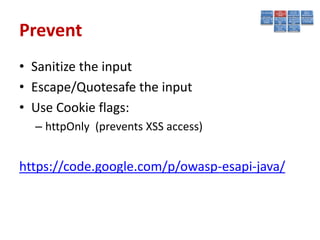

19. Prevent
• Sanitize the input
• Escape/Quotesafe the input
• Use Cookie flags:
– httpOnly (prevents XSS access)
https://code.google.com/p/owasp-esapi-java/

20. A3 - Broken Authentication and
Session Management

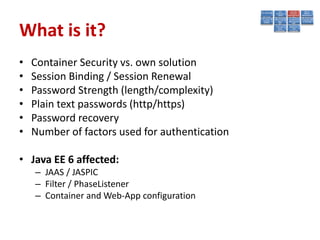

21. What is it?
• Container Security vs. own solution
• Session Binding / Session Renewal
• Password Strength (length/complexity)
• Plain text passwords (http/https)
• Password recovery
• Number of factors used for authentication
• Java EE 6 affected:
– JAAS / JASPIC
– Filter / PhaseListener
– Container and Web-App configuration

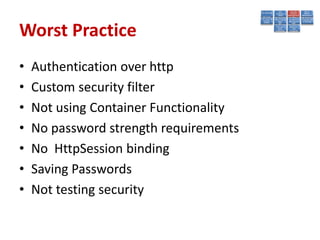

22. Worst Practice
• Authentication over http
• Custom security filter
• Not using Container Functionality
• No password strength requirements
• No HttpSession binding
• Saving Passwords
• Not testing security

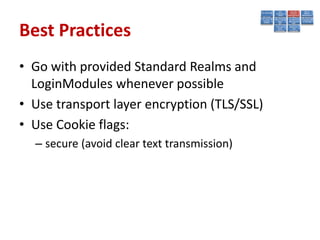

23. Best Practices
• Go with provided Standard Realms and
LoginModules whenever possible
• Use transport layer encryption (TLS/SSL)
• Use Cookie flags:
– secure (avoid clear text transmission)

24. A4 – Insecure Direct Object References

25. What is it?
• Accessing domain objects with their PK
https://you.com/user/1 => https://you.com/user/21
• Opening opportunities for intruders
• Information hiding on the client
• Parameter value tampering
• Java EE 6 affected:
– All layers
– Especially data access

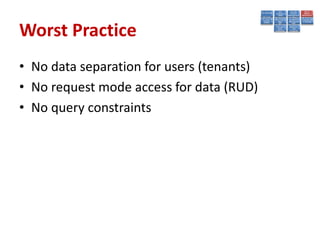

26. Worst Practice
• No data separation for users (tenants)
• No request mode access for data (RUD)
• No query constraints

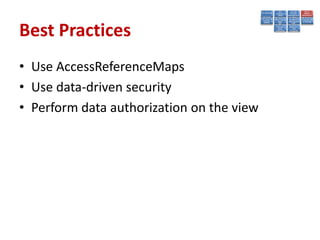

27. Best Practices
• Use AccessReferenceMaps
• Use data-driven security
• Perform data authorization on the view

28. A5 - Cross Site Request Forgery (CSRF)

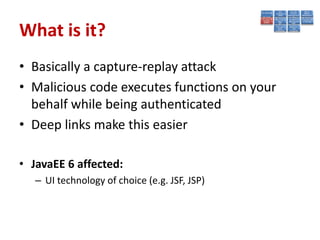

29. What is it?
• Basically a capture-replay attack
• Malicious code executes functions on your
behalf while being authenticated
• Deep links make this easier
• JavaEE 6 affected:
– UI technology of choice (e.g. JSF, JSP)

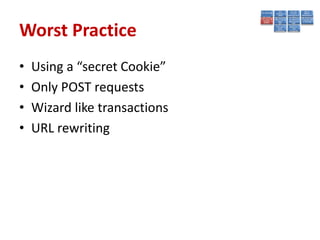

30. Worst Practice
• Using a “secret Cookie”
• Only POST requests
• Wizard like transactions
• URL rewriting

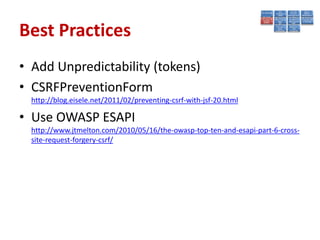

31. Best Practices
• Add Unpredictability (tokens)
• CSRFPreventionForm
http://blog.eisele.net/2011/02/preventing-csrf-with-jsf-20.html
• Use OWASP ESAPI
http://www.jtmelton.com/2010/05/16/the-owasp-top-ten-and-esapi-part-6-cross-
site-request-forgery-csrf/

32. A6 - Security Misconfiguration

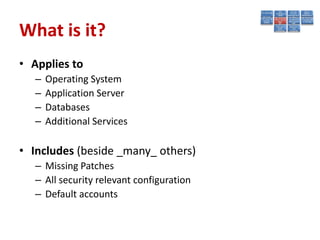

33. What is it?
• Applies to
– Operating System
– Application Server
– Databases
– Additional Services
• Includes (beside _many_ others)
– Missing Patches
– All security relevant configuration
– Default accounts

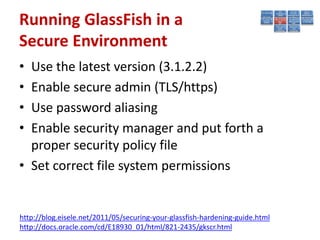

34. Running GlassFish in a
Secure Environment
• Use the latest version (3.1.2.2)
• Enable secure admin (TLS/https)
• Use password aliasing
• Enable security manager and put forth a
proper security policy file
• Set correct file system permissions
http://blog.eisele.net/2011/05/securing-your-glassfish-hardening-guide.html
http://docs.oracle.com/cd/E18930_01/html/821-2435/gkscr.html

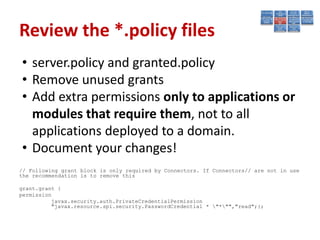

35. Review the *.policy files
• server.policy and granted.policy
• Remove unused grants
• Add extra permissions only to applications or
modules that require them, not to all
applications deployed to a domain.
• Document your changes!
// Following grant block is only required by Connectors. If Connectors// are not in use
the recommendation is to remove this
grant.grant {
permission
javax.security.auth.PrivateCredentialPermission
"javax.resource.spi.security.PasswordCredential * "*"","read";};

36. Worst Practices
• Not to redirect the default pages
• Using any defaults like:
– Passwords: Admin, master password
– Network interface binding: Listening on 0.0.0.0
– Certificates: Self signed certificate
• Not restricting GlassFish user nor enabling
security manager.
• Same security config for all environments
• Using a not hardened OS!

37. A7 - Failure to Restrict URL Access

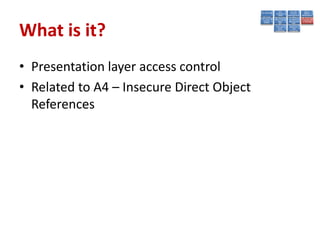

38. What is it?
• Presentation layer access control
• Related to A4 – Insecure Direct Object
References

39. Worst Practice
• Using home-grown security features instead
of container provided ones
• Assuming people wont know some URLs to try
them
• Assuming no one would miss use the extra
permission and access they have

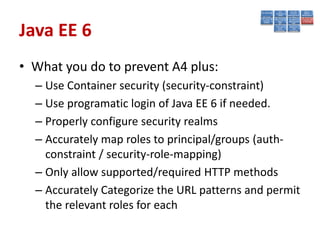

40. Java EE 6
• What you do to prevent A4 plus:
– Use Container security (security-constraint)
– Use programatic login of Java EE 6 if needed.
– Properly configure security realms
– Accurately map roles to principal/groups (auth-
constraint / security-role-mapping)
– Only allow supported/required HTTP methods
– Accurately Categorize the URL patterns and permit
the relevant roles for each

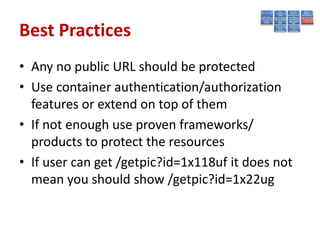

41. Best Practices
• Any no public URL should be protected
• Use container authentication/authorization
features or extend on top of them
• If not enough use proven frameworks/
products to protect the resources
• If user can get /getpic?id=1x118uf it does not
mean you should show /getpic?id=1x22ug

42. A8 - Insecure Cryptographic Storage

43. What is it?
• Sensitive data exposed to wrong persons
• Could be:
– Passwords
– Financial/Health care data
– Credit cards

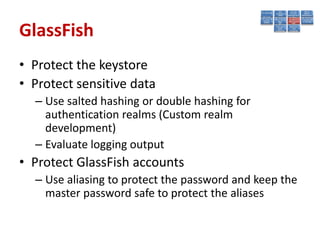

44. GlassFish
• Protect the keystore
• Protect sensitive data
– Use salted hashing or double hashing for
authentication realms (Custom realm
development)
– Evaluate logging output
• Protect GlassFish accounts
– Use aliasing to protect the password and keep the
master password safe to protect the aliases

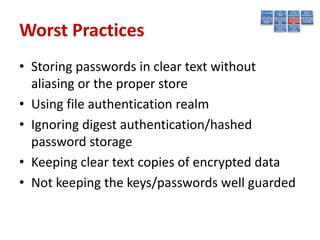

45. Worst Practices
• Storing passwords in clear text without
aliasing or the proper store
• Using file authentication realm
• Ignoring digest authentication/hashed
password storage
• Keeping clear text copies of encrypted data
• Not keeping the keys/passwords well guarded

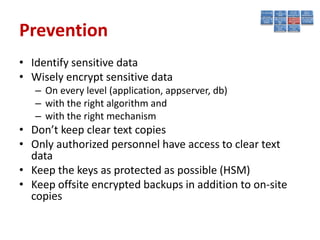

46. Prevention
• Identify sensitive data
• Wisely encrypt sensitive data
– On every level (application, appserver, db)
– with the right algorithm and
– with the right mechanism
• Don’t keep clear text copies
• Only authorized personnel have access to clear text
data
• Keep the keys as protected as possible (HSM)
• Keep offsite encrypted backups in addition to on-site
copies

47. A9- Insufficient Transport Layer Protection

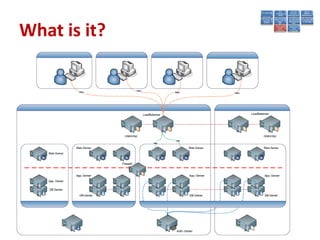

48. What is it?

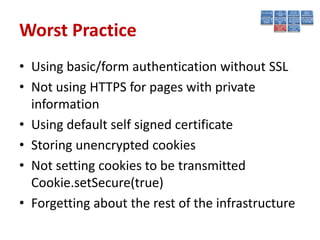

49. Worst Practice
• Using basic/form authentication without SSL
• Not using HTTPS for pages with private
information
• Using default self signed certificate
• Storing unencrypted cookies
• Not setting cookies to be transmitted
Cookie.setSecure(true)
• Forgetting about the rest of the infrastructure

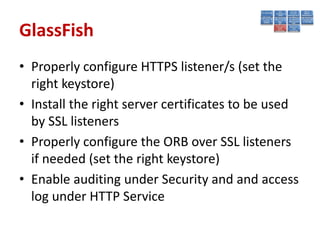

50. GlassFish
• Properly configure HTTPS listener/s (set the
right keystore)
• Install the right server certificates to be used
by SSL listeners
• Properly configure the ORB over SSL listeners
if needed (set the right keystore)
• Enable auditing under Security and and access
log under HTTP Service

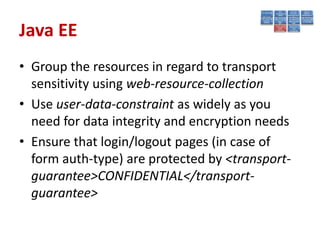

51. Java EE
• Group the resources in regard to transport
sensitivity using web-resource-collection
• Use user-data-constraint as widely as you
need for data integrity and encryption needs
• Ensure that login/logout pages (in case of
form auth-type) are protected by <transport-
guarantee>CONFIDENTIAL</transport-
guarantee>

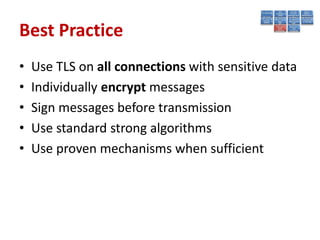

52. Best Practice
• Use TLS on all connections with sensitive data
• Individually encrypt messages
• Sign messages before transmission
• Use standard strong algorithms
• Use proven mechanisms when sufficient

53. A10 - Unvalidated Redirects and Forwards

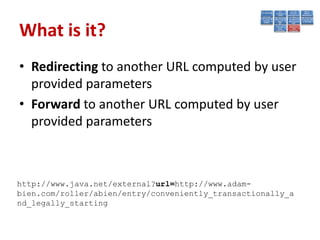

54. What is it?
• Redirecting to another URL computed by user
provided parameters
• Forward to another URL computed by user
provided parameters
http://www.java.net/external?url=http://www.adam-
bien.com/roller/abien/entry/conveniently_transactionally_a
nd_legally_starting

55. Java EE 6
• Don’t use redirect or forward as much as possible
• Accurately verify/validate the target URL before
forwarding or redirecting
• Redirects are safe when using container managed
authentication/authorization properly
• Redirects happen without authentication and
thus requires triple check to prevent
unauthorized access.

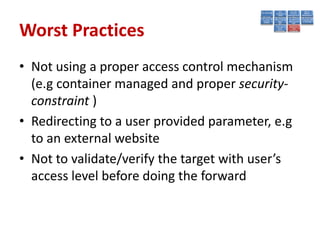

56. Worst Practices
• Not using a proper access control mechanism
(e.g container managed and proper security-
constraint )
• Redirecting to a user provided parameter, e.g
to an external website
• Not to validate/verify the target with user’s
access level before doing the forward

57. WRAP-UP

58. Galleria Wrap Up

59. Security isn‘t all candy..
… but you will love it in the end!

60. CC picture reference
• http://www.flickr.com/photos/wallyg/2439494447/sizes/l/in/photostream/
• http://www.flickr.com/photos/62983199@N04/7188112487/sizes/l/in/photostream/
• http://www.flickr.com/photos/stuckincustoms/3466470709/sizes/l/in/photostream/
• http://www.flickr.com/photos/lukemontague/187987292/sizes/l/in/photostream/
• http://www.flickr.com/photos/082007/7108942911/sizes/l/in/photostream/
• http://www.flickr.com/photos/ndrwfgg/140411433/sizes/l/in/photostream/
• http://www.flickr.com/photos/gingerblokey/4130969725/sizes/l/in/photostream/
• http://www.flickr.com/photos/bpc009/3328427457/sizes/l/in/photostream/
• http://www.flickr.com/photos/marine_corps/6950409157/sizes/l/in/photostream/
• http://www.flickr.com/photos/cindy47452/2898015652/sizes/l/in/photostream/
