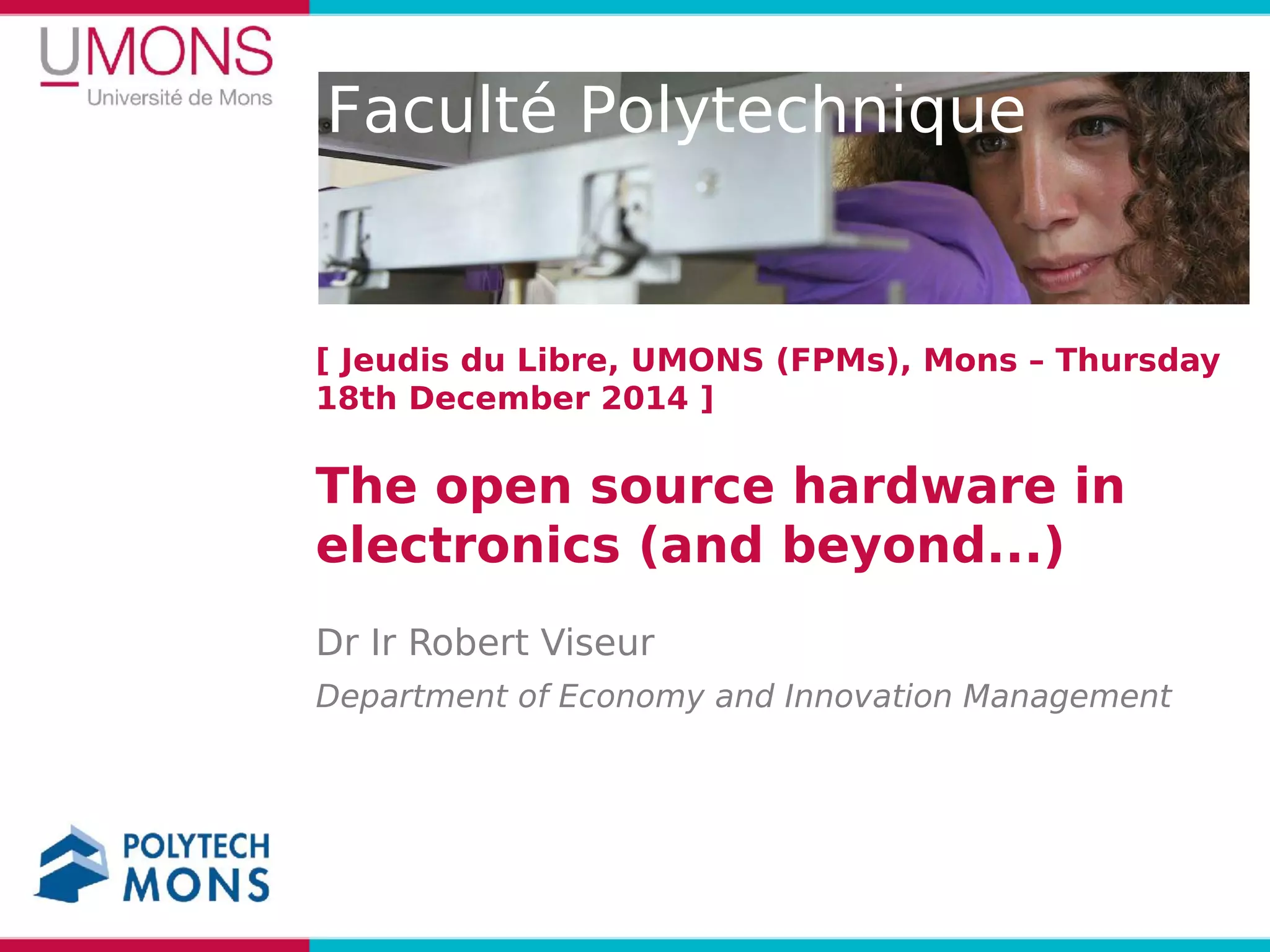

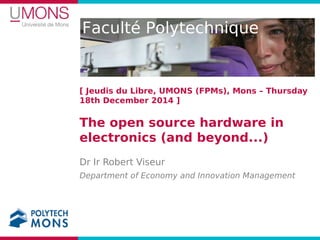

The open source hardware in
electronics (and beyond...)
Department of Economy and Innovation Management
Dr Ir Robert Viseur
2 / 45
Part 1
Basis about software licenses and
business models
3 / 45
Free / Open Source
Software
Free Software Definition.
– Four freedoms (see www.gnu.org).
Open Source Definition.
– Ten criteria (see opensource.org).
4 / 45
Software licenses (1/2)
Three types of licenses:
– Proprietary licenses.
• E.g. CLUF for Microsoft softwares.
– Hybrid licences (rare).
• E.g. former SCSL for Sun Microsystems softwares.
– Free software licenses.
• E.g. AL, BSD, GPL, LGPL,...
• More or less 70 free software licenses.
5 / 45
Software licenses (2/2)
6 / 45
Free software licenses
(1/2)
Two families of free software licenses:
– Permissive / academic licenses.
– Copyleft / restrictive licenses (licenses with
reciprocity).
Three types of licenses with
reciprocity.
– Weak reciprocity.
• File-based, or not.
– Strong reciprocity.
– Network reciprocity.
7 / 45
Free software licenses
(2/2)
8 / 45
Business models for free and
open source softwares (1/2)
Trade-off between value creation and
value capture.
– Value creation:
• Investment in R&D.
• Collaboration with community (open source
innovation).
– Value capture:
• Weak appropriability regime.
• Often: indirect valuation (eg. services, advertising,
etc.).
9 / 45
Business models for free and
open source softwares (2/2)
Services (« best knowledge here »).
– Common services: custom software development,
installation and integration, training, etc.
– New SaaS and cloud computing opportunities.
Dual licensing schemes.
– Without technical differenciation.
– With technical differentiation.
– Opencore schemes (e.g. free kernel + private add-
ons).
10 / 45
Part 2
Business models of open hardware
11 / 45
What is open hardware ?
Definition from Open Hardware Summit and
then Open Source Hardware Association.
– See details at http://www.oshwa.org/definition/.
Inspired by Open Source Definition from Open
Source Initiative (opensource.org).
More communly accepted than previous
definitions.
New initiative: OHANDA label (see
www.ohanda.org).
12 / 45
Open Source Hardware
(OSHW) Definition 1.0 (1/3)
1. Documentation
– The hardware must be released with documentation including design files,
and must allow modification and distribution of the design files.
2. Scope
– The documentation for the hardware must clearly specify what portion of
the design, if not all, is being released under the license.
3. Necessary Software
– If the licensed design requires software, the interfaces must be
sufficiently documented or the necessary software must be released
under an OSI-approved open source license.
4. Derived Works
– The license shall allow modifications and derived works, and shall allow
them to be distributed under the same terms as the license of the original
work.
13 / 45
Open Source Hardware
(OSHW) Definition 1.0 (2/3)
5. Free redistribution
– The license shall not restrict any party from selling or giving away the project
documentation.
6. Attribution
– The license may require derived documents, and copyright notices associated
with devices, to provide attribution to the licensors when distributing design files,
manufactured products, and/or derivatives thereof.
7. No Discrimination Against Persons or Groups
– The license must not discriminate against any person or group of persons.
8. No Discrimination Against Fields of Endeavor
– The license must not restrict anyone from making use of the work (including
manufactured hardware) in a specific field of endeavor.
14 / 45
Open Source Hardware
(OSHW) Definition 1.0 (3/3)
9. Distribution of License
– The rights granted by the license must apply to all to whom the work is
redistributed without the need for execution of an additional license by
those parties.
10. License Must Not Be Specific to a Product
– The rights granted by the license must not depend on the licensed work
being part of a particular product.
11. License Must Not Restrict Other Hardware or Software
– The license must not place restrictions on other items that are
aggregated with the licensed work but not derivative of it.
12. License Must Be Technology-Neutral
– No provision of the license may be predicated on any individual
technology, specific part or component, material, or style of interface or
use thereof.
15 / 45
Protection of hardware
(1/3)
Some items to protect:
– the source code for electronics (e.g.: VHDL or Verilog source
codes),
– the source code for associated softwares (e.g. development
tools, SDK, etc.),
– the schematics, the design files and the technical drawings
(hardware design),
– the aesthetic value,
– the documentations,
– the brands.
IP tools: mainly copyrights, industrial design rights,
patents and trademarks.
– Other: protection for the topographies of semiconductor
products.
16 / 45
Protection of hardware
(2/3)
Frequent use of Creative Commons
licenses.
– Attention to NC clause.
Frequent use of widely used free
software licenses.
– Mainly BSD, GPL and LGPL.
Dedicated licenses.
– Examples: TAPR OHL (see www.tapr.org/ohl.html)
or CERN OHL (see www.ohwr.org/cernohl).
17 / 45
Protection of hardware
(3/3)
Licenses in real life (Viseur, 2012):
18 / 45
Business models of open
hardware
Business models in real life (Viseur,
2012):
19 / 45
Size of the market (1/2)
Strong rise of the number of projects
(Torrone & Fried, 2010):
20 / 45
Size of the market (2/2)
Report from (Torrone & Fried, 2010):
– 13 companies representing approximately $50
million.
– About 200 projects in 2010.
– By 2015: +$1 billion collective.
21 / 45
Still a blurred concept ?
Boundaries between openness and
freedom not always clear but...
– Ongoing standardization of the definition.
How open is open enough ?
– Open hardware often build on closed components.
– Community activities not always clear...
How to identify sustainable projects ?
– Think about free software success factors.
– Examples: modularity, standards, open governance
(community / ecosystem), etc.
22 / 45
Part 3
Examples of open hardware
commercial projects
23 / 45
LEON (Gaisler) (1/2)
VHDL model for 32 bits SPARC-
compliant processor.
– Created by Jiri Gaisler and now supported by
Aeroflex Gaisler company (www.gaisler.com).
– SPARC: RISC open instruction set architecture
and registered trademark of SPARC
International, Inc.
– See more at http://en.wikipedia.org/wiki/SPARC
and http://www.sparc.org/.
24 / 45
LEON (Gaisler) (2/2)
Wide portfolio of products (LEON
family, and others) and services.
One of the products: GRLIB IP Library.
– Dual licensing scheme.
• Licenses: GPL or commercial license.
• See
http://www.gaisler.com/index.php/products/ipcores/soclib
rary.
25 / 45
Arduino (Smart Projects)
(1/3)
Open source electronics prototyping
platform.
– See http://www.arduino.cc/ for more details.
– Manufactured by the Italian company Smart
Project (smartprj.com).
– Available with open source development
software.
– Tremendous success.
26 / 45
Arduino (Smart Projects)
(2/3)
Enablers:
– Cheap, simple, released with integrated tools.
– Wide ecosystem.
• New open projects based on Arduino hardware.
• Examples: DIY Drones (diydrones.com), Photoduino
(photoduino.com), etc.
– Format for technically compatible extensions
(shields).
Several forks (true free project).
– Imitations and variations.
– Examples: Freeduino, Sanguino, etc.
27 / 45
Arduino (Smart Projects)
(3/3)
Licenses:
– Design covered by CC-BY-SA license.
– Source code covered by GPL or LGPL licenses.
– Arduino is a trademark.
Revenues:
– Over $1 million in 2010 (Torrone & Fried, 2010).
– Based on services and sale of products.
28 / 45
Elphel (1/3)
Elphel 353/363 network camera (www.elphel.com).
License: software and hardware under GPL v2.
– See http://www3.elphel.com/wiki/licensing for more details.
Revenues from the sales of products (several product
lines).
Discreet community.
Source of inspiration and technical basis for other
projects.
– Examples: Frankencamera prototype or Axiom project.
29 / 45
Elphel (2/3)
Collaboration with
Google :
– Cameras for Google
Books.
– Cameras for Google
Streetview.
30 / 45
Elphel (3/3)
Future project: Apertus (camera for cinema).
– Friendly fork (?): Axiom.
• First open digital cinema camera Axiom.
• Licenses:
– Software under the GNU General Public License V3.
– Documentation under the Creative Commons License.
– Hardware under the Cern Open Hardware License.
• Partnership with Dynamic Perception
(www.dynamicperception.com).
– See https://www.apertus.org/history.
31 / 45
Part 4
Open hardware beyond electronic
stuffs
32 / 45
Hexayurt (1/2)
« The Hexayurt is a refugee shelter system based on work
done at the Rocky Mountain Institute. It uses an approach
based on "autonomous building" to provide not just a
shelter, but a comprehensive family support unit which
includes drinking water purification, composting toilets,
fuel-efficient stoves and solar electric lighting. »
(see http://www.appropedia.org/Hexayurt_Project & http://hexayurt.com/)
33 / 45
Hexayurt (2/2)
Materials published in public domain.
Several variations around the first project.
Case of Open Source Appropriate Design:
« Appropriate technology (AT) is technology that is designed
with special consideration to the context of its use -
including environmental, ethical, cultural, social, political,
and economical aspects of the community it is intended
for. »
(see http://www.appropedia.org/Portal:Appropriate_technology)
34 / 45
Open Reflex (1/3)
Open source project for a film camera (single lens reflex).
Following a pinhole project (« 3D Printed Pinhole Box »).
Printable with RepRap 3D printer (reprap.org).
35 / 45
Open Reflex (2/3)
True open hardware project:
– Materials published under CC-BY-SA on:
• author's blog (leomarius.com),
• Thinkgiverse (www.thingiverse.com),
• Instructables (instructables.com),
• Dropbox (www.dropbox.com).
– Nascent community:
• New sub-projects.
• Collaborations (e.g. DIY AP-LENS).
More details:
leomarius.com/albums/openreflex/.
36 / 45
Open Reflex (3/3)
Attempt to use crowdfunding.
– More details:
www.kisskissbankbank.com/en/projects/openreflex.
37 / 45
OSVehicle TABBY (1/2)
OSVehicle
(www.osvehicle.com).
Creators of the Tabby /
Urban Tabby.
Urban quadricycle vehicle.
– « Twizy open source » ?
Tabby / Urban Tabby ?
– Tabby : « TABBY is an open
source framework for vehicles ».
– Urban Tabby : approved model.
38 / 45
OSVehicle TABBY (2/2)
Materials published under CC-BY-SA.
– See
http://www.osvehicle.com/download/
.
Objective of creating an active
community.
– Actual status ?
Vehicle being bought in kit.
Services for local builders (emerging
countries).
– No complex production line.
– Very little investment.
Connected to Open Source
Appropriate Technology.
Estimated sales prices (assembled) :
6000 euros.
39 / 45
NIKA (based on
OSVehicle)
« Designed and
engineered in Italy, NIKA
is the first OSV product
to introduce the
possibilities of an open
source connected car »
« API’s will be available
as an OSV standard to
enable the creation of
APPS »
40 / 45
Stay tuned (1/3)
New exciting projects:
– Example:
OpenEnergyMonitor
system.
• Wireless sensor nodes that
send data at periodic
intervals to a web-connected
base-station.
• Based on Arduino.
– See more details at
http://openenergymonitor.or
g/emon/opensustech.
41 / 45
Stay tuned (2/3)
New opportunities due to progress in:
– CAD open source softwares.
• See http://linuxfr.org/news/linux-et-la-
commande-numerique-par-calculateur.
– 3D printers (and fablabs).
• See http://linuxfr.org/news/la-fr%C3%A9n
%C3%A9sie-des-imprimantes-3d.
Progressive adoption by industries.
– For example : Ford OpenXC
(openxcplatform.com).
42 / 45
Stay tuned (3/3)
First project in Belgium :
– By Sibelga (Brussels distribution
network operator).
– OSH project Plugelec (digital
energy meter).
– New OSH license LOH DDC (see
http://sibelga.be/uploads/asset
s/471/fr/1415087108913-
LOH_DDC_V1-0_FR.pdf) by Me
Philippe Laurent.
– See details at
http://sibelga.be/openhardware/
fr.
43 / 45
Thanks for your attention.
Any questions ?
44 / 45
Some useful readings...
Anderson, C., « Makers : La nouvelle révolution industrielle », Pearson, 2012.
Baldwin, C.Y., Hienerth, C. and von Hippel, E., « How user innovations become commercial
products: a theoretical investigation and case study », Research Policy, 35, 9, 2006, pp.
1291–1313.
Eychenne, F., « Fab Lab : L'avant-garde de la nouvelle révolution industrielle », FYP
Éditions, 2012.
Laurent, P., « Les défis de la propriété intellectuelle face à l'innovation collaborative »,
Liège Créative, Liège, 18 novembre 2014.
Torrone, P., Fried, L., « Million dollar baby - Businesses designing and selling open source
hardware, making millions », O’Reilly’s foo camp east 2010, Microsoft’s NERD center (MIT
campus). Available at www.adafruit.com (read: March 6, 2012).
Viseur, R, « Pratiques innovantes dans le secteur automobile : du champion de produit à
l'innovation open source », , Rencontres mondiales du logiciel libre, Montpellier, 2014.
Viseur, R., « Hacker son appareil photo avec des outils libres », Rencontres mondiales du
logiciel libre, Montpellier, 2014.
Viseur, R, « Business models of open hardware », Rencontres Mondiales du Logiciel Libre,
Bruxelles, 2013.
Viseur, R., « From Open Source Software to Open Source Hardware », Open Source
Systems: Long-Term Sustainability. Springer Berlin Heidelberg, 2012. pp. 286-291.
45 / 45
Contact
Dr Ir Robert Viseur
Mail : robert.viseur@umons.ac.be
Phone : 0032 (0) 479 66 08 76
Website : www.robertviseur.be
LinkedIn : https://www.linkedin.com/in/robertviseur
Twitter : https://twitter.com/robertviseur
This presentation is covered by « CC-BY-ND » license.

More Related Content

Similar to L'open hardware dans l'électronique (et au delà...)

Legal analysis of source code
Legal analysis of source codeLegal analysis of source code
Legal analysis of source code
Robert Viseur

open source technology
open source technologyopen source technology
open source technology
Lila Ram Yadav

WP_Open-Source_Best_pratice_web
WP_Open-Source_Best_pratice_webWP_Open-Source_Best_pratice_web
WP_Open-Source_Best_pratice_web
Paul Plaquette

Open Source Culture and Transdisciplinary Practice
Open Source Culture and Transdisciplinary PracticeOpen Source Culture and Transdisciplinary Practice
Open Source Culture and Transdisciplinary Practice
DMLab


Similar to L'open hardware dans l'électronique (et au delà...) (20)

Open source hardware and the web
Open source hardware and the webOpen source hardware and the web
Open source hardware and the web

open source hardware overview
open source hardware overviewopen source hardware overview
open source hardware overview

Intellectual Property Issues in Open Source
Intellectual Property Issues in Open SourceIntellectual Property Issues in Open Source
Intellectual Property Issues in Open Source

Legal analysis of source code
Legal analysis of source codeLegal analysis of source code
Legal analysis of source code

Why Open Source Software/Open Hardware?
Why Open Source Software/Open Hardware?Why Open Source Software/Open Hardware?
Why Open Source Software/Open Hardware?

An Open Source Workshop
An Open Source WorkshopAn Open Source Workshop
An Open Source Workshop

open source technology
open source technologyopen source technology
open source technology

Open source freeopensource & linux
Open source freeopensource & linuxOpen source freeopensource & linux
Open source freeopensource & linux

Software Licensing.pptx
Software Licensing.pptxSoftware Licensing.pptx
Software Licensing.pptx

GDSC - Software Licensing.pdf
GDSC - Software Licensing.pdfGDSC - Software Licensing.pdf
GDSC - Software Licensing.pdf

Open Source and Accesssiblity - t12t meetup 181122
Open Source and Accesssiblity - t12t meetup 181122Open Source and Accesssiblity - t12t meetup 181122
Open Source and Accesssiblity - t12t meetup 181122

WP_Open-Source_Best_pratice_web
WP_Open-Source_Best_pratice_webWP_Open-Source_Best_pratice_web
WP_Open-Source_Best_pratice_web

Linux internals v4
Linux internals v4Linux internals v4
Linux internals v4

Advancement on embedded linux-v2
Advancement on embedded linux-v2Advancement on embedded linux-v2
Advancement on embedded linux-v2

Open Source in the Enterprise: Compliance and Risk Management
Open Source in the Enterprise: Compliance and Risk ManagementOpen Source in the Enterprise: Compliance and Risk Management
Open Source in the Enterprise: Compliance and Risk Management

C-SCALE Tutorial: Licensing Open Source Software
C-SCALE Tutorial: Licensing Open Source SoftwareC-SCALE Tutorial: Licensing Open Source Software
C-SCALE Tutorial: Licensing Open Source Software

Open Source vs Proprietary
Open Source vs ProprietaryOpen Source vs Proprietary
Open Source vs Proprietary

Open Source Culture and Transdisciplinary Practice
Open Source Culture and Transdisciplinary PracticeOpen Source Culture and Transdisciplinary Practice
Open Source Culture and Transdisciplinary Practice

Software update for embedded systems
Software update for embedded systemsSoftware update for embedded systems
Software update for embedded systems

Open Source Hardware and Developments in Creative Commons Licenses, Compatibi...
Open Source Hardware and Developments in Creative Commons Licenses, Compatibi...Open Source Hardware and Developments in Creative Commons Licenses, Compatibi...
Open Source Hardware and Developments in Creative Commons Licenses, Compatibi...


More from Robert Viseur

Comment gérer le risque de lock-in technique en cas d'usage de services de cl...
Comment gérer le risque de lock-in technique en cas d'usage de services de cl...Comment gérer le risque de lock-in technique en cas d'usage de services de cl...
Comment gérer le risque de lock-in technique en cas d'usage de services de cl...
Robert Viseur


More from Robert Viseur (20)

La PI dans les espaces de co-création et d'innovation ouverte. Propriété inte...
La PI dans les espaces de co-création et d'innovation ouverte. Propriété inte...La PI dans les espaces de co-création et d'innovation ouverte. Propriété inte...
La PI dans les espaces de co-création et d'innovation ouverte. Propriété inte...

L'écosystème régional du Big Data
L'écosystème régional du Big DataL'écosystème régional du Big Data
L'écosystème régional du Big Data

Piloter son appareil photo numérique avec des logiciels libres
Piloter son appareil photo  numérique avec des logiciels  libresPiloter son appareil photo  numérique avec des logiciels  libres
Piloter son appareil photo numérique avec des logiciels libres

Exploiter les données issues de Wikipedia
Exploiter les données issues de WikipediaExploiter les données issues de Wikipedia
Exploiter les données issues de Wikipedia

De l’open source à l’open cloud
De l’open source à l’open cloudDe l’open source à l’open cloud
De l’open source à l’open cloud

Développer ses photos avec RawTherapee
Développer ses photos avec RawTherapeeDévelopper ses photos avec RawTherapee
Développer ses photos avec RawTherapee

Convertir ses photos en N/B avec Gimp
Convertir ses photos en N/B avec GimpConvertir ses photos en N/B avec Gimp
Convertir ses photos en N/B avec Gimp

L'open hardware : l'ouverture au service de l'innovation
L'open hardware : l'ouverture au service de l'innovationL'open hardware : l'ouverture au service de l'innovation
L'open hardware : l'ouverture au service de l'innovation

Pechakucha (Mons) : Street Art à Mons
Pechakucha (Mons) : Street Art à MonsPechakucha (Mons) : Street Art à Mons
Pechakucha (Mons) : Street Art à Mons

Analyse des concepts de Fab Lab, Living Lab et Hub créatif
Analyse des concepts de Fab Lab, Living Lab et Hub créatifAnalyse des concepts de Fab Lab, Living Lab et Hub créatif
Analyse des concepts de Fab Lab, Living Lab et Hub créatif

Pratiques innovantes dans le secteur automobile: du champion de produit à l'i...
Pratiques innovantes dans le secteur automobile: du champion de produit à l'i...Pratiques innovantes dans le secteur automobile: du champion de produit à l'i...
Pratiques innovantes dans le secteur automobile: du champion de produit à l'i...

Etude du secteur des prestataires FLOSS en Belgique
Etude du secteur des prestataires FLOSS en BelgiqueEtude du secteur des prestataires FLOSS en Belgique
Etude du secteur des prestataires FLOSS en Belgique

Hacker son appareil photo avec des outils libres
Hacker son appareil photo avec des outils libresHacker son appareil photo avec des outils libres
Hacker son appareil photo avec des outils libres

Comment gérer le risque de lock-in technique en cas d'usage de services de cl...
Comment gérer le risque de lock-in technique en cas d'usage de services de cl...Comment gérer le risque de lock-in technique en cas d'usage de services de cl...
Comment gérer le risque de lock-in technique en cas d'usage de services de cl...

Hacker son appareil photo, c'est possible !
Hacker son appareil photo, c'est possible !Hacker son appareil photo, c'est possible !
Hacker son appareil photo, c'est possible !

Comprendre les licences de logiciels libres
Comprendre les licences de logiciels libresComprendre les licences de logiciels libres
Comprendre les licences de logiciels libres

Impact of cloud computing on FOSS editors
Impact of cloud computing on FOSS editorsImpact of cloud computing on FOSS editors
Impact of cloud computing on FOSS editors

Une introduction à la co-création dans le domaine des TIC
Une introduction à la co-création dans le domaine des TICUne introduction à la co-création dans le domaine des TIC
Une introduction à la co-création dans le domaine des TIC

fOSSa 2013 - Crossroads of openness - Wrap-up talk ! / Ecosystem
fOSSa 2013 - Crossroads of openness - Wrap-up talk ! / EcosystemfOSSa 2013 - Crossroads of openness - Wrap-up talk ! / Ecosystem
fOSSa 2013 - Crossroads of openness - Wrap-up talk ! / Ecosystem

Comment valoriser les logiciels, le matériel et les oeuvres libres ?
Comment valoriser les logiciels, le matériel et les oeuvres libres ?Comment valoriser les logiciels, le matériel et les oeuvres libres ?
Comment valoriser les logiciels, le matériel et les oeuvres libres ?


Recently uploaded

一比一原版UC Berkeley毕业证成绩单如何办理
一比一原版UC Berkeley毕业证成绩单如何办理一比一原版UC Berkeley毕业证成绩单如何办理
一比一原版UC Berkeley毕业证成绩单如何办理
cnzepoz

1. WIX 2 PowerPoint for Work Experience.pptx
1. WIX 2 PowerPoint for Work Experience.pptx1. WIX 2 PowerPoint for Work Experience.pptx
1. WIX 2 PowerPoint for Work Experience.pptx
louise569794

一比一原版UW毕业证成绩单如何办理
一比一原版UW毕业证成绩单如何办理一比一原版UW毕业证成绩单如何办理
一比一原版UW毕业证成绩单如何办理
cnzepoz

一比一原版AIS毕业证成绩单如何办理
一比一原版AIS毕业证成绩单如何办理一比一原版AIS毕业证成绩单如何办理
一比一原版AIS毕业证成绩单如何办理
cnzepoz

一比一原版ArtEZ毕业证成绩单如何办理
一比一原版ArtEZ毕业证成绩单如何办理一比一原版ArtEZ毕业证成绩单如何办理
一比一原版ArtEZ毕业证成绩单如何办理
cnzepoz

一比一原版麦考瑞大学毕业证成绩单如何办理
一比一原版麦考瑞大学毕业证成绩单如何办理一比一原版麦考瑞大学毕业证成绩单如何办理
一比一原版麦考瑞大学毕业证成绩单如何办理
cnzepoz

一比一原版Southern Cross毕业证成绩单如何办理
一比一原版Southern Cross毕业证成绩单如何办理一比一原版Southern Cross毕业证成绩单如何办理
一比一原版Southern Cross毕业证成绩单如何办理
cnzepoz

一比一原版迪肯大学毕业证成绩单如何办理
一比一原版迪肯大学毕业证成绩单如何办理一比一原版迪肯大学毕业证成绩单如何办理
一比一原版迪肯大学毕业证成绩单如何办理
cnzepoz

一比一原版UCB毕业证成绩单如何办理
一比一原版UCB毕业证成绩单如何办理一比一原版UCB毕业证成绩单如何办理
一比一原版UCB毕业证成绩单如何办理
cnzepoz

一比一原版UBC毕业证成绩单如何办理
一比一原版UBC毕业证成绩单如何办理一比一原版UBC毕业证成绩单如何办理
一比一原版UBC毕业证成绩单如何办理
cnzepoz

一比一原版UVic毕业证成绩单如何办理
一比一原版UVic毕业证成绩单如何办理一比一原版UVic毕业证成绩单如何办理
一比一原版UVic毕业证成绩单如何办理
cnzepoz

一比一原版UMich毕业证成绩单如何办理
一比一原版UMich毕业证成绩单如何办理一比一原版UMich毕业证成绩单如何办理
一比一原版UMich毕业证成绩单如何办理
cnzepoz

一比一原版GT毕业证成绩单如何办理
一比一原版GT毕业证成绩单如何办理一比一原版GT毕业证成绩单如何办理
一比一原版GT毕业证成绩单如何办理
cnzepoz

一比一原版UofM毕业证成绩单如何办理
一比一原版UofM毕业证成绩单如何办理一比一原版UofM毕业证成绩单如何办理
一比一原版UofM毕业证成绩单如何办理
cnzepoz


Recently uploaded (20)

一比一原版UC Berkeley毕业证成绩单如何办理
一比一原版UC Berkeley毕业证成绩单如何办理一比一原版UC Berkeley毕业证成绩单如何办理
一比一原版UC Berkeley毕业证成绩单如何办理

1. WIX 2 PowerPoint for Work Experience.pptx
1. WIX 2 PowerPoint for Work Experience.pptx1. WIX 2 PowerPoint for Work Experience.pptx
1. WIX 2 PowerPoint for Work Experience.pptx

一比一原版UW毕业证成绩单如何办理
一比一原版UW毕业证成绩单如何办理一比一原版UW毕业证成绩单如何办理
一比一原版UW毕业证成绩单如何办理

NO1 Qari kala jadu karne wale ka contact number kala jadu karne wale baba kal...
NO1 Qari kala jadu karne wale ka contact number kala jadu karne wale baba kal...NO1 Qari kala jadu karne wale ka contact number kala jadu karne wale baba kal...
NO1 Qari kala jadu karne wale ka contact number kala jadu karne wale baba kal...

NO1 Pandit Black magic/kala jadu,manpasand shadi in lahore,karachi rawalpindi...
NO1 Pandit Black magic/kala jadu,manpasand shadi in lahore,karachi rawalpindi...NO1 Pandit Black magic/kala jadu,manpasand shadi in lahore,karachi rawalpindi...
NO1 Pandit Black magic/kala jadu,manpasand shadi in lahore,karachi rawalpindi...

一比一原版AIS毕业证成绩单如何办理
一比一原版AIS毕业证成绩单如何办理一比一原版AIS毕业证成绩单如何办理
一比一原版AIS毕业证成绩单如何办理

Memory compiler tutorial – TSMC 40nm technology
Memory compiler tutorial – TSMC 40nm technologyMemory compiler tutorial – TSMC 40nm technology
Memory compiler tutorial – TSMC 40nm technology

一比一原版ArtEZ毕业证成绩单如何办理
一比一原版ArtEZ毕业证成绩单如何办理一比一原版ArtEZ毕业证成绩单如何办理
一比一原版ArtEZ毕业证成绩单如何办理

一比一原版麦考瑞大学毕业证成绩单如何办理
一比一原版麦考瑞大学毕业证成绩单如何办理一比一原版麦考瑞大学毕业证成绩单如何办理
一比一原版麦考瑞大学毕业证成绩单如何办理

一比一原版Southern Cross毕业证成绩单如何办理
一比一原版Southern Cross毕业证成绩单如何办理一比一原版Southern Cross毕业证成绩单如何办理
一比一原版Southern Cross毕业证成绩单如何办理

一比一原版迪肯大学毕业证成绩单如何办理
一比一原版迪肯大学毕业证成绩单如何办理一比一原版迪肯大学毕业证成绩单如何办理
一比一原版迪肯大学毕业证成绩单如何办理

Aluminum Die Casting Manufacturers in China - BIAN Diecast
Aluminum Die Casting Manufacturers in China - BIAN DiecastAluminum Die Casting Manufacturers in China - BIAN Diecast
Aluminum Die Casting Manufacturers in China - BIAN Diecast

一比一原版UCB毕业证成绩单如何办理
一比一原版UCB毕业证成绩单如何办理一比一原版UCB毕业证成绩单如何办理
一比一原版UCB毕业证成绩单如何办理

一比一原版UBC毕业证成绩单如何办理
一比一原版UBC毕业证成绩单如何办理一比一原版UBC毕业证成绩单如何办理
一比一原版UBC毕业证成绩单如何办理

China Die Casting Manufacturer & Supplier - Bian Diecast
China Die Casting Manufacturer & Supplier - Bian DiecastChina Die Casting Manufacturer & Supplier - Bian Diecast
China Die Casting Manufacturer & Supplier - Bian Diecast

一比一原版UVic毕业证成绩单如何办理
一比一原版UVic毕业证成绩单如何办理一比一原版UVic毕业证成绩单如何办理
一比一原版UVic毕业证成绩单如何办理

F5 LTM TROUBLESHOOTING Guide latest.pptx
F5 LTM TROUBLESHOOTING Guide latest.pptxF5 LTM TROUBLESHOOTING Guide latest.pptx
F5 LTM TROUBLESHOOTING Guide latest.pptx

一比一原版UMich毕业证成绩单如何办理
一比一原版UMich毕业证成绩单如何办理一比一原版UMich毕业证成绩单如何办理
一比一原版UMich毕业证成绩单如何办理

一比一原版GT毕业证成绩单如何办理
一比一原版GT毕业证成绩单如何办理一比一原版GT毕业证成绩单如何办理
一比一原版GT毕业证成绩单如何办理

一比一原版UofM毕业证成绩单如何办理
一比一原版UofM毕业证成绩单如何办理一比一原版UofM毕业证成绩单如何办理
一比一原版UofM毕业证成绩单如何办理


L'open hardware dans l'électronique (et au delà...)

  • 1. Faculté Polytechnique [ Jeudis du Libre, UMONS (FPMs), Mons – Thursday 18th December 2014 ] The open source hardware in electronics (and beyond...) Department of Economy and Innovation Management Dr Ir Robert Viseur
  • 2. 2 / 45 Part 1 Basis about software licenses and business models
  • 3. 3 / 45 Free / Open Source Software Free Software Definition. – Four freedoms (see www.gnu.org). Open Source Definition. – Ten criteria (see opensource.org).
  • 4. 4 / 45 Software licenses (1/2) Three types of licenses: – Proprietary licenses. • E.g. CLUF for Microsoft softwares. – Hybrid licences (rare). • E.g. former SCSL for Sun Microsystems softwares. – Free software licenses. • E.g. AL, BSD, GPL, LGPL,... • More or less 70 free software licenses.
  • 5. 5 / 45 Software licenses (2/2)
  • 6. 6 / 45 Free software licenses (1/2) Two families of free software licenses: – Permissive / academic licenses. – Copyleft / restrictive licenses (licenses with reciprocity). Three types of licenses with reciprocity. – Weak reciprocity. • File-based, or not. – Strong reciprocity. – Network reciprocity.
  • 7. 7 / 45 Free software licenses (2/2)
  • 8. 8 / 45 Business models for free and open source softwares (1/2) Trade-off between value creation and value capture. – Value creation: • Investment in R&D. • Collaboration with community (open source innovation). – Value capture: • Weak appropriability regime. • Often: indirect valuation (eg. services, advertising, etc.).
  • 9. 9 / 45 Business models for free and open source softwares (2/2) Services (« best knowledge here »). – Common services: custom software development, installation and integration, training, etc. – New SaaS and cloud computing opportunities. Dual licensing schemes. – Without technical differenciation. – With technical differentiation. – Opencore schemes (e.g. free kernel + private add- ons).
  • 10. 10 / 45 Part 2 Business models of open hardware
  • 11. 11 / 45 What is open hardware ? Definition from Open Hardware Summit and then Open Source Hardware Association. – See details at http://www.oshwa.org/definition/. Inspired by Open Source Definition from Open Source Initiative (opensource.org). More communly accepted than previous definitions. New initiative: OHANDA label (see www.ohanda.org).
  • 12. 12 / 45 Open Source Hardware (OSHW) Definition 1.0 (1/3) 1. Documentation – The hardware must be released with documentation including design files, and must allow modification and distribution of the design files. 2. Scope – The documentation for the hardware must clearly specify what portion of the design, if not all, is being released under the license. 3. Necessary Software – If the licensed design requires software, the interfaces must be sufficiently documented or the necessary software must be released under an OSI-approved open source license. 4. Derived Works – The license shall allow modifications and derived works, and shall allow them to be distributed under the same terms as the license of the original work.
  • 13. 13 / 45 Open Source Hardware (OSHW) Definition 1.0 (2/3) 5. Free redistribution – The license shall not restrict any party from selling or giving away the project documentation. 6. Attribution – The license may require derived documents, and copyright notices associated with devices, to provide attribution to the licensors when distributing design files, manufactured products, and/or derivatives thereof. 7. No Discrimination Against Persons or Groups – The license must not discriminate against any person or group of persons. 8. No Discrimination Against Fields of Endeavor – The license must not restrict anyone from making use of the work (including manufactured hardware) in a specific field of endeavor.
  • 14. 14 / 45 Open Source Hardware (OSHW) Definition 1.0 (3/3) 9. Distribution of License – The rights granted by the license must apply to all to whom the work is redistributed without the need for execution of an additional license by those parties. 10. License Must Not Be Specific to a Product – The rights granted by the license must not depend on the licensed work being part of a particular product. 11. License Must Not Restrict Other Hardware or Software – The license must not place restrictions on other items that are aggregated with the licensed work but not derivative of it. 12. License Must Be Technology-Neutral – No provision of the license may be predicated on any individual technology, specific part or component, material, or style of interface or use thereof.
  • 15. 15 / 45 Protection of hardware (1/3) Some items to protect: – the source code for electronics (e.g.: VHDL or Verilog source codes), – the source code for associated softwares (e.g. development tools, SDK, etc.), – the schematics, the design files and the technical drawings (hardware design), – the aesthetic value, – the documentations, – the brands. IP tools: mainly copyrights, industrial design rights, patents and trademarks. – Other: protection for the topographies of semiconductor products.
  • 16. 16 / 45 Protection of hardware (2/3) Frequent use of Creative Commons licenses. – Attention to NC clause. Frequent use of widely used free software licenses. – Mainly BSD, GPL and LGPL. Dedicated licenses. – Examples: TAPR OHL (see www.tapr.org/ohl.html) or CERN OHL (see www.ohwr.org/cernohl).
  • 17. 17 / 45 Protection of hardware (3/3) Licenses in real life (Viseur, 2012):
  • 18. 18 / 45 Business models of open hardware Business models in real life (Viseur, 2012):
  • 19. 19 / 45 Size of the market (1/2) Strong rise of the number of projects (Torrone & Fried, 2010):
  • 20. 20 / 45 Size of the market (2/2) Report from (Torrone & Fried, 2010): – 13 companies representing approximately $50 million. – About 200 projects in 2010. – By 2015: +$1 billion collective.
  • 21. 21 / 45 Still a blurred concept ? Boundaries between openness and freedom not always clear but... – Ongoing standardization of the definition. How open is open enough ? – Open hardware often build on closed components. – Community activities not always clear... How to identify sustainable projects ? – Think about free software success factors. – Examples: modularity, standards, open governance (community / ecosystem), etc.
  • 22. 22 / 45 Part 3 Examples of open hardware commercial projects
  • 23. 23 / 45 LEON (Gaisler) (1/2) VHDL model for 32 bits SPARC- compliant processor. – Created by Jiri Gaisler and now supported by Aeroflex Gaisler company (www.gaisler.com). – SPARC: RISC open instruction set architecture and registered trademark of SPARC International, Inc. – See more at http://en.wikipedia.org/wiki/SPARC and http://www.sparc.org/.
  • 24. 24 / 45 LEON (Gaisler) (2/2) Wide portfolio of products (LEON family, and others) and services. One of the products: GRLIB IP Library. – Dual licensing scheme. • Licenses: GPL or commercial license. • See http://www.gaisler.com/index.php/products/ipcores/soclib rary.
  • 25. 25 / 45 Arduino (Smart Projects) (1/3) Open source electronics prototyping platform. – See http://www.arduino.cc/ for more details. – Manufactured by the Italian company Smart Project (smartprj.com). – Available with open source development software. – Tremendous success.
  • 26. 26 / 45 Arduino (Smart Projects) (2/3) Enablers: – Cheap, simple, released with integrated tools. – Wide ecosystem. • New open projects based on Arduino hardware. • Examples: DIY Drones (diydrones.com), Photoduino (photoduino.com), etc. – Format for technically compatible extensions (shields). Several forks (true free project). – Imitations and variations. – Examples: Freeduino, Sanguino, etc.
  • 27. 27 / 45 Arduino (Smart Projects) (3/3) Licenses: – Design covered by CC-BY-SA license. – Source code covered by GPL or LGPL licenses. – Arduino is a trademark. Revenues: – Over $1 million in 2010 (Torrone & Fried, 2010). – Based on services and sale of products.
  • 28. 28 / 45 Elphel (1/3) Elphel 353/363 network camera (www.elphel.com). License: software and hardware under GPL v2. – See http://www3.elphel.com/wiki/licensing for more details. Revenues from the sales of products (several product lines). Discreet community. Source of inspiration and technical basis for other projects. – Examples: Frankencamera prototype or Axiom project.
  • 29. 29 / 45 Elphel (2/3) Collaboration with Google : – Cameras for Google Books. – Cameras for Google Streetview.
  • 30. 30 / 45 Elphel (3/3) Future project: Apertus (camera for cinema). – Friendly fork (?): Axiom. • First open digital cinema camera Axiom. • Licenses: – Software under the GNU General Public License V3. – Documentation under the Creative Commons License. – Hardware under the Cern Open Hardware License. • Partnership with Dynamic Perception (www.dynamicperception.com). – See https://www.apertus.org/history.
  • 31. 31 / 45 Part 4 Open hardware beyond electronic stuffs
  • 32. 32 / 45 Hexayurt (1/2) « The Hexayurt is a refugee shelter system based on work done at the Rocky Mountain Institute. It uses an approach based on "autonomous building" to provide not just a shelter, but a comprehensive family support unit which includes drinking water purification, composting toilets, fuel-efficient stoves and solar electric lighting. » (see http://www.appropedia.org/Hexayurt_Project & http://hexayurt.com/)
  • 33. 33 / 45 Hexayurt (2/2) Materials published in public domain. Several variations around the first project. Case of Open Source Appropriate Design: « Appropriate technology (AT) is technology that is designed with special consideration to the context of its use - including environmental, ethical, cultural, social, political, and economical aspects of the community it is intended for. » (see http://www.appropedia.org/Portal:Appropriate_technology)
  • 34. 34 / 45 Open Reflex (1/3) Open source project for a film camera (single lens reflex). Following a pinhole project (« 3D Printed Pinhole Box »). Printable with RepRap 3D printer (reprap.org).
  • 35. 35 / 45 Open Reflex (2/3) True open hardware project: – Materials published under CC-BY-SA on: • author's blog (leomarius.com), • Thinkgiverse (www.thingiverse.com), • Instructables (instructables.com), • Dropbox (www.dropbox.com). – Nascent community: • New sub-projects. • Collaborations (e.g. DIY AP-LENS). More details: leomarius.com/albums/openreflex/.
  • 36. 36 / 45 Open Reflex (3/3) Attempt to use crowdfunding. – More details: www.kisskissbankbank.com/en/projects/openreflex.
  • 37. 37 / 45 OSVehicle TABBY (1/2) OSVehicle (www.osvehicle.com). Creators of the Tabby / Urban Tabby. Urban quadricycle vehicle. – « Twizy open source » ? Tabby / Urban Tabby ? – Tabby : « TABBY is an open source framework for vehicles ». – Urban Tabby : approved model.
  • 38. 38 / 45 OSVehicle TABBY (2/2) Materials published under CC-BY-SA. – See http://www.osvehicle.com/download/ . Objective of creating an active community. – Actual status ? Vehicle being bought in kit. Services for local builders (emerging countries). – No complex production line. – Very little investment. Connected to Open Source Appropriate Technology. Estimated sales prices (assembled) : 6000 euros.
  • 39. 39 / 45 NIKA (based on OSVehicle) « Designed and engineered in Italy, NIKA is the first OSV product to introduce the possibilities of an open source connected car » « API’s will be available as an OSV standard to enable the creation of APPS »
  • 40. 40 / 45 Stay tuned (1/3) New exciting projects: – Example: OpenEnergyMonitor system. • Wireless sensor nodes that send data at periodic intervals to a web-connected base-station. • Based on Arduino. – See more details at http://openenergymonitor.or g/emon/opensustech.
  • 41. 41 / 45 Stay tuned (2/3) New opportunities due to progress in: – CAD open source softwares. • See http://linuxfr.org/news/linux-et-la- commande-numerique-par-calculateur. – 3D printers (and fablabs). • See http://linuxfr.org/news/la-fr%C3%A9n %C3%A9sie-des-imprimantes-3d. Progressive adoption by industries. – For example : Ford OpenXC (openxcplatform.com).
  • 42. 42 / 45 Stay tuned (3/3) First project in Belgium : – By Sibelga (Brussels distribution network operator). – OSH project Plugelec (digital energy meter). – New OSH license LOH DDC (see http://sibelga.be/uploads/asset s/471/fr/1415087108913- LOH_DDC_V1-0_FR.pdf) by Me Philippe Laurent. – See details at http://sibelga.be/openhardware/ fr.
  • 43. 43 / 45 Thanks for your attention. Any questions ?
  • 44. 44 / 45 Some useful readings... Anderson, C., « Makers : La nouvelle révolution industrielle », Pearson, 2012. Baldwin, C.Y., Hienerth, C. and von Hippel, E., « How user innovations become commercial products: a theoretical investigation and case study », Research Policy, 35, 9, 2006, pp. 1291–1313. Eychenne, F., « Fab Lab : L'avant-garde de la nouvelle révolution industrielle », FYP Éditions, 2012. Laurent, P., « Les défis de la propriété intellectuelle face à l'innovation collaborative », Liège Créative, Liège, 18 novembre 2014. Torrone, P., Fried, L., « Million dollar baby - Businesses designing and selling open source hardware, making millions », O’Reilly’s foo camp east 2010, Microsoft’s NERD center (MIT campus). Available at www.adafruit.com (read: March 6, 2012). Viseur, R, « Pratiques innovantes dans le secteur automobile : du champion de produit à l'innovation open source », , Rencontres mondiales du logiciel libre, Montpellier, 2014. Viseur, R., « Hacker son appareil photo avec des outils libres », Rencontres mondiales du logiciel libre, Montpellier, 2014. Viseur, R, « Business models of open hardware », Rencontres Mondiales du Logiciel Libre, Bruxelles, 2013. Viseur, R., « From Open Source Software to Open Source Hardware », Open Source Systems: Long-Term Sustainability. Springer Berlin Heidelberg, 2012. pp. 286-291.
  • 45. 45 / 45 Contact Dr Ir Robert Viseur Mail : robert.viseur@umons.ac.be Phone : 0032 (0) 479 66 08 76 Website : www.robertviseur.be LinkedIn : https://www.linkedin.com/in/robertviseur Twitter : https://twitter.com/robertviseur This presentation is covered by « CC-BY-ND » license.
