RTI DDS Intro with DDS Secure

This document provides an overview and agenda for a presentation by Real-Time Innovations (RTI) on their communications software platform. RTI is a leader in fast, scalable communications software for real-time systems with over 350,000 deployed licenses. The presentation will introduce RTI, provide an overview of their Data Distribution Service (DDS) middleware, and discuss DDS Secure, Connext DDS Professional, real-world use cases, professional services, and take questions. Critical systems from various industries worldwide trust and rely on RTI software.

Embed presentation

Download as PDF, PPTX
© 2014 Real-Time Innovations, Inc. Real Time Innovations, Inc. The Communications Platform for the Industrial Internet of Things™

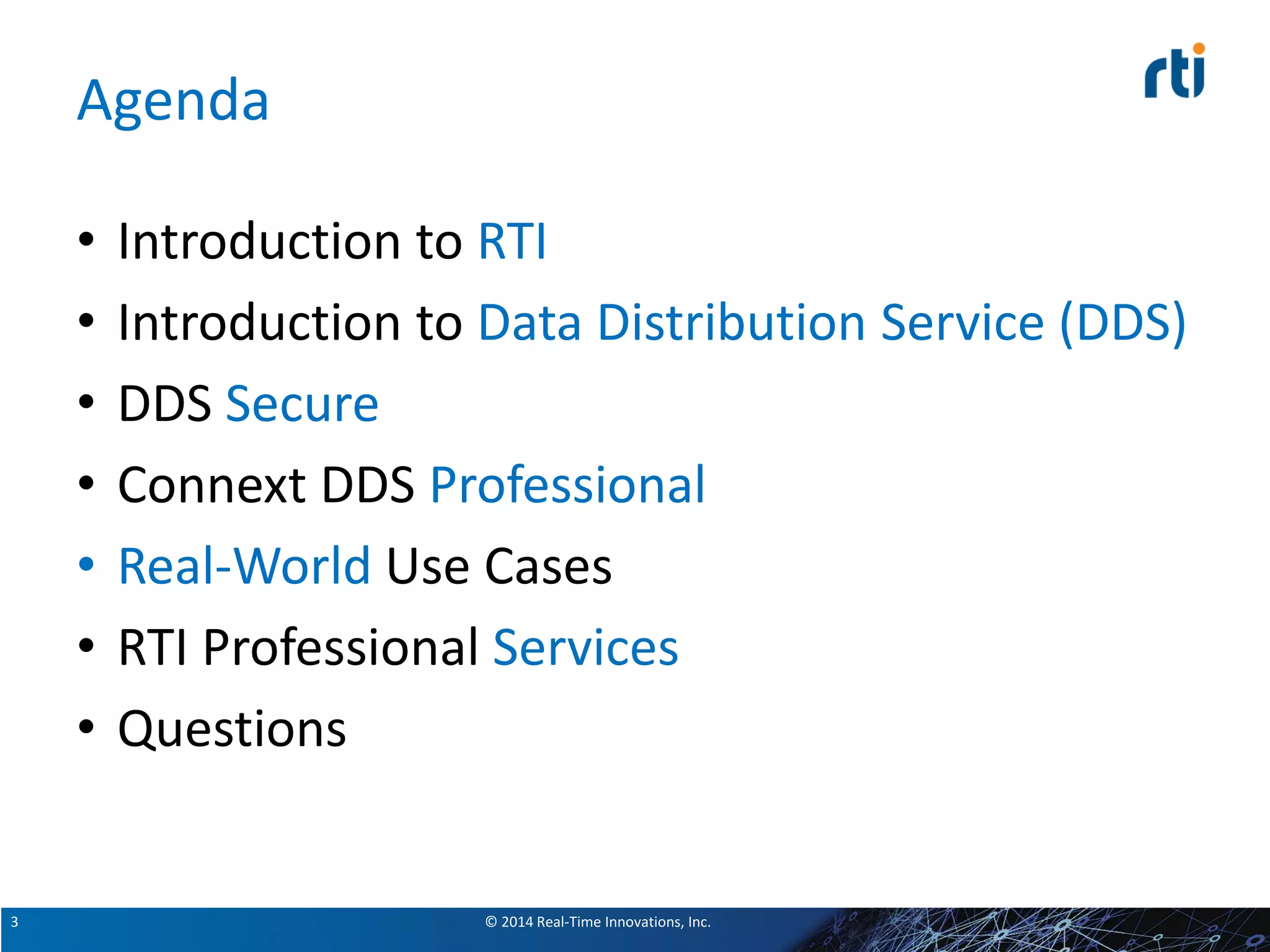

© 2014 Real-Time Innovations, Inc.3 Agenda • Introduction to RTI • Introduction to Data Distribution Service (DDS) • DDS Secure • Connext DDS Professional • Real-World Use Cases • RTI Professional Services • Questions
© 2014 Real-Time Innovations, Inc. Introduction to RTI
© 2014 Real-Time Innovations, Inc.5 RTI Company Snapshot • World leader in fast, scalable communications software for real-time operational systems • Strong leadership in Aerospace and Defense; broadening adoption in Energy, Industrial Control, Automotive, Healthcare, Smart Cars, and more • Over 350,000 deployed licenses in over 800 unique projects • Privately held • Based in Silicon Valley • Worldwide offices • IIC Steering Committee
© 2014 Real-Time Innovations, Inc.6 RTI Excels at Operational Systems

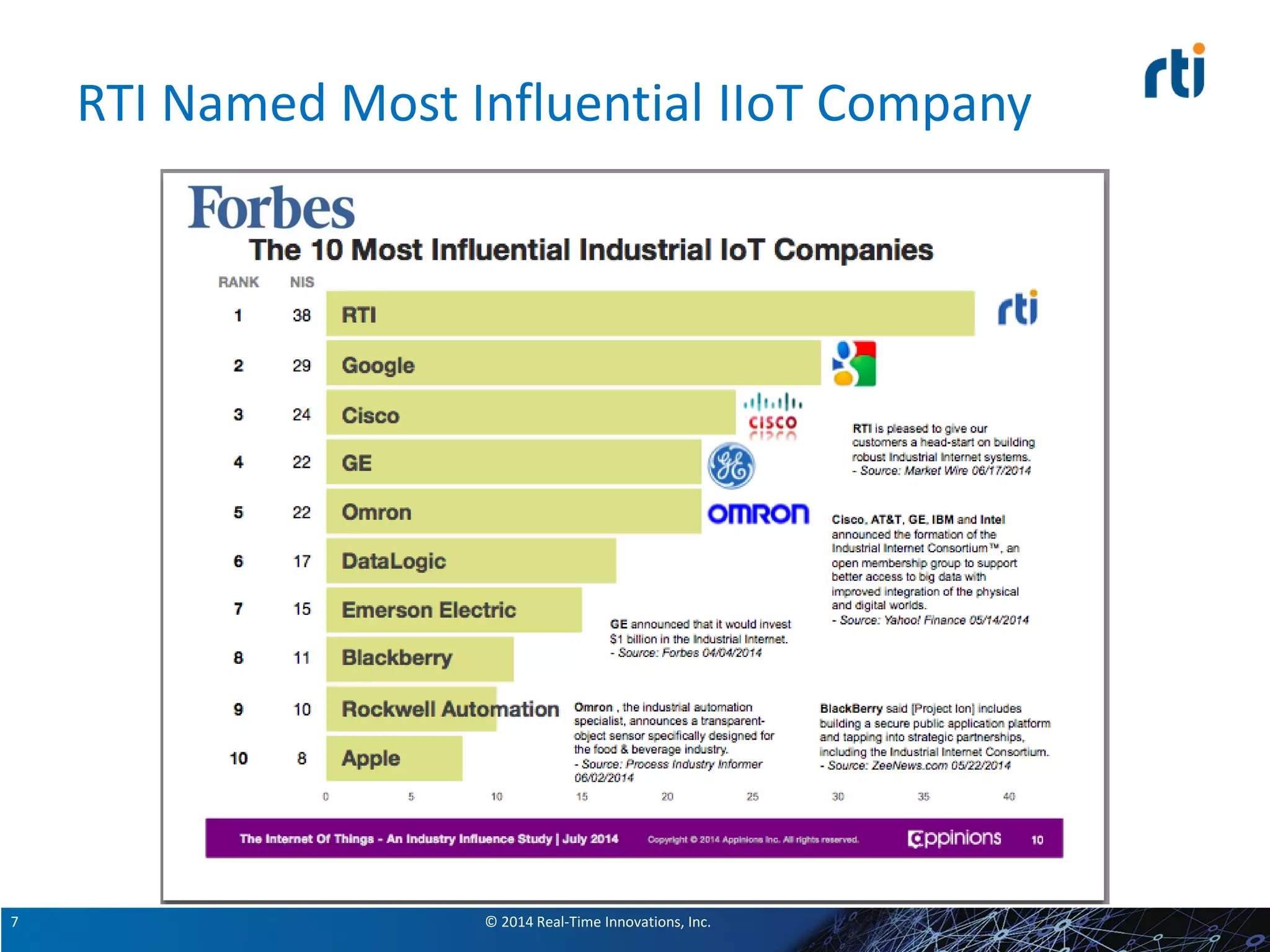

© 2014 Real-Time Innovations, Inc.7 RTI Named Most Influential IIoT Company

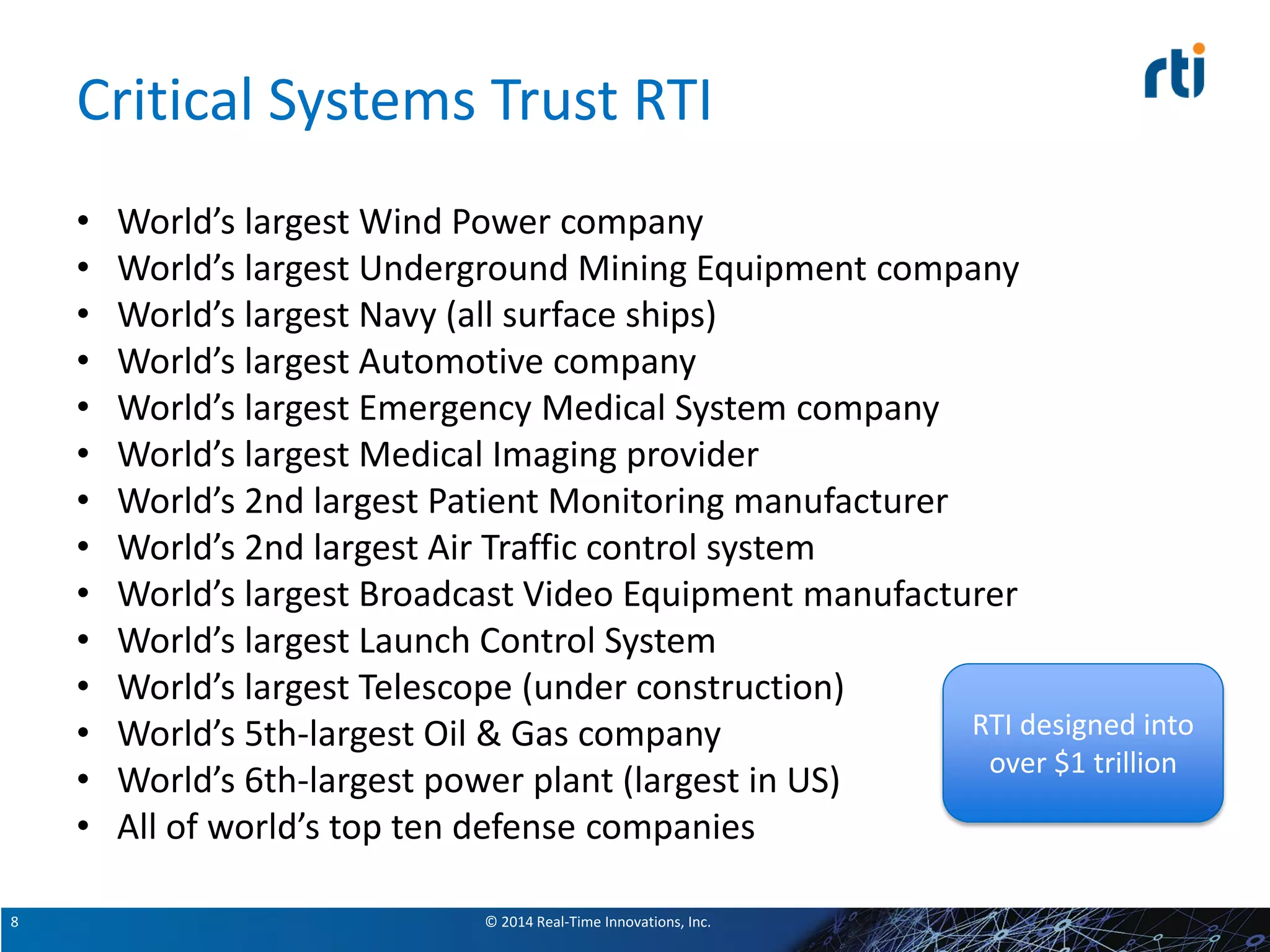

© 2014 Real-Time Innovations, Inc.8 Critical Systems Trust RTI • World’s largest Wind Power company • World’s largest Underground Mining Equipment company • World’s largest Navy (all surface ships) • World’s largest Automotive company • World’s largest Emergency Medical System company • World’s largest Medical Imaging provider • World’s 2nd largest Patient Monitoring manufacturer • World’s 2nd largest Air Traffic control system • World’s largest Broadcast Video Equipment manufacturer • World’s largest Launch Control System • World’s largest Telescope (under construction) • World’s 5th-largest Oil & Gas company • World’s 6th-largest power plant (largest in US) • All of world’s top ten defense companies RTI designed into over $1 trillion
© 2014 Real-Time Innovations, Inc. Introduction to DDS

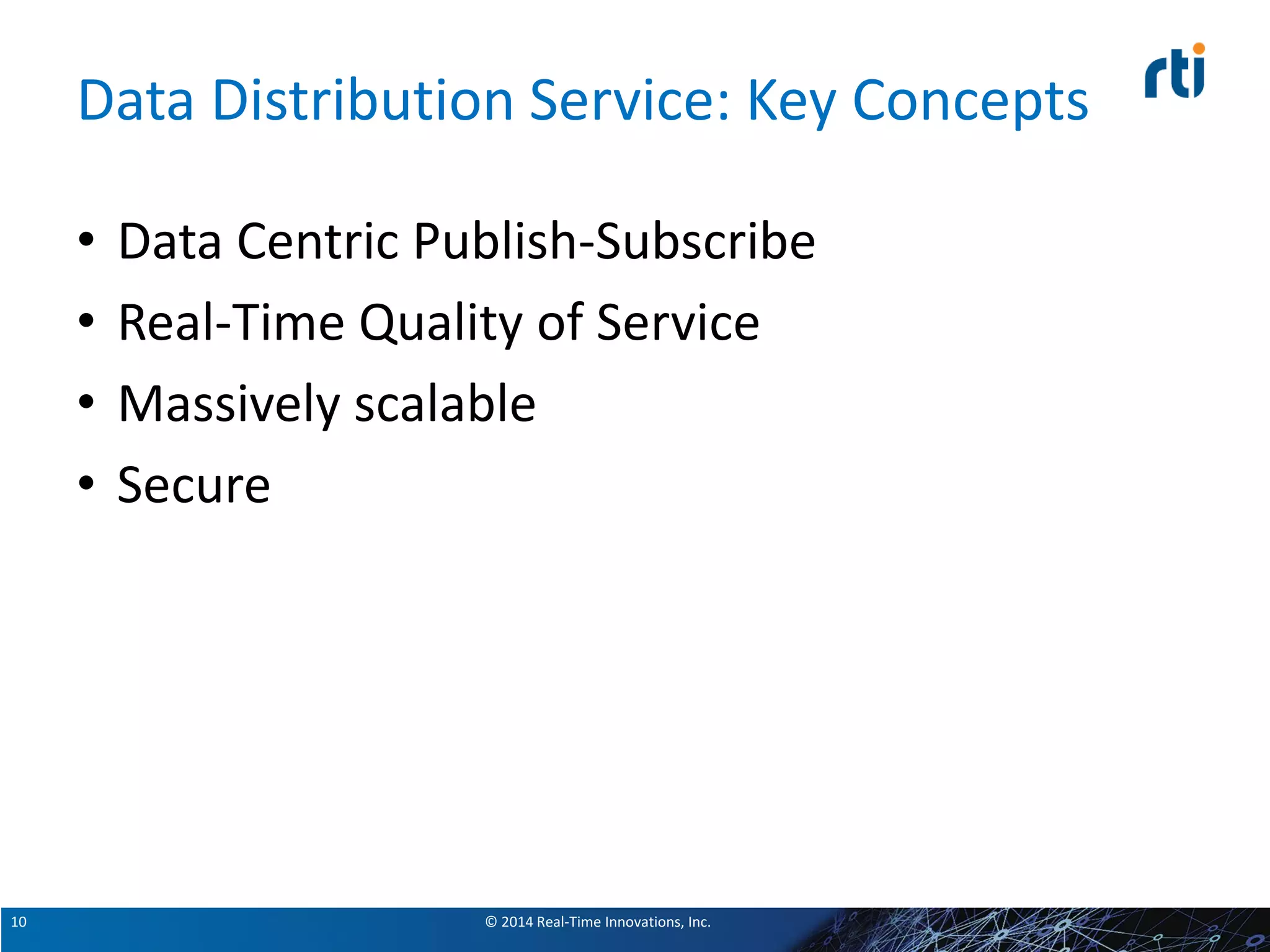

© 2014 Real-Time Innovations, Inc.10 Data Distribution Service: Key Concepts • Data Centric Publish-Subscribe • Real-Time Quality of Service • Massively scalable • Secure
© 2014 Real-Time Innovations, Inc. Data-Centric Publish-Subscribe

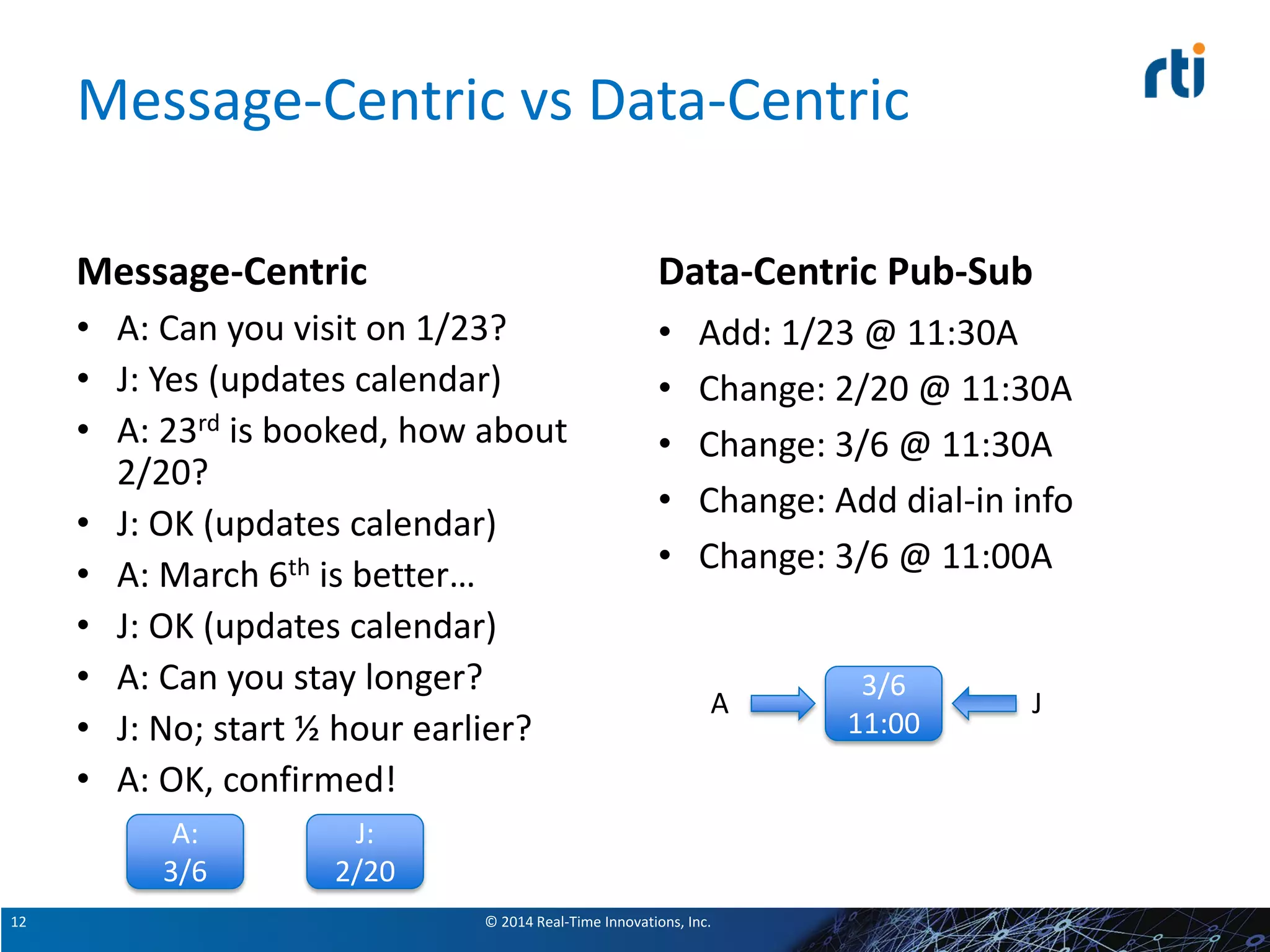

© 2014 Real-Time Innovations, Inc.12 Message-Centric vs Data-Centric Message-Centric • A: Can you visit on 1/23? • J: Yes (updates calendar) • A: 23rd is booked, how about 2/20? • J: OK (updates calendar) • A: March 6th is better… • J: OK (updates calendar) • A: Can you stay longer? • J: No; start ½ hour earlier? • A: OK, confirmed! Data-Centric Pub-Sub • Add: 1/23 @ 11:30A • Change: 2/20 @ 11:30A • Change: 3/6 @ 11:30A • Change: Add dial-in info • Change: 3/6 @ 11:00A J: 2/20 A: 3/6 3/6 11:00 A J

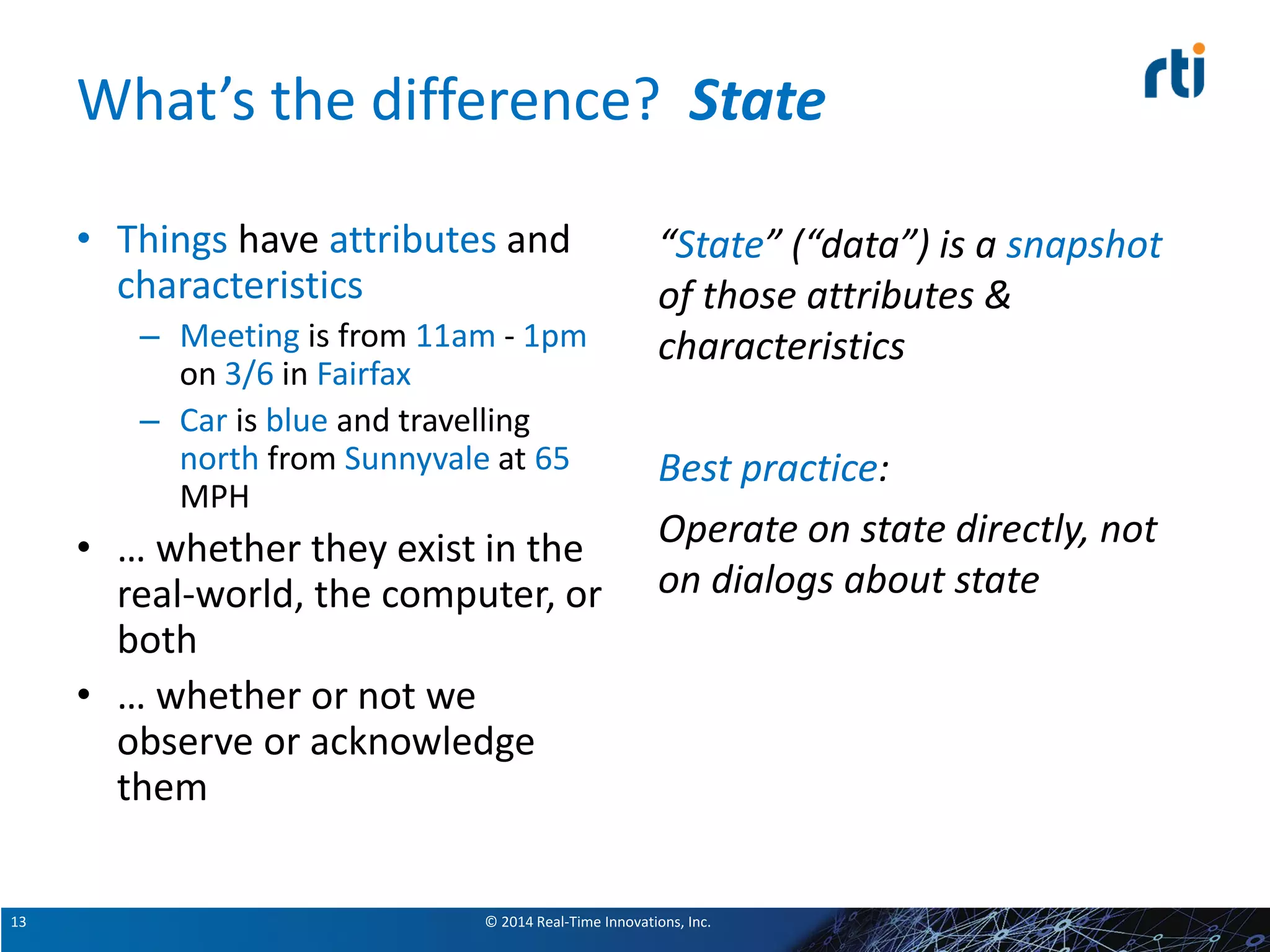

© 2014 Real-Time Innovations, Inc.13 What’s the difference? State • Things have attributes and characteristics – Meeting is from 11am - 1pm on 3/6 in Fairfax – Car is blue and travelling north from Sunnyvale at 65 MPH • … whether they exist in the real-world, the computer, or both • … whether or not we observe or acknowledge them “State” (“data”) is a snapshot of those attributes & characteristics Best practice: Operate on state directly, not on dialogs about state

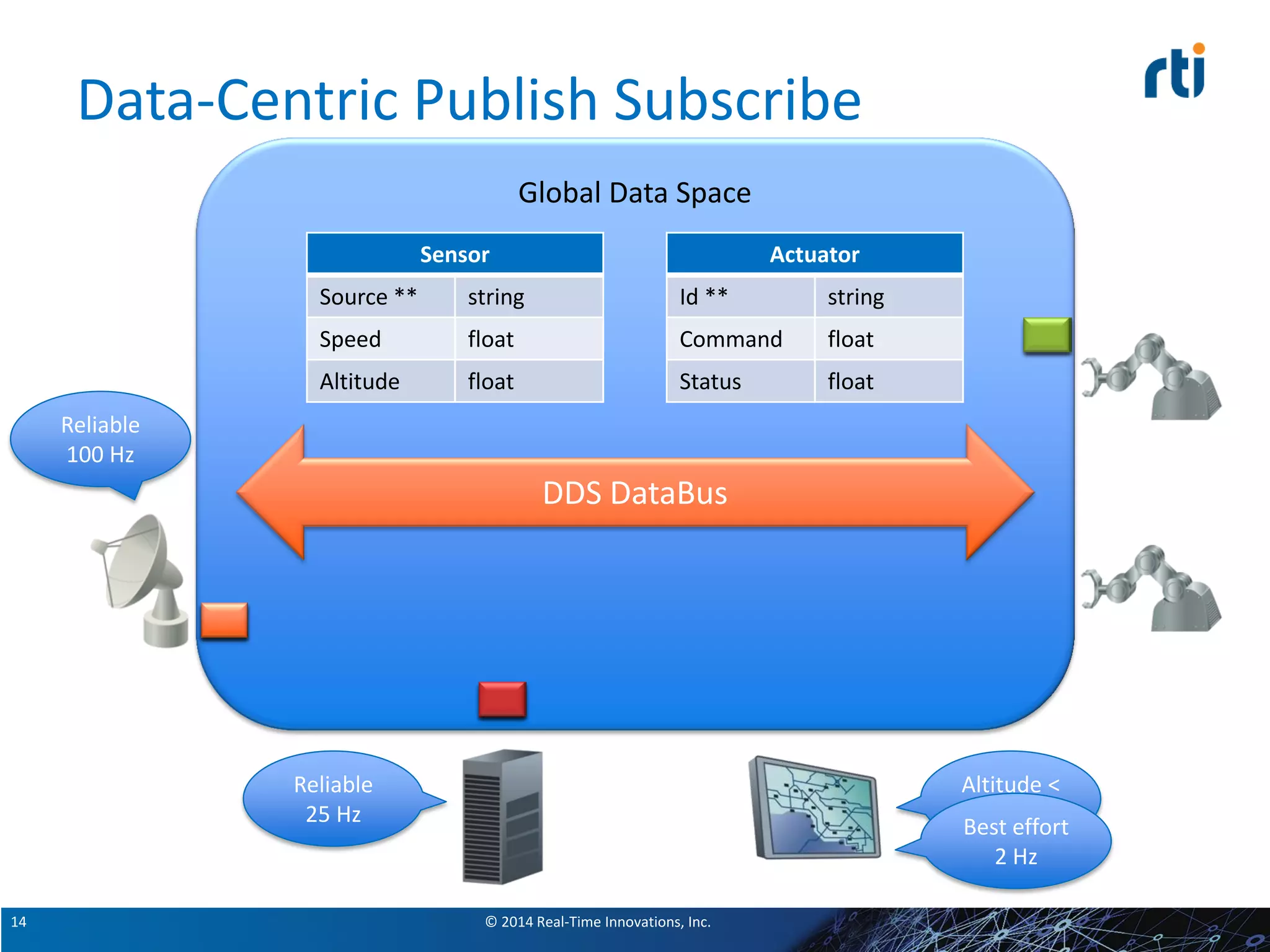

© 2014 Real-Time Innovations, Inc.14 Data-Centric Publish Subscribe Global Data Space DDS DataBus Sensor Source ** string Speed float Altitude float Actuator Id ** string Command float Status float Reliable 100 Hz Altitude < 5000 ft Reliable 25 Hz Best effort 2 Hz

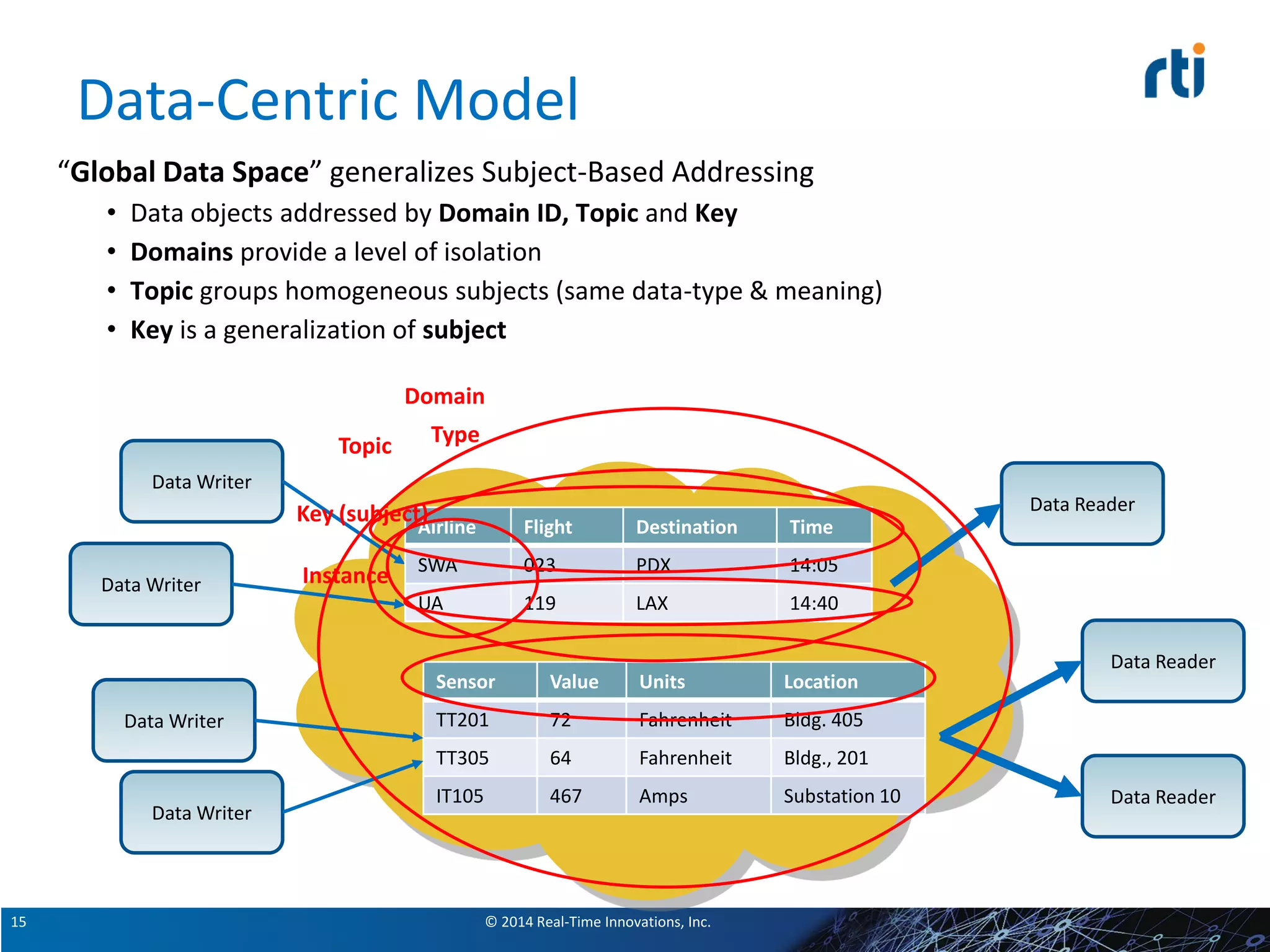

© 2014 Real-Time Innovations, Inc.15 Data-Centric Model “Global Data Space” generalizes Subject-Based Addressing • Data objects addressed by Domain ID, Topic and Key • Domains provide a level of isolation • Topic groups homogeneous subjects (same data-type & meaning) • Key is a generalization of subject Data Writer Data Writer Data Writer Data Reader Data Reader Data Reader Sensor Value Units Location TT201 72 Fahrenheit Bldg. 405 TT305 64 Fahrenheit Bldg., 201 IT105 467 Amps Substation 10 Data Writer Airline Flight Destination Time SWA 023 PDX 14:05 UA 119 LAX 14:40 Domain Instance Key (subject) TypeTopic

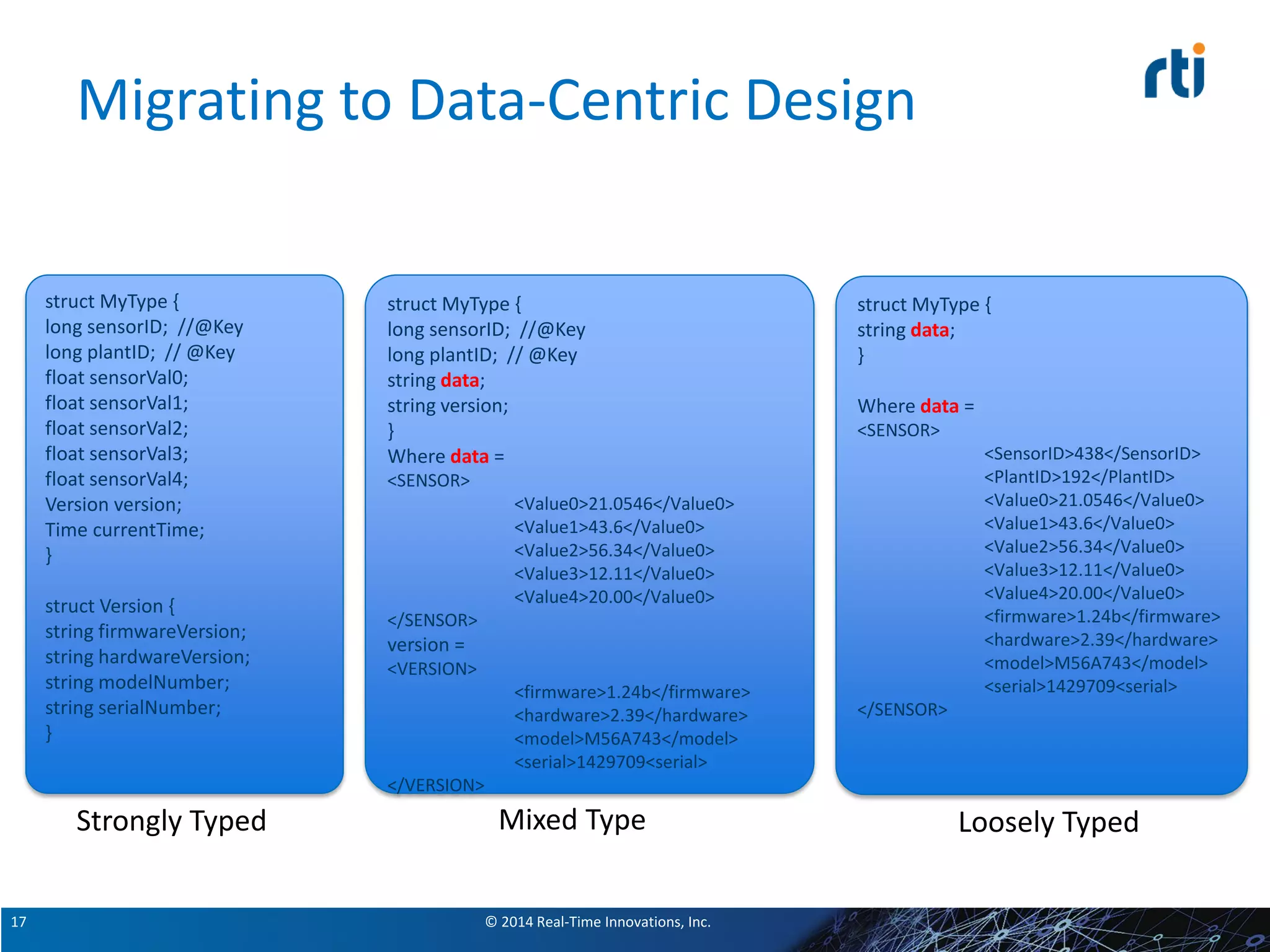

© 2014 Real-Time Innovations, Inc.17 Migrating to Data-Centric Design struct MyType { long sensorID; //@Key long plantID; // @Key float sensorVal0; float sensorVal1; float sensorVal2; float sensorVal3; float sensorVal4; Version version; Time currentTime; } struct Version { string firmwareVersion; string hardwareVersion; string modelNumber; string serialNumber; } Strongly Typed struct MyType { long sensorID; //@Key long plantID; // @Key string data; string version; } Where data = <SENSOR> <Value0>21.0546</Value0> <Value1>43.6</Value0> <Value2>56.34</Value0> <Value3>12.11</Value0> <Value4>20.00</Value0> </SENSOR> version = <VERSION> <firmware>1.24b</firmware> <hardware>2.39</hardware> <model>M56A743</model> <serial>1429709<serial> </VERSION> Mixed Type struct MyType { string data; } Where data = <SENSOR> <SensorID>438</SensorID> <PlantID>192</PlantID> <Value0>21.0546</Value0> <Value1>43.6</Value0> <Value2>56.34</Value0> <Value3>12.11</Value0> <Value4>20.00</Value0> <firmware>1.24b</firmware> <hardware>2.39</hardware> <model>M56A743</model> <serial>1429709<serial> </SENSOR> Loosely Typed

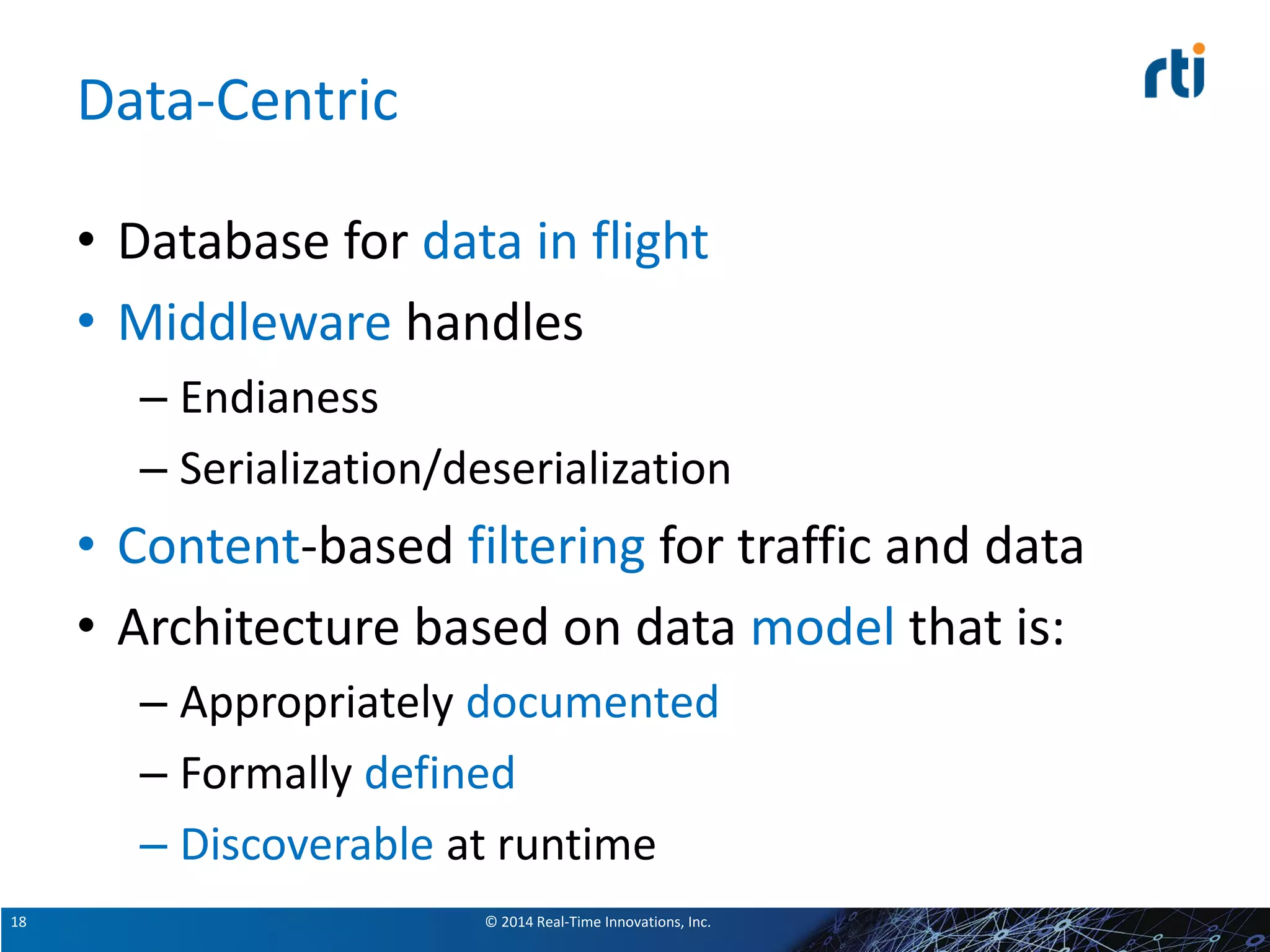

© 2014 Real-Time Innovations, Inc.18 Data-Centric • Database for data in flight • Middleware handles – Endianess – Serialization/deserialization • Content-based filtering for traffic and data • Architecture based on data model that is: – Appropriately documented – Formally defined – Discoverable at runtime
© 2014 Real-Time Innovations, Inc. Real-Time Quality of Service
© 2014 Real-Time Innovations, Inc.20 QoS Policy QoS Policy DURABILITY USER DATA HISTORY TOPIC DATA READER DATA LIFECYCLE GROUP DATA WRITER DATA LIFECYCLE PARTITION LIFESPAN PRESENTATION ENTITY FACTORY DESTINATION ORDER RESOURCE LIMITS OWNERSHIP RELIABILITY OWNERSHIP STRENGTH TIME BASED FILTER LIVELINESS DEADLINE LATENCY BUDGET CONTENT FILTERS TRANSPORT PRIORITY QoS: Quality of Service 20 VolatilityDeliveryInfrastructure UserQoSPresentationRedundancyTransport

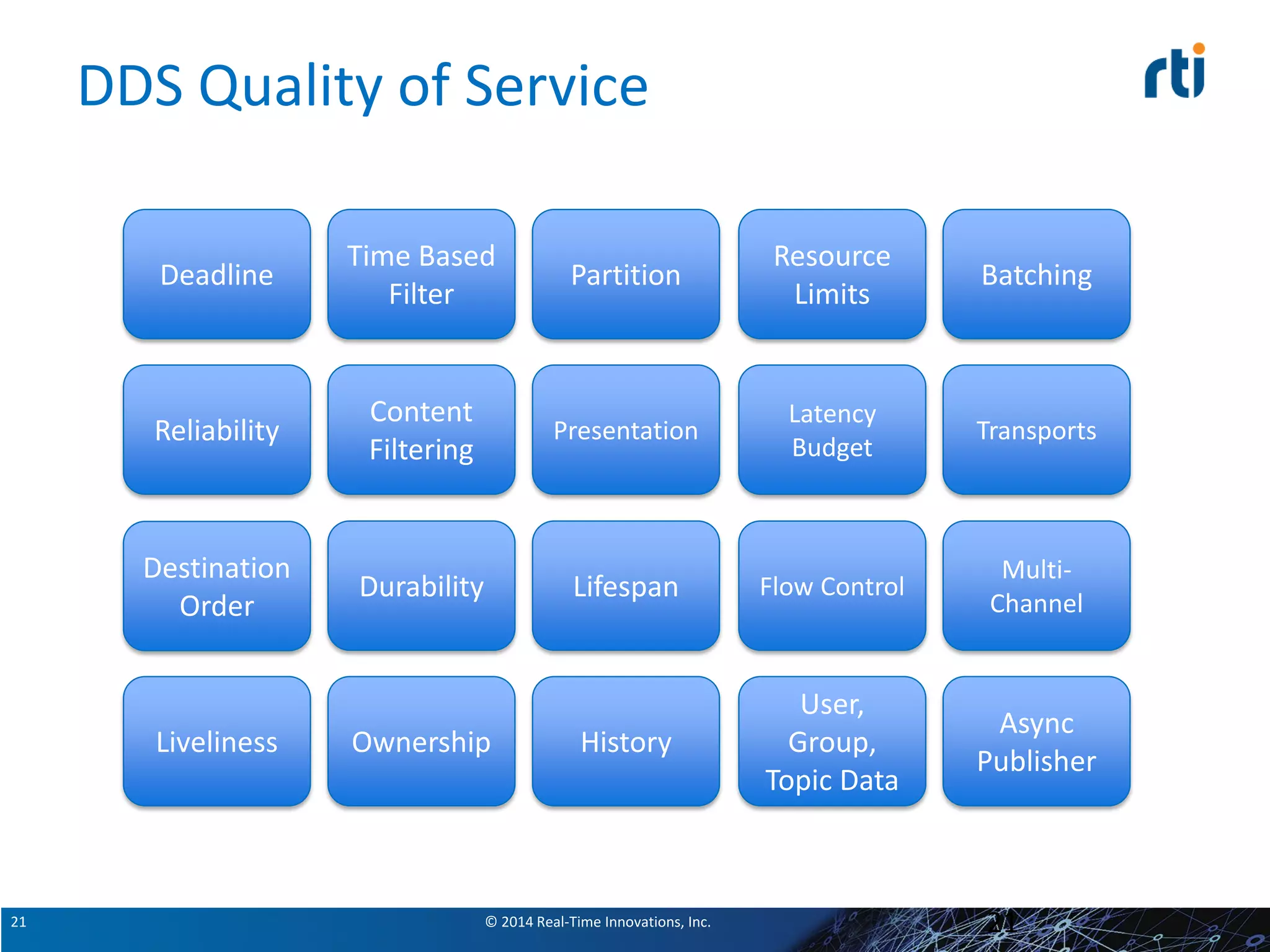

© 2014 Real-Time Innovations, Inc.21 DDS Quality of Service 21 Deadline Reliability HistoryLiveliness Time Based Filter Content Filtering Durability Ownership Partition Presentation Lifespan Destination Order Resource Limits Latency Budget Flow Control User, Group, Topic Data Batching Transports Multi- Channel Async Publisher

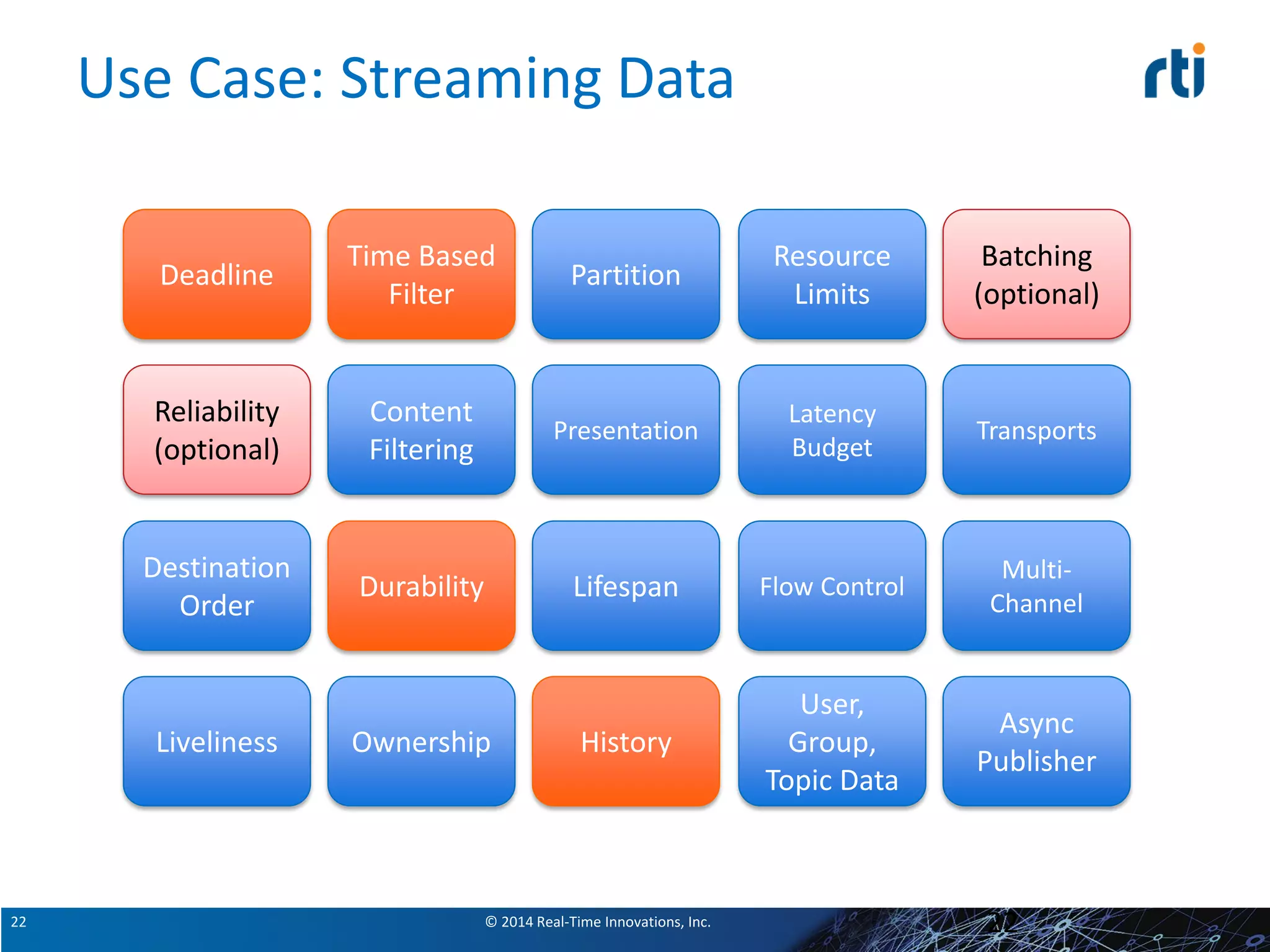

© 2014 Real-Time Innovations, Inc.22 Use Case: Streaming Data 22 Deadline Reliability (optional) HistoryLiveliness Time Based Filter Content Filtering Durability Ownership Partition Presentation Lifespan Destination Order Resource Limits Latency Budget Flow Control User, Group, Topic Data Batching (optional) Transports Multi- Channel Async Publisher

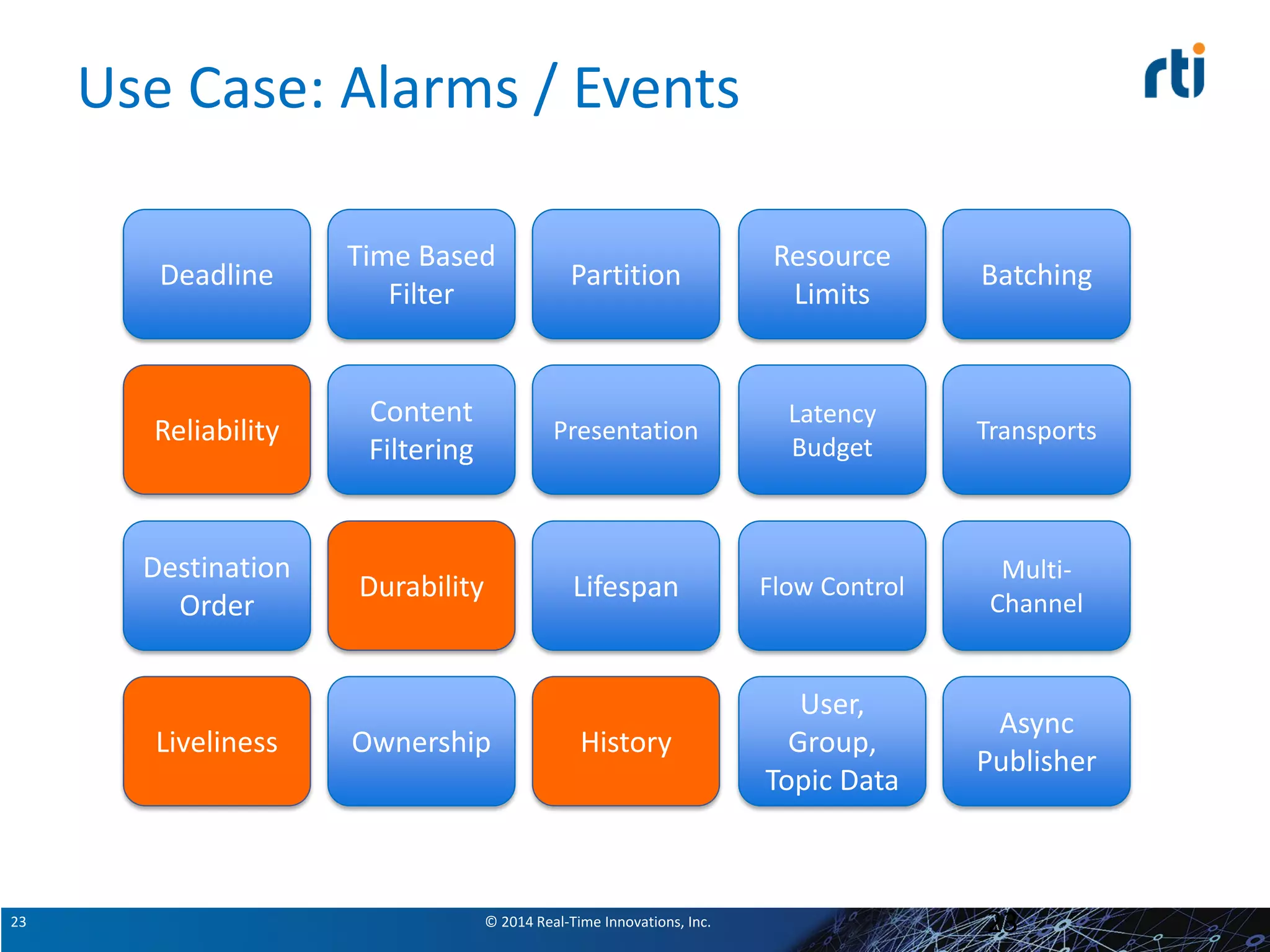

© 2014 Real-Time Innovations, Inc.23 Use Case: Alarms / Events 23 Deadline Reliability HistoryLiveliness Time Based Filter Content Filtering Durability Ownership Partition Presentation Lifespan Destination Order Resource Limits Latency Budget Flow Control User, Group, Topic Data Batching Transports Multi- Channel Async Publisher

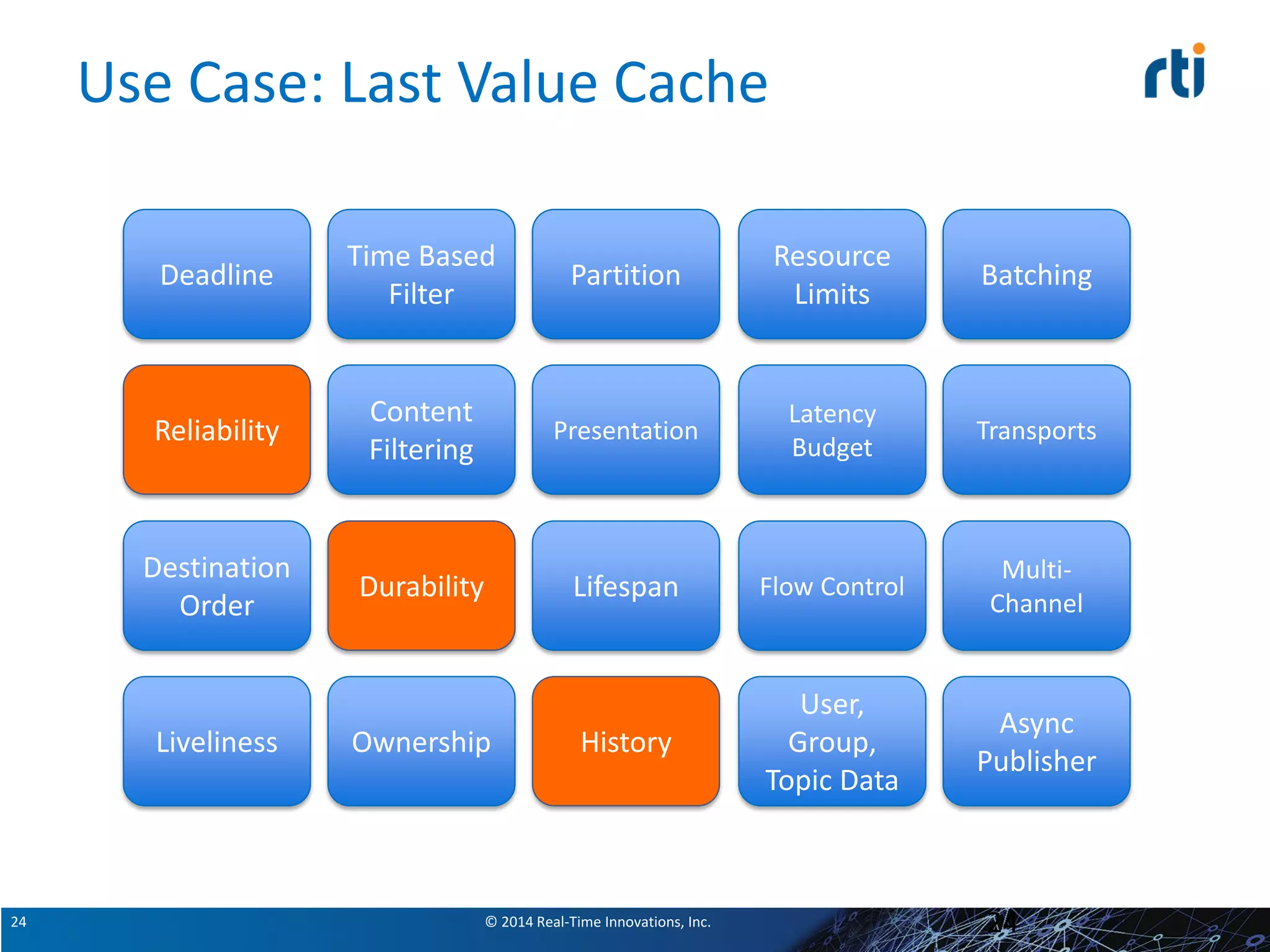

© 2014 Real-Time Innovations, Inc.24 Use Case: Last Value Cache 24 Deadline Reliability HistoryLiveliness Time Based Filter Content Filtering Durability Ownership Partition Presentation Lifespan Destination Order Resource Limits Latency Budget Flow Control User, Group, Topic Data Batching Transports Multi- Channel Async Publisher

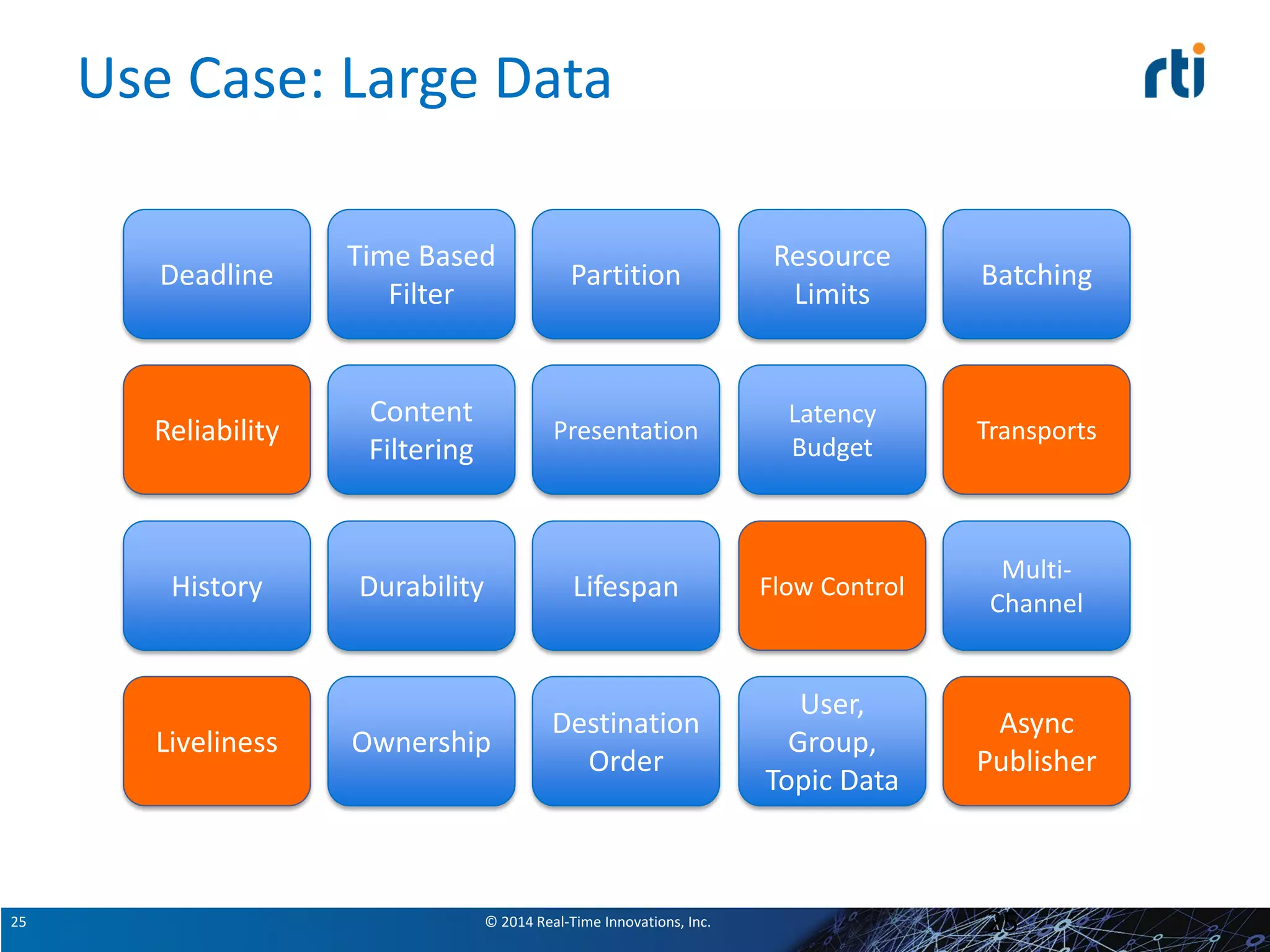

© 2014 Real-Time Innovations, Inc.25 Use Case: Large Data 25 Deadline Reliability History Liveliness Time Based Filter Content Filtering Durability Ownership Partition Presentation Lifespan Destination Order Resource Limits Latency Budget Flow Control User, Group, Topic Data Batching Transports Multi- Channel Async Publisher
© 2014 Real-Time Innovations, Inc. Building Scalable Systems

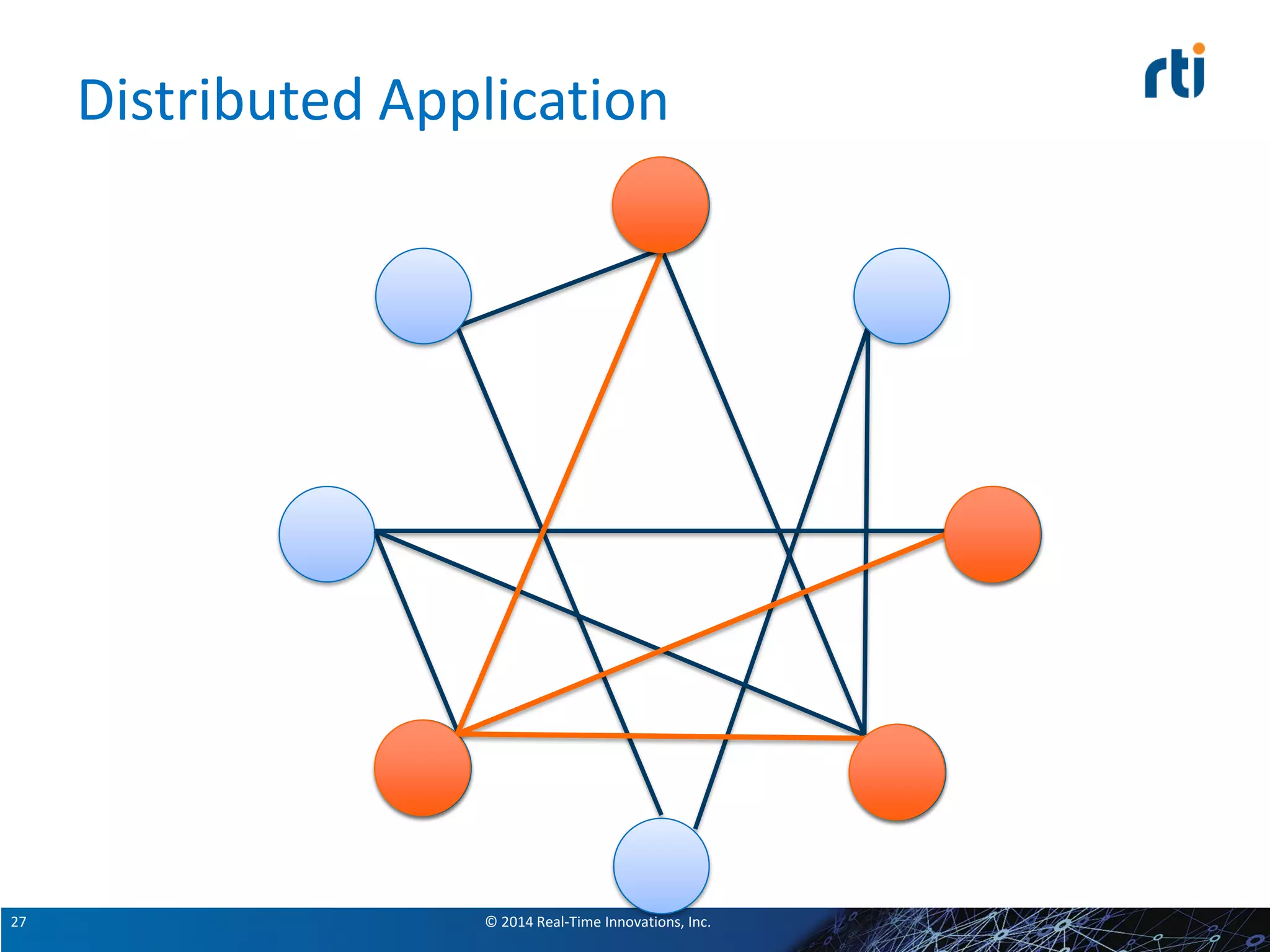

© 2014 Real-Time Innovations, Inc.27 Distributed Application

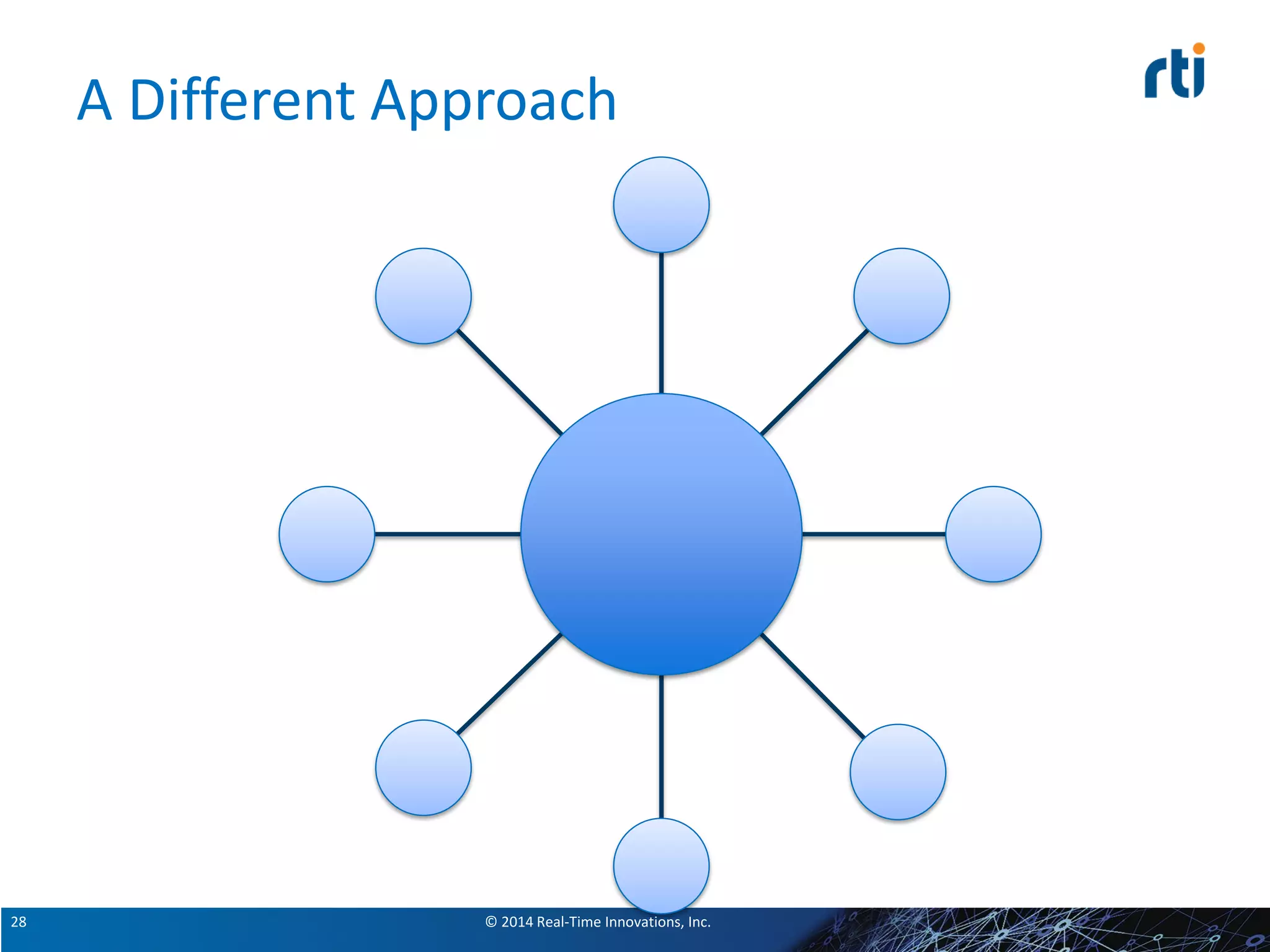

© 2014 Real-Time Innovations, Inc.28 A Different Approach

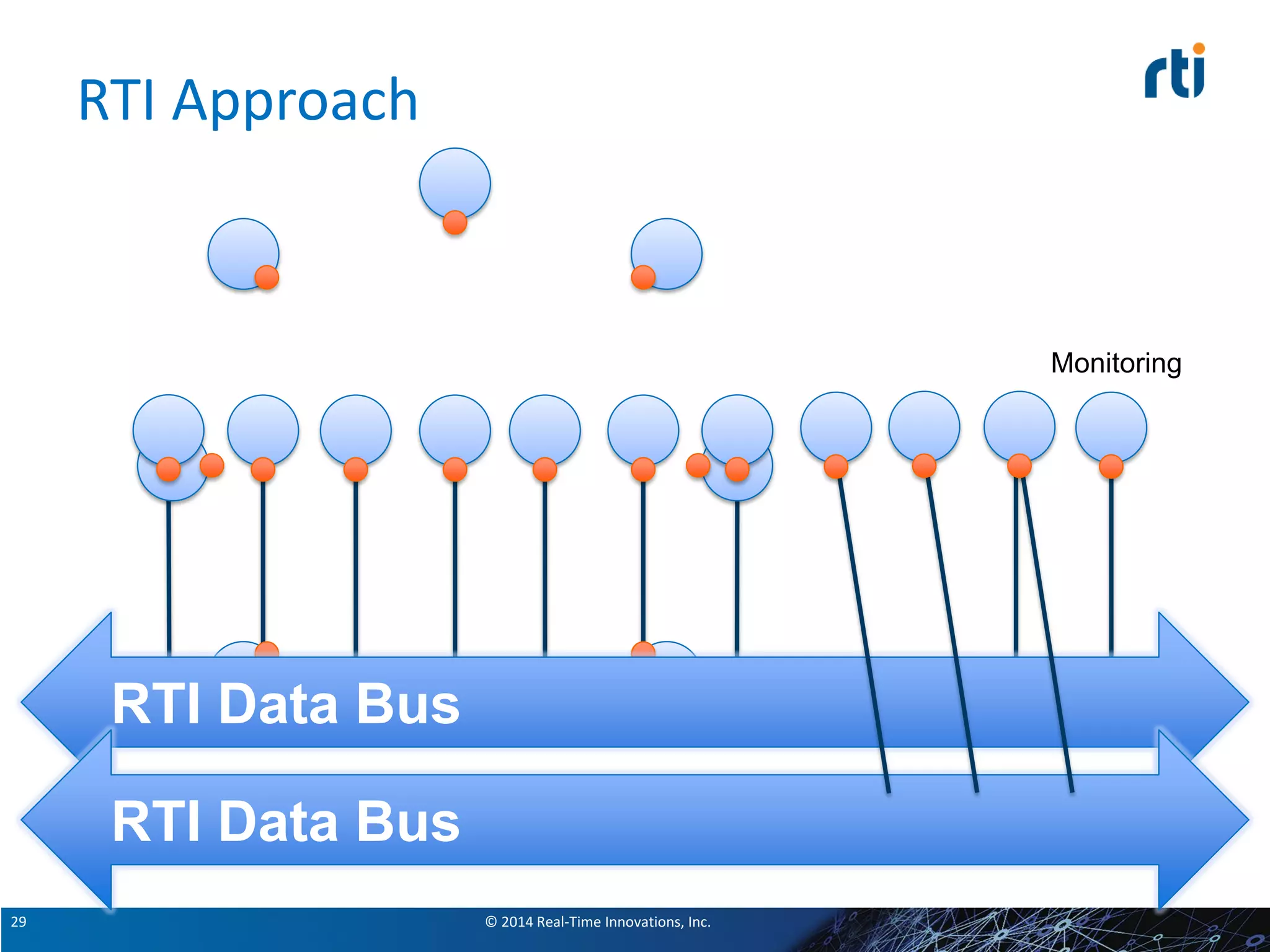

© 2014 Real-Time Innovations, Inc.29 Monitoring RTI Approach RTI Data Bus RTI Data Bus

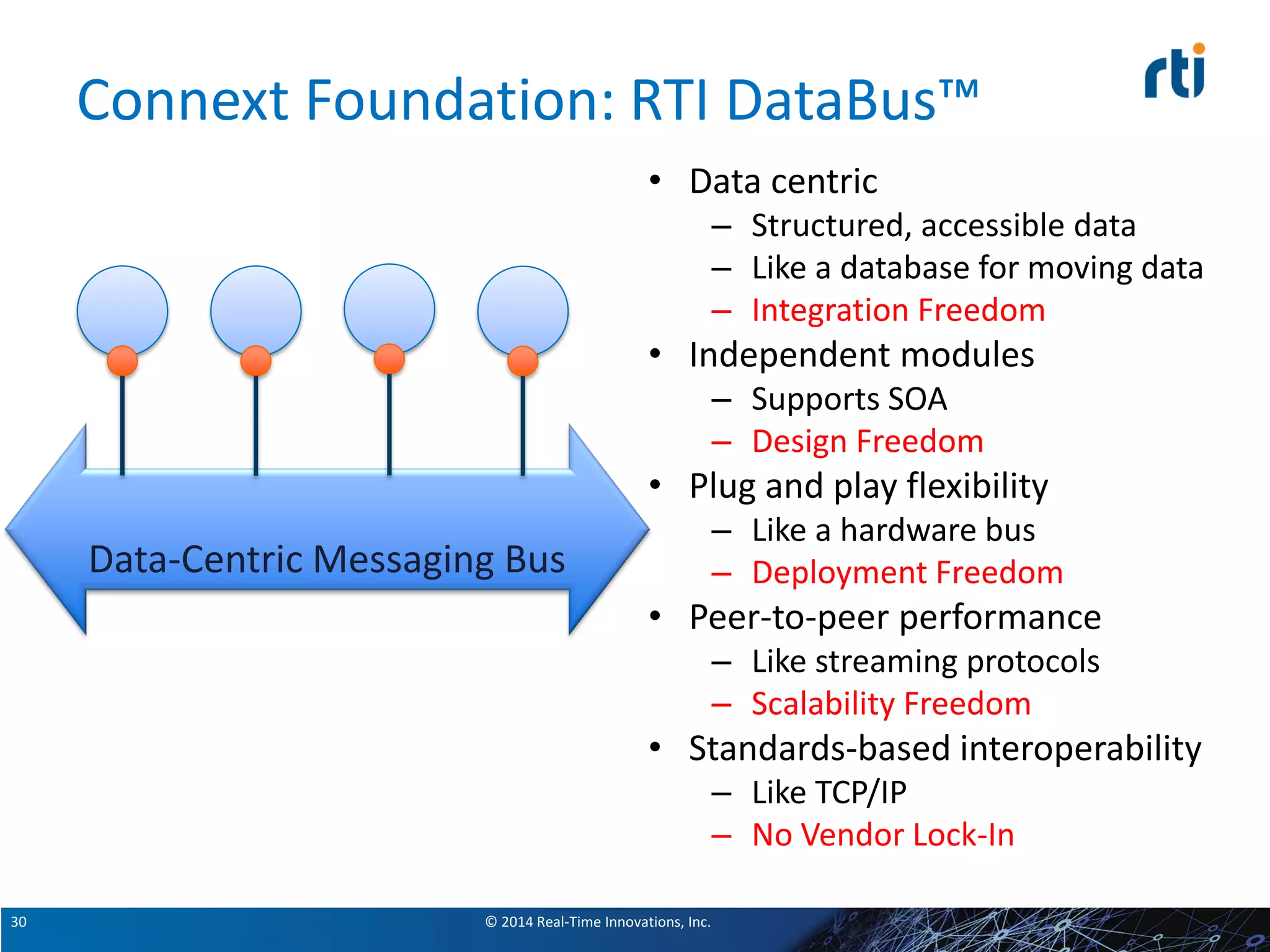

© 2014 Real-Time Innovations, Inc.30 Connext Foundation: RTI DataBus™ • Data centric – Structured, accessible data – Like a database for moving data – Integration Freedom • Independent modules – Supports SOA – Design Freedom • Plug and play flexibility – Like a hardware bus – Deployment Freedom • Peer-to-peer performance – Like streaming protocols – Scalability Freedom • Standards-based interoperability – Like TCP/IP – No Vendor Lock-In Data-Centric Messaging Bus

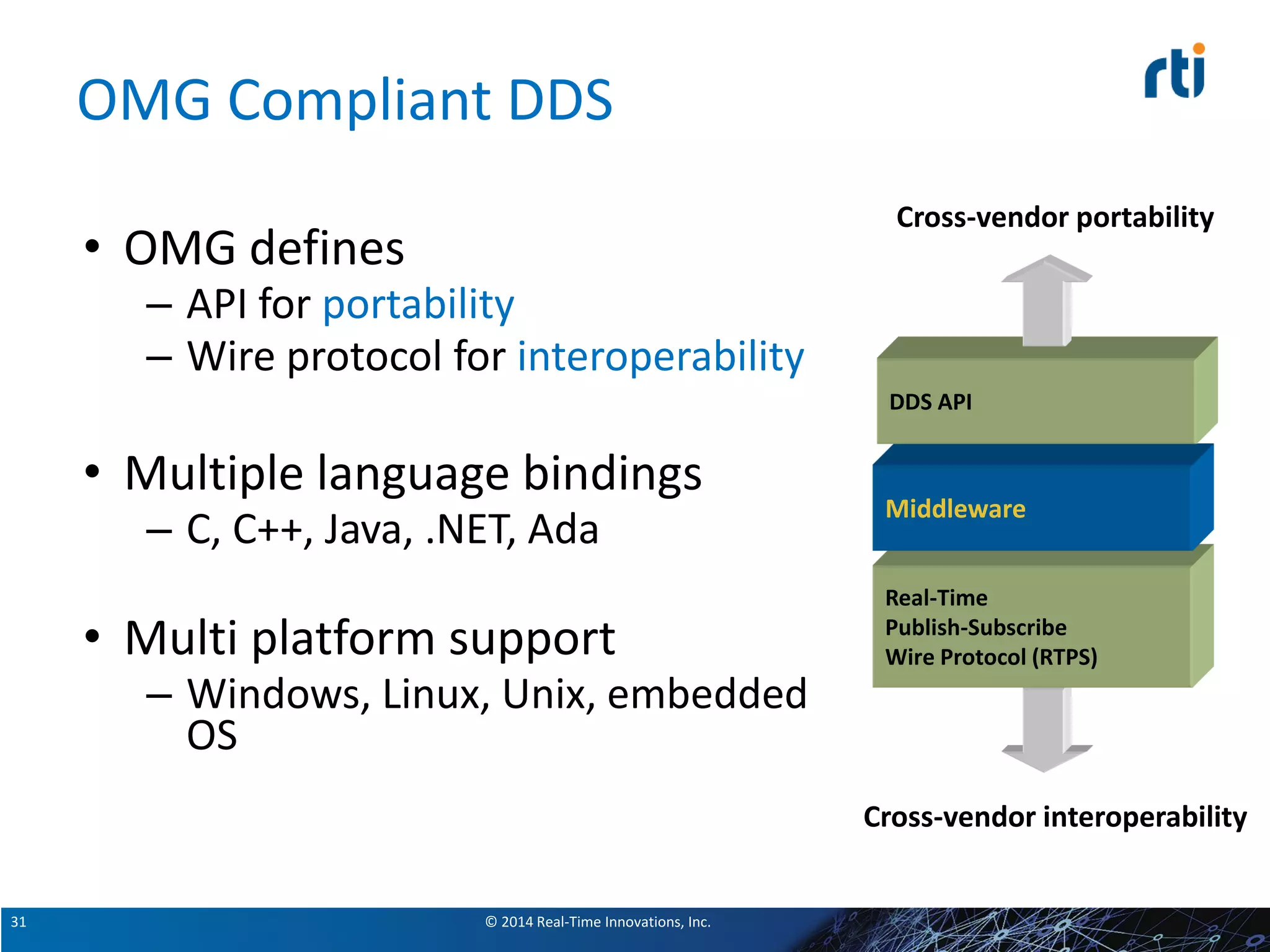

© 2014 Real-Time Innovations, Inc.31 OMG Compliant DDS • OMG defines – API for portability – Wire protocol for interoperability • Multiple language bindings – C, C++, Java, .NET, Ada • Multi platform support – Windows, Linux, Unix, embedded OS Real-Time Publish-Subscribe Wire Protocol (RTPS) Middleware DDS API Cross-vendor portability Cross-vendor interoperability

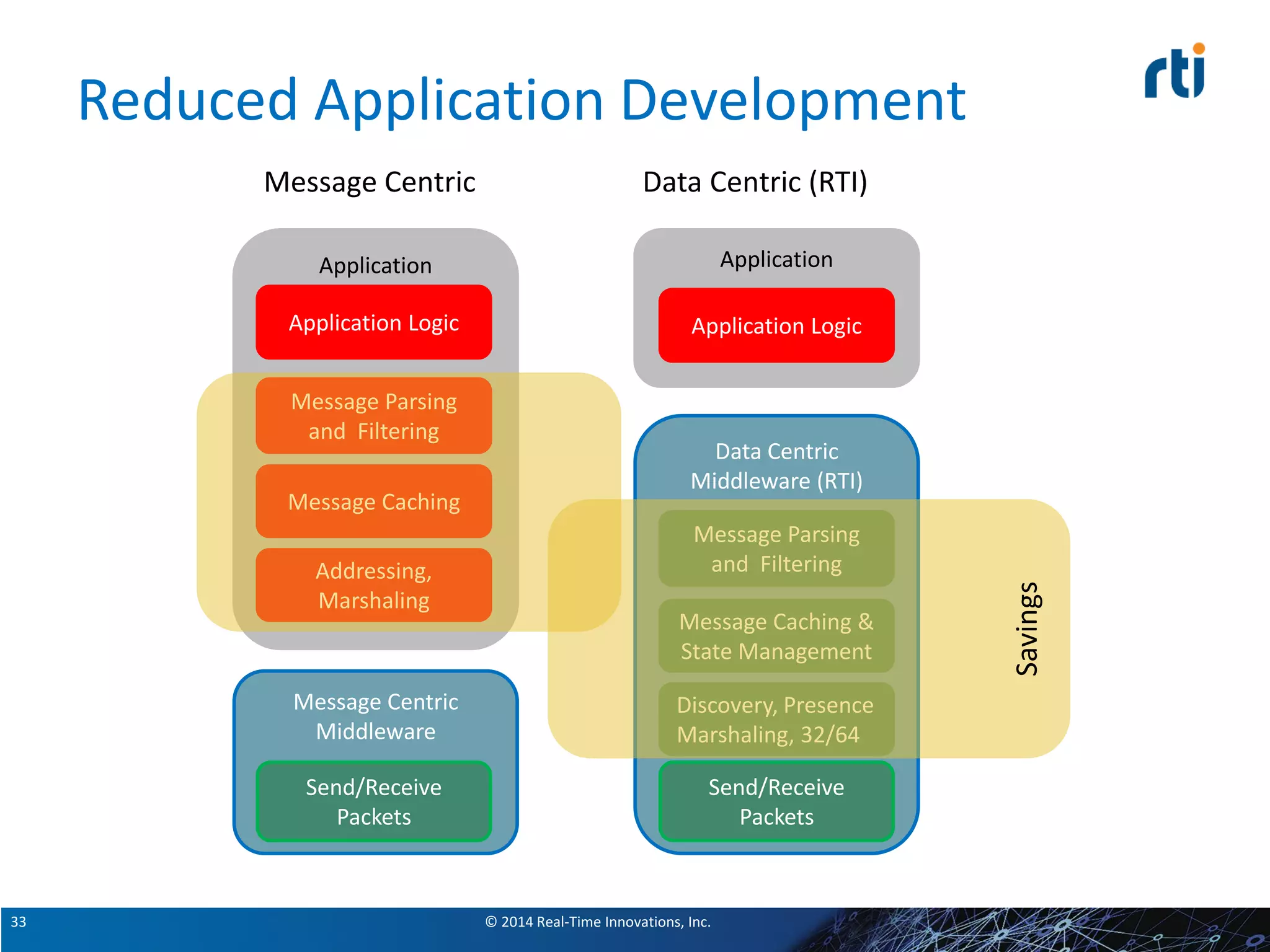

© 2014 Real-Time Innovations, Inc.33 Reduced Application Development Message Centric Data Centric (RTI) Message Centric Middleware Application Application Logic Message Parsing and Filtering Message Caching Send/Receive Packets Addressing, Marshaling Data Centric Middleware (RTI) Send/Receive Packets Discovery, Presence Marshaling, 32/64 Message Caching & State Management Message Parsing and Filtering Application Application Logic Savings

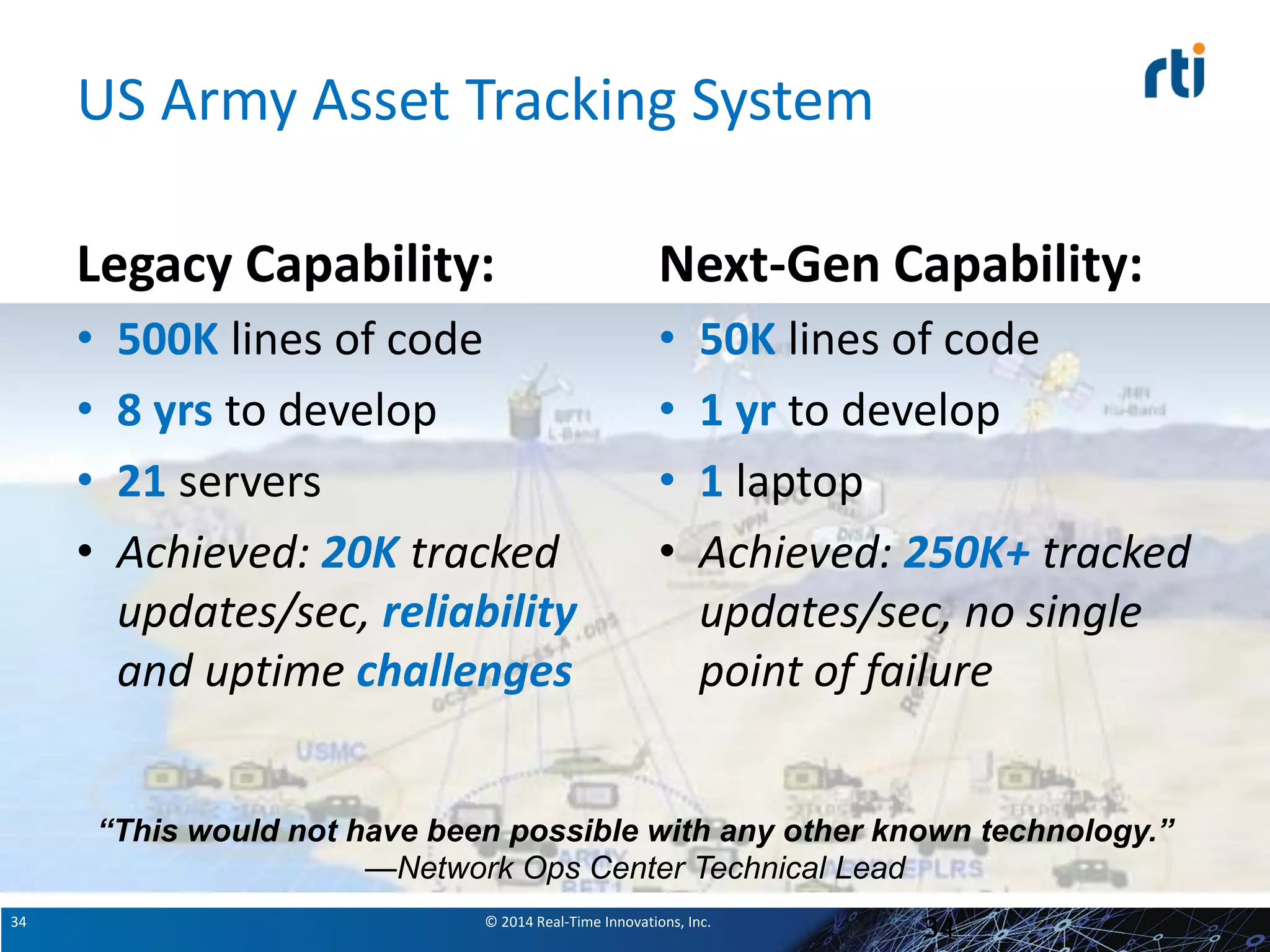

© 2014 Real-Time Innovations, Inc.34 US Army Asset Tracking System Next-Gen Capability: • 50K lines of code • 1 yr to develop • 1 laptop • Achieved: 250K+ tracked updates/sec, no single point of failure Legacy Capability: • 500K lines of code • 8 yrs to develop • 21 servers • Achieved: 20K tracked updates/sec, reliability and uptime challenges “This would not have been possible with any other known technology.” —Network Ops Center Technical Lead 34
© 2014 Real-Time Innovations, Inc. DDS Secure

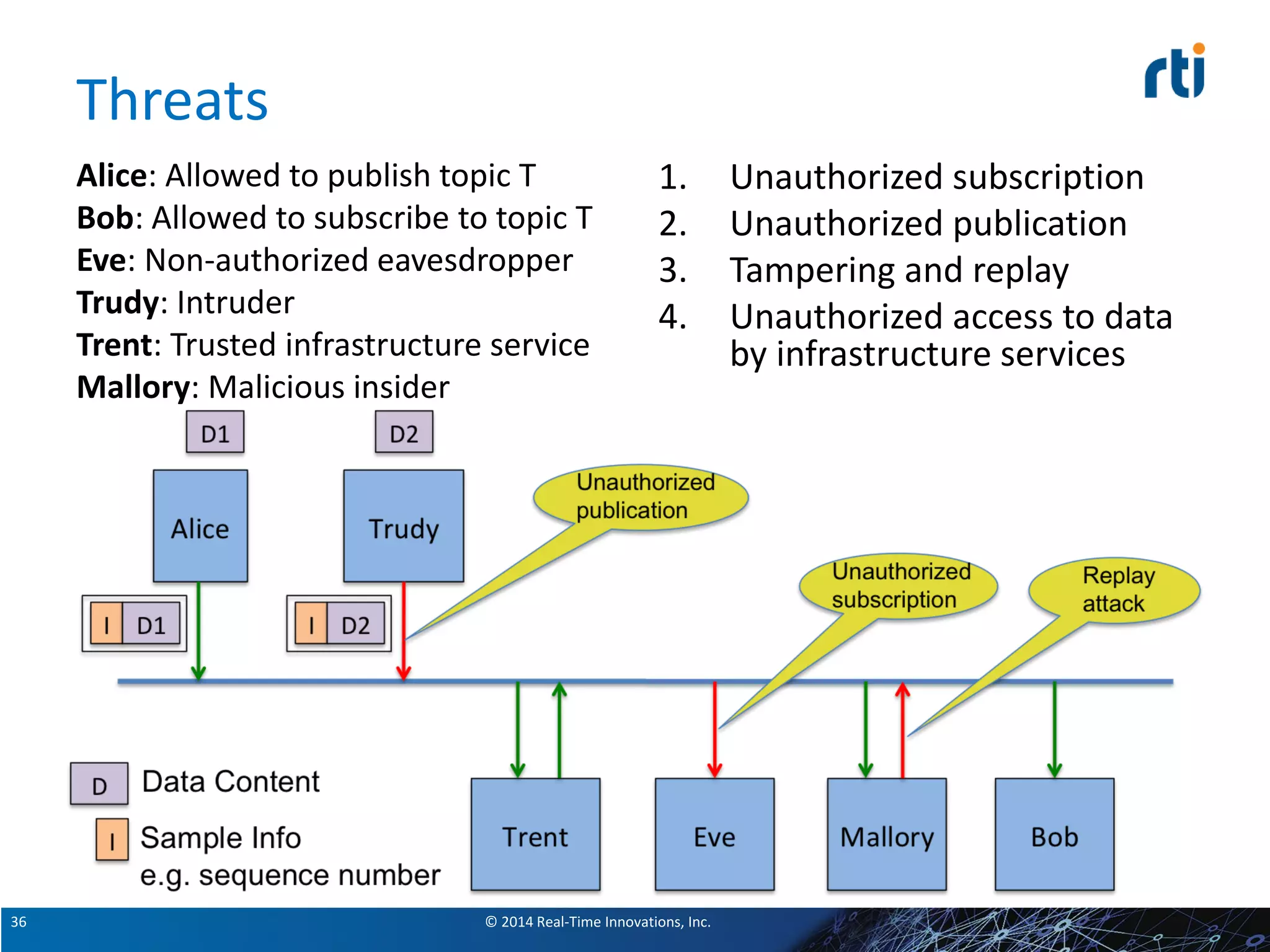

© 2014 Real-Time Innovations, Inc.36 Threats Alice: Allowed to publish topic T Bob: Allowed to subscribe to topic T Eve: Non-authorized eavesdropper Trudy: Intruder Trent: Trusted infrastructure service Mallory: Malicious insider 1. Unauthorized subscription 2. Unauthorized publication 3. Tampering and replay 4. Unauthorized access to data by infrastructure services
© 2014 Real-Time Innovations, Inc.37 Practical Security Needs Many Layers • System edge • Host – Machine/OS/Applications/Files • Network transport – Media access (layer 2) – Network (layer 3) – Session/Endpoint (layer 4/5) • Dataflow – Control application interaction Secure systems need all four
© 2014 Real-Time Innovations, Inc.39 DDS Secure • OMG Security DDS standard • Requires trivial or no change to existing DDS apps and adapters • Plugin architecture – Built-in defaults – Customizable via standard API • Runs over any transport – Including low bandwidth, unreliable – Does not require TCP or IP – Multicast for scalability, low latency • Completely decentralized – High performance and scalability – No single point of failure Secure DDS library Authentication Access Control Encryption Data Tagging Logging Application Any Transport (e.g., TCP, UDP, multicast, shared memory, )

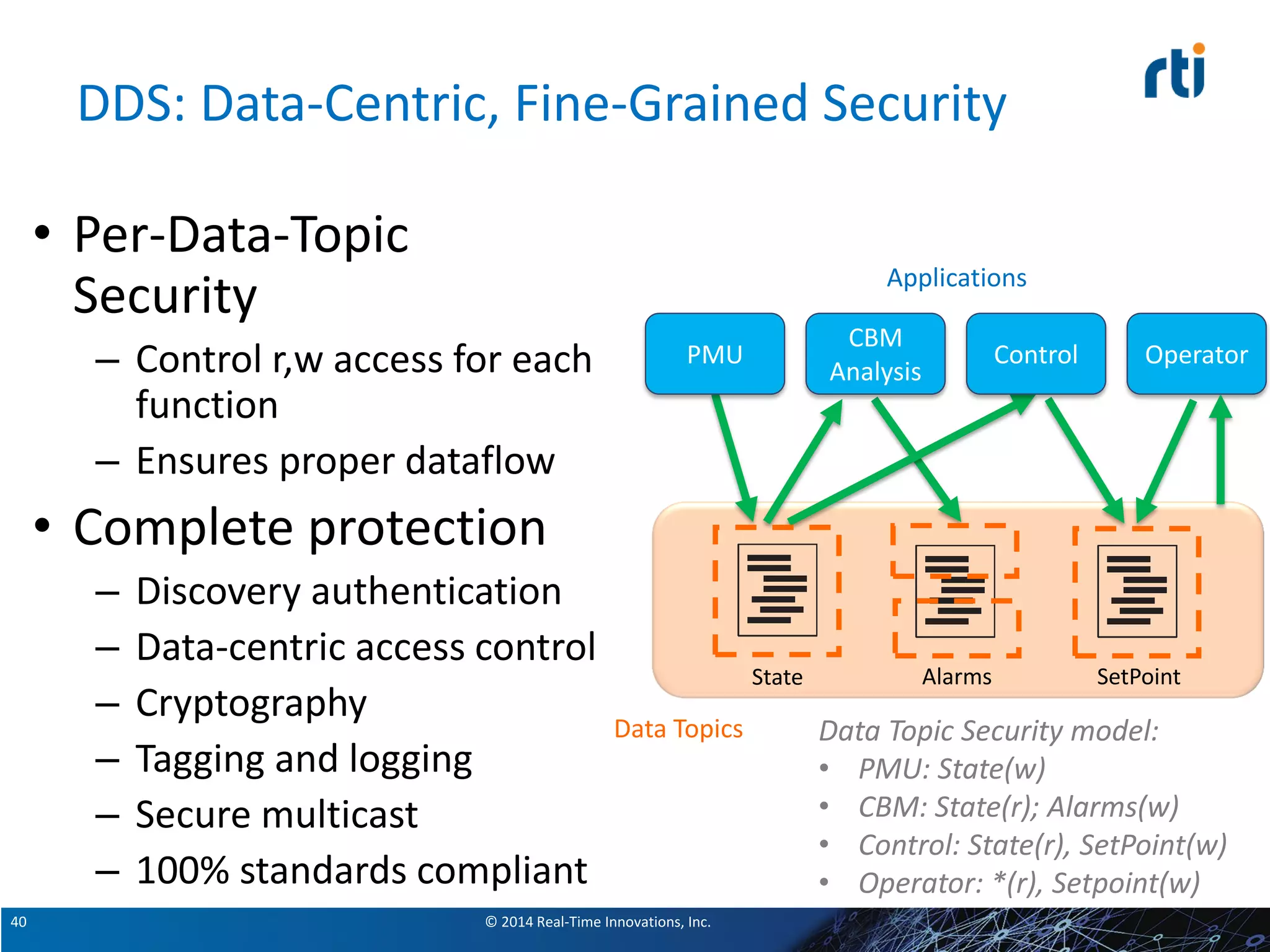

© 2014 Real-Time Innovations, Inc.40 DDS: Data-Centric, Fine-Grained Security • Per-Data-Topic Security – Control r,w access for each function – Ensures proper dataflow • Complete protection – Discovery authentication – Data-centric access control – Cryptography – Tagging and logging – Secure multicast – 100% standards compliant Operator SetPoint Data Topic Security model: • PMU: State(w) • CBM: State(r); Alarms(w) • Control: State(r), SetPoint(w) • Operator: *(r), Setpoint(w) Data Topics Applications Control CBM Analysis PMU State Alarms

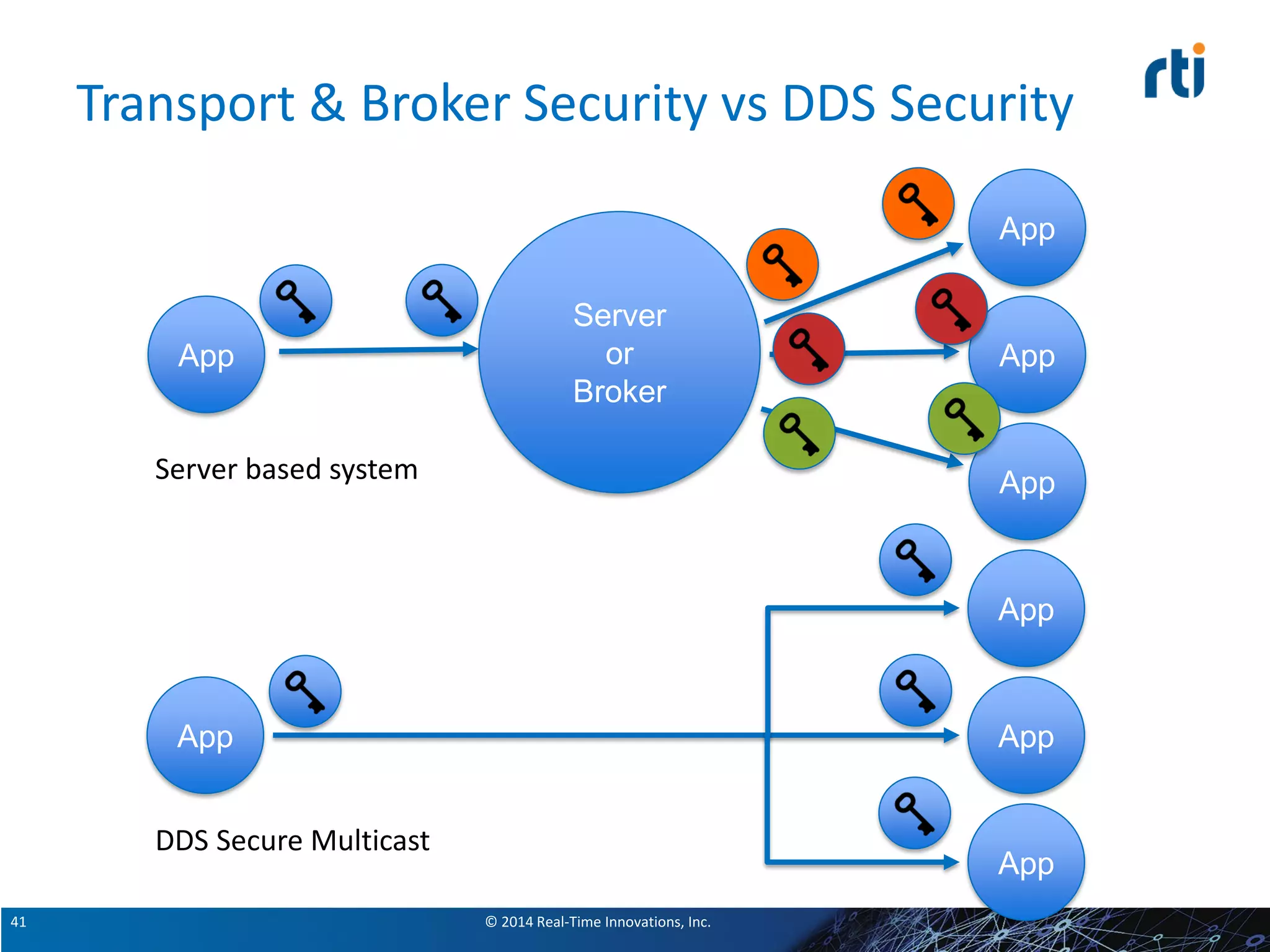

© 2014 Real-Time Innovations, Inc.41 Transport & Broker Security vs DDS Security Server or Broker App App App App App App App App DDS Secure Multicast Server based system

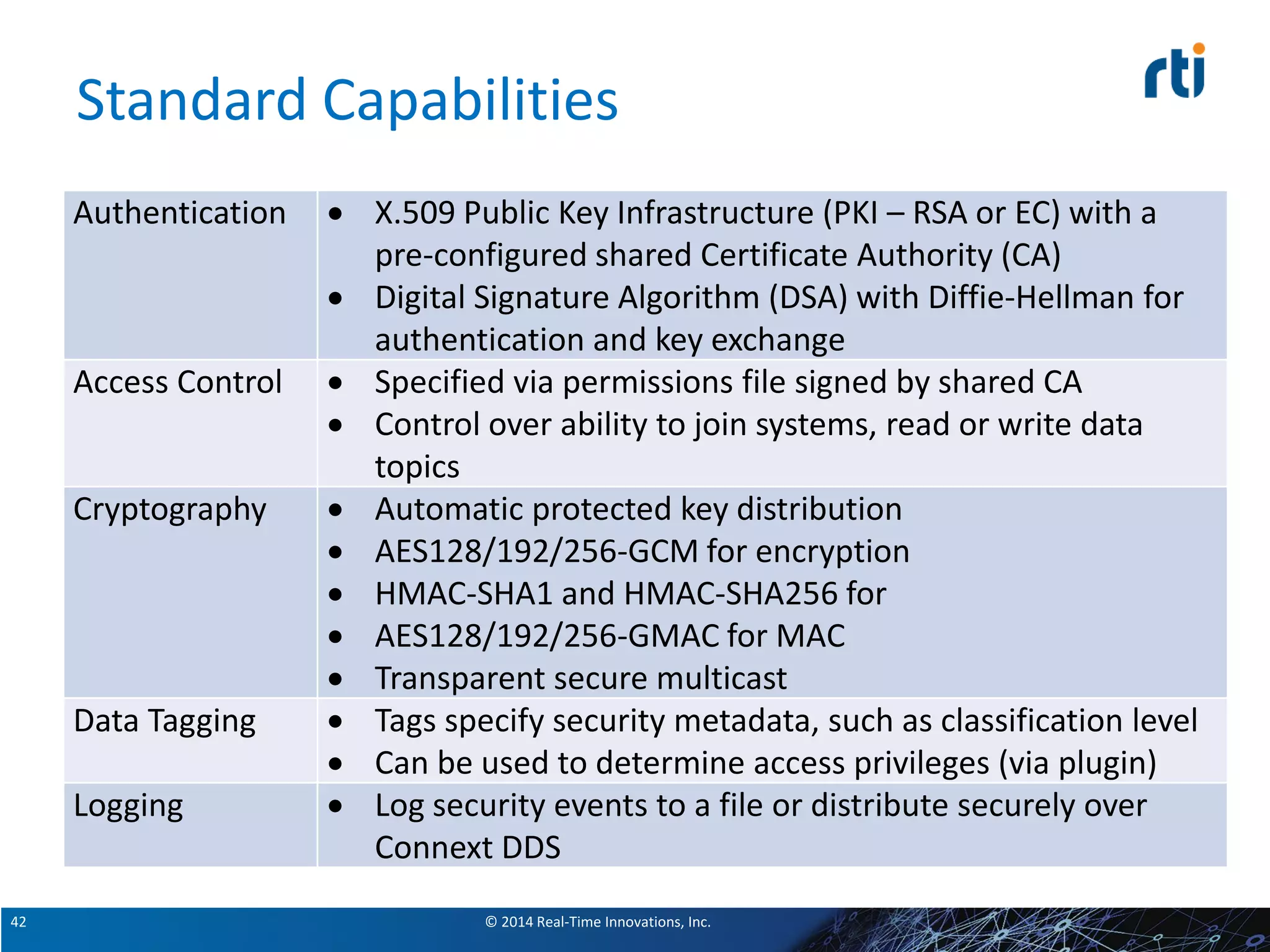

© 2014 Real-Time Innovations, Inc.42 Standard Capabilities Authentication  X.509 Public Key Infrastructure (PKI – RSA or EC) with a pre-configured shared Certificate Authority (CA)  Digital Signature Algorithm (DSA) with Diffie-Hellman for authentication and key exchange Access Control  Specified via permissions file signed by shared CA  Control over ability to join systems, read or write data topics Cryptography  Automatic protected key distribution  AES128/192/256-GCM for encryption  HMAC-SHA1 and HMAC-SHA256 for  AES128/192/256-GMAC for MAC  Transparent secure multicast Data Tagging  Tags specify security metadata, such as classification level  Can be used to determine access privileges (via plugin) Logging  Log security events to a file or distribute securely over Connext DDS

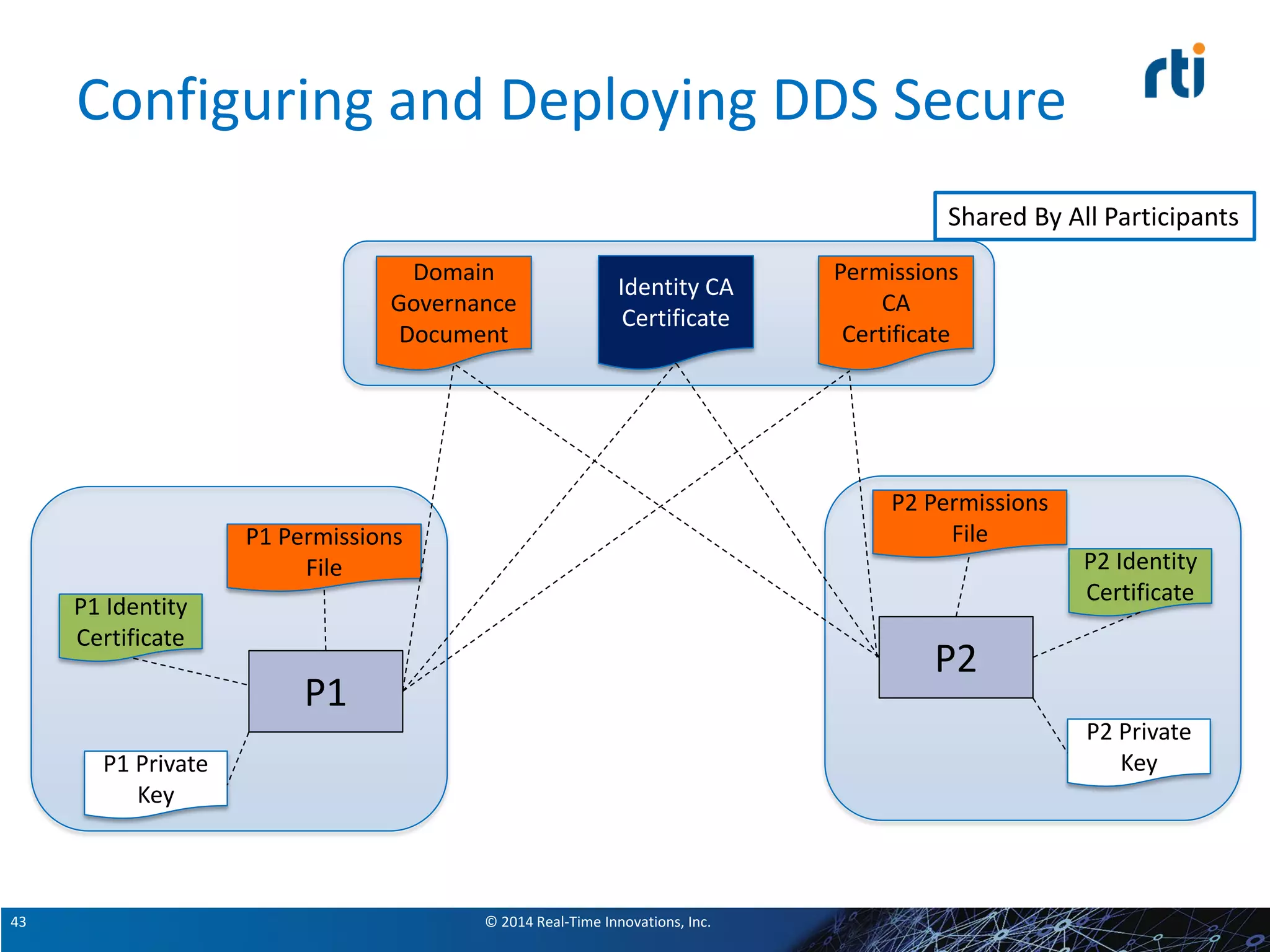

© 2014 Real-Time Innovations, Inc.43 Configuring and Deploying DDS Secure Shared By All Participants Domain Governance Document Identity CA Certificate Permissions CA Certificate P2 Identity Certificate P2 Private Key P2 P2 Permissions File P1 Identity Certificate P1 Private Key P1 P1 Permissions File

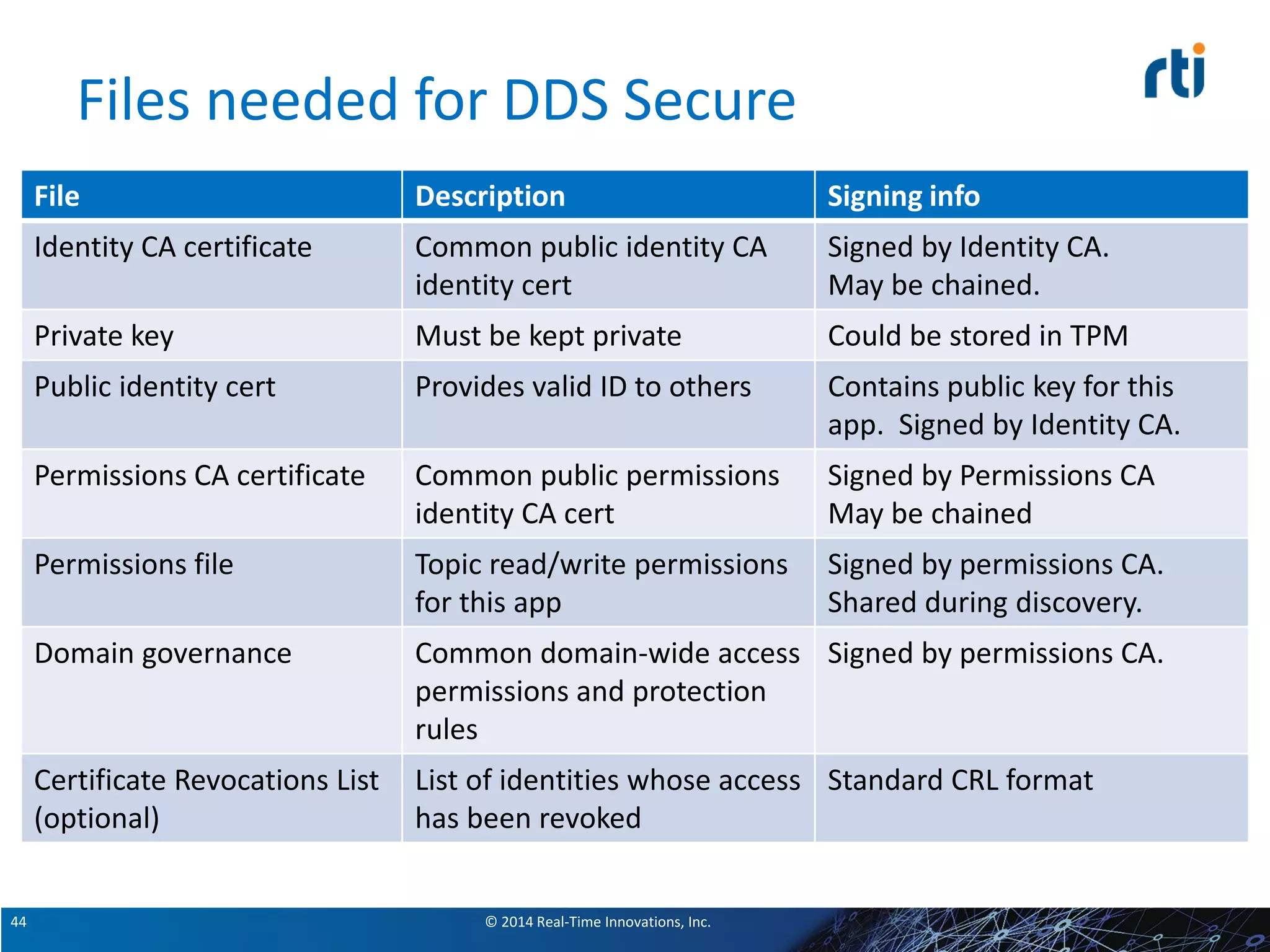

© 2014 Real-Time Innovations, Inc.44 Files needed for DDS Secure File Description Signing info Identity CA certificate Common public identity CA identity cert Signed by Identity CA. May be chained. Private key Must be kept private Could be stored in TPM Public identity cert Provides valid ID to others Contains public key for this app. Signed by Identity CA. Permissions CA certificate Common public permissions identity CA cert Signed by Permissions CA May be chained Permissions file Topic read/write permissions for this app Signed by permissions CA. Shared during discovery. Domain governance Common domain-wide access permissions and protection rules Signed by permissions CA. Certificate Revocations List (optional) List of identities whose access has been revoked Standard CRL format
© 2014 Real-Time Innovations, Inc.45 Specification Reviewers Include: • GE • Intel • Siemens • Technicolor • NSWC • General Dynamics • THALES • SAAB • Cassidian • QinetiQ & UK MOD • Lockheed • Raytheon • None found any show stoppers • Several contacted OMG to urge adoption
© 2014 Real-Time Innovations, Inc. RTI Connext DDS Professional

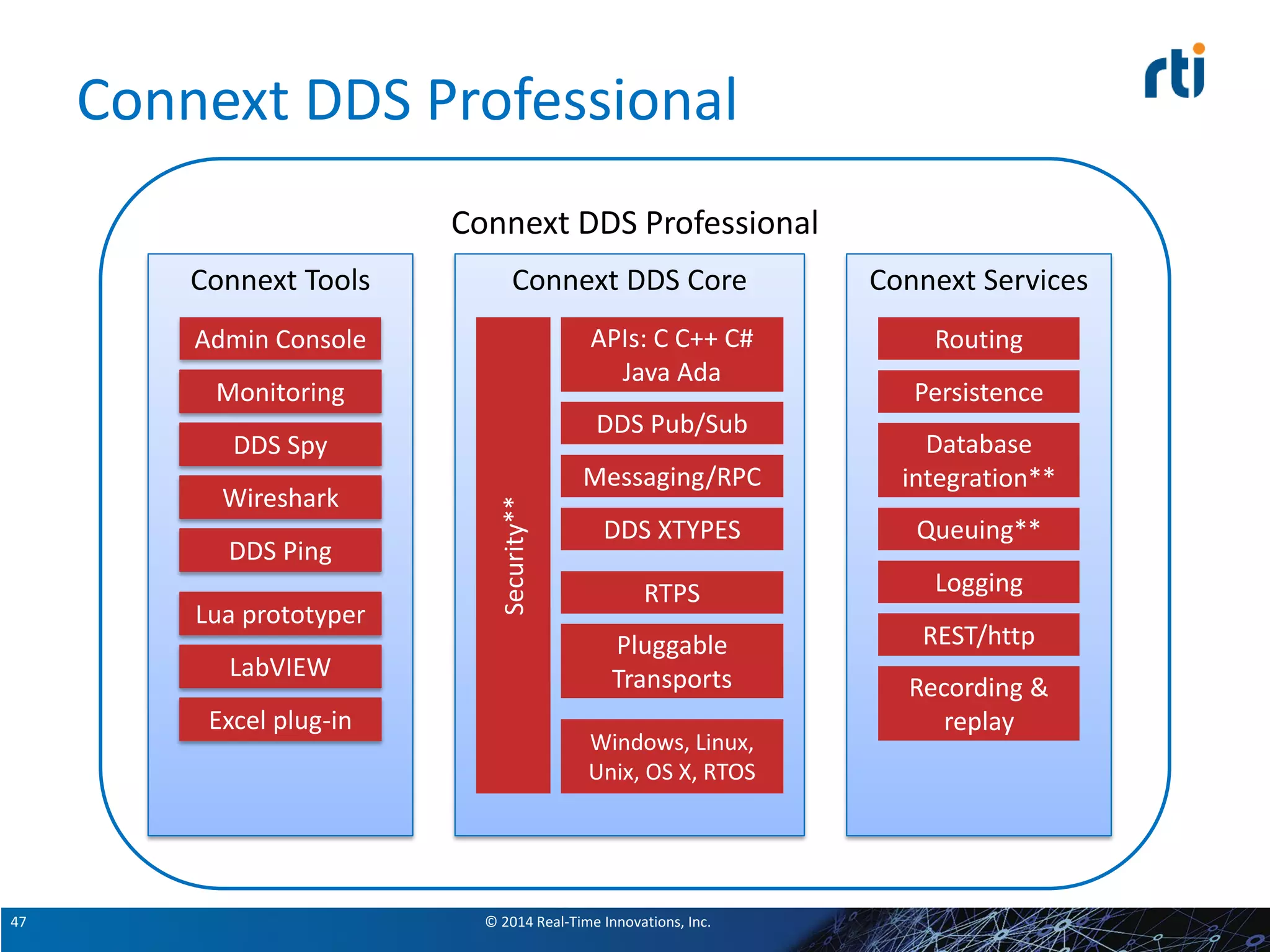

© 2014 Real-Time Innovations, Inc.47 Connext DDS Professional Connext DDS Professional Connext DDS Core Messaging/RPC DDS Pub/Sub Pluggable Transports APIs: C C++ C# Java Ada Security** DDS XTYPES RTPS Windows, Linux, Unix, OS X, RTOS Connext Tools Admin Console Monitoring LabVIEW Excel plug-in Wireshark Lua prototyper DDS Ping DDS Spy Connext Services Routing Recording & replay Database integration** Persistence Logging Queuing** REST/http
© 2014 Real-Time Innovations, Inc. DDS Micro & DDS Cert

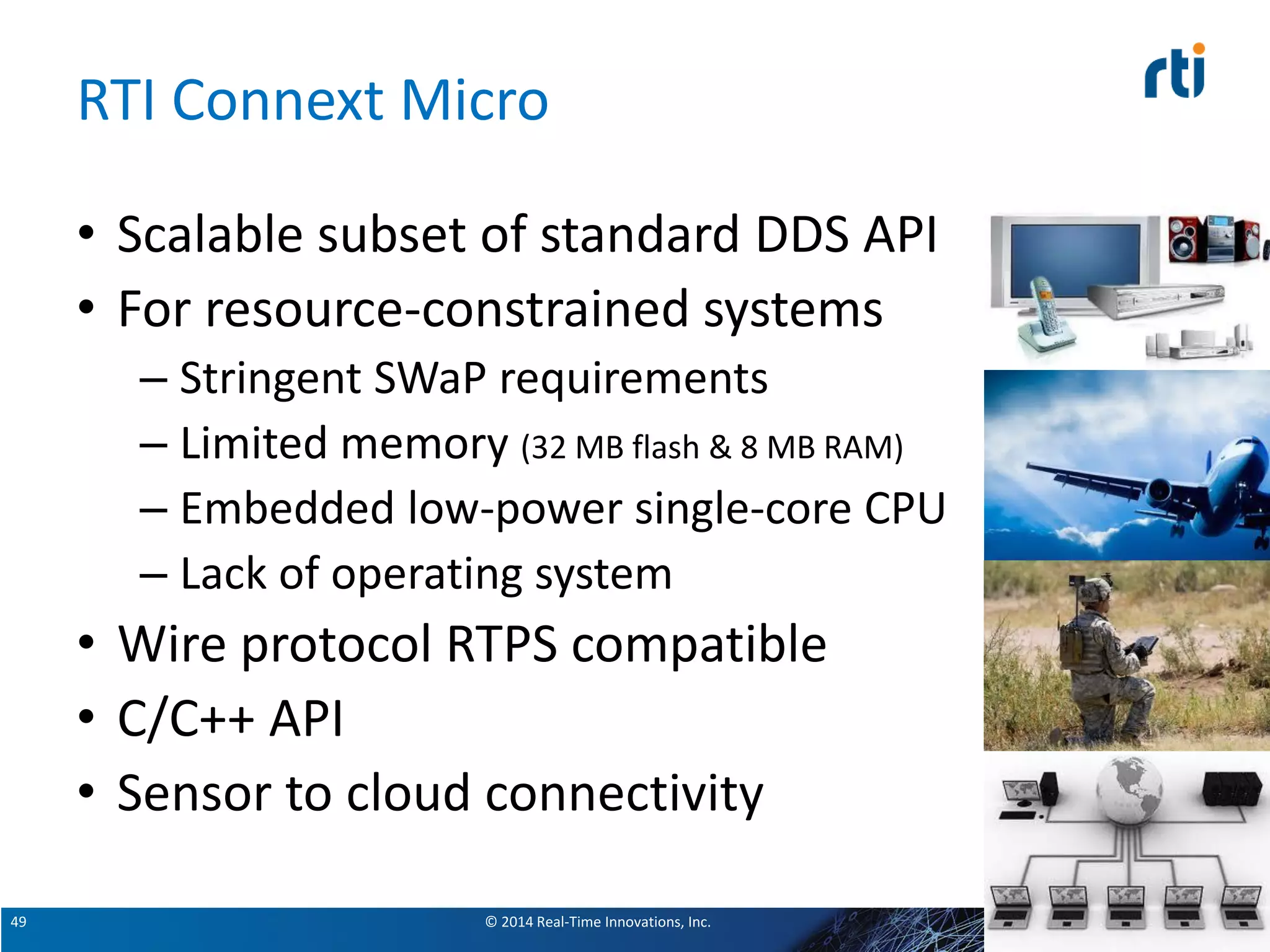

© 2014 Real-Time Innovations, Inc.49 RTI Connext Micro • Scalable subset of standard DDS API • For resource-constrained systems – Stringent SWaP requirements – Limited memory (32 MB flash & 8 MB RAM) – Embedded low-power single-core CPU – Lack of operating system • Wire protocol RTPS compatible • C/C++ API • Sensor to cloud connectivity 49
© 2014 Real-Time Innovations, Inc.50 RTI Connext Cert • Scalable subset of standard DDS API • Wire protocol RTPS compatible • C/C++ API • Static discovery • Library + certification evidence • Targeting DO-178 Level A 50

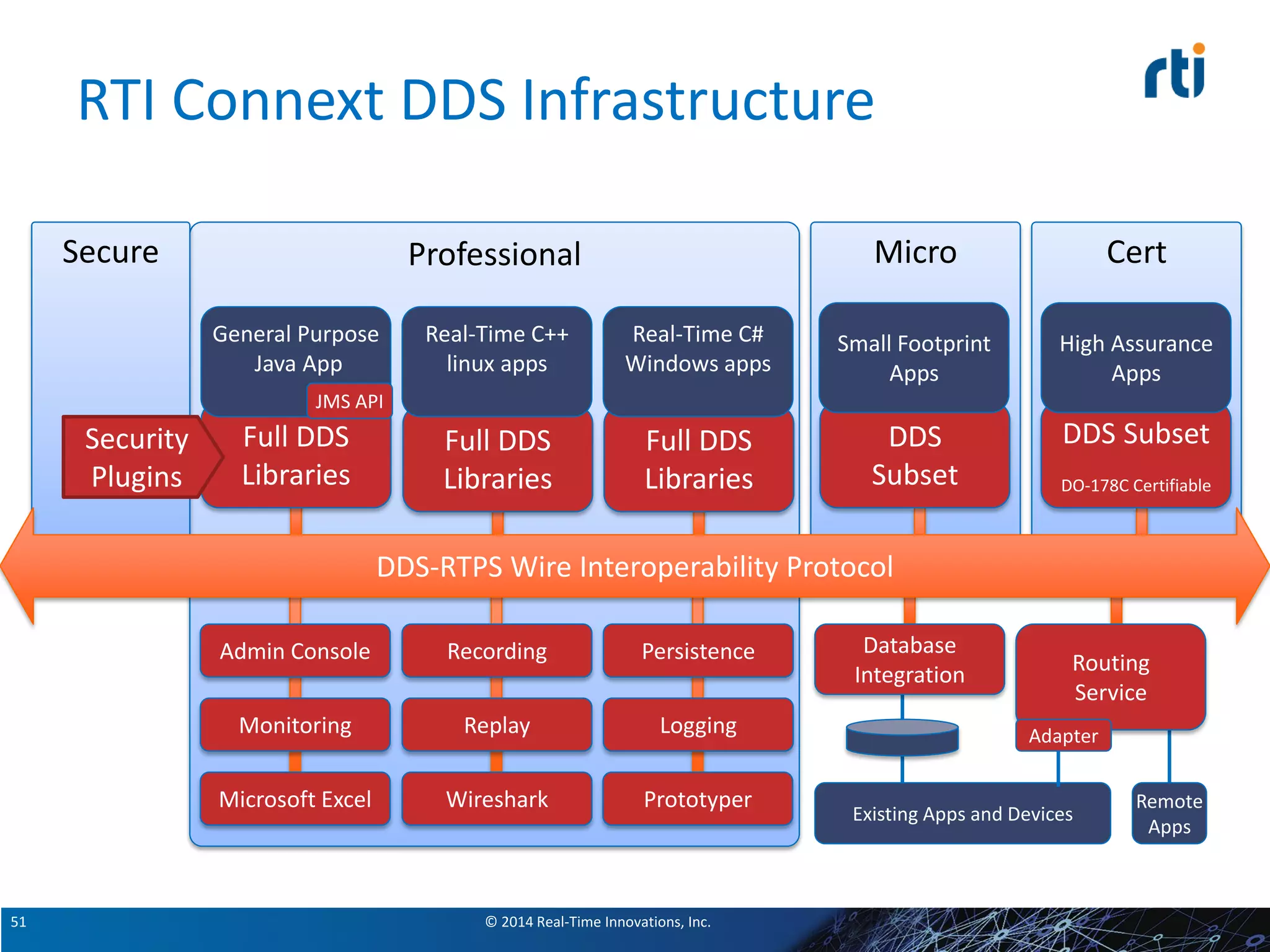

© 2014 Real-Time Innovations, Inc.51 RTI Connext DDS Infrastructure Professional Micro DDS Subset Small Footprint Apps Cert DDS Subset DO-178C Certifiable High Assurance Apps Database Integration Existing Apps and Devices Routing Service Adapter Remote Apps Full DDS Libraries Real-Time C++ linux apps Full DDS Libraries Real-Time C# Windows apps Full DDS Libraries General Purpose Java App JMS API Admin Console Monitoring Microsoft Excel Recording Replay Wireshark Persistence Logging Prototyper Secure Security Plugins DDS-RTPS Wire Interoperability Protocol

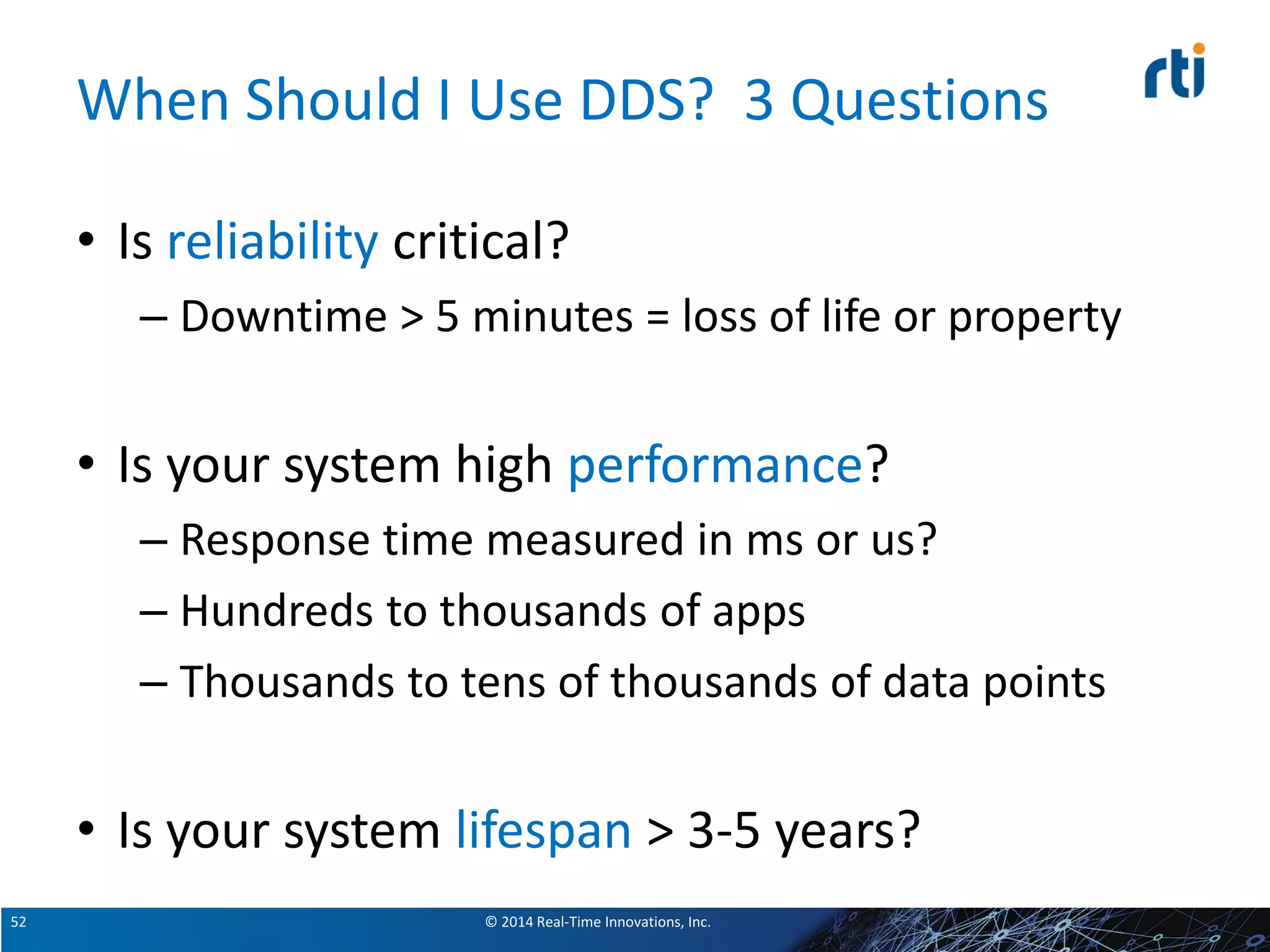

© 2014 Real-Time Innovations, Inc.52 When Should I Use DDS? 3 Questions • Is reliability critical? – Downtime > 5 minutes = loss of life or property • Is your system high performance? – Response time measured in ms or us? – Hundreds to thousands of apps – Thousands to tens of thousands of data points • Is your system lifespan > 3-5 years?
© 2014 Real-Time Innovations, Inc. Use Cases Reliability, Performance, Lifespan

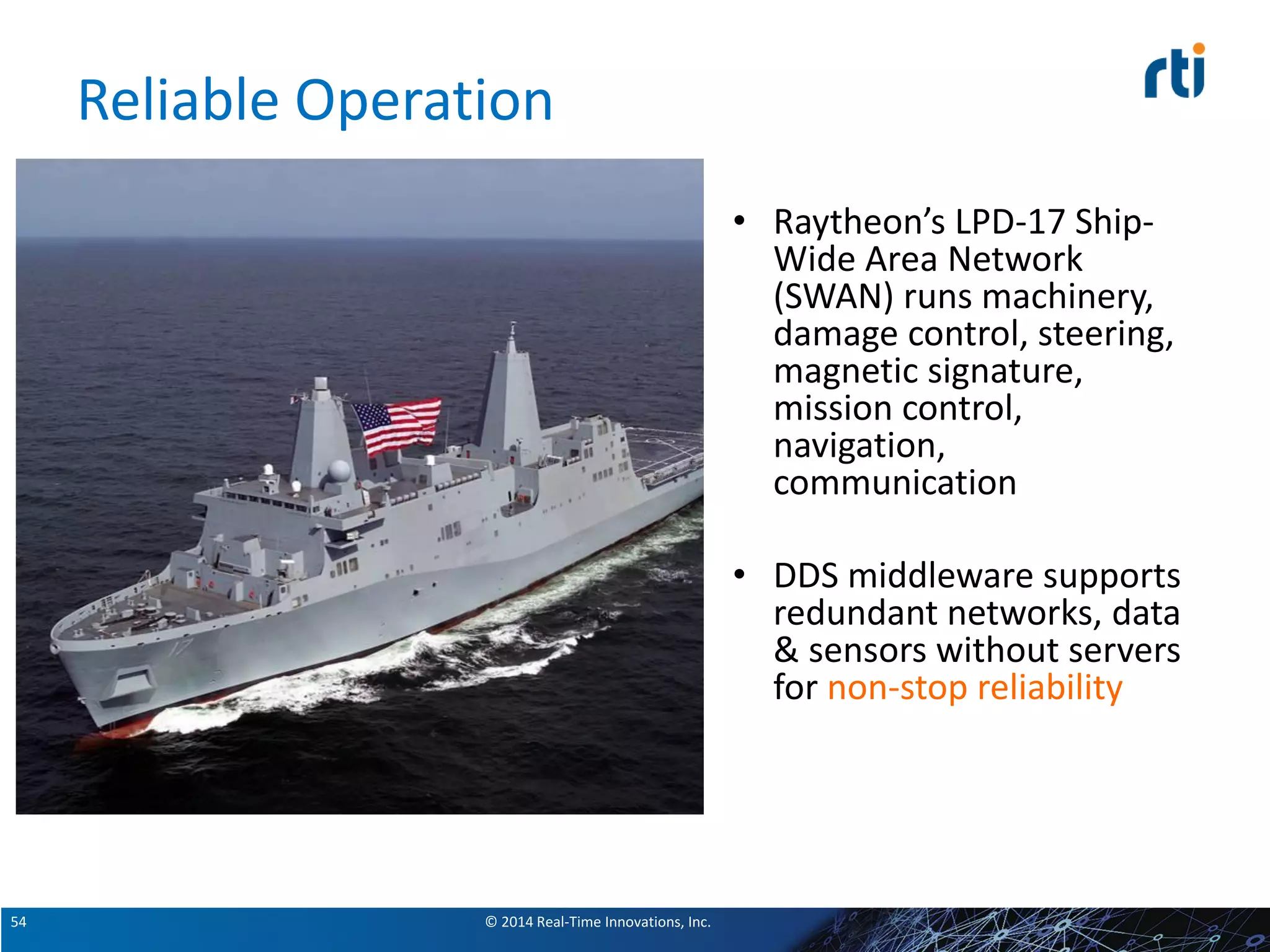

© 2014 Real-Time Innovations, Inc.54 Reliable Operation • Raytheon’s LPD-17 Ship- Wide Area Network (SWAN) runs machinery, damage control, steering, magnetic signature, mission control, navigation, communication • DDS middleware supports redundant networks, data & sensors without servers for non-stop reliability
© 2014 Real-Time Innovations, Inc.55 Real-Time Performance • The Ship Self Defense System is the “last line of defense” • SSDS coordinates high- speed radars, targets defensive missiles, and directs 1000+ rounds/sec at incoming cruise missiles • SSDS is at sea now • DDS delivers messages in real time

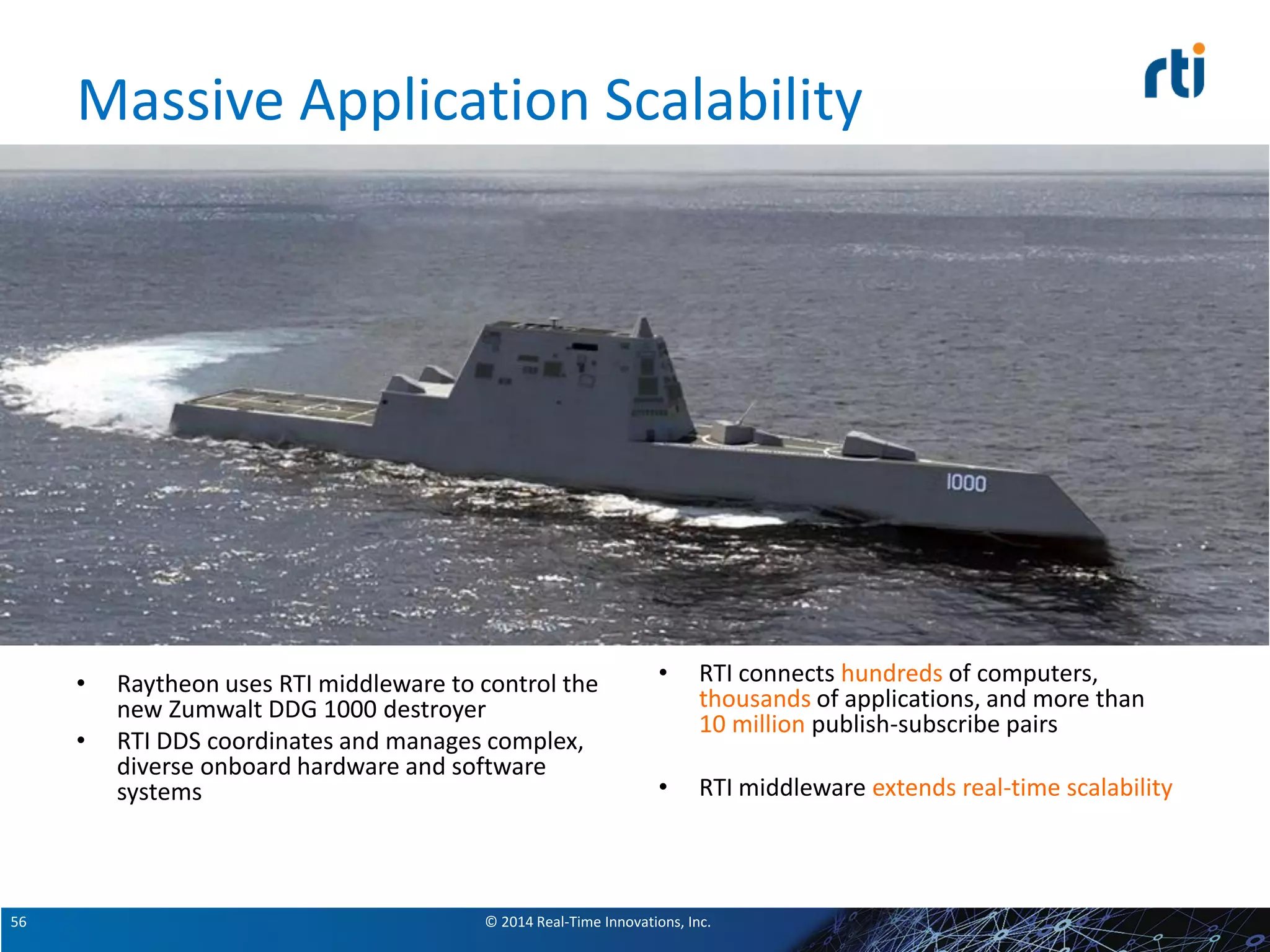

© 2014 Real-Time Innovations, Inc.56 Massive Application Scalability • Raytheon uses RTI middleware to control the new Zumwalt DDG 1000 destroyer • RTI DDS coordinates and manages complex, diverse onboard hardware and software systems • RTI connects hundreds of computers, thousands of applications, and more than 10 million publish-subscribe pairs • RTI middleware extends real-time scalability
© 2014 Real-Time Innovations, Inc.57 Interoperable Open Architecture • Next-generation of – Lockheed Aegis – Raytheon DDG 1000 – Raytheon SSDS – LCS (Lockheed and GD-AIS) – Raytheon LPD-17 – Many more, US and allies • Highly distributed systems include radar, weapons, displays, controls • Standards-based, high- performance middleware breaks vendor lock-in, drives interoperability ,and future- proofs the architectural design
© 2014 Real-Time Innovations, Inc. RTI Professional Services

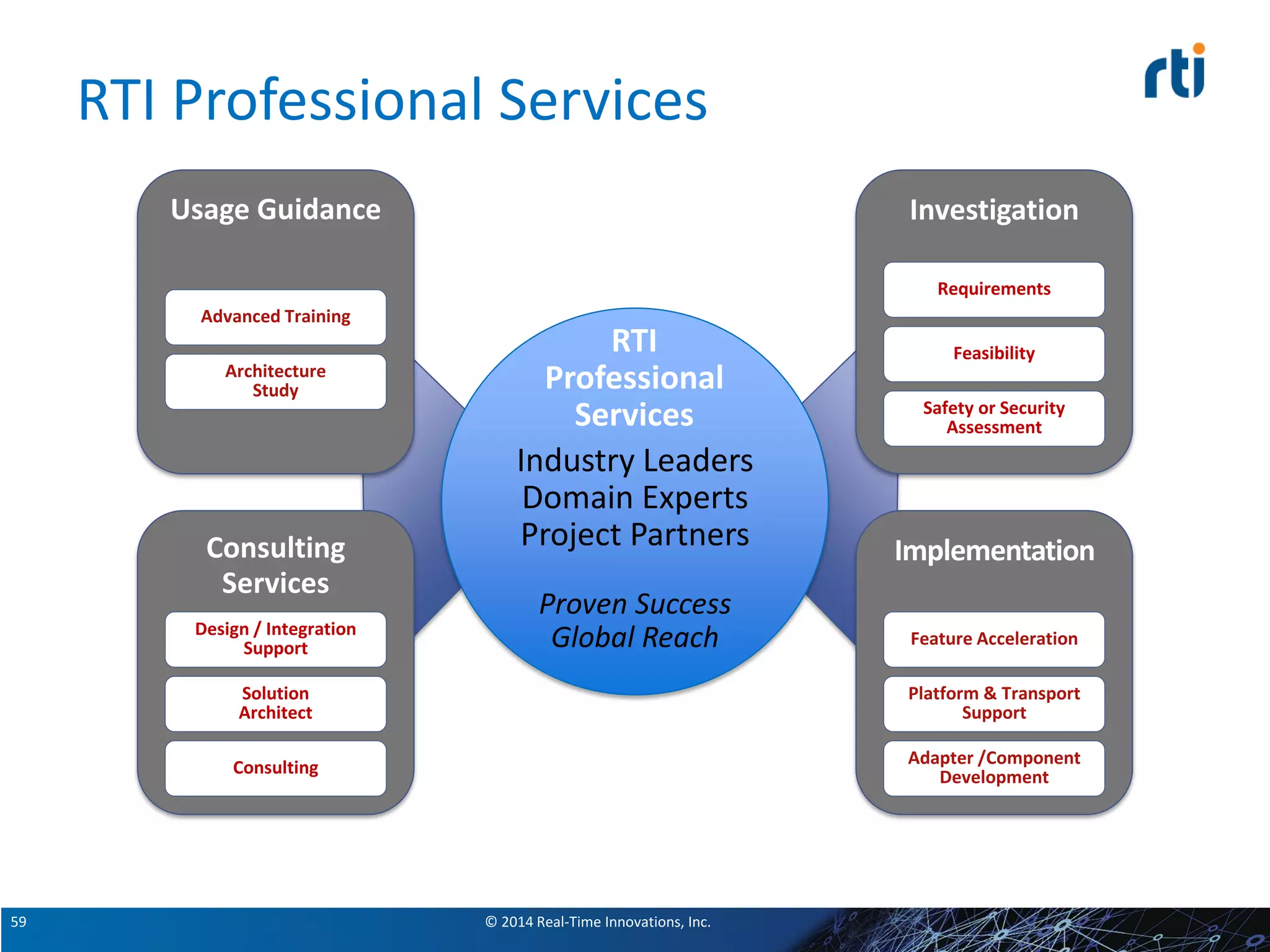

© 2014 Real-Time Innovations, Inc.59 RTI Professional Services Usage Guidance Advanced Training Architecture Study Investigation Requirements Feasibility Safety or Security Assessment Consulting Services Consulting Solution Architect Design / Integration Support Implementation Platform & Transport Support Feature Acceleration Adapter /Component Development Industry Leaders Domain Experts Project Partners Proven Success Global Reach RTI Professional Services
© 2014 Real-Time Innovations, Inc. RTI Connext DDS Services

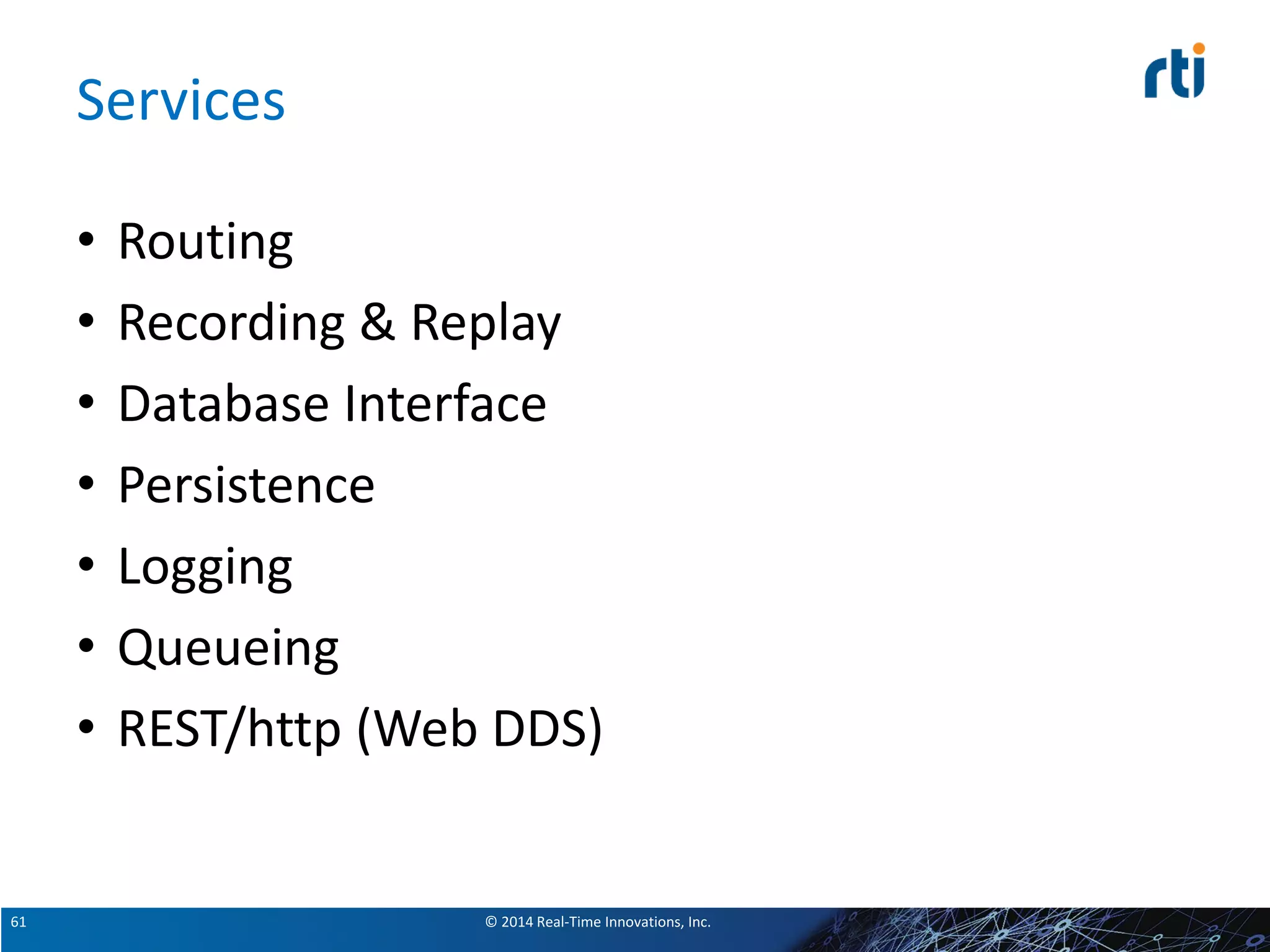

© 2014 Real-Time Innovations, Inc.61 Services • Routing • Recording & Replay • Database Interface • Persistence • Logging • Queueing • REST/http (Web DDS)

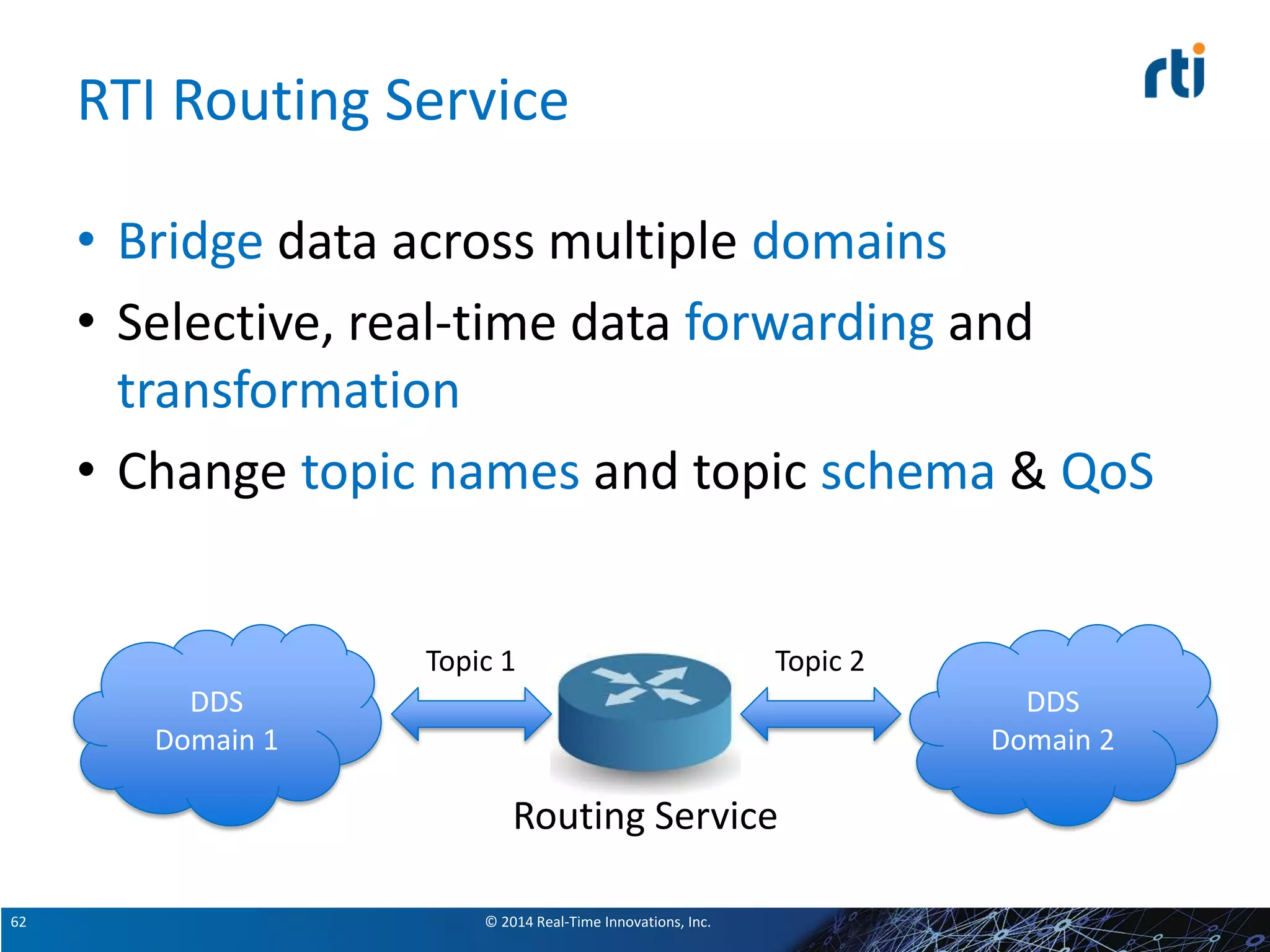

© 2014 Real-Time Innovations, Inc.62 RTI Routing Service • Bridge data across multiple domains • Selective, real-time data forwarding and transformation • Change topic names and topic schema & QoS DDS Domain 1 DDS Domain 2 Routing Service Topic 1 Topic 2

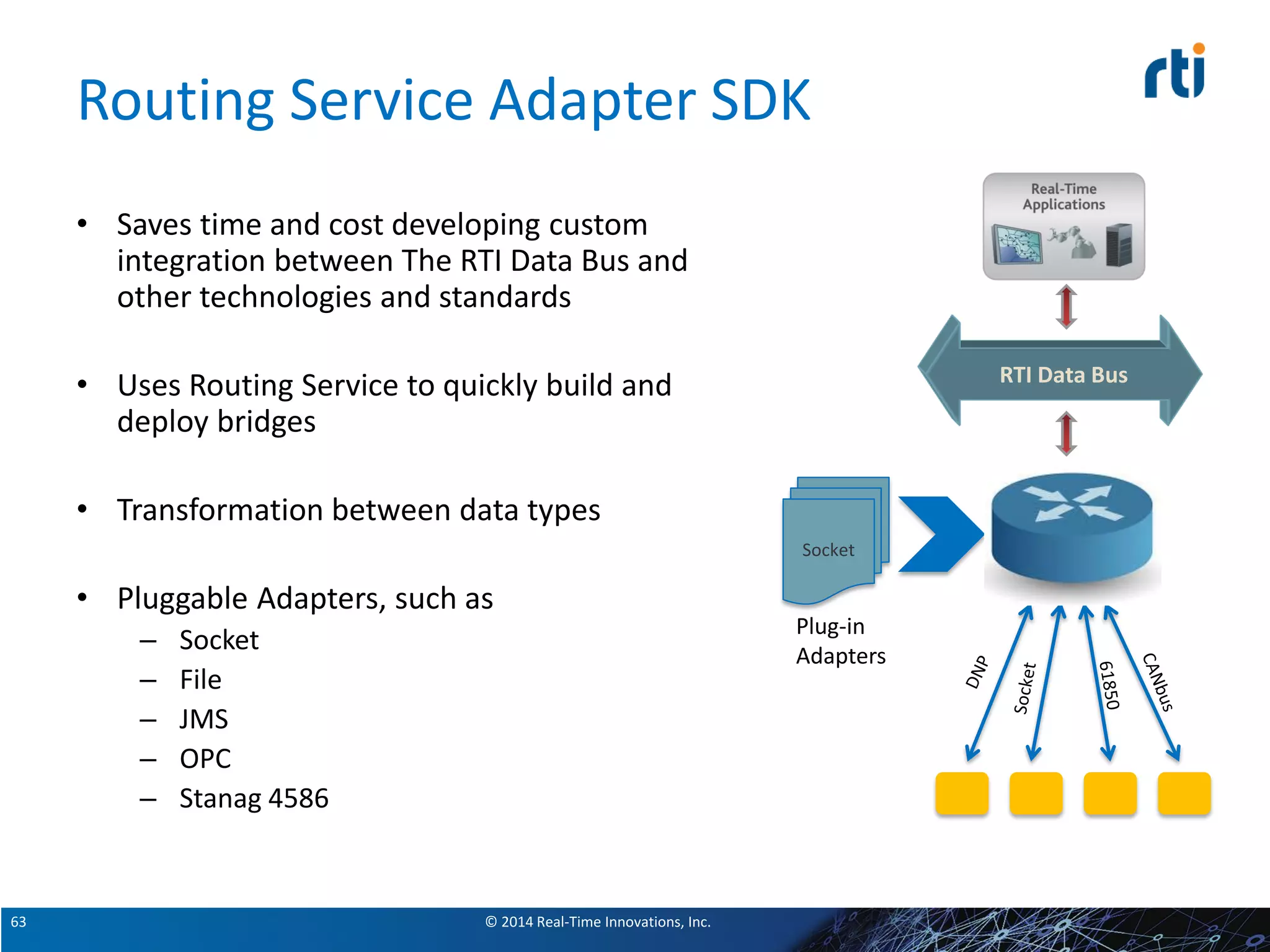

© 2014 Real-Time Innovations, Inc.63 Routing Service Adapter SDK • Saves time and cost developing custom integration between The RTI Data Bus and other technologies and standards • Uses Routing Service to quickly build and deploy bridges • Transformation between data types • Pluggable Adapters, such as – Socket – File – JMS – OPC – Stanag 4586 RTI Data Bus Socket Plug-in Adapters

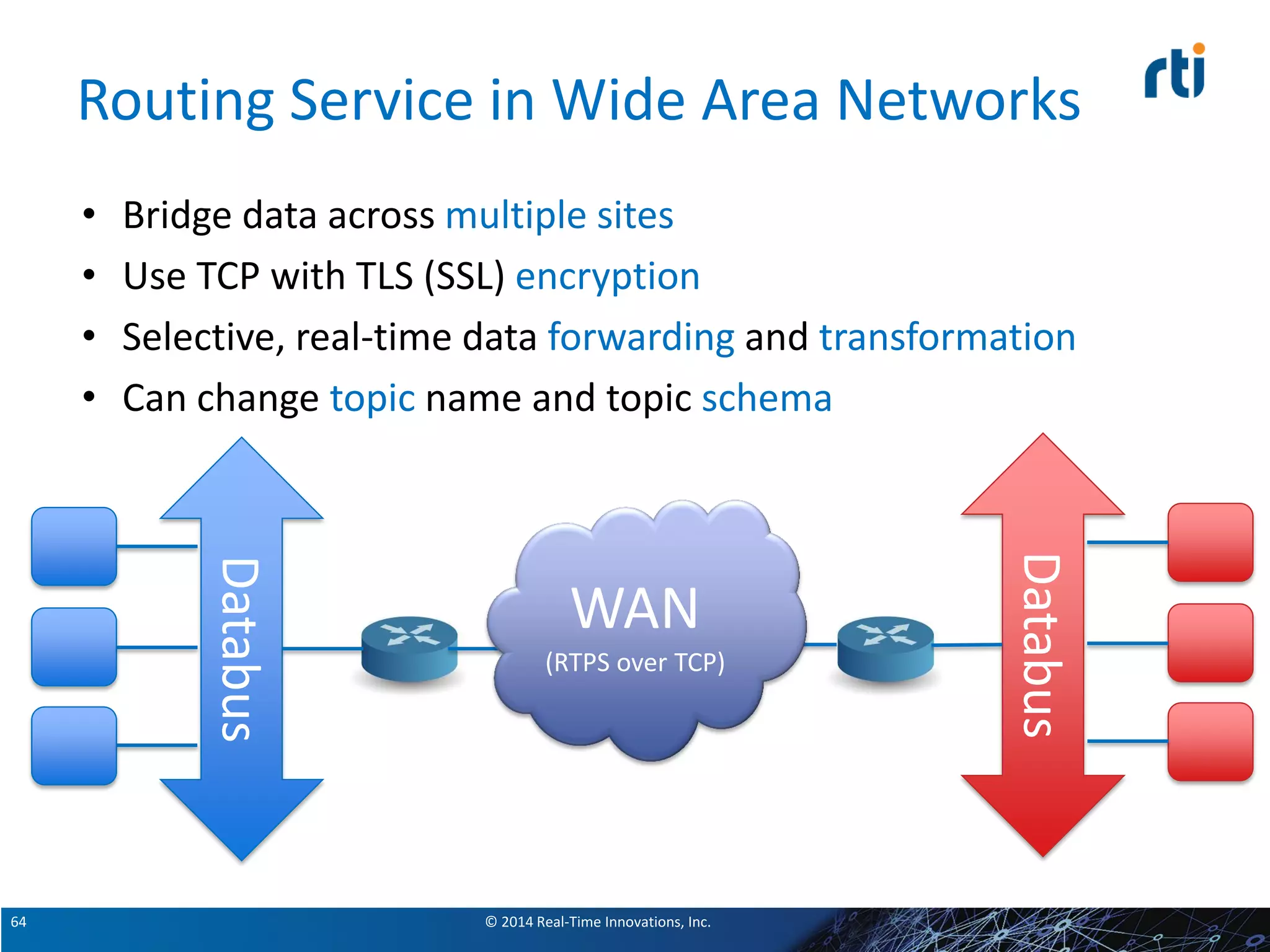

© 2014 Real-Time Innovations, Inc.64 Routing Service in Wide Area Networks • Bridge data across multiple sites • Use TCP with TLS (SSL) encryption • Selective, real-time data forwarding and transformation • Can change topic name and topic schema Databus Databus WAN (RTPS over TCP)

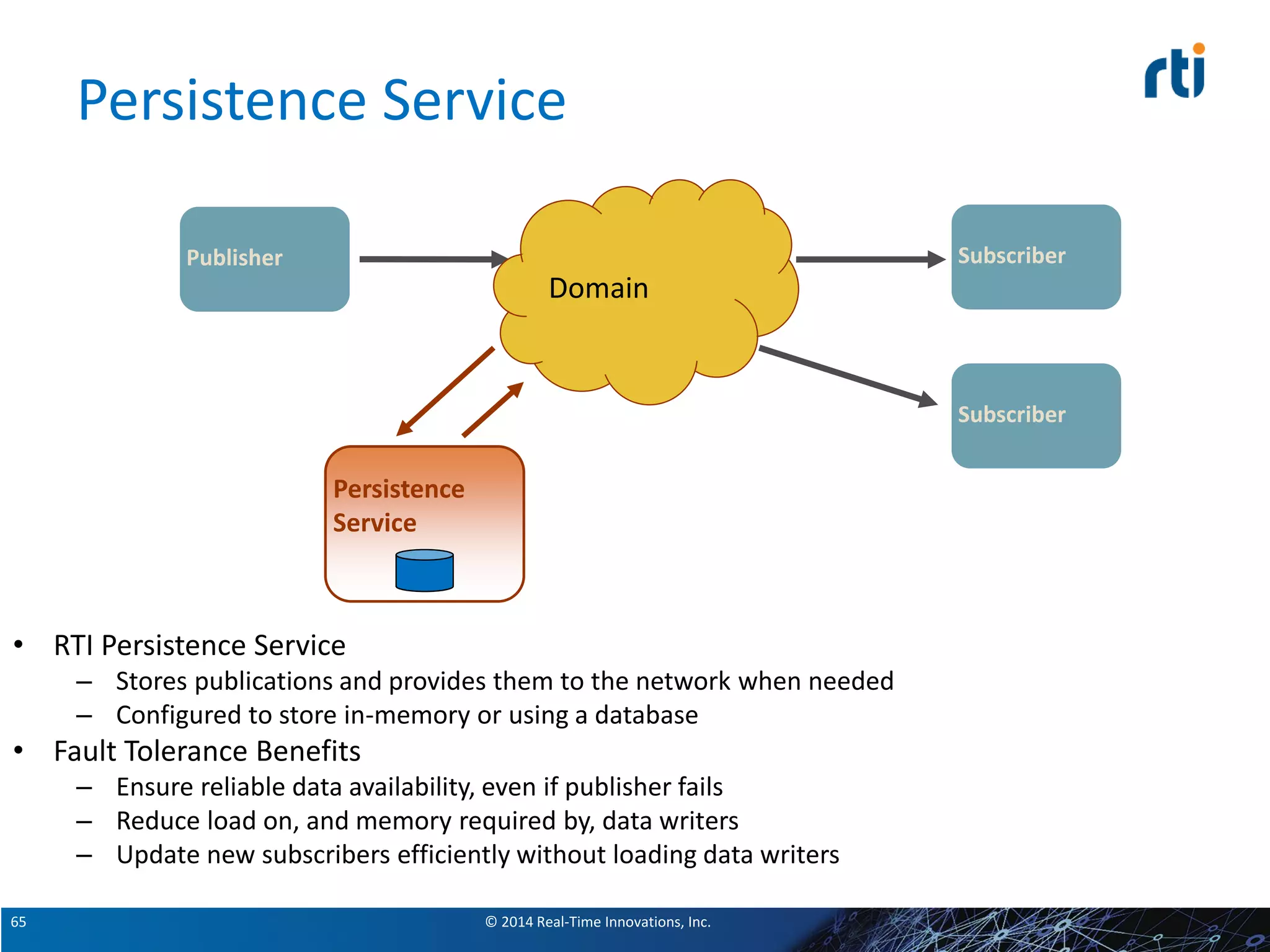

© 2014 Real-Time Innovations, Inc.65 Persistence Service • RTI Persistence Service – Stores publications and provides them to the network when needed – Configured to store in-memory or using a database • Fault Tolerance Benefits – Ensure reliable data availability, even if publisher fails – Reduce load on, and memory required by, data writers – Update new subscribers efficiently without loading data writers Publisher Subscriber Subscriber Persistence Service Domain

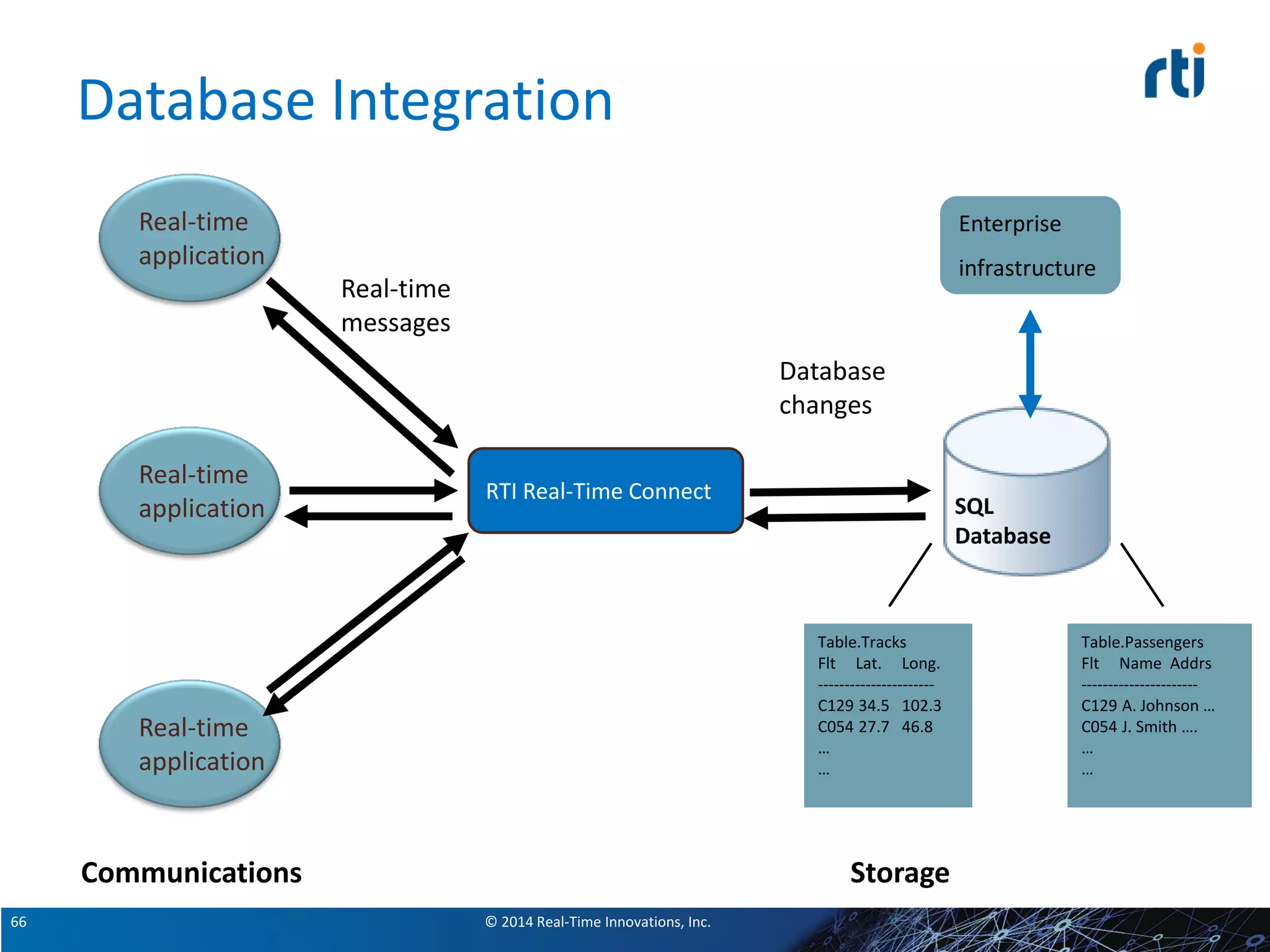

© 2014 Real-Time Innovations, Inc.66 Database Integration SQL Database Table.Passengers Flt Name Addrs ---------------------- C129 A. Johnson … C054 J. Smith …. … … Table.Tracks Flt Lat. Long. ---------------------- C129 34.5 102.3 C054 27.7 46.8 … … RTI Real-Time Connect Real-time application Real-time application Real-time application Communications Storage Real-time messages Enterprise infrastructure Database changes

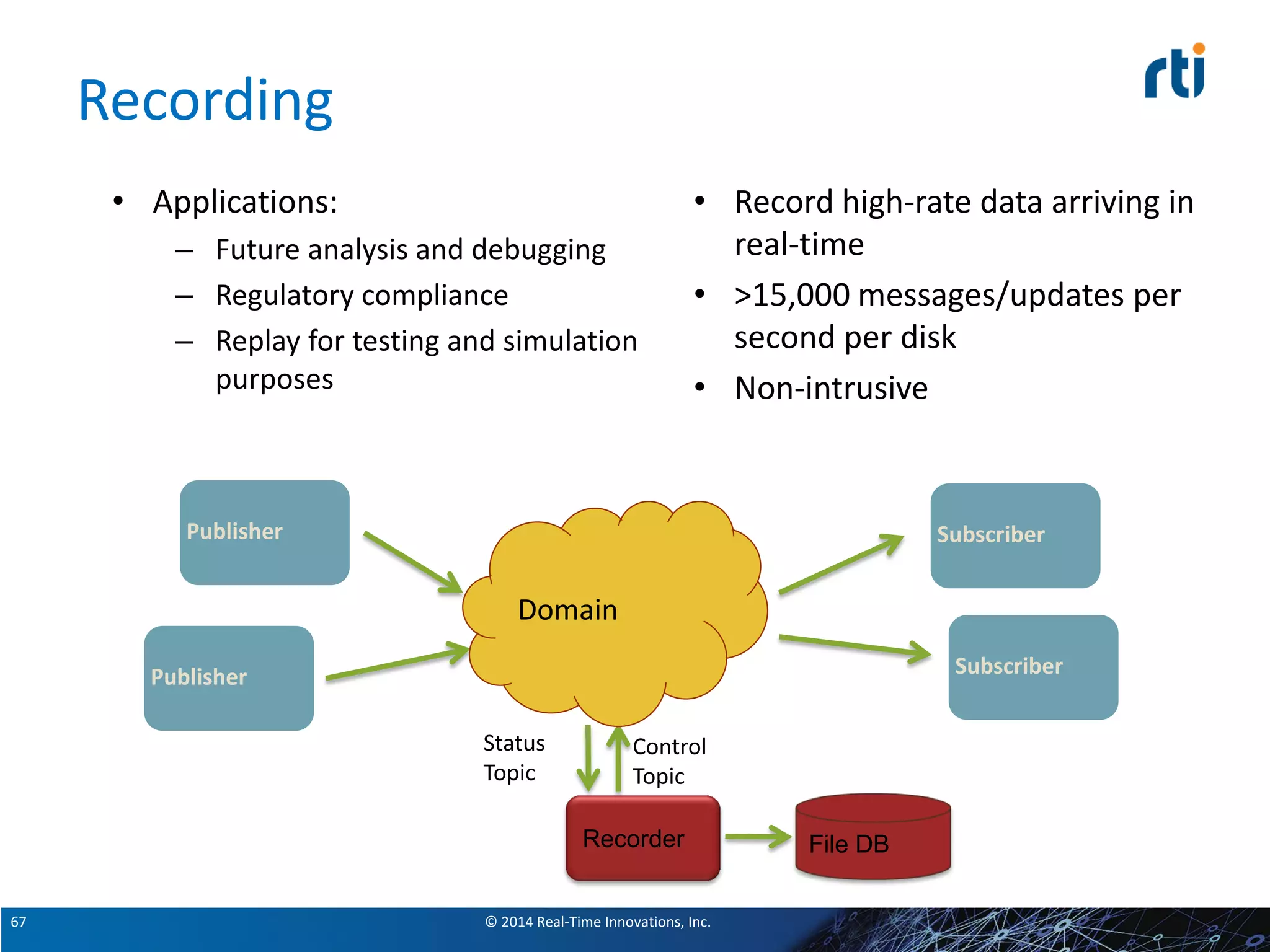

© 2014 Real-Time Innovations, Inc.67 Recording • Applications: – Future analysis and debugging – Regulatory compliance – Replay for testing and simulation purposes • Record high-rate data arriving in real-time • >15,000 messages/updates per second per disk • Non-intrusive Recorder Status Topic Control Topic File DB Domain Publisher Publisher Subscriber Subscriber

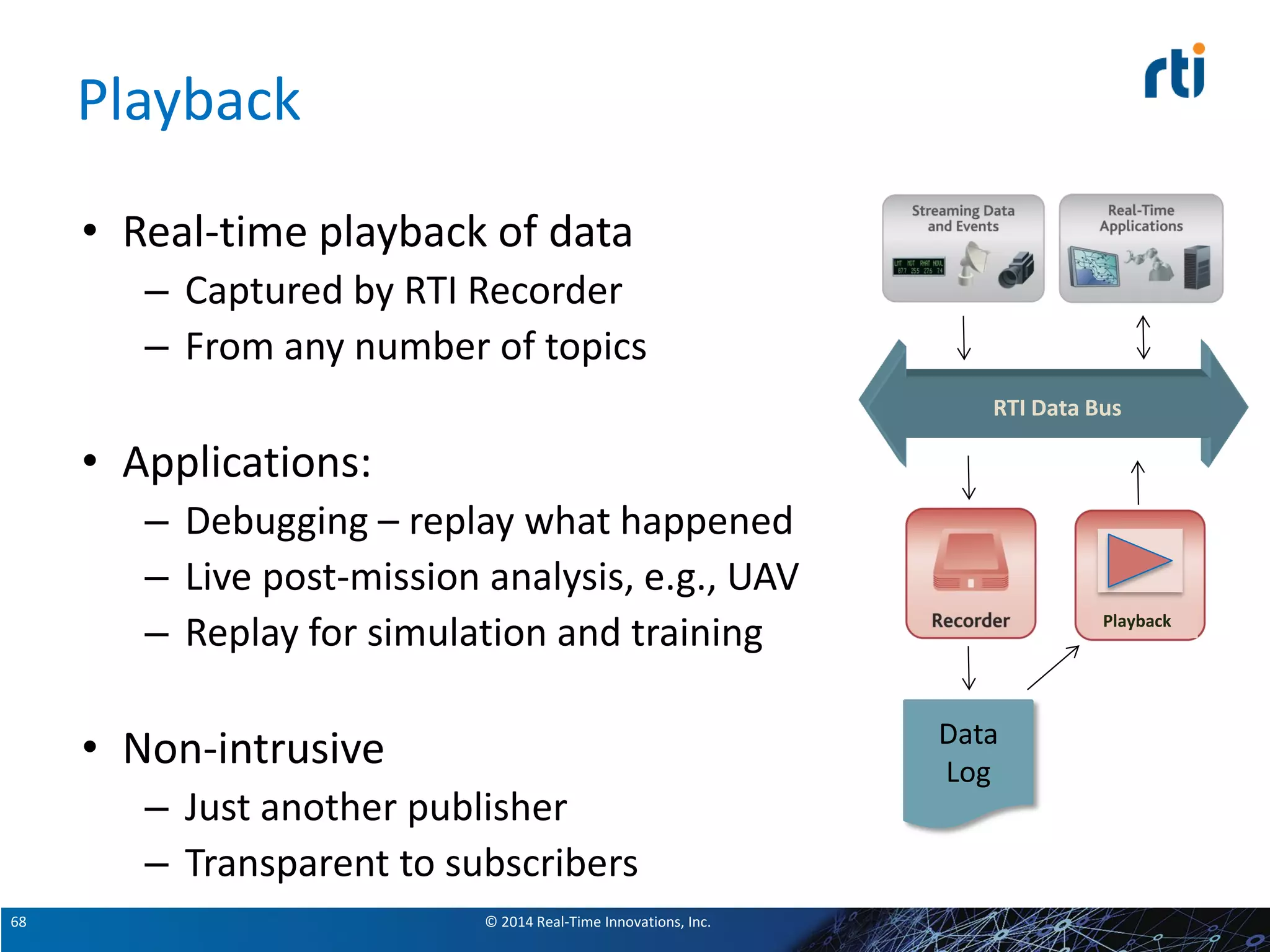

© 2014 Real-Time Innovations, Inc.68 Playback • Real-time playback of data – Captured by RTI Recorder – From any number of topics • Applications: – Debugging – replay what happened – Live post-mission analysis, e.g., UAV – Replay for simulation and training • Non-intrusive – Just another publisher – Transparent to subscribers Data Log Playback RTI Data Bus

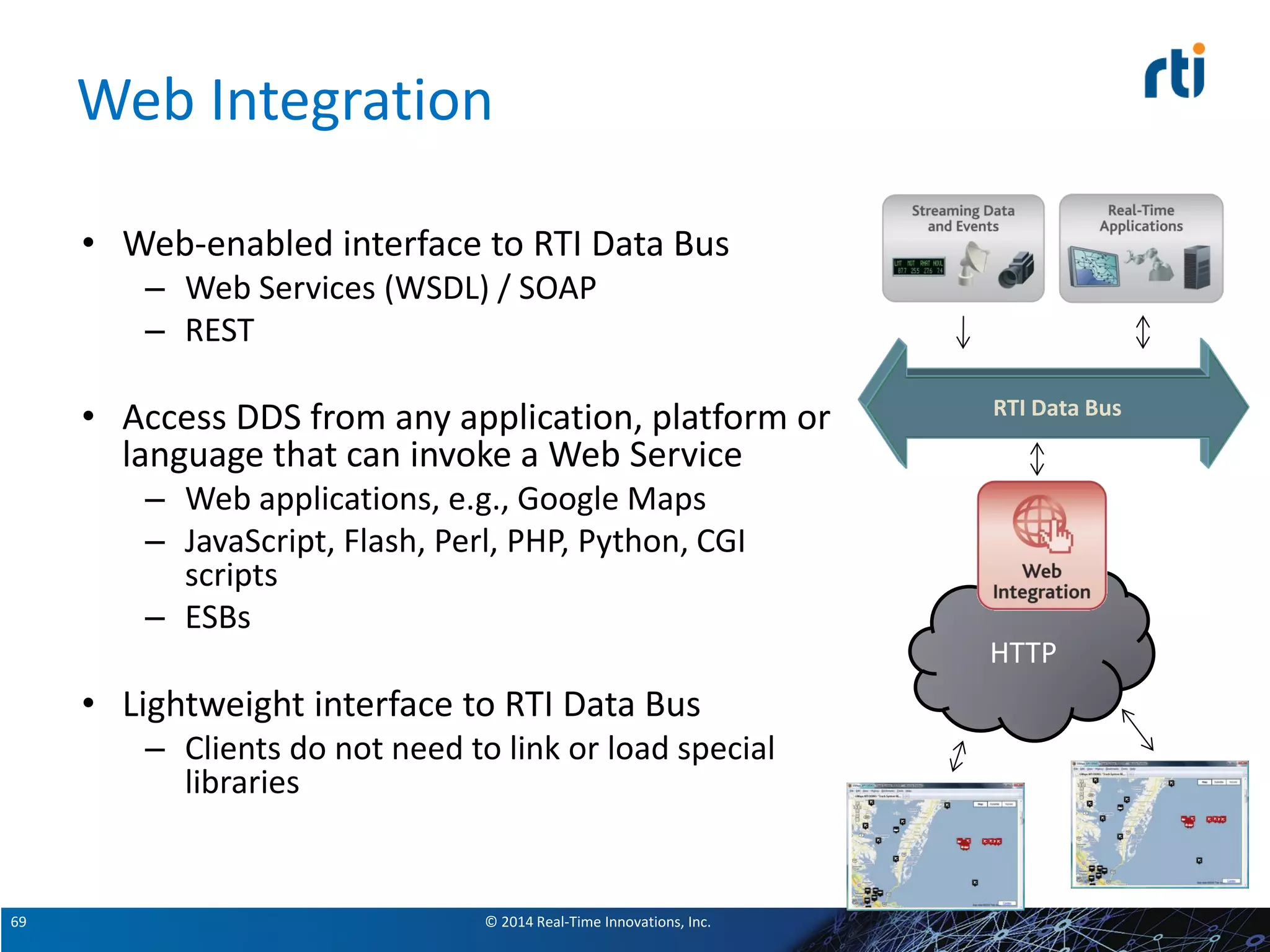

© 2014 Real-Time Innovations, Inc.69 Web Integration HTTP • Web-enabled interface to RTI Data Bus – Web Services (WSDL) / SOAP – REST • Access DDS from any application, platform or language that can invoke a Web Service – Web applications, e.g., Google Maps – JavaScript, Flash, Perl, PHP, Python, CGI scripts – ESBs • Lightweight interface to RTI Data Bus – Clients do not need to link or load special libraries RTI Data Bus
© 2014 Real-Time Innovations, Inc. RTI Connext DDS Tools

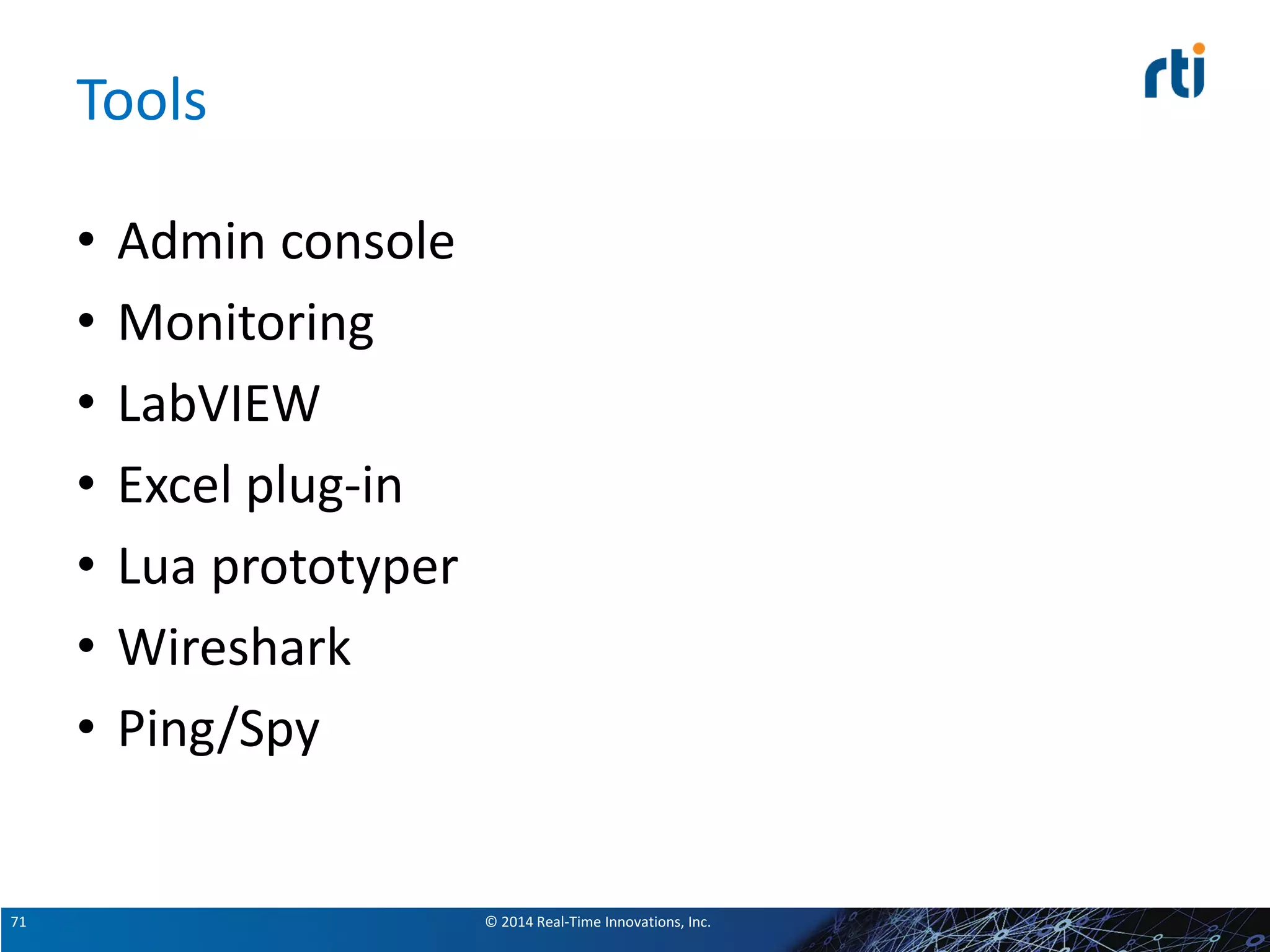

© 2014 Real-Time Innovations, Inc.71 Tools • Admin console • Monitoring • LabVIEW • Excel plug-in • Lua prototyper • Wireshark • Ping/Spy

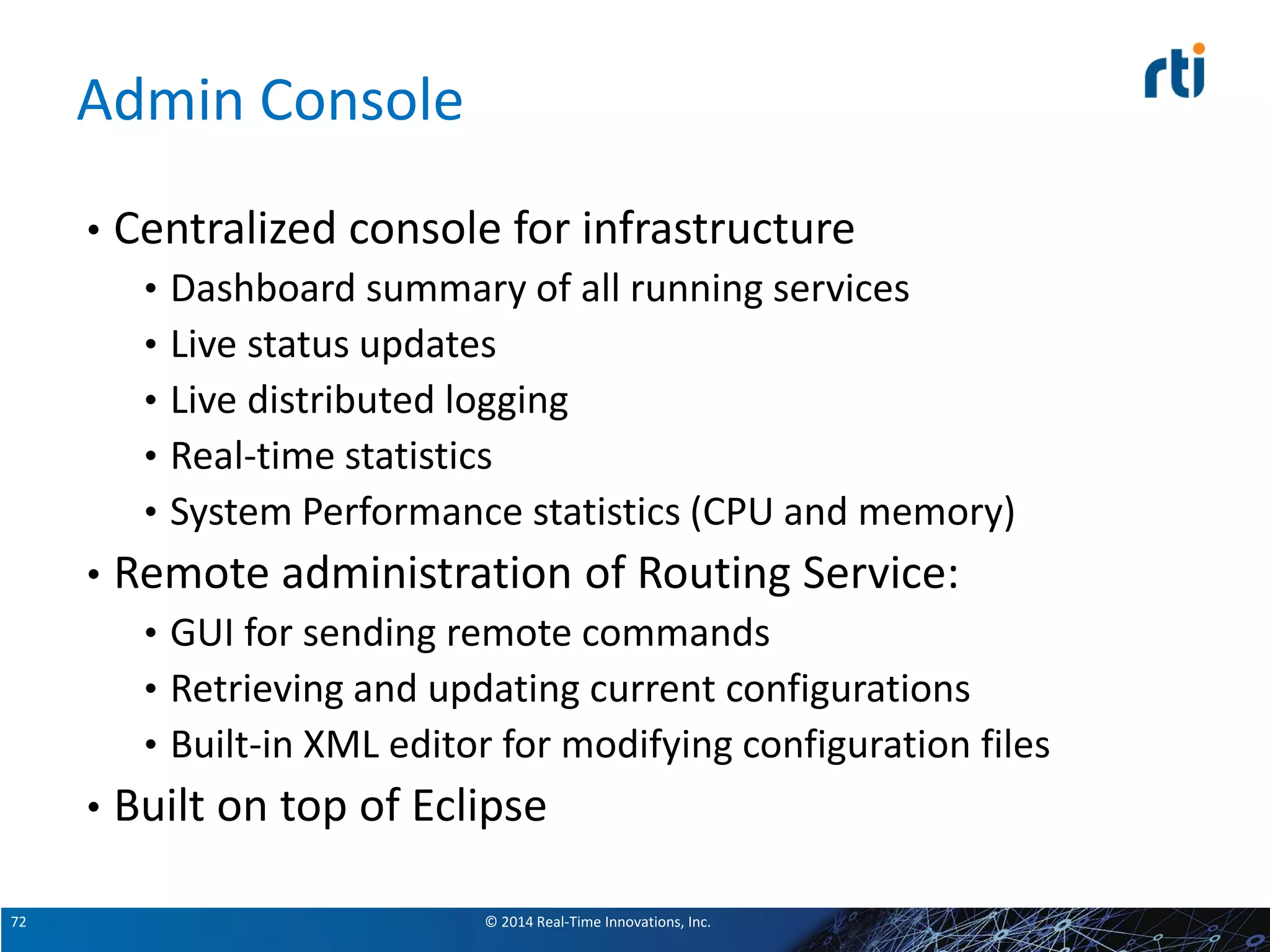

© 2014 Real-Time Innovations, Inc.72 Admin Console • Centralized console for infrastructure • Dashboard summary of all running services • Live status updates • Live distributed logging • Real-time statistics • System Performance statistics (CPU and memory) • Remote administration of Routing Service: • GUI for sending remote commands • Retrieving and updating current configurations • Built-in XML editor for modifying configuration files • Built on top of Eclipse

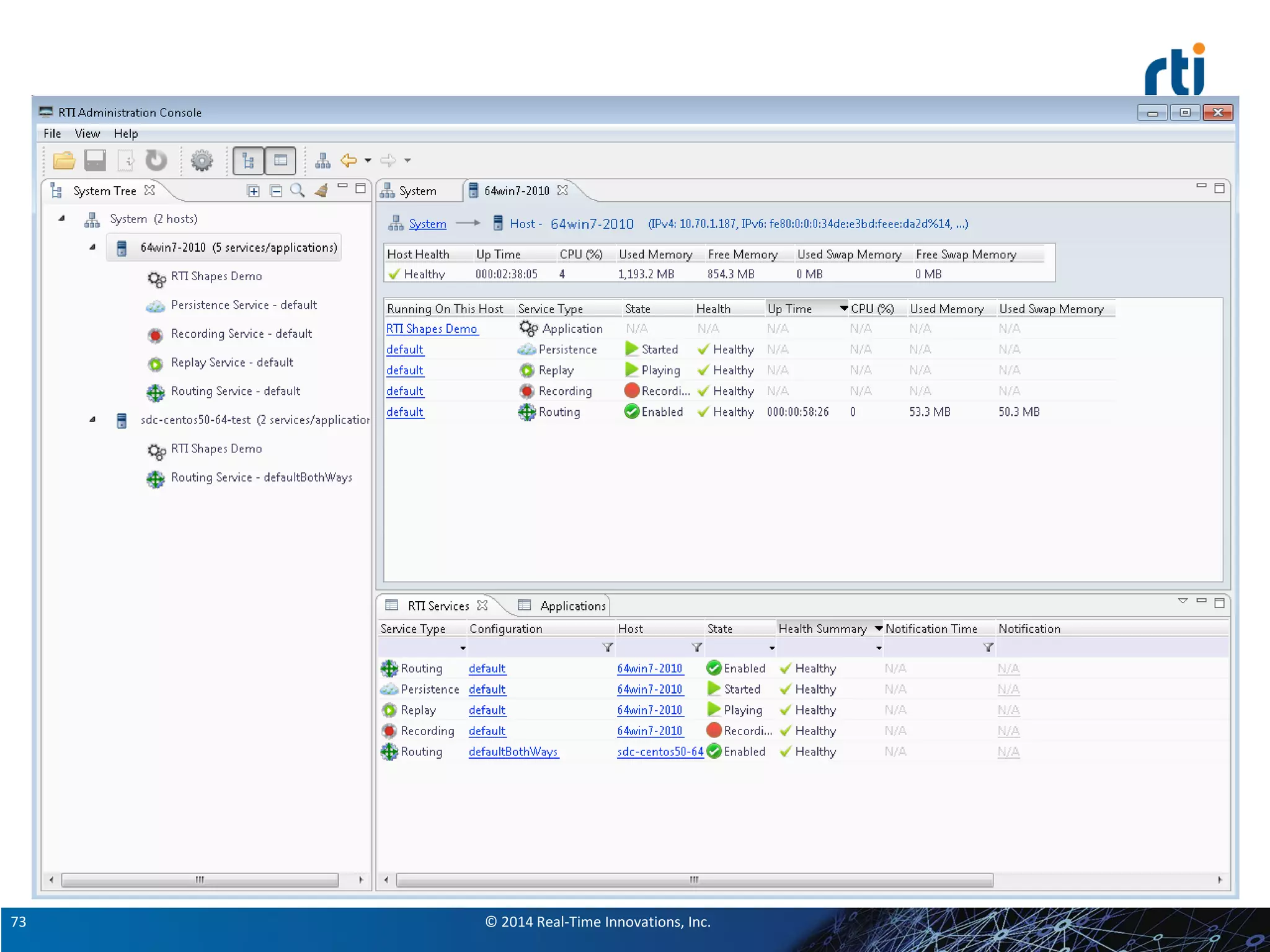

© 2014 Real-Time Innovations, Inc.73

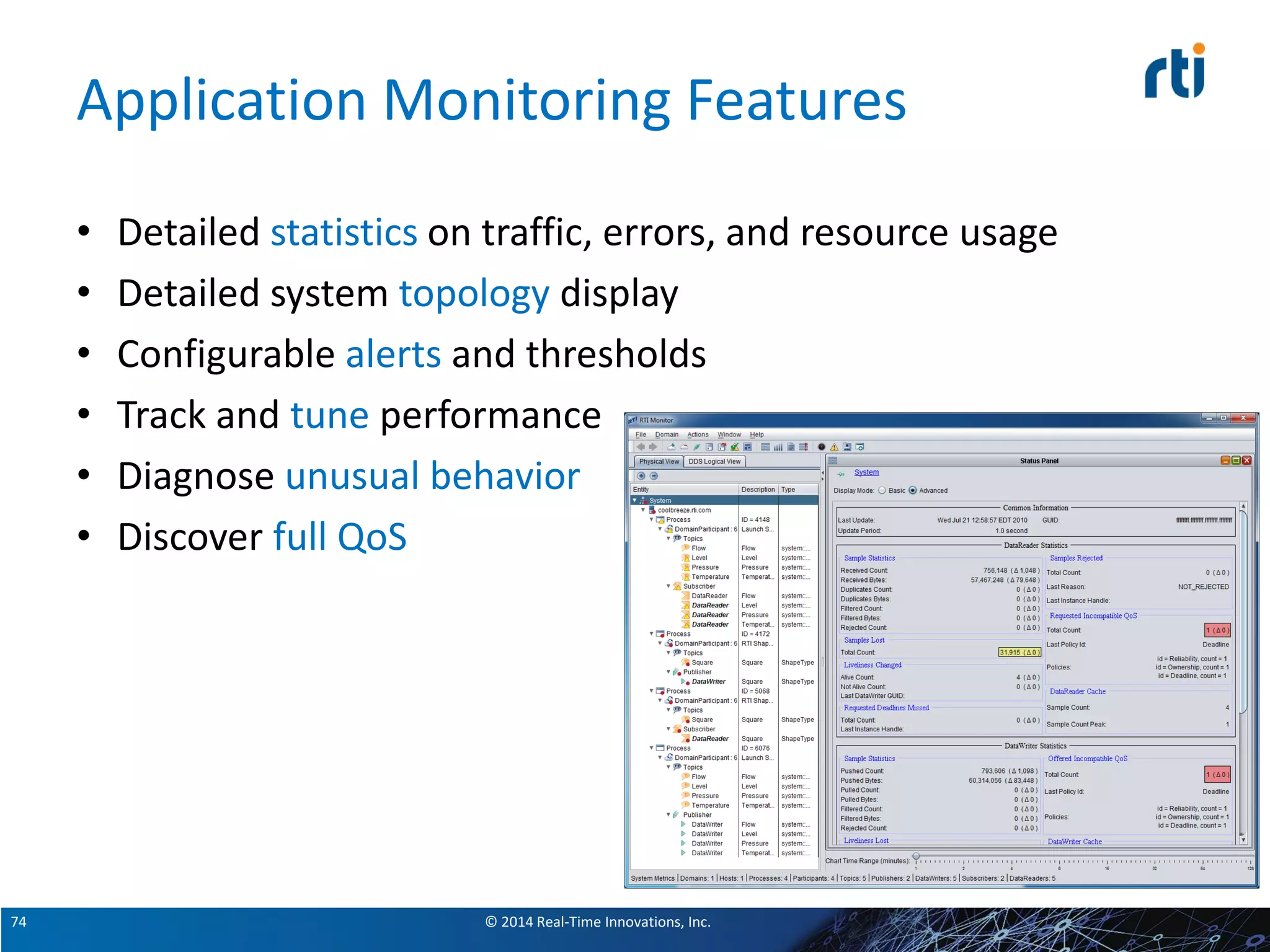

© 2014 Real-Time Innovations, Inc.74 Application Monitoring Features • Detailed statistics on traffic, errors, and resource usage • Detailed system topology display • Configurable alerts and thresholds • Track and tune performance • Diagnose unusual behavior • Discover full QoS

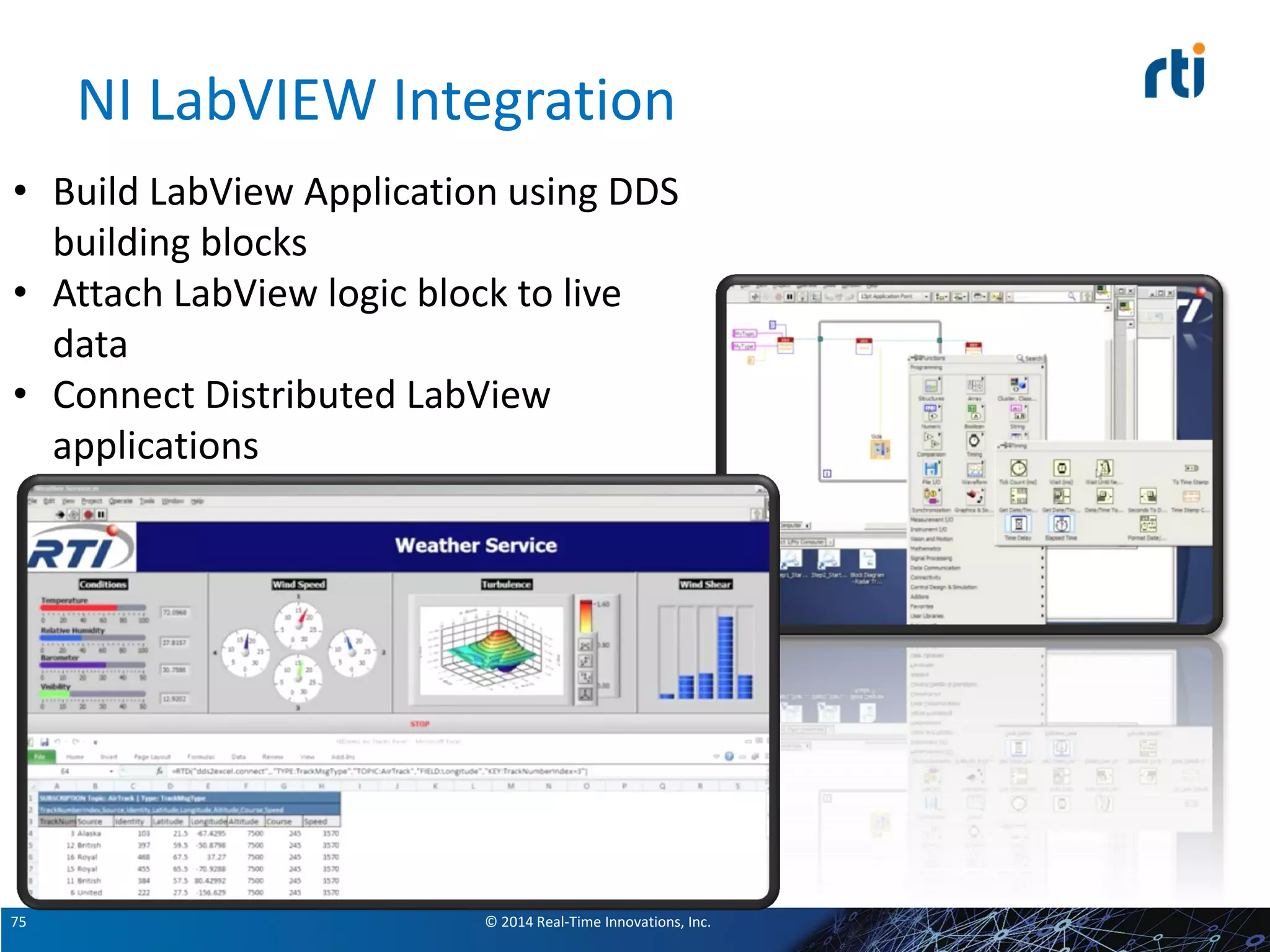

© 2014 Real-Time Innovations, Inc.75 NI LabVIEW Integration • Build LabView Application using DDS building blocks • Attach LabView logic block to live data • Connect Distributed LabView applications

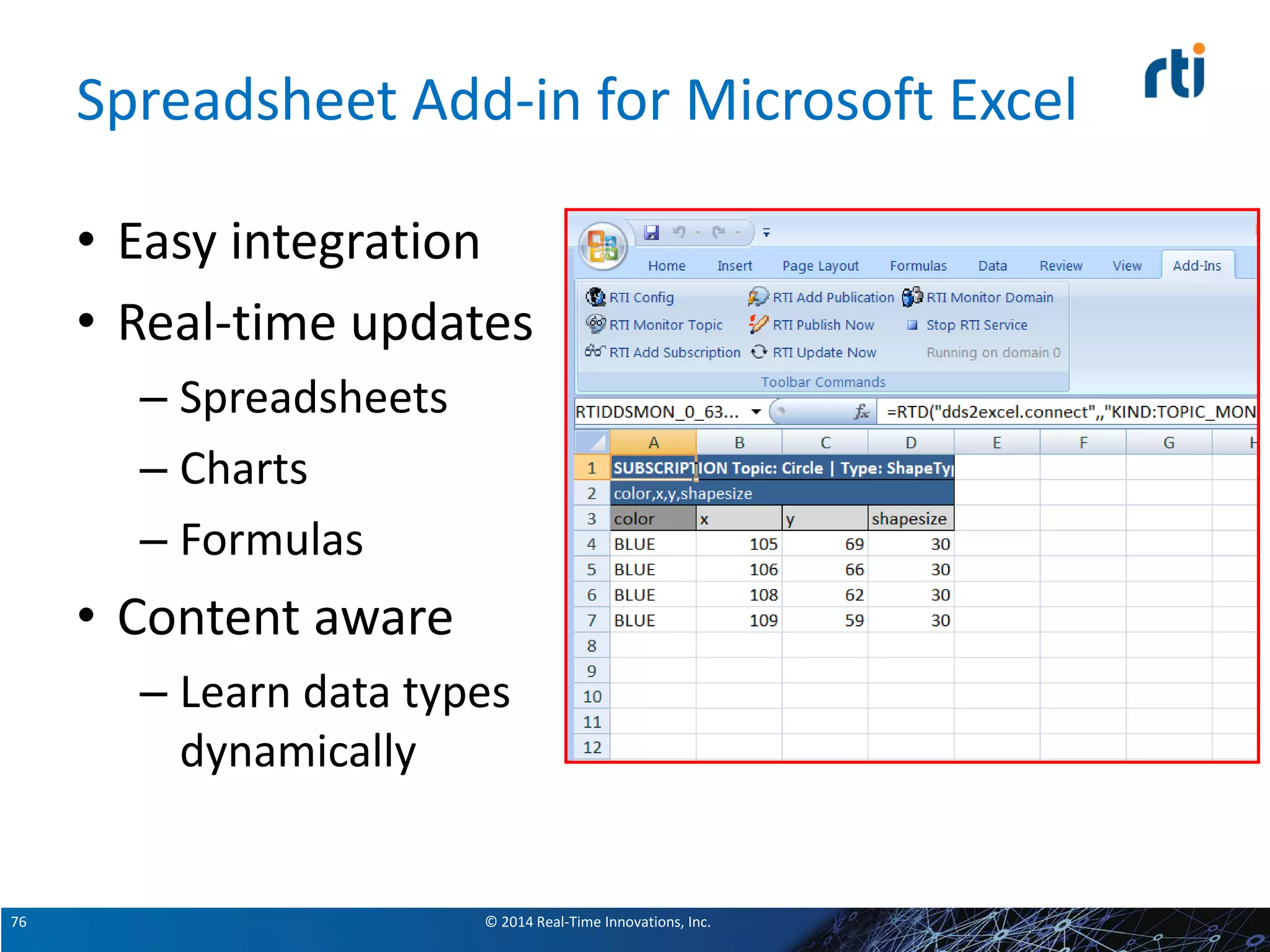

© 2014 Real-Time Innovations, Inc.76 Spreadsheet Add-in for Microsoft Excel • Easy integration • Real-time updates – Spreadsheets – Charts – Formulas • Content aware – Learn data types dynamically

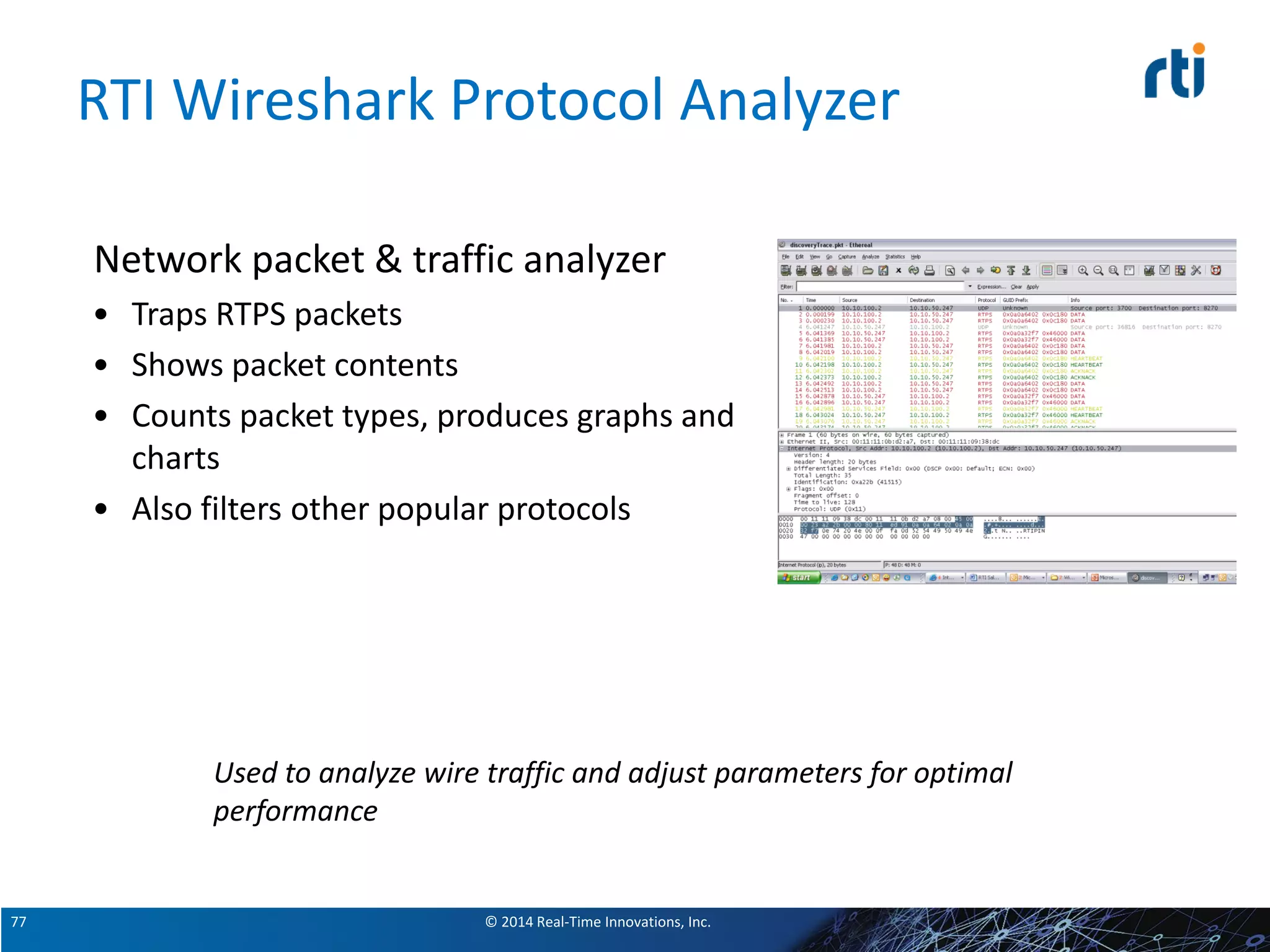

© 2014 Real-Time Innovations, Inc.77 RTI Wireshark Protocol Analyzer Network packet & traffic analyzer • Traps RTPS packets • Shows packet contents • Counts packet types, produces graphs and charts • Also filters other popular protocols Used to analyze wire traffic and adjust parameters for optimal performance
© 2014 Real-Time Innovations, Inc. RTI: Driving the DDS Standard

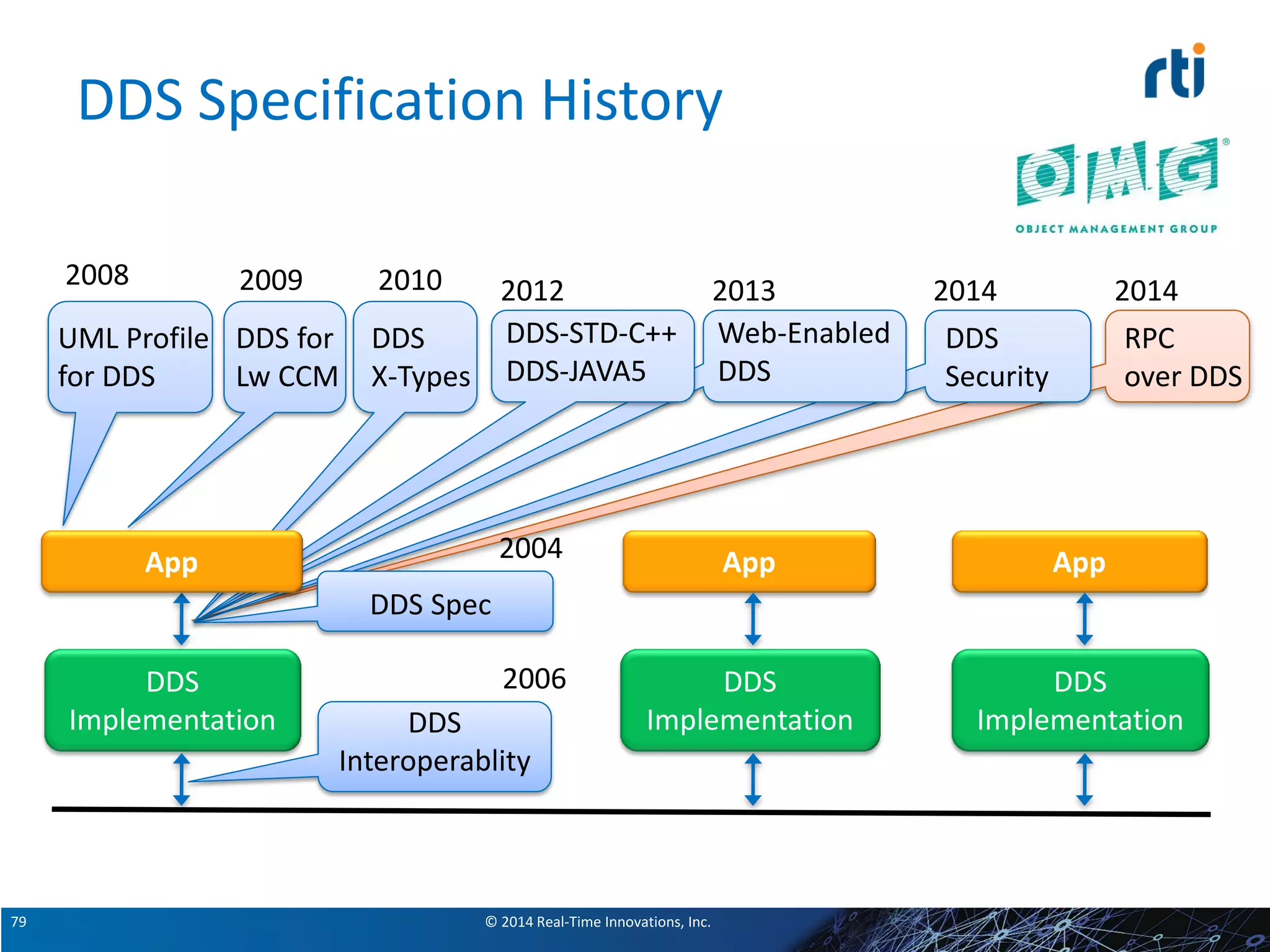

© 2014 Real-Time Innovations, Inc.79 DDS Specification History RPC over DDS 2014 DDS Security 2014 Web-Enabled DDS 2013 DDS Implementation App DDS Implementation App DDS Implementation DDS Spec 2004 DDS Interoperablity 2006 UML Profile for DDS 2008 DDS for Lw CCM 2009 DDS-STD-C++ DDS-JAVA5 2012 DDS X-Types 2010 App

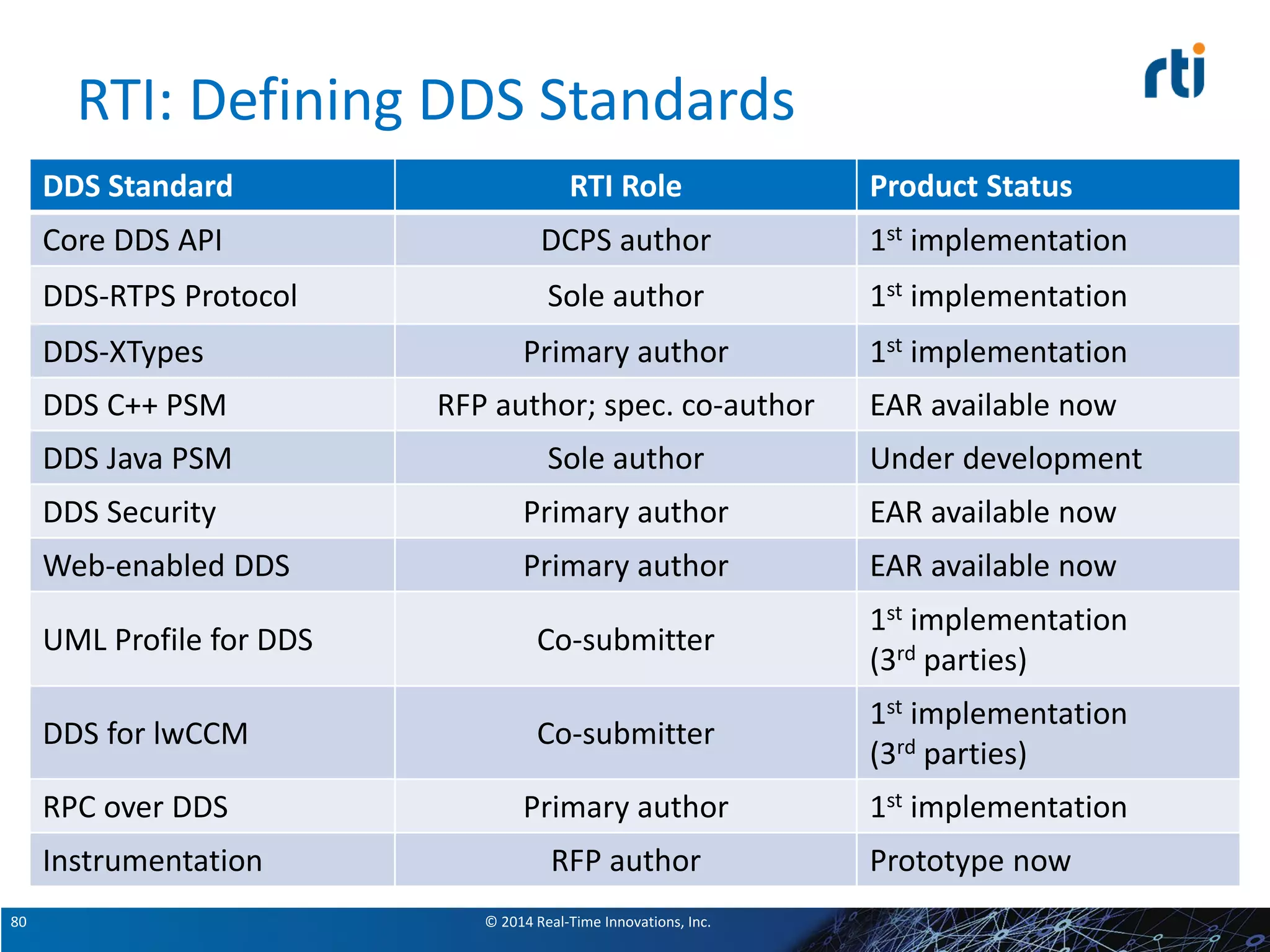

© 2014 Real-Time Innovations, Inc.80 RTI: Defining DDS Standards DDS Standard RTI Role Product Status Core DDS API DCPS author 1st implementation DDS-RTPS Protocol Sole author 1st implementation DDS-XTypes Primary author 1st implementation DDS C++ PSM RFP author; spec. co-author EAR available now DDS Java PSM Sole author Under development DDS Security Primary author EAR available now Web-enabled DDS Primary author EAR available now UML Profile for DDS Co-submitter 1st implementation (3rd parties) DDS for lwCCM Co-submitter 1st implementation (3rd parties) RPC over DDS Primary author 1st implementation Instrumentation RFP author Prototype now
