The fishbone diagram identifies incorrect stand measurements as the root cause of delayed delivery of water tanks to customers. This occurred when stands were provided with incorrect measurements, which resulted in tanks not fitting onto the stands. Key issues included employees not double checking stand measurements before transfer, stands being transferred with the wrong measurements, and inaccurate or outdated stand measurement lists being provided. The consequences were tanks being put on hold, additional rework of stands, and delayed inspection and delivery of tanks to customers.

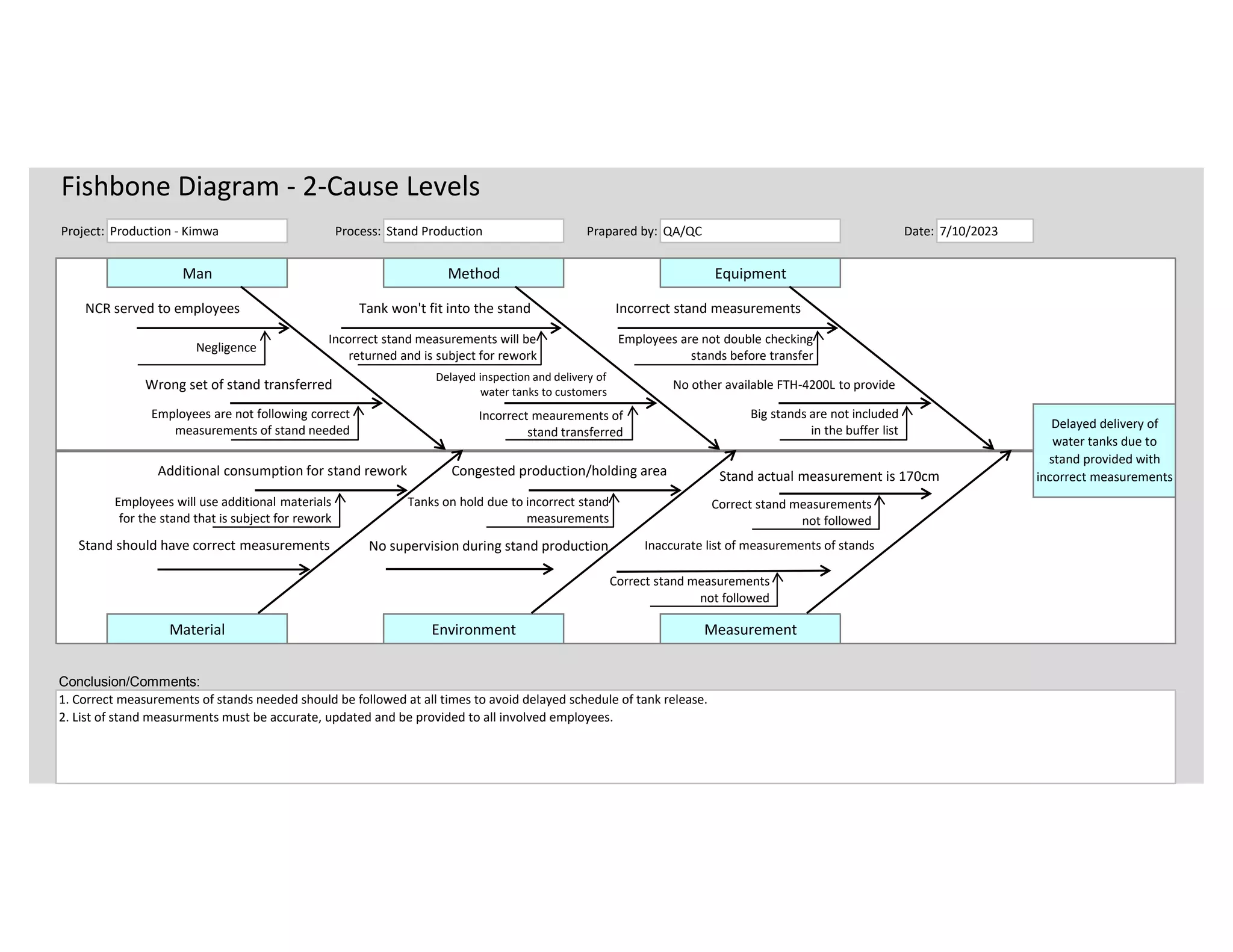

1. Fishbone Diagram - 2-Cause Levels
Project: Production - Kimwa Process: Stand Production Prapared by: QA/QC Date: 7/10/2023
Man Method Equipment
Material Environment Measurement
Conclusion/Comments:
Delayed delivery of
water tanks due to
stand provided with
incorrect measurements
1. Correct measurements of stands needed should be followed at all times to avoid delayed schedule of tank release.
2. List of stand measurments must be accurate, updated and be provided to all involved employees.
Incorrect stand measurements
Employees are not double checking
stands before transfer
No other available FTH-4200L to provide
Big stands are not included
in the buffer list
Delayed inspection and delivery of
water tanks to customers
Incorrect meaurements of
stand transferred
NCR served to employees
Negligence
Wrong set of stand transferred
Employees are not following correct
measurements of stand needed
Congested production/holding area
Tanks on hold due to incorrect stand
measurements
Stand should have correct measurements
Additional consumption for stand rework
Employees will use additional materials
for the stand that is subject for rework
No supervision during stand production
Stand actual measurement is 170cm
Correct stand measurements
not followed
Inaccurate list of measurements of stands
Correct stand measurements
not followed
Tank won't fit into the stand
Incorrect stand measurements will be
returned and is subject for rework
